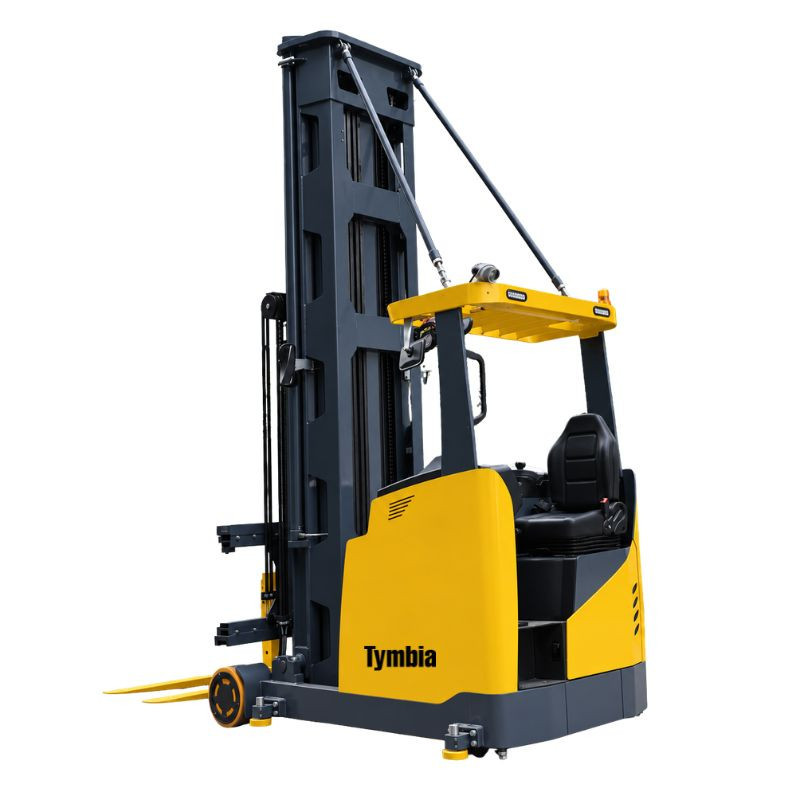

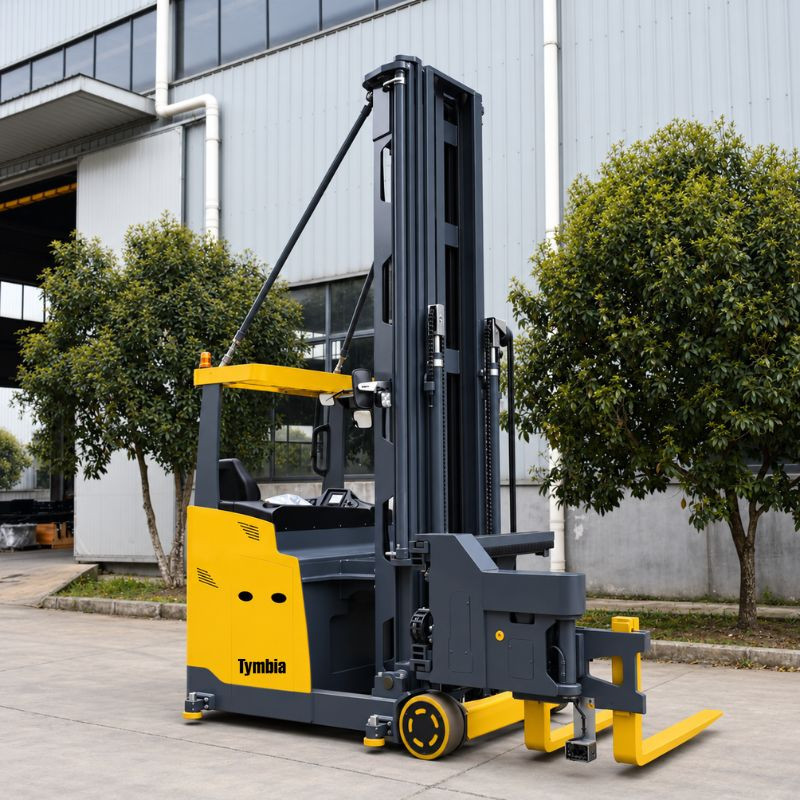

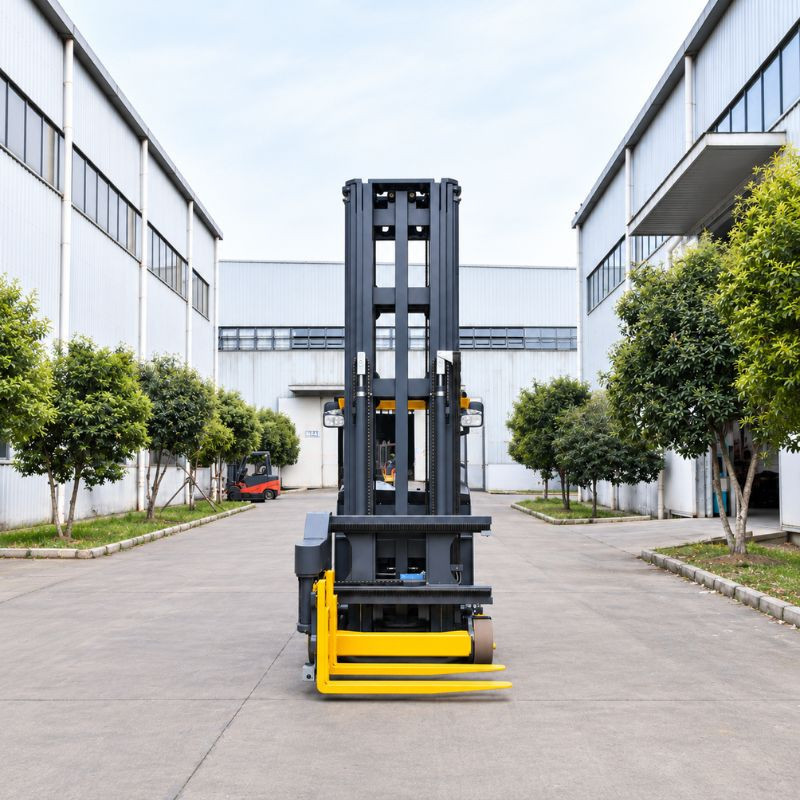

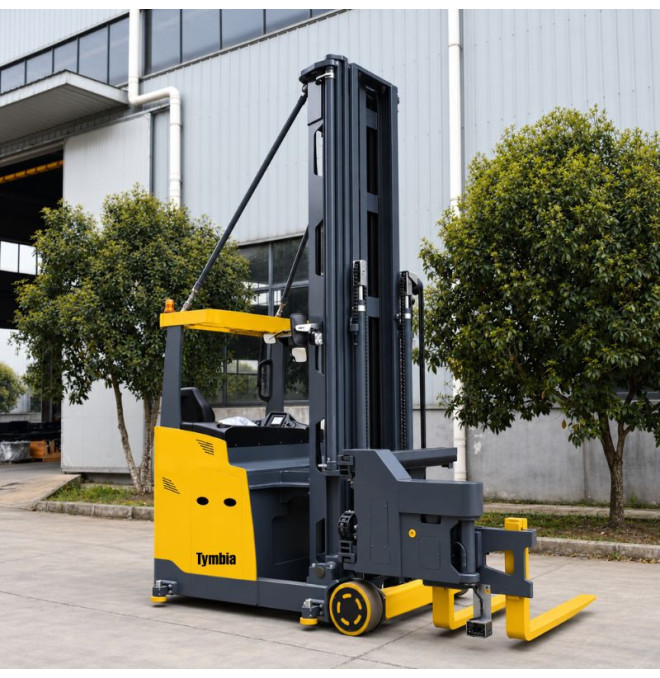

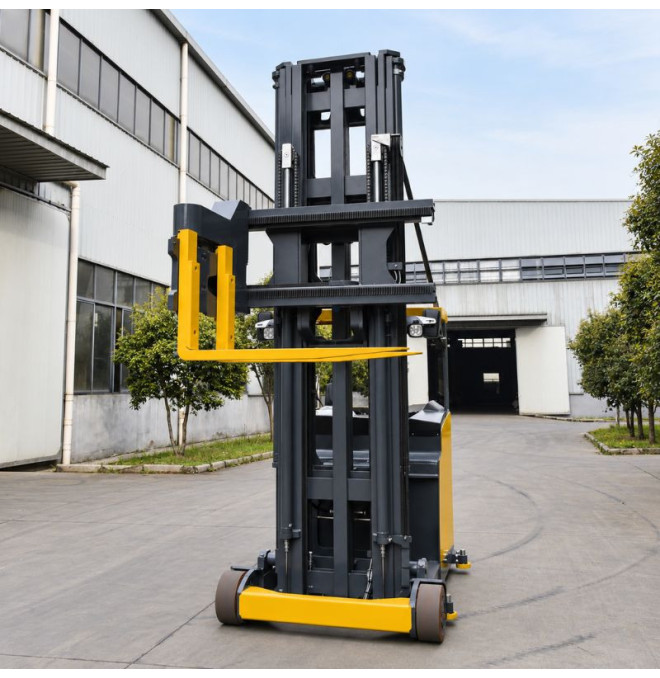

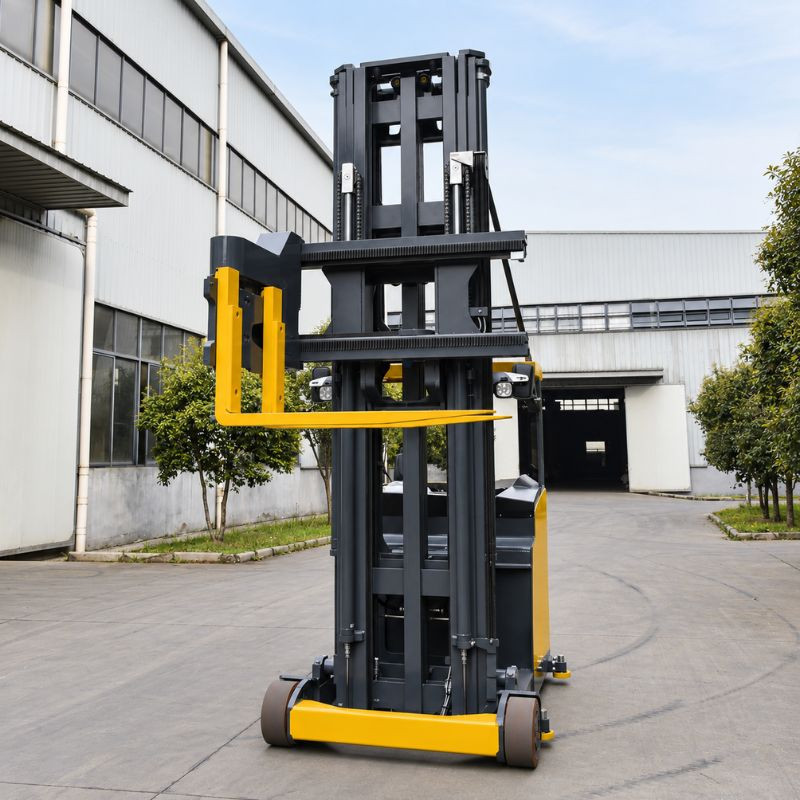

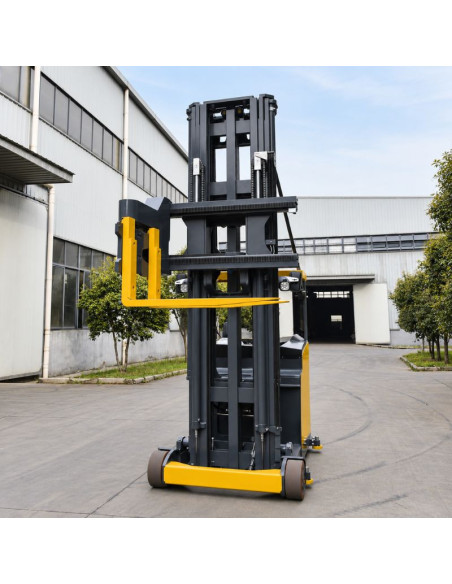

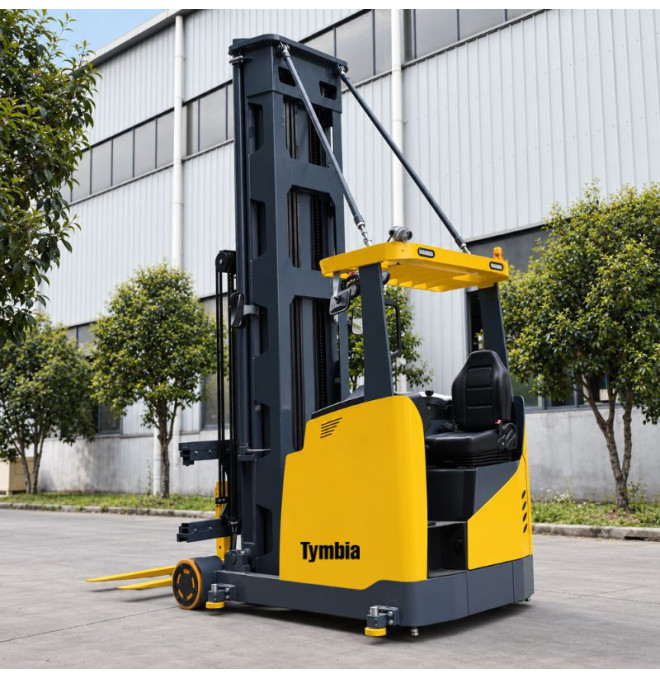

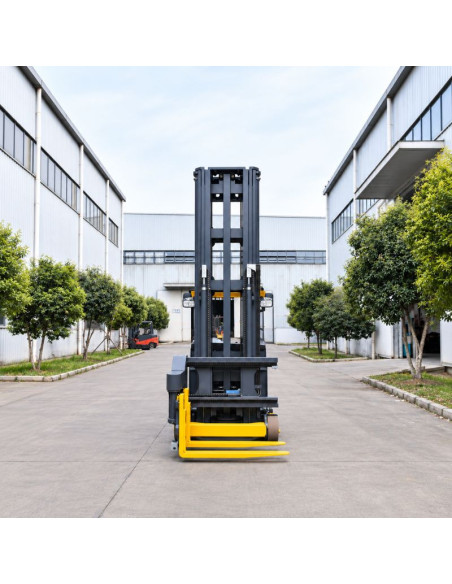

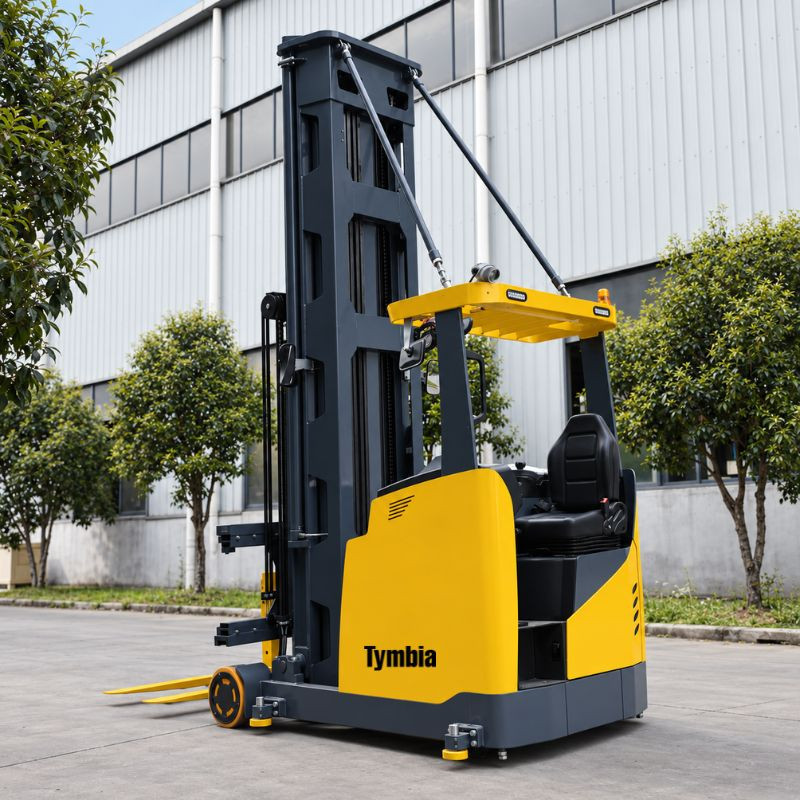

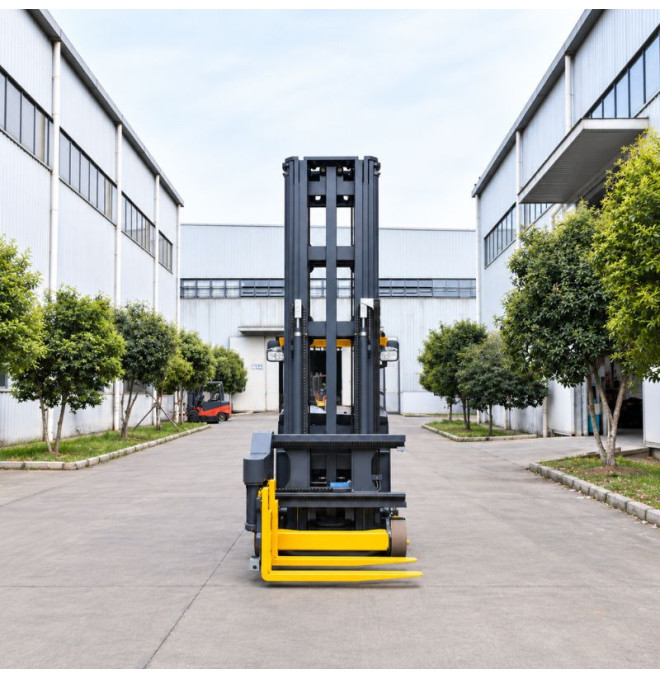

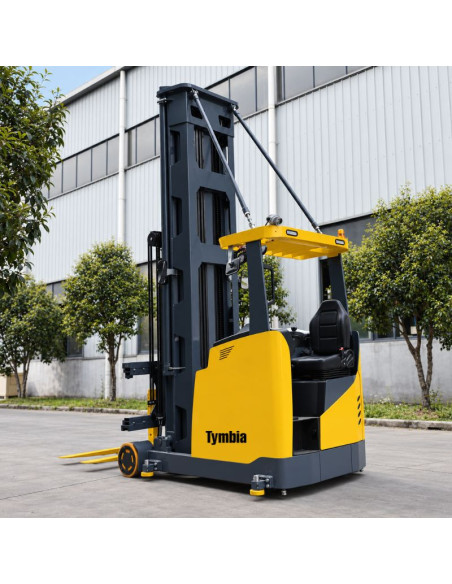

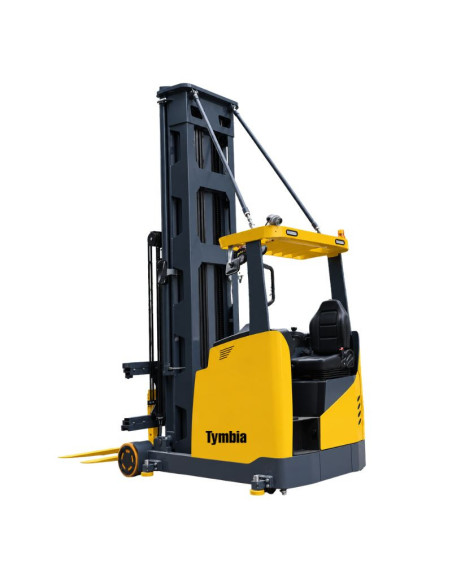

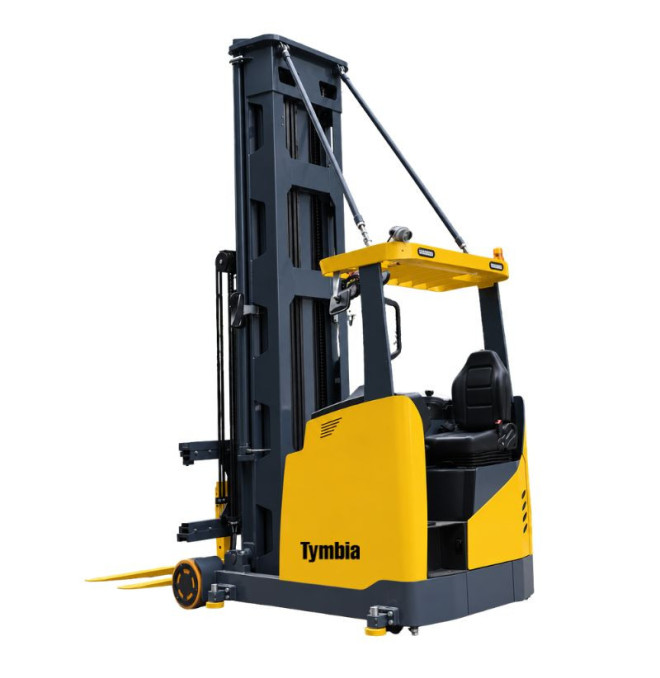

Trilateral Trolley McA16

The electric trirow Tymbia McA16 of 1600kg is designed for logistics facilities that need to make the most of the available space, reducing the width of the corridors and increasing the storage capacity in height.

Its nominal capacity is 1600kg with a cargo center of 600mm and has a seated driving position, providing greater comfort for intensive operations and long-running.

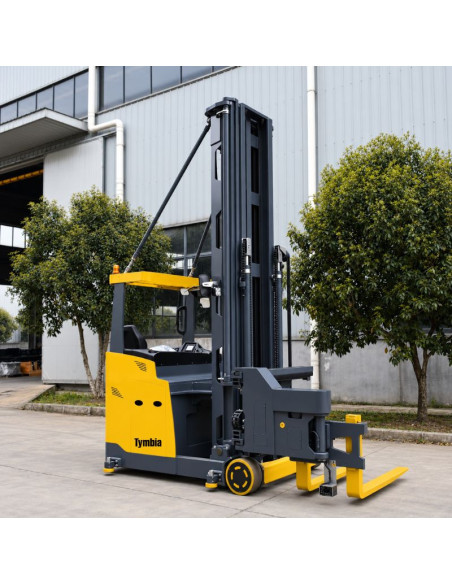

The trilateral head is completely electric and allows you to position the forks to both sides of the hallway without the need to completely rotate the machine. This solution allows to work on minimum corridors of approximately 1600mm, significantly increasing storage density against a conventional wheelbarrow.

The standard configuration has a lifting height of 4500mm, 1670mm free lifting and a mast retracted from 2765mm. For facilities that require greater height, it can be made progressively with different free lifting triplex masts until reaching a maximum of 12,000mm.

The drive uses AC technology, with an 8KW traction engine and a 15KW lifting engine. The address is completely electrical and the braking system combines regenerative and hydraulic braking with electromagnetic parking brake. The machine can work by mechanical guidance by rail and also supports optional magnetic guidance, allowing the installation to the specific characteristics of the warehouse

Featured features:

• Nominal capacity of 1600kg
• 600mm cargo center
• Sitting
• Standard height of 4500mm
• Configurable heights up to 12,000mm
• Triplex mast with free elevation
• Minimum hall of approximately 1600mm
• Fully electric trilateral head
• Traction engine 8 kW AC
• Lifting motor 15 kW AC
• Assisted electric address
• Regenerative and hydraulic brake
• Electromagnetic parking brake
• HD camera on forks
• Laser System of Help to positioning
• Indicator of the angle of the drive wheel
• Seat
• Pedal of presence
• Side extraction battery
• Mechanical guidance by railings
• Magnetic guidance optional

Advantages:

• Nominal capacity of 1600kg
• Work in corridors from about 1600mm
• Standard configuration of 4500mm
• Heights available up to 12,000mm
• Free 1670mm lift in standard configuration
• Fully electric trilateral head
• Greater use of warehouse space
• Reduction of the needy width of the hallways
• Mechanical guidance and optional magnetic guidance
• Camera and laser for high-altitude positioning
• Sitting
• Electrical address
• Lead or lithium batteries
• Great stability at high altitude

Uses:

• High density stores
• Very narrow halls
• Racking and Shelving high-rise
• Logistic and distribution centers
• Preparation and storage of pallets
• Industrial warehouses
• Production centers
• Facilities with mechanical guidance
• Installations with magnetic guidance
• Intensive stacking and unpacilated operations

** They must have their own discharge means.
