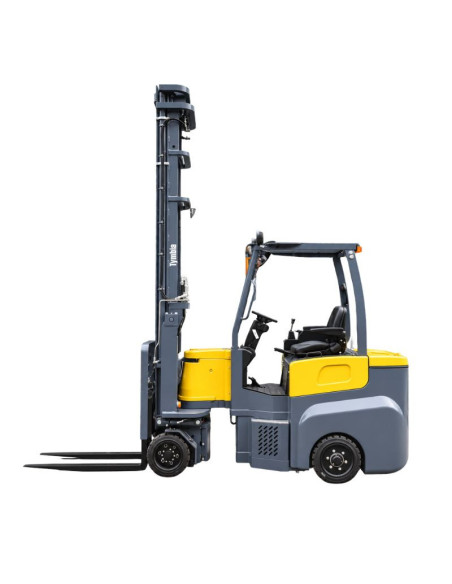

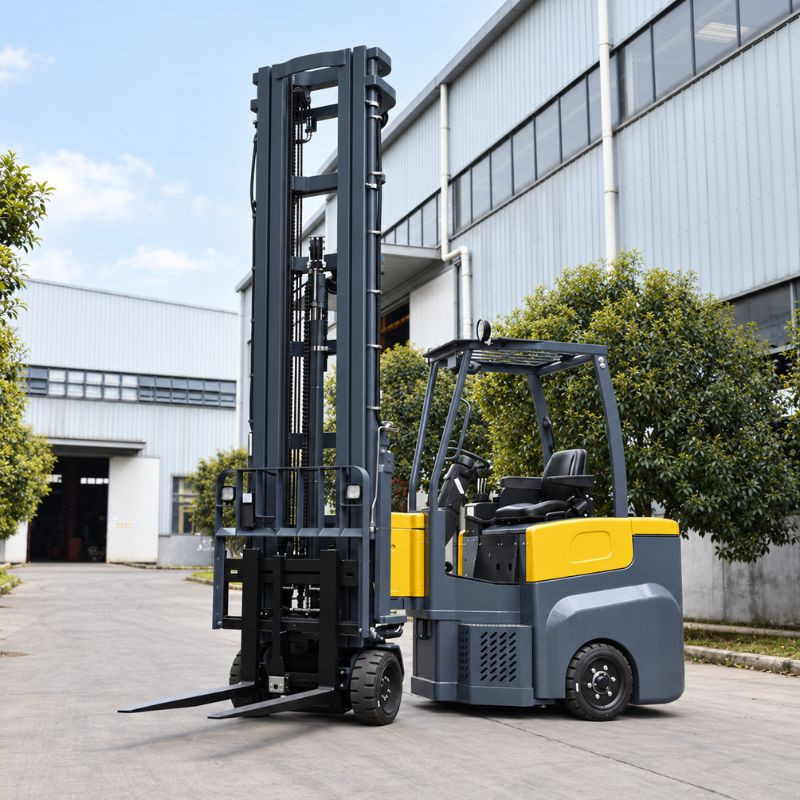

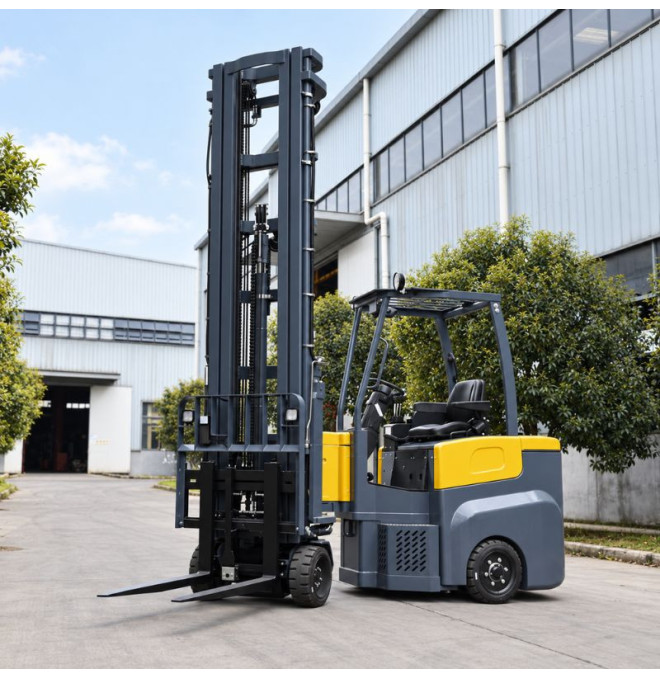

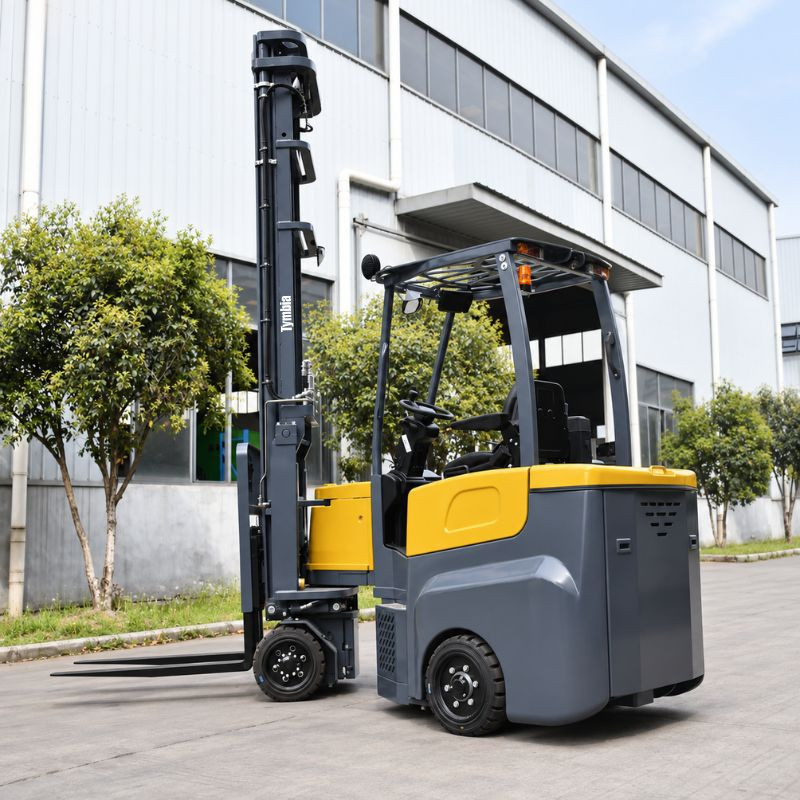

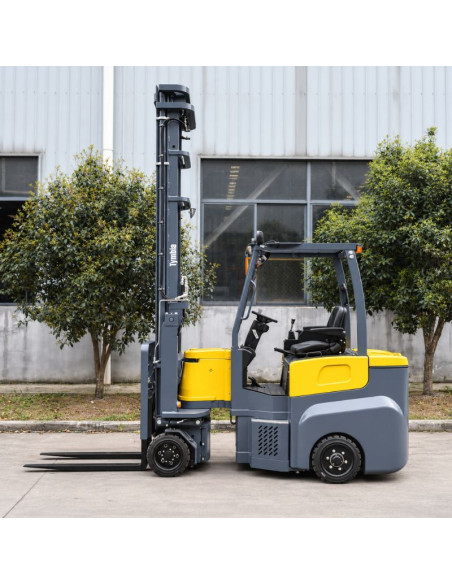

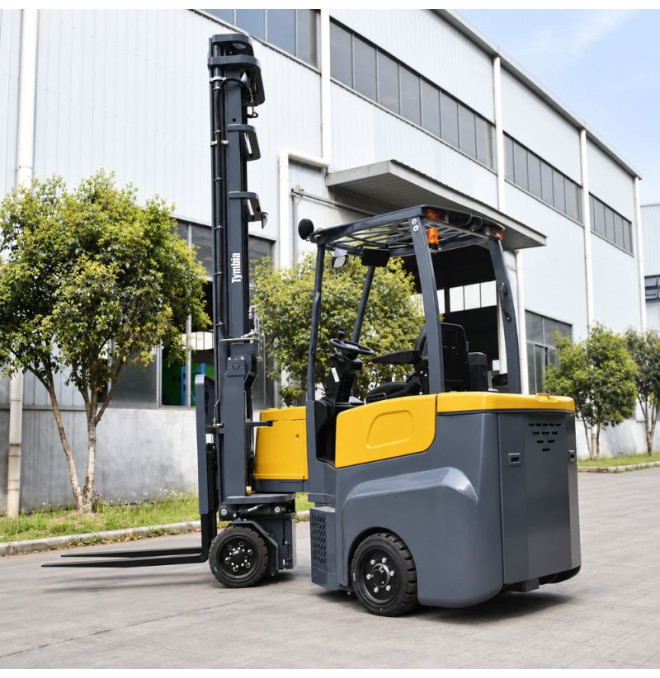

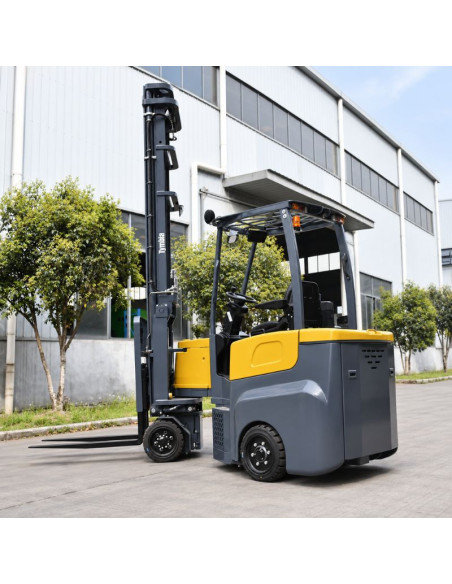

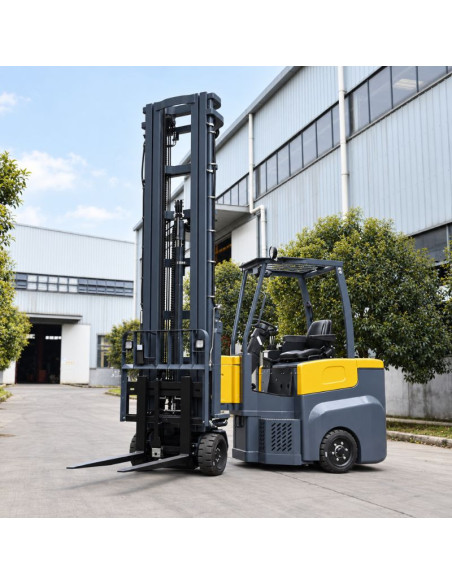

Articulated trilateral truck MJ20 / 30

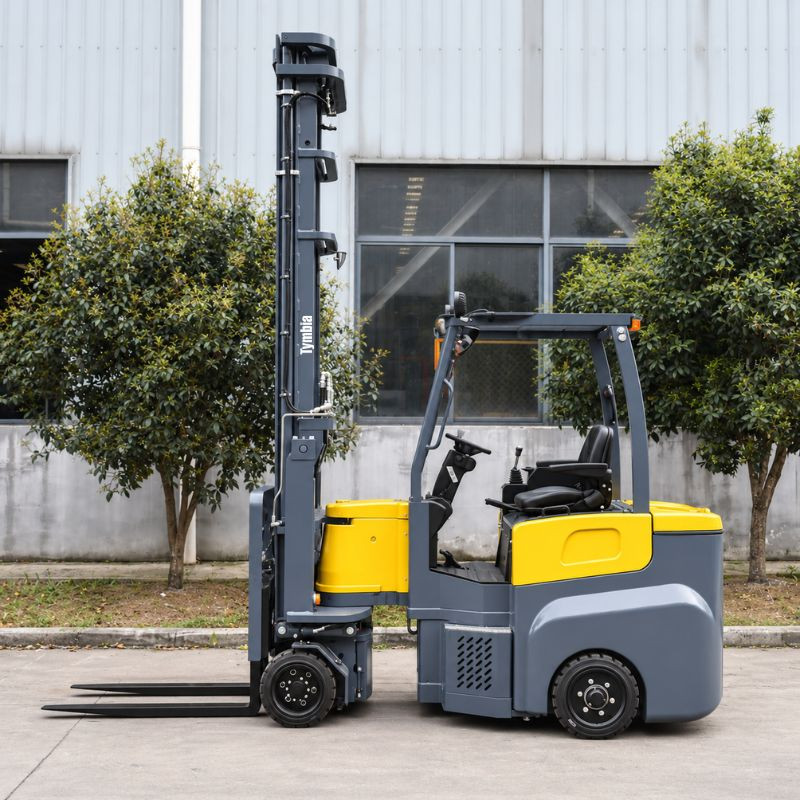

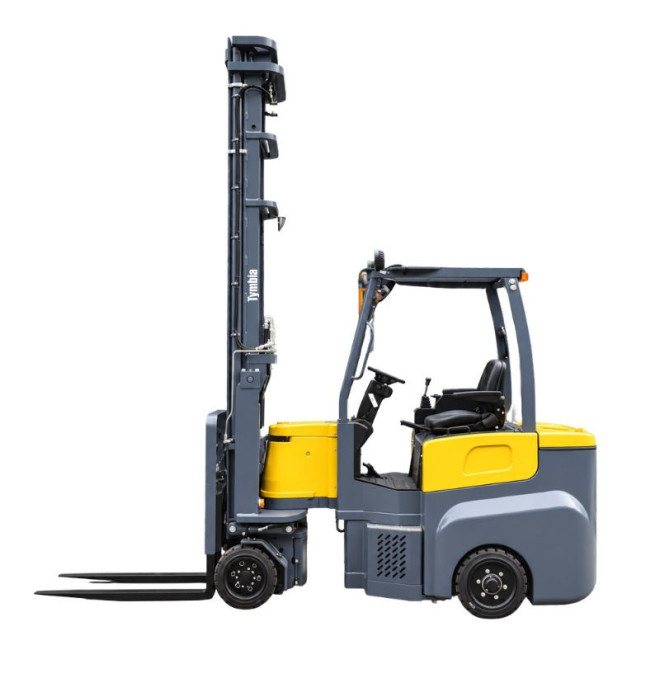

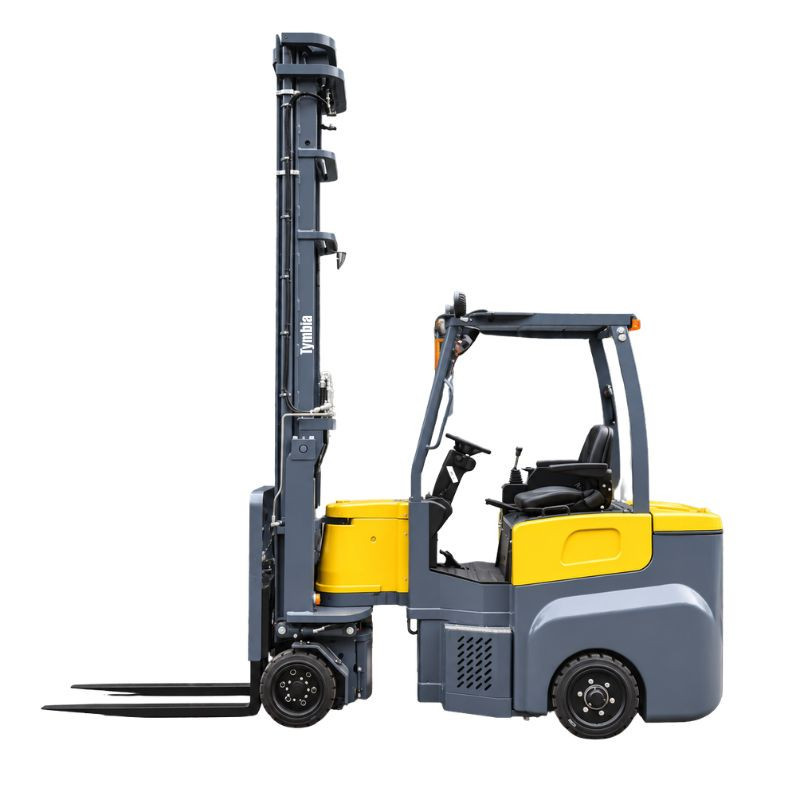

The electrical articulated trilateral trucks Tymbia MJ20 and MJ30 are designed to increase the storage capacity of warehouses and logistics centers through work in very narrow corridors and racking and shelving of great height.

Its main characteristic is the articulated mast with a turn of up to 210 °, which allows to place and remove pallets both right and to the left of the hall without the need to completely turn the truck. This configuration considerably reduces the space required for maneuvers and allows to increase storage density.

The range is composed of the MJ20 of 2000kg and the MJ30 of 3000kg, both with a cargo center of 600mm.

The MJ20 is the configuration aimed at reaching the highest heights. In wide chassis version it supports masts from about 4600 to 12,500mm, while the narrow chassis version reaches up to 10,000mm.

The MJ30 increases the nominal capacity up to 3000kg and has elevation configurations from about 4600 to 8000mm, being especially suitable when combining work in narrow corridor with heavier loads.

Both machines have troxx mast with total free lifting, 80V / 460Ah lithium battery, sitting driving position and AC tensile engine of 16.3kw.

The MJ20 incorporates an AC lifting motor of 16 kW, while the MJ30 increases the lifting power up to 21kW.

The maximum displacement speed reaches 13 km / h without load and the spinning radius is 2200mm in both models. This combination allows to perform agile displacements between work areas while maintaining a high precision during stacking operations.

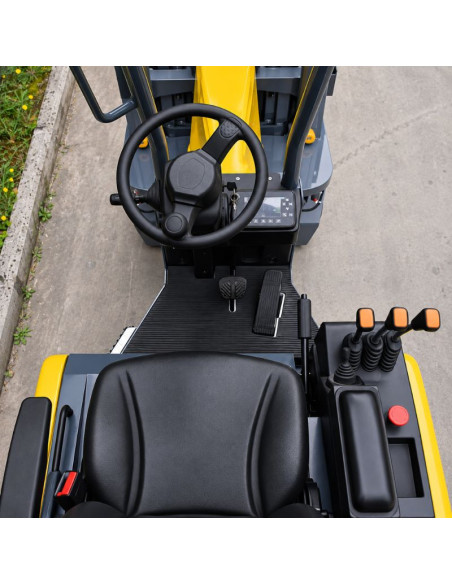

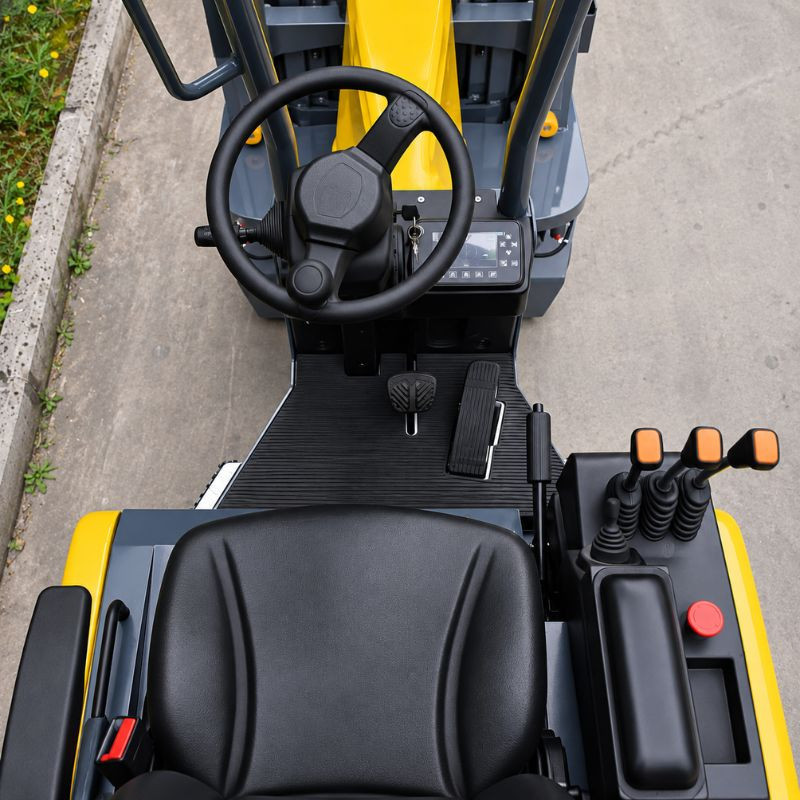

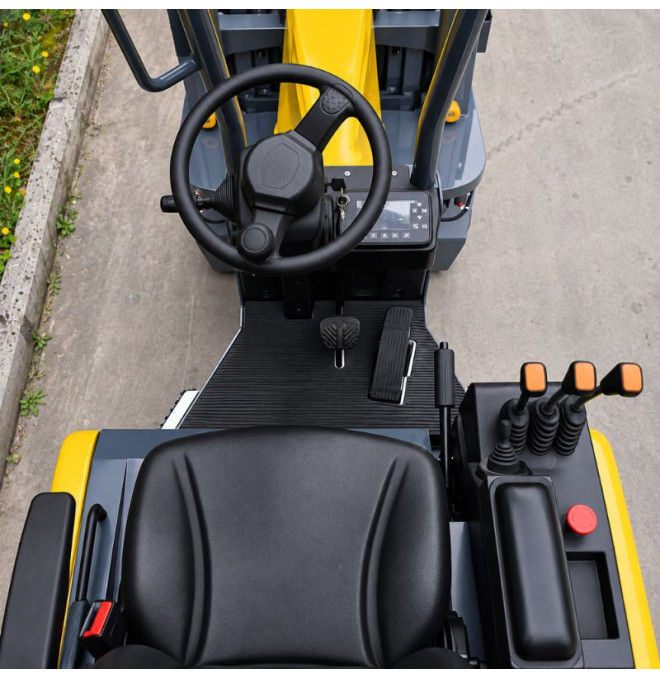

The driving position has a seat with suspension, hydraulic power steering, ergonomic controls, good mast visibility and different security systems aimed at facilitating repetitive work at high altitude.

Featured features:

• Available capacities: 2000 and 3000kg
• Cargo center: 600mm
• Maximum height MJ20: 12.500mm
• Maximum height MJ30: 8000mm
• Triplex mast with total lifting
• Articulated Mast Turn: 210 °
• Lithium battery: 80 V / 460 AH
• Traction engine: 16.3 kW AC
• MJ20 lifting engine: 16 kW AC
• MJ30 lifting engine: 21 kW AC
• Maximum speed: 13 km / h
• Radio of rotation: 2200 mm
• MJ20 configuration with narrow and wide chassis
• Work in corridors from about 1900 mm
• Sitting
• Seat
• Hydraulic address
• OPS System of Operator Presence
• Hydraulic brake
• High visibility mast
• Solid tires

Advantages:

• Two abilities available: 2000 and 3000kg
• Elevation up to 12.5 meters
• Articulated trilateral mast with 210 ° turn
• Work in corridors from about 1.9 meters
• 80 V / 460 lithium battery ah
• It allows to increase storage density
• Considerably reduces the necessary maneuvers
• Take advantage of the available height of the warehouse
• MJ20 optimized for great heights
• MJ30 optimized for greater load capacity
• High visibility mast
• Sitting and ergonomic driving position
• Suitable for intensive jobs

Uses:

• High density stores
• Very narrow halls
• Racking and Shelving high-rise
• Logistic and distribution centers
• Refrigerated and controlled temperature stores
• Food and Beverage Industry
• Textile industry
• Production centers
• Preparation and storage of goods
• Load, download and movement of pallets

** They must have their own discharge means.
