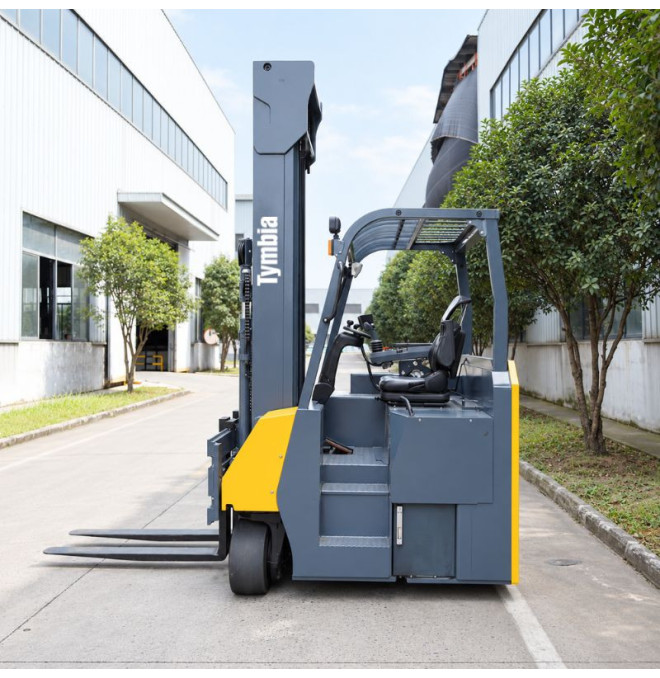

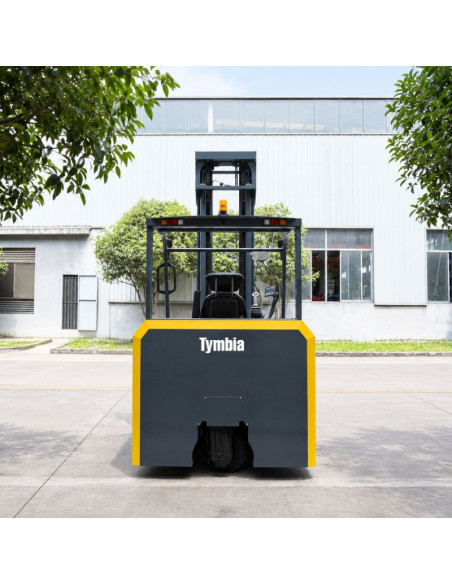

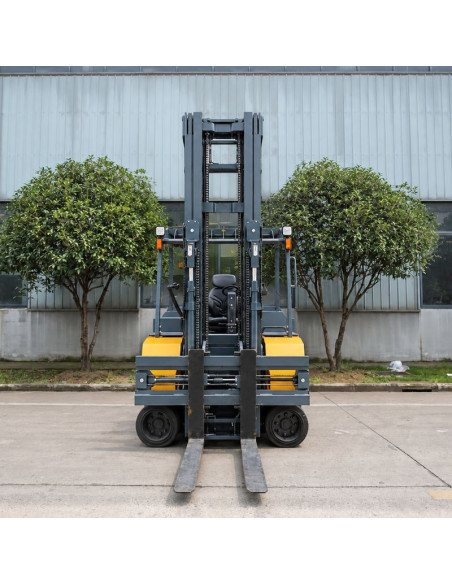

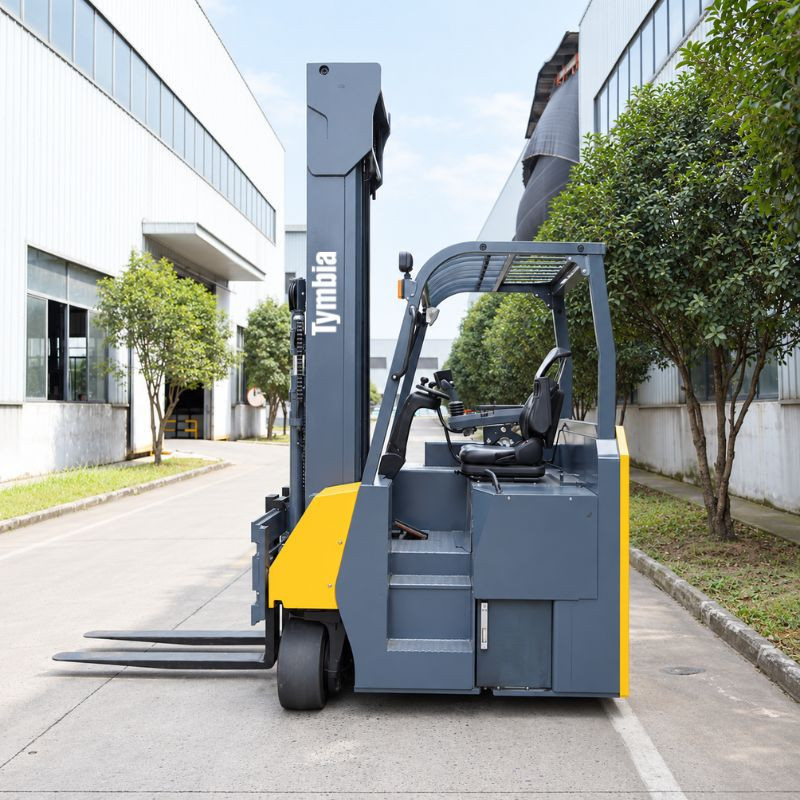

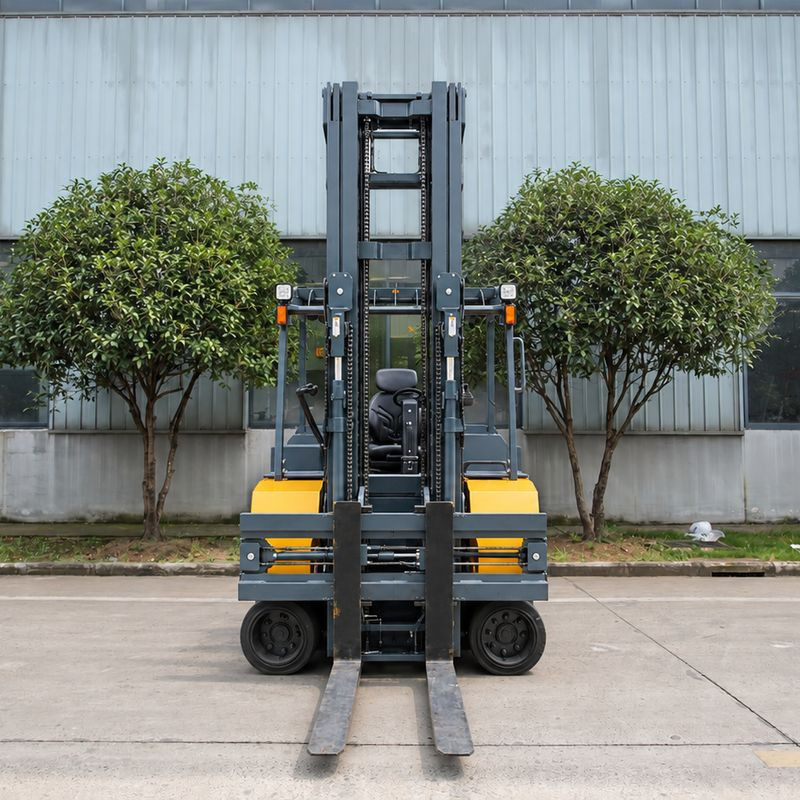

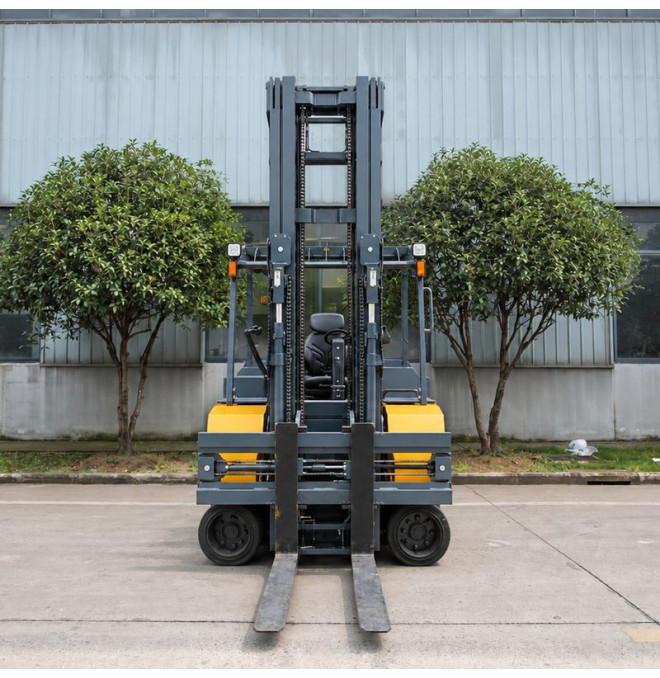

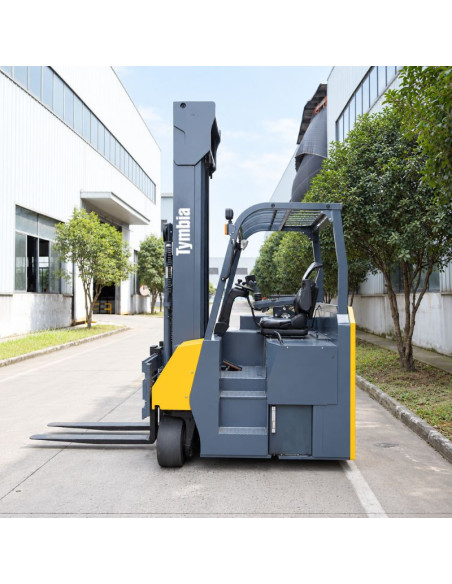

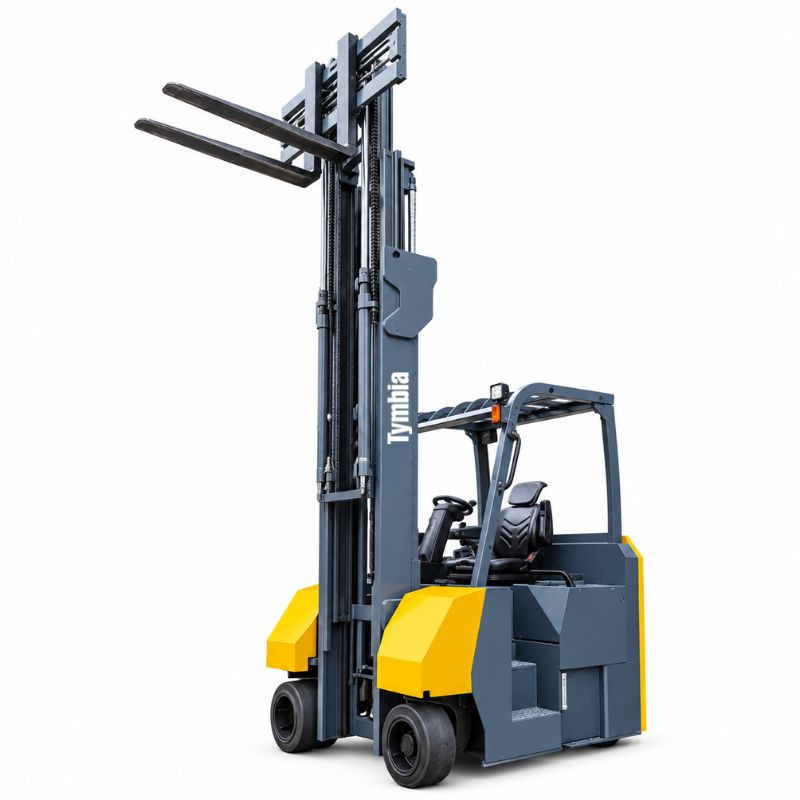

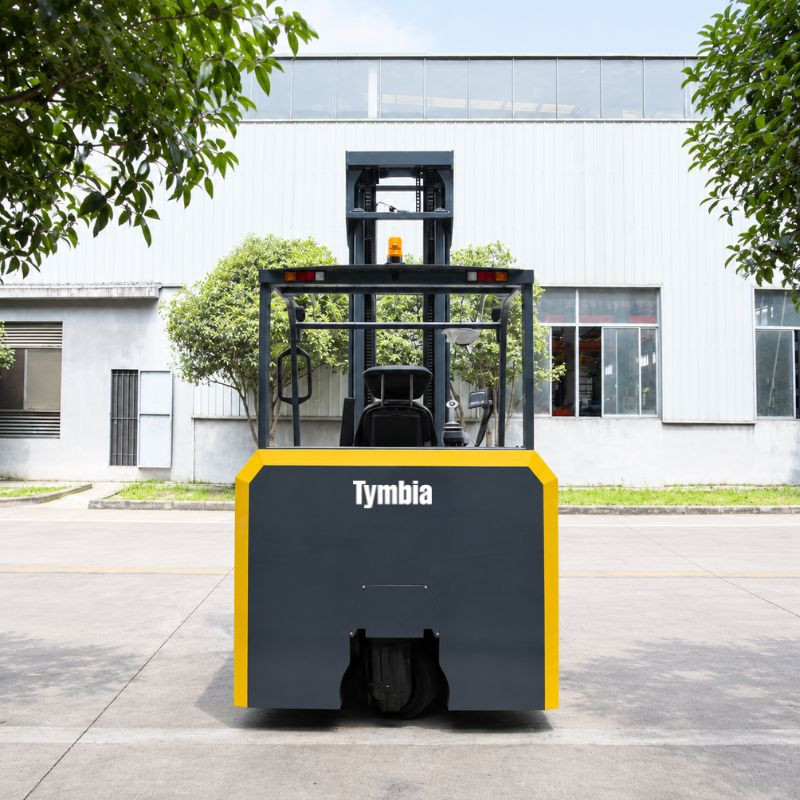

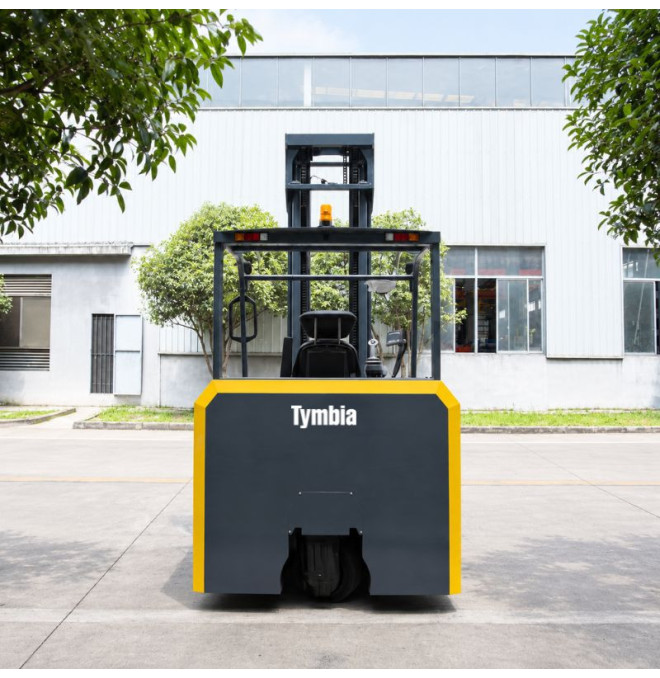

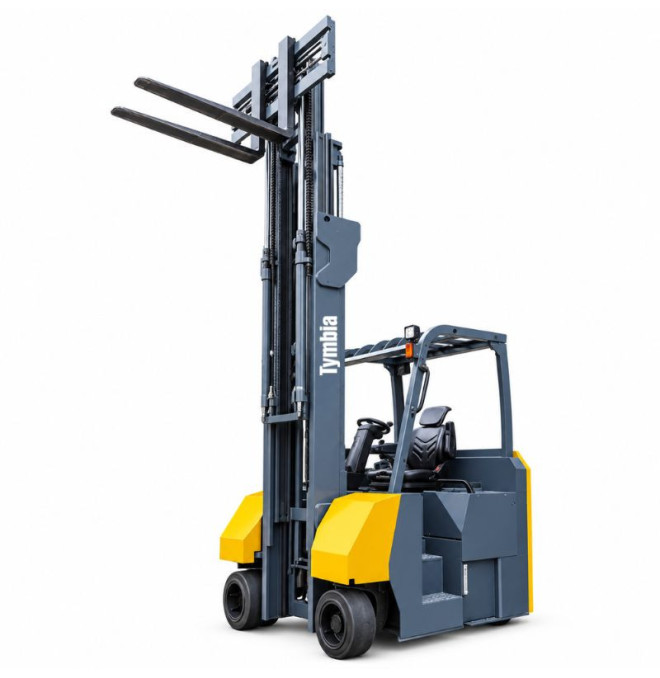

MCK40 multidirectional trolley

The electric multidirectional trolley Tymbia MQK40 of 4000kg is designed to combine the handling of long loads with the transport and stacking of standard pallets, allowing work to work in warehouses where space optimization and maneuverability are priority factors.

Its integral traction system with three independent steering wheels allows you to perform front, side and diagonal displacements, as well as rotate on your own axis. This configuration greatly facilitates the handling of materials of great length and reduces the space needed to maneuver against a conventional counterweight truck.

It has a nominal capacity of 4000 kg with a cargo center of 600 mm. The standard model reaches a maximum elevation height of 7500mm, also existing mast configurations with lower heights to adapt to different installations.

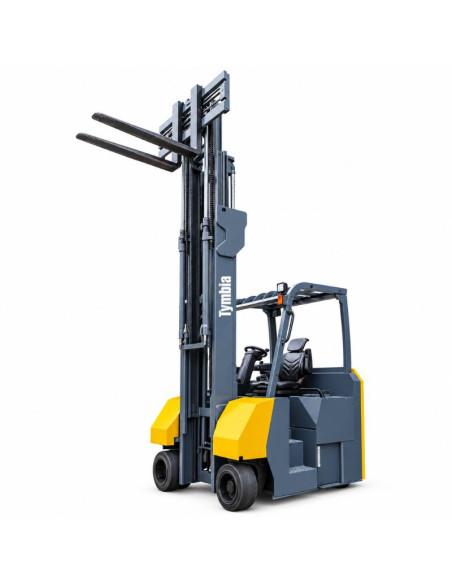

The MQK40 uses a total lifting troxplex mast, specially designed to provide good visibility and stability during stacking work. Its system includes two front and rear lifting cylinders and a free lifting side cylinder.

The power supply is made by a lithium battery of 80V / 600Ah, with a battery weight of 830 kg. The electrical system combines three 4.5 kW t-t-drive engines each with an AC lifting motor of 21 kW, providing sufficient power for intensive operations.

The front and lateral displacement speed is between 10 and 12 km / h, allowing to maintain good productivity in both conventional movements and multidirectional operations.

Its compact design allows to work with a minimum width of stacking hall of approximately 3200mm, depending on the pallet and the work settings.

The sitting driving position incorporates electrical power steering, multifunction joystick with adjustable armrest and a separate screen that allows you to view the wheel steering angle.

The machine also incorporates System of presence of the OPS operator, electromagnetic brake and a reinforced mast structure to reduce the oscillations during high work.

Featured features:

• Nominal capacity of 4000kg
• 600mm cargo center
• Standard maximum height of 7500mm
• 80V / 600AH lithium battery
• Total free lifting triplex mast
• Front scroll
• Lateral displacement
• Diagonal displacement
• Turn on the own axis
• Independent address system
• Traction engine 3 × 4.5 kW AC
• Lifting engine 21 kW AC
• Maximum speed up to 12km / h
• Forks positioner
• Electrical power steering
• Control screen
• Multifunction Joystick
• OPS System of Operator Presence
• Electromagnetic braking
• Solid series tires
• Side extraction battery

Advantages:

• 4000kg load capacity
• Standard elevation of up to 7500mm
• Multidirectional movement
• Efficient manipulation of long loads
• Work with standard pallets
• Reduced width of corridors
• Little capacity lithium battery
• Three electric traction motors
• Total free lifting mast
• Forks positioner
• Ergonomic driving position
• OPS System
• Electromagnetic braking
• Large Front Visibility
• Robust design for intensive use

Uses:

• Manipulation of metal profiles
• Transportation of tubes, bars and beams
• Wooden handling and boards
• Standard pallets stack
• Profile stores and long materials
• Metallurgical and steel industry
• Timber industry
• Logistics Centers
• Narrow corridors
• High density stores

** They must have their own discharge means.
