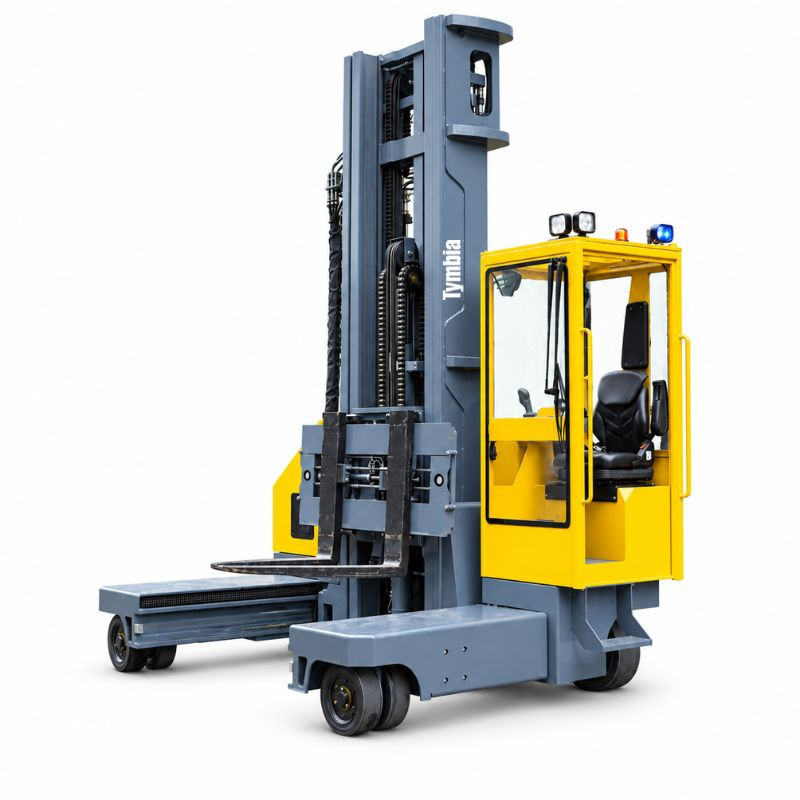

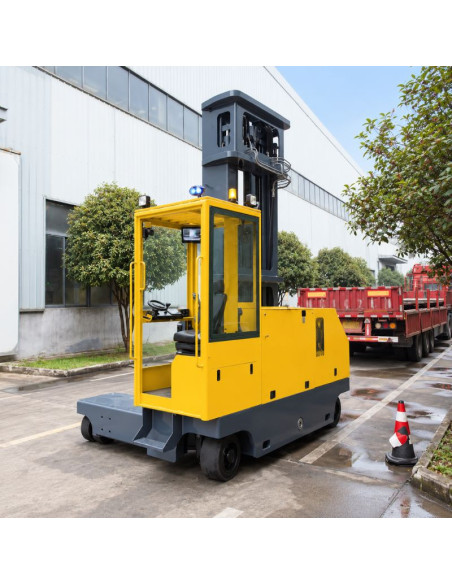

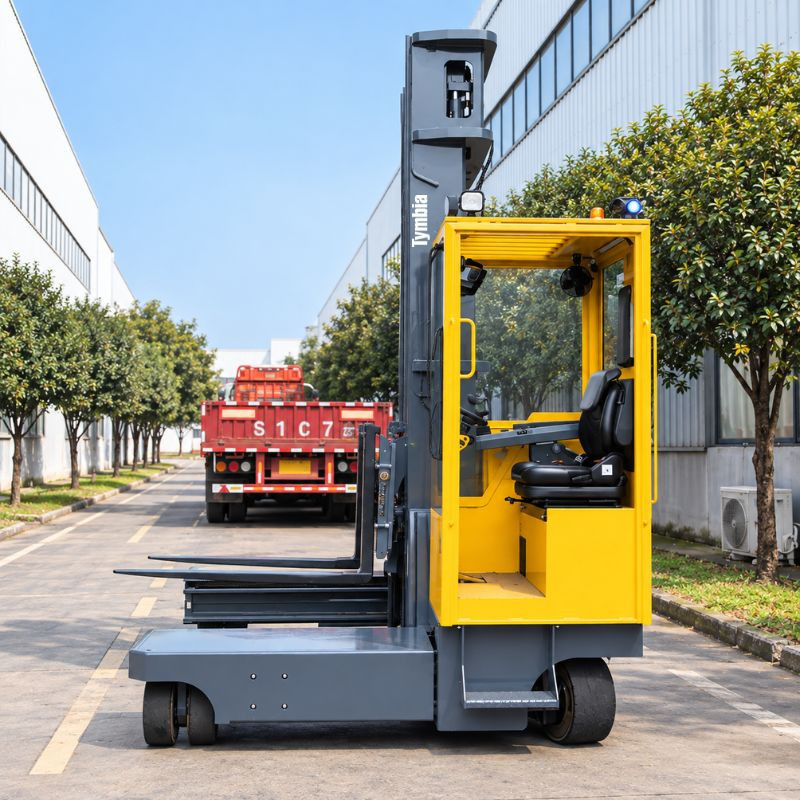

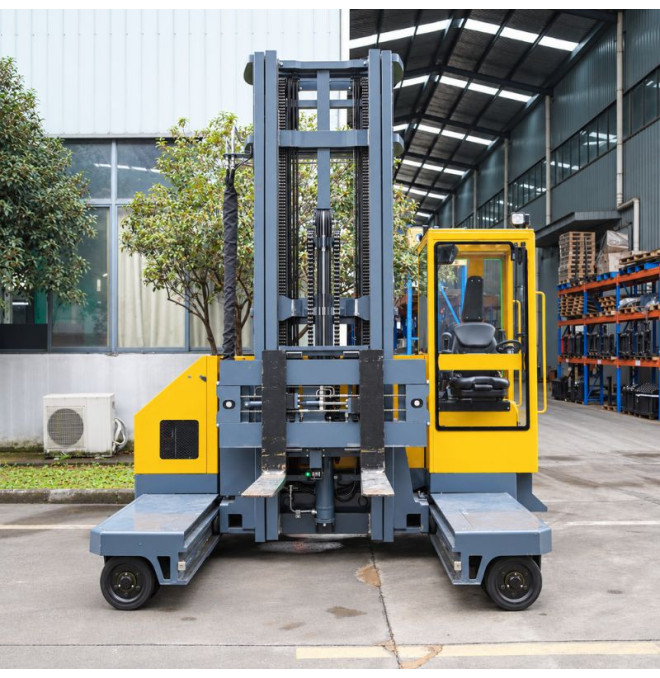

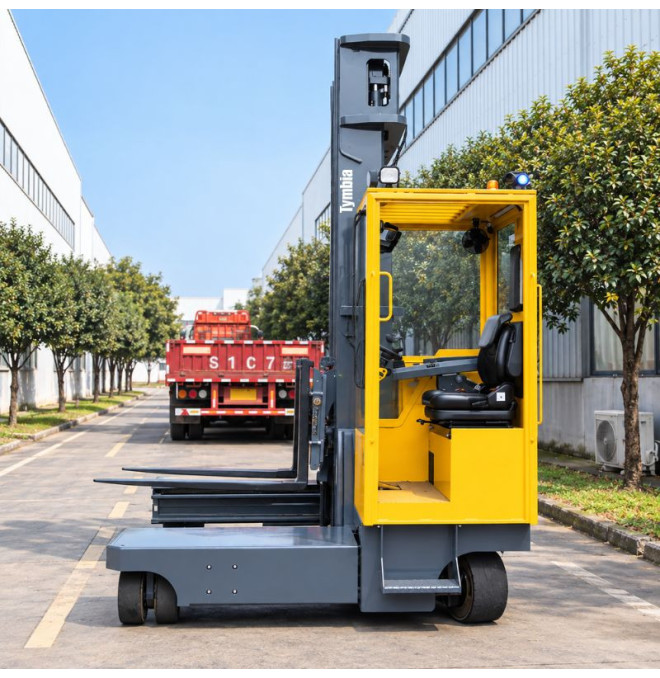

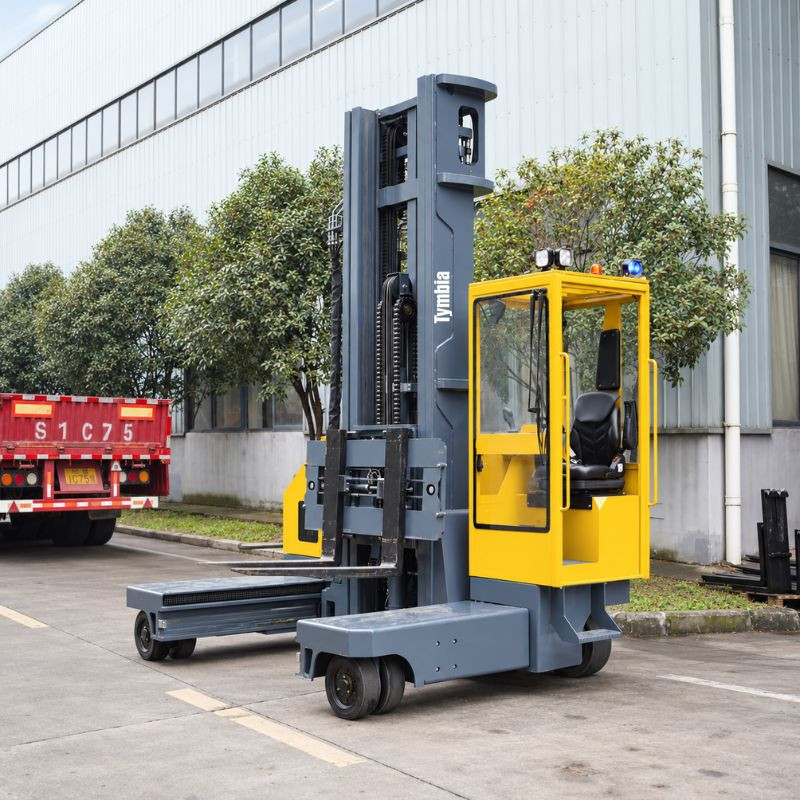

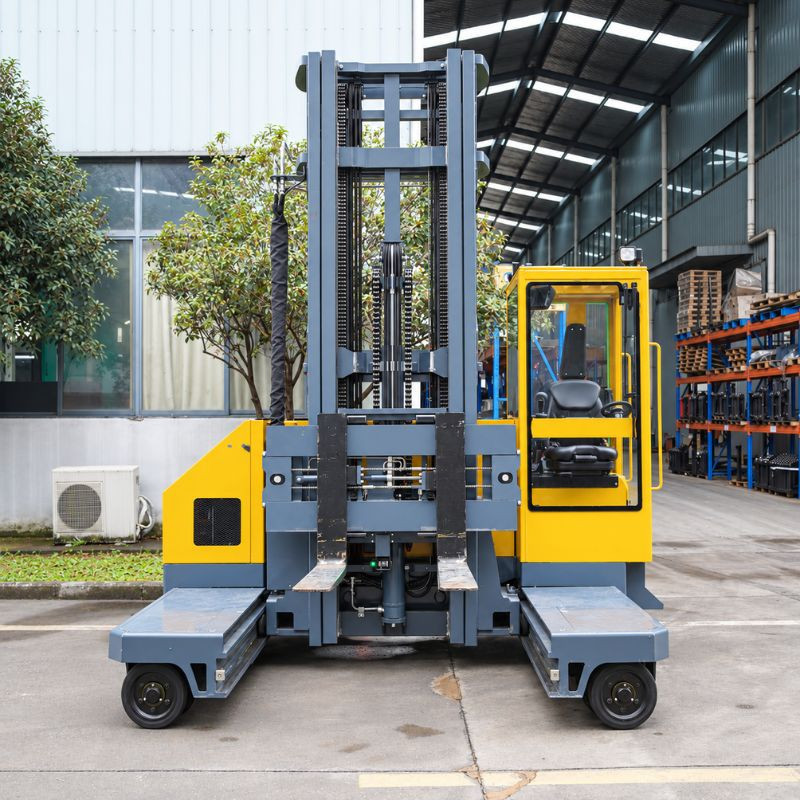

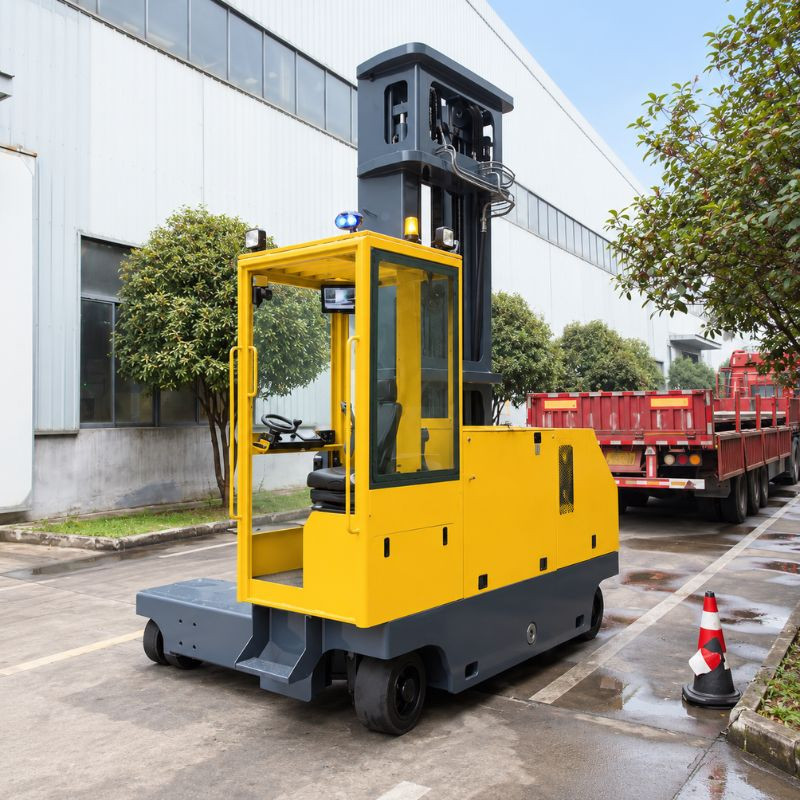

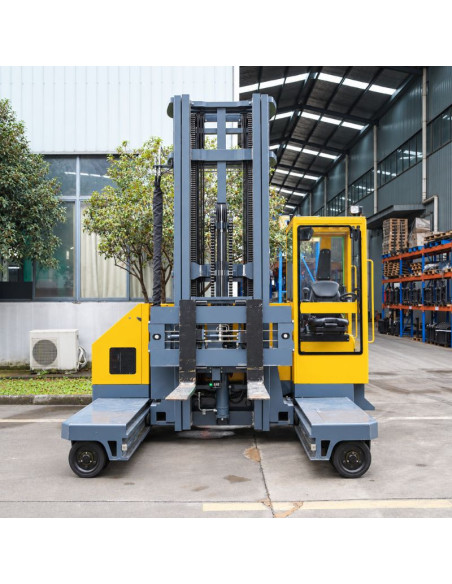

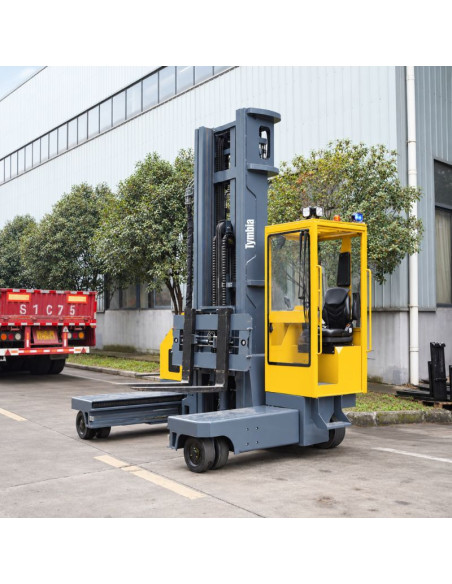

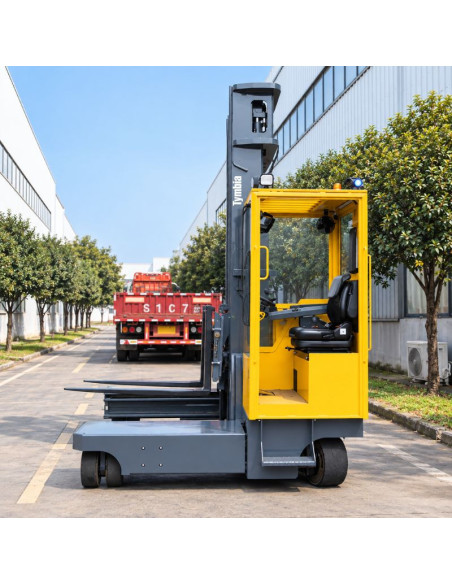

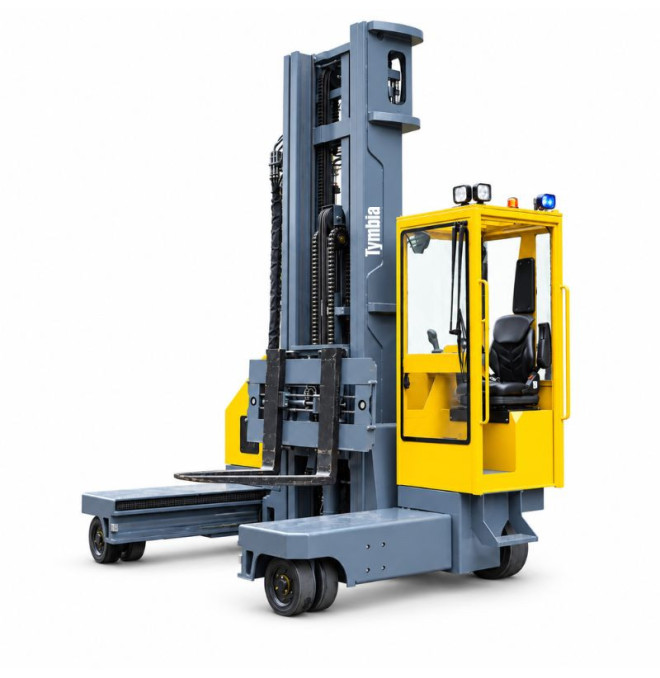

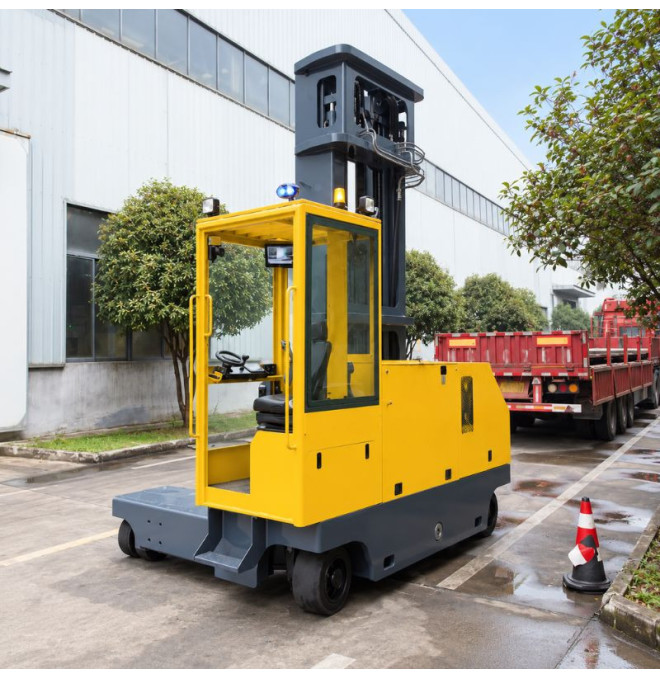

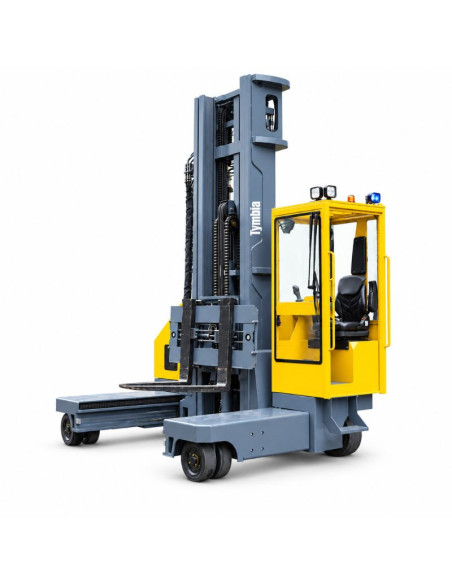

Mc80 multidirectional trolley

The Electric multidirectional trolley Tymbia MQC80 of 8000kg It is designed for professional handling of long, heavy and voluminous loads in warehouses where the room for maneuver is limited.

Your independent address system on the four wheels allows you to perform movements Front, lateral and diagonal, in addition to making a 360 ° turn on its own axis. This multidirectional capacity considerably reduces the space needed to maneuver with materials of great length.

The MQC80 has a Nominal capacity of 8000kg with a cargo center of 600mm and reaches a 8000mm lifting height, providing a combination of high capacity and great work height.

Its mast can move forward and back together and has forks positioner, facilitating adaptation to loads of different dimensions. There is also an optional configuration with four forks.

Excellent lateral mobility allows to reduce the width of work corridors and manipulate materials from Up to 20 meters long, resulting especially useful for metallic profiles, tubes, bars, wood and other long products.

The feed is made by a powerful 80V / 840AH lithium battery, combined with two traction engines 8 kW each and two lifting engines 15kw each.

The system uses alternating current technology with brushless motors, designed to provide efficient operation and reduce maintenance needs.

The driving position is sitting and has integrated controls and a multifunction smart screen that shows, among other parameters, the angle of the wheels to facilitate multidirectional maneuvers.

Featured features:

• Nominal capacity of 8000kg
• 600mm cargo center
• 8000mm lifting height
• 80V / 840AH lithium battery
• Front, lateral and diagonal movement
• Independent address of four wheels
• 360 ° turn on the axis itself
• Manipulation of materials up to 20 meters
• Retractable mast with progress and recoil
• Forks positioner
• Optional configuration of four forks
• Tensile engine 2 × 8kw
• 2 × 15kw lifting engine
• AC traction system
• Regenerative and electromagnetic braking
• Sitting
• Multifunction smart screen
• Fully electrical

Advantages:

• Large load capacity of 8 tons
• Elevation of up to 8 meters
• Handling of long goods up to 20 meters
• Side movement to reduce the necessary width of the corridors
• 360 ° turn on the axis itself
• Great precision during maneuvers
• High capacity lithium battery
• Electric System Ac Efficient
• Forks positioner
• Retractable mast
• Less driving effort thanks to the electric address
• Suitable for demanding industrial work

Uses:

• Metallic profiles and long bars
• Tubes and beams
• Wood, boards and panels
• Materials construction length
• Metallurgical and steel industry
• Timber industry
• Material stores
• Logistics Centers
• Narrow corridors
• High density stores

** They must have their own discharge means.
