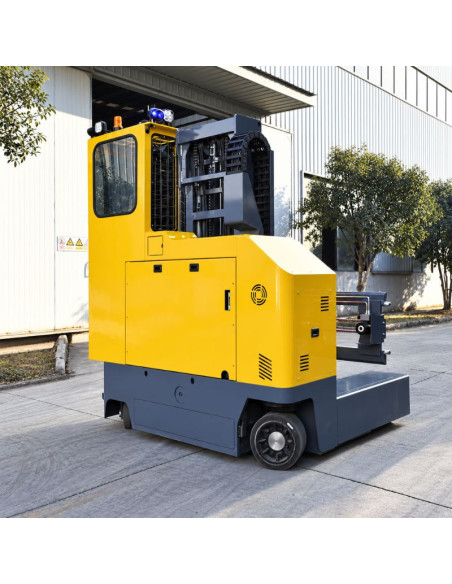

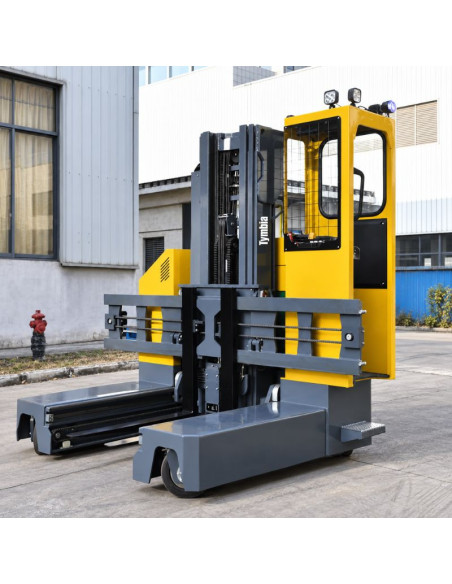

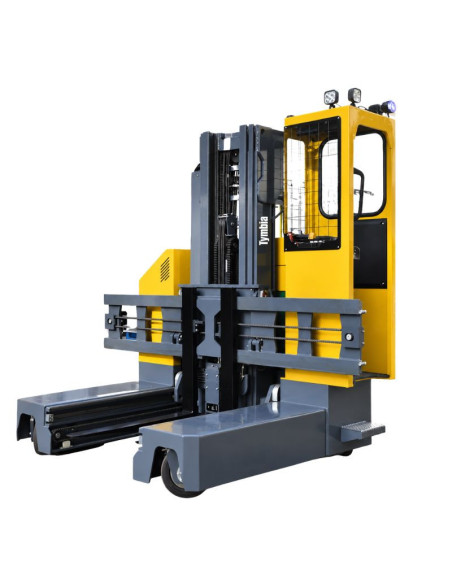

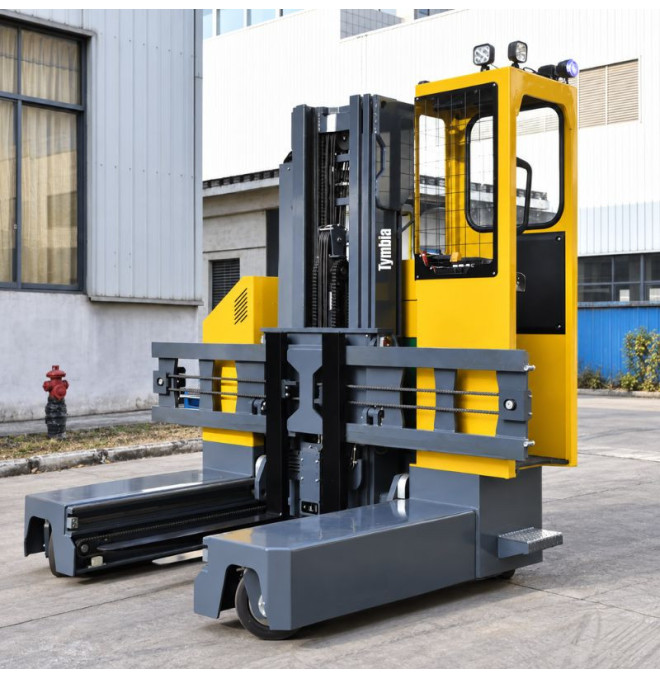

Mc30 multidirectional wheelbarrow

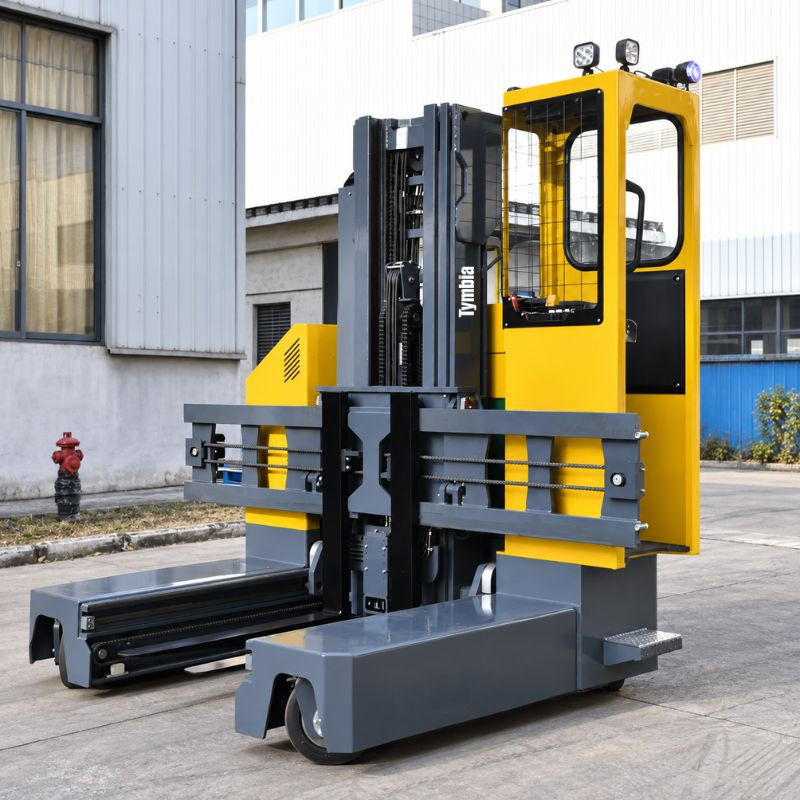

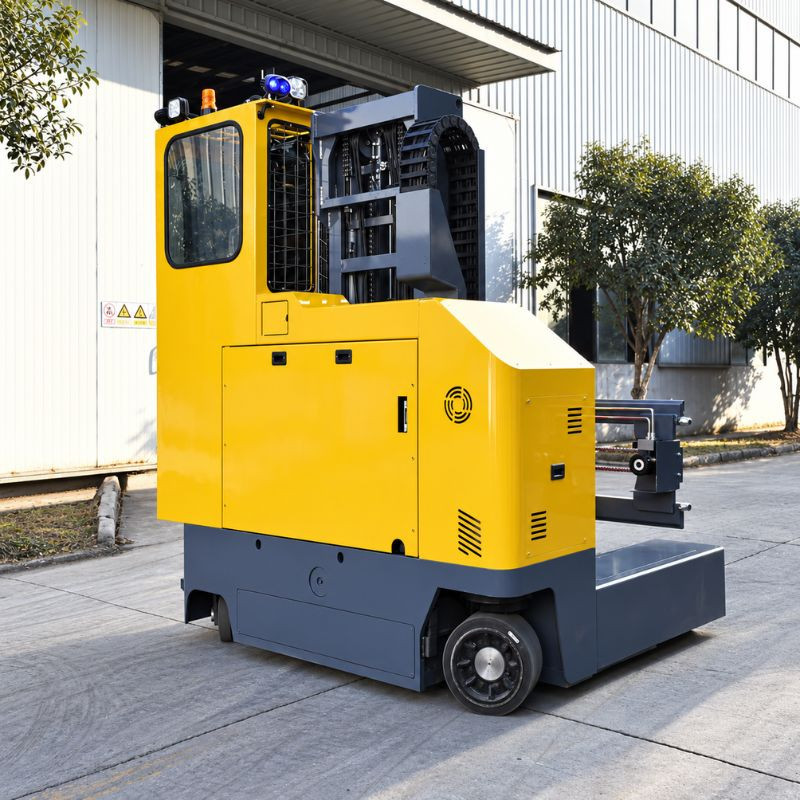

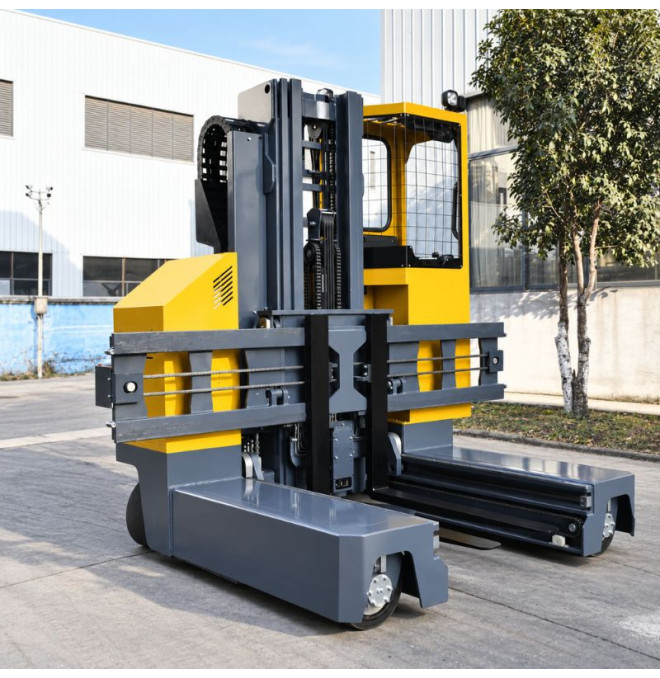

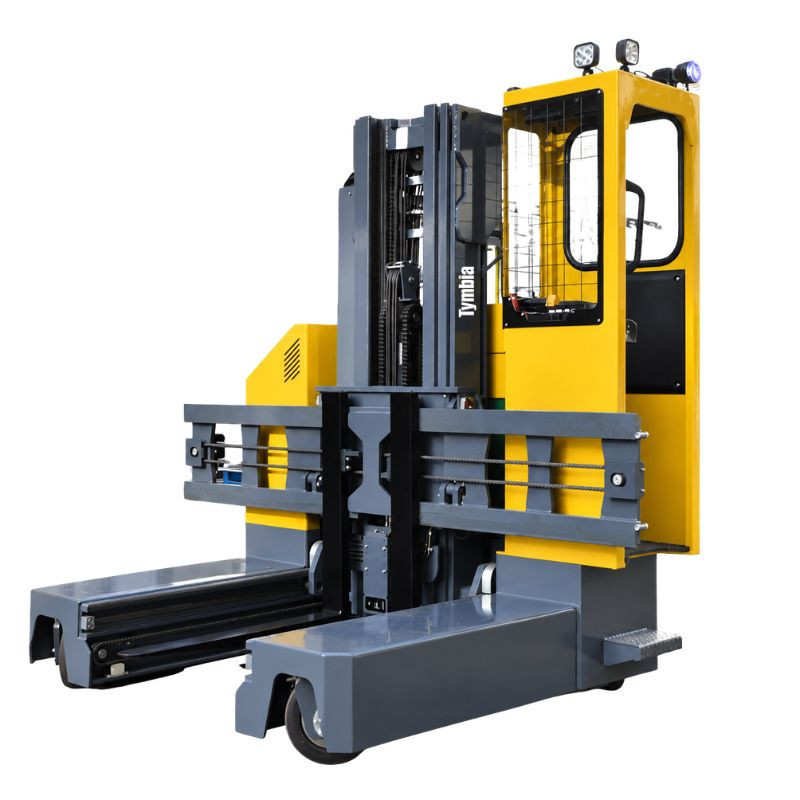

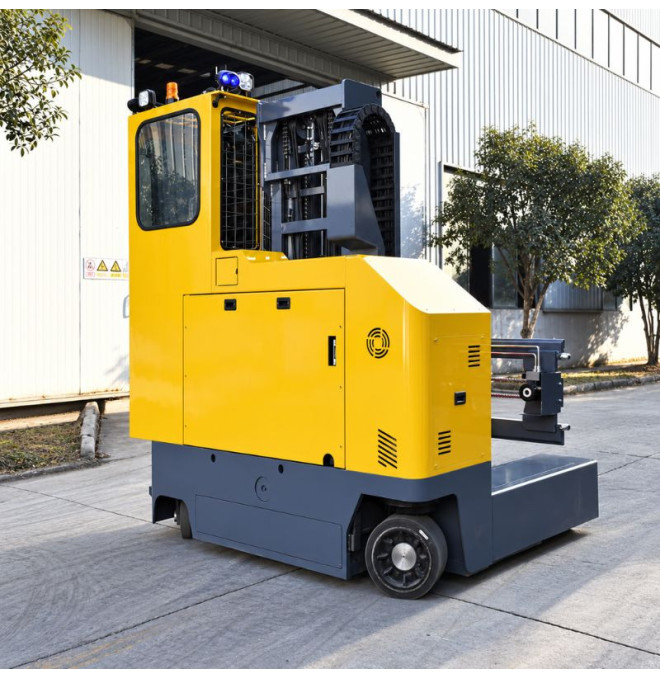

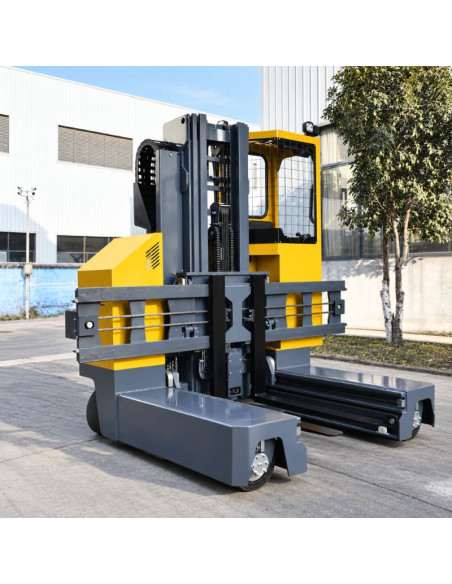

The electric multidirectional trolley Tymbia MQ30 of 3000kg is specially designed for the handling of long, voluminous loads and difficult to transport with a conventional wheelbarrow. Its ability to scroll in different directions allows you to work with great precision in stores with narrow corridors and take better advantage of the space available.

It has a nominal capacity of 3000kg with a cargo center of 600mm and a standing position that provides the operator of good visibility during maneuvers.

Its multidirectional system allows to perform front, lateral and diagonal displacement, as well as central rotation and specific stacking movements. This versatility especially facilitates the transport of metal profiles, wood, tubes, panels and other great length goods.

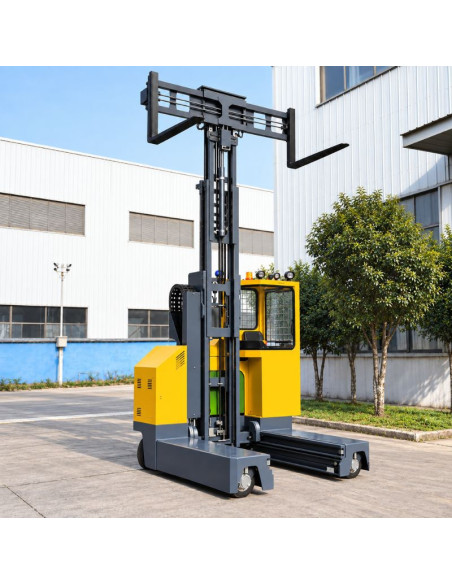

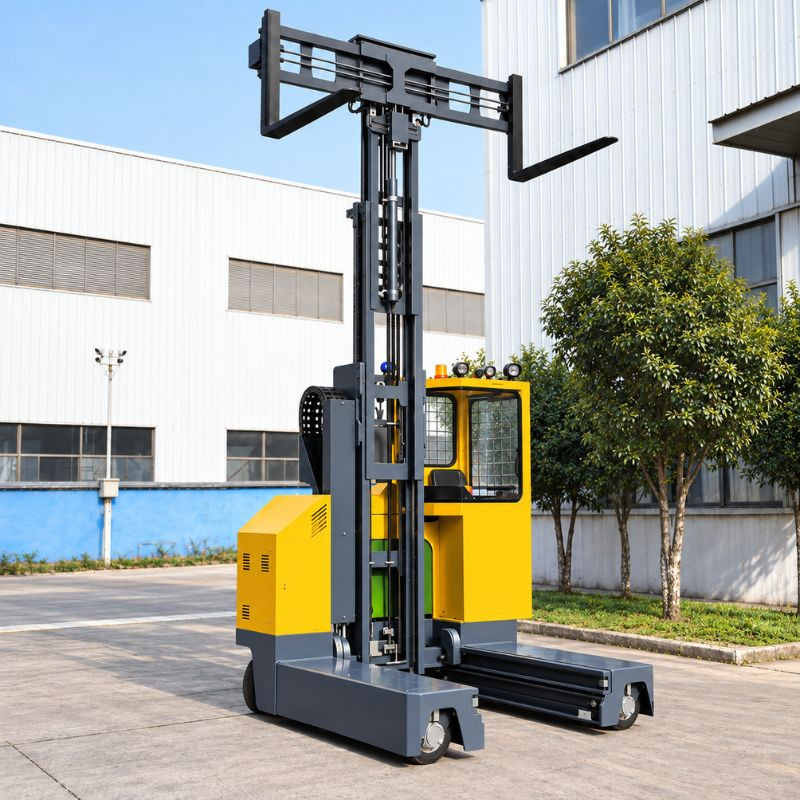

The standard technical configuration has a lifting height of 4600mm, with free 1525mm, while the description of the product contemplates configurations capable of reaching up to 8000mm maximum lifting, depending on the installed mast. Mq30-multi-directional-forklift ...

The mast offers a range of 1300mm and uses an electric drive system and roller chains, designed to provide precision during extension and reduce oscillations.

The feed is made by a 48V / 460Ah lithium battery, combined with an 8KW traction motor and a 12,5kW lifting engine. The traction control is AC type.

Its compact design is especially relevant in narrow hall applications. With the mast retracted, the distance from the face of the forks to the back of the machine is only 800mm, facilitating maneuvers with long loads.

In addition, it incorporates turtle mode for precision displacements, speed control of the front wheels during lateral displacement and a synchronized hydraulic system to coordinate the movements of the mast and forks.

Featured features:

• Nominal capacity of 3000 kg
• Cargo center of 600 mm
• Fully electric performance
• Lithium battery 48 V / 460 ah
• Multidirectional displacement
• Front, lateral and diagonal movement
• Central turn
• Stacking
• Turtle mode for precision maneuvers
• Standard elevation of 4600 mm
• Configurations up to 8000 mm
• FREE ELEVATION OF 1525 MM
• Scope of the mast of 1300 mm
• 8 kW traction motor
• 12.5 kW lifting motor
• 1200 mm forks
• Adjustable positioning of forks
• Standing
• HD video screen
• Specially indicated for long loads and narrow corridors

Advantages:

• Efficient manipulation of long loads
• Capacity of 3000kg
• Movement in multiple directions
• Excellent adaptation to narrow corridors
• Possibility of lateral displacement without rotating all the load
• 1300mm Mast Scope
• 1525mm free elevation
• 460Ah lithium battery
• Electric motors AC
• Turtle mode for precision movements
• Widely adjustable hairpins
• Driving position with good visibility
• It allows to increase the storage capacity of the warehouse

Uses:

Especially indicated to manipulate:

• Metallic profiles
• Tubes
• Bars
• Wood
• Boards
• Panels
• Materials construction long
• Voluminous loads

And to work on:

• Profile stores
• Timber industry
• Logistics Centers
• Metallurgical industry
• Material stores
• Production zones
• Narrow corridors
• High density storage systems

** They must have their own discharge means.
