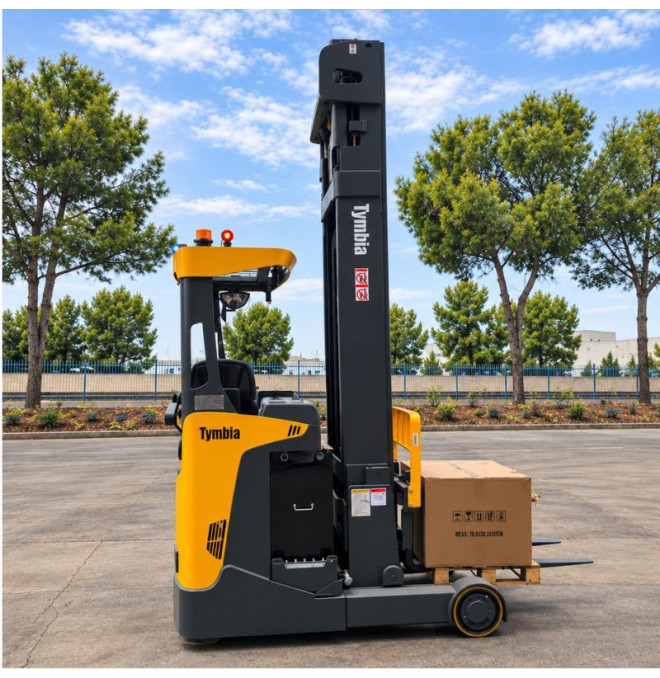

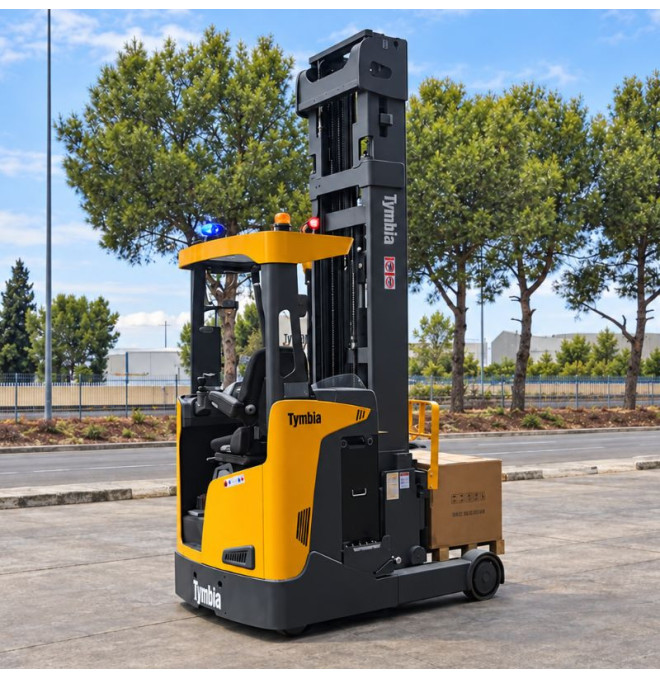

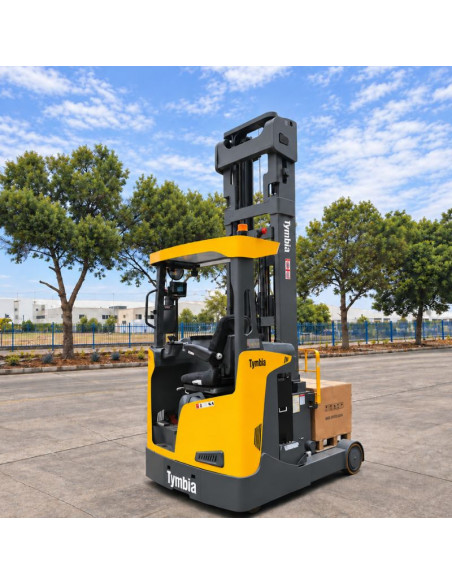

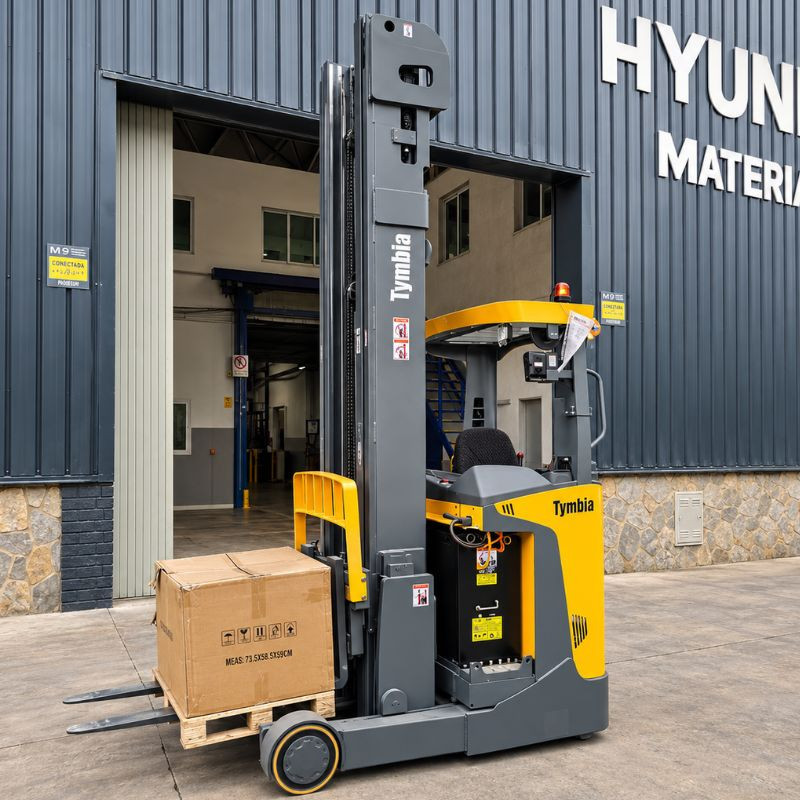

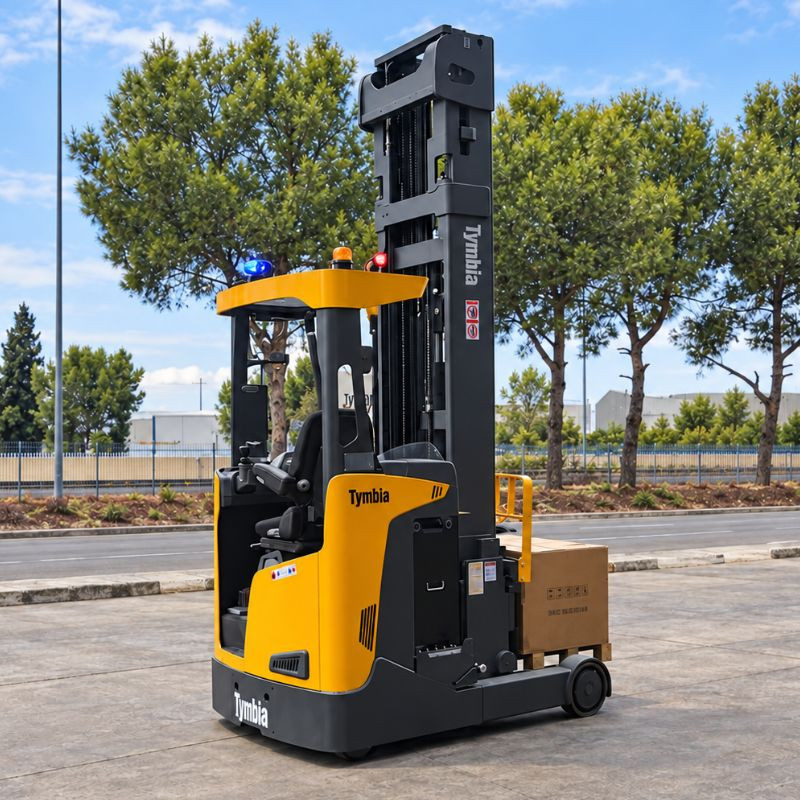

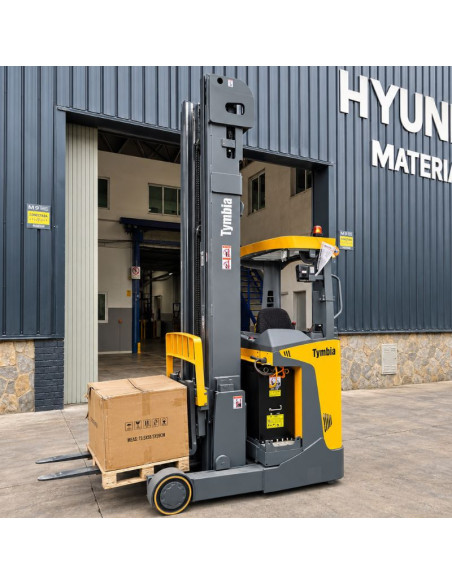

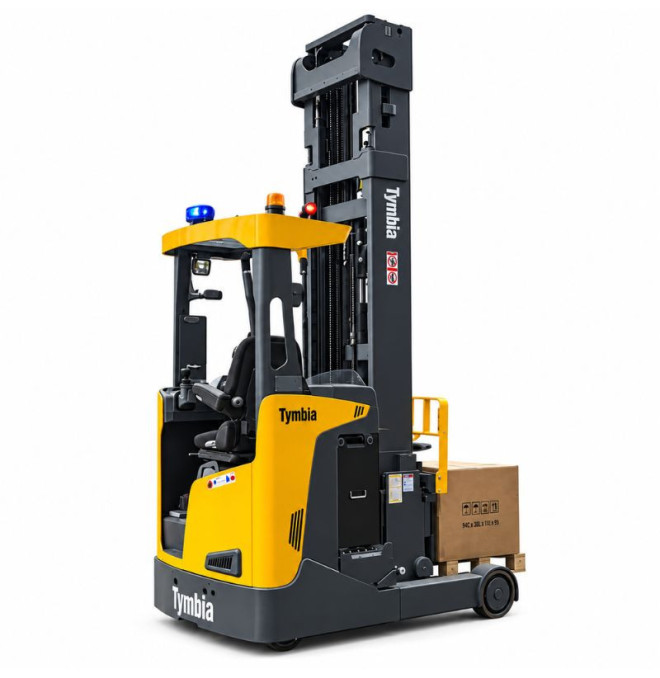

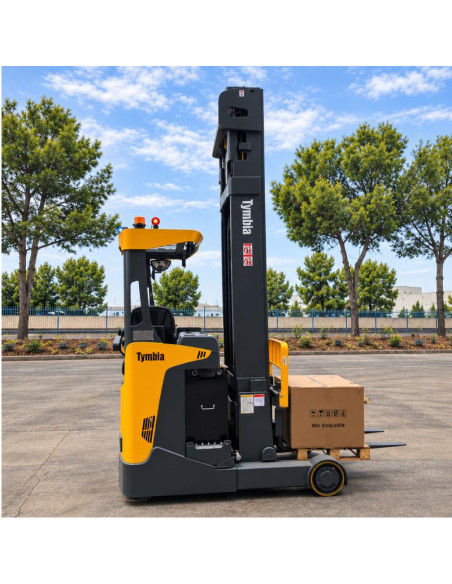

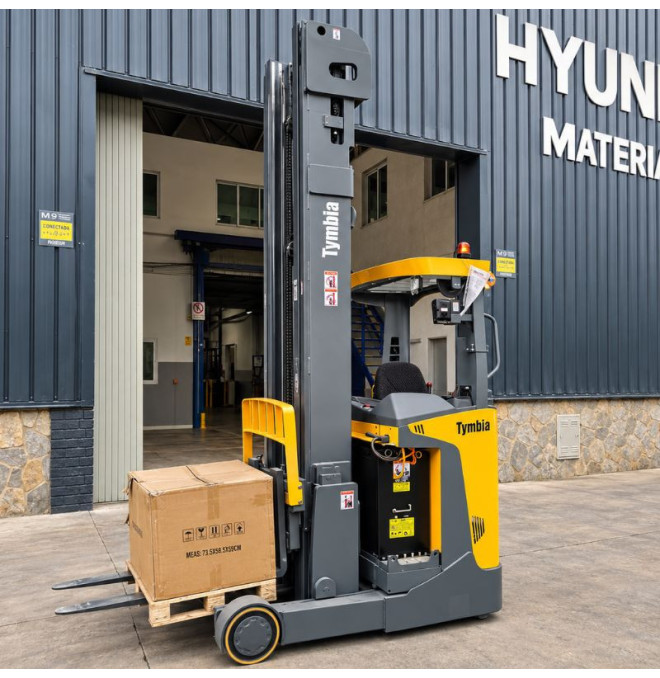

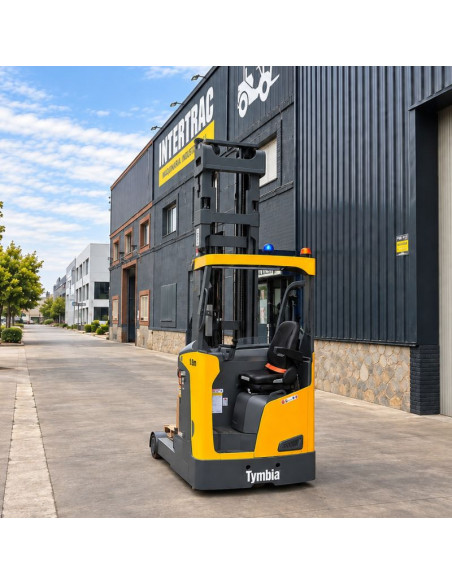

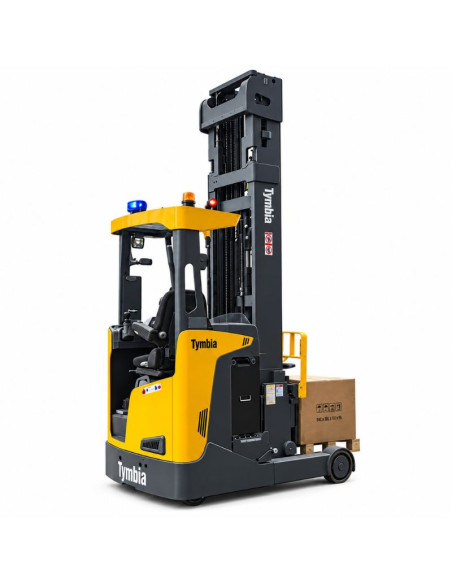

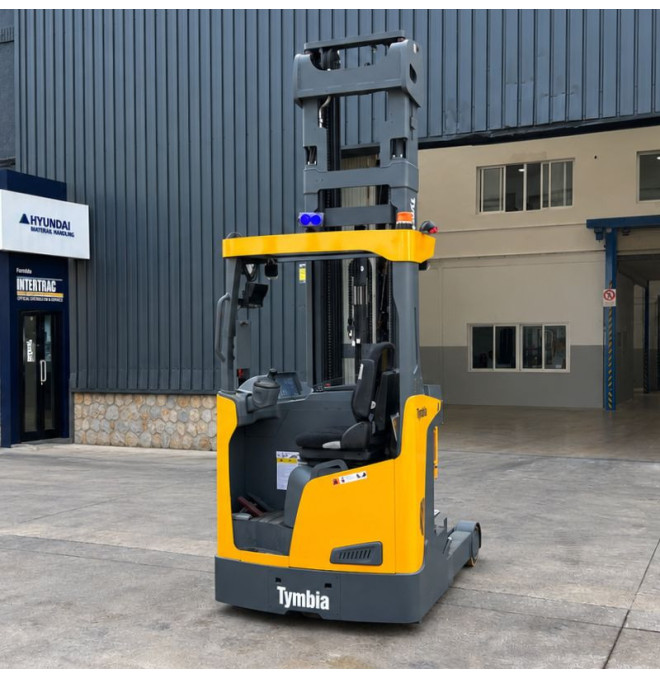

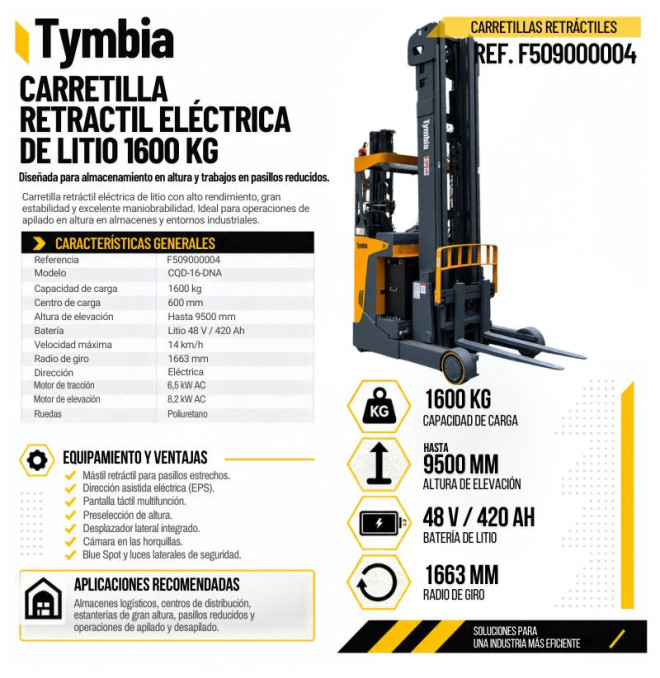

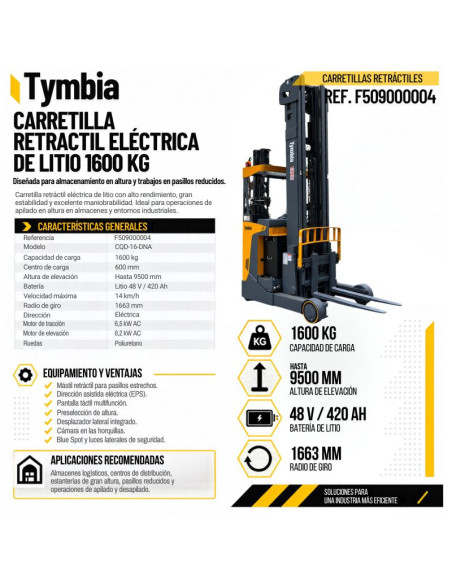

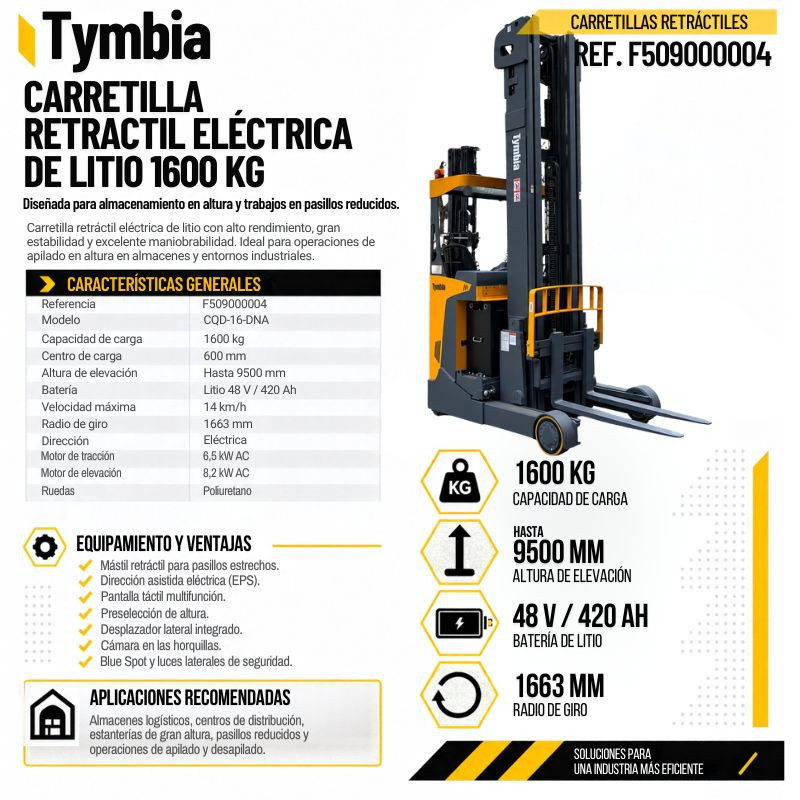

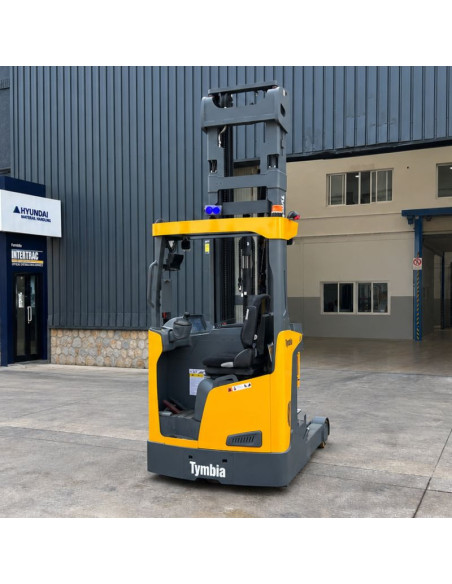

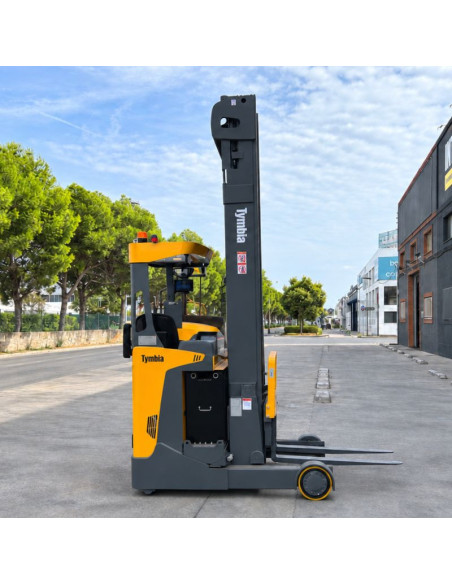

Retractile Lithium Trolley 1600kg

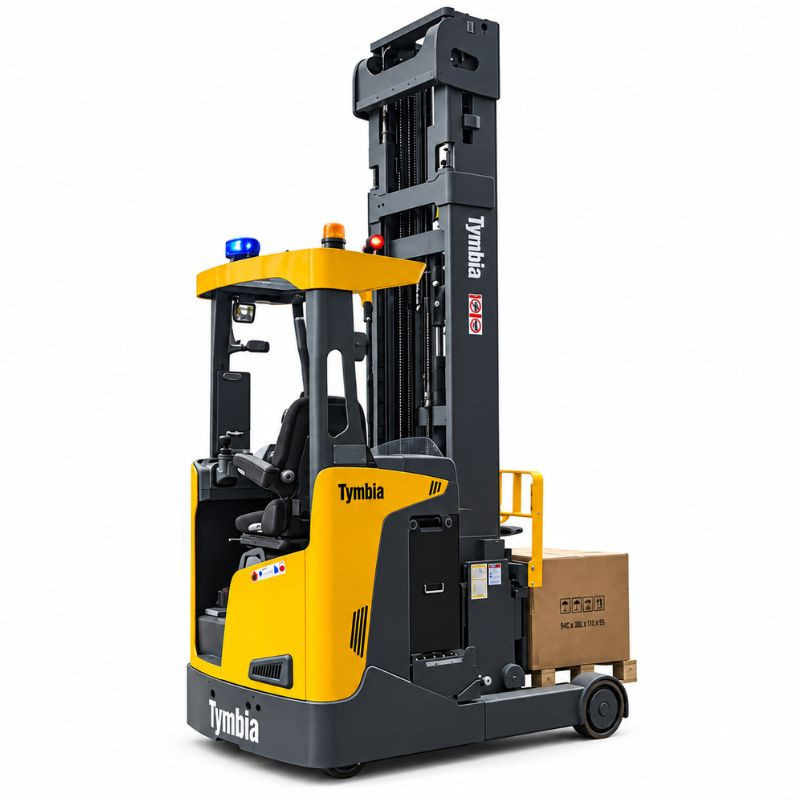

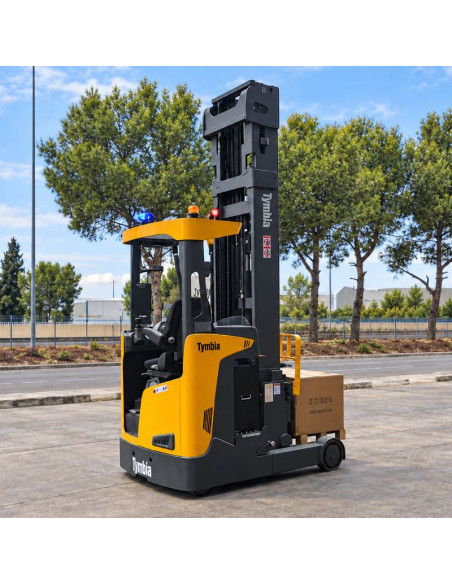

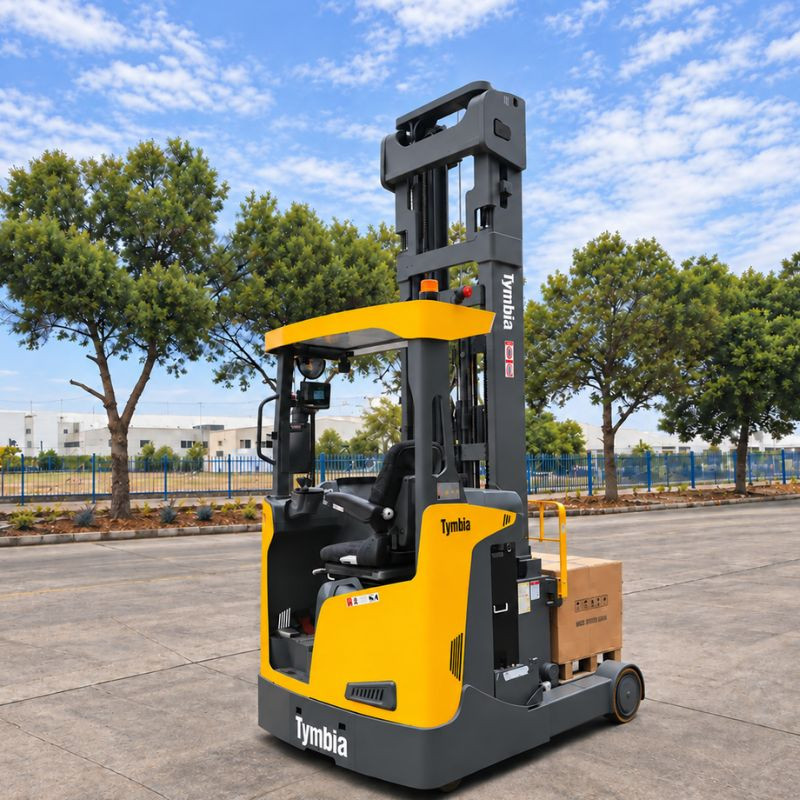

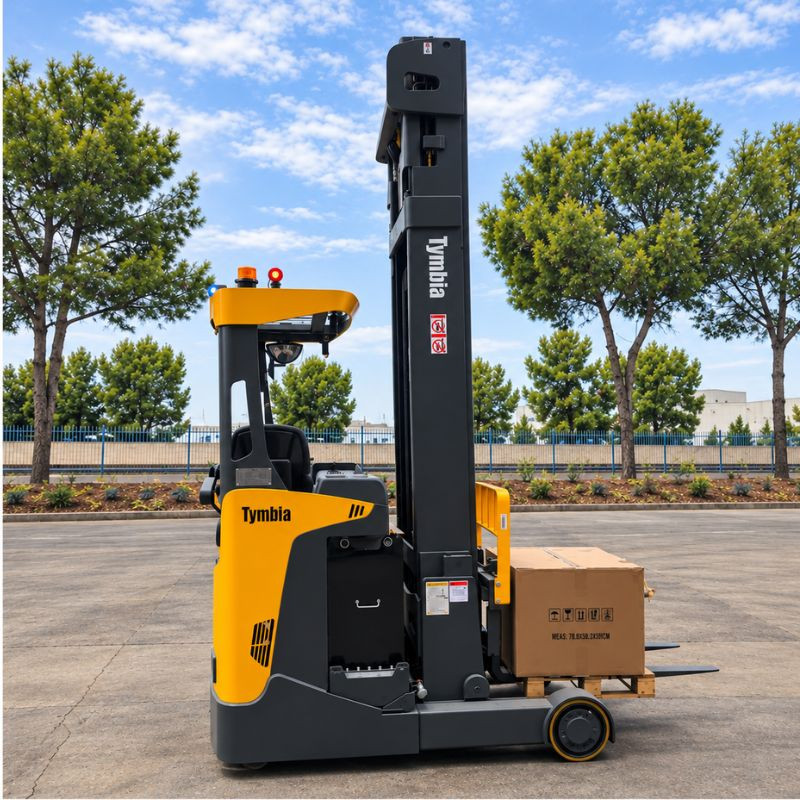

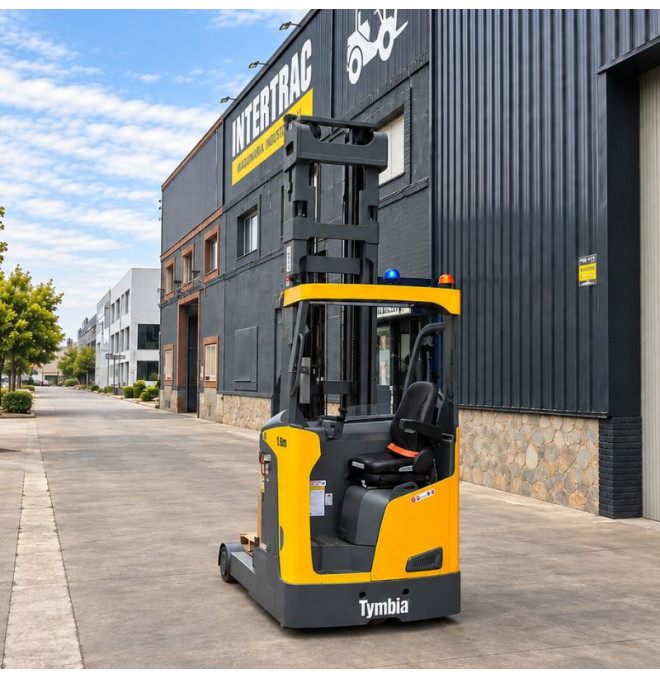

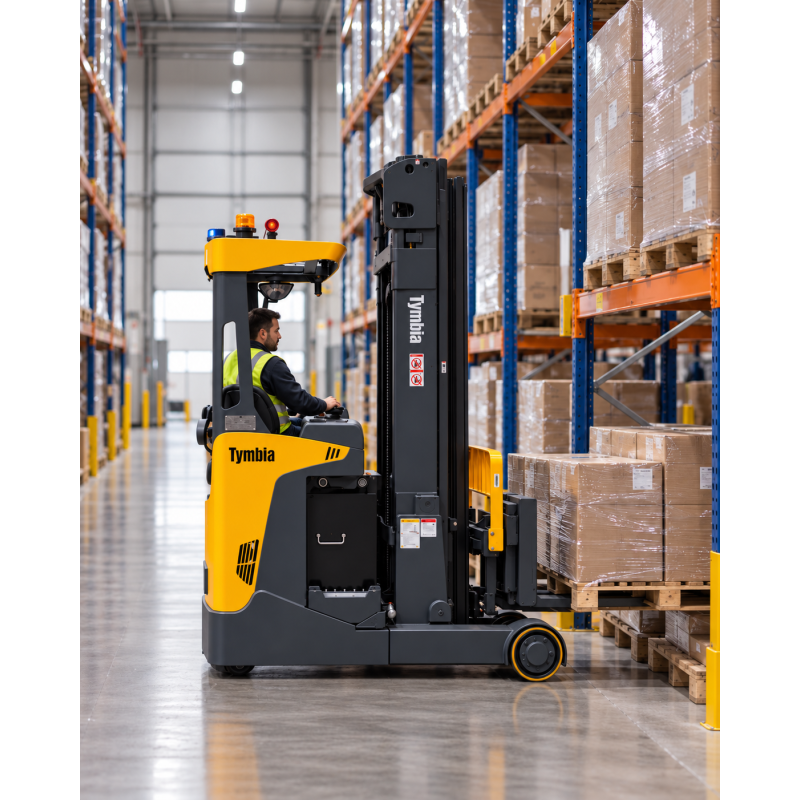

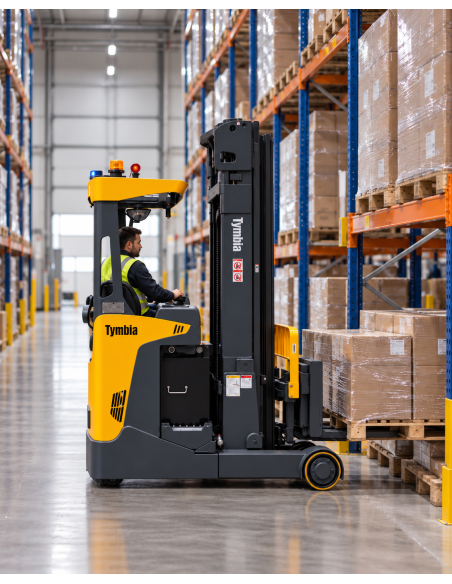

1600kg Tymbia Electric Retractable Trolley is designed for professional storage, stacking and merchandise handling operations in racking and shelving Of high altitude, especially in facilities where it is necessary to make the most of the available space.

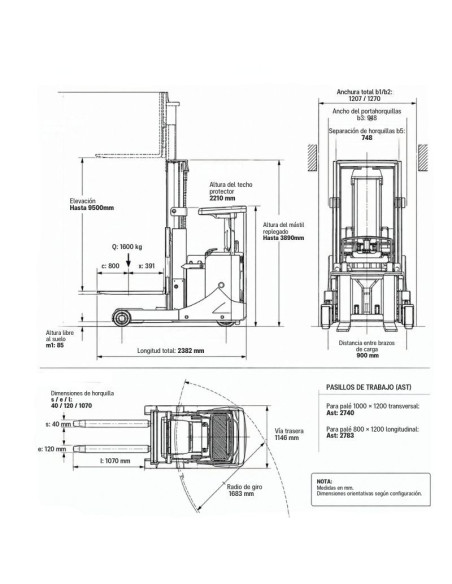

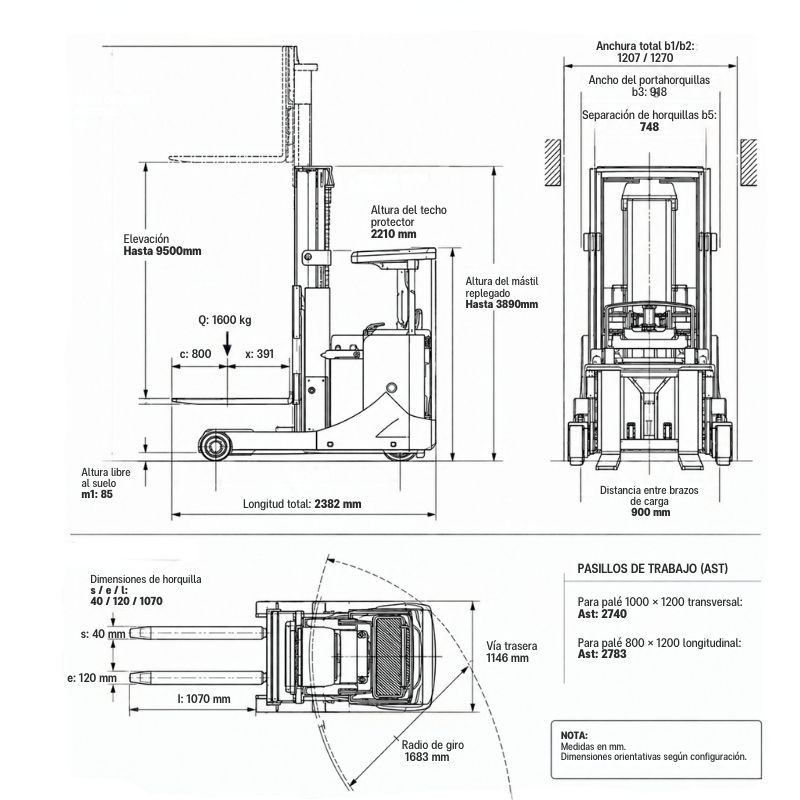

It offers a nominal capacity of 1600 kg with a cargo center of 600mm and different mast configurations that allow reaching lifting heights up to 9500mm.

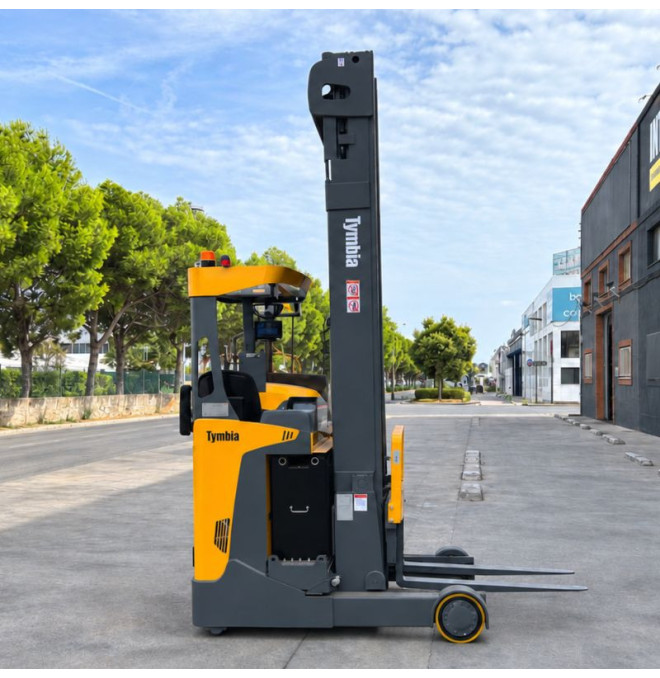

Your retractable system allows you to move the mast assembly to collect and position the load, maintaining compact dimensions. It has a range of 565mm and a 1663mm spinning radius, especially useful features to maneuver within reduced warehouses and work corridors.

The power supply uses a 48V / 420Ah battery, while the traction motor develops 6.5KW AC and the 8.2KW AC elevation engine.

In displacement it reaches speeds of 13km / h with load and 14km / h without load. Its electromagnetic braking system and electric direction contribute to precise driving during maneuvers.

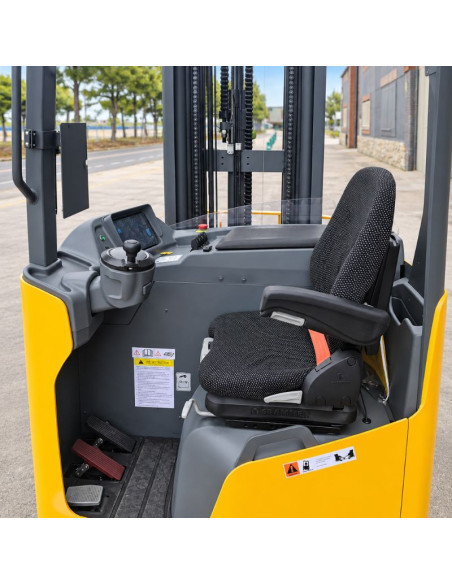

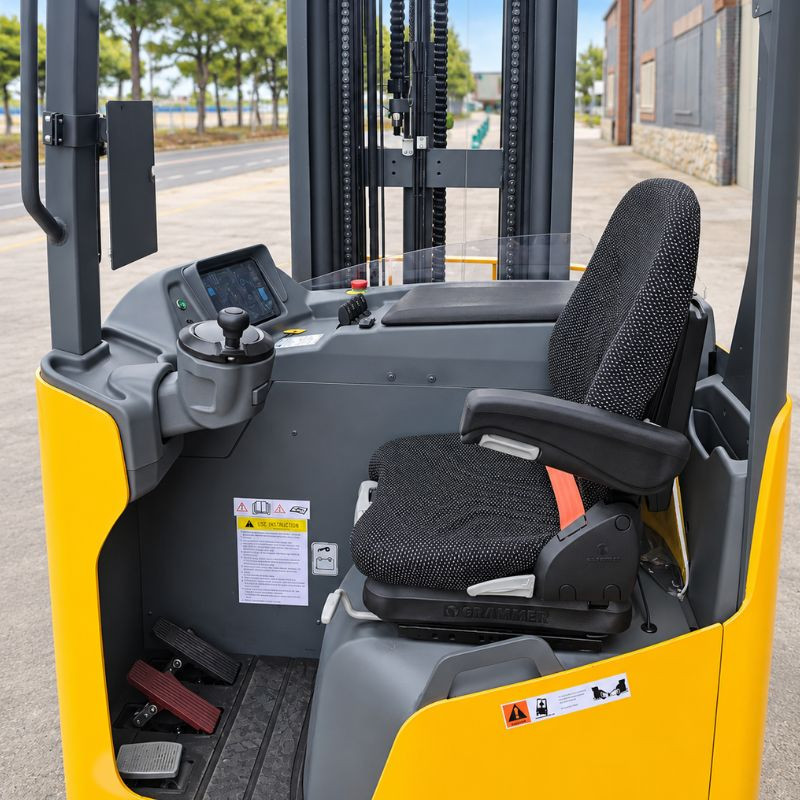

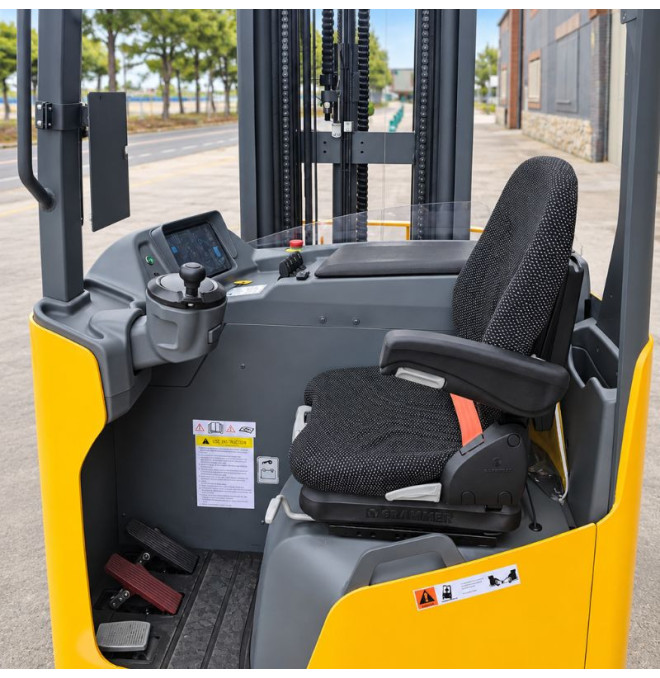

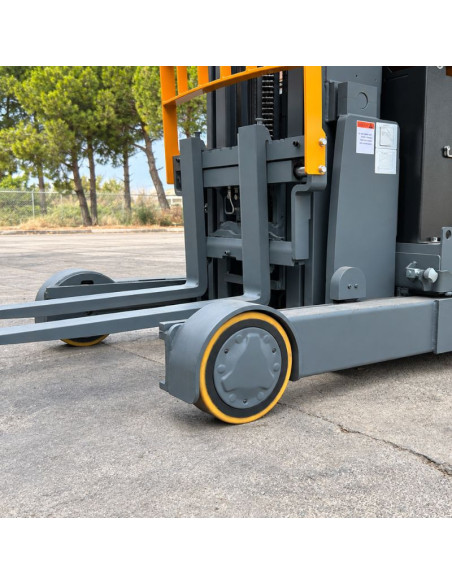

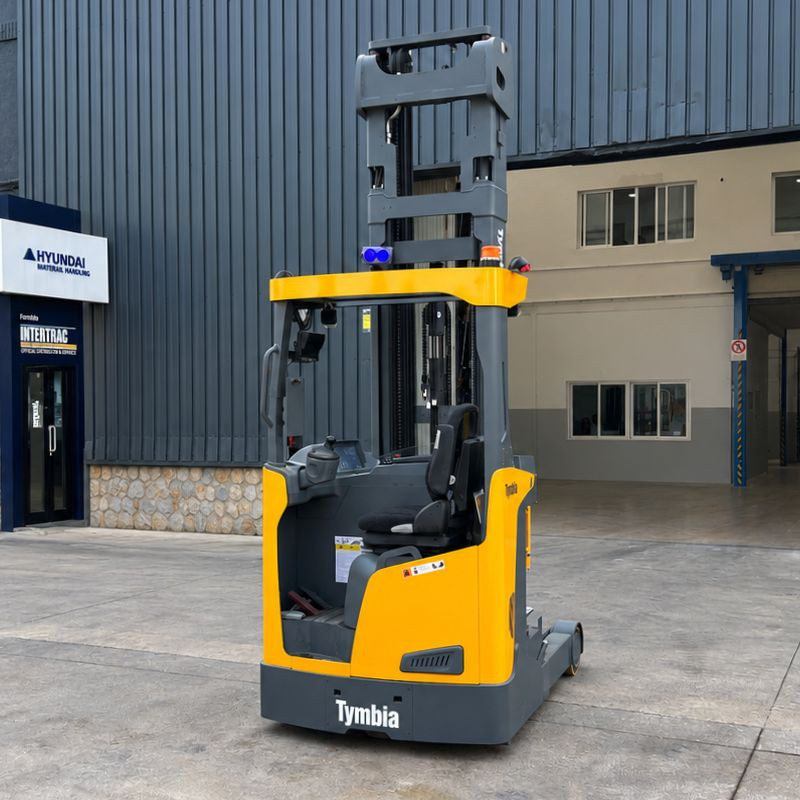

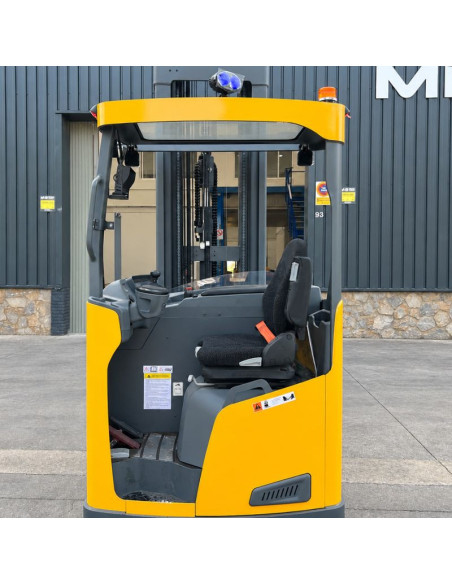

The truck incorporates sitting conducting position and polyurethane wheels, targeting mainly about regular industrial pavements in warehouses and logistics centers.

Featured features:

• Nominal capacity of 1600kg
• 600mm cargo center

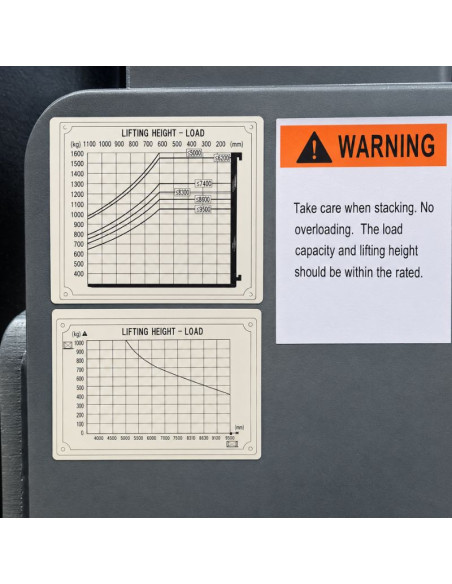

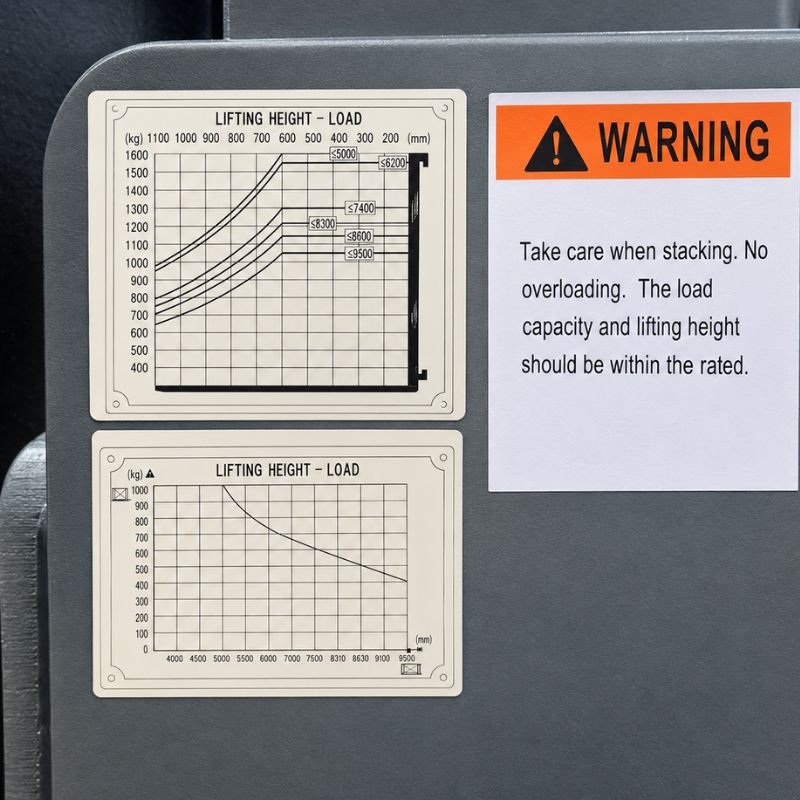

• Elevation available up to 9500mm
• 48V / 420Ah battery
• 6,5kw AC traction motor
• 8.2kw AC lifting motor
• Maximum speed of 14km / h
• 1663mm spinning radius
• Retractable range of 565mm
• Electrical address
• Electromagnetic brake
• Sitting

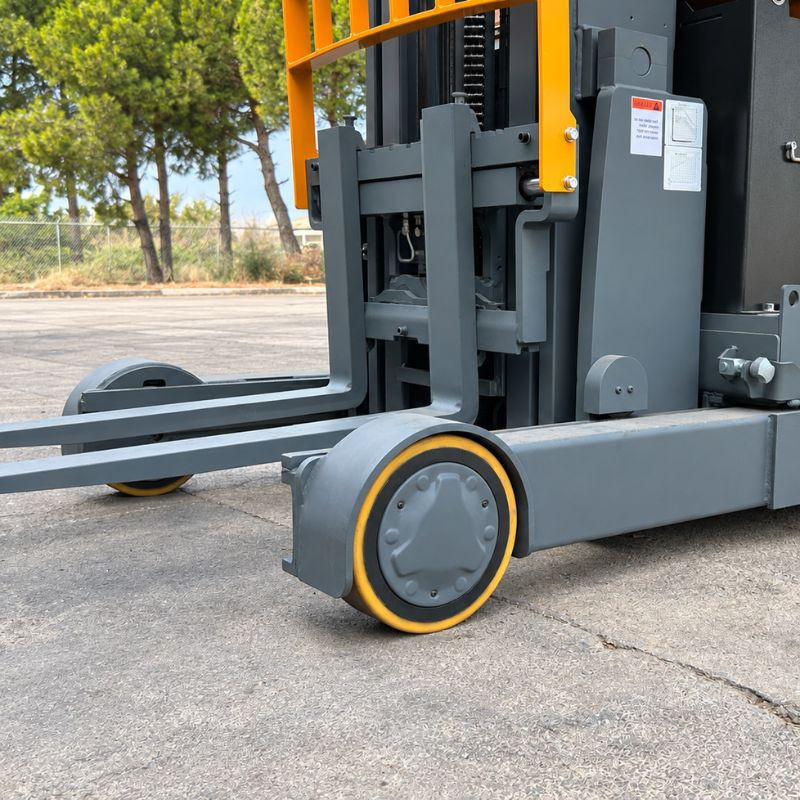

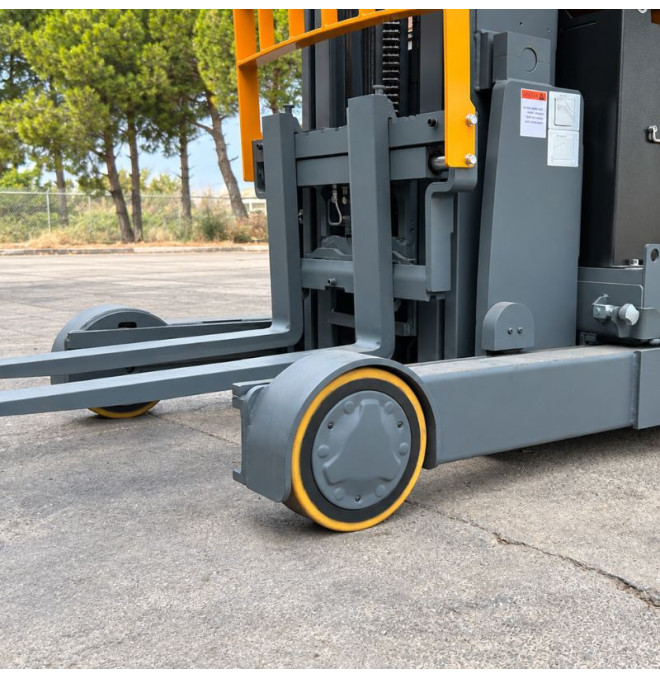

• Polyurethane wheels
• Compact design for warehouse corridors
• Sound level of 65 dB (A)

Technical characteristics:

• Loading capacity: 1,600kg
• Lifting height: 9,000mm

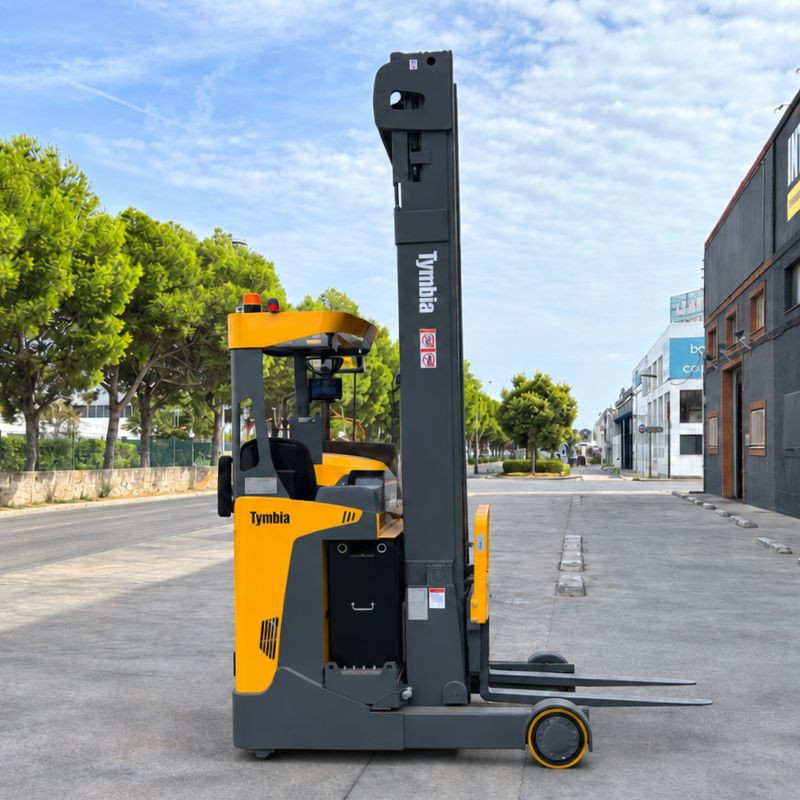

• Triplex mast with free elevation
• Hydraulic control by electrovalve
• Hydraulic controls by mini levers
• Traction engine: 6,5KW
• Lifting motor AC: 8.2KW
• Fully AC immotion system

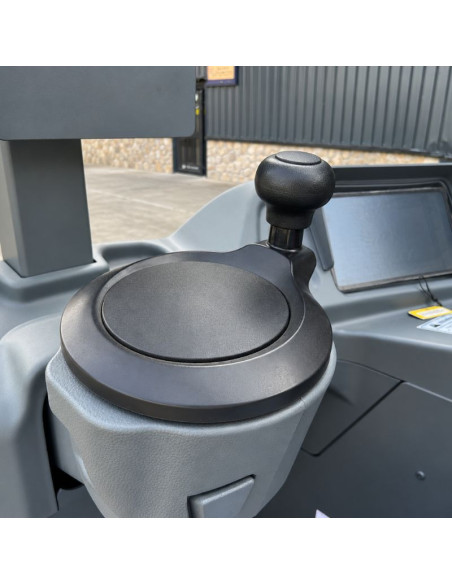

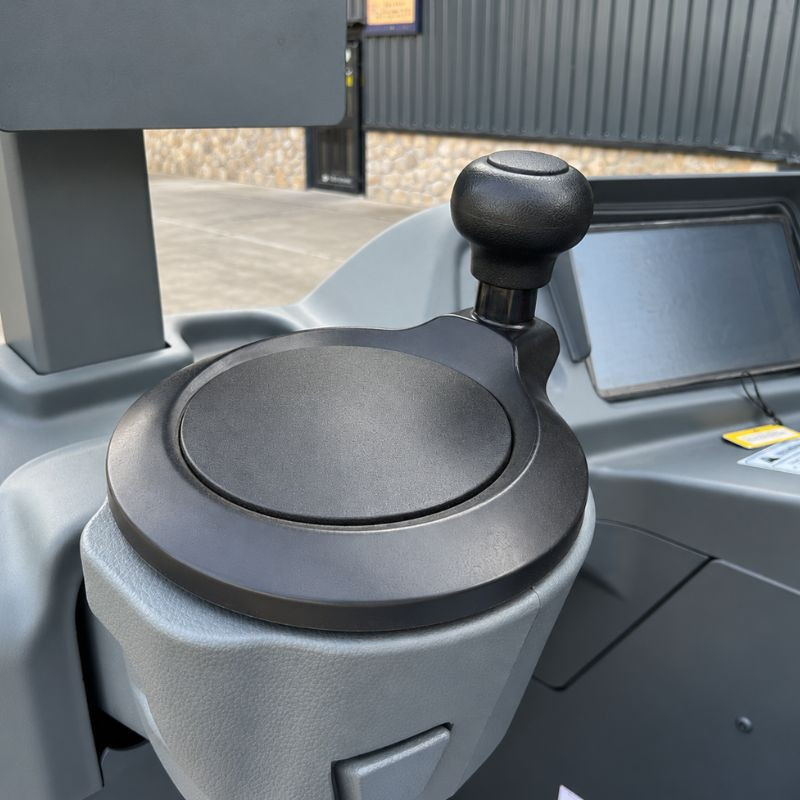

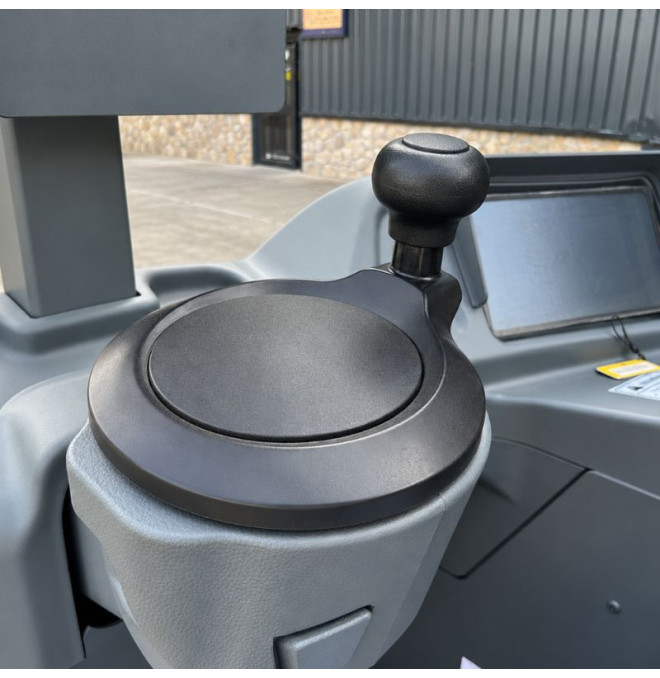

• Electric power steering (EPS)

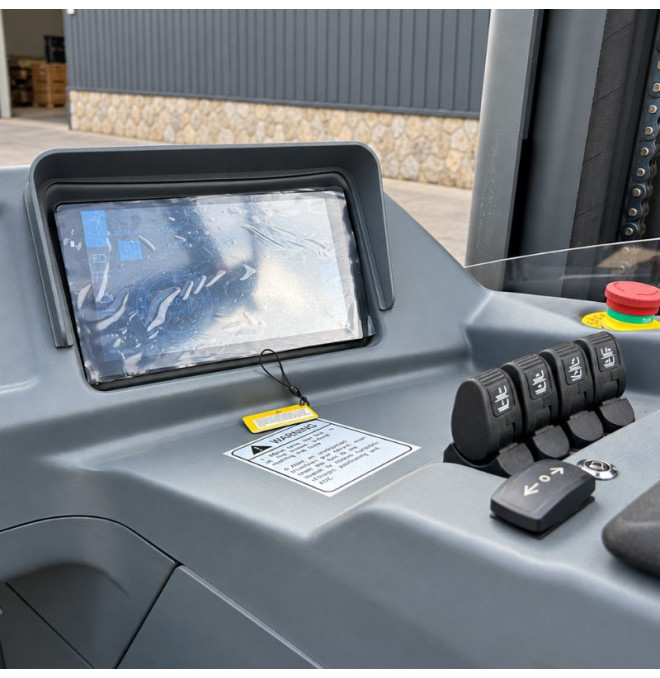

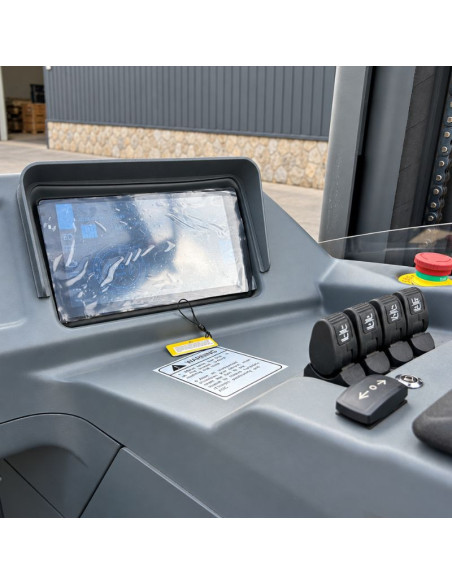

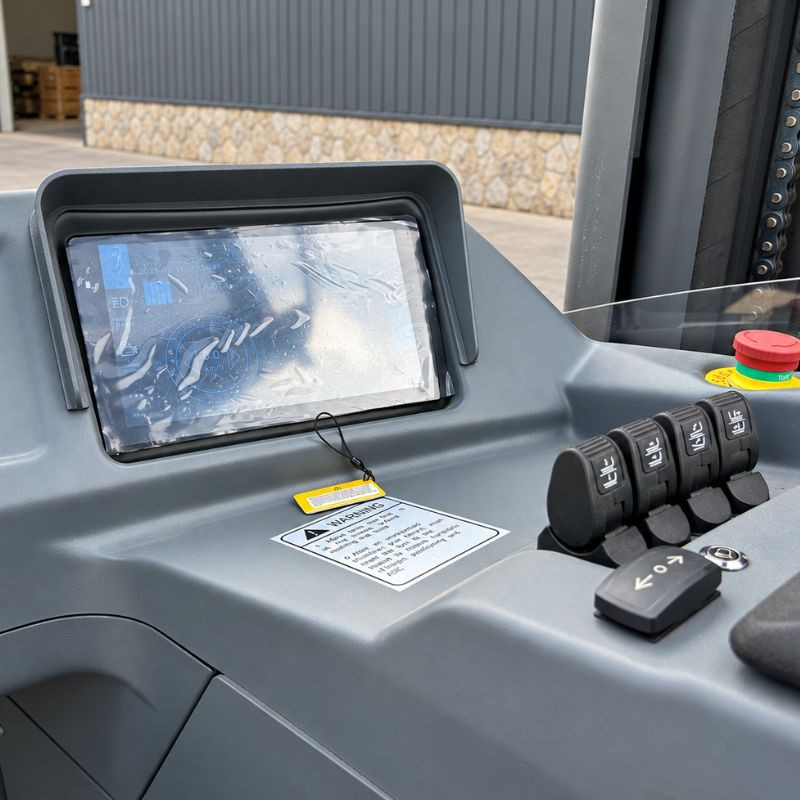

• Multifunction touch screen
• Height pre-selection function
• Integrated side scroller

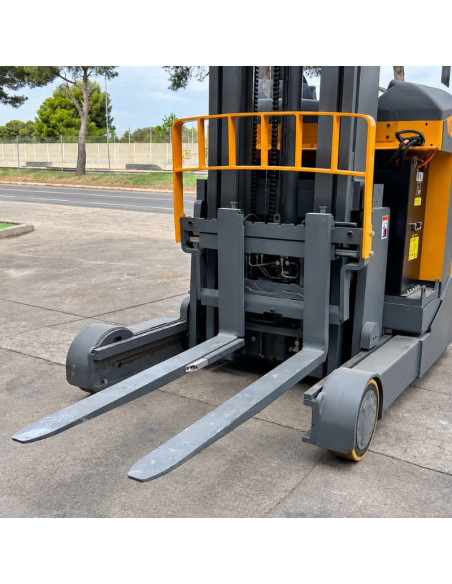

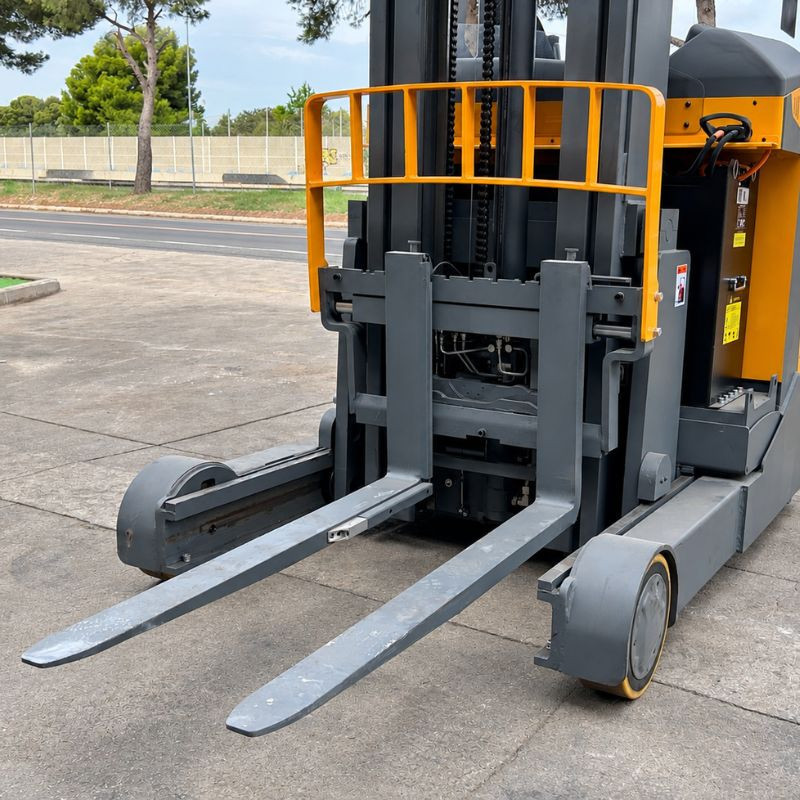

• Length of forks: 1.150mm
• 180 °/360°
• LED LED Front Work
• Rear-view mirror
• Warning light
• Reverse alarm
• Translation speed with load / without load: 13 / 14km / h
• Rapid lift

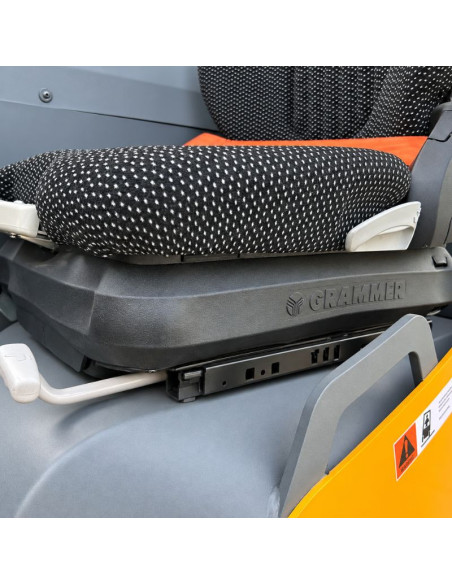

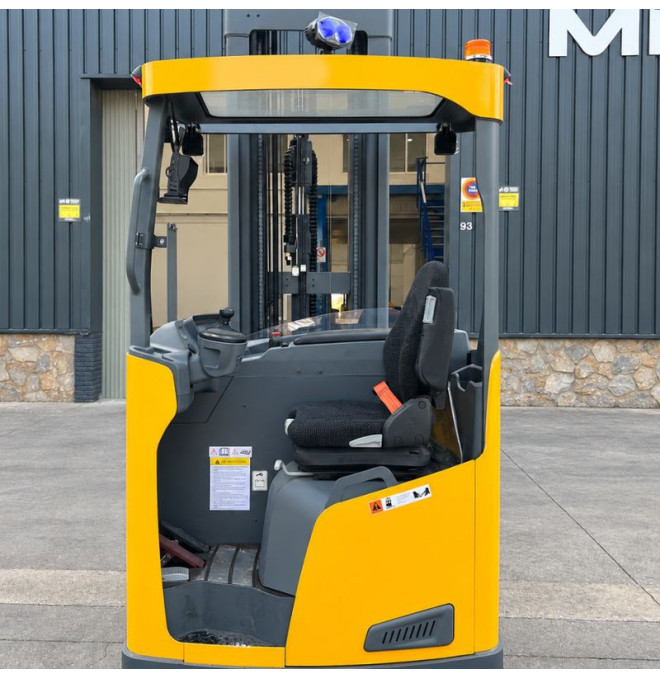

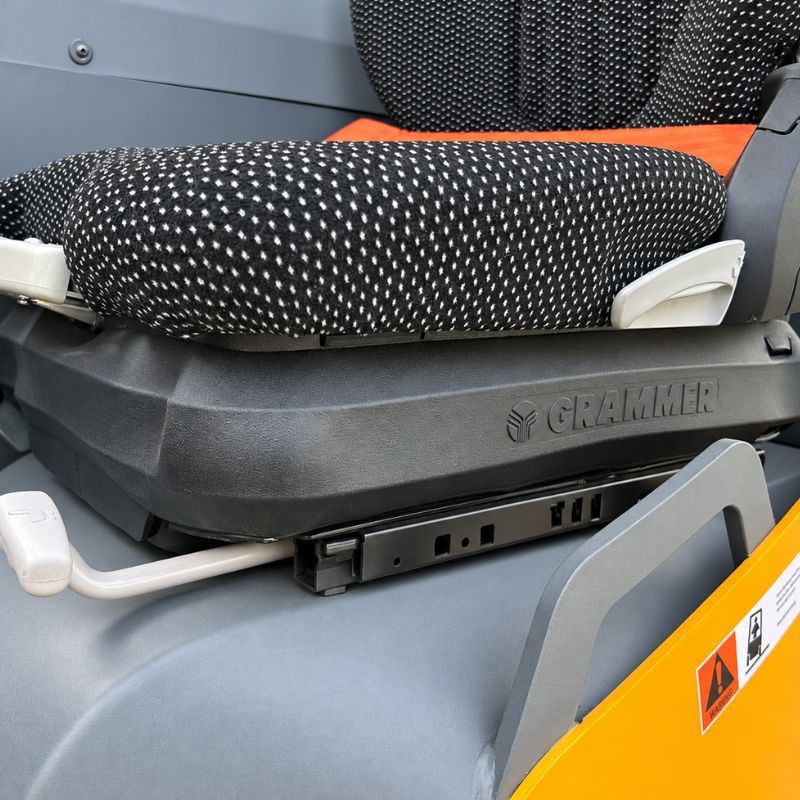

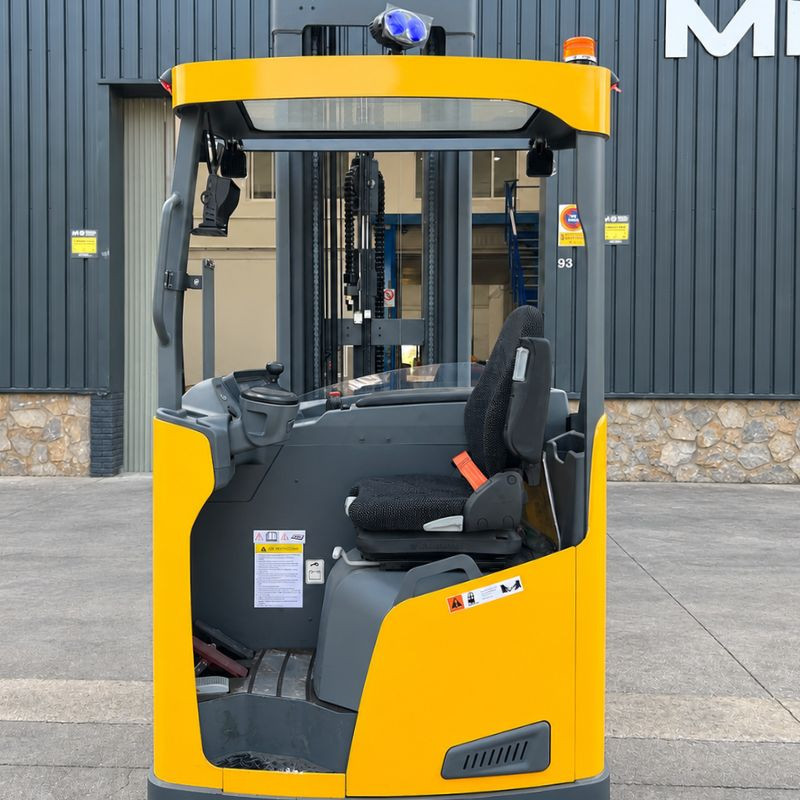

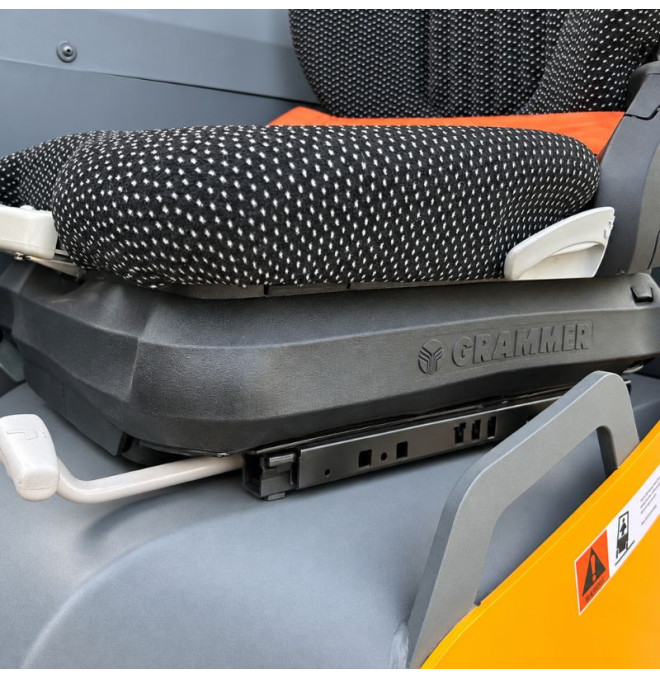

• Standard fabric seat
• ASC system

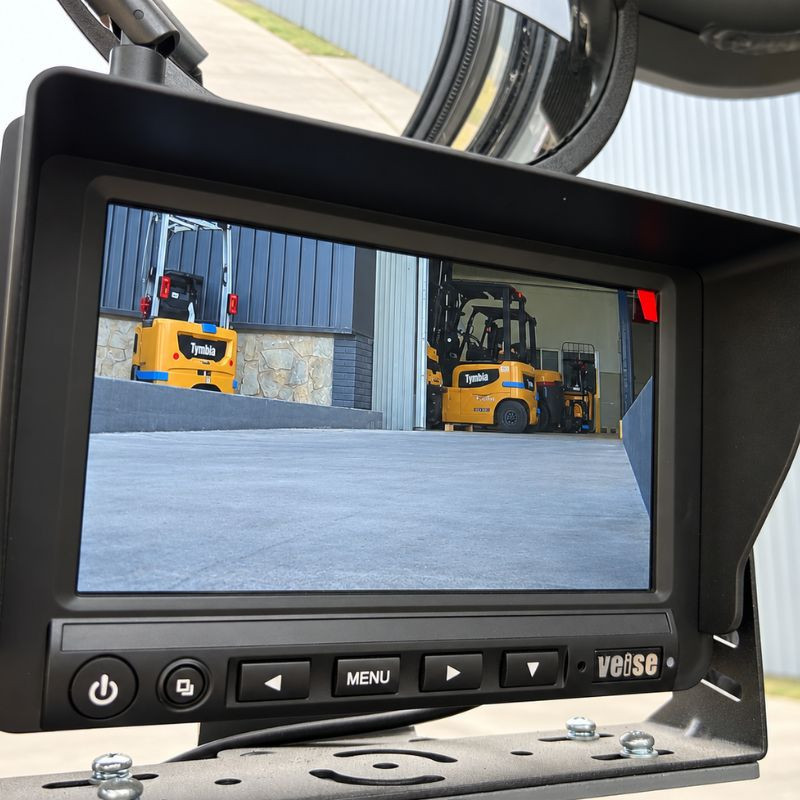

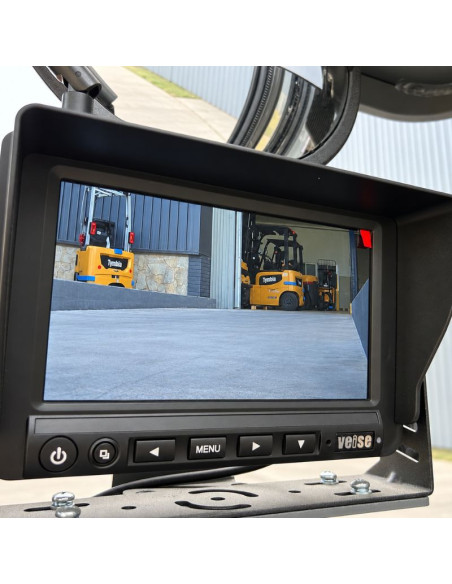

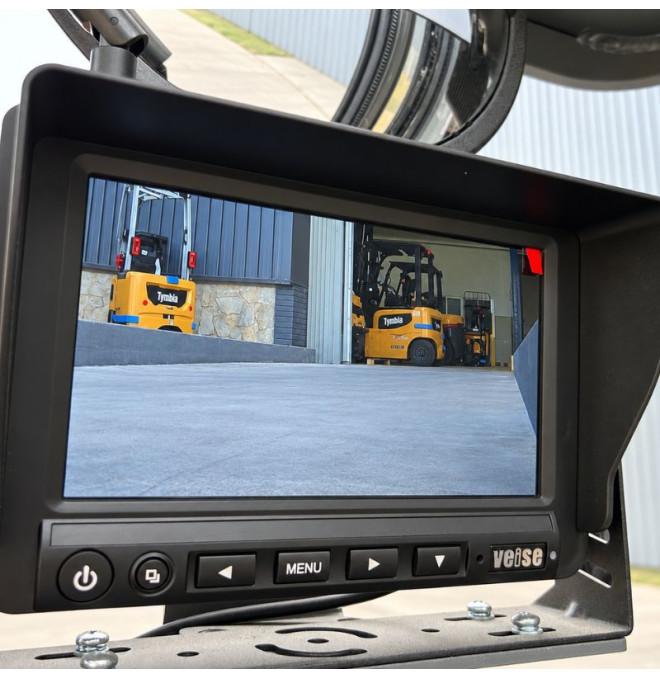

• Camera on the forks

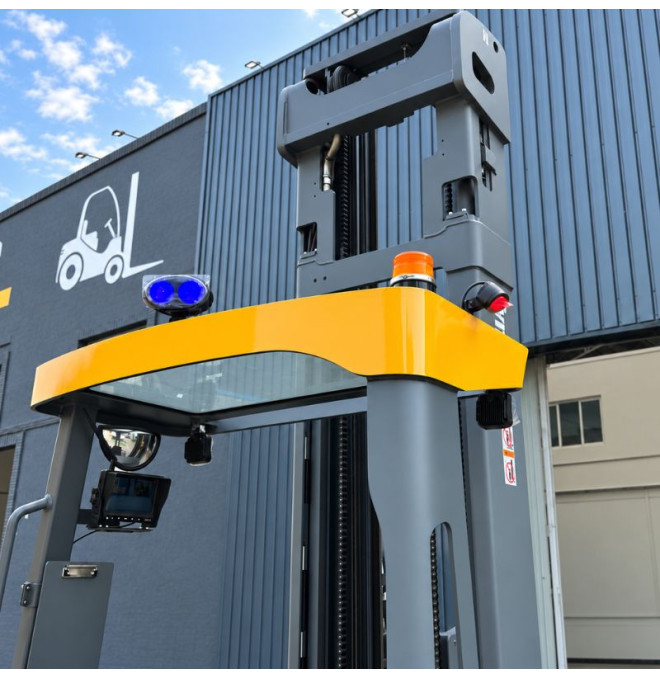

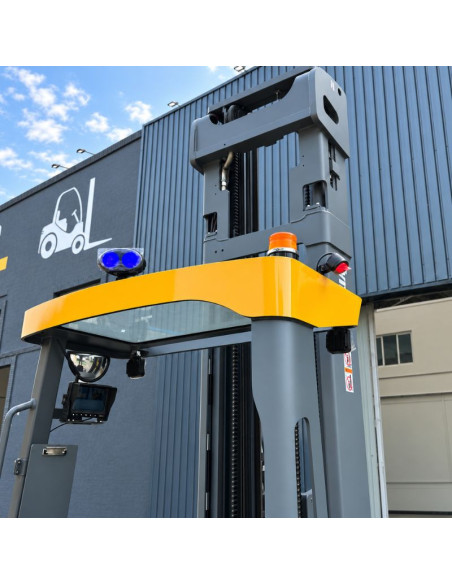

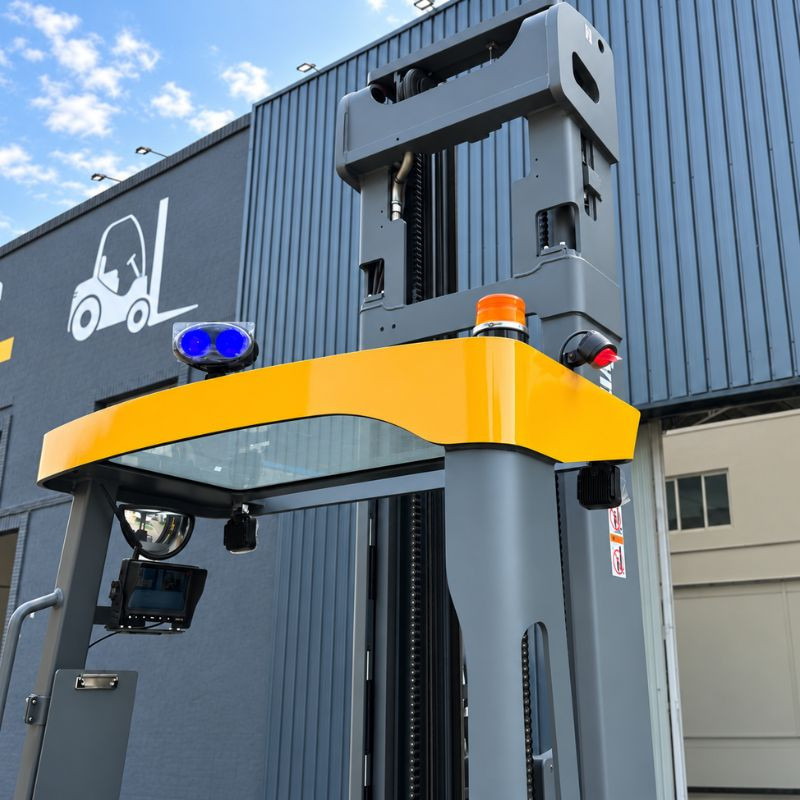

• Protective roof cover in Lexan (polycarbonate)
• A4 document holder with clamp (clip A-4)
• Safety Light Blue Spot
• Red Safety Line Lights on both sides
• Support for Film Rolls
• Lithium battery with lateral extraction: 48 V / 600 AH
• Charger: 200 A, 380V three-phase
• Height of the mast retreated: 3.560mm

Advantages:

• Elevation up to 9.5 meters
• Capacity of 1600 kg
• Retractable design to work in racking and shelving deep and elevated
• Reduced rotation radius
• Suitable for narrow corridors
• AC tensile engine
• Lifting motor
• Large capacity battery of 420 ah
• Good scroll speed
• Electricity
• Low
• Sitting
• Different mast heights available

Uses:

• Logistics warehouses
• Distribution centers
• Racking and Shelving high-rise
• Warehouses with reduced corridors
• Industry
• Preparation and storage of goods
• Production centers
• Cameras and internal warehouses compatible with machine configuration
• Stacking and deappleed operations
