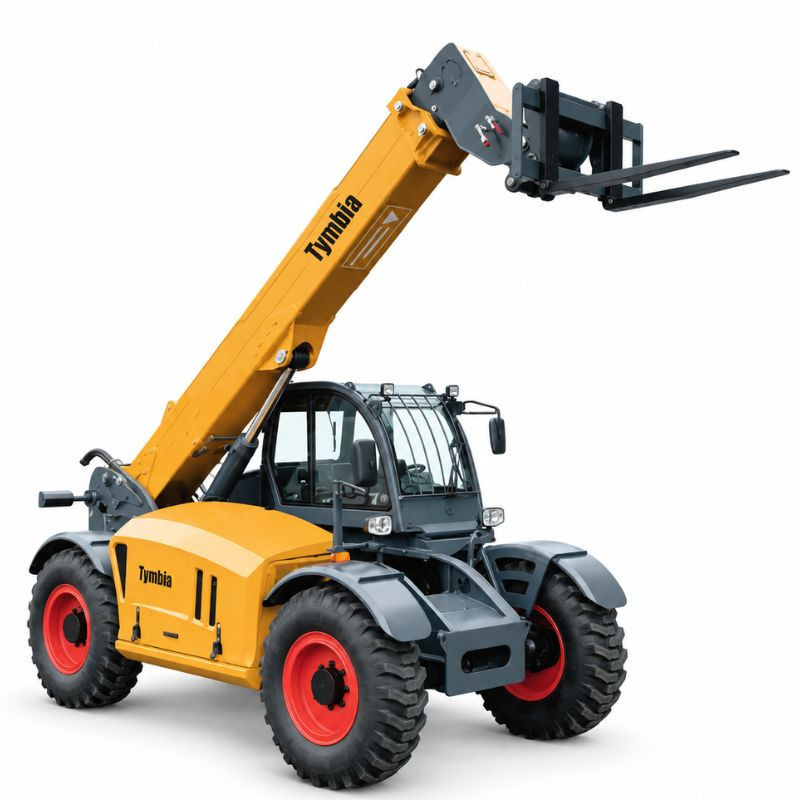

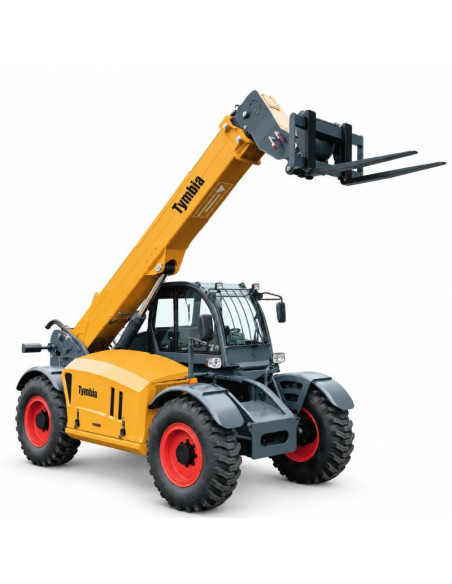

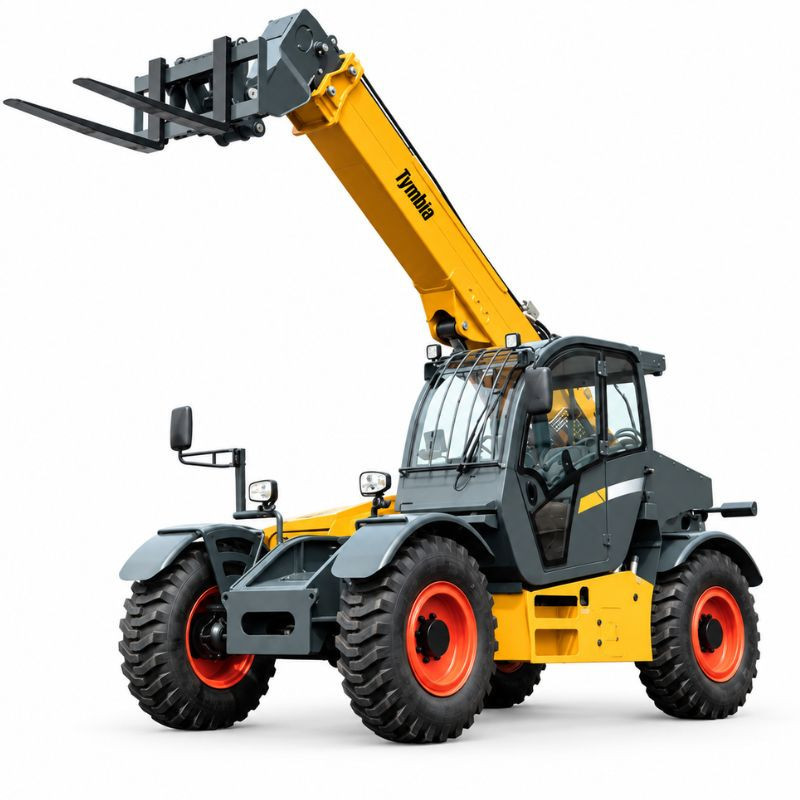

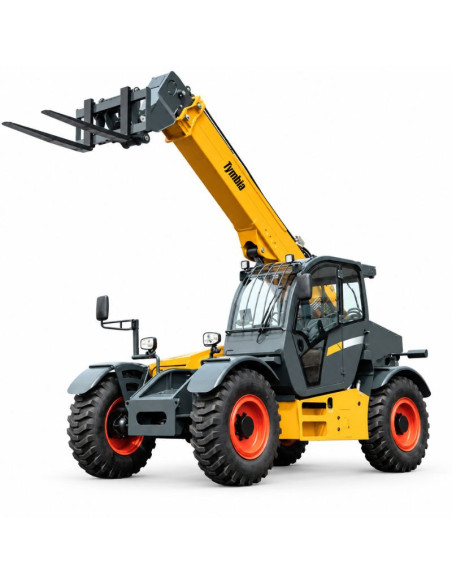

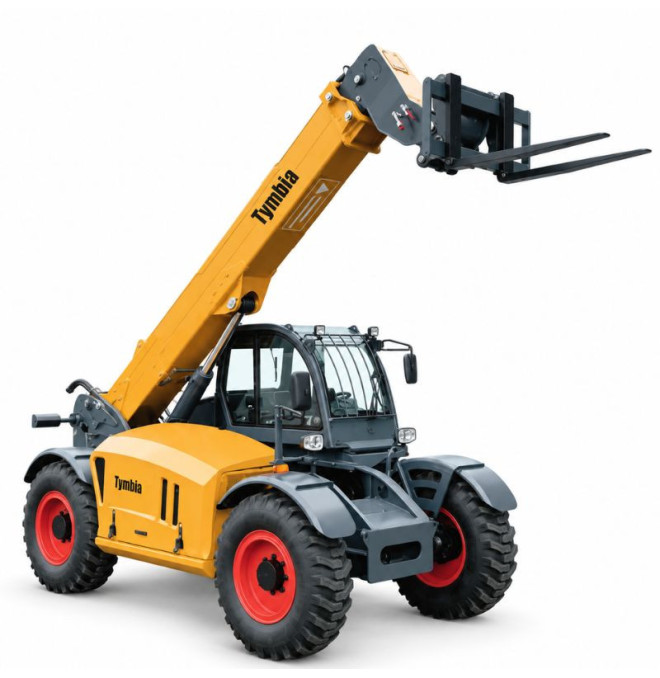

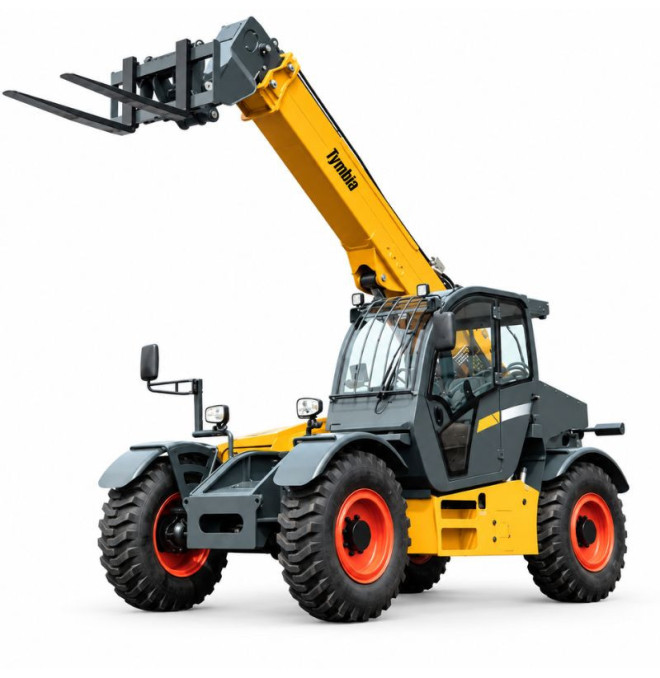

Diesel telescopic manipulator 75 Eur Euro V

The 7.5 ton diesel telescopic toner is designed for demanding work, positioning and movement of materials on site, industry, logistics and professional applications where you need to combine large load capacity with range and height.

Its maximum capacity of 7500kg allows manipulating large tonnage loads, while its telescopic feather reaches a maximum lifting height of 10.283mm and a maximum horizontal range of 5473mm, providing a high Versatility for operations both in height and remote.

It equips a 3.9-liter diesel engine, with a nominal power of 115kw at 2200rpm and a maximum torque of 620 nm at 1500 rpm. The motorization complies with Euro V / US T4F regulations.

The transmission system is hydrostatic, with 2/2 marches and a maximum displacement speed of 32 km / h. The parking brake is electronic and the service brake is wet type.

The machine incorporates stabilizers that allow to increase the support base during lifting operations. Its total width is 2500 mm, expanding up to 3479mm with extended stabilizers.

The hydraulic system uses a load-sensitive pump, with a maximum flow of 180 l / min and a pressure of 270 bar, providing the hydraulic capacity needed for the operation of the pen and the implements.

In addition, it admits different optional implements as a straight pen of crane, Pen with winch, fixed lifting arm, an articulated arm with winch and bucket, expanding your work opportunities.

Featured features:

• Maximum capacity: 7500kg
• Maximum lifting height: 10.283mm
• Maximum horizontal reach: 5473mm
• Diesel engine F3.8
• Nominal power of 115kw
• Maximum torque of 620nm
• EUROP EMISSION REGRATION V / US T4F
• Maximum speed of 32km / h
• Hydrostatic transmission
• Load Sensing Hydraulic System
• Hydraulic flow of 180 l / min
• 270 bar hydraulic pressure
• Front stabilizers
• 4x4 traction
• 1220mm standard forks
• Different optional implements

Advantages:

• Large load capacity of 7.5 tons
• Elevation greater than 10 meters
• Horizontal reach greater than 5 meters
• Stabilizers to improve safety during work
• Hydrostatic transmission
• High performance diesel engine
• 180 l hydraulic system / min
• Maximum speed of 32 km / h
• Great variety of implements
• Suitable for intensive jobs

Uses:

• Construction
• Civil work
• Industry
• Logistics Centers
• Handling of heavy materials
• Charge and download
• Lift
• Movement of pallets
• Works with a ladle
• Operations with pen crane
