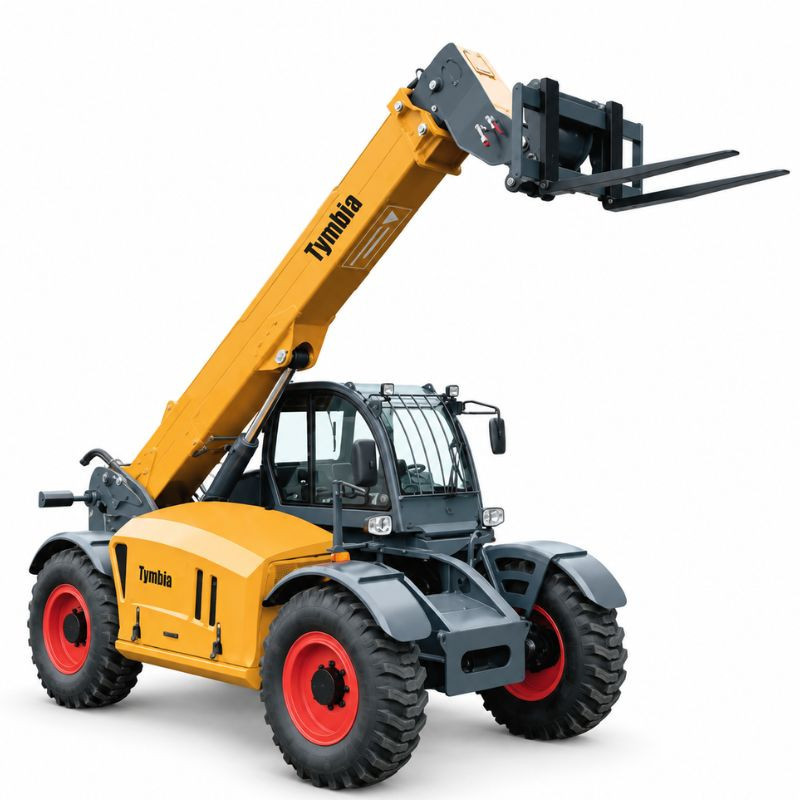

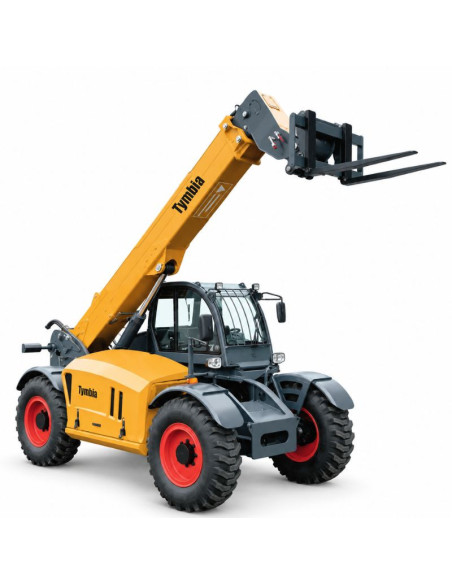

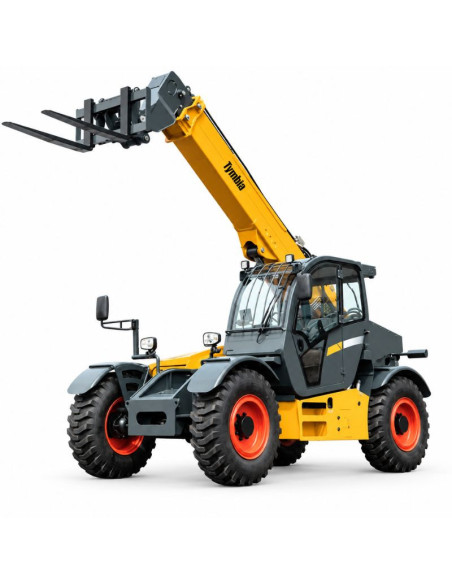

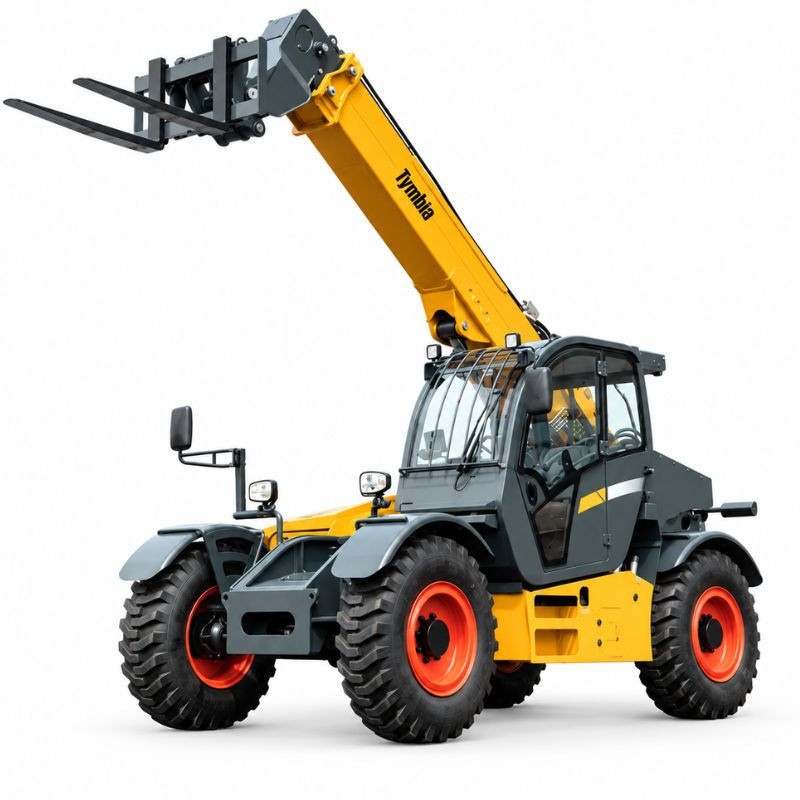

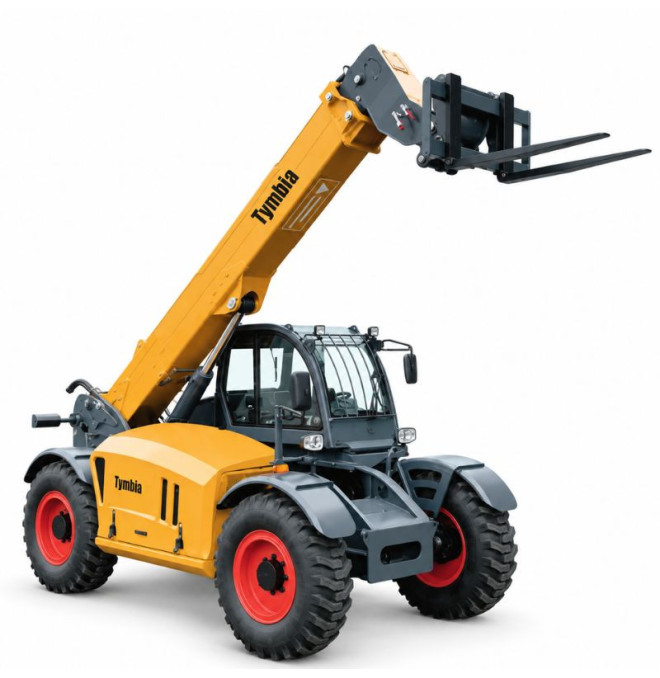

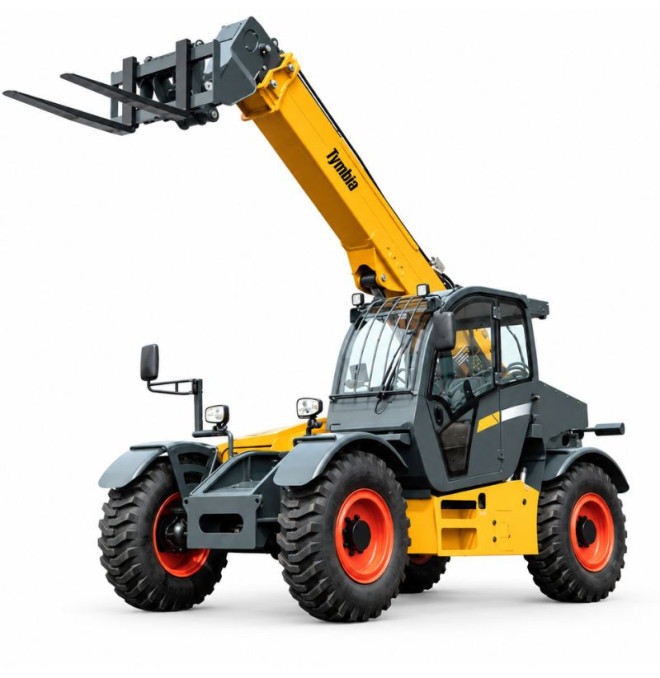

Diesel telescopic manipulator 35-50 H series

Telescopic Diessel Tymbia H Series Handle are designed for professional load, lifting and material positioning work in construction, Industry, Logistics, Agriculture and Other High Requirement Environments.

The range is available with nominal capacities of 3500, 4000 and 5000kg, as well as different pen configurations that allow maximum heights of up to 13 meters and horizontal scope of up to 8.8 meters, depending on the selected model.

It tools a Cummins F3.8 engine with a maximum power of 100 kW at 2200 rpm and a maximum torque of 550 nm at 1500 rpm, providing the necessary power to move heavy loads and work on demanding land. The motorization complies with the EURO V / STAGE V emissions regulations.

Its steering system allows different configurations, including four-wheel direction, front address and crab-type direction, facilitating maneuvers in both small spaces and work areas.

The hydrostatic transmission and the four-wheel drive system provide adequate operation for irregular surfaces. The maximum displacement speed reaches 35 km / h, facilitating movement between different work areas.

The cabin is designed to offer good visibility and an ergonomic driving position. In addition, it can be configured with different implements to adapt the manipulator to different professional applications.

Featured features:

• Available capacity of 3500 to 5000kg
• Maximum lifting height up to 13m
• Maximum horizontal reach up to 8.8m
• Diesel engine Cummins F3.8
• Maximum power of 100 kW
• Maximum torque of 550 nm
• EUROP EMISSION REGRATION V / STAGE V
• Maximum speed of 35 km / h
• Four-wheel drive
• Different steering modes
• Hydrostatic transmission
• Closed cabin
• Multifunction Joystick
• Automatic emergency stop in case of overload
• Automatic leveling of the forks
• Wide variety of available implements

Advantages:

• Wide range of capabilities and heights
• Up to 5 tons of nominal capacity
• Work heights up to 13 meters
• High performance cummins engine
• Integral traction for difficult surfaces
• Crab type address to improve positioning
• Different implements available
• FOPS / ROPS Protected Cabin
• Load control system
• Automatic leveling of forks
• Suitable for intensive jobs
• Scroll speed of up to 35 km / h

Uses:

• Construction
• Civil work
• Industry
• Agriculture
• Outdoor warehouses
• Logistics Centers
• Manipulation of materials
• Charge and download
• Lift
• Positioning loads in height
• Work with bucket
• Operations with pen crane
