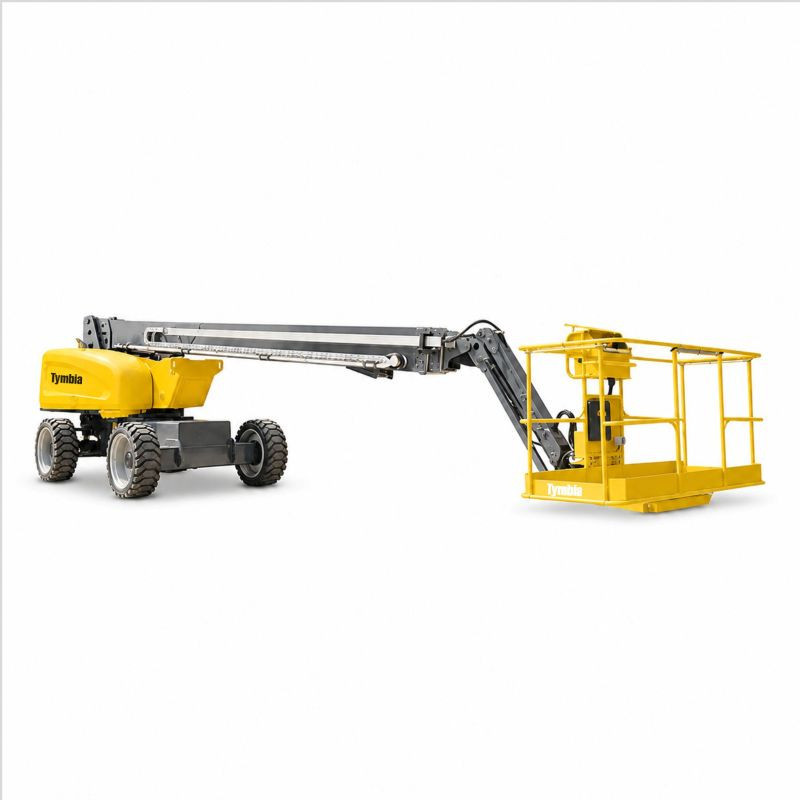

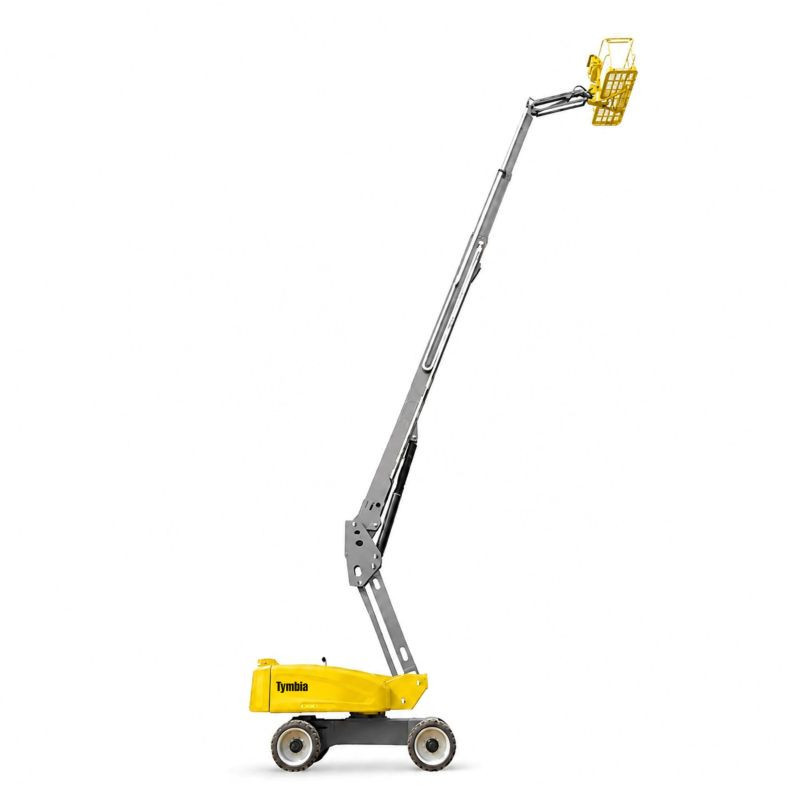

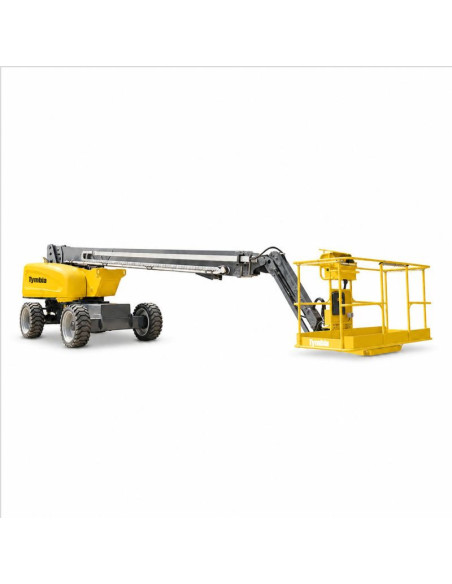

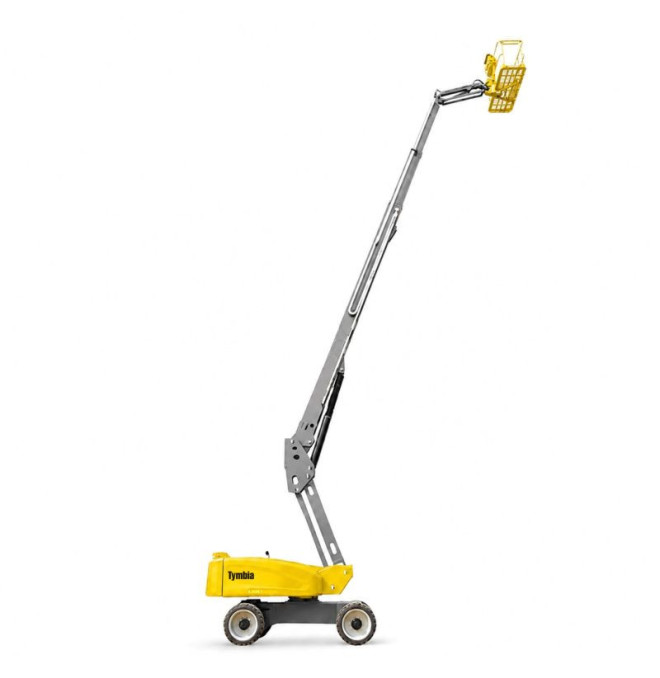

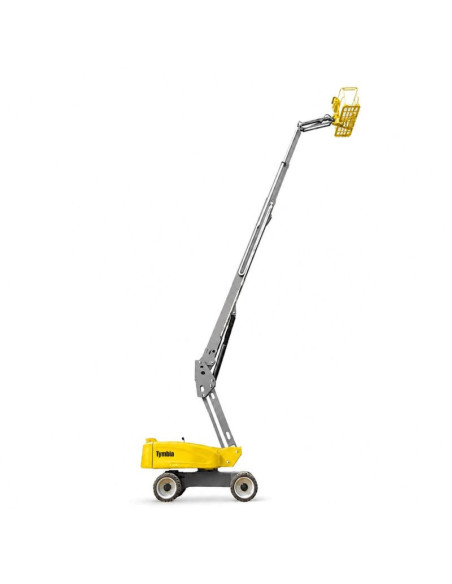

Telescopic platform Self-propelled diesel 28'5M-230KG

The telescopic platform Diesel Tymbia of 28.5m is a high-performance professional solution for height work that require far horizontal reach, stability and outdoor maneuverability. Its self-propelled configuration with 4WD traction makes it ideal for construction, industrial maintenance, facilities, civil works and technical work on demanding land.

This platform offers a maximum work height of 28.5m, a platform height of 26.5m and a maximum horizontal reach of 21.6m, which allows securely access to high points and away with great precision. Its load capacity of 230 kg allows working with an operator and tools or auxiliary material.

It incorporates 360 ° turret rotation continuous, 180 ° platform rotation and 130 ° plume movement (+ 75 ° / -55 °), improving versatility and facilitating positioning in difficult areas. In addition, mounts proportional electrohydraulic controls, which provide a mild, accurate and safe maneuver during work.

Its robust design is prepared for outdoor intensive use, with overlap of 45%, 3.6 m inner rotation radius, an outer turning radius of 6.88m, 4 motor wheels and 2 guidelines. It also has an autonrylante platform, emergency pump, overload sensor, inclination alarm and other safety and performance elements oriented to professional work.

Featured features:

• Maximum work height of 28.5m
• Maximum platform height of 26.5m
• Maximum horizontal reach of 21.6m
• Load capacity of 230kg
• 4WD traction
• 360 ° turret rotation continues
• 180 ° platform rotation
• Turn with 130 ° rotation (+ 75 ° / -55 °)
• Proportional electrohydraulic controls
• Overlap 45% pending

Advantages:

• Great work height for demanding professional applications
• Excellent horizontal reach to access remote areas
• 4WD traction for better outdoor performance
• Precise maneuver thanks to proportional controls
• High stability and robust structure for intensive use
• Good capacity for operator and auxiliary material
• Excellent ability to work on land with slope
• Wide versatility of positioning with turret and rotating platform

Uses:

• Industrial maintenance work
• Mounts and installations in height
• Construction and civil work
• Repairs in facades and covers
• Works on Industrial Ships and Large Surfaces
• Electrical installation, air conditioning and metal structures
• Outdoor access operations on demanding land
