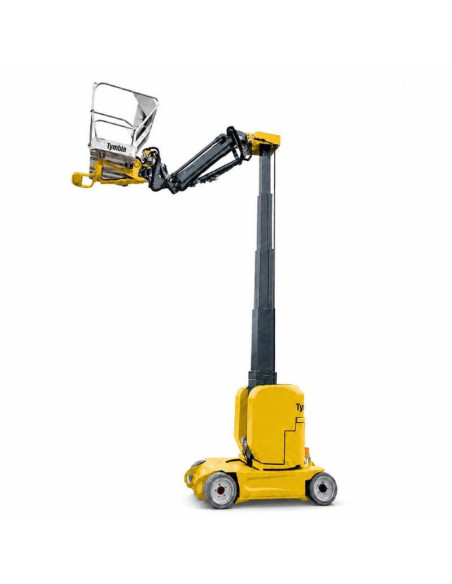

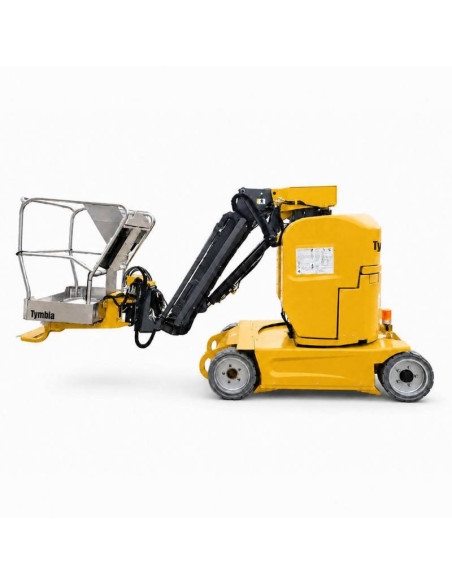

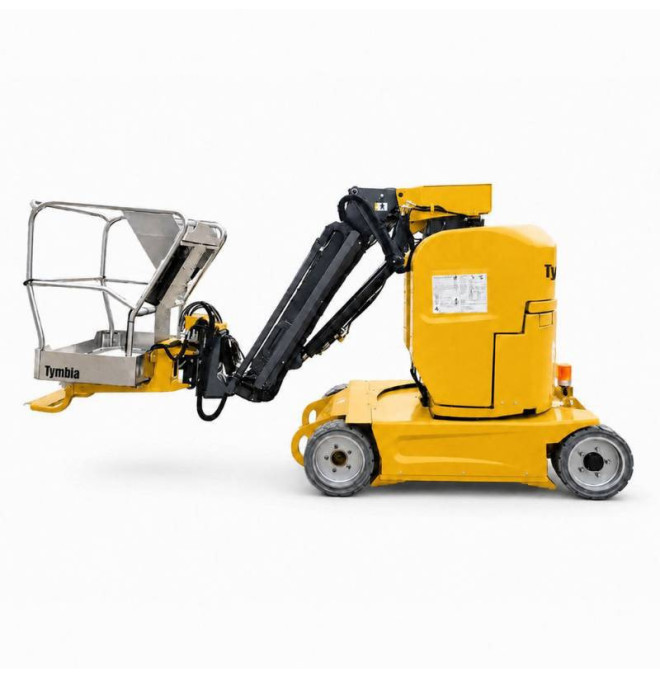

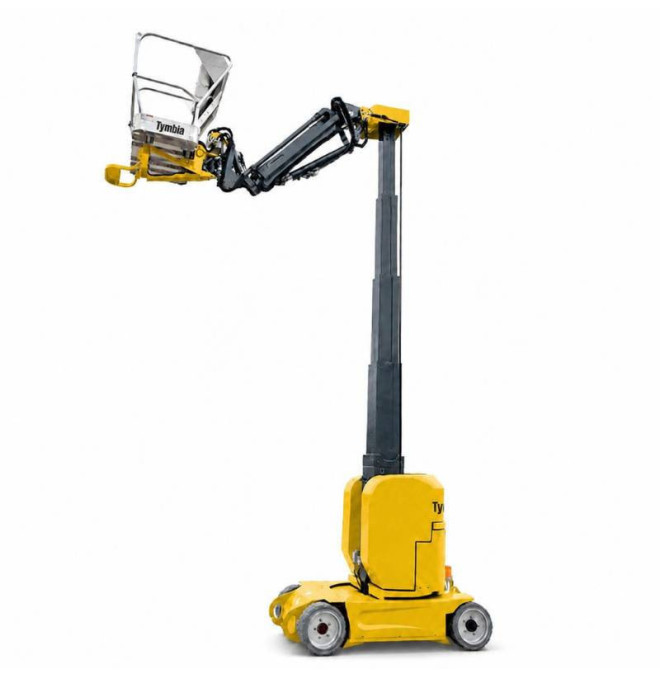

Multidrectional vertical mast platform Self-propelled 12M-200KG

The Air Platform ARTICULATED ARTICULATED TYMBIA OF 12M is a solution designed for maintenance, installation and access-in-height work where it is needed to combine lifting, lateral range and good maneuverability. Its compact design and its electric operation allow you to work with precision in different environments, facilitating access to high points and areas of difficult range.

With a maximum platform height of 10 m and a work height of 12m, this platform is prepared for tasks in buildings, facilities, technical maintenance, assemblies, reviews and industrial work. Its horizontal reach of 6m provides an extra versatility when obstacles need to be overcome or accessing the work area laterally.

The machine incorporates a platform of 1,10 x 0.80 x 1.10m and a load capacity of 200 kg, offering a functional space for the operator and its tools. In addition, it has folded dimensions of 4.03 x 1.20 x 1.99m, which facilitates its use in areas where the size of the equipment is an important factor.

Its technical configuration includes 345 ° continuous turret rotation, rotation of -60 ° / + 75 ° plow, platform rotation ± 45 °, high translation speed of 6 / 7km / h, interior / outdoor rotation radius of 0.975 / 2.80m, 48 V / 240 battery ah, 2WD traction and 2WS address. All this makes it a compact, polyvalent and effective electrical platform for professional work at height.

Featured features:

• 12m work height
• Maximum platform height of 10m
• Horizontal range of 6m
• Cargo capacity of 200kg
• Overlap 25%
• Continuous 345 ° turret rotation
• Platform rotation of ± 45 °
• 48 V / 240 Ah Battery Ah
• TRACTION 2WD
• Compact and electric design for height access work

Key advantages:

• 345 ° turret rotation with zero cantilever
• Platform rotation of ± 45 ° to expand the operative area
• AC traction of low maintenance and efficient
• Control from Platform and Soil
• Diagnosis and emergency decrease
• Compact design and powerful
• Good maneuverability for different work environments

Uses:

• Maintenance of facilities
• Technical assemblies
• High Reviews
• Industrial work
• Electrical installations
• Service operations
• Access to elevated areas with lateral scope
• Controlled indoor and outdoor work
