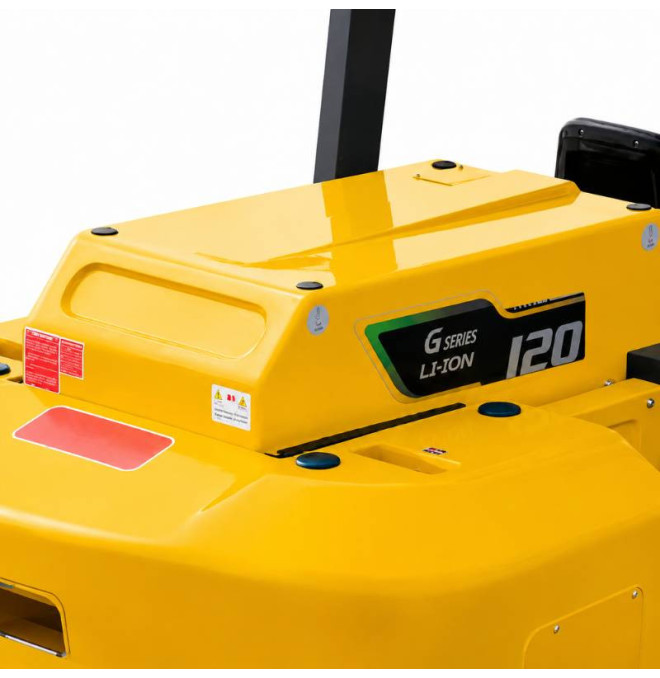

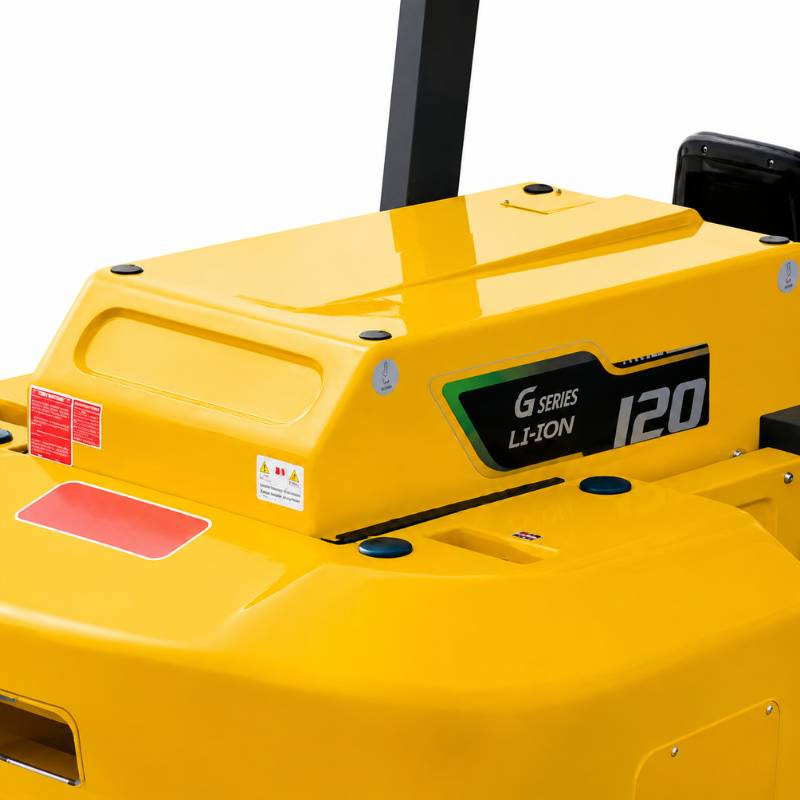

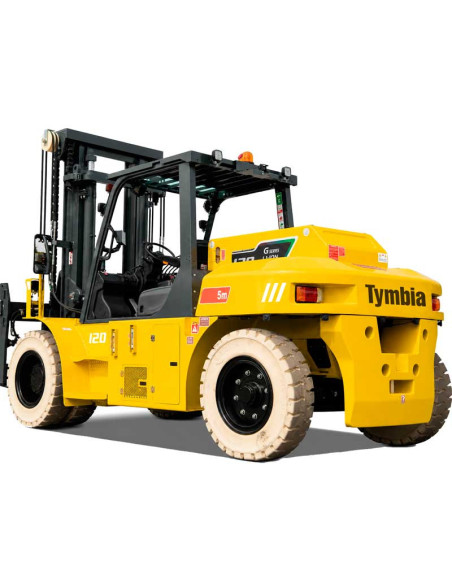

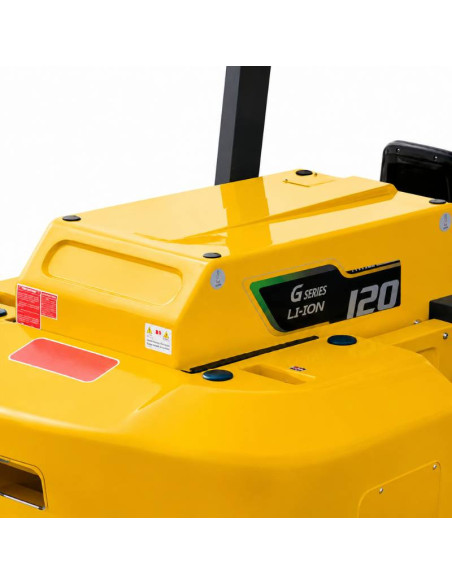

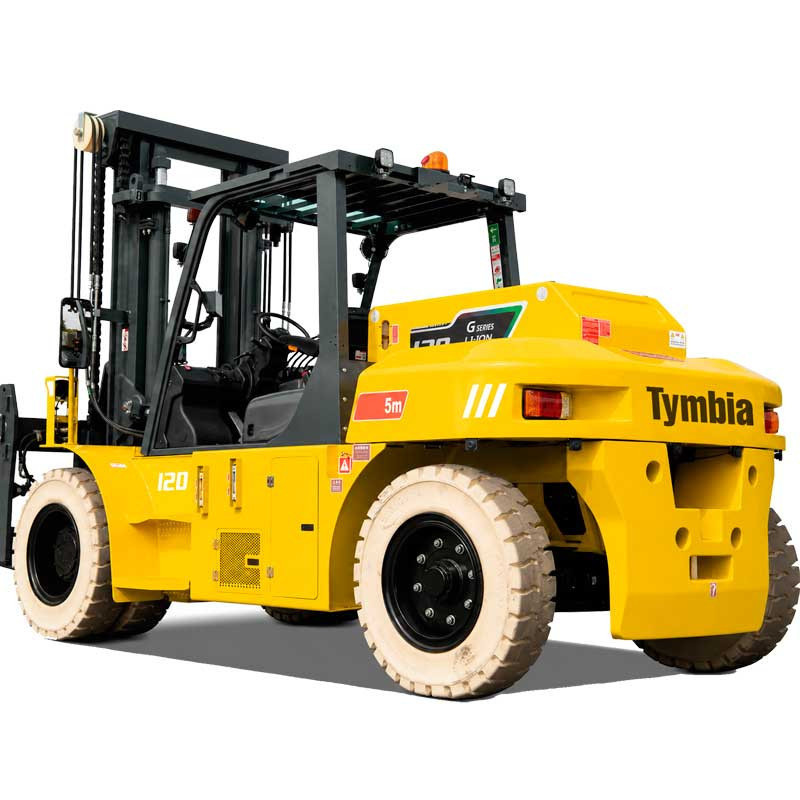

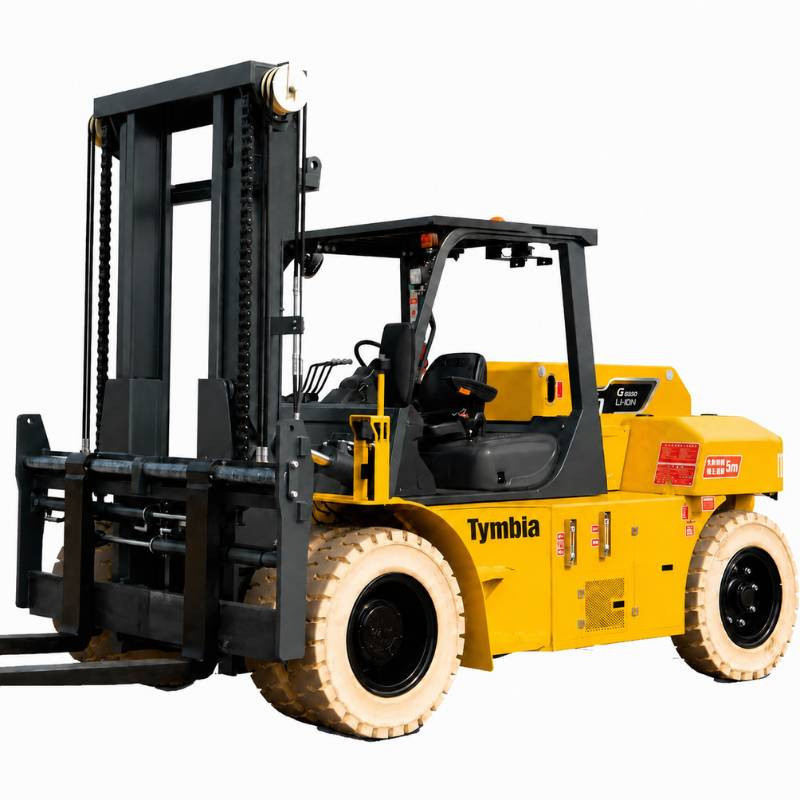

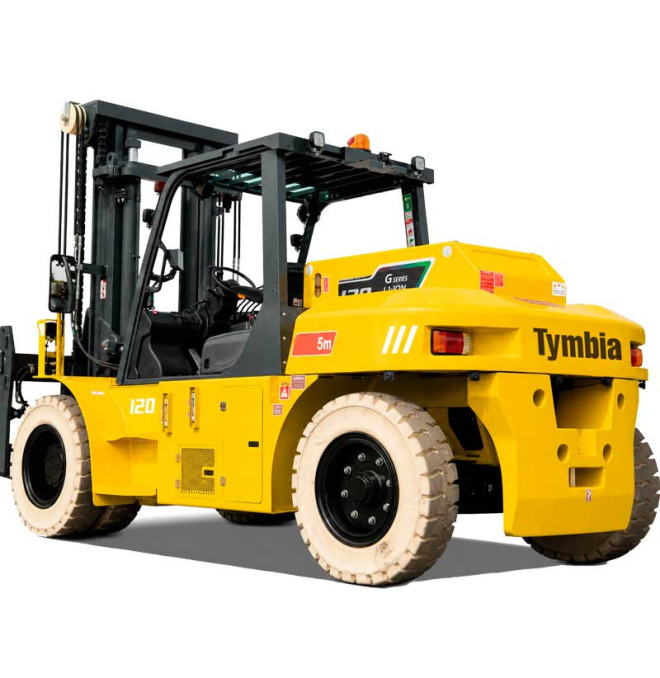

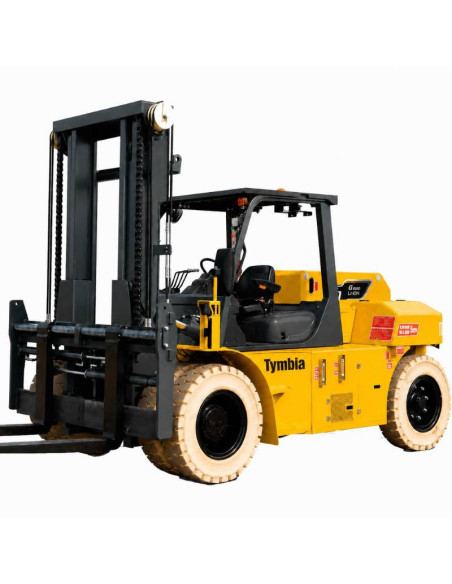

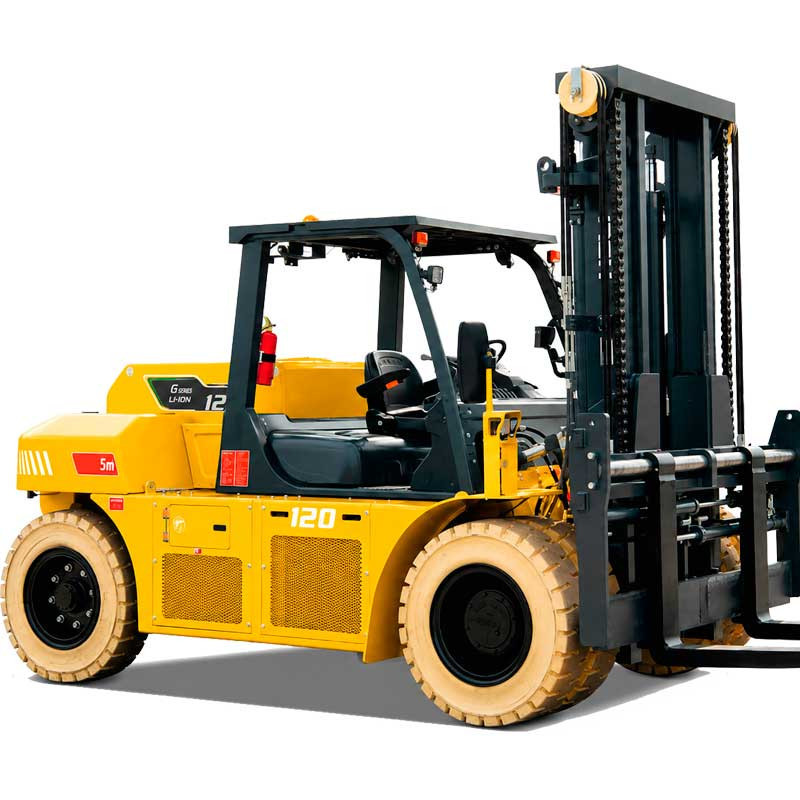

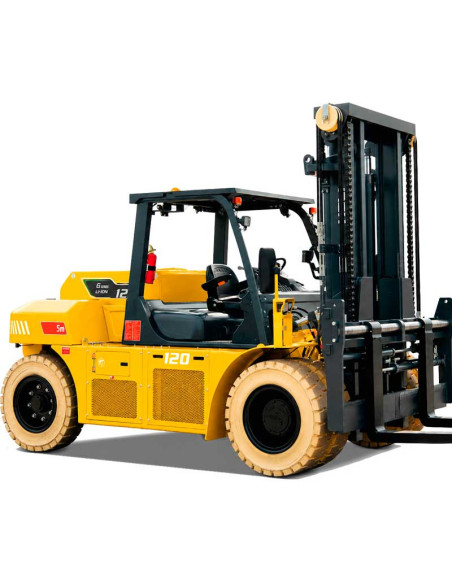

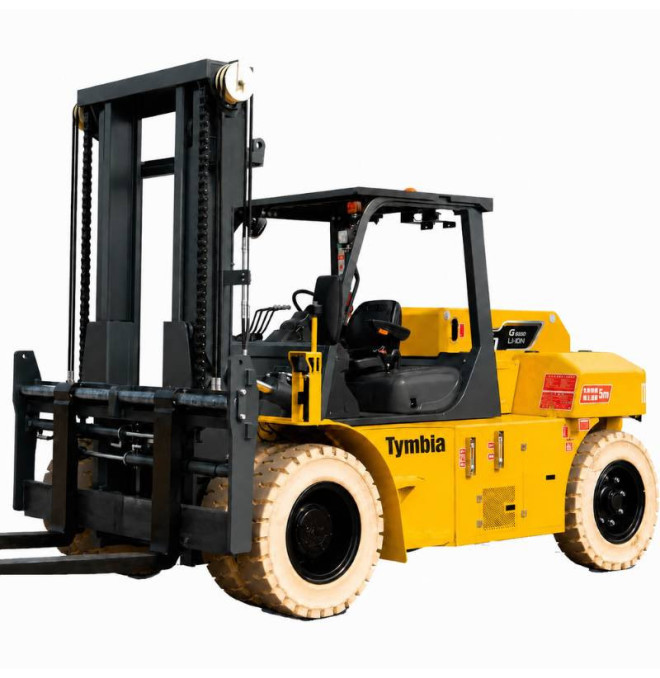

Forklift Lithium 12ton. G Weight Type Series

The forklift 12-ton Tymbia Lithium Electric is designed for heavy handling work in industrial environments, ports, stations, springs, boat cabinets and operations where it is required to move oversized or high weight merchandise. Its electrical configuration of lithium combines power, efficiency and a lower operating cost against conventional thermal equipment.

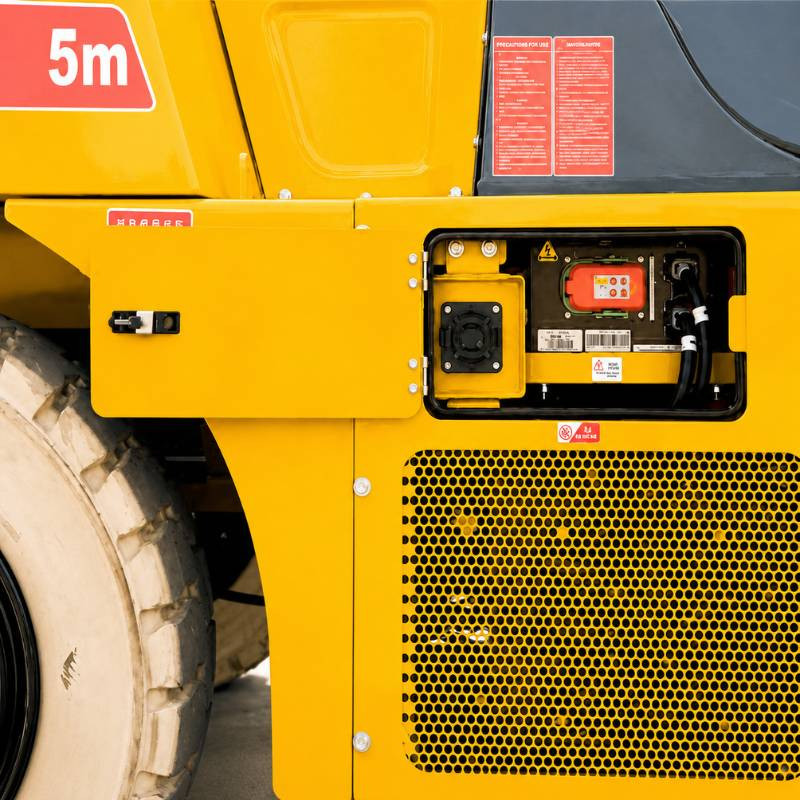

This model, offers a nominal capacity of 12,000kg with a cargo center of 600mm and is equipped with a lithium battery of 608.58V / 173Ah, with a battery weight of 1730kg. Its electrical system incorporates 90KW tensile engine and 90kW lifting motor, providing a powerful and reliable response for intensive loading and lifting operations.

The machine has a displacement speed of 24 / 25km / h, vacuum lifting speed / 390 / 420mm / s and drop speed of 420 / 350mm / s. It also offers a 20/20% promotion capacity, powerful traction and a stable and precise hydraulic system, designed for long-term demanding work.

Its general dimensions are 5820mm long with forks, 4450 mm without forks, 2350 mm wide and 3165 mm height of the folded mast, with a range between axles of 3000 mm. Incorporates tires 10.00-20-18PR in front and behind, wet / electronic service brake and work pressure of the 19MPA system.

Featured features:

• Forklift Lithium electric 12,000kg
• Lithium battery 608,58V / 173Ah
• 90kw traction engine
• 90kw lifting motor
• Maximum speed of 24 / 25km / h
• 600mm cargo center
• High performance electrical system
• Large capacity for heavy and oversized merchandise
• Intensive use in industry, ports and heavy logistics
• Lithium technology with lower operating cost

Advantages:

• Large load capacity for heavy goods
• Lithium technology to reduce operating costs
• High power in traction and elevation
• Multiple mast options for different work heights
• Less noise and less pollution

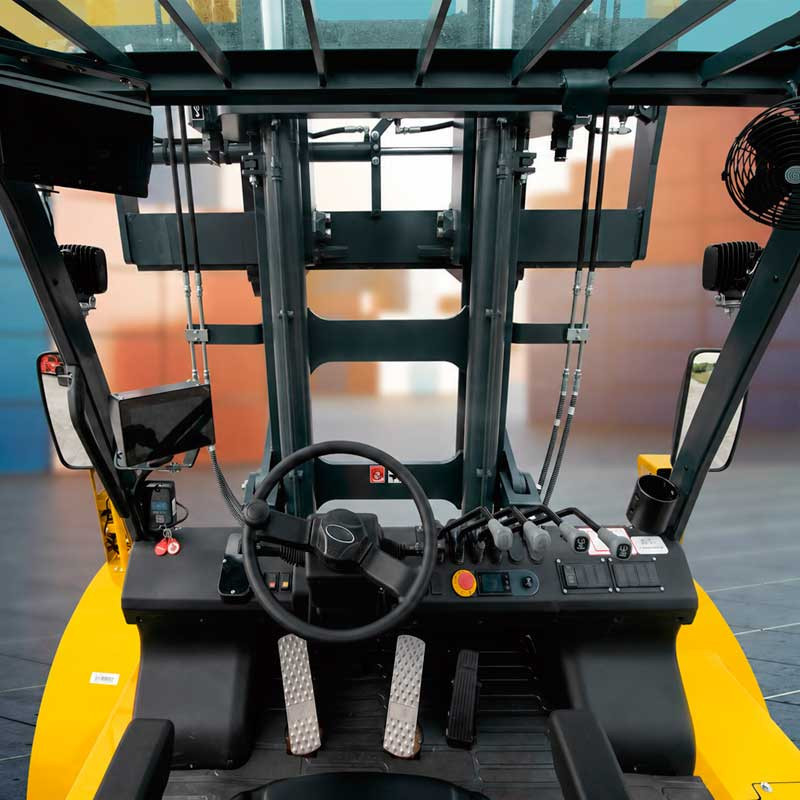

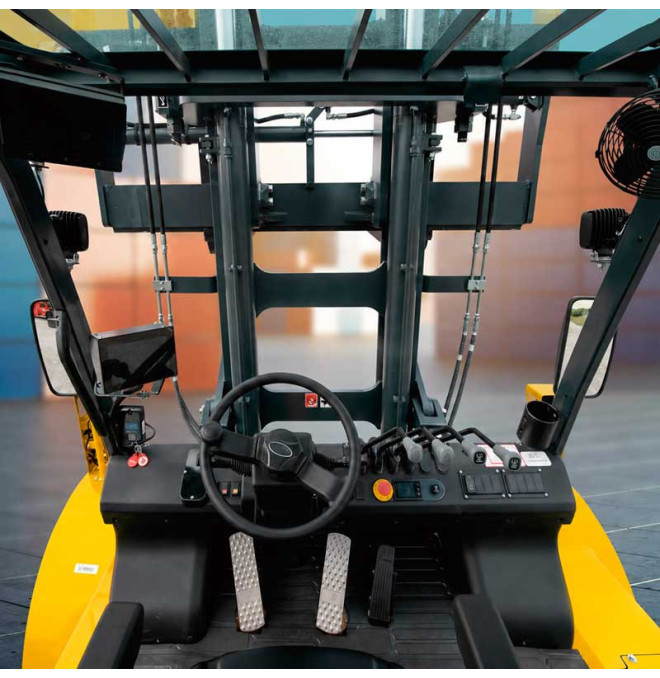

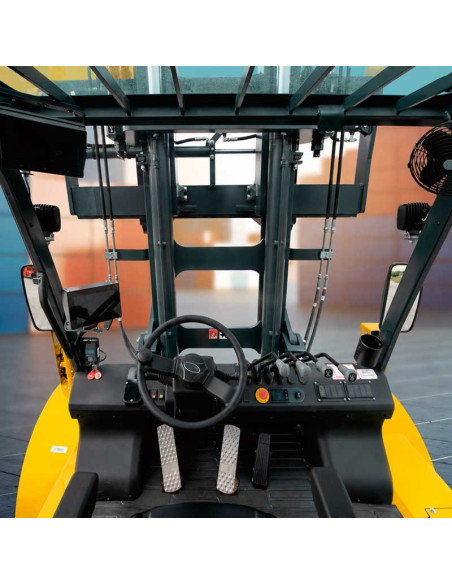

• Comfortable comfortable cabin and driving
• Maintenance and repair simpler
• Suitable for intensive use in heavy logistics and industry

Uses:

• Heavy industry
• Ports and docks
• Logistic stations and terminals
• Handling of oversized loads
• Movement and stacking of heavy merchandise
• Work in boat cabins
• Outdoor operations and industrial interior

** They must have their own discharge means.
