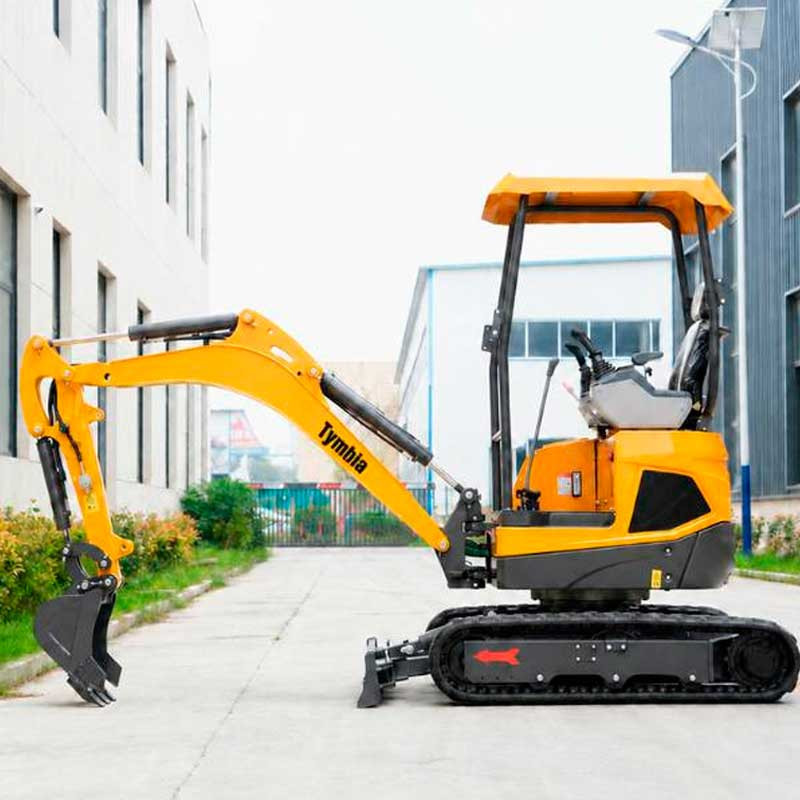

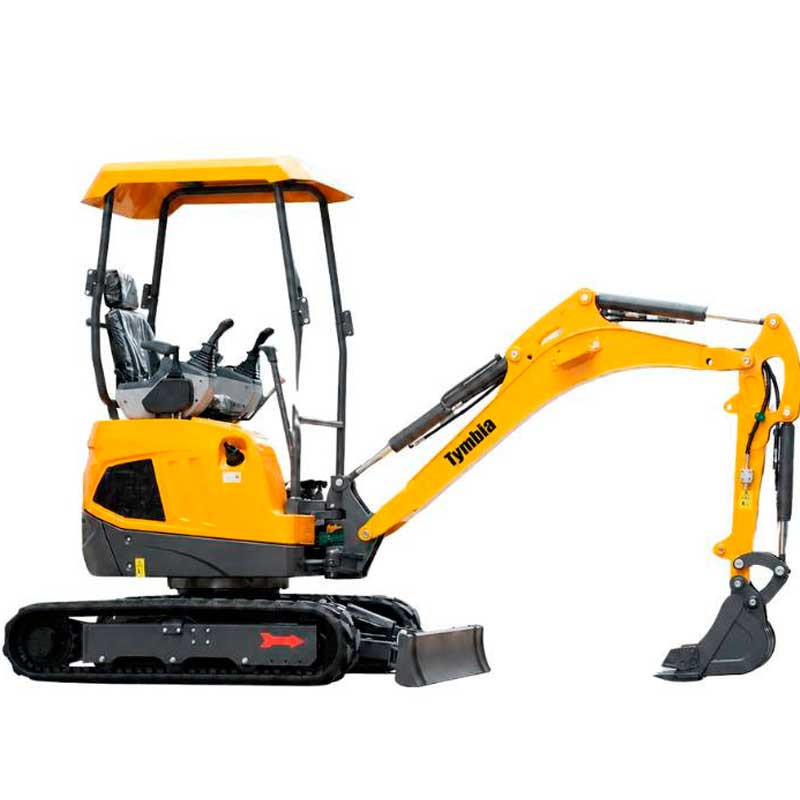

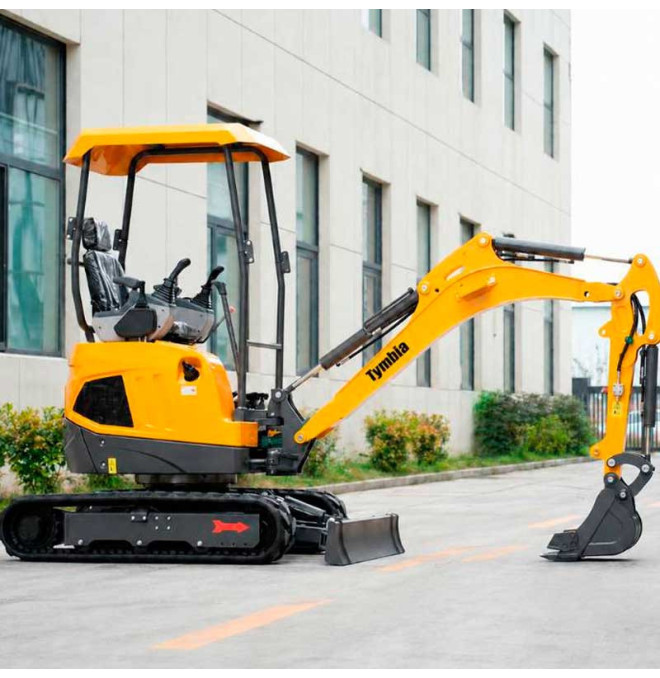

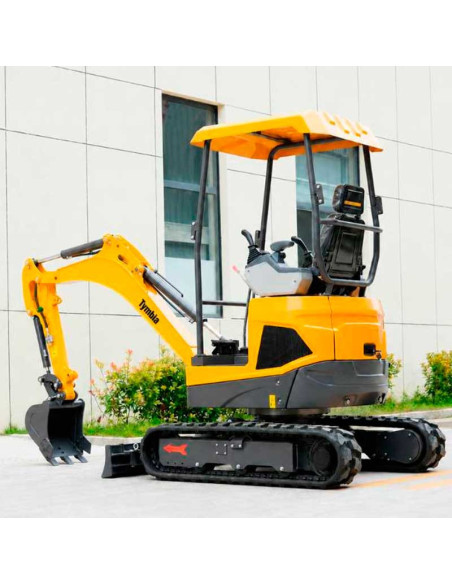

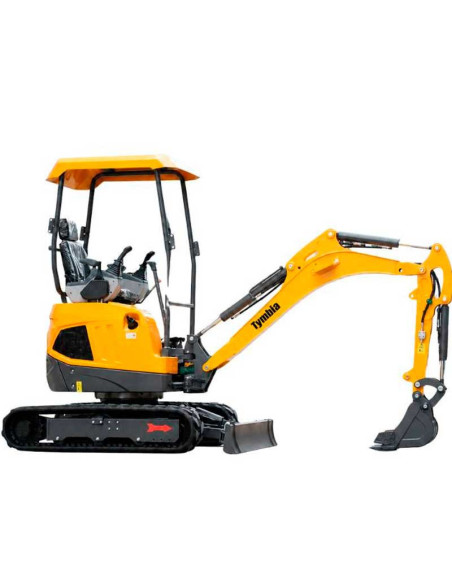

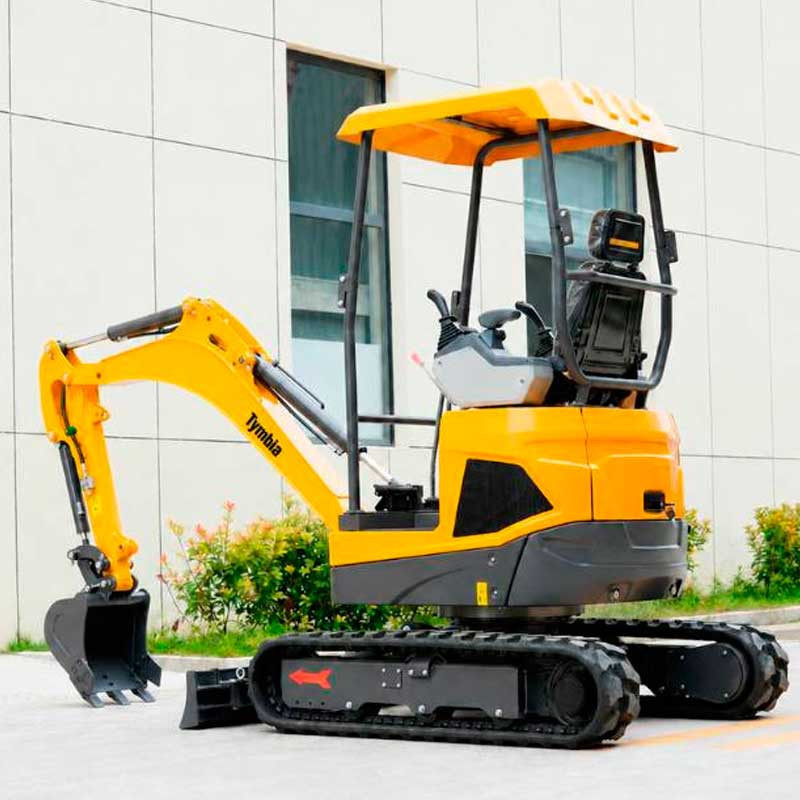

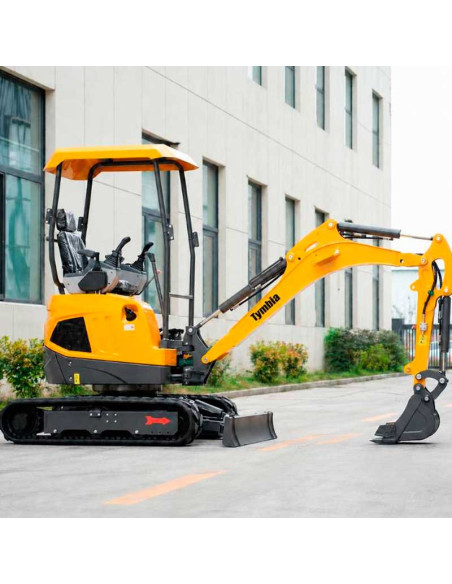

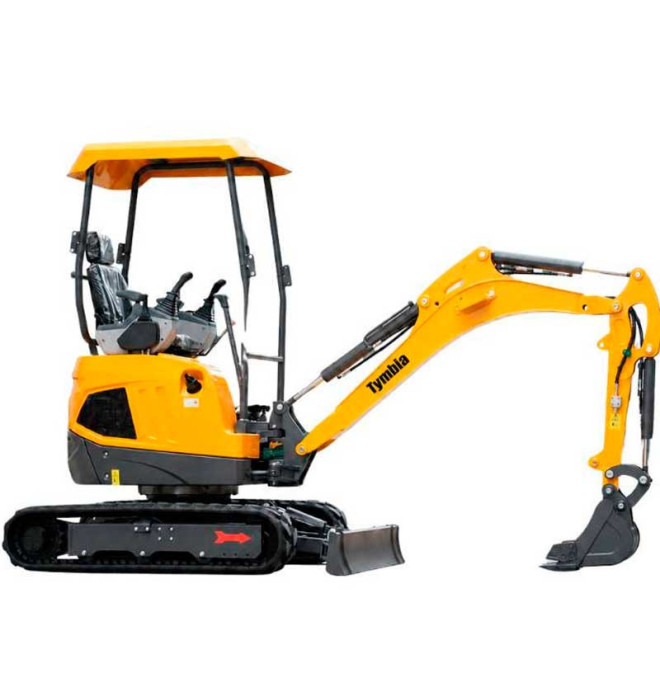

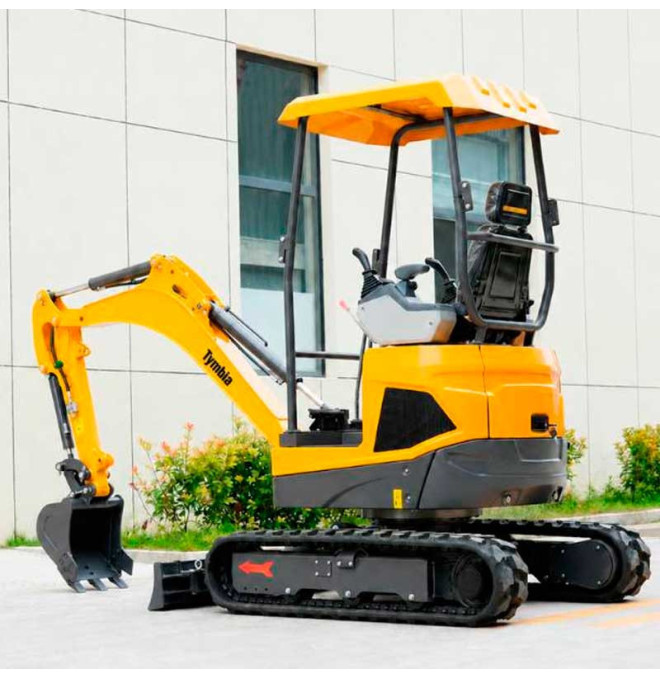

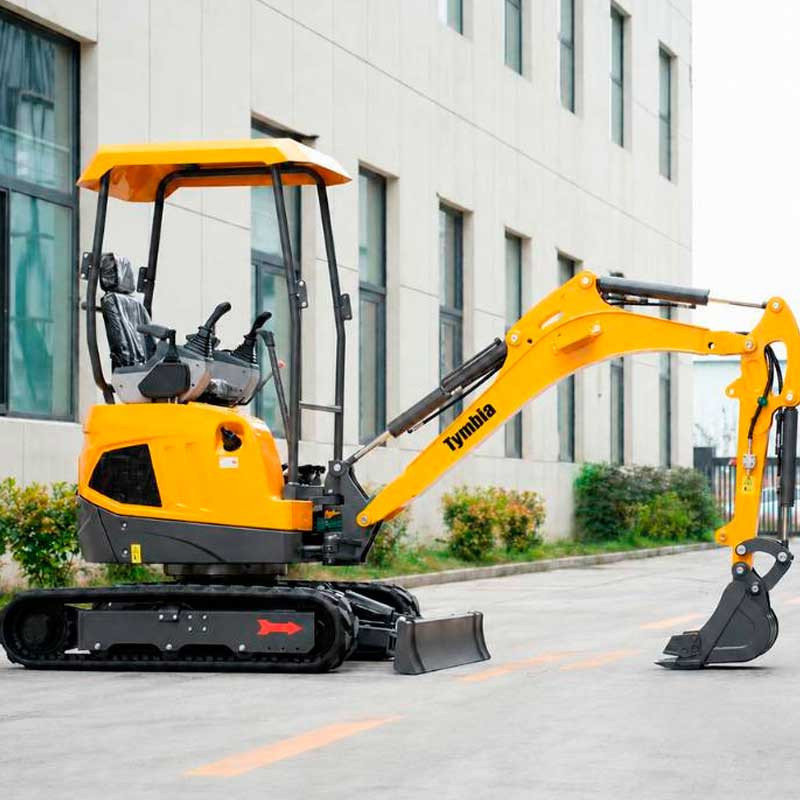

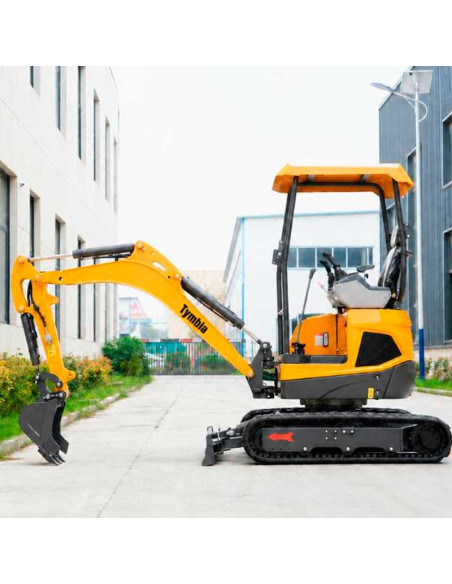

MiniExcavator 2000kg Kubota D902 Diesel HY20S

The miniXCAVER Tymbia of 2,000kg combines compactness, precision and performance on a machine designed for excavation, zanjeo, maintenance, landscaping and small works. Its content size and good maneuverability make it a very practical option to work in reduced spaces without renouncing a professional work capacity.

This version equips Kubota D902 diesel engine, with 3 cylinders, 0.898L of displacement, 11.8 kW at 2300 rpm and a maximum torque of 51.3 n · M to 1800 rpm. Added by a translation speed of 4/2 km / h, rotation speed of 8 R / min and upgrade capacity up to 30, offering an effective response in continuous work of excavation and land movement.

In excavation work offers a maximum depth of 2.255mm, a maximum excavation height of 3.520 mm, a maximum discharge height of 2.480mm and a maximum excavation radius of 3.890mm. Incorporate 0.03m³ bucket, 950mm arm and feather 1.828mm, which allows a good balance between scope, control and precision.

Its compact structure has dimensions of 3.575 x 1.050 / 1,300 x 2.288mm, minimum rear rotation radius of 650mm, caterpillar of 230mm and a filming train prepared to work with stability. In addition, you can incorporate retractable caterpillar function with a sheet of adjustable 1000mm up to 1250mm, as well as custom accessories according to work needs.

Featured features:

• 2,000kg operating weight
• Diesel engine Kubota D902
• Net power of 11.8 kW
• Maximum excavation depth of 2.255mm
• Maximum excavation height of 3.520mm
• Maximum discharge height 2.480mm
• Maximum excavation radius of 3.890mm
• 0.03m³ ladle
• Optional retractable caterpillar
• Compact and maneuverable design

Technical characteristics:

• Operating weight: 2,000kg
• Engine: Kubota D902
• Maximum torque / Speed: 51.3 n · M / 1800 rpm
• Number of cylinders: 3
• Cylinder: 0,898 L
• Network NOMINAL POWER: 11.8 KW / 2300 RPM
• Translation speed: 4/2 km / h
• Turning speed: 8 R / min
• Overbrable pending: ≤30
• Pressure on the floor: 30 kPa
• Fuel tank: 18 L
• Hydraulic tank: 20 L
• Engine oil: 3.7 L
• Working pressure: 20.5 MPa
• Pressure of the pilot system: 3 MPa
• Feather length: 1.828 mm
• Arm length: 950 mm
• Bucket capacity: 0.03 m³

Advantages:

• Compact and easy to maneuver in reduced spaces
• Reliable and efficient Kubota engine
• Good depth and excavation range for its size

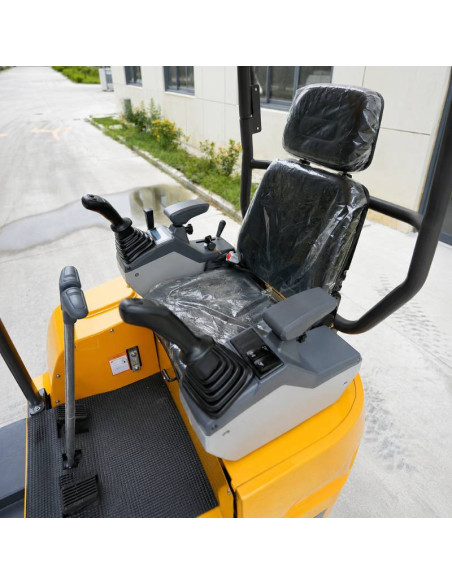

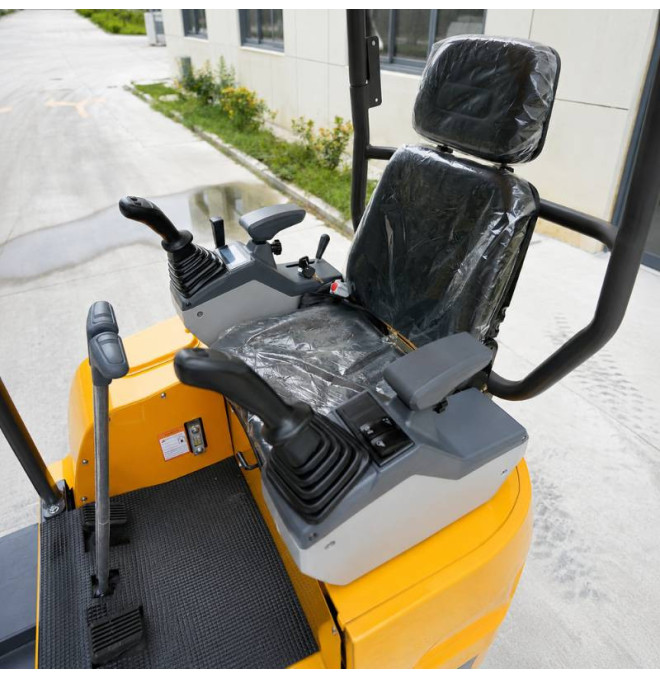

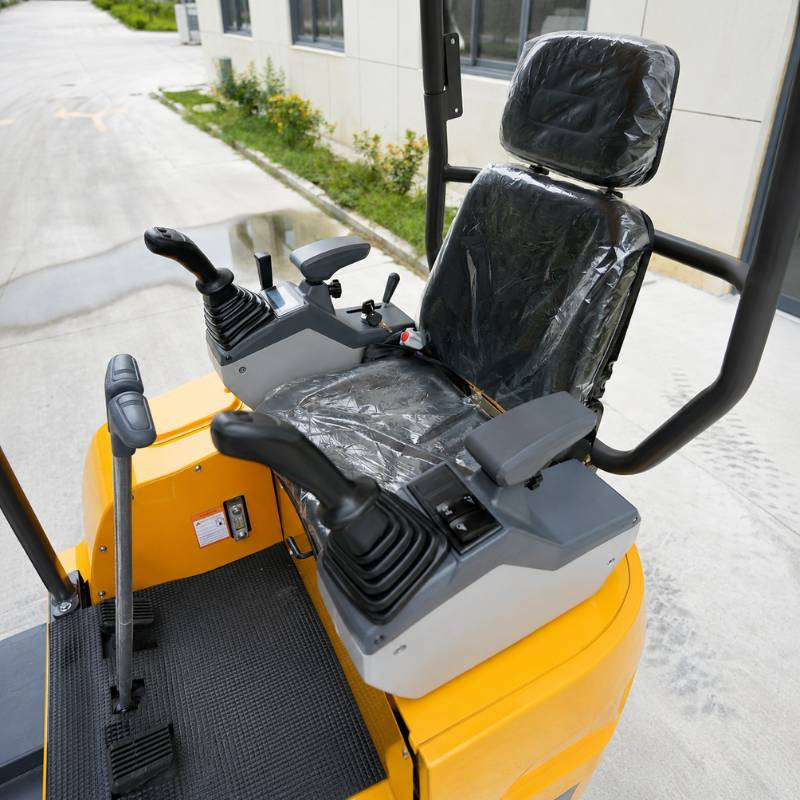

• Accurate controls with hydraulic joystick

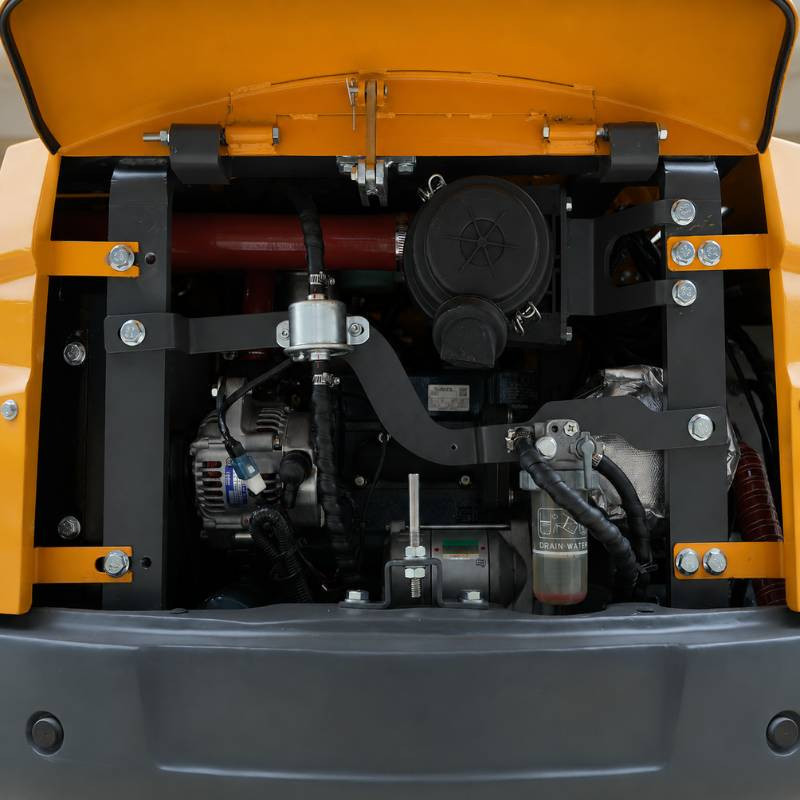

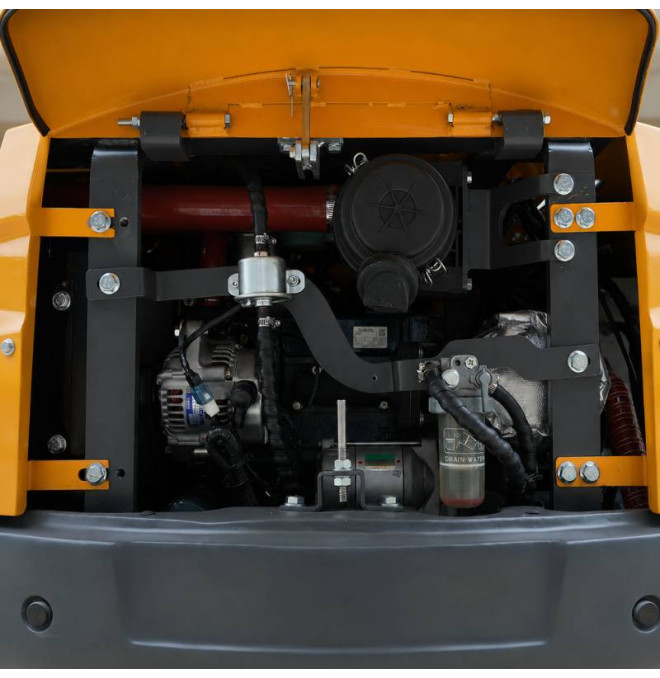

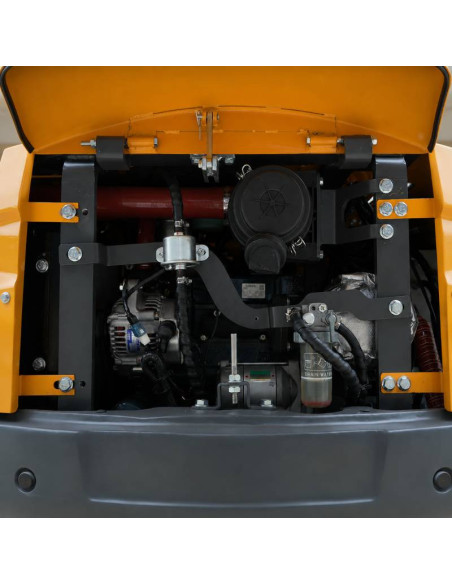

• Maintenance more comfortable thanks to the well-organized compartment
• Greater protection with internal hydraulic hoses
• Reinforced leaf for leveling and filling
• Possibility of adapting accessories according to work.

Uses:

• Ditch digging
• Land movement
• Gardening and Landscaping
• Small and medium works
• Urban maintenance
• Canteers and services
• Works in small spaces
• Reforms and groundworks.

Optional configuration:

• Spoon 20 cm (ref.c202100029)
• Spoon 80 cm (cleaning spoon) (ref.c202100030)
• Hammer (ref.c202100031) - See video
• Ripper - heartbreaking (ref.c202100041)
• Digger Perforator (Ref. C202100039) See video
• KT Hydraulic thumb (Ref. C202100046) See video
• Clip for trunks (ref.c202100040)
• Rake (ref.c202100038)
• Drill endlessDigger) (Ref.c202100039)
• Filter kit: air, oil and gas (ref.c202100101)
• Hydraulic filter (ref.c202100102)
• Ignition switch (ref.c202100103)
• Hydraulic Tube Cylinder Arm (Ref.C202100104)
• Injectors (ref.c202100105)
• Other options consult

** Transportation costs have been estimated considering that the download will be made with the customer's own means.
