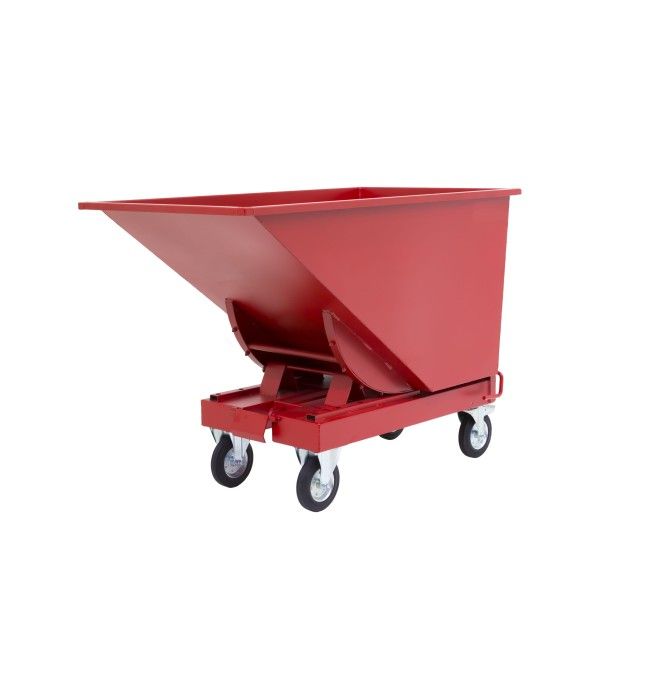

Tilting Container 520L (with wheels) - 2000kg.

Container suitable for easily storing, transporting and turning all types of products from forklift. Operating voltage from the cabin forklift, with a capacity of 520L.

The dimensions of the container are (largo x width x high) 1525x865x870mm, being the total height with the wheels of 1110mm. The wheels are two fixed and two rotating.

The inner height of the input sleeve is 100mm and the width of the drive in the shell (inner dimensions) of 230mm.
As for the width between the 2 input sleeves, it is 160mm and the length of the 1060mm input sleeves.

TECHNICAL CHARACTERISTICS:

• RAL color: RAL3020 (traffic red)
• Height (mm): 870
• Height with wheels (mm): 1110
• Width (mm): 865
• Width of the sleeve fork (mm): 230
• Height of the sleeve(s) fork (mm): 100
• Distance between forks (mm): 160
• Length (mm): 1525
• Volume (m3): ,6
• Contents (L): 520
• Charge capacity (kg): 2000
• Type of wheels: fixed and rotating
• Material wheels: rubber
• Weight (G) (kg): 101
• Weight 130 kg
