Electric lifting table 1000kg to 840mm 1450x1140mm (U-U)

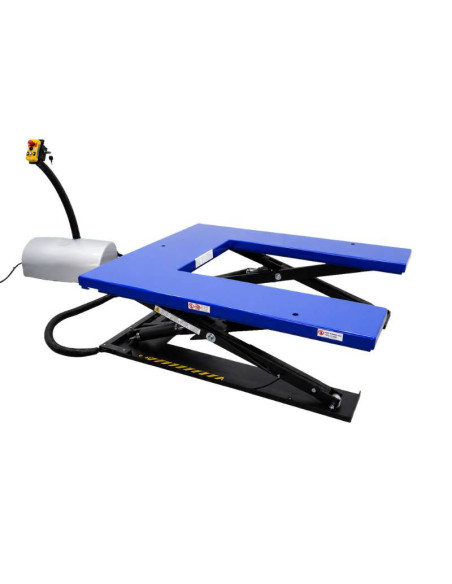

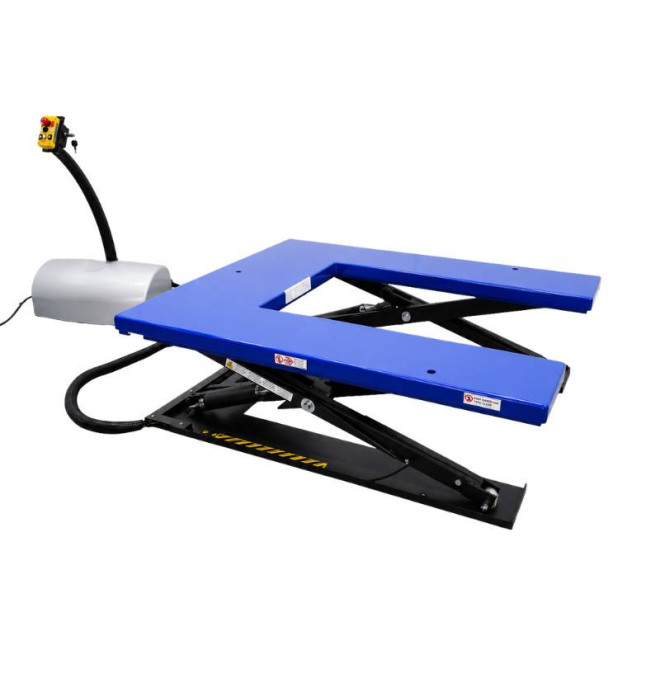

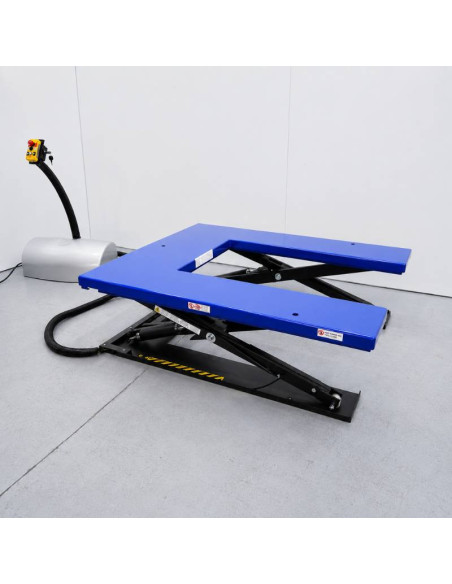

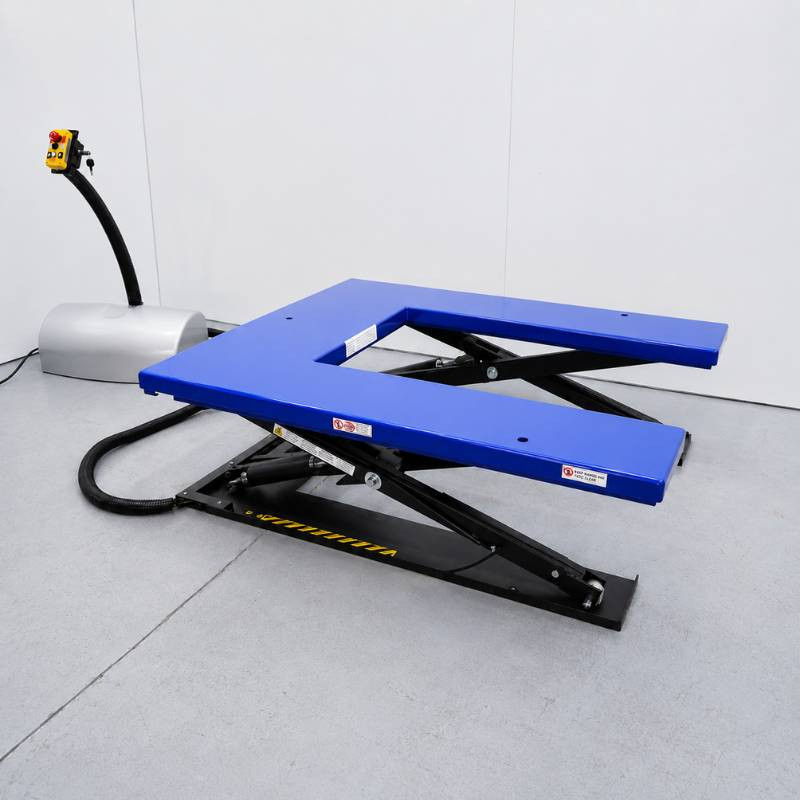

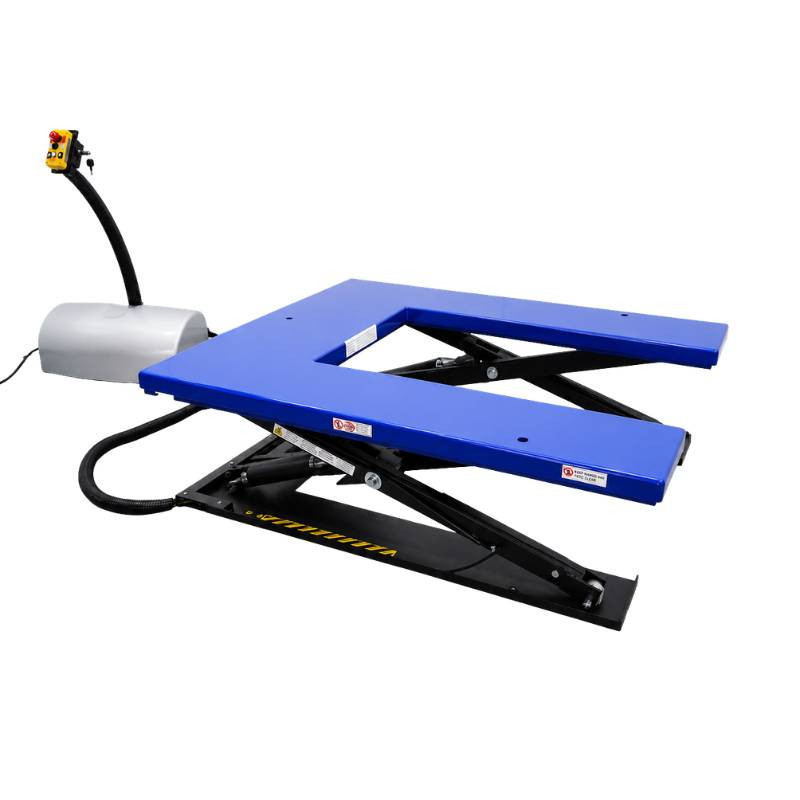

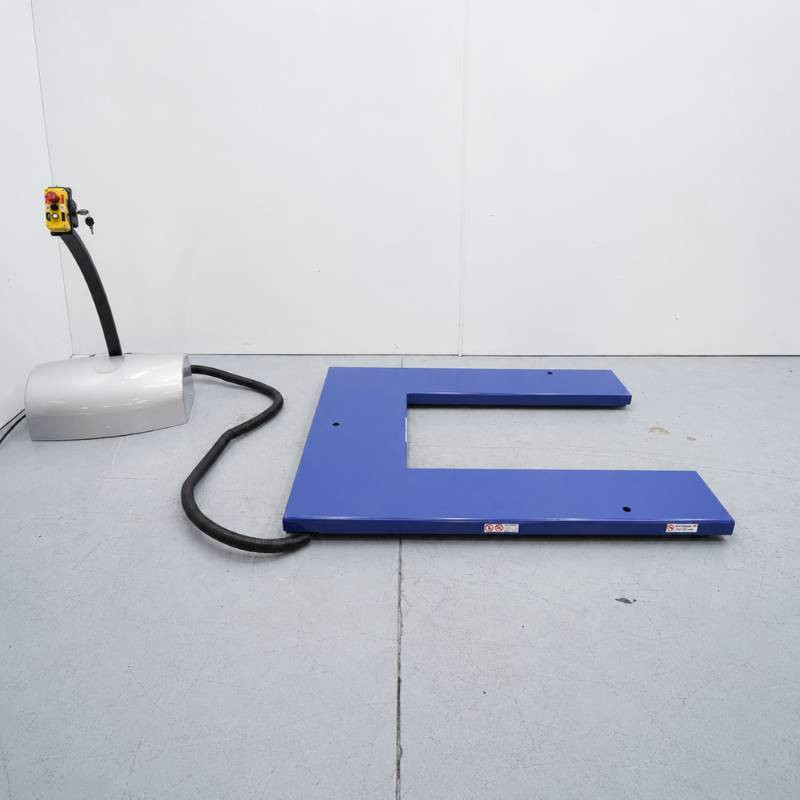

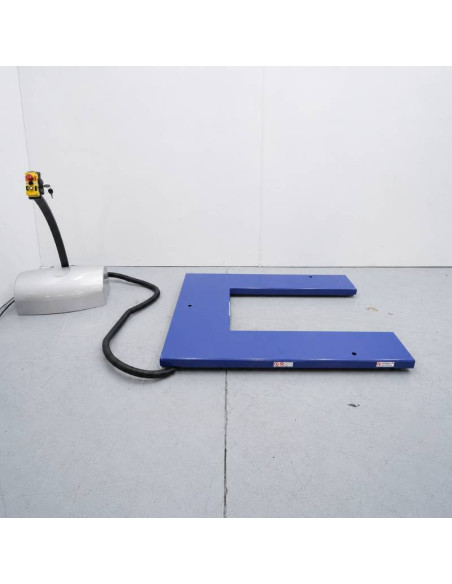

The table Forklift U of Tymbia is a practical solution, robust and efficient for the handling of palletized loads in warehouses, logistics, production and orders preparation zones. Its U-shaped extra plan platform is specially designed to facilitate directly removal and removal of pallets by pallet truck, without the need to install a pit.

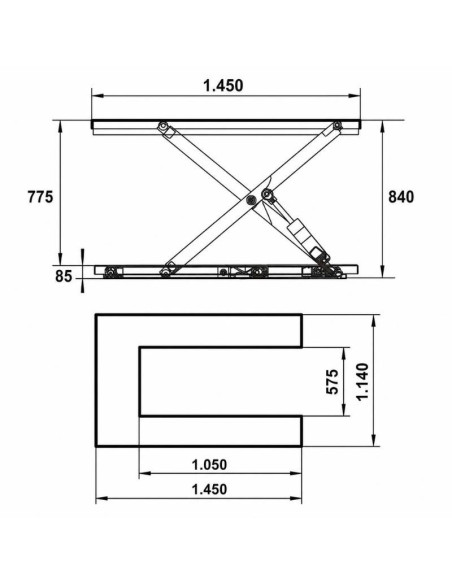

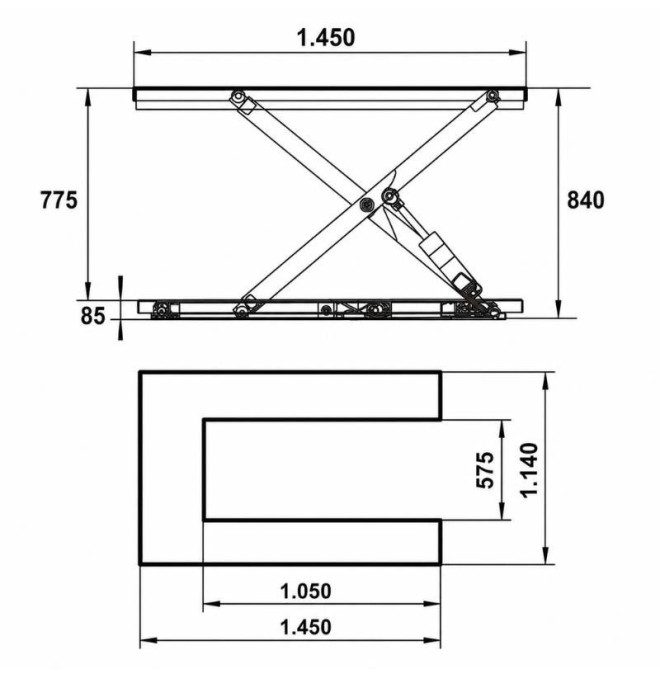

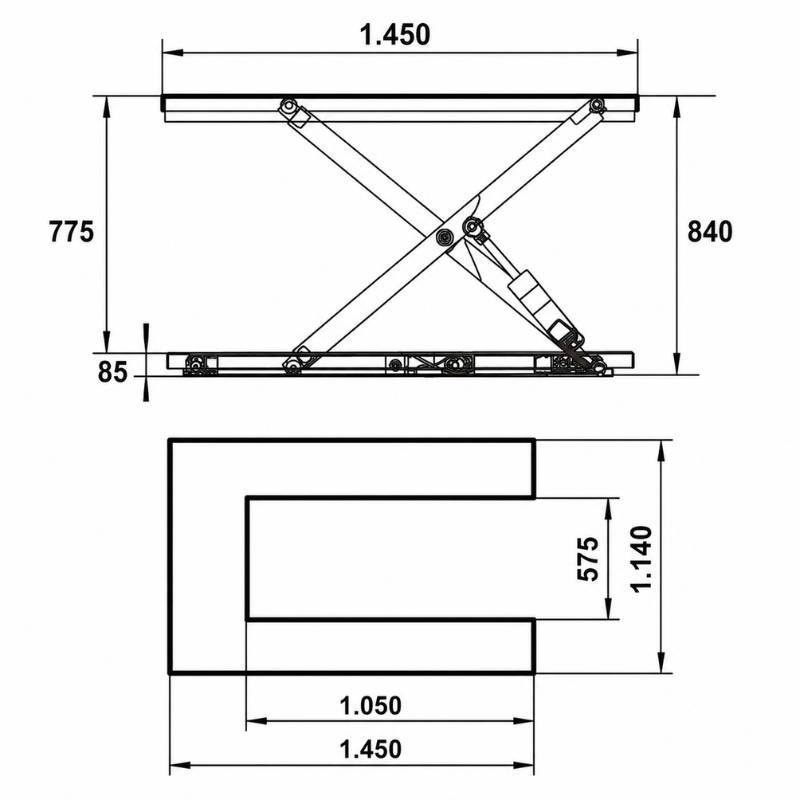

This version offers a load capacity of 1,000kg and a base platform of 1,450 x 1.140mm, with Under Inner Hollow of 1,050 x 575mm, which makes it a very useful option to work with pallets comfortably and safely. Its maximum elevation height of 840mm and its height of only 85mm allow an agile and ergonomic operation in loading, unloading and handling tasks.

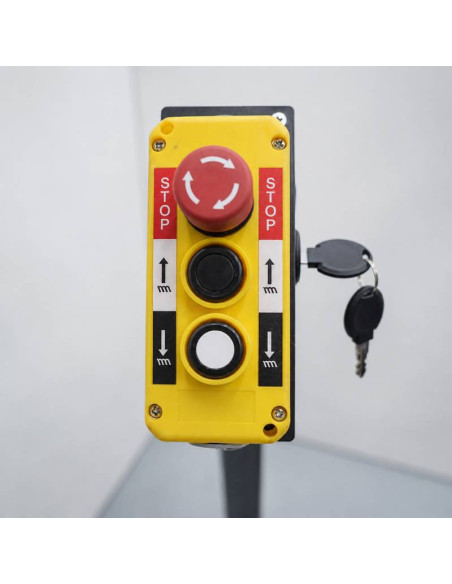

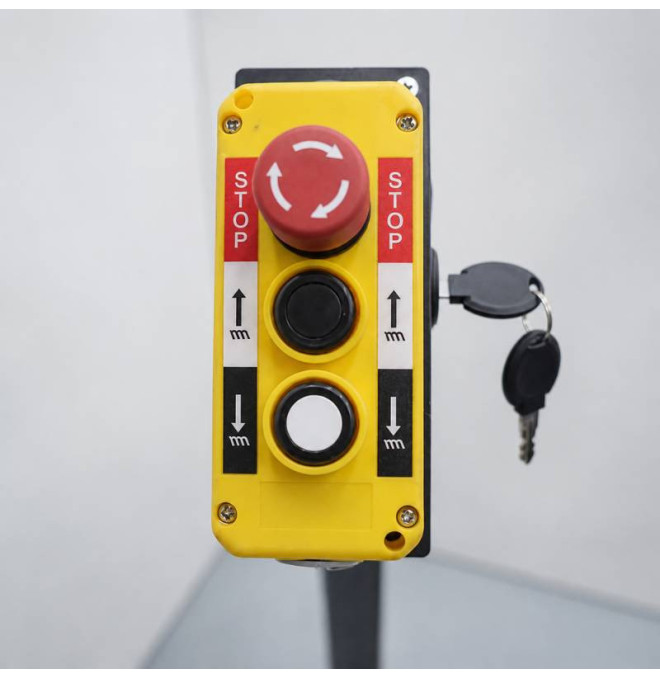

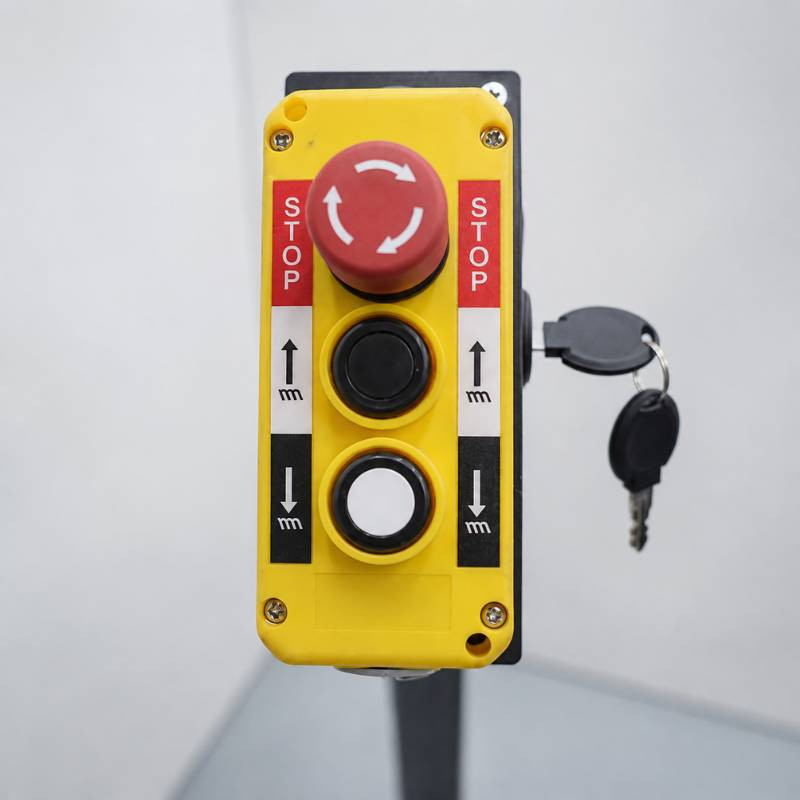

The table is equipped with a control keypad with emergency mushroom, as well as with a safety frame that stops the decline in case of detecting an obstacle, improving safety during work. Its rectangular steel structure provides stability and resistance for intensive use in professional environments.

In addition, it does not need a pit for installation and can be easily moved by position, which makes it a flexible and functional solution for different workspaces. Works with 380V supply voltage, has a 0.75KW motor, 25-second lifting time and has CE marking. It also supports tailored manufacturing under consultation.

Featured features:

• Load capacity of 1,000kg
• U-shaped extra plan platform
• Interior hollow 1.050x575mm
• Maximum height of 840mm

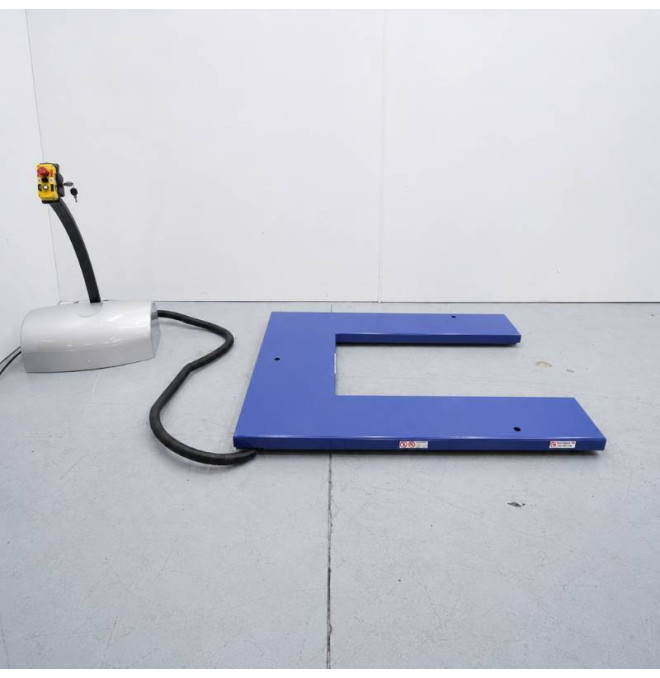

• 85mm folded height
• 0,75kw
• Bonnet with emergency mushroom
• Obstacle antidescensous safety frame
• You do not need pit for installation
• Custom manufacturing under consultation

Advantages:

• Ideal for handling pallet loads
• Allows to deposit and remove pallets with pallet truck directly
• No-haze
• Extraplate table for a more comfortable operation
• Robust and stable structure
• Greater security thanks to emergency mushroom and protection frame
• Easy to relocate according to the needs of space
• Possibility of custom manufacturing

Uses:

• Handling of pallets in warehouses
• Loading and unloading in logistics areas
• Preparation of orders
• Production and assembly lines
• Ergonomic jobs
• Maintenance operations with pallet truck
