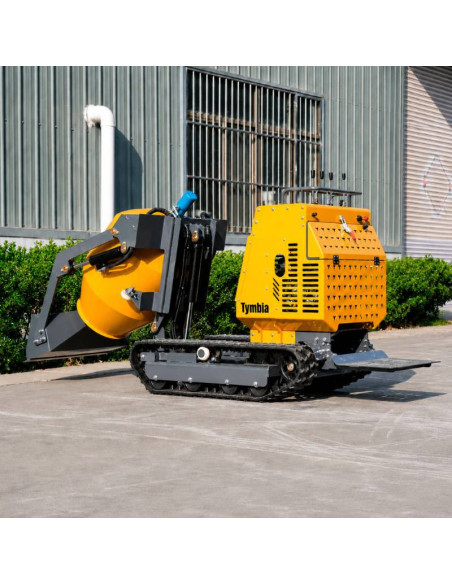

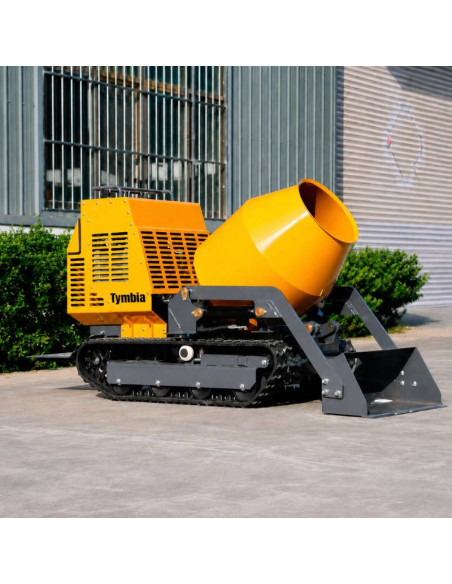

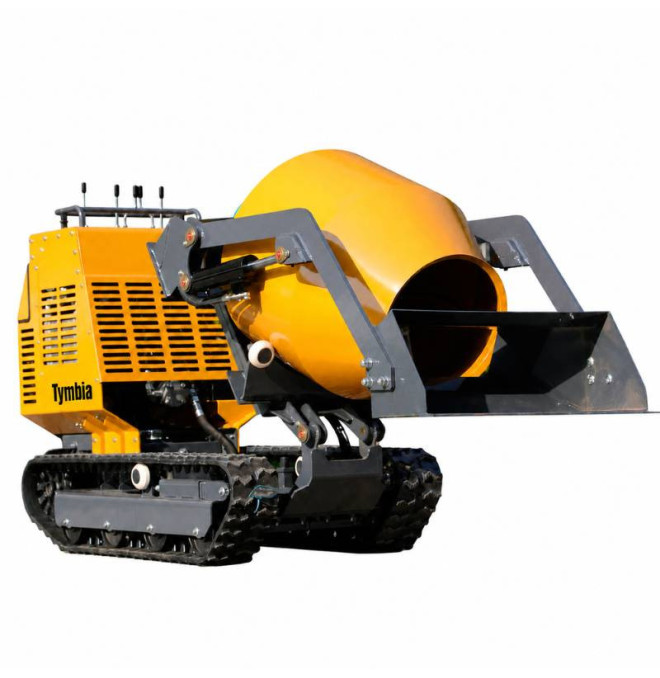

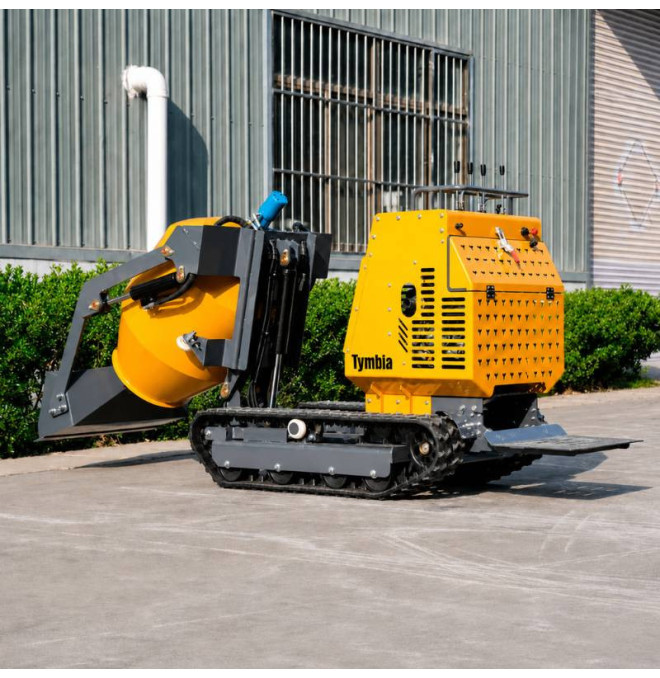

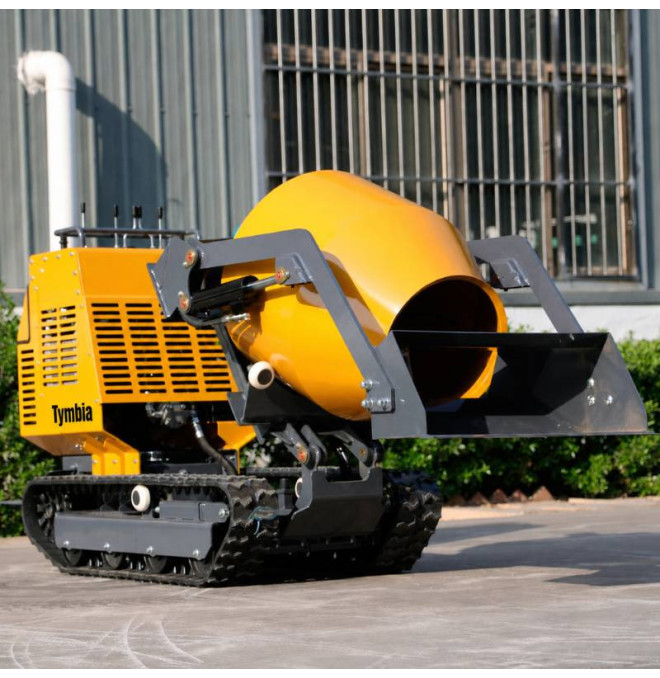

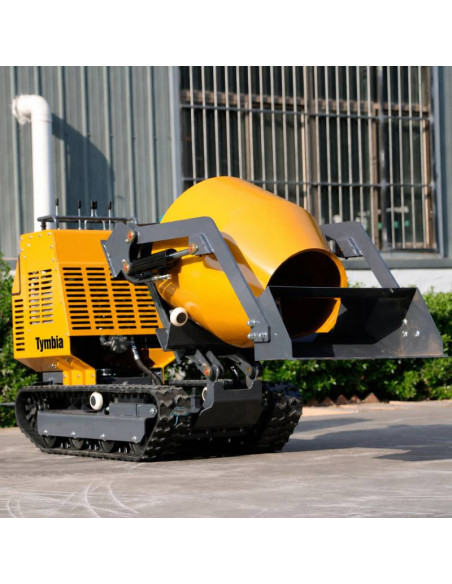

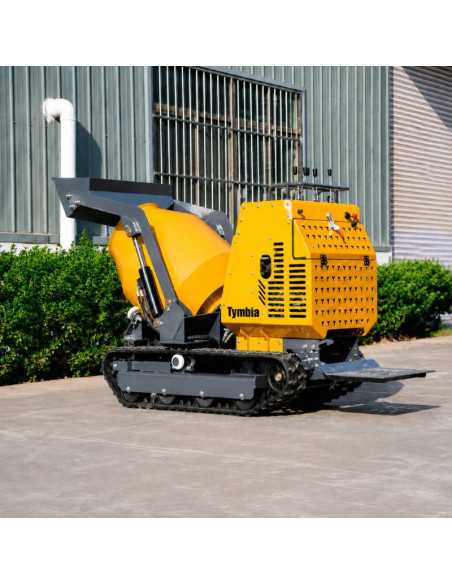

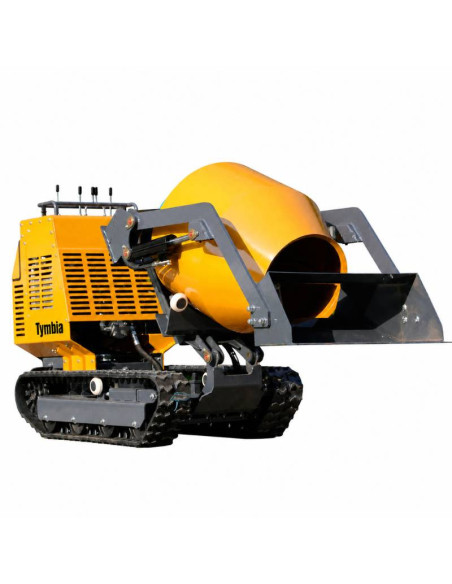

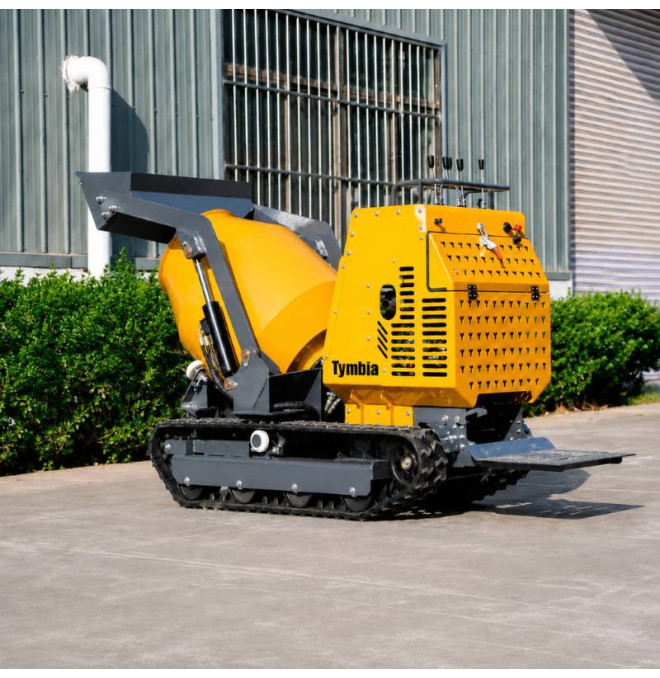

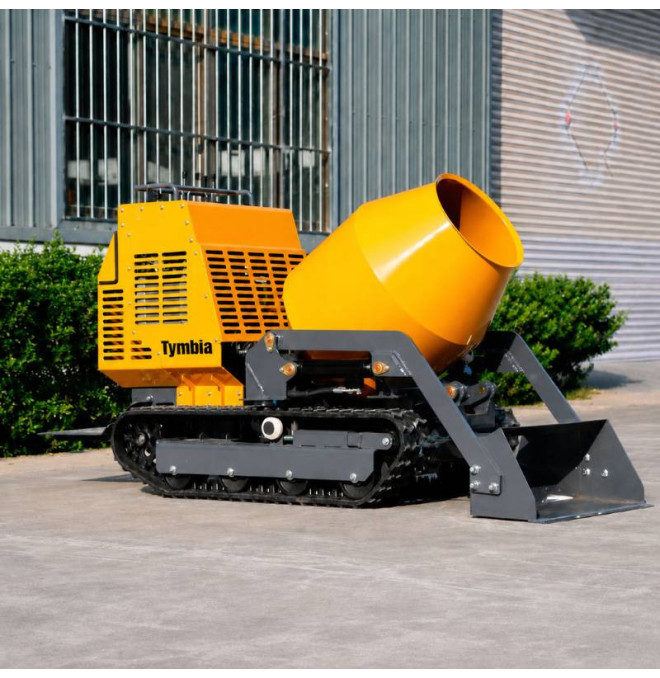

Mini dumper concrete mixer

The mini Dumper of Tymbia concrete is a compact, versatile and resistant solution for mixing, transport and unloading concrete, reforms, gardening, engineering and maintenance work. Its caterpillar design allows you to move safely and stability in irregular land, areas of difficult access and reduced spaces, offering a great help in jobs where agility and autonomy are needed.

This version is equipped with gasoline engine Ratio 420 of 15 HP to 3600rpm, an option designed to offer good performance, reliability and ease of use in daily work. In addition, it incorporates electric start, fuel tank of 6.5L and a compact configuration oriented to intensive professional use.

The equipment has a hydraulic discharge system, which facilitates the emptying of the mixing drum more comfortably, quickly and controlled. Its 100 ° discharge angle, along with its compact design and its maneuverability, make it a very practical machine for concreting tasks and movement of outdoor material.

Features:

• Motor Gasoline Ratio 420 of 15 HP
• Electric boot
• Hydraulic discharge
• 100 ° discharge angle
• 3 km / h scroll speed
• Minimum spinning radius of 1300mm
• Climb capacity of 25%
• Total weight: 750kg
• Dimensions (without spoon or pedal): 1800x900x1500mm
• Dimensions with spoon and pedal: 2500x900x1500mm
• Diameter of the opening: 460mm
• Length Drum Mixing: 880mm
• Diameter of the mixing drum: 720mm
• Drum capacity: 300 L
• Discharge method: Hydraulic turkey
• Compact design over caterpillars
• Ideal for work, gardening and auxiliary work

Advantages:

• Compact and easy to maneuver
• Very useful for irregular land
• Hydraulic discharge most comfortable and fast
• Good work capacity for work and concreting
• Practical gasoline engine for daily use
• Design over caterpillars for greater traction
• Versatile solution for construction, Gardening and maintenance.

Uses:

• Transportation and discharge of concrete
• Construction and reforms
• Gardening and Landscaping
• Maintenance of farms and facilities
• Engineering work and construction outside
• Movement of material on complicated land.
