Mobile Asphalt and Stone Crusher – 5–10 t/h

Video crusher of waste:

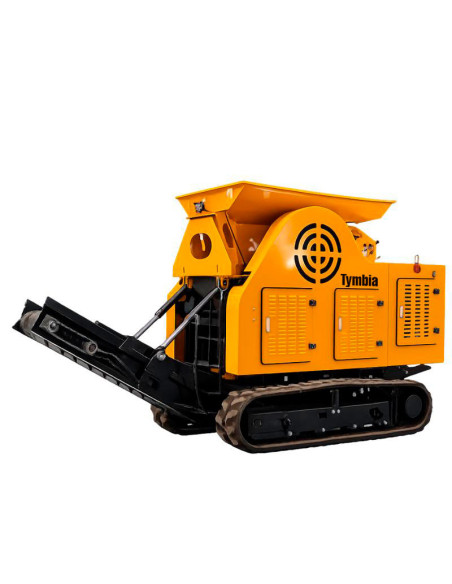

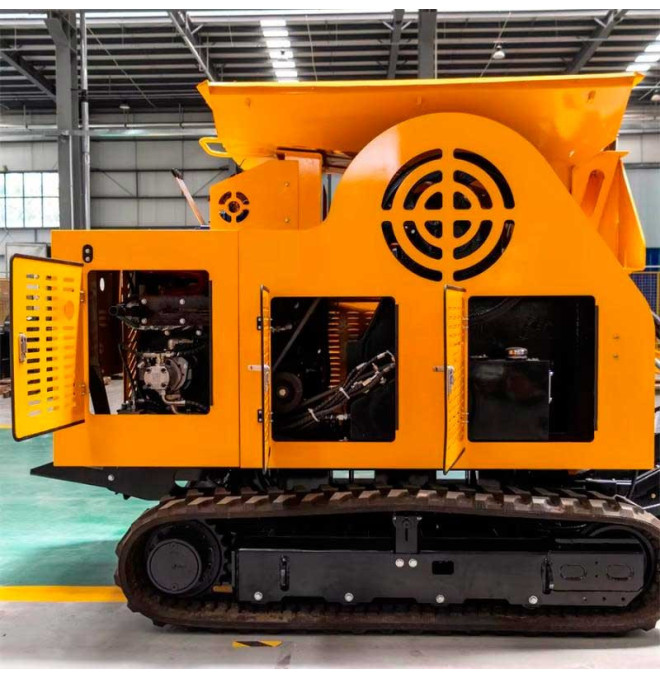

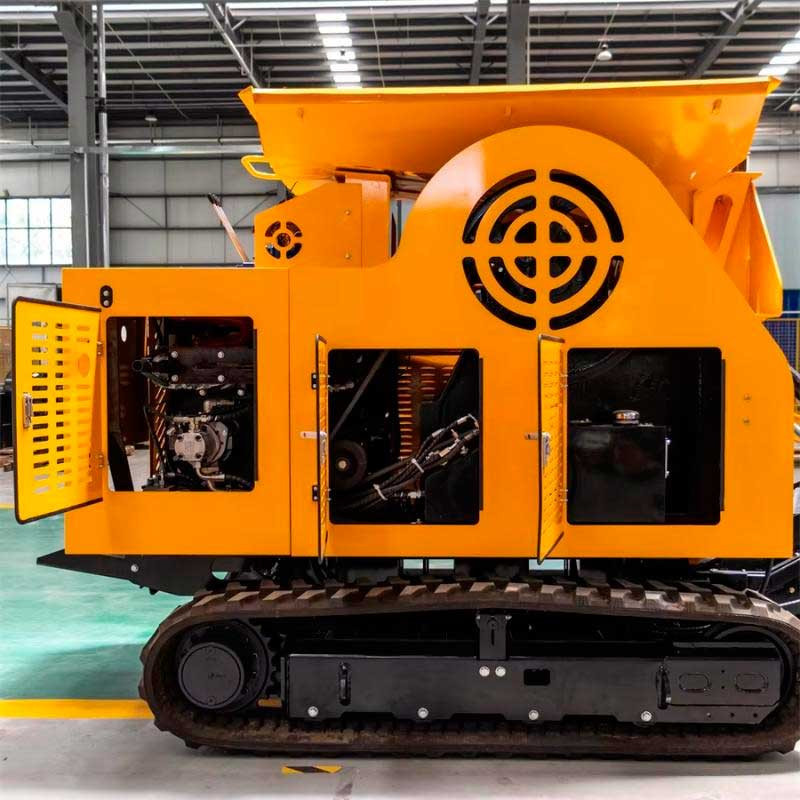

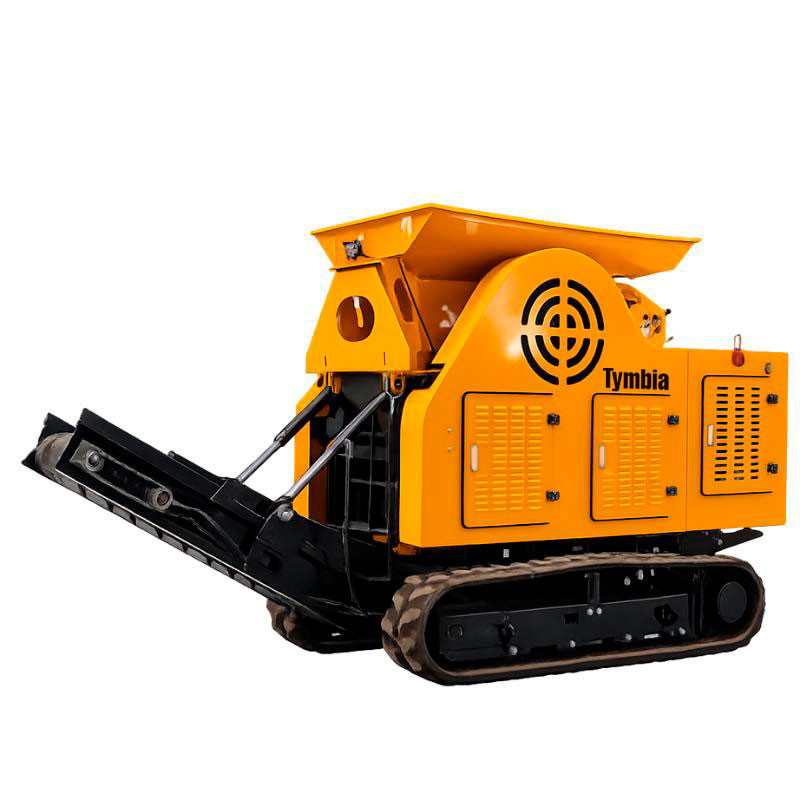

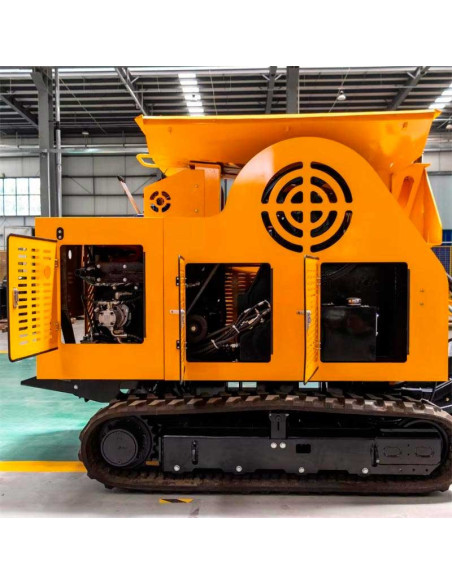

The crusher MC3800 is a compact machine over caterpillars with hydraulic displacement system. It is equipped with a 18.5 kW diesel engine and a 250 x 400 mm feeding mouth, admitting a maximum input size of 230 x 380 mm.

Has a tilting Container of 0.4 m³, dimensions of tilting Container of 160 x 100 cm and a conveyor belt of 400 mm wide. Its stacking height is 950-1000 mm and offers a production capacity of 5-10 t / h.

The MC3800 works with a rank of crushed stone 20-60 mm and has a scroll speed of 0-4 km / h. It incorporates 50 l fuel tank, hydraulic oil capacity of 50 L 32 #, 46 #, weight of 3,800 kg and transport dimensions of 275 x 145 x 205 cm.

Featured features

• Model: MC3800.
• Engine: 18.5 kW diesel.
• Power Mouth: 250 x 400 mm.
• Maximum power supply: 230 x 380 mm.
• Ability tilting Container: 0.4 m³.
• Stack height: 950-1000 mm.
• Crushed stone range: 20-60 mm.
• Scroll speed: 0-4 km / h.

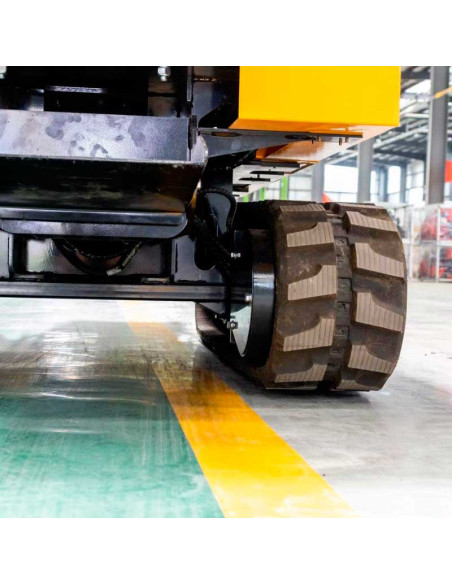

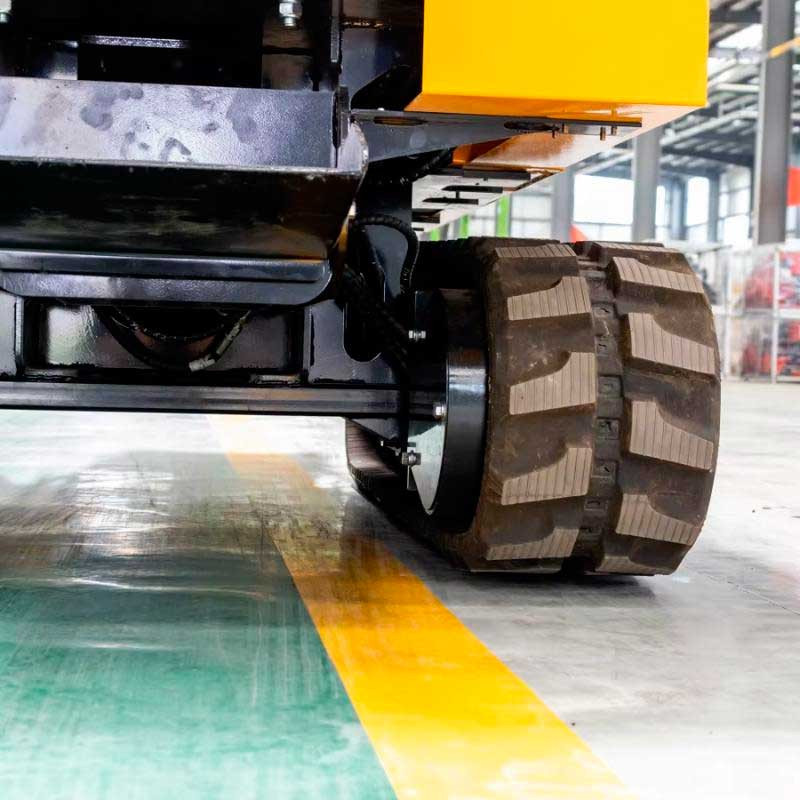

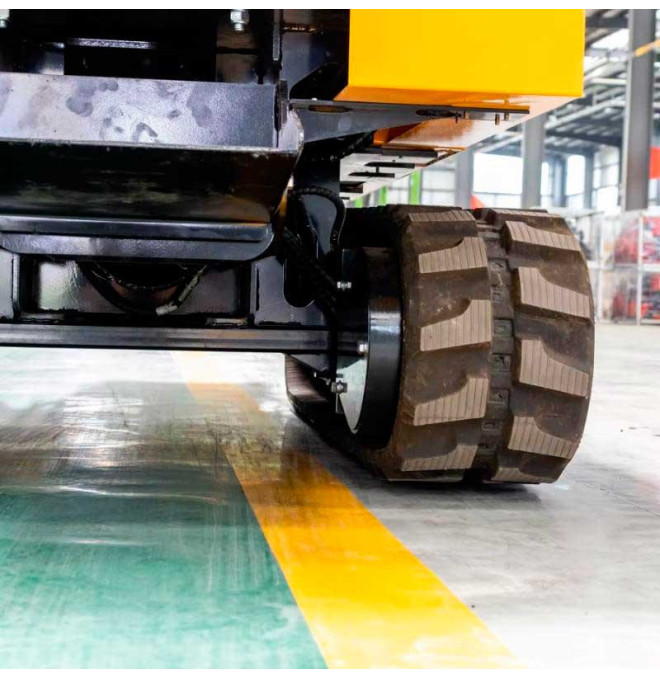

• Size of caterpillar: 300 x 86 x 52.5 mm.
• Production capacity: 5-10 t / h.

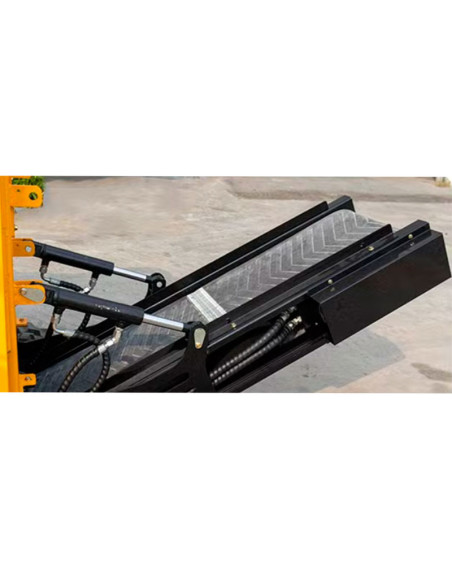

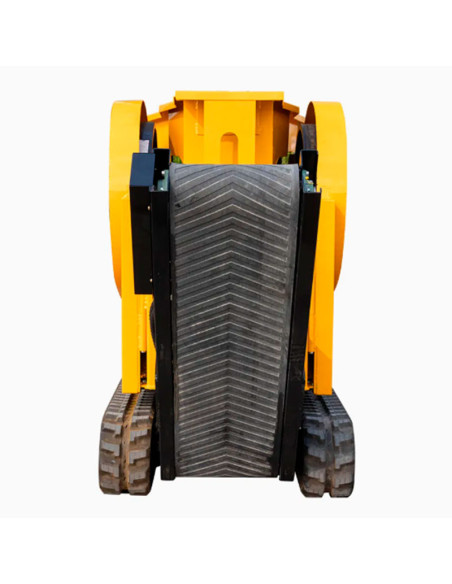

• Conveyor belt width: 400 mm.
• Dimensions of tilting Container: 160 x 100 cm.
• Fuel tank capacity: 50 L.
• Hydraulic oil: 50 L 32 #, 46 #.
• Table type: Caterpillar with hydraulic drive.
• Weight: 3,800 kg.
• Transport dimensions: 275 x 145 x 205 cm.

Advantages

• Equipment on caterpillars with hydraulic traction.
• Production of 5-10 t / h.
• Tilting Container of 0.4 m³ for material feeding.

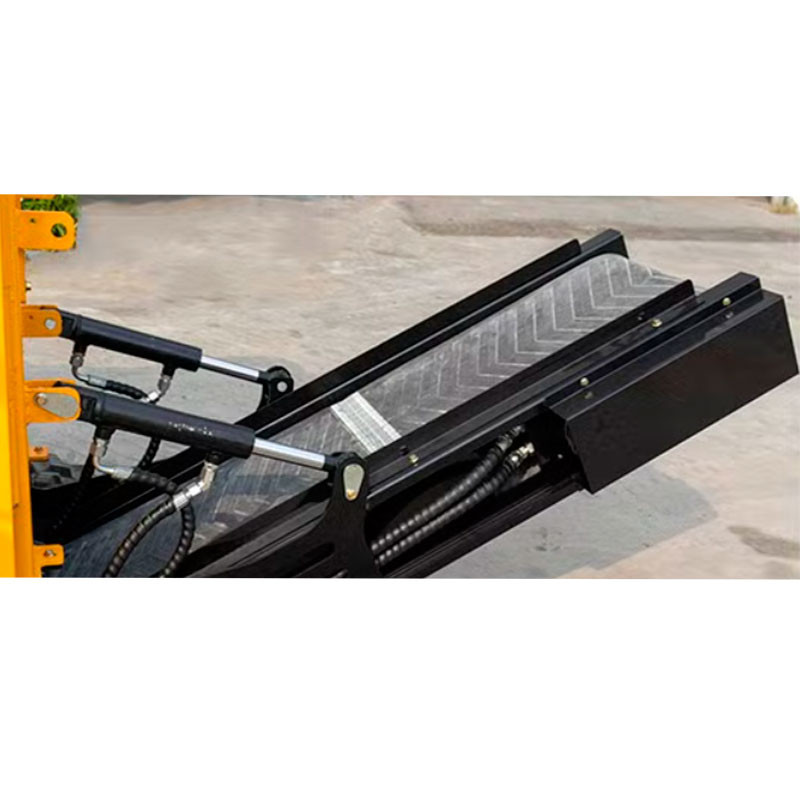

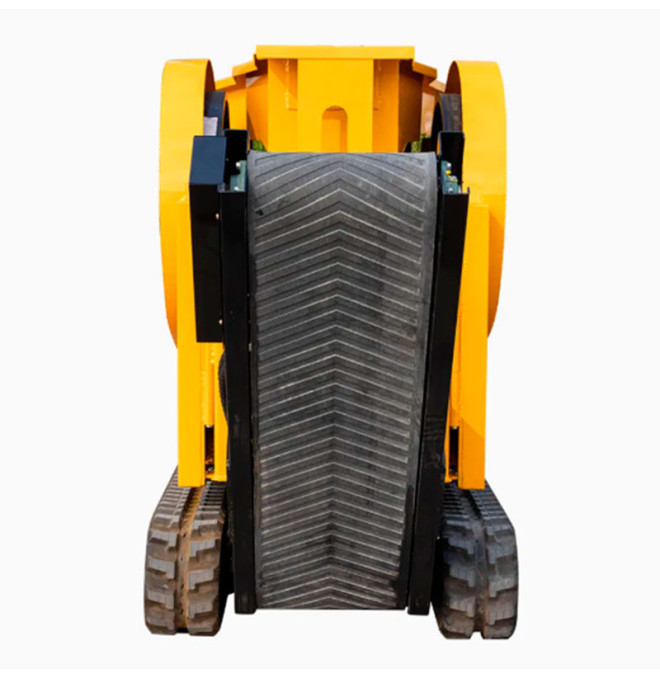

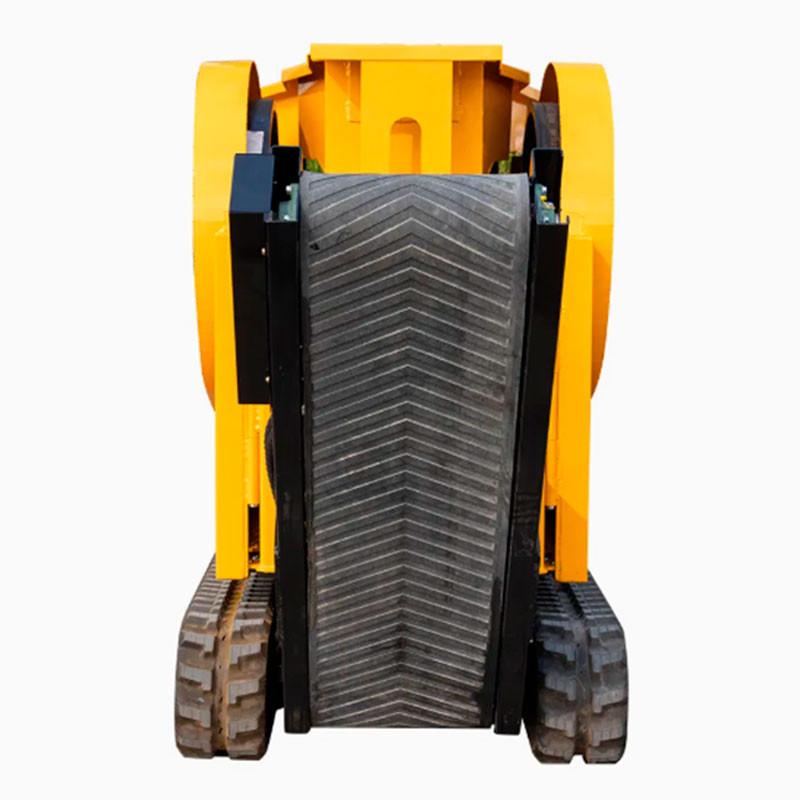

• Integrated 400 mm conveyor belt.
• Stack height of up to 1000 mm.
• Scroll speed of 0-4 km / h.
• 50 L fuel tank.
• Compact transport dimensions: 275 x 145 x 205 cm.

Applications

Works with crushed stone of 20-60 mm and materials with maximum feed size of 230 x 380 mm. It can be used in tasks where food, crushing, transport and stacking material is required by tilting Container and integrated conveyor belt.
