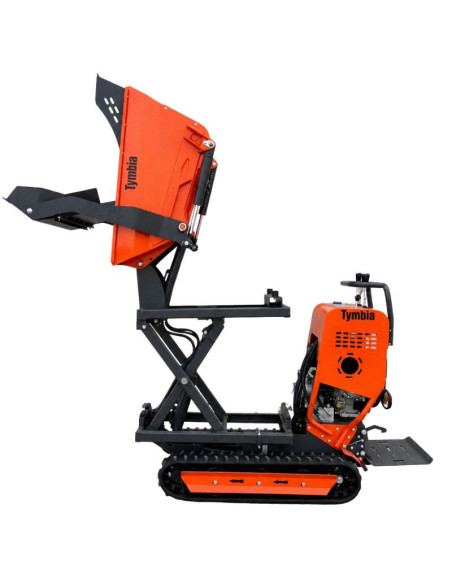

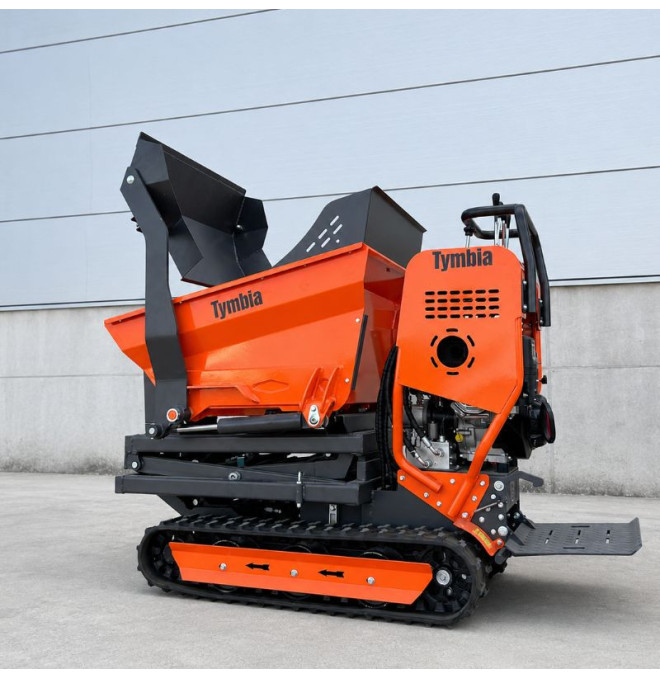

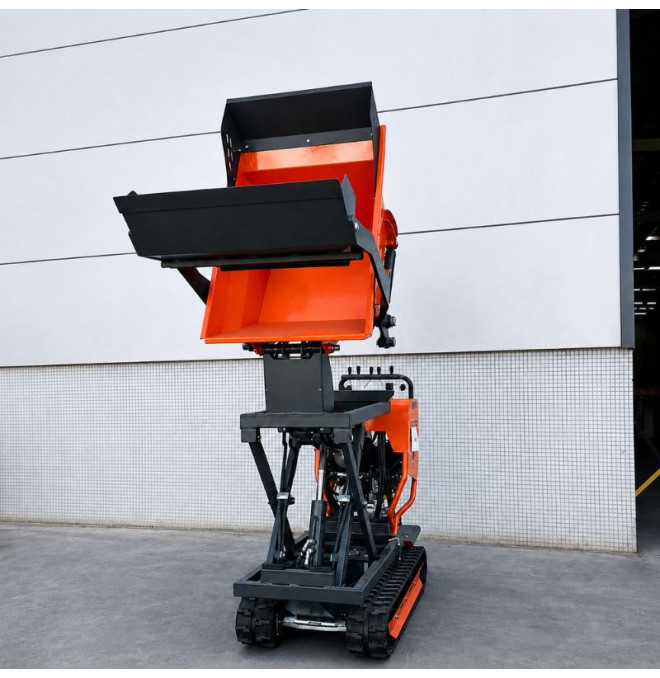

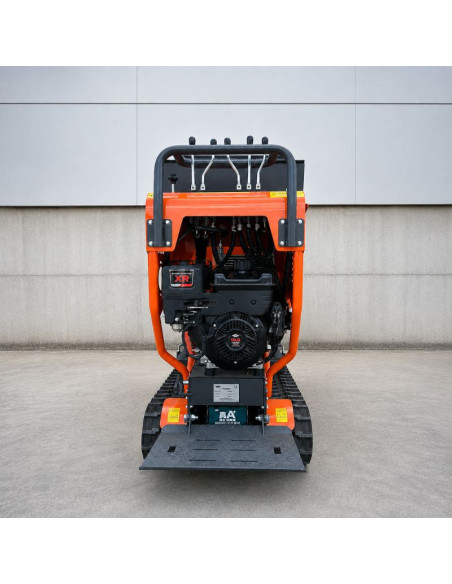

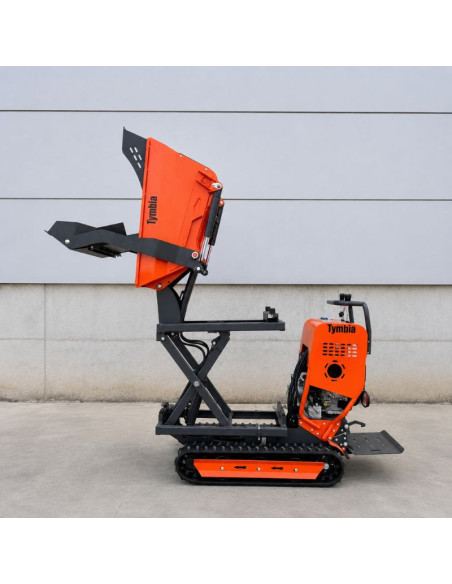

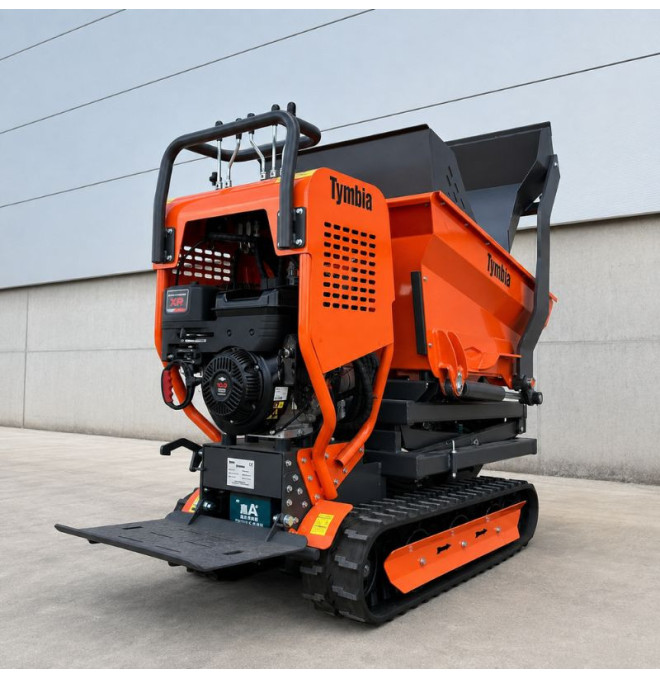

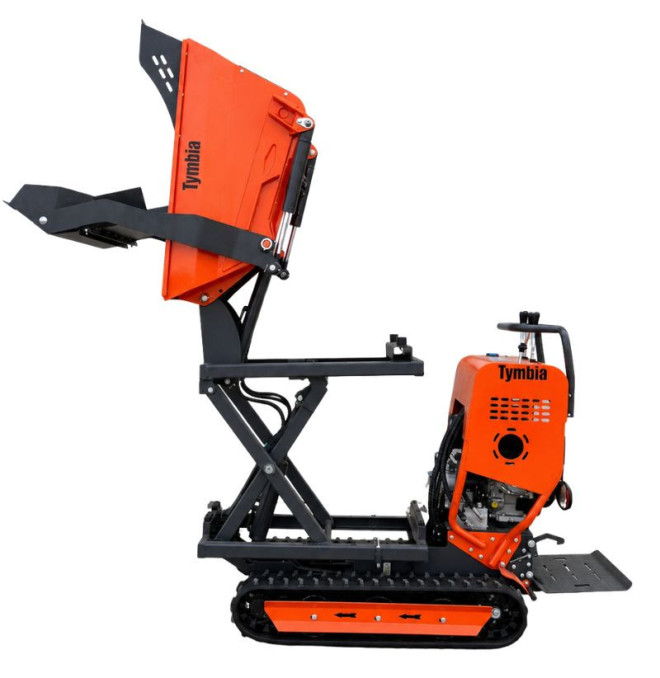

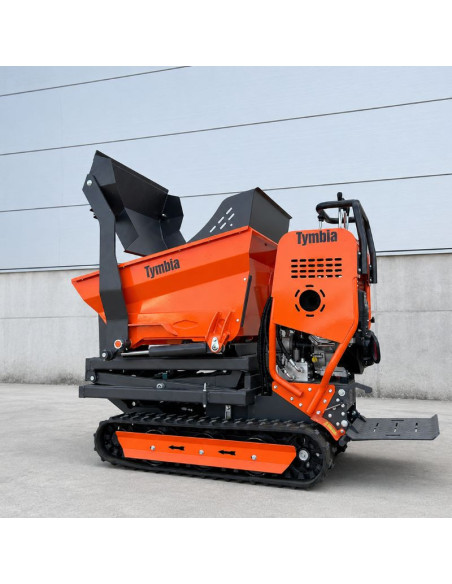

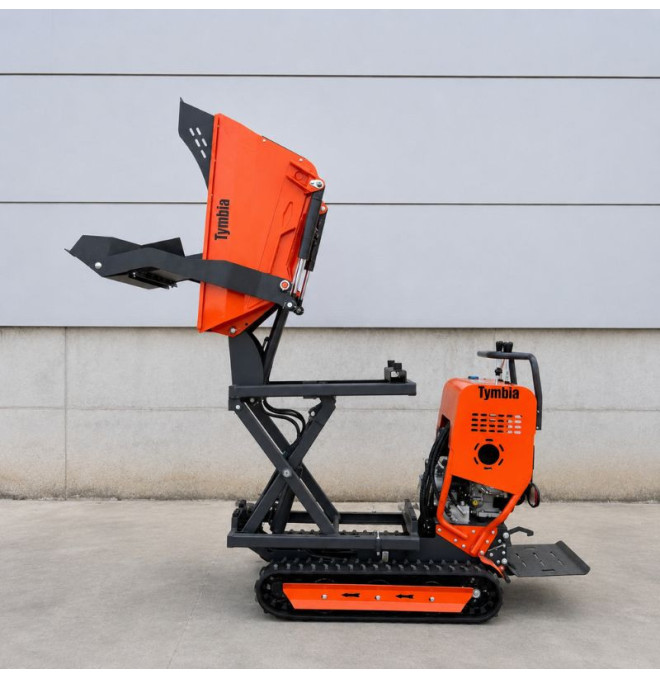

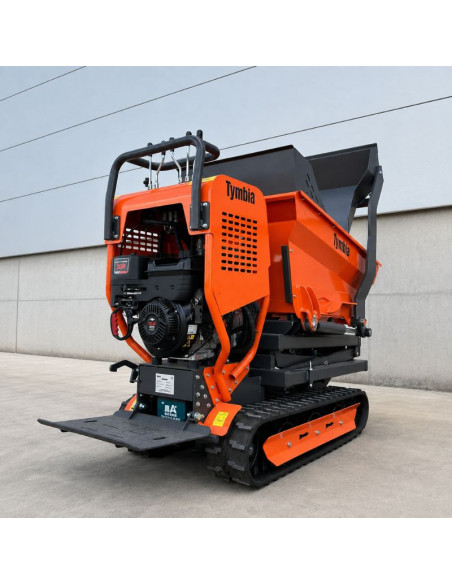

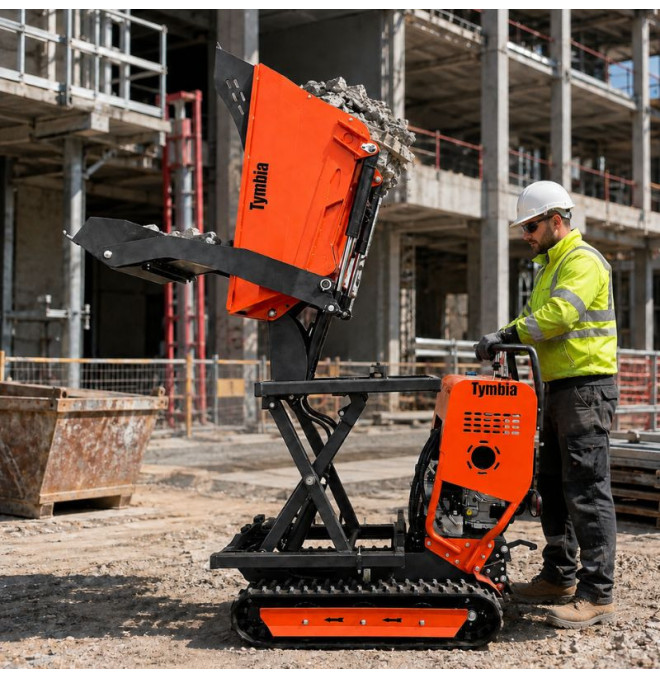

Mini dumper lifting of caterpillars 500kg capacity

Video Mini Dumper ORUGAS 500KG:

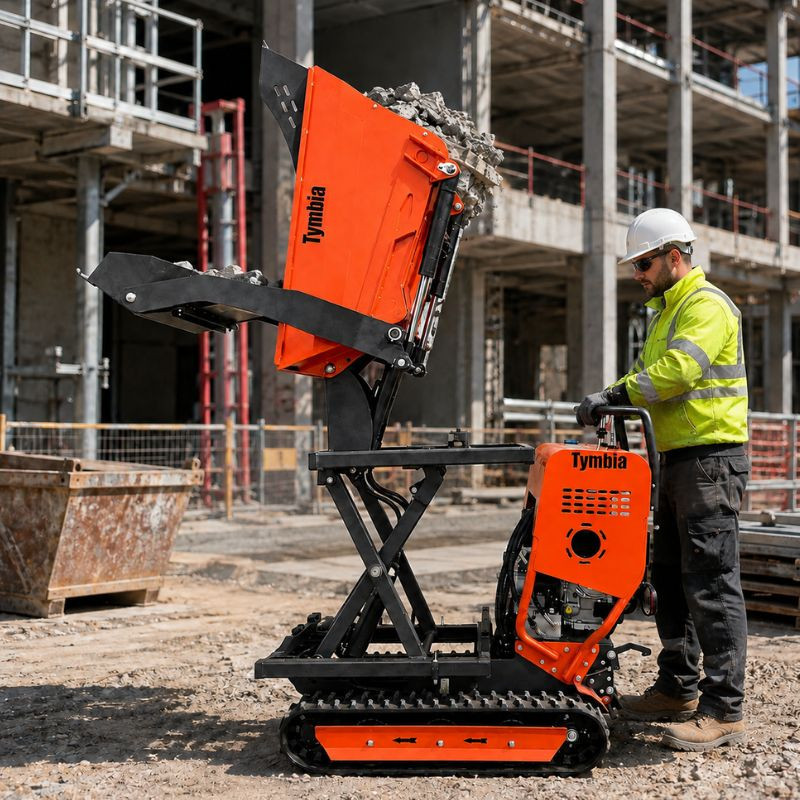

The TYMBIA Mini Dumper Elevable 500kg is a compact hydraulic dumper designed to offer versatility and ease of handling in different work environments. With a maximum load of 500kg and a design designed to operate both indoor and abroad, this model is suitable for applications where materials with a compact and maneuverable machine is required.

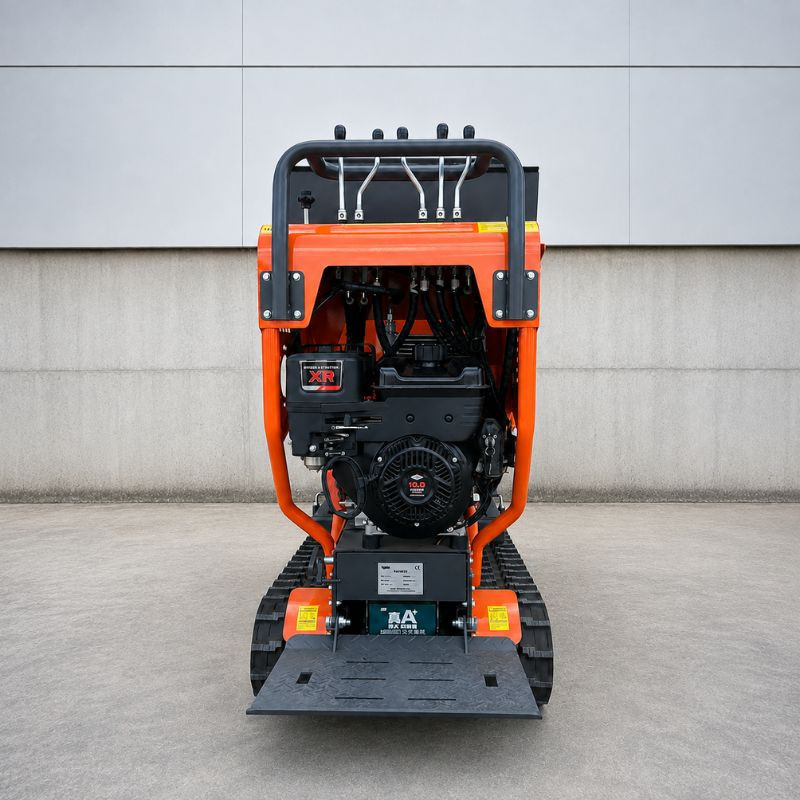

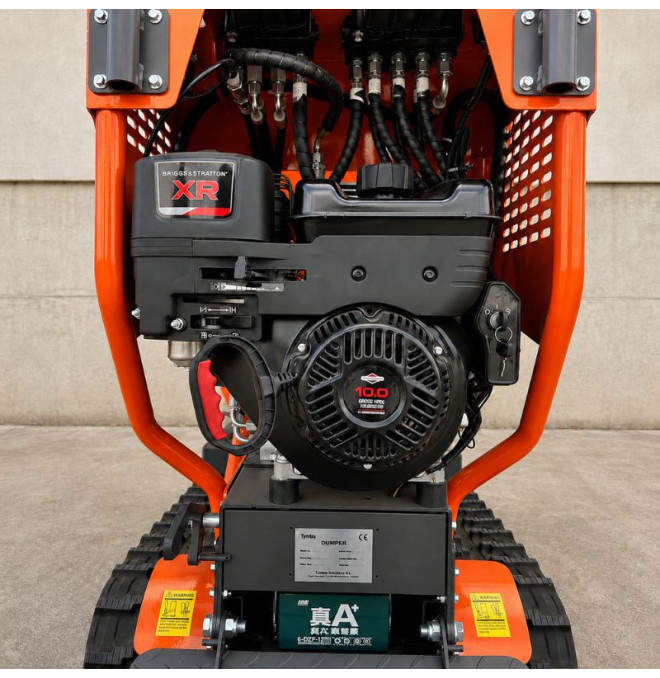

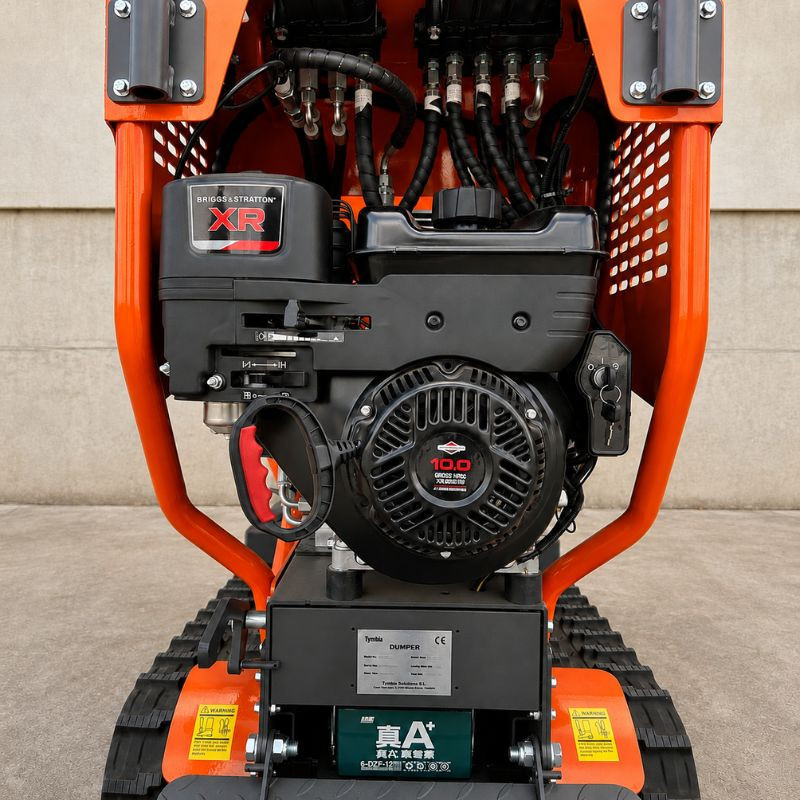

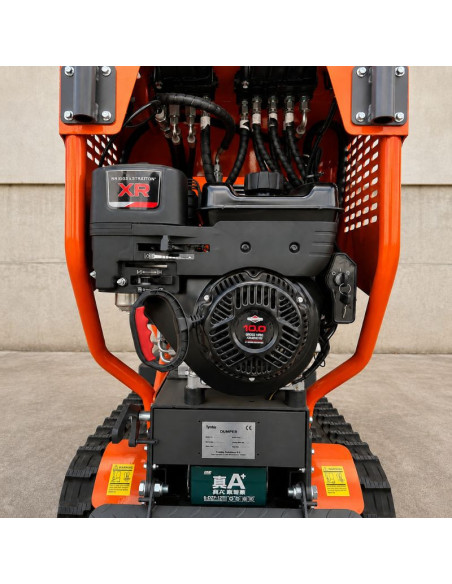

Equip 306CC Briggs & Stratton engine, with a total power of 10 HP / 7.4 KW at 3,600 rpm, 5.3-liter fuel tank and hydraulic system with 7 liter oil tank. Its compact structure, with dimensions of 1517 x 870 x 1278mm, allows working in areas with reduced access and narrow spaces.

The mini dumper TYMBIA Incorporates Lecroy Hydraulics translation engine, 1.7 / 3.5 km / h advance speed, minimum turning radius of 0.95 m and 20 ° slope capacity, offering a practical solution for transport tasks, gardens, warehouses or applications Domestic

Main technical characteristics:

• Maximum load capacity: 500 kg

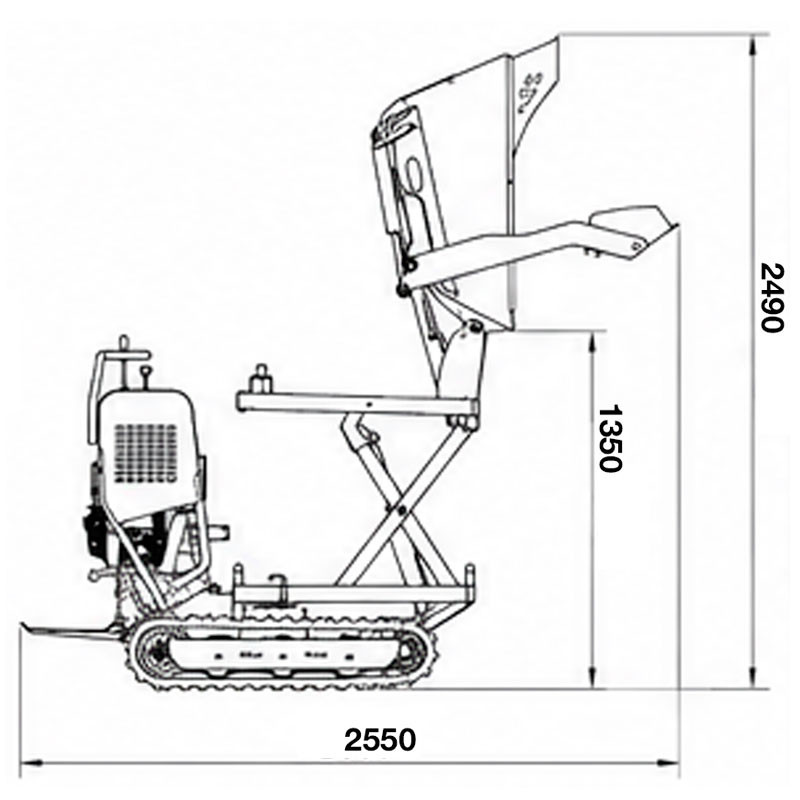

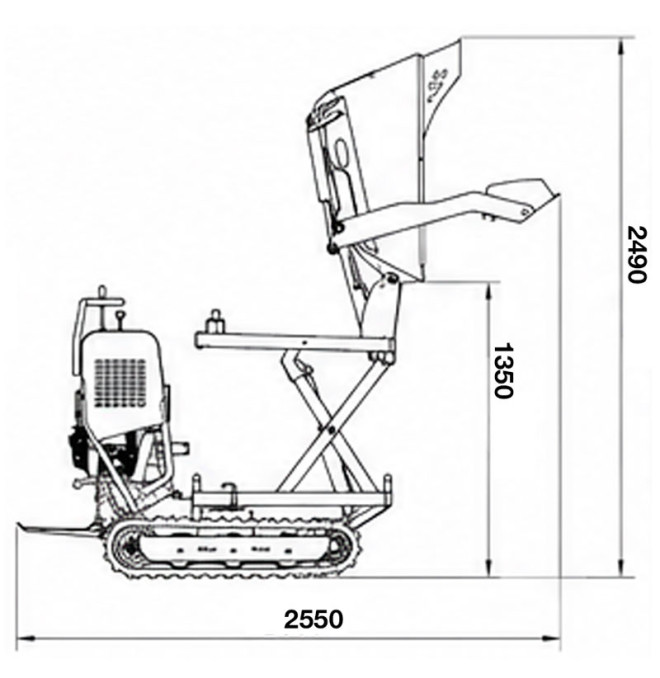

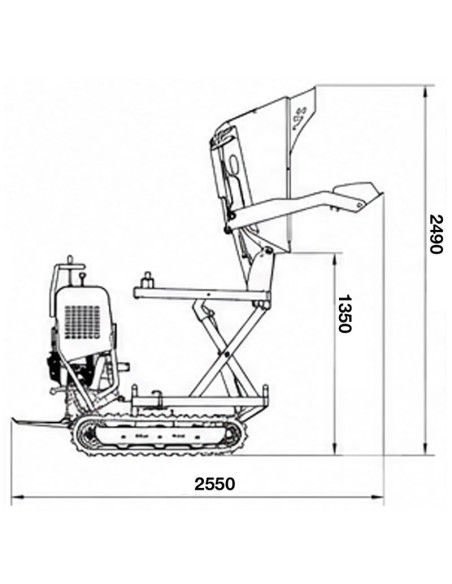

• Right-fold height: 1350mm
• Weight of the machine: 520 kg
• Engine: Briggs & Stratton
• Cylinder: 306 cc
• Power: 10 HP to 3,600 rpm / 7.4 kW
• Fuel tank capacity: 5.3 L
• Engine oil capacity: 1.1 L
• Translation System: Hydraulic Lecroy Hydraulics
• Cylinder of the translation engine: 200 cc
• Maximum working pressure: 20 MPa
• Maximum torque: 805 nm
• Scroll speed: 1.7 / 3.5 km / h
• Minimum spin radius: 0.95 m
• Overlavable pending: 20 °
• Distance between caterpillars: 520 mm
• Minimum free height to the ground: 85 mm
• Hydraulic oil tank capacity: 7 L
• Recommended hydraulic oil: 46 # anti-wear
• Volume of tilting Container: 0.22 m³
• Dimensions of the tilting Container: 1040 × 730 × 590 mm

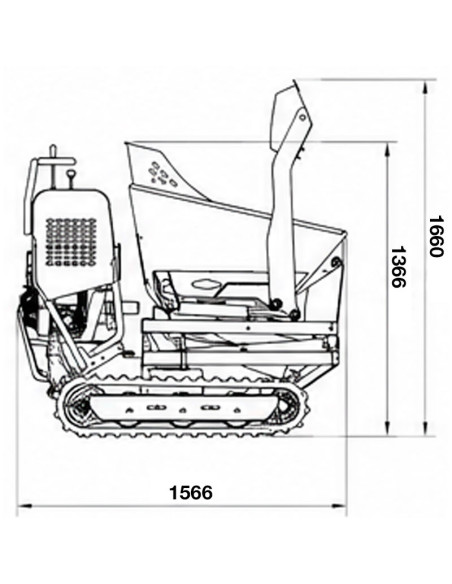

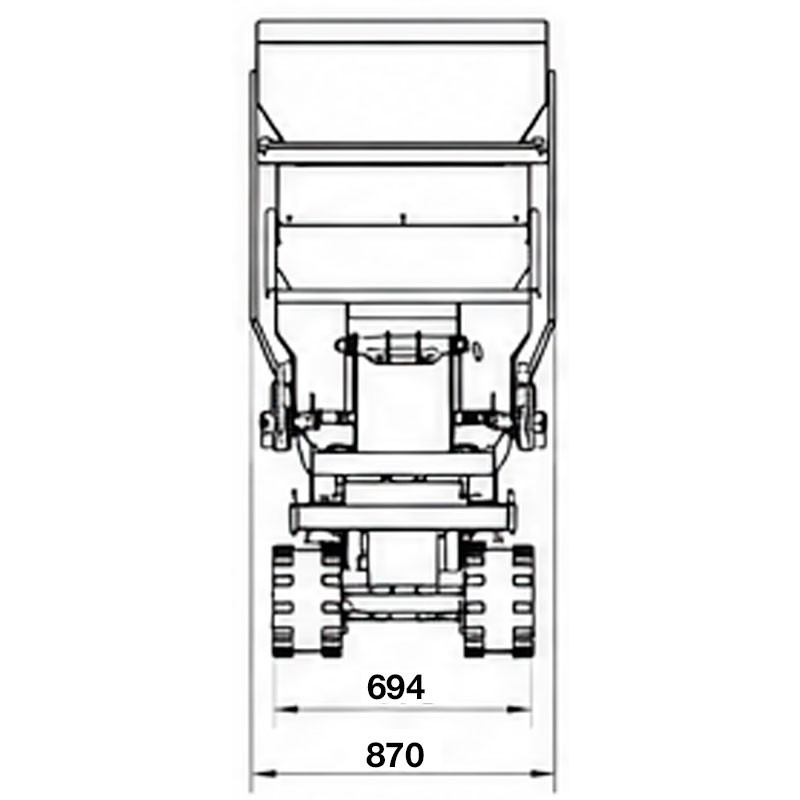

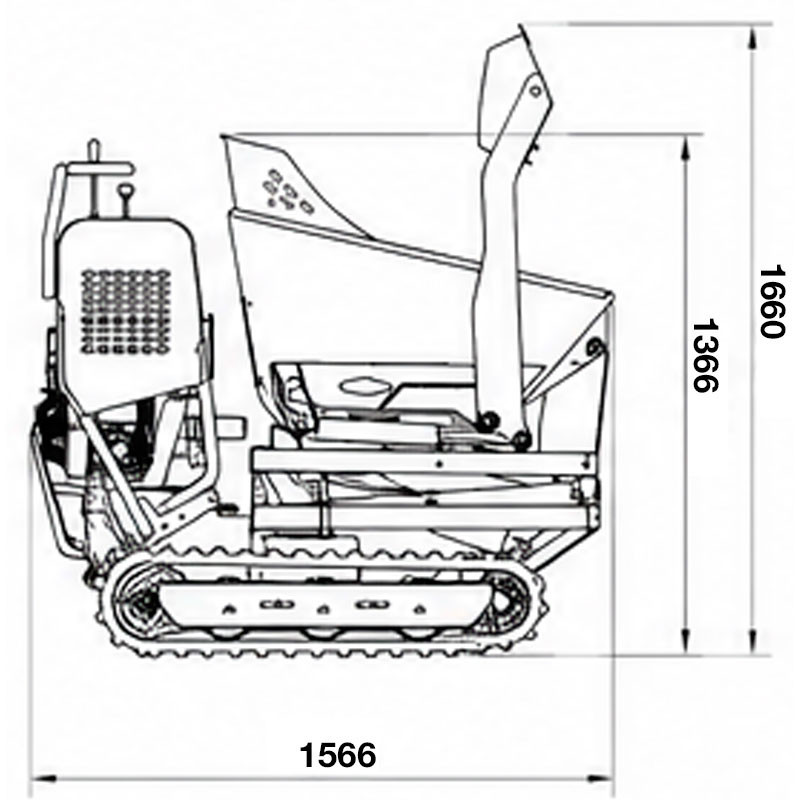

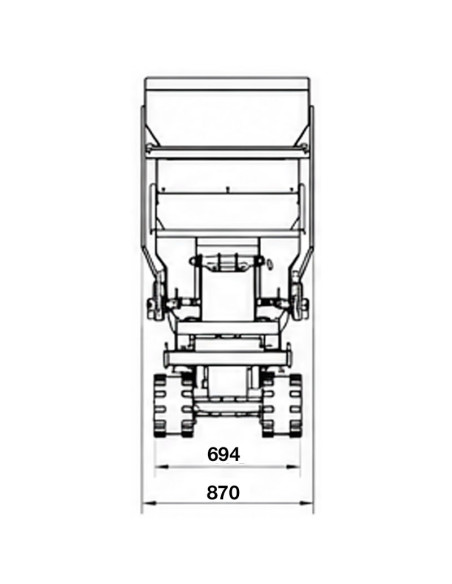

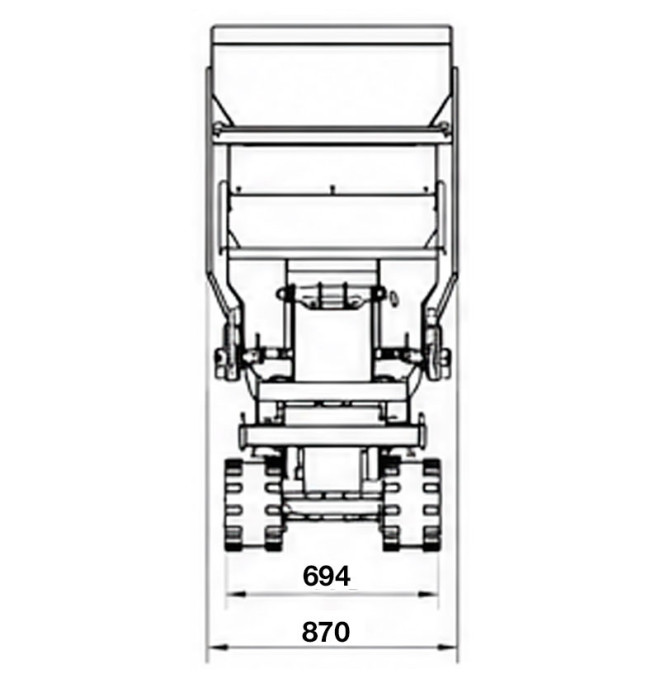

• Total dimensions (L × a × h): 1517 × 870 × 1278 mm
• CE certificate

Advantages:

• It allows transporting loads up to 500kg.
• Its compact design facilitates work in reduced areas.
• It can be used indoors and exteriors.
• The minimum turning radius of 0.95m favors maneuverability.
• The 20 ° pending capacity allows to work on land with inclination.
• The hydraulic system facilitates the use and operation of the machine.

Uses:

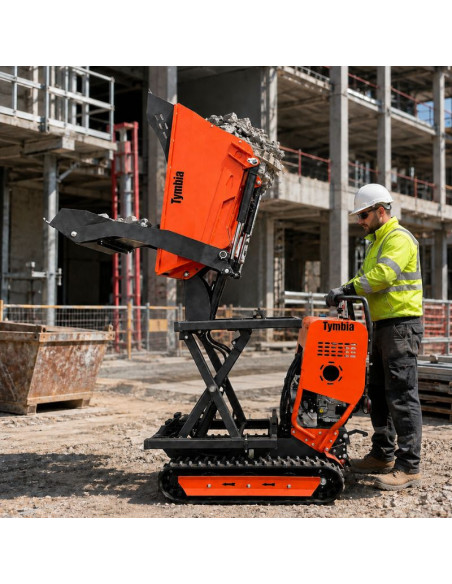

• Transport of materials on site.
• Jobs in garden.
• Domestic applications.
• Use in interior areas.
• Use in outdoor areas.
• Works in narrow spaces or with reduced accesses.
