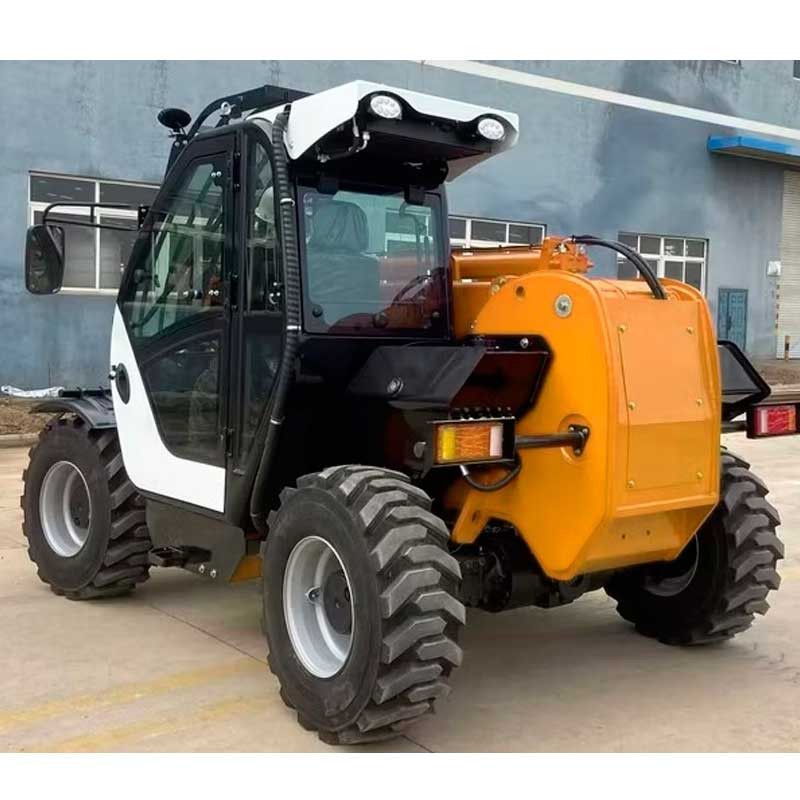

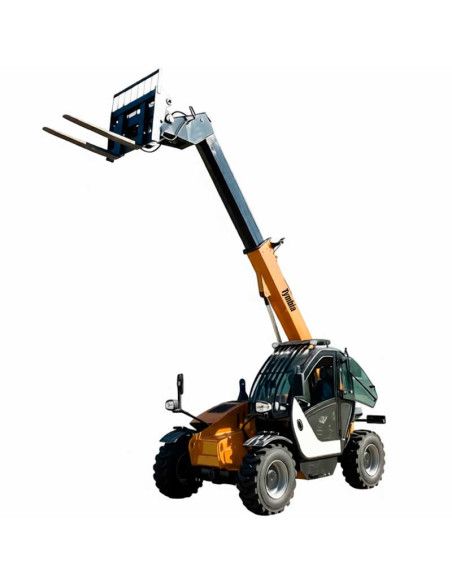

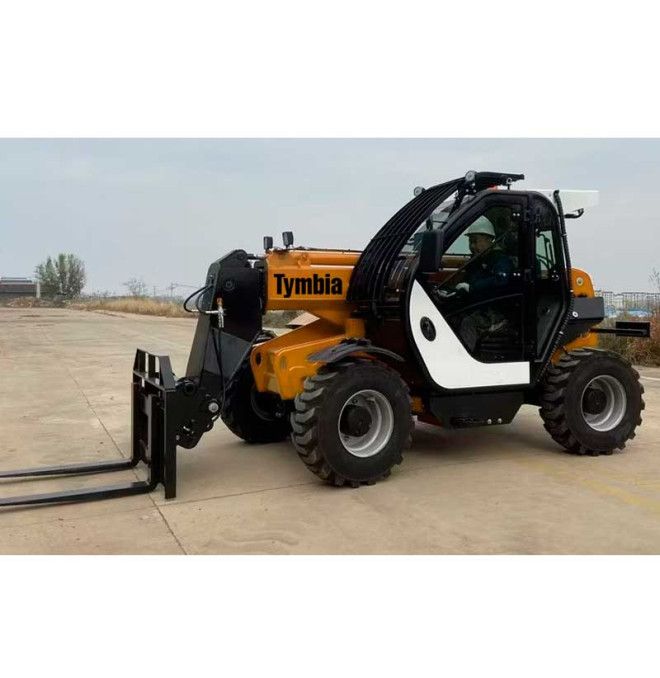

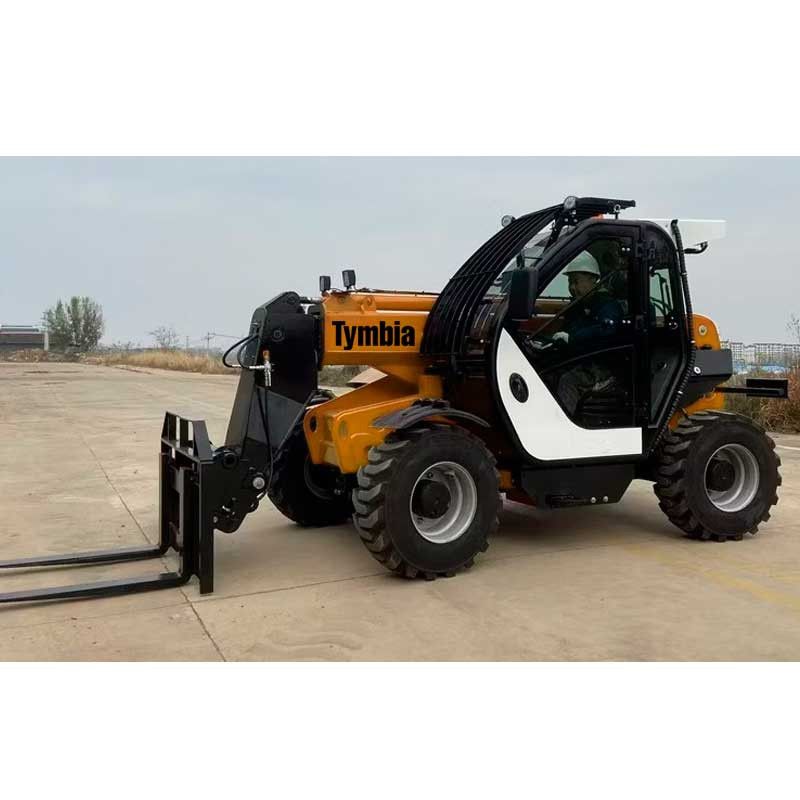

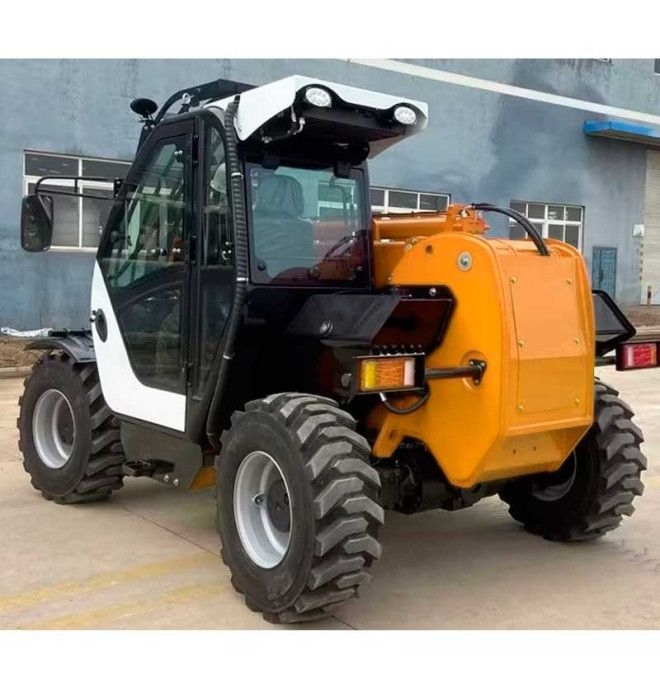

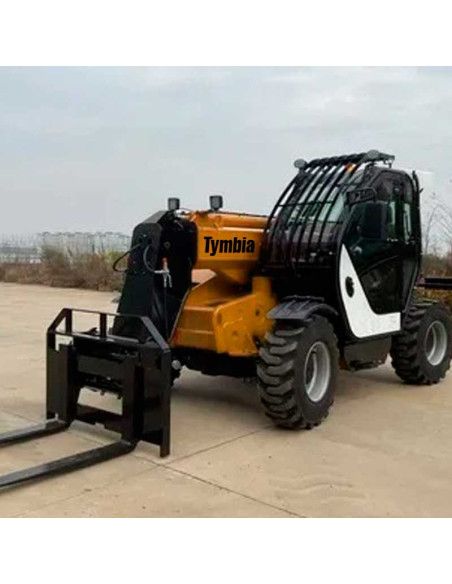

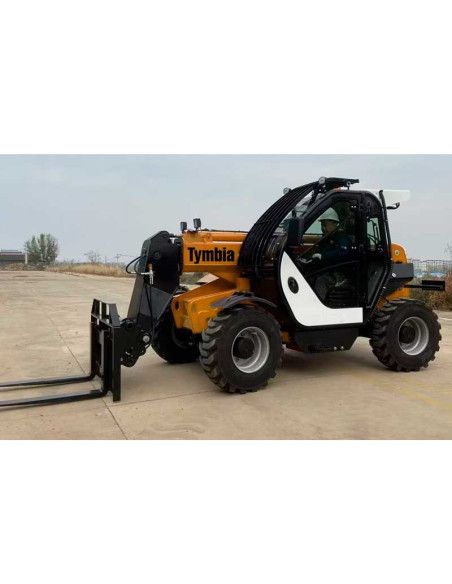

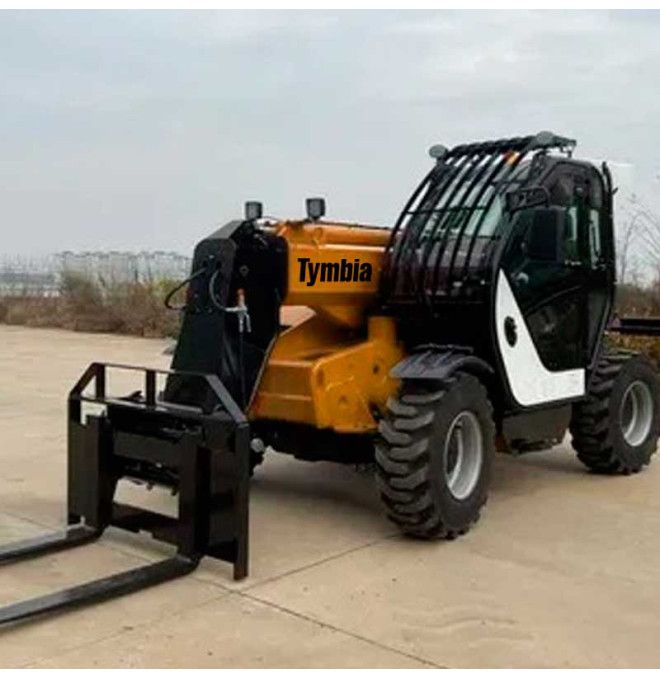

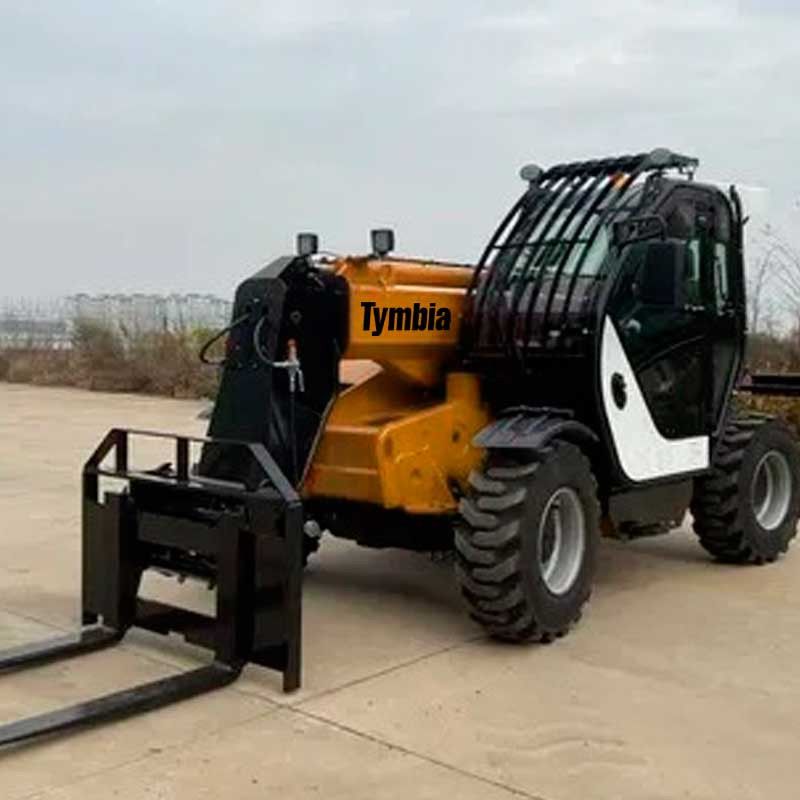

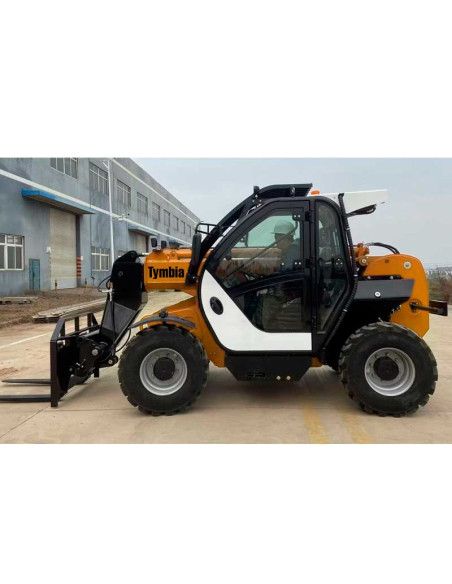

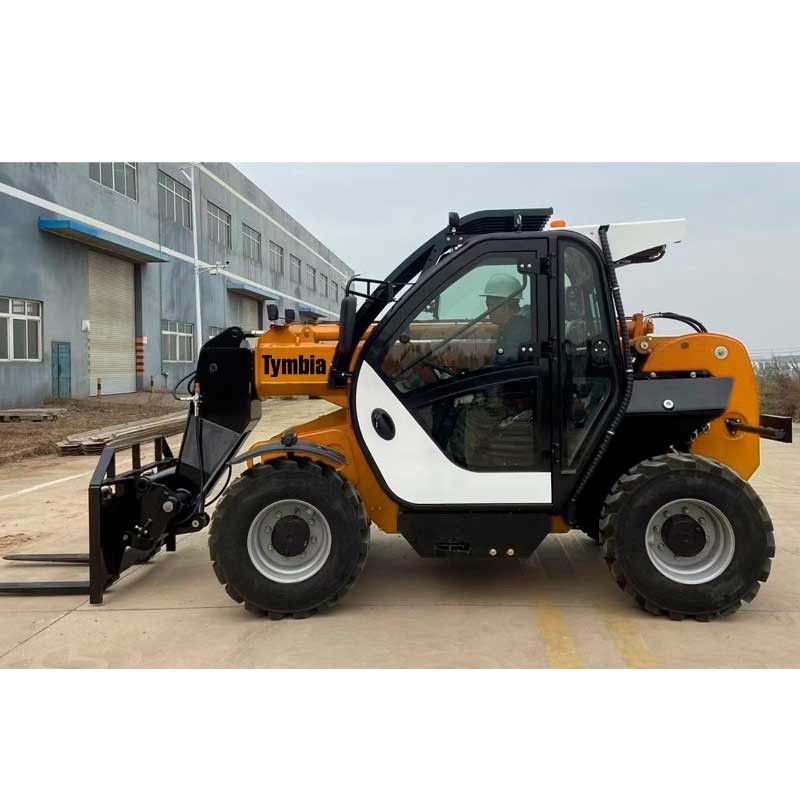

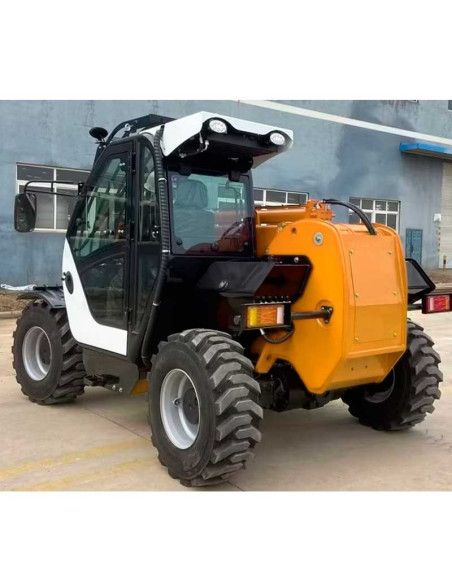

Telescopic handler TY625 2500KG to 6000mm 4x4

TY625 telescopic manipulator is a versatile and robust machine designed for industrial, agricultural and construction that require maximum efficiency, safety and performance.

With a lifting capacity of 2,500 kg, advanced hydraulic technology and a premium ergonomic design, TY625 telescopic combines the power of an euro 5 engine with the intelligence of a state-of-the-art electronic control system, offering a solution Integral for manipulation of loads in height and in demanding land.

Key technical characteristics

• Maximum load capacity: 2,500 kg
• Lifting capacity at maximum height: 800 kg
• Maximum lifting height: 5,900 mm
• Maximum range with full load: 3,300 mm
• Maximum range without load: 4,500 mm
• Spoon lifting force: 4.205 N
• Total vehicle weight: 4,100 kg
• Total length up fork: 3,900 mm
• Total width (with tires): 2,000 mm
• Interior width of the cabin: 800 mm
• Axle distance (wheel base): 2,300 mm
• FRONT ROUTE: 1,480 mm
• Total height of the vehicle: 2,000 mm
• FREE HEIGHT OF STEP (GROUND CLEARANCE): 380 mm
• Length of the fork: 1,220 mm
• Minimum spin radius: 3.310 mm
• EURO MOTOR 5 OF 55.2 KW (75 HP): low consumption, low emissions and high motor torque, complying with the strictest environmental regulations.
• Closed hydrostatic system with pump and piston engine Danfoss: Soft transmission, immediate response and greater energy efficiency.

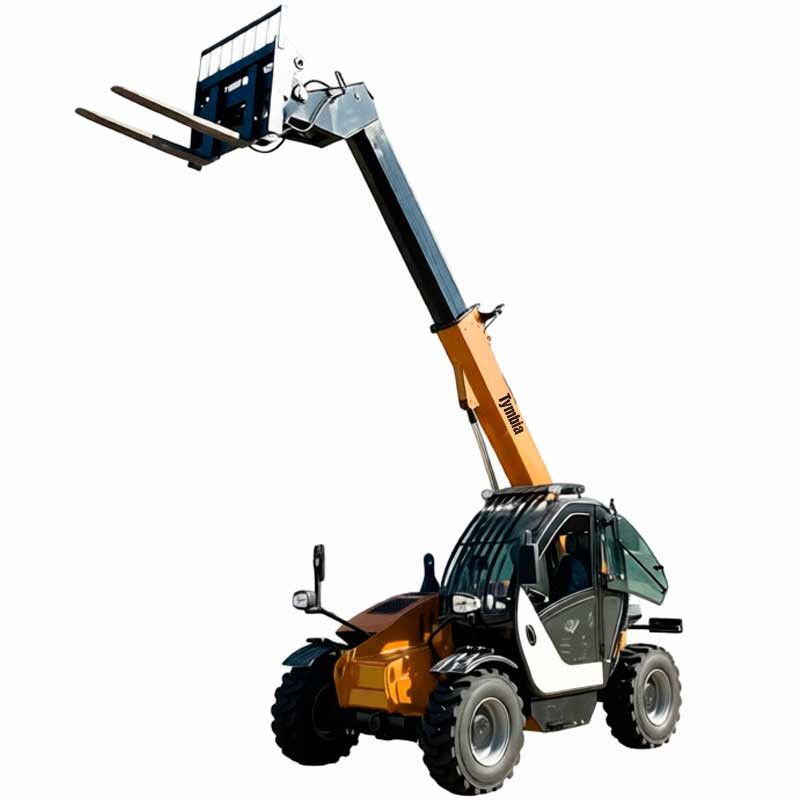

• Telescopic feather of two sections made of high strength BS1000 manganese steel, guaranteeing extreme durability under repeated loads.
• Reinforced chassis with manganese plate frame 355, designed to withstand impacts, torses and extreme conditions.

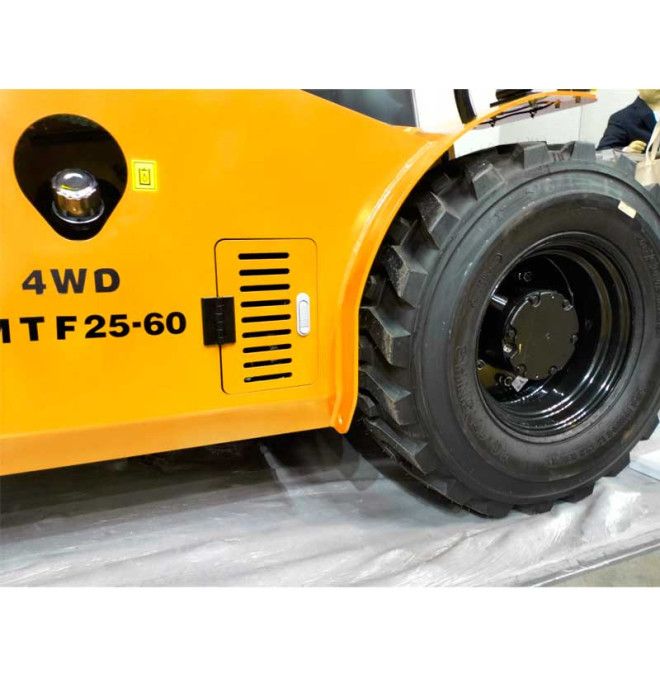

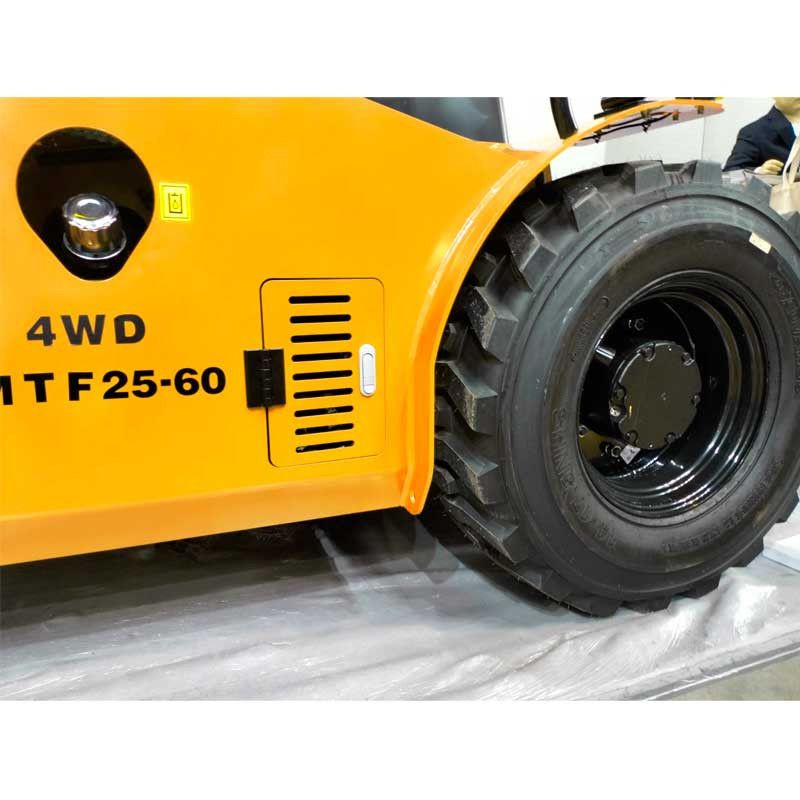

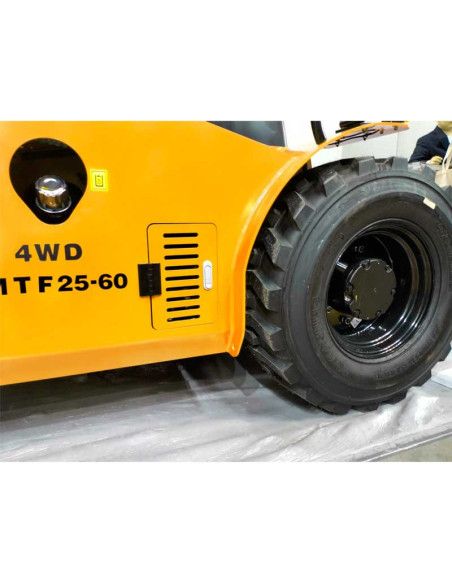

• Tires without camera 14-17.5: Greater stability, lower risk of punctures and excellent adherence in irregular soils.
• Four-wheel drive (4x4) + three direction modes:
  • Traditional front address
  • Four-wheel address
  • Direction Crab (Crab-Walking) → Total maneuverability in reduced spaces or precise alignment on site.

Smart electronic control

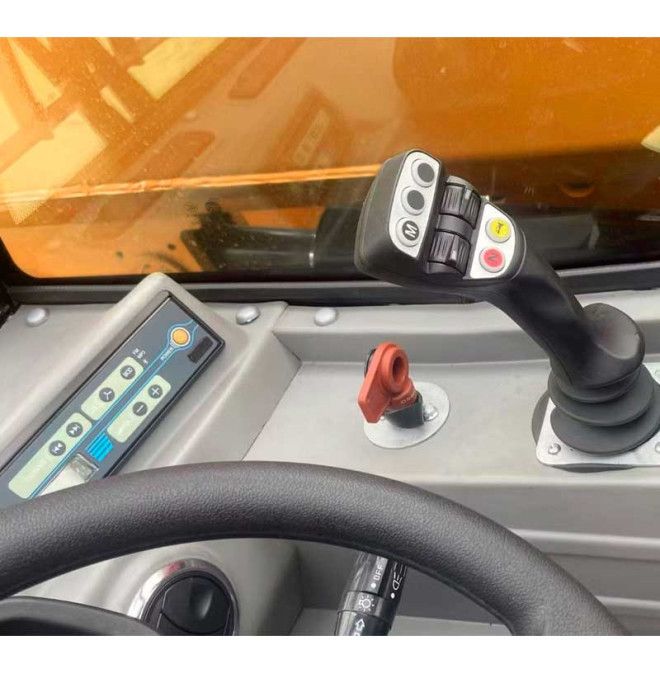

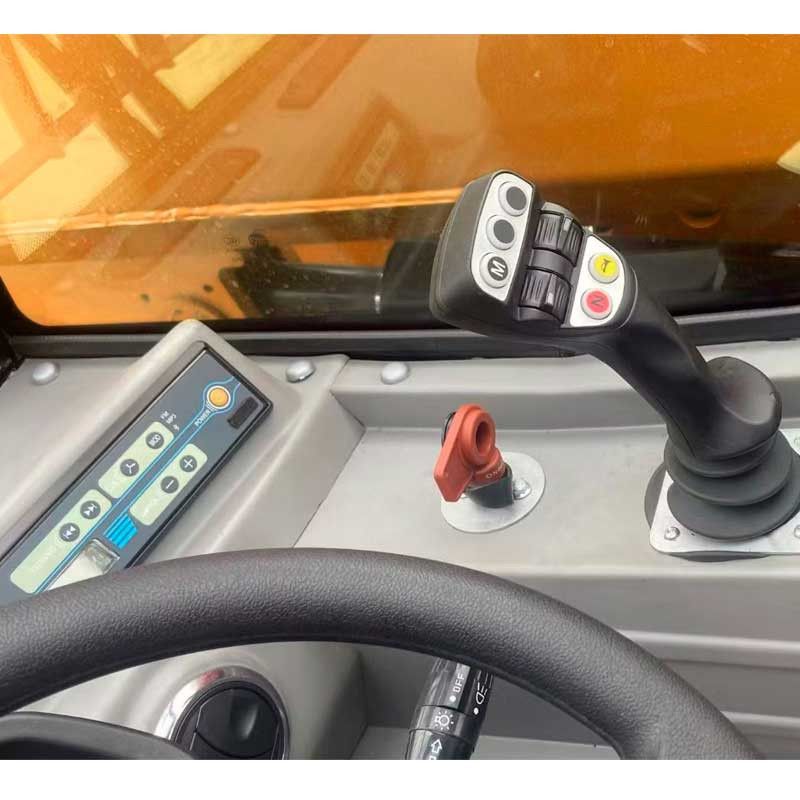

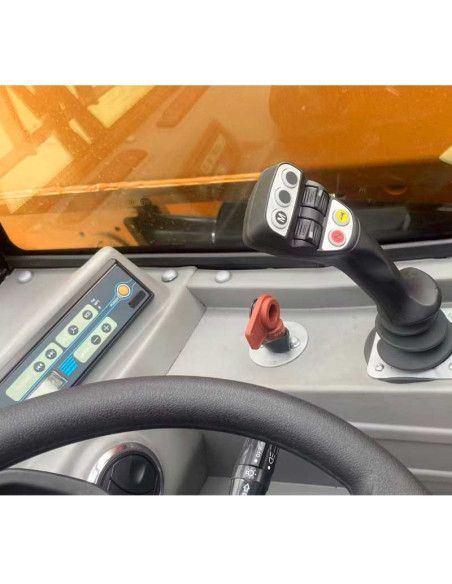

• Hydraulic operation piloted with integrated electronic controls:
  • Electronic displacement
  • Electronic telescopic extension
• Quick change of electronically controlled accessories
• Loading sensitive valve + electric proportional control: soft, precise movements and adaptable to the actual work demand.
• Integrated overload alarm: Automatic protection against operations out of secure range.
• Wet bridge (Wet Bridge): Greater useful life of the filming train and better thermal dissipation.

Comfort, security and visibility

• Premium cabin with air conditioning: Full climate for operator in any climate.
• Front and rear dual cameras + image in reverse: 360 ° visibility in real time, reducing blind spots and accidents.
• Reinforced rubber hoses (6 units): Greater resistance to abrasion, pressure and fatigue.
• Seat: ergonomic, adjustable, with padded back
• Instrumentation: Multifunction LCD screen with intuitive graphic interface
• Extended pedals: ergonomic design to reduce fatigue
• Security: Integrated extinguisher, reinforced rubber hoses, parking brake alarm
• Ergonomic design designed for long day without operational fatigue.

Recommended uses

• Construction Civil and Building (Elevation of Materials, Structures, Palets)
• Agriculture and Livestock (Pacas Management, Food, Silos Maintenance)
• Industrial logistics and heavy stores
• Public works and maintenance of infrastructures
• Ticker and recycling industry
• Operations in ports, quarries and production plants
