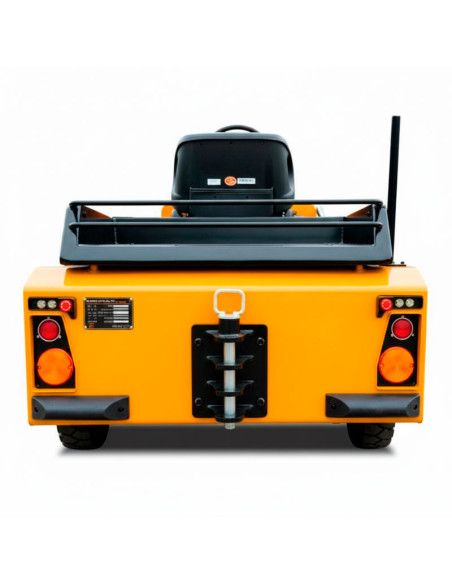

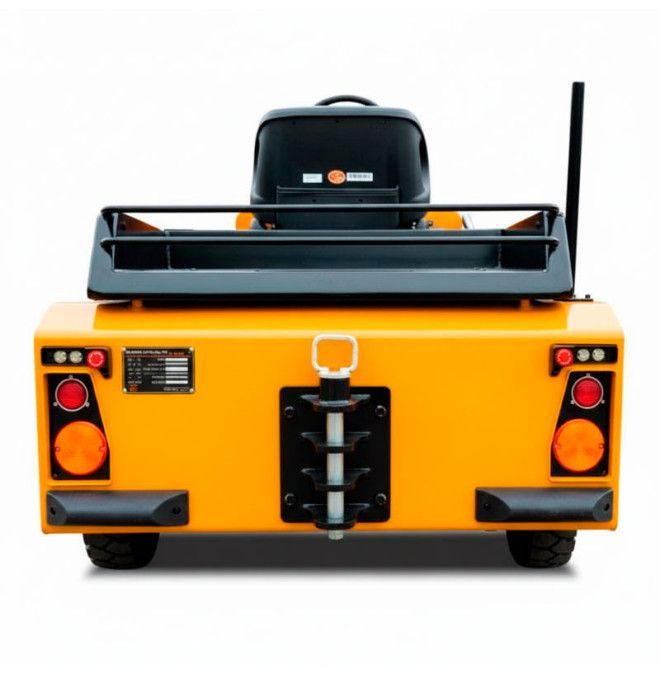

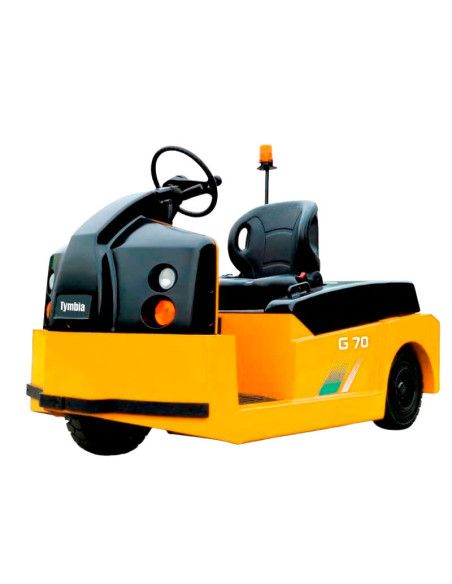

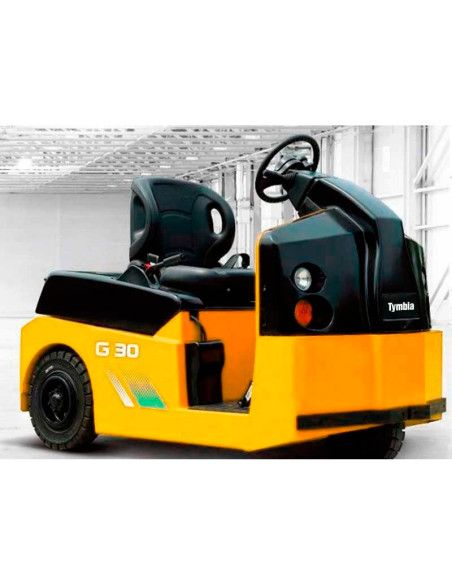

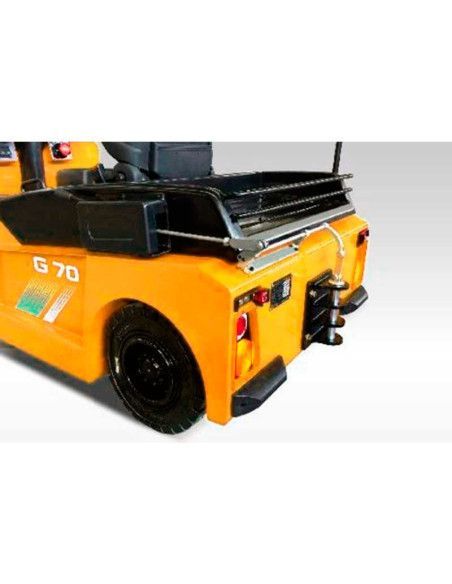

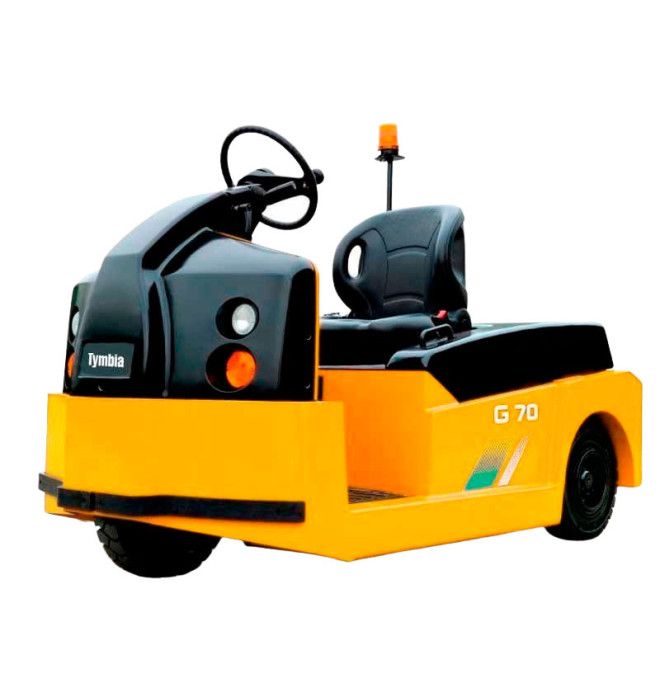

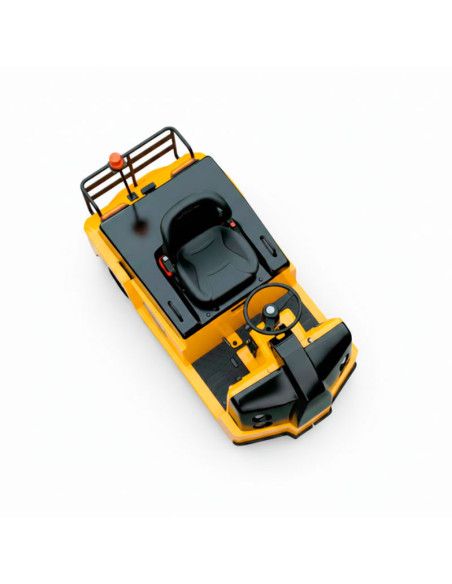

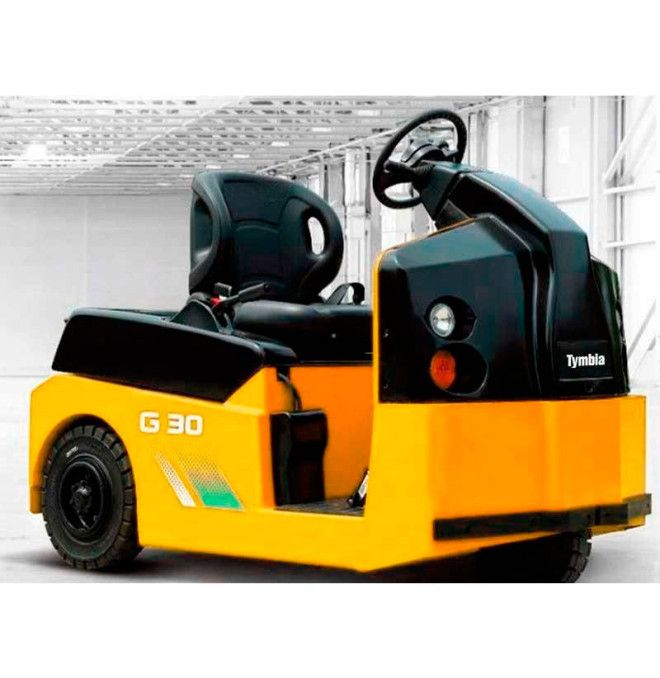

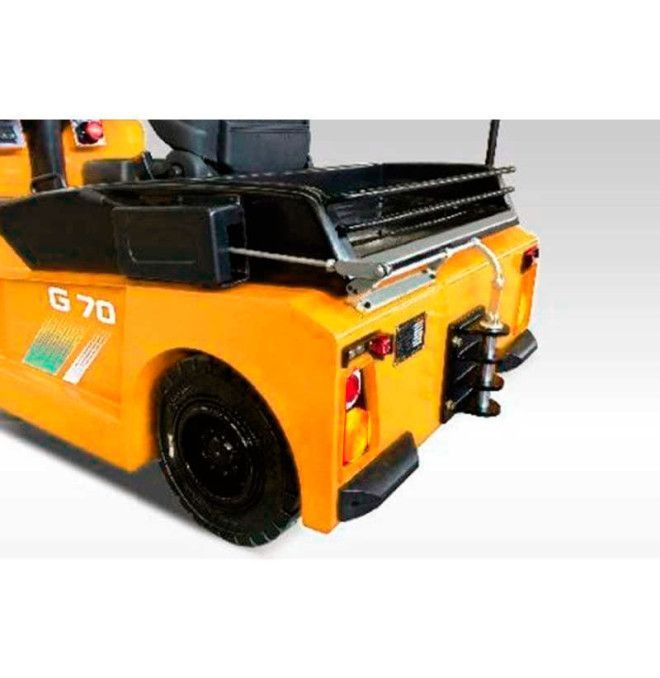

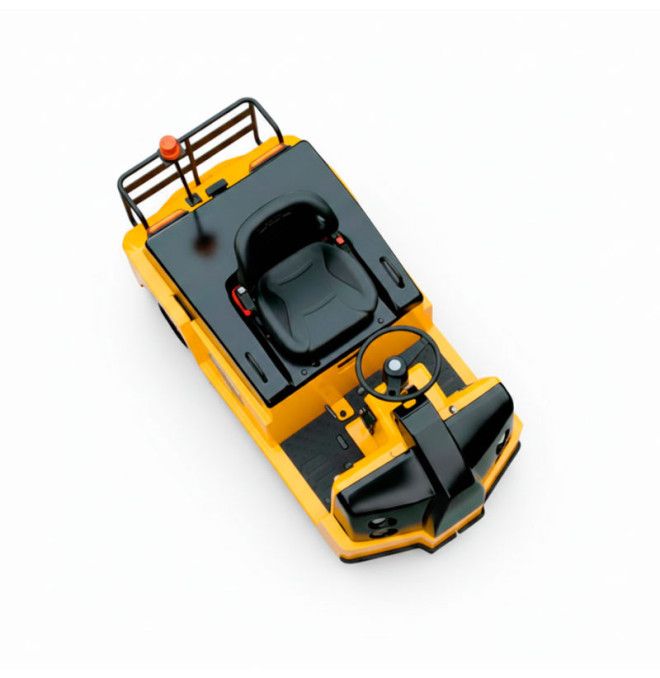

Tractor tracker loads 6000kg Acid battery

The 6-ton electric tractor is designed for demanding industrial operations, with a nominal towing capacity of 6000 kg. Equipped with 8.0 kW AC tensile engine, it offers a scroll speed of 10 km / h in charge and 15 km / h without load. It has energy regeneration technology that increases 15% battery life per turn. Includes hydraulic braking system, mechanical parking brake, electronic continuous speed control and LCD display with status indicators, work time, battery level and fault codes. Its ergonomic design, adjustable seat and rear direction guarantee comfort and safety to the operator.

Featured features:

• Trailer capacity: 6000 kg
• 8.0 kw AC traction engine
• Energy regeneration technology (increased autonomy by 15%)
• Speed: 10 km / h Loaded / 15 km / h without load
• Hydraulic service brake and mechanical parking brake
• Electronic control system without steps
• LCD display with status indicators, work hours and battery level
• Adjustable seat and back direction
• Slow forward button for precise coupling
• Double front tires

Technical characteristics:

• Nominal trailer capacity: 6000 kg
• Tractor weight: 1730 kg
• Traction engine: 8.0 kW (AC)
• Scroll speed (loaded / without load): 10/15 km / h
• Maximum pending (loaded): 6% x 20 m
• Driving mode: rear traction
• Service brake: hydraulic
• Parking brake: Mechanic
• Battery: 48 V / 420 ah
• Battery weight: 640 kg
• Minimum spinning radius: 1800 mm
• Free height to the ground: 120 mm
• Axle distance: 1200 mm
• Front cantilever: 365 mm
• Rear cantilever: 380 mm
• Tensile coupling height: 350/450 mm
• Front tires: 2x4.00-8
• Rear tires: 6.50-10
• Rear width: 905 mm
• Dimensions (l x an x al): 2070 x 1100 x 1445 mm
• Seat height: 1080 mm
• Noise level in cabin: <75 dB
• Control mode: electronic, without steps

Advantages:

• Greater energy efficiency thanks to AC technology with energy regeneration
• Greater autonomy: + 15% of work hours per battery charge
• Silent operation: noise less than 75 dB
• Improved security: hydraulic and mechanical brakes, emergency button, failure protection
• Ergonomics: adjusted pedalboard, adjustable steering wheel and comfortable seating
• Simplified maintenance: Side battery change system
• Intelligent connectivity: CAN BUS technology, self-diagnosis and screen fault codes

Uses:

• Transportation of cars or heavy platforms in industrial warehouses
• Movement of loads in airports, logistics terminals and distribution centers
• Operations in factories, automotive plants and pharmaceutical sectors
• Applications where safe, silent and efficient drag of up to 6000 kg
