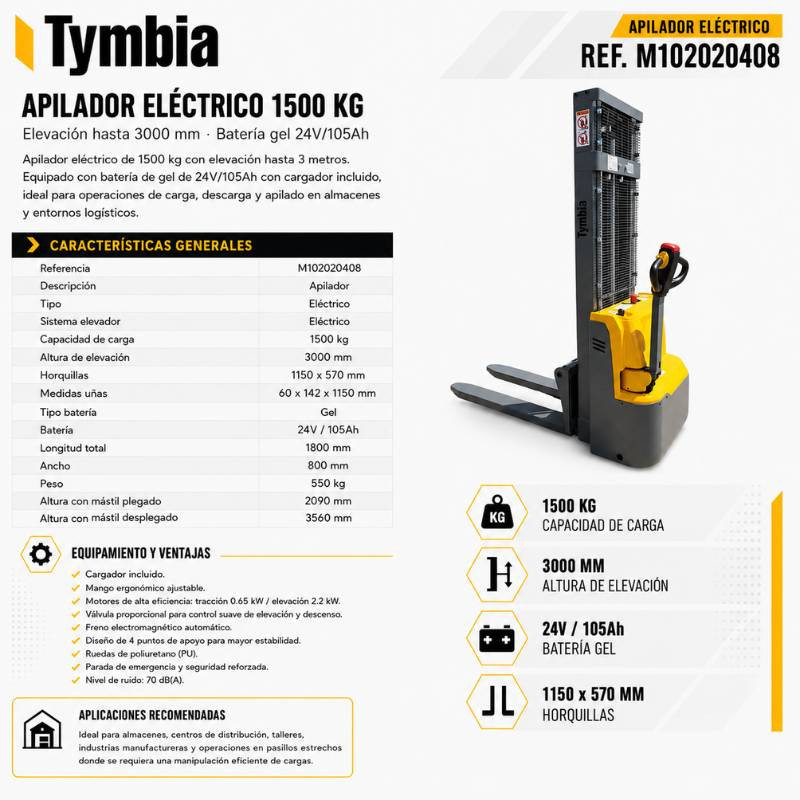

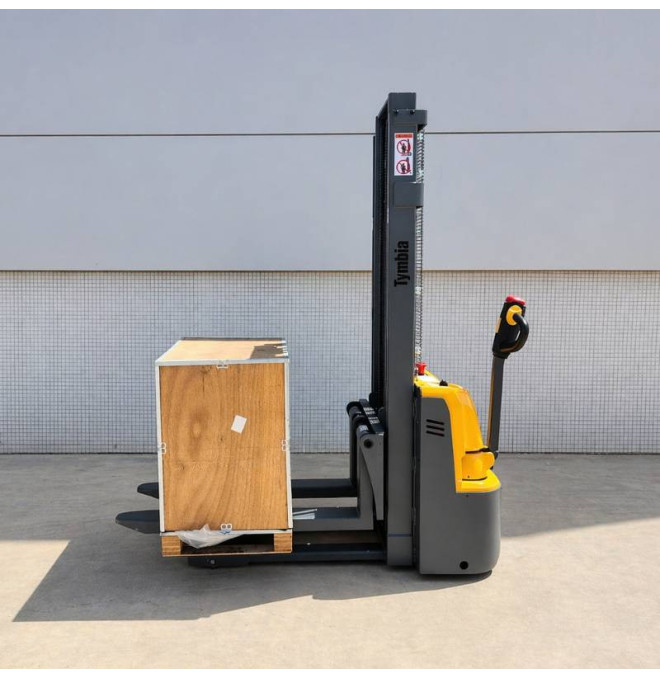

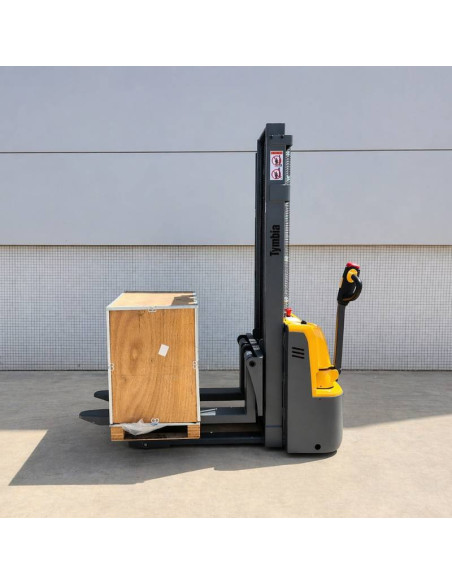

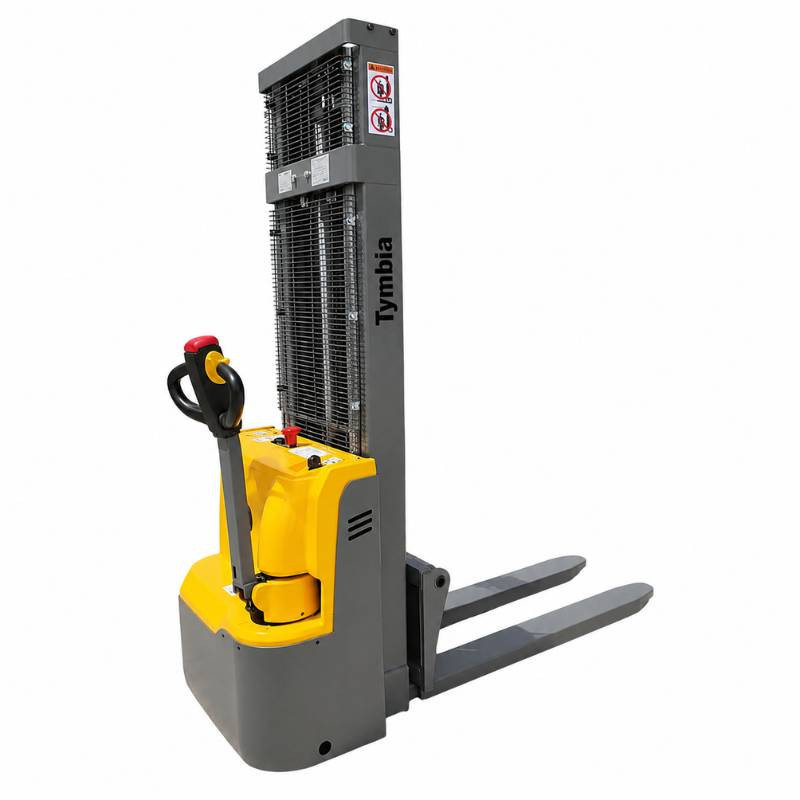

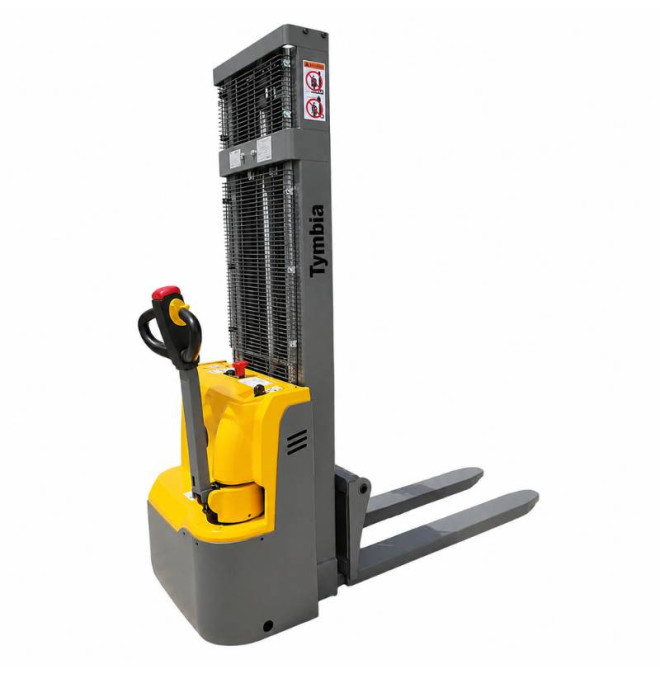

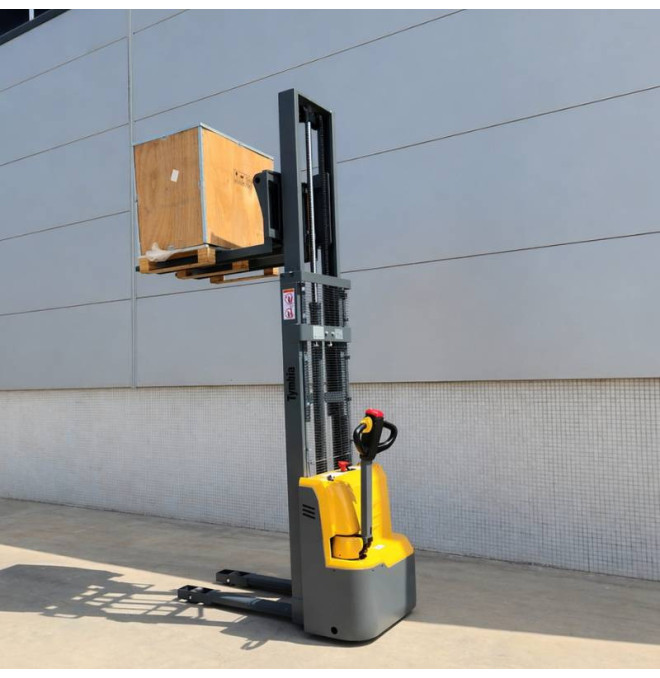

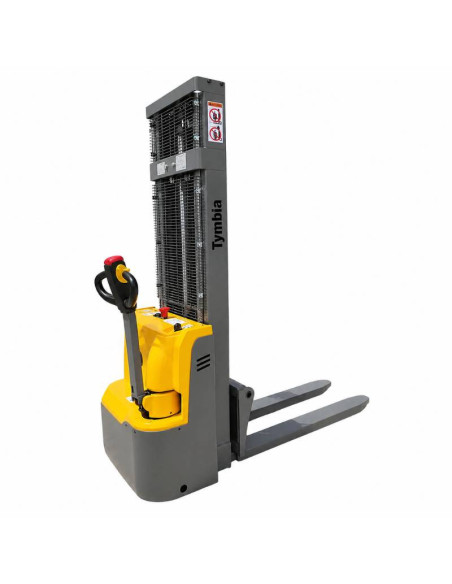

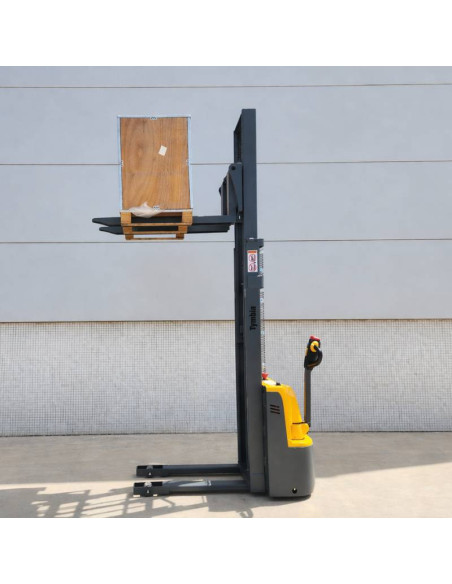

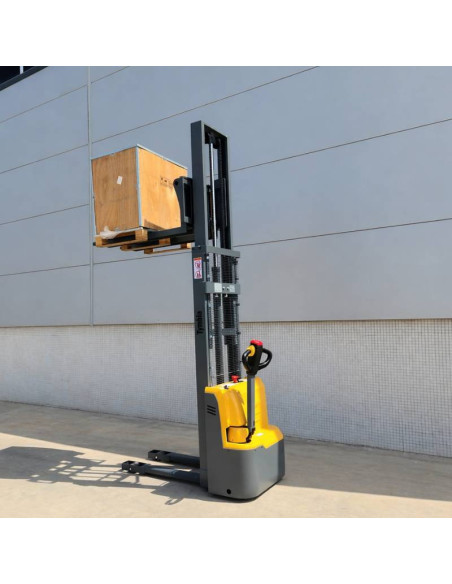

Electric stacker 1500kg at 3000mm 24V / 105Ah

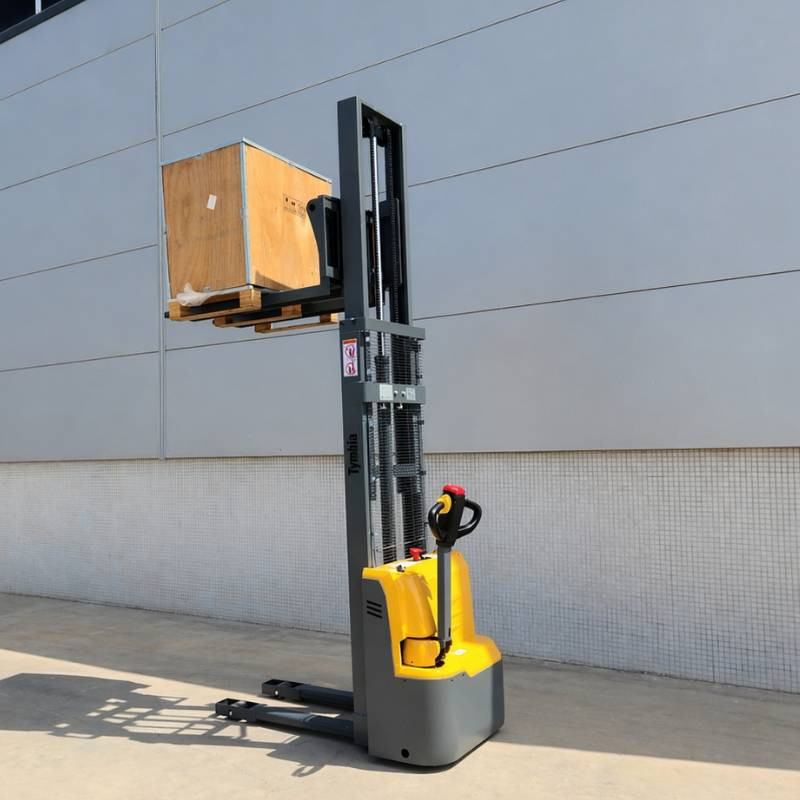

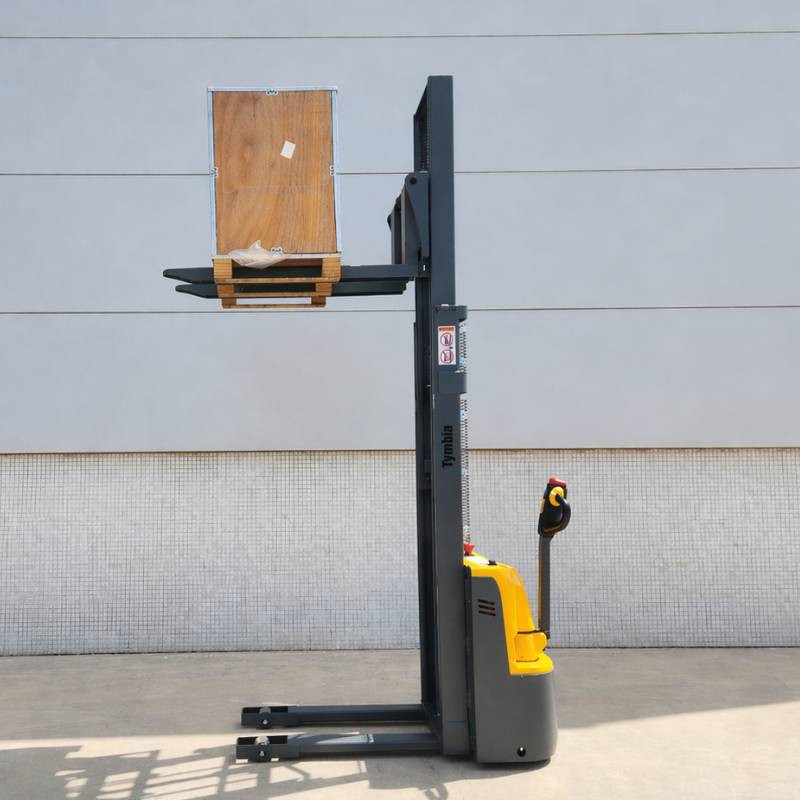

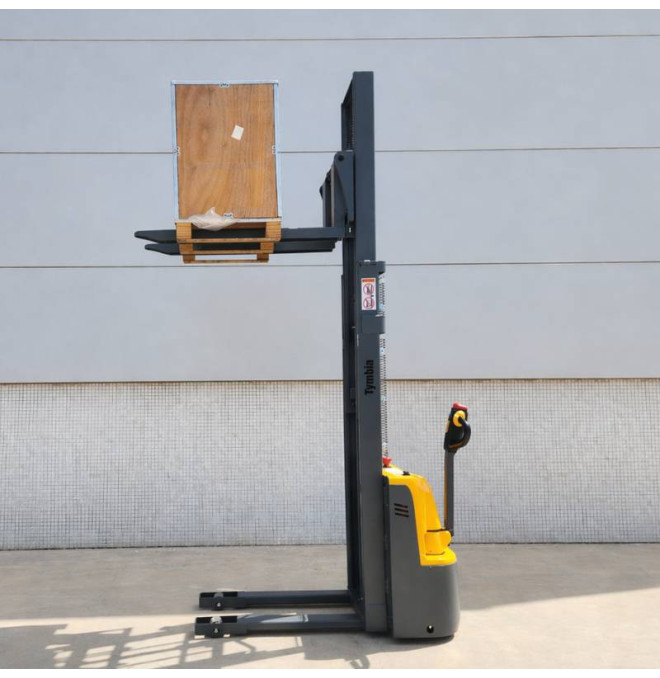

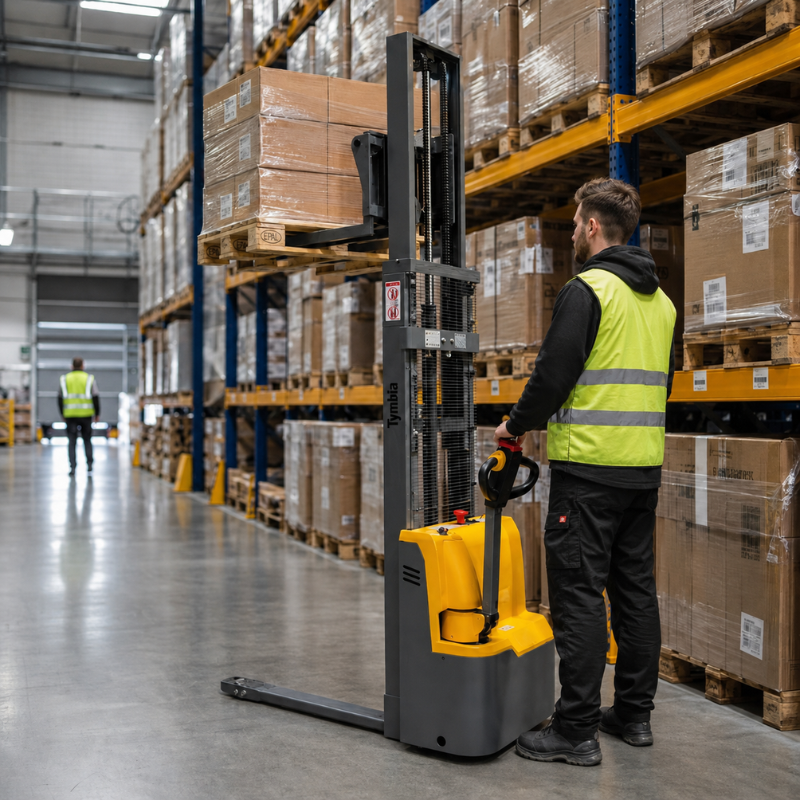

The electric stacker TYMBIA It is a robust and efficient solution for loading, unloading and stacking operations in industrial and logistical environments. Designed to handle up to 1500 kg with a maximum lifting height of 3000 mm, it allows working comfortably with racking and Shelving of medium height.

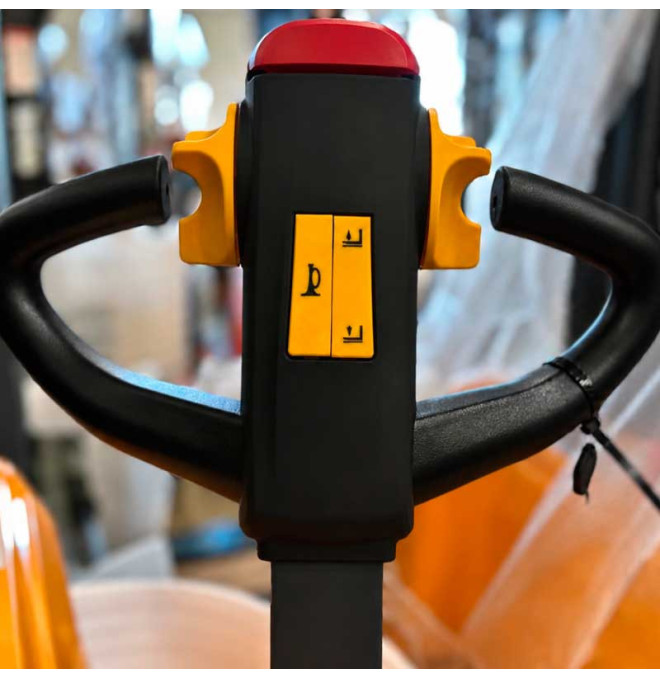

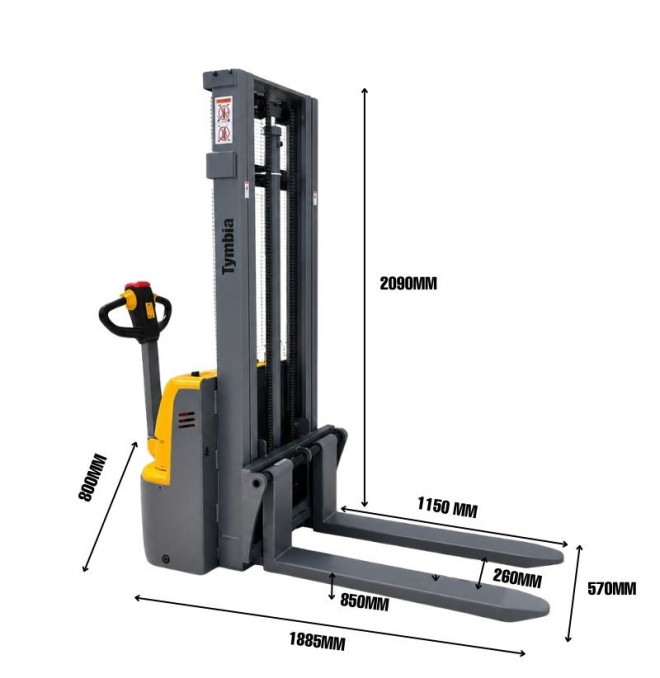

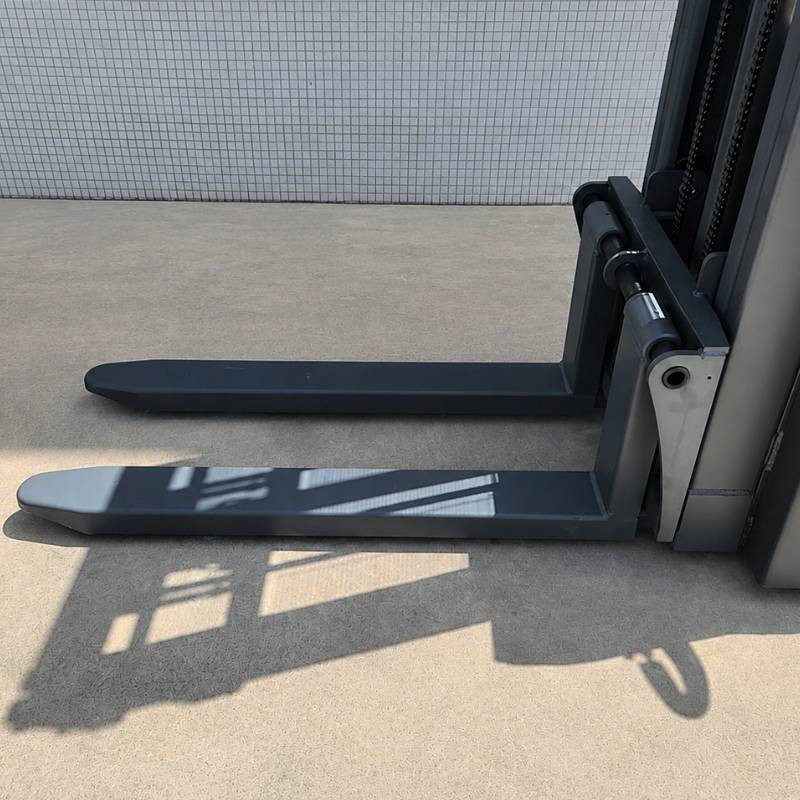

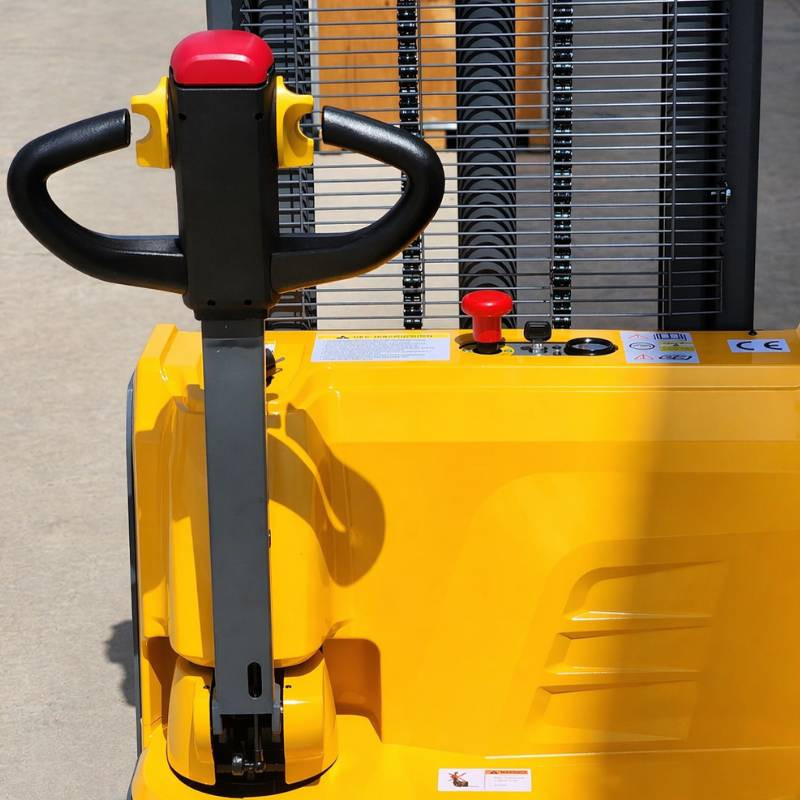

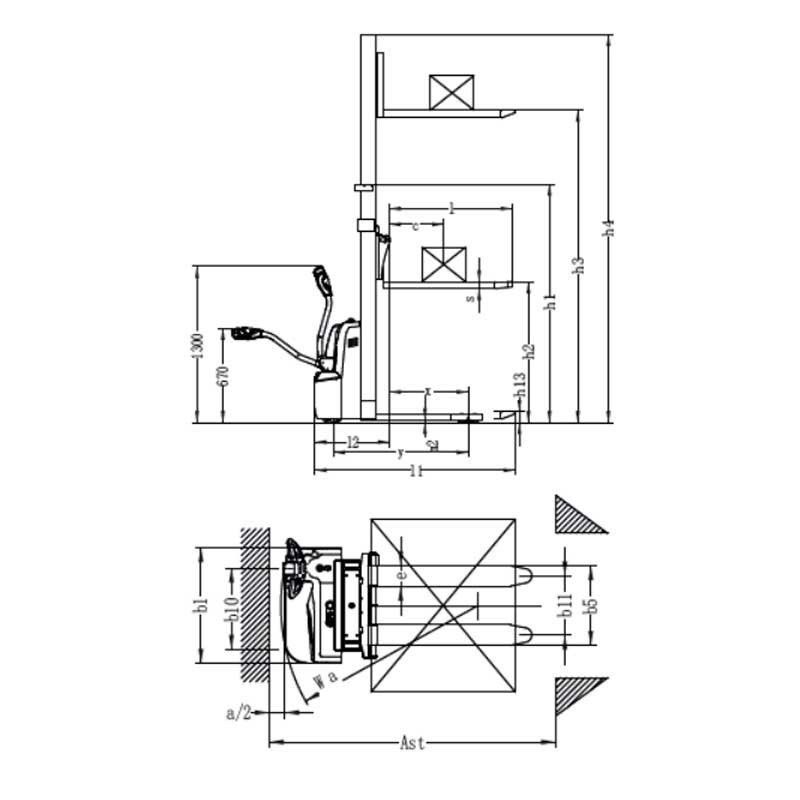

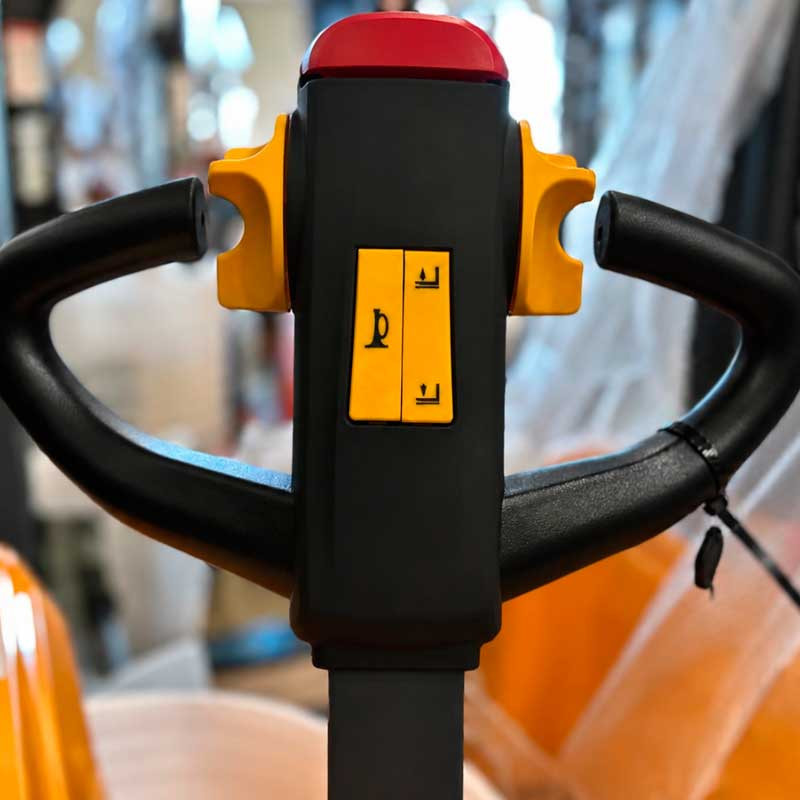

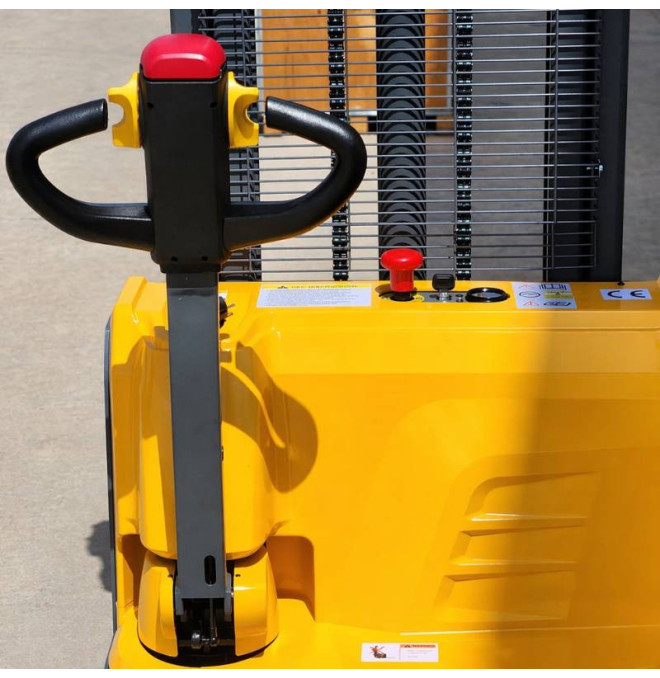

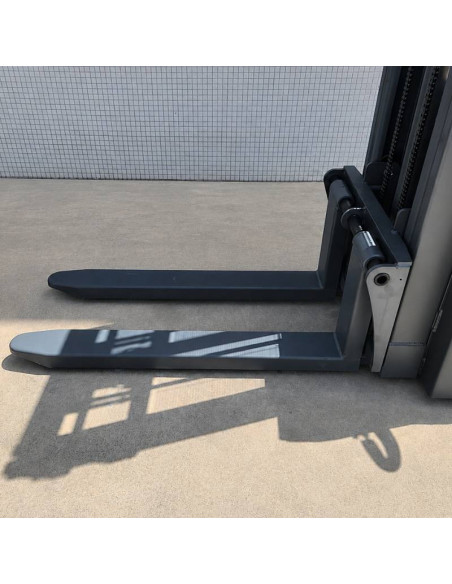

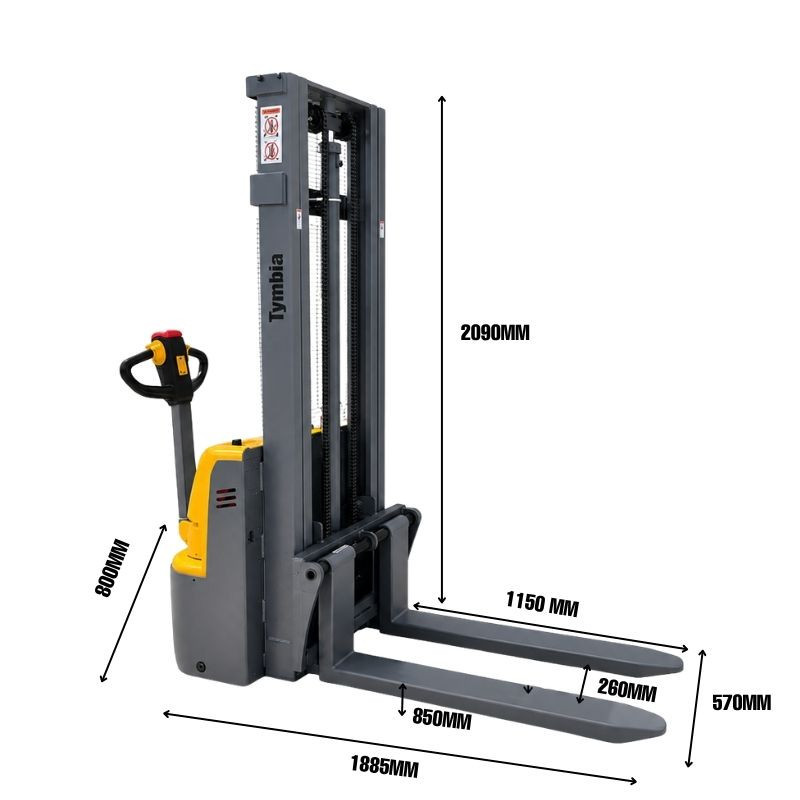

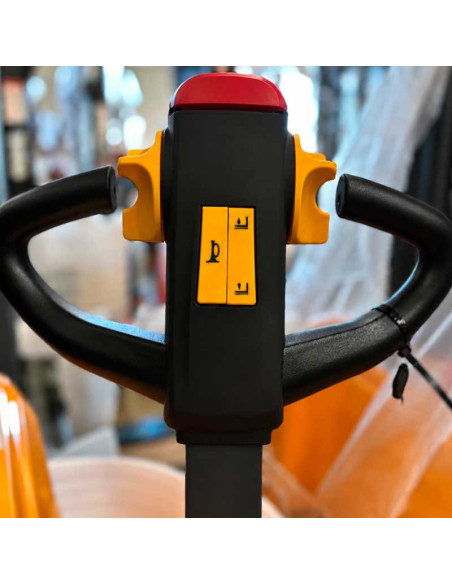

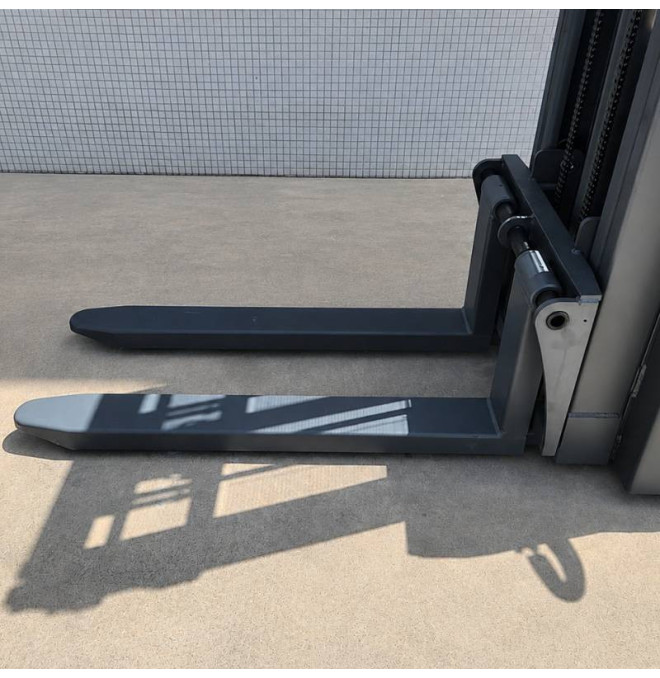

It incorporates steel forks of 570 mm wide and 1150 mm long, ideal for standard pallets, and a handle with adjustable height (670-1300 mm) that improves ergonomics and control during operation.

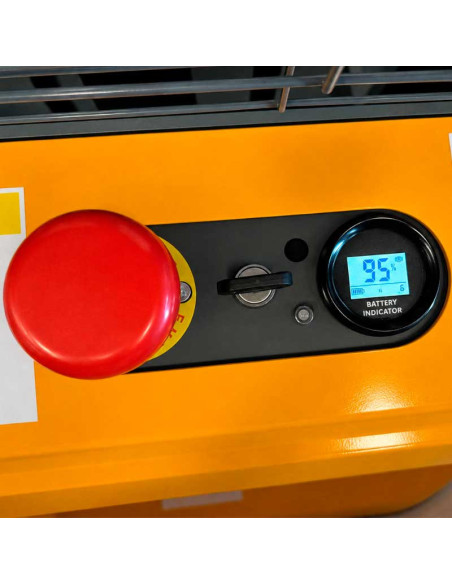

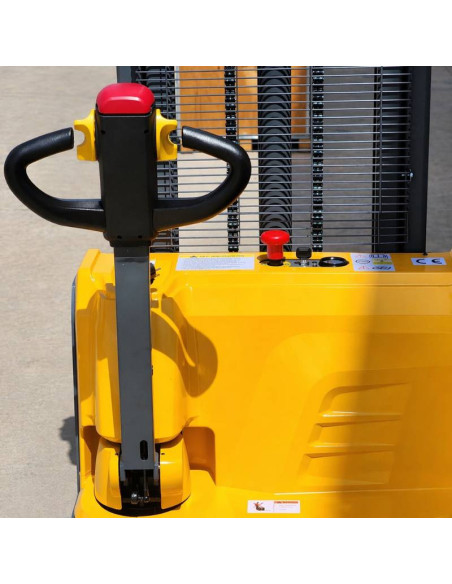

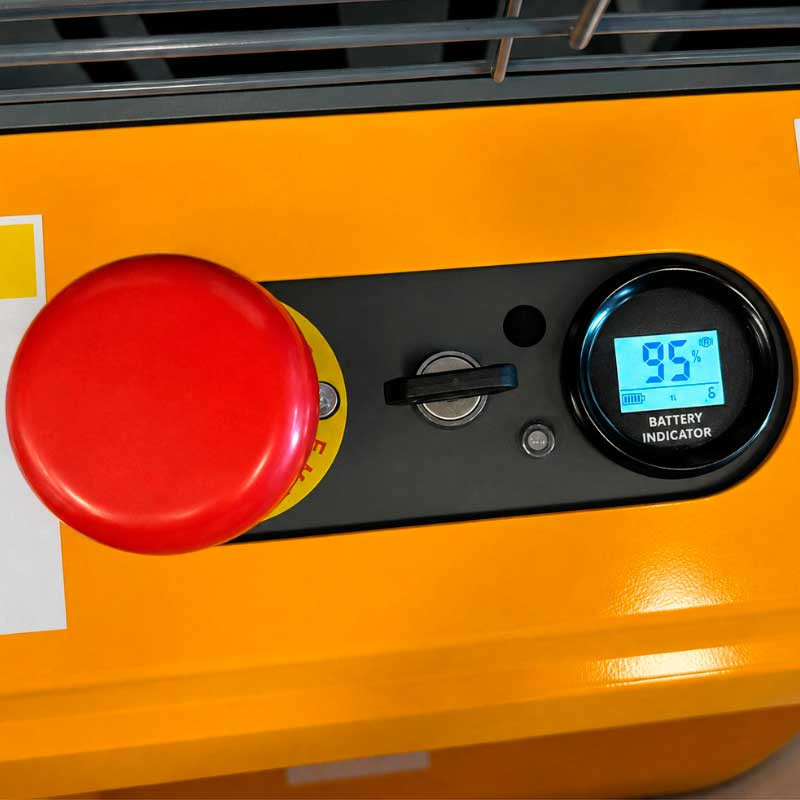

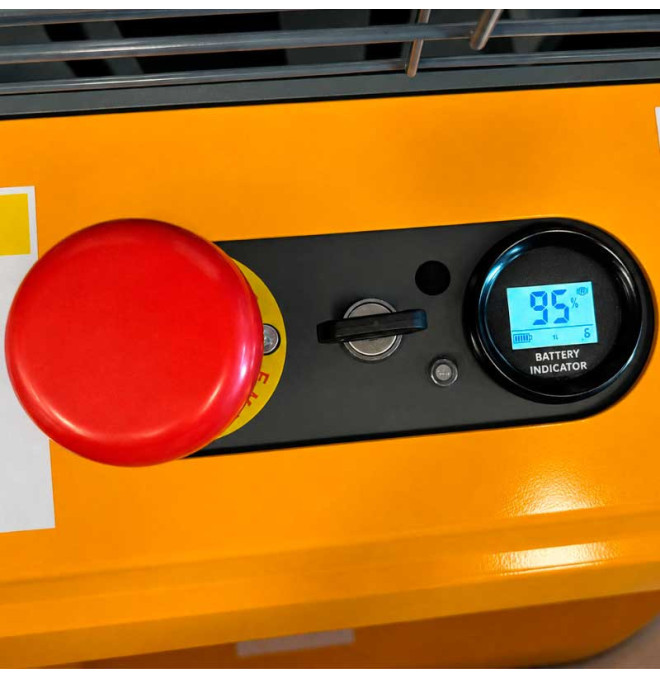

Equipped with high efficiency DC motors (0.65 kW traction and 2.2 kW lifting), electronic chinese controller with safety functions such as emergency stop, ignition key and hour meter, and a proportional valve system gently regulating the speed Lifting and descent.

It comes ready to use with 24 V / 105 AH + gel battery included, offering greater accessibility and lower initial cost versus lithium systems, without sacrificing performance. Its polyurethane (PU) wheels and design of 4 support points guarantee stability even in irregular soils, while its compact rotation radius (1365 mm) allows to maneuver in narrow corridors.

Ideal for SMEs, warehouses, workshops, distribution centers and any operation that requires mobility, precision and daily reliability.

Featured features:

• Capacity: 1500 kg
• Maximum lifting height: 3000 mm

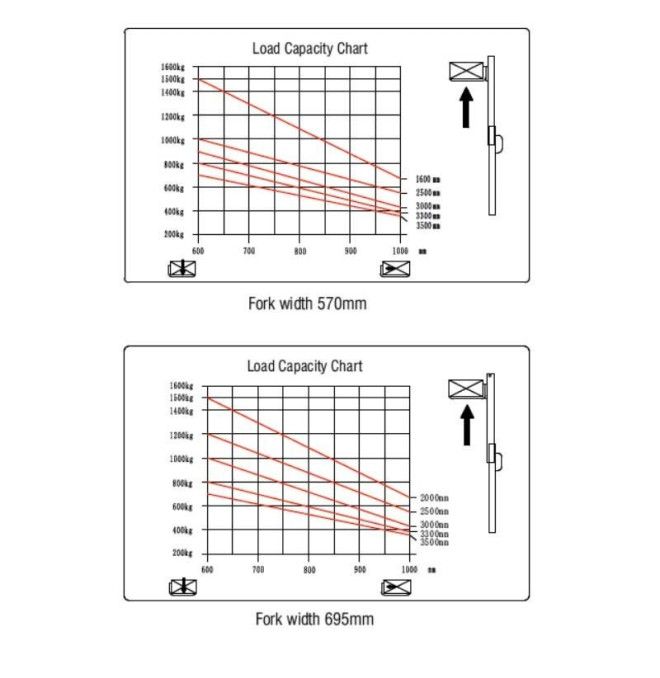

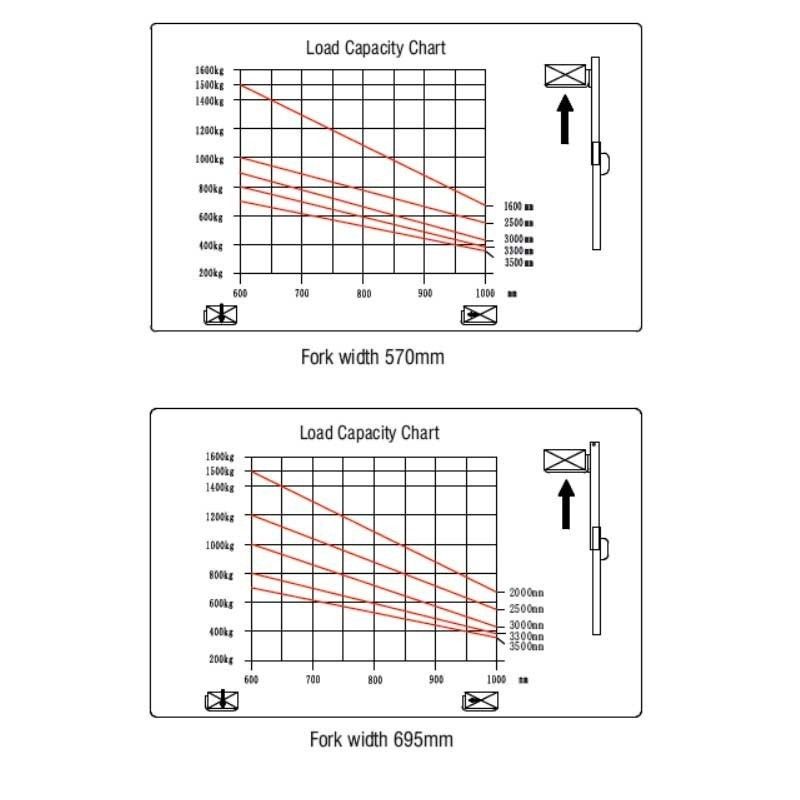

• Handle: 570 × 1150 mm (adjustable within range 570-695 mm)

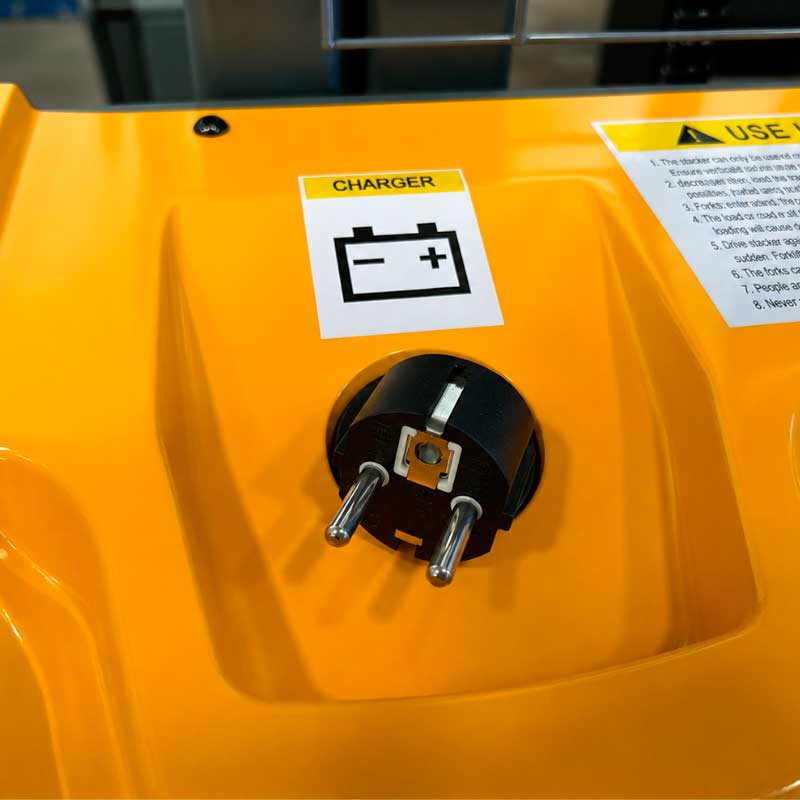

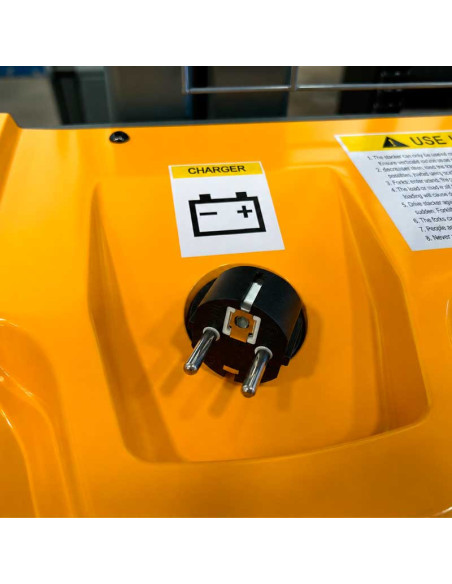

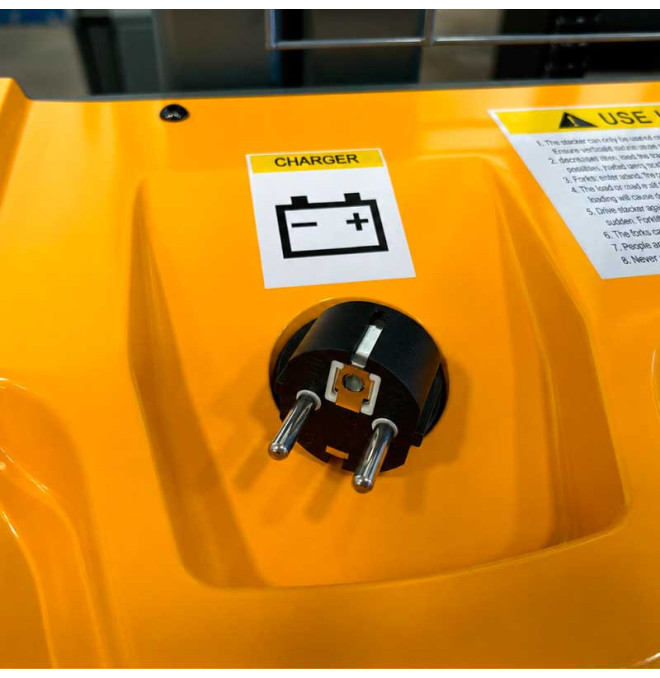

• 24 V / 105 gel battery ah + charger included
• Motors: Traction 0.65 kW / Lifting 2.2 kW
• Proportional valve for gentle movement control
• Automatic electromagnetic brake
• Design of 4 support points + PU wheels for maximum stability
• Noise level: only 70 dB (A)

Advantages:

• Low entry cost: Battery of more economical gel than lithium
• Easy maintenance: proven technology and accessible components
• High Stability: 4 Support Points + Wide PU Wheels
• Accuracy in handling: Proportional control for soft movements
• Ready to operate: Includes loader and battery installed
• Improved ergonomics: Adjustable handle reduces operator fatigue
• Reinforced security: Automatic brake and emergency stop

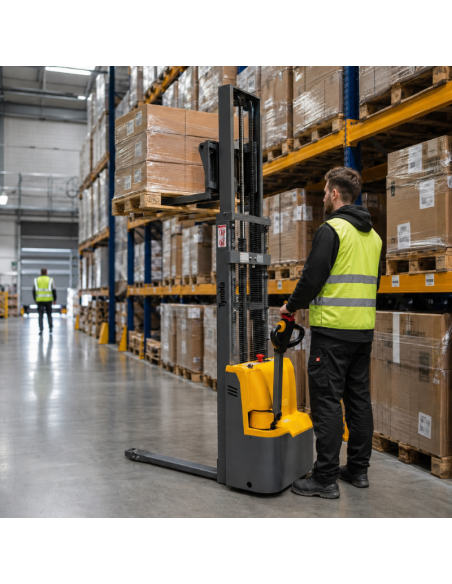

Recommended uses:

• Medium and small stores
• Distribution centers with racking and Shelving up to 3 m
• Manufacturing industries (internal movement of materials)
• Wholesale hardware stores, hardware stores and stores
• Operations in narrow corridors or reduced spaces
• Environments where it is prioritized under noise and ease of use
