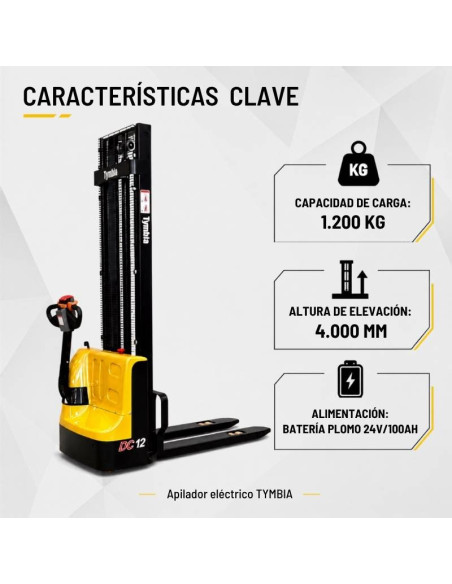

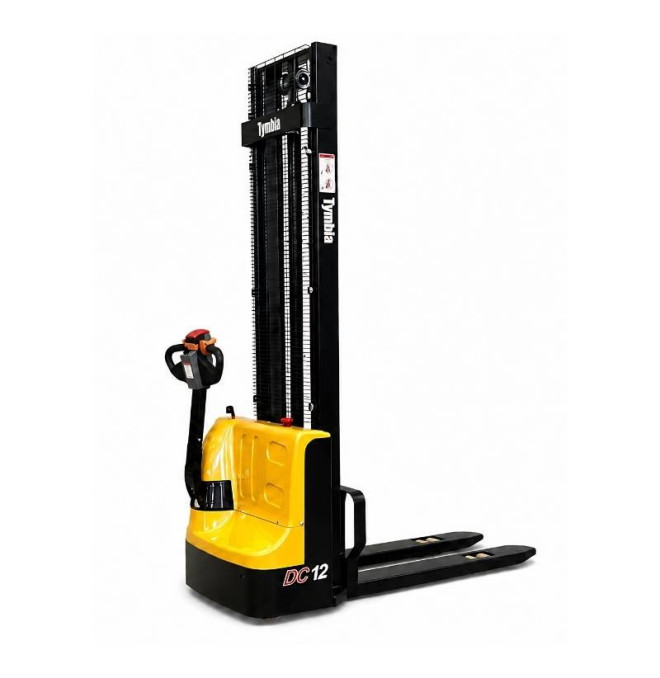

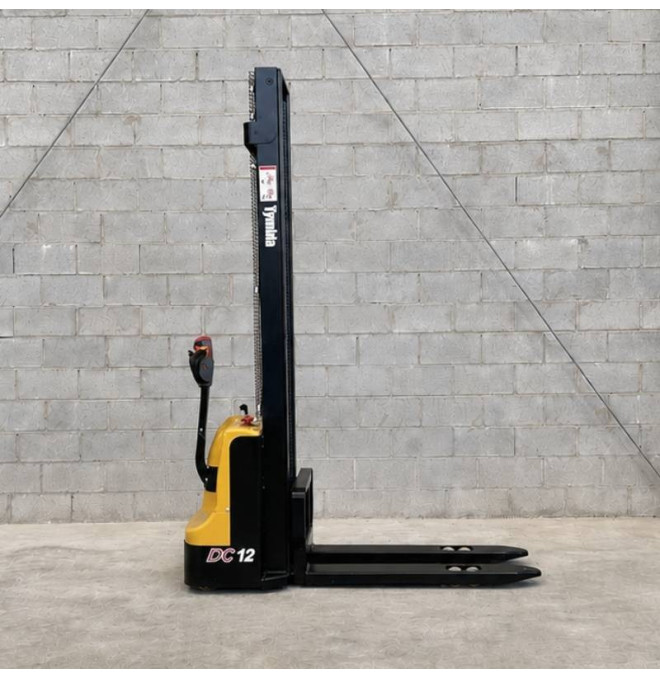

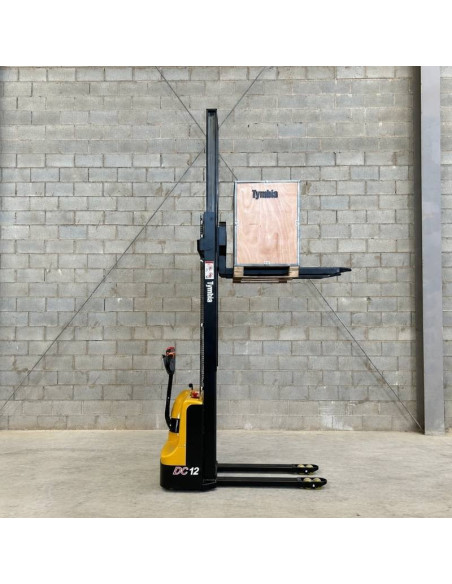

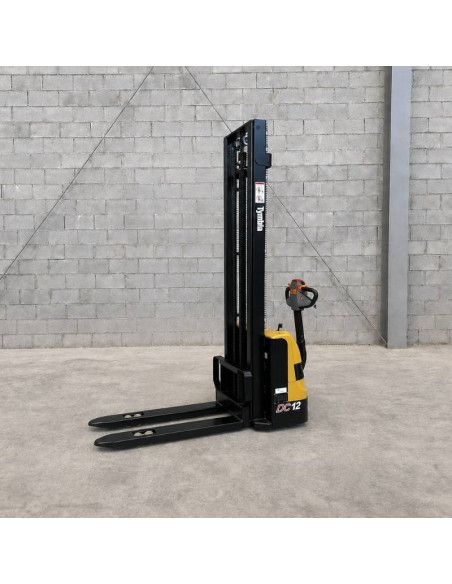

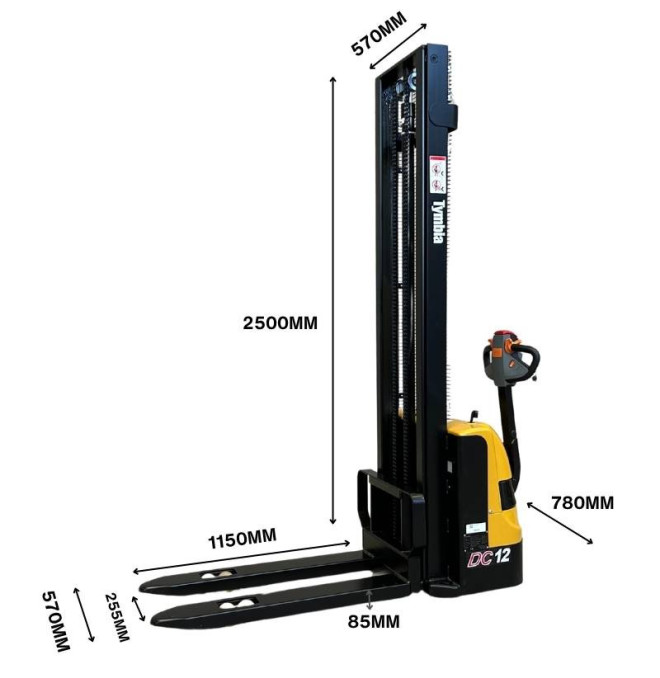

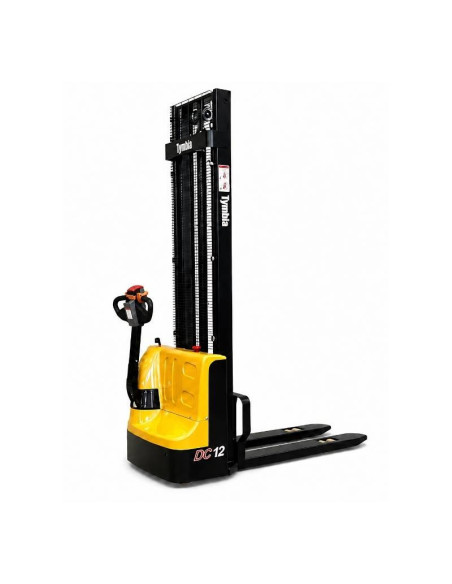

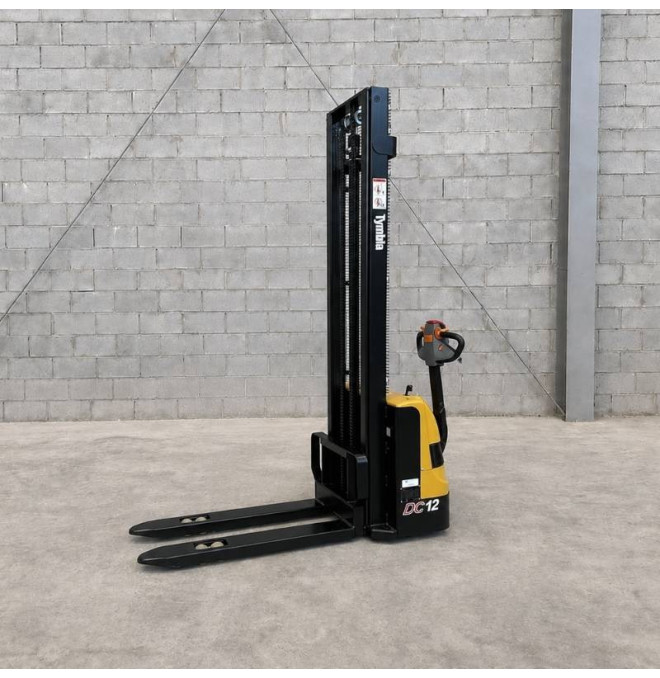

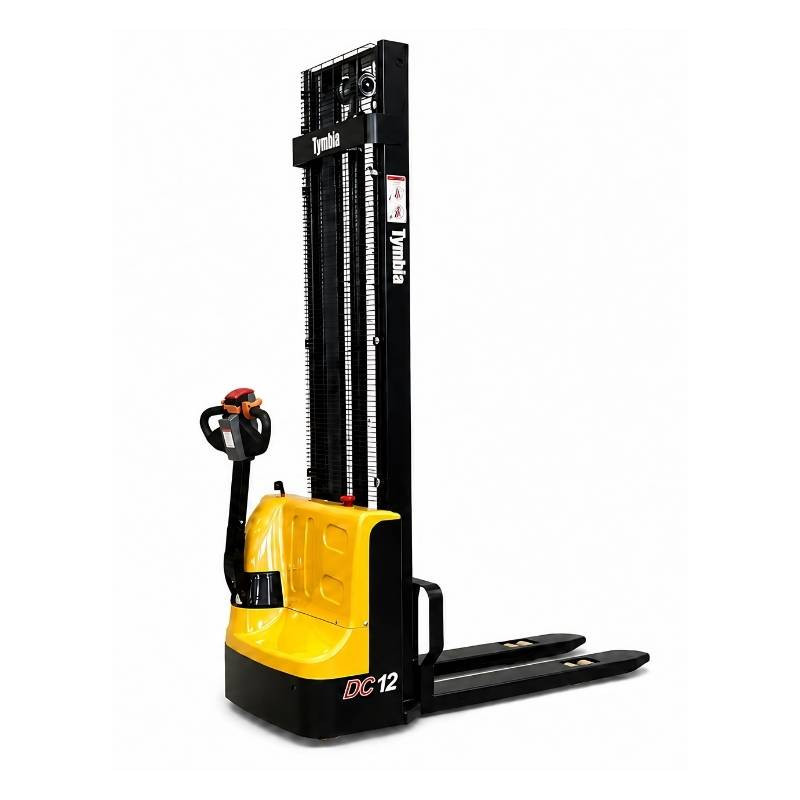

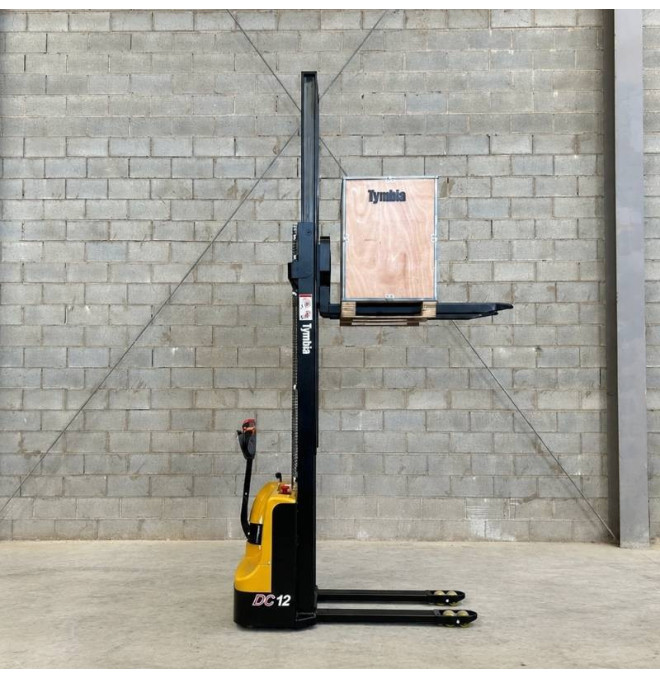

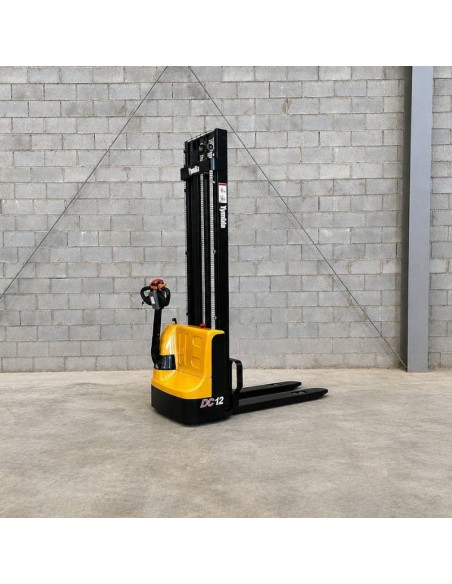

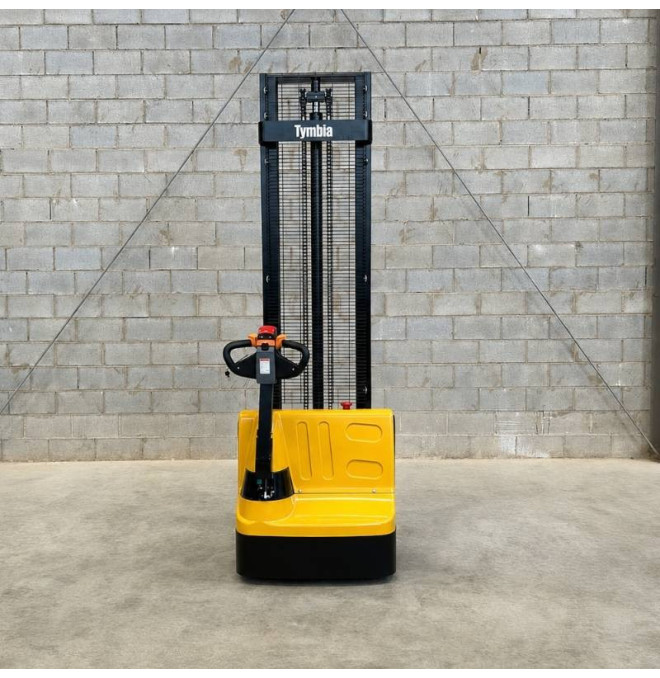

Electric stacker 1200kg at 4000mm - 24V / 100Ah

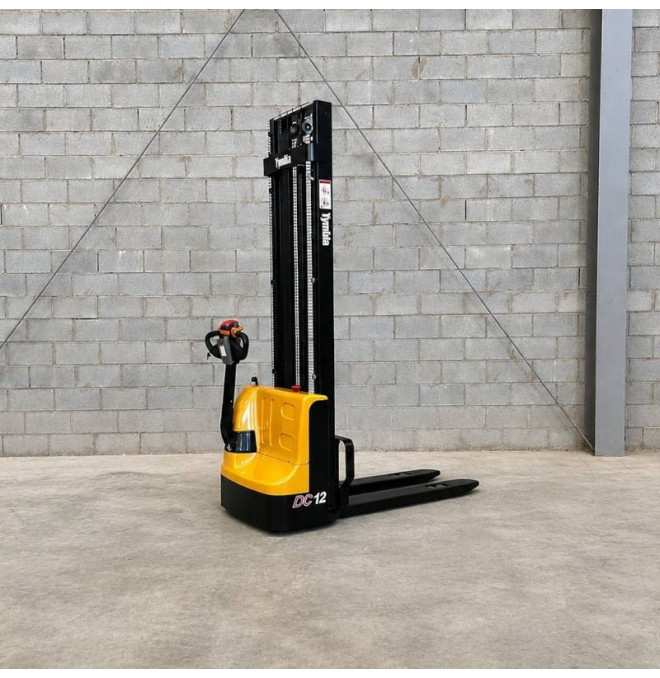

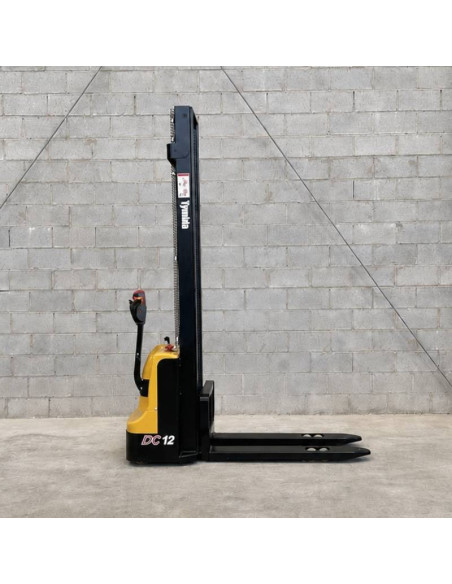

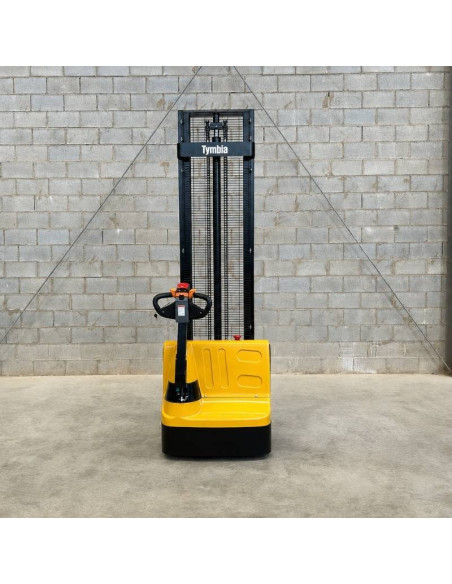

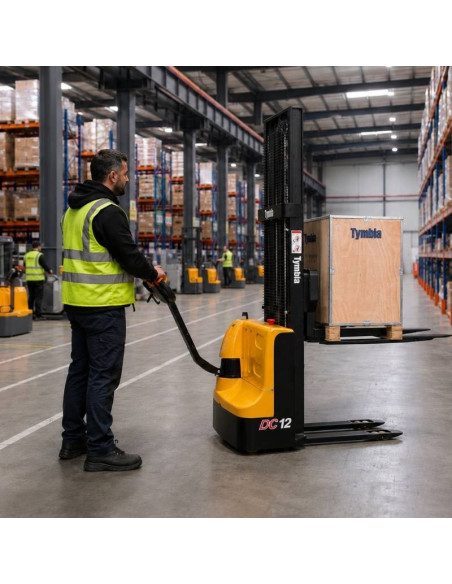

The electric stacker Model Tymbia offers a load capacity of 1200 kg and a maximum lifting height of 4000 mm, perfect for vertical storage operations in reduced spaces. Designed to be operated by a passenger driver, it has a monomastil mast (singlex / duplex) and adjustable forks. Its electrical system includes 0.75 kW traction motor and 2.2 kW lifting motor, powered by 24 V batteries (2x12 V / 100 AH). With polyurethane wheels, minimum turning radius of only 1366 mm and total width of 795 mm, it is easily adapted to narrow corridors and urban or industrial environments. Ideal for manipulation of standard pallets (800x1200 mm and 1000x1200 mm) in warehouses, distribution centers and workshops.

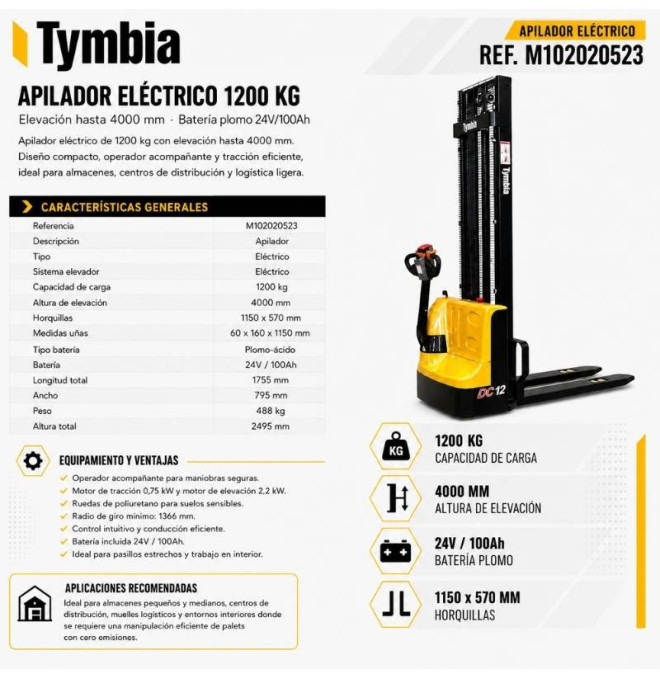

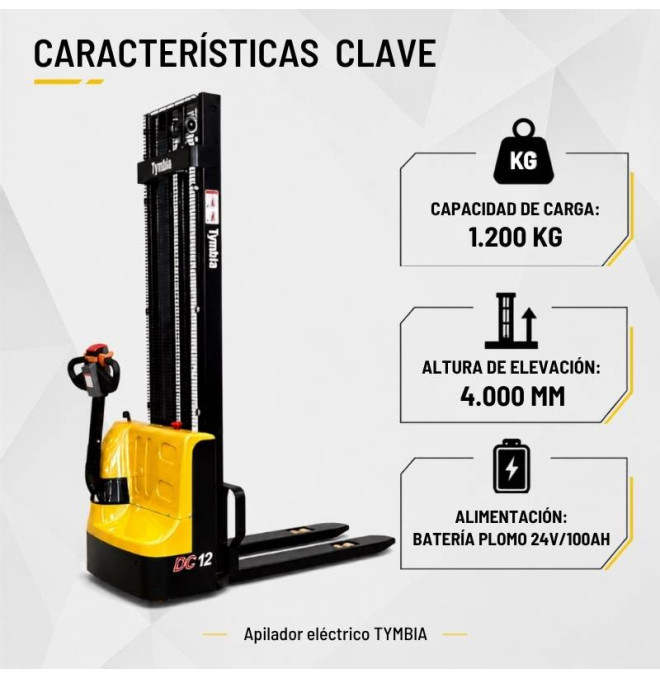

Featured features:

• Load capacity: 1200 kg

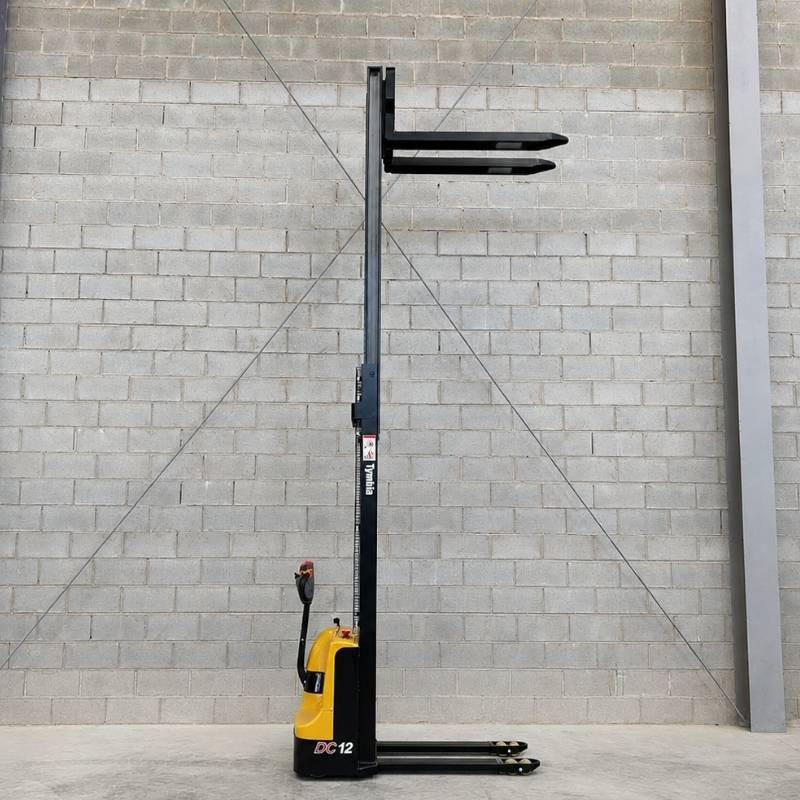

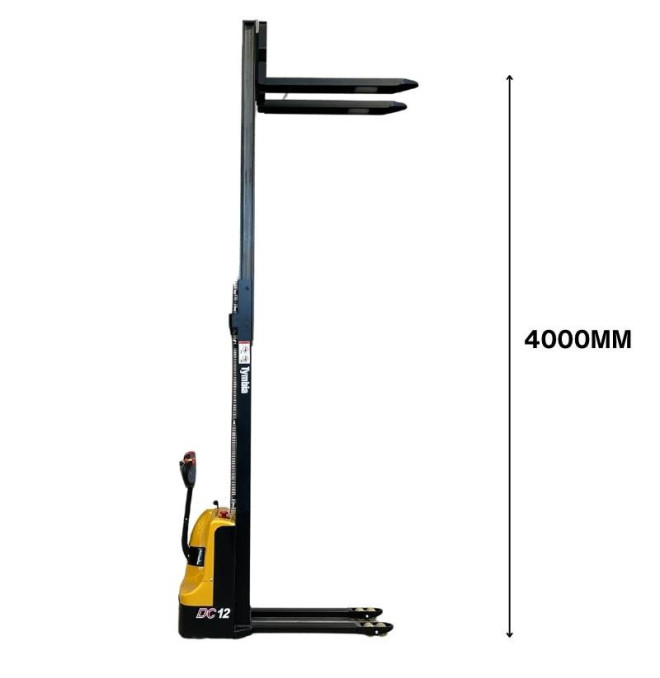

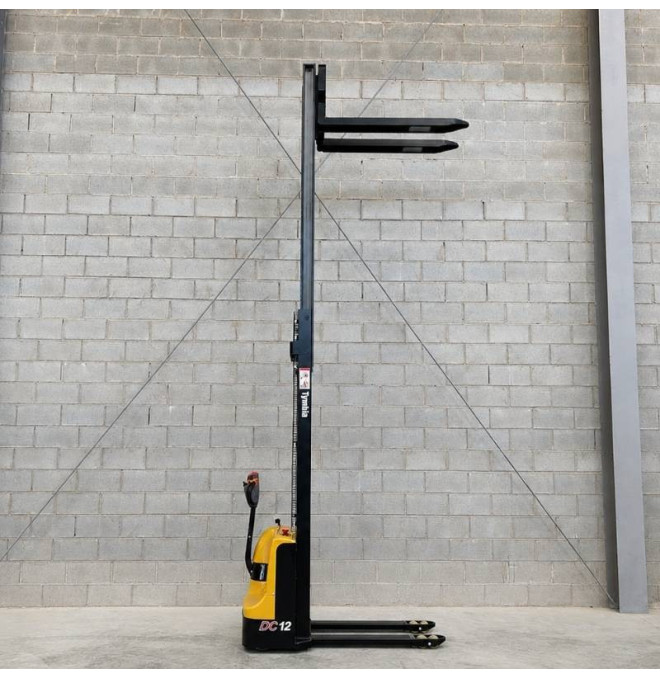

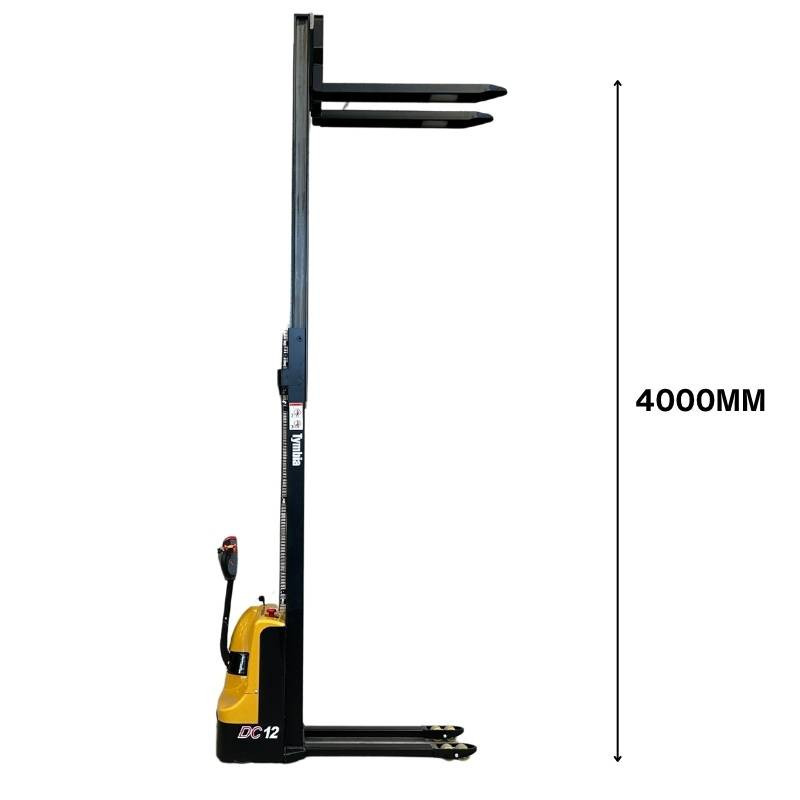

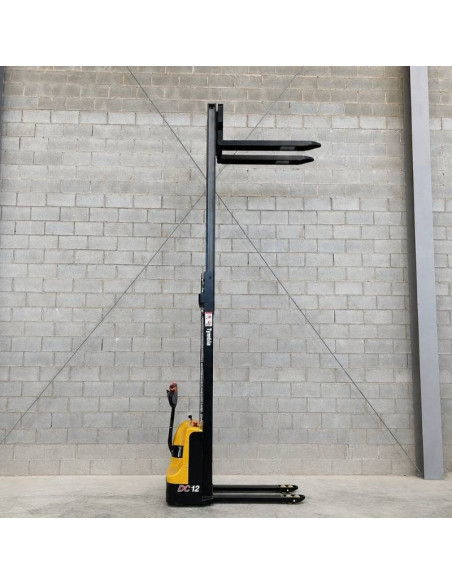

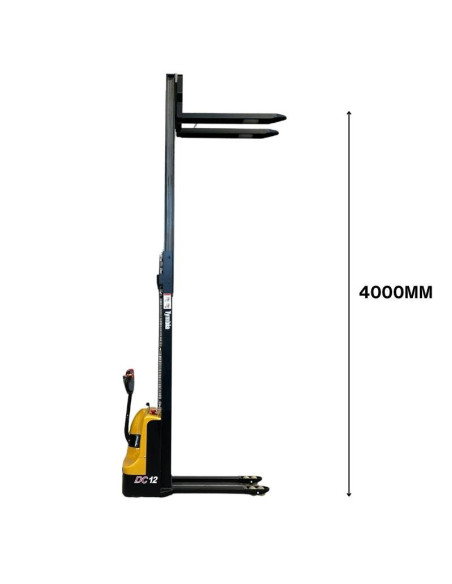

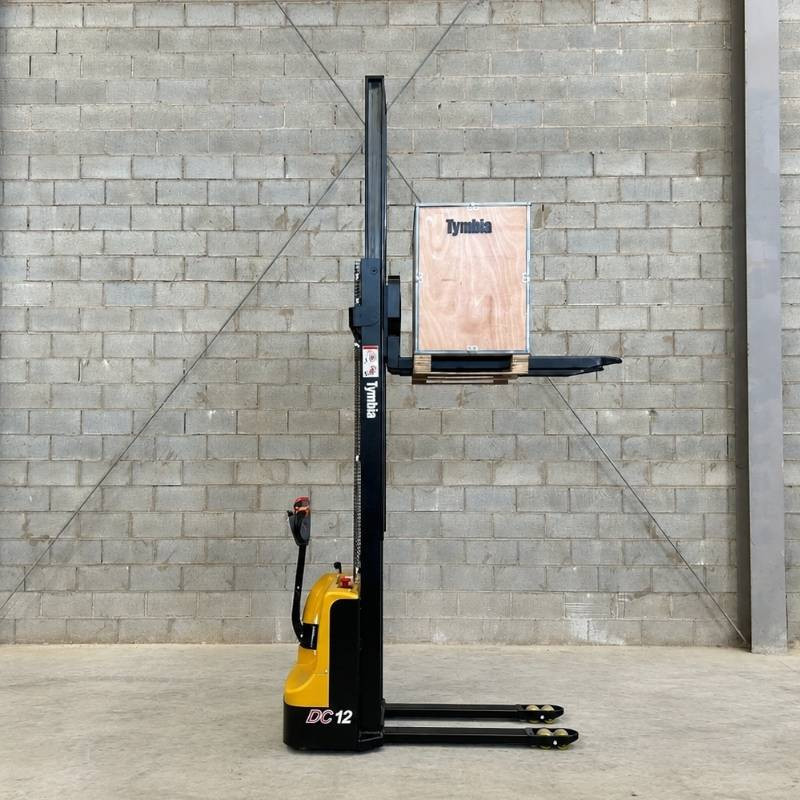

• Maximum lifting height: 4000 mm

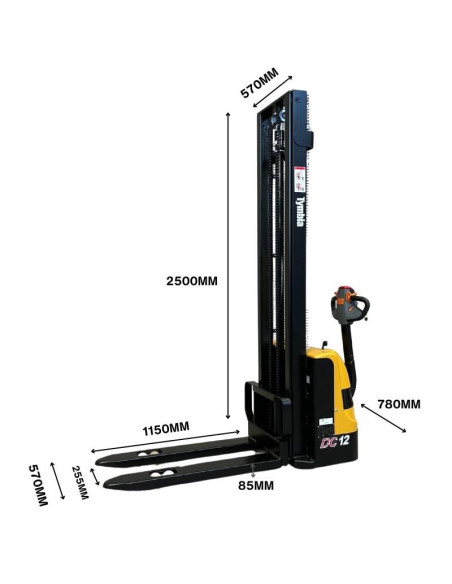

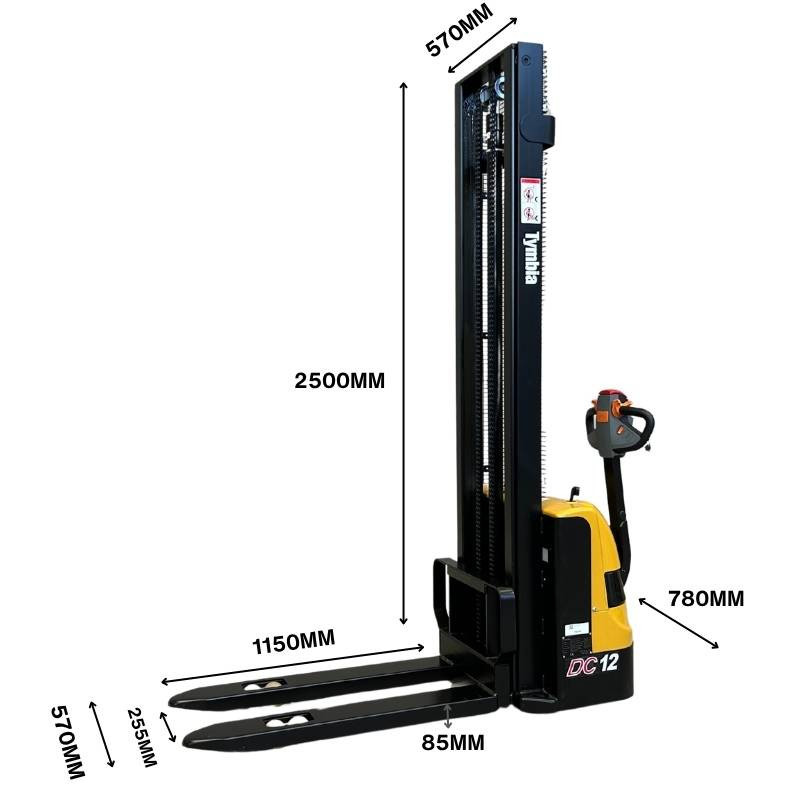

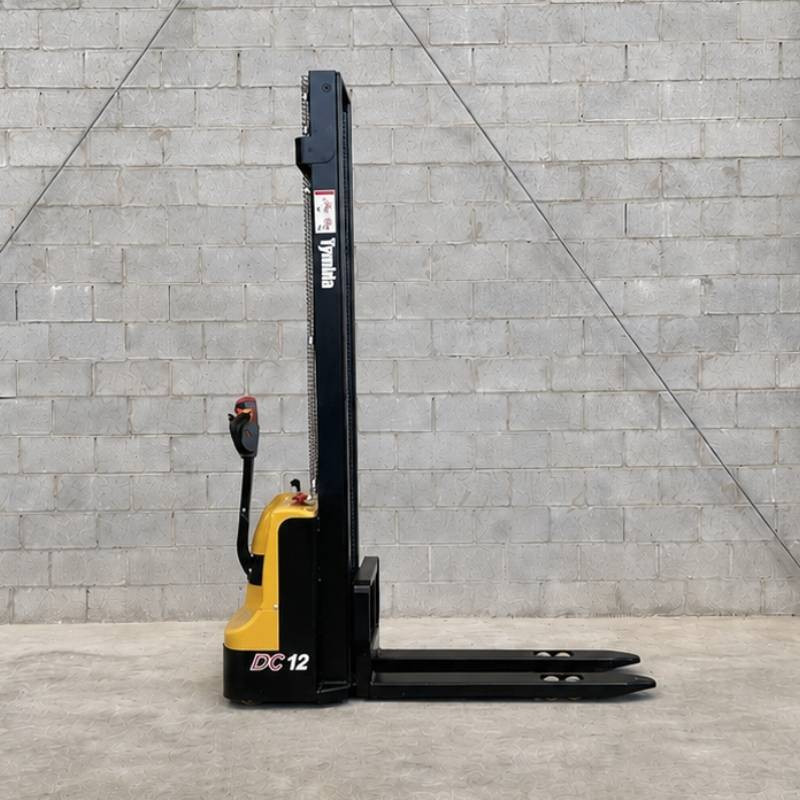

• Mast height retracted: 2495mm

• Accompanying operator

• Monomastil Mast (Simplex / Duplex type)

• Polyurethane wheels for sensitive floors

• Minimum spin radius: 1366 mm

• Total width: only 795 mm

• Battery included: 24 V / 100 AH (2x12 V)

• Maximum speed: 4.2 km / h without load

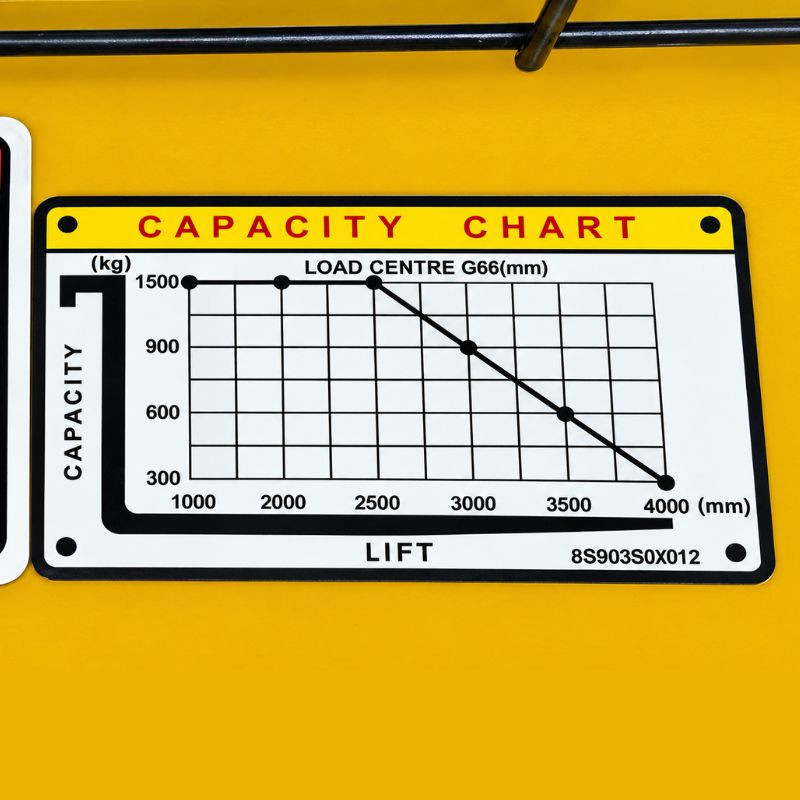

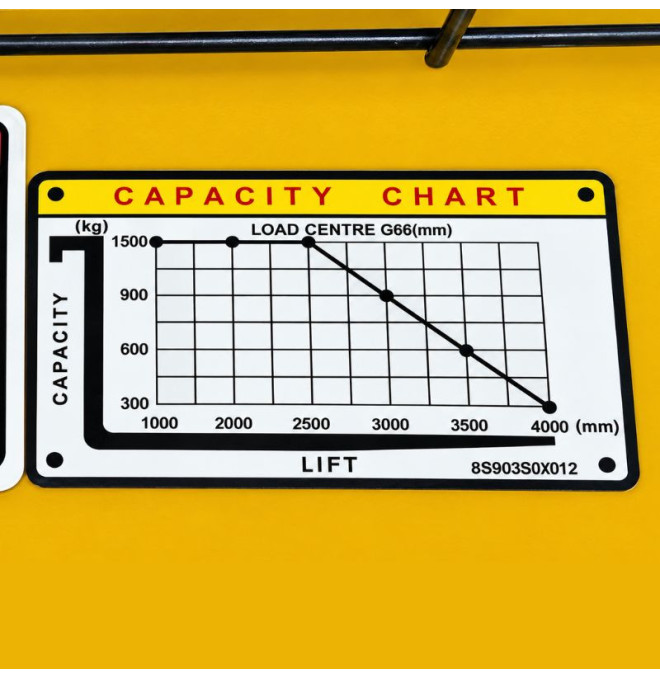

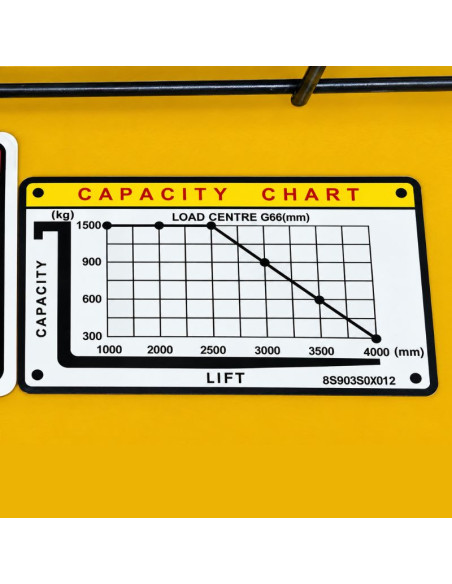

Load diagram

Advantages:

• High maneuverability thanks to its reduced rotation radius and compact width
• Ideal for delicate floors: polyurethane wheels without leaving marks
• Energy Efficiency: Electric Motors of Low Consumption and Regenerative Brake

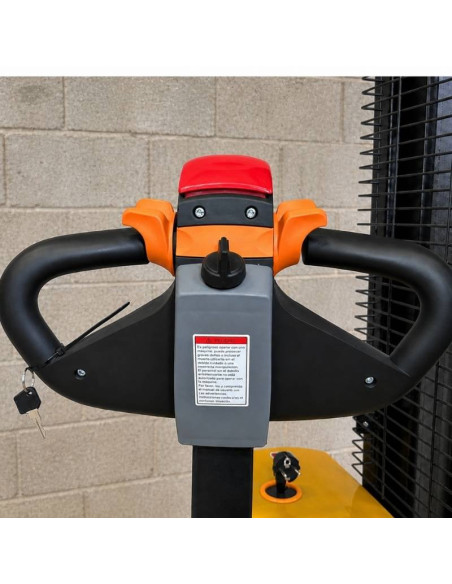

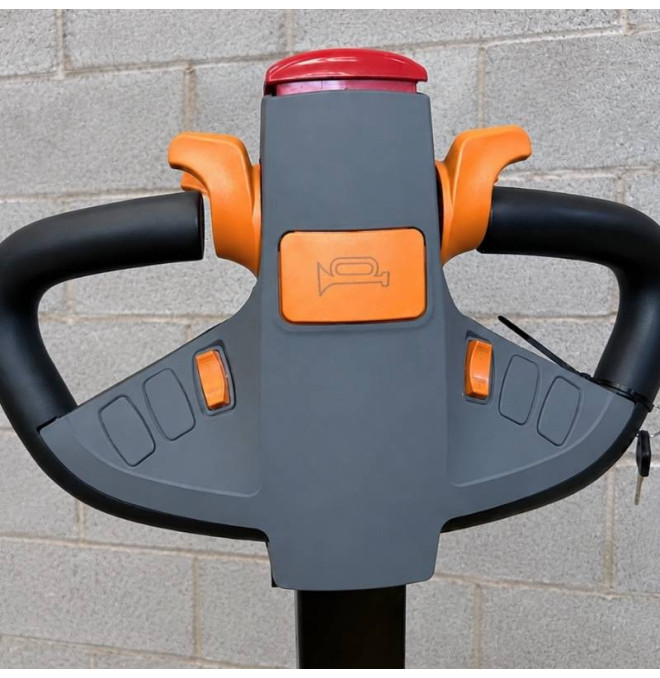

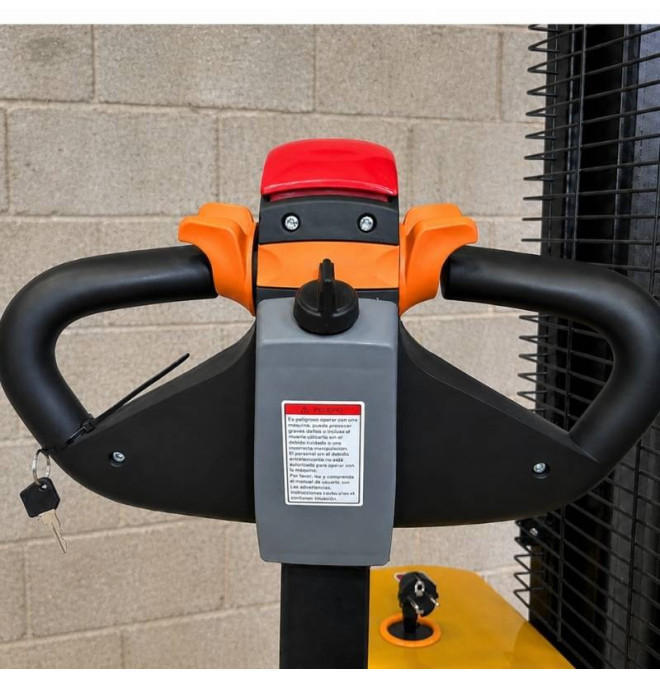

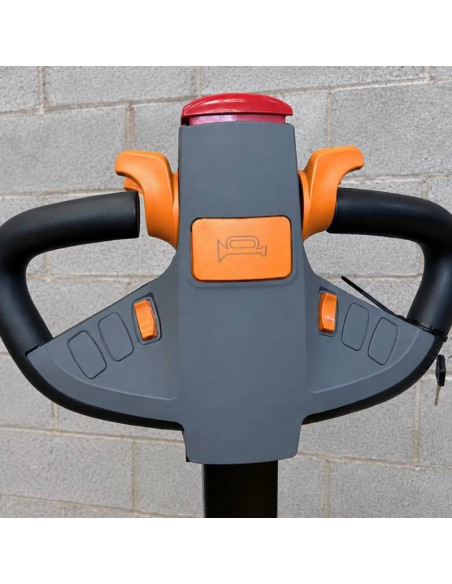

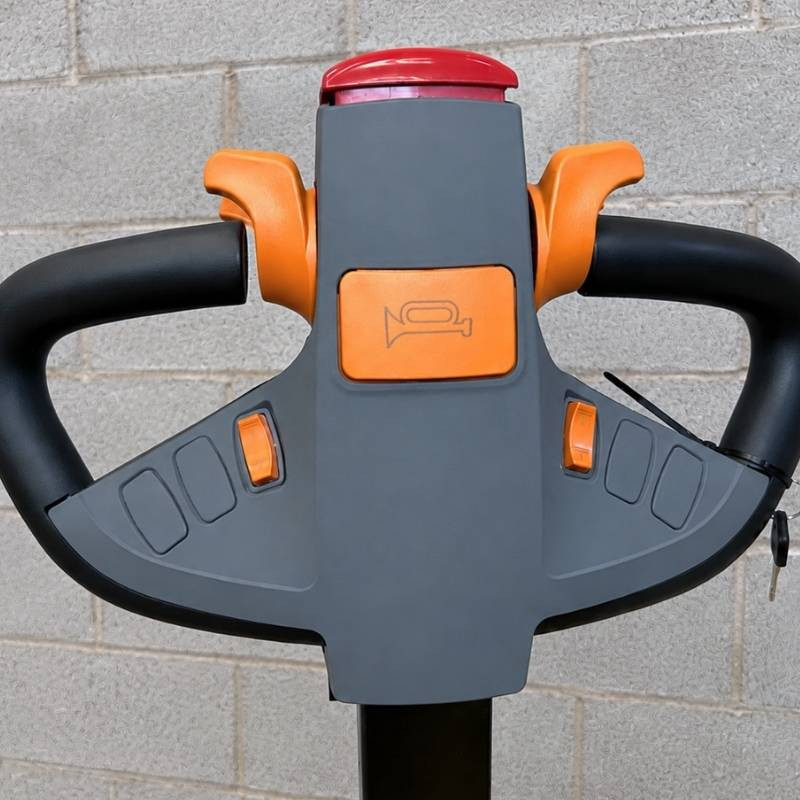

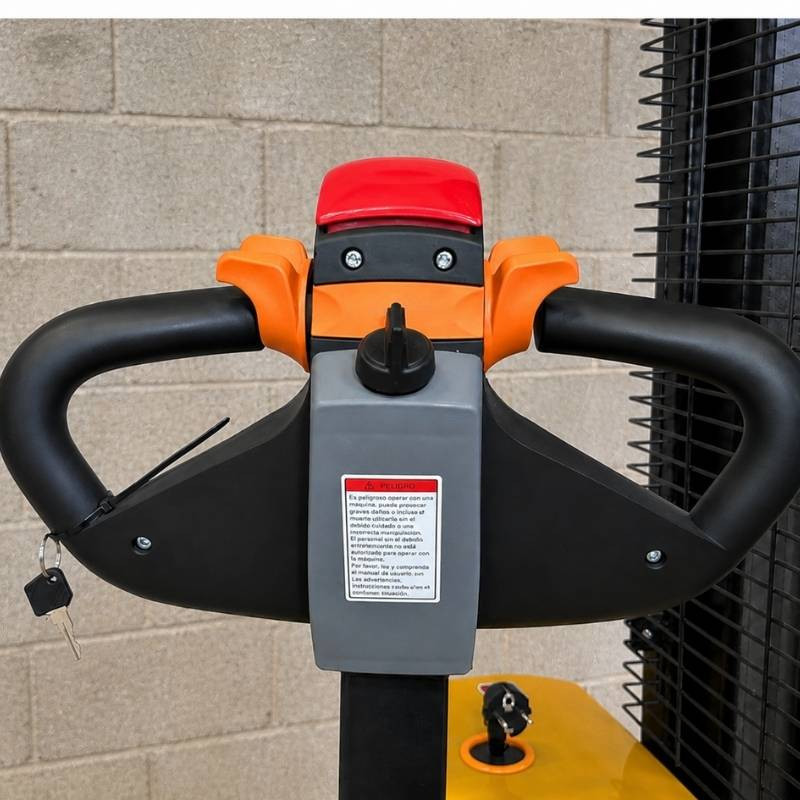

• Easy operation: Intuitive control and design for accompanying driver

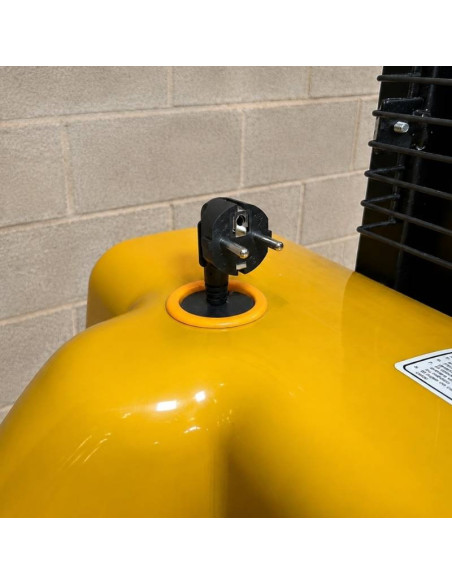

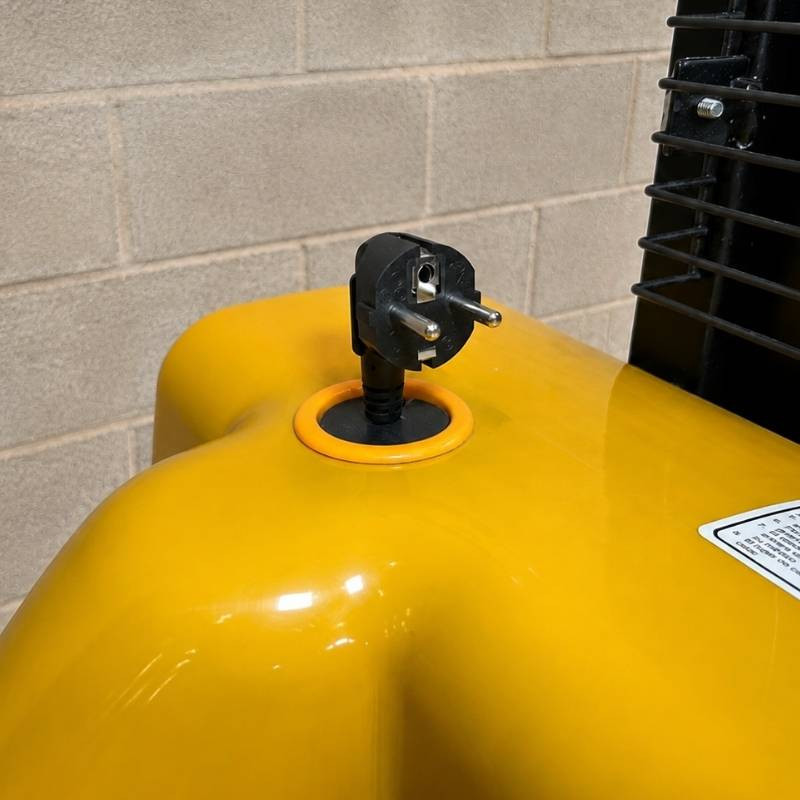

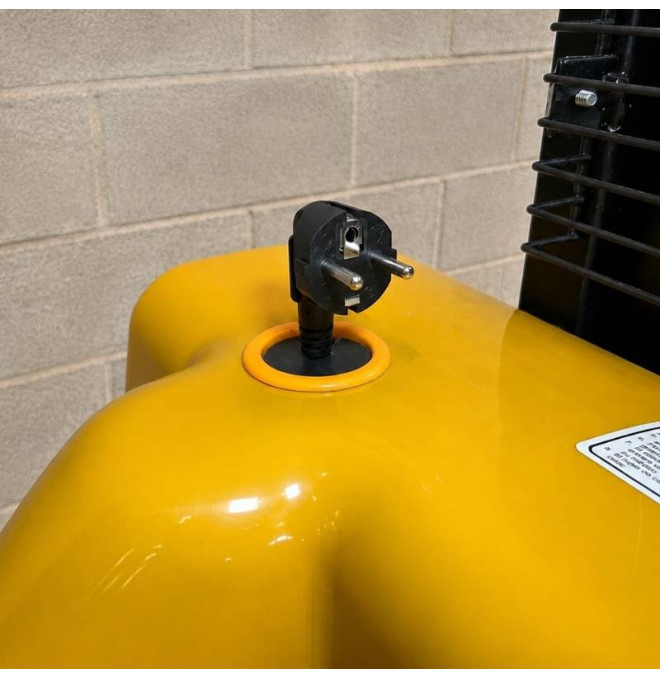

• Ready to use: Includes batteries and compatible charger
• Adaptability to standard pallets: Compatible with European Common Measures

Recommended uses:

• Small and medium stores
• Distribution centers with narrow corridors
• Loads and downloads at logistics springs
• Handling of pallets in retail, feeding or pharmacy
• Environments where silence and zero emissions are required (interior)
