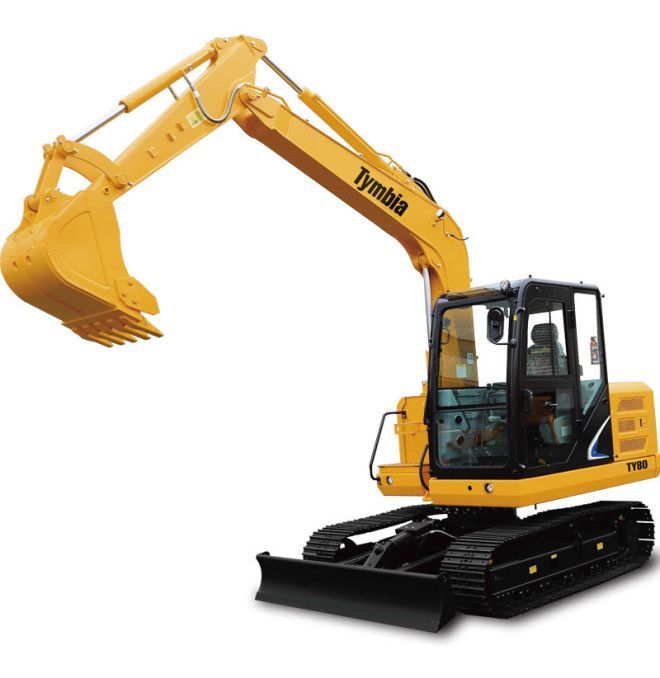

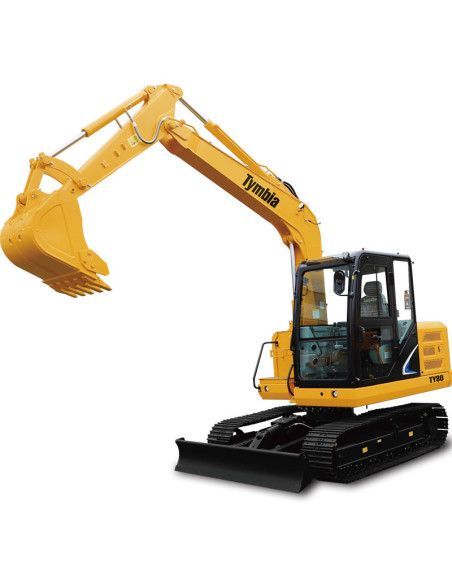

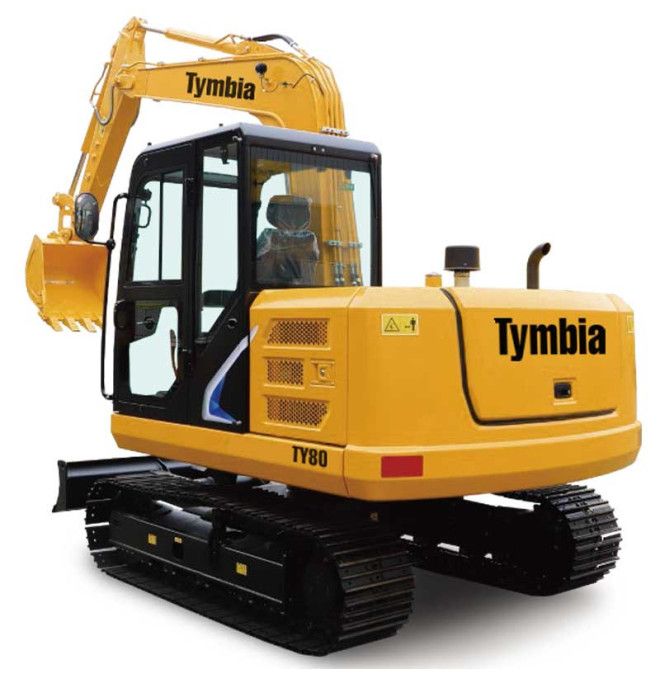

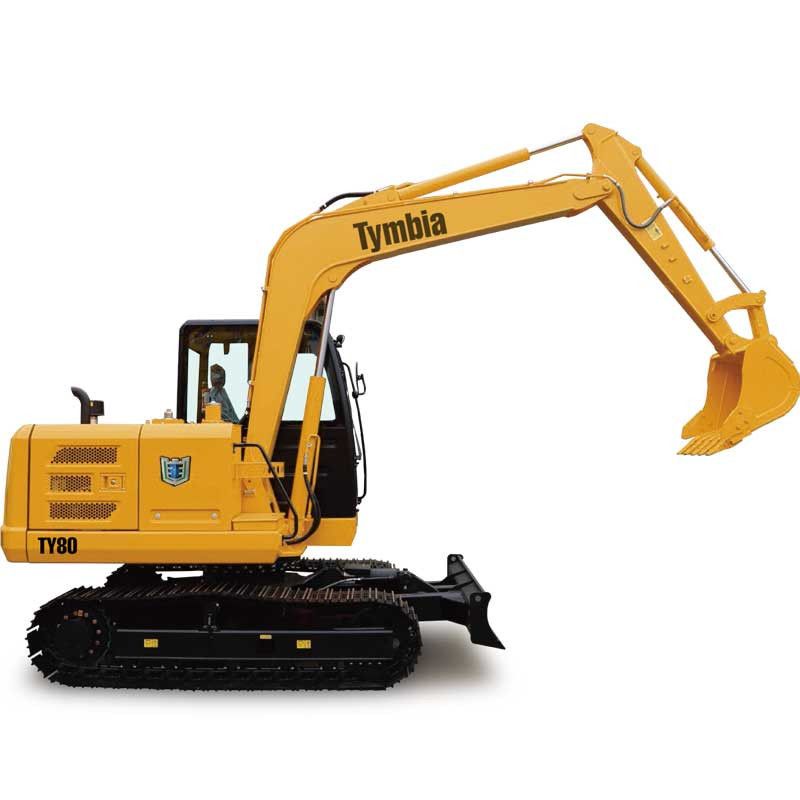

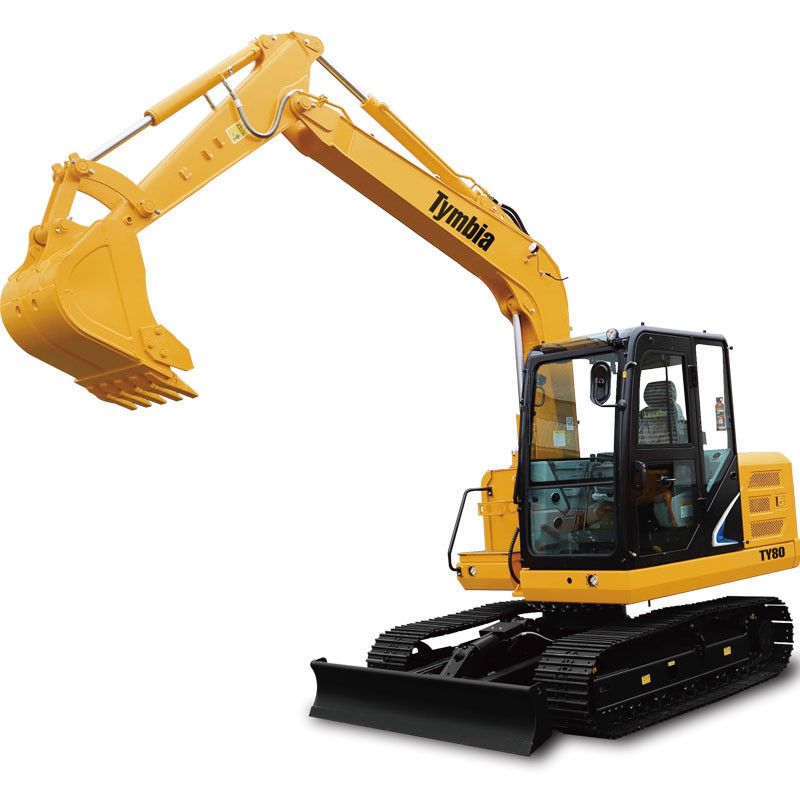

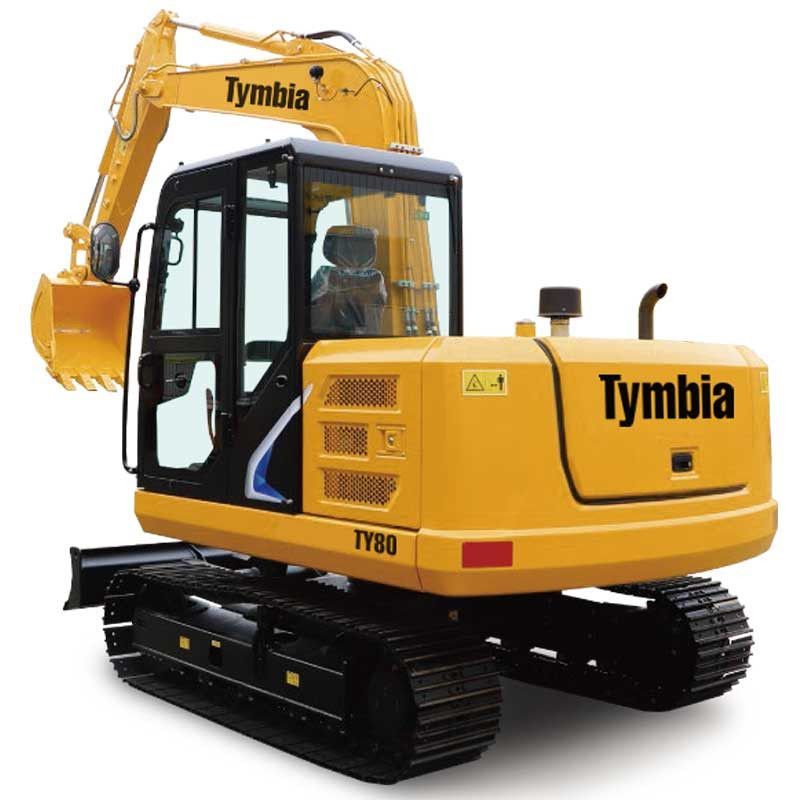

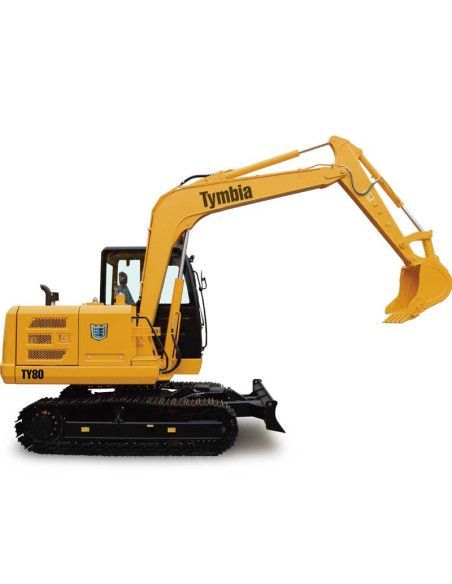

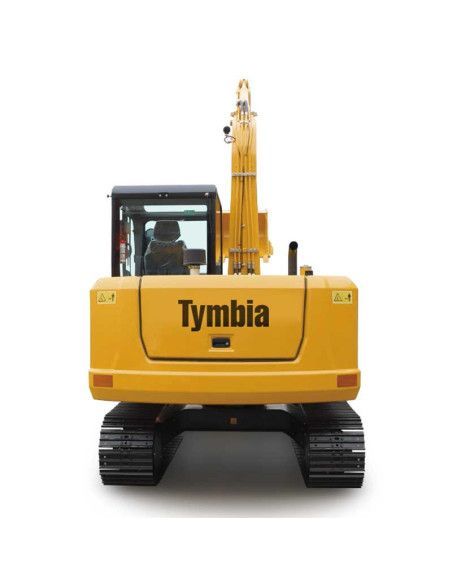

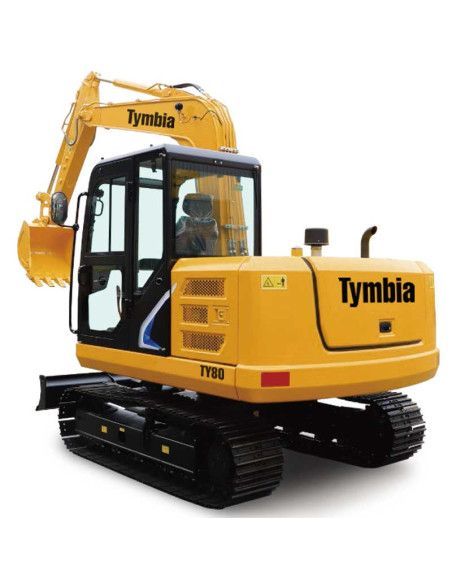

MiniExcavator 8000kg Diesel TY80

Tymbia Ty80 Mini8cavator combines industrial performance with compact design, Ideal for operations in restricted environments such as cities, gardens, pipelines and agricultural projects.

With an operating weight of 8,000 kg and an exceptional work capacity, this model is designed to offer high productivity without sacrificing agility or access to narrow areas.

Thanks to its retractable caterpillars, it can be adjusted from 680 mm to 980 mm in width, allowing its passage through doors, sidewalks or narrow paths, and expanding for greater stability during heavy operations. Its panoramic booth without frames guarantees total visibility, while its high pressure hydraulic system ensures rapid and accurate movements of the arm and spoon.

Main features

• High power Yanmar diesel engine:
  • Model: 4TNV98T-ZCSLKC
  • Type: 4 cylinders, water cooled
  • Nominal power: 56.5 kW (77 HP) at 2,200 rpm
  • Maximum torque: 289.5 n · M to 1,500 rpm
  • Cylinder: 3.319 cc
  • Complies with advanced emissions regulations
• High pressure hydraulic system:
  • Maximum working pressure: 28 MPa
  • Total hydraulic flow: 156 l / min
  • Maximum excavation force with arm: 38 KN (ISO)
  • Maximum excavation force with spoon: 56 KN (ISO)
• Retractable caterpillars (adjustable width):
  • Adjustable width: 680 mm (minimum) at 980 mm (maximum)
  • Allows you to adapt to narrow spaces and improve stability
  • Number of shoes catering per side: 38
  • Caterpillar rollers per side: 5
  • Number of Origas per side: 1

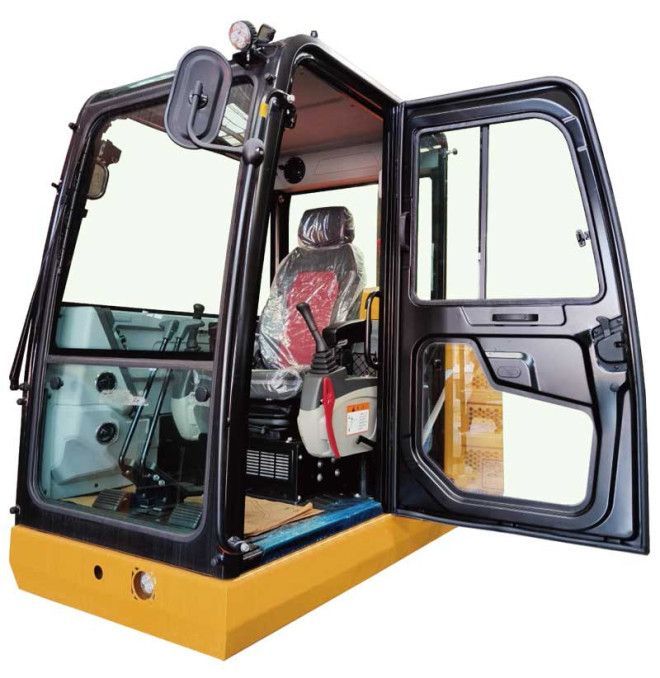

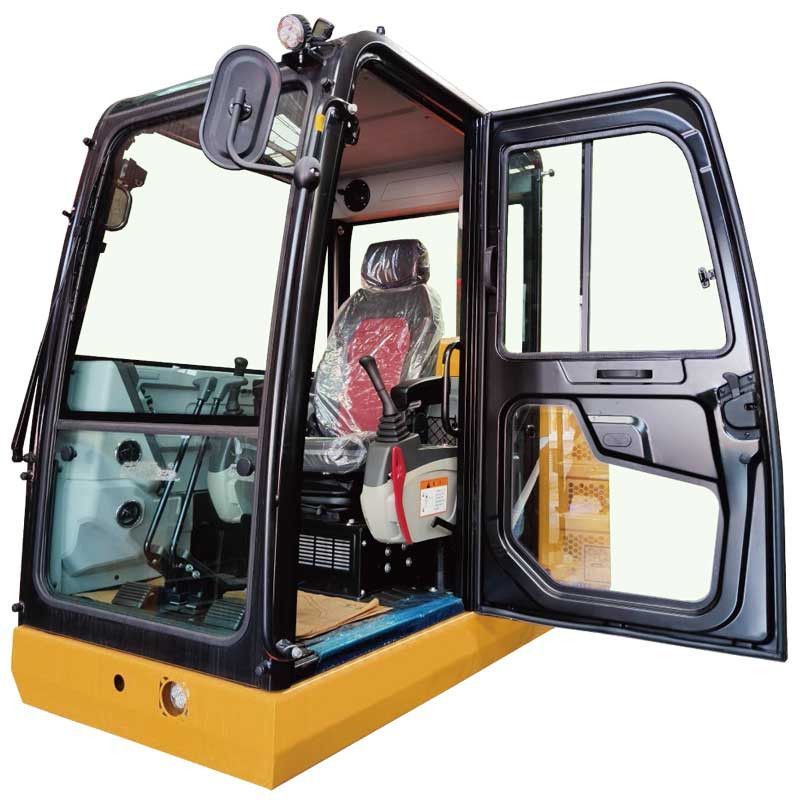

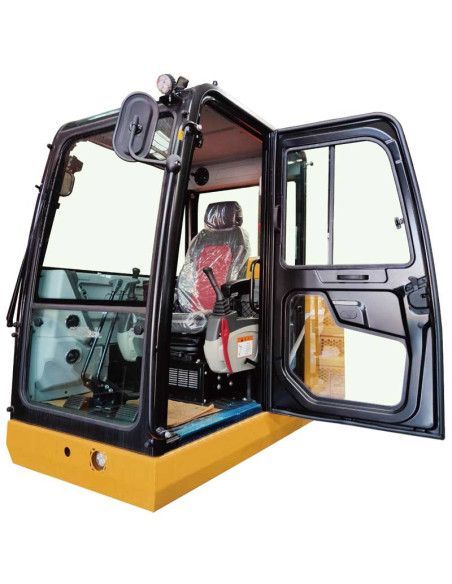

• High level panoramic cabin:
  • Structure without frames for maximum 360 ° visibility

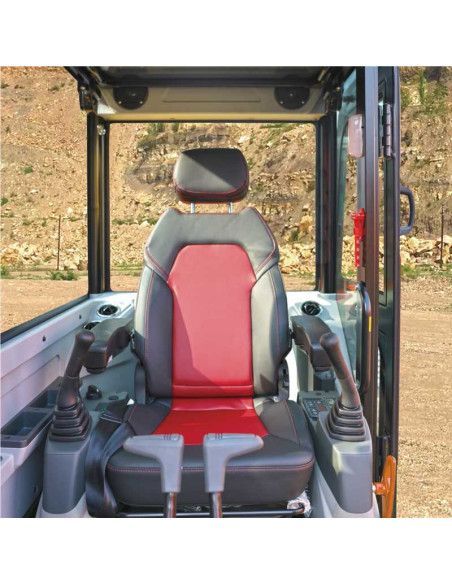

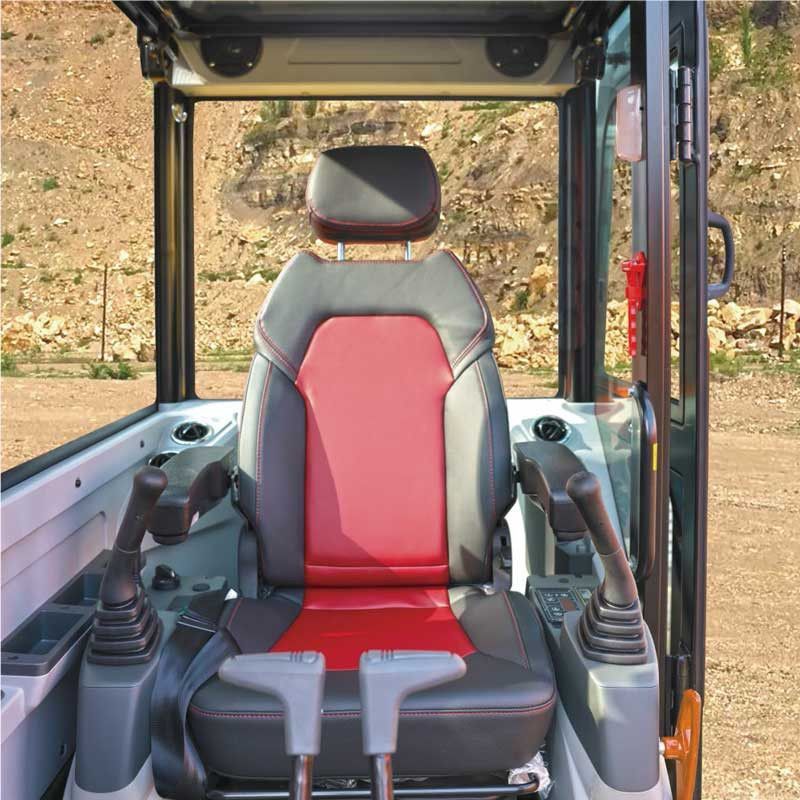

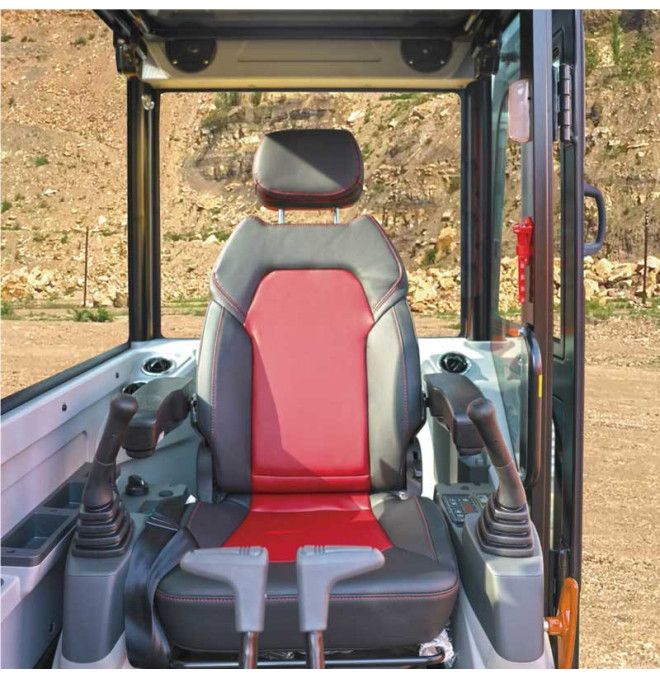

  • Suspended seat to reduce vibrations
  • Adjustable steering wheel

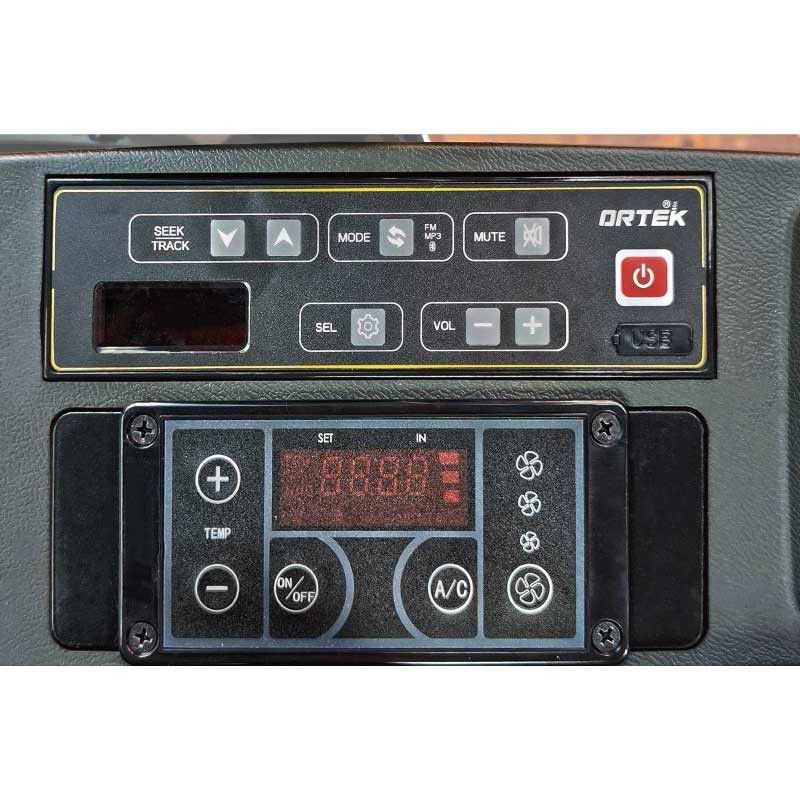

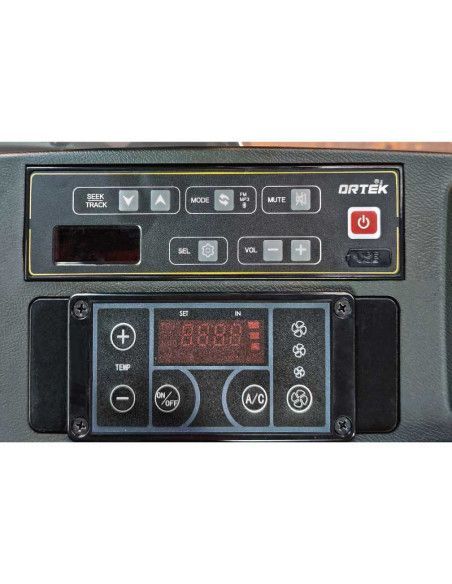

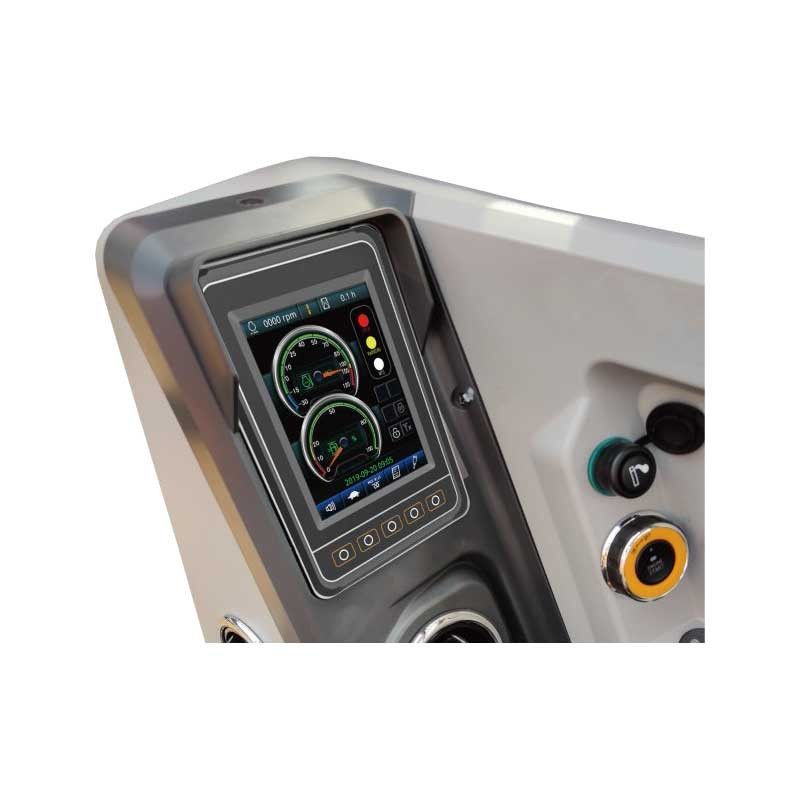

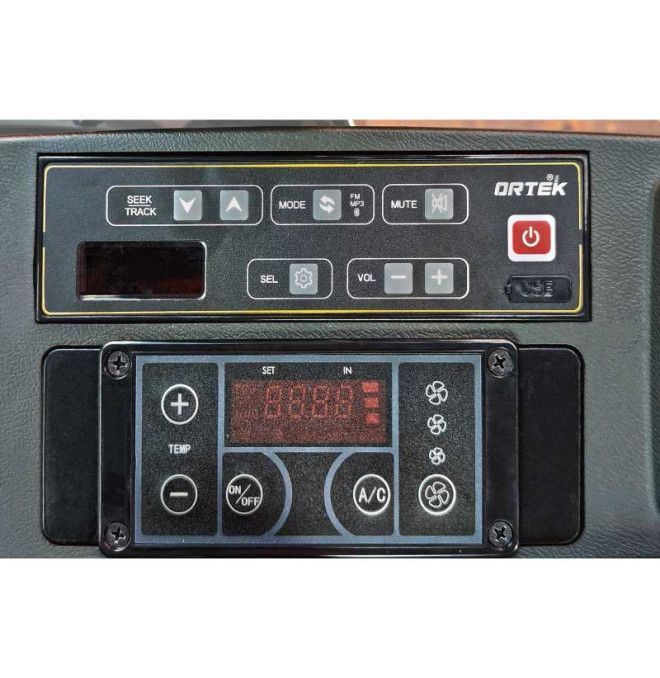

  • Multimedia system integrated with USB and radio
  • Access by stairs Safe side hollows
• Exceptional maneuverability:
  • Reduced outer turn radius (ideal for spins in small spaces)
  • Translation speed: 2.8 km / h (Low) / 4.5 km / h (High)
  • Rotation speed: 11.5 rpm

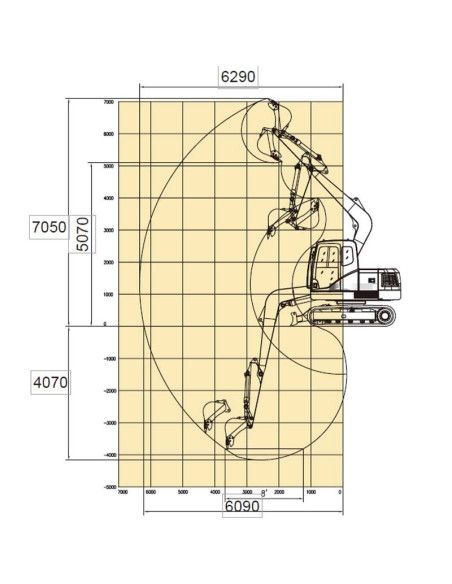

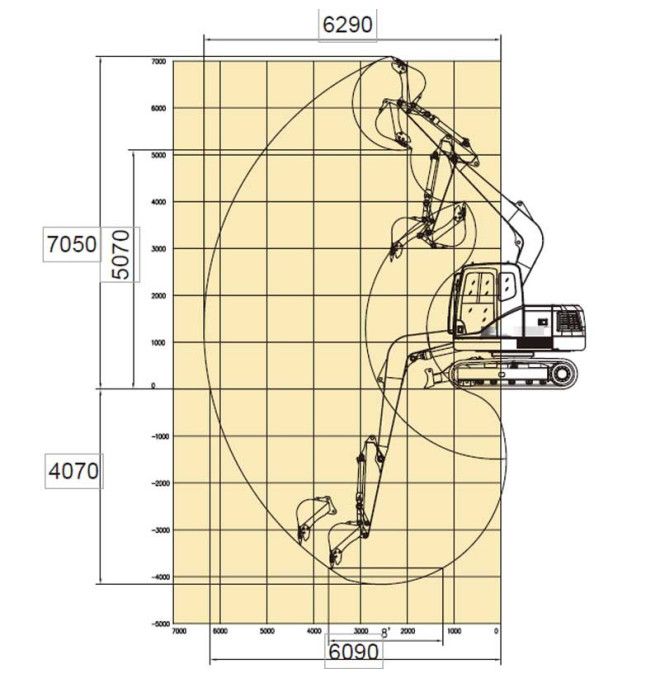

• Deep excavation capacity:
  • Maximum excavation depth: 4.080 mm
  • Maximum range: 5,000 mm
  • Maximum discharge height: 3,300 mm
  • Arm length: 1,620 mm
  • Feather length: 3.722 mm
• Durable design and easy to maintain:
  • Reinforced chassis with high strength steel
  • Fuel tank capacity: 132 L
  • Hydraulic oil tank: 120 L

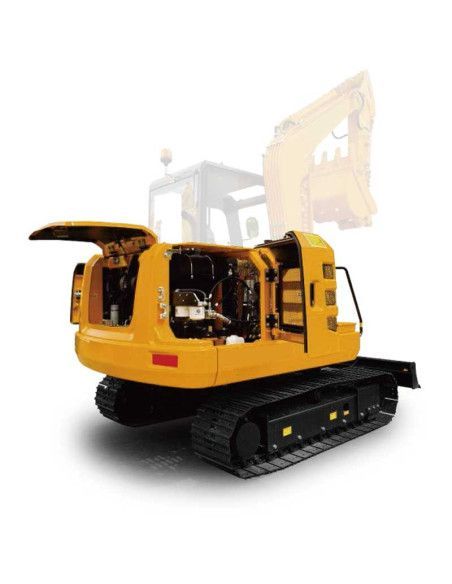

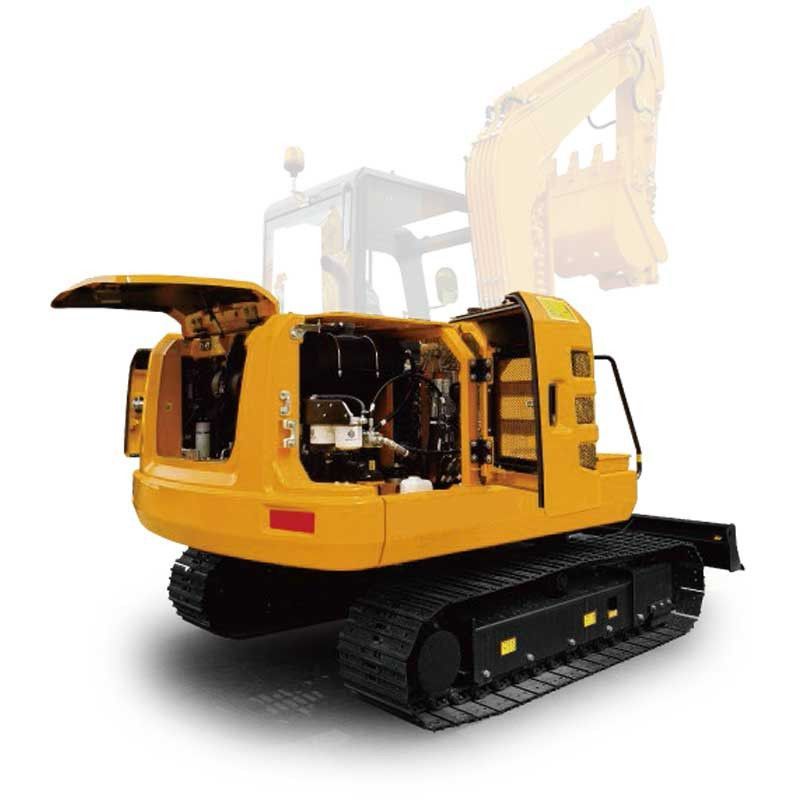

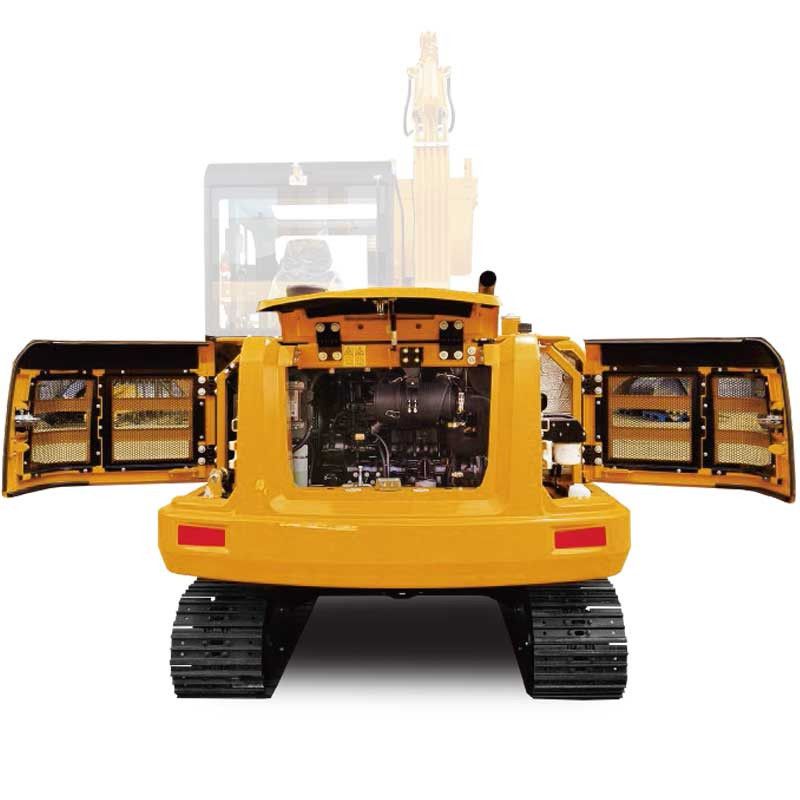

  • Three-door rear tapas for easy access to components

Key Technical Specifications (Model TY80)

• Operating weight: 8,000 kg
• Spoon capacity: 0.3 m³
• Engine: Yanmar 4TNV98T-ZCSLKC, 4 cylinders, water cooled
• Engine power: 56.5 kW (77 HP) @ 2,200 rpm
• Maximum torque: 289.5 n · M @ 1,500 rpm
• Cylinder: 3.319 cc
• Maximum hydraulic pressure: 28 MPa
• Total hydraulic flow: 156 l / min
• Excavation force (arm): 38 KN (ISO)
• Excavation force (spoon): 56 KN (ISO)

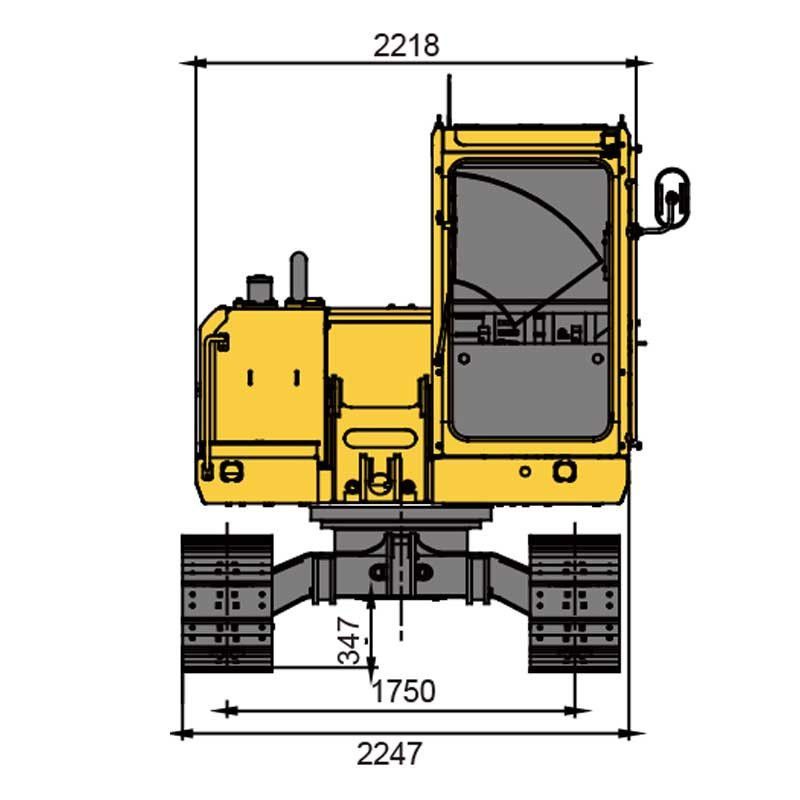

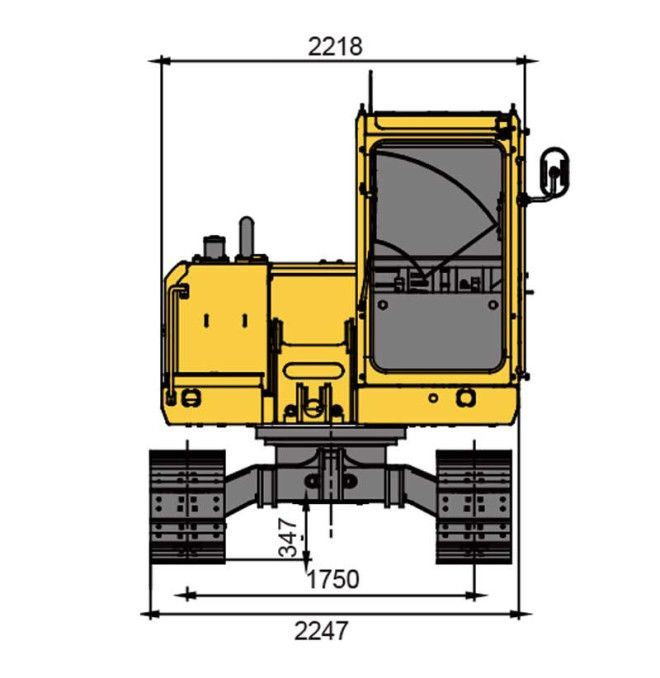

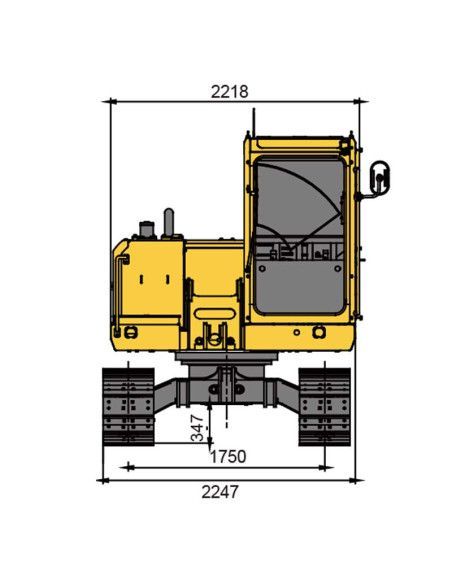

• Width of caterpillars (adjustable): 680 - 980 mm

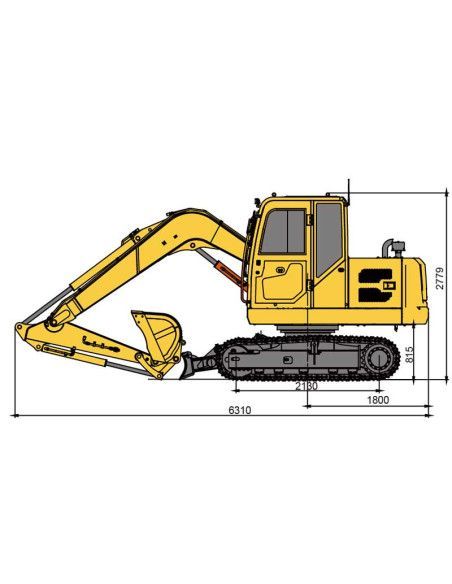

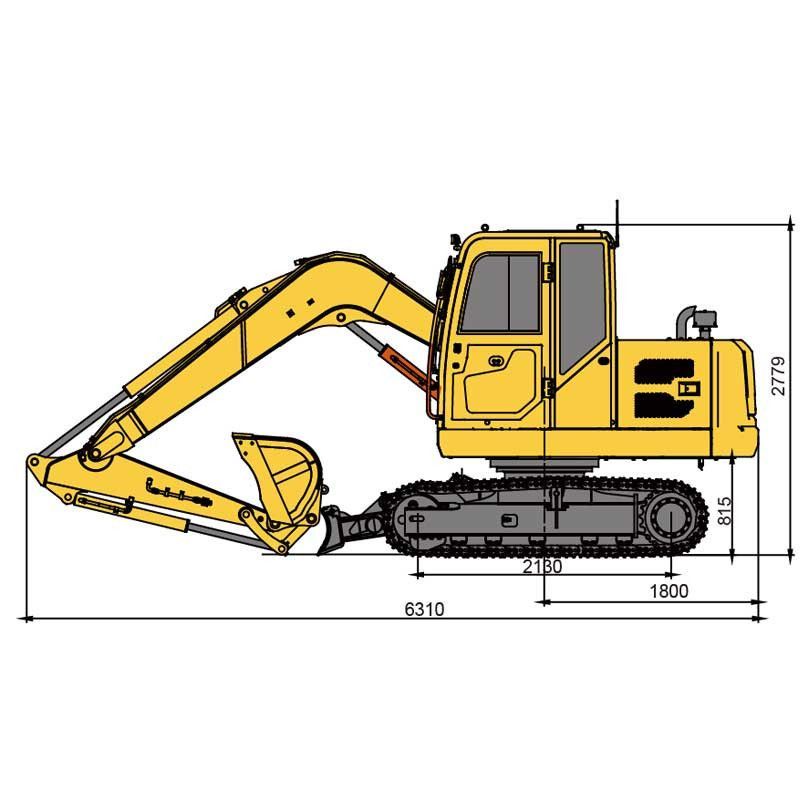

• Total length (with fork): 4,800 mm
• Total height: 2,800 mm
• Maximum excavation depth: 4.080 mm
• Maximum excavation range: 5,000 mm
• Maximum discharge height: 3,300 mm
• Scroll speed: 2.8 / 4.5 km / h
• Rotation speed: 11.5 rpm
• Superable maximum tilt: 35 ° (70%)
• Pressure on the floor: 34.5 kPa
• Maximum traction: 75 kN
• Fuel tank capacity: 132 L
• Hydraulic oil tank: 120 L
• Electric voltage: 12 V
• Battery: 12V, 70Ah

Competitive advantages

• Greater real power: 56.5 kW Yanmar engine, superior to similar models
• Maximum hydraulic efficiency: 28 MPA pressure for intensive jobs

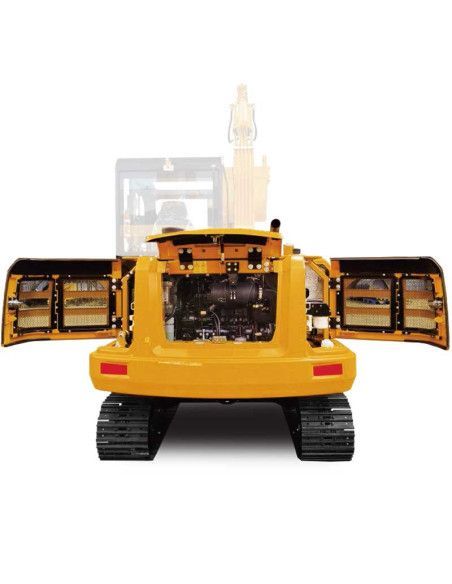

• Easy access to maintenance: Three-door rear bonnet
• Total visibility: Cabin without frames and ergonomic structure
• Extreme versatility: Retractable caterpillars for urban and industrial use
• Durability proven: Structural components reinforced with optimized welding

Accessories and configurations available

• Standard cuvette optimized with wear resistant steel plates
• Multimedia system with USB, radio and mobile connectivity / tablets
• Lighting LED for night operation
• Improved cooling system with parallel radiators and air-air cooling
• Double stage air filter and high precision fuel filter

Ideal applications

• Construction Civil: ditches, installation of services, light demolitions
• Agriculture: Land Movement, Floor Preparation, Forage Load
• Gardening and Landscaping: Plantation, Pruning, Cleaning of Green Areas
• Urban infrastructure: Sewer maintenance, drainage, pavements
• Public works: opening of roads, leveling, loading of materials

Why choose the Tymbia TY80 mini-scratching?

• Leading mark with tested technology in compact machinery
• High performance and low emission motor Yanmar
• Design designed in the operator: comfort, visibility and intuitive control
• Sustainable solution with low fuel consumption and controlled noise
• Global technical support and parts available around the world

Contact us today to obtain a budget or technical advice.

Available with multiple accessories and custom configurations.

Ideal for companies construction, agriculture, gardening and municipal services.

** They must have their own discharge means.
