Reach Stacker Electric 45 tons - Lithium battery 618V

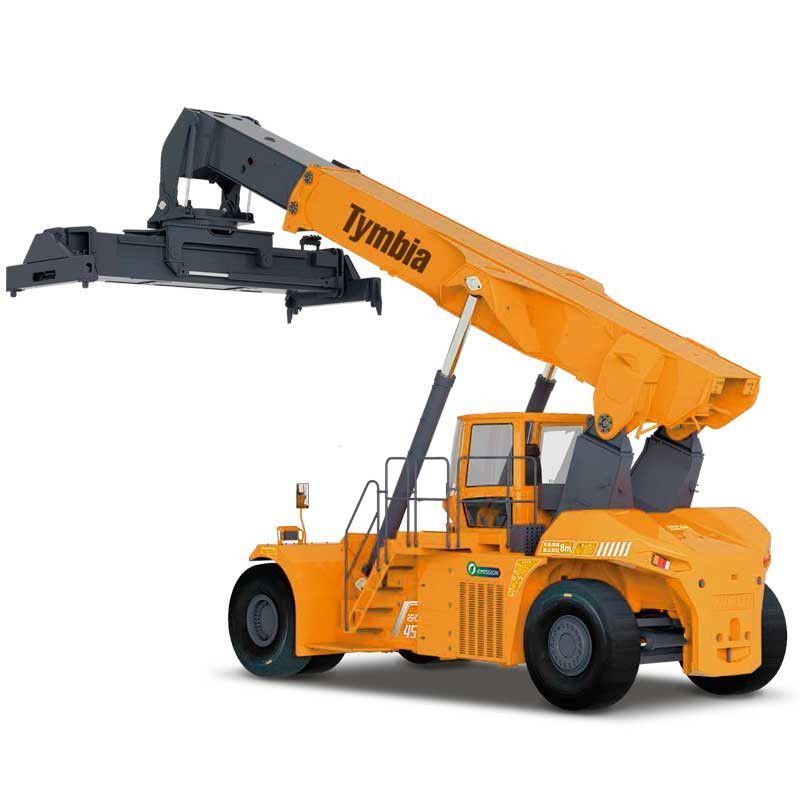

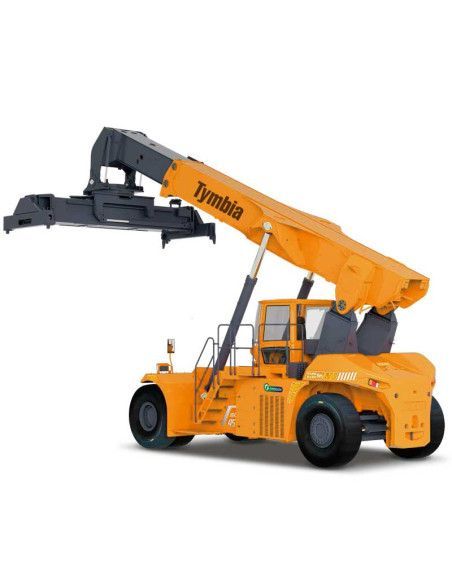

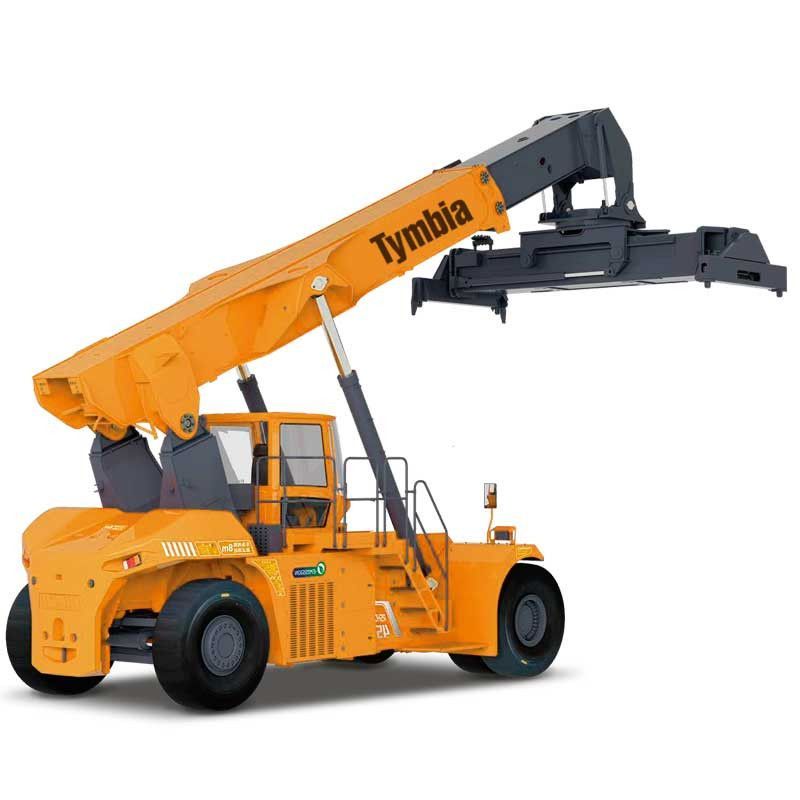

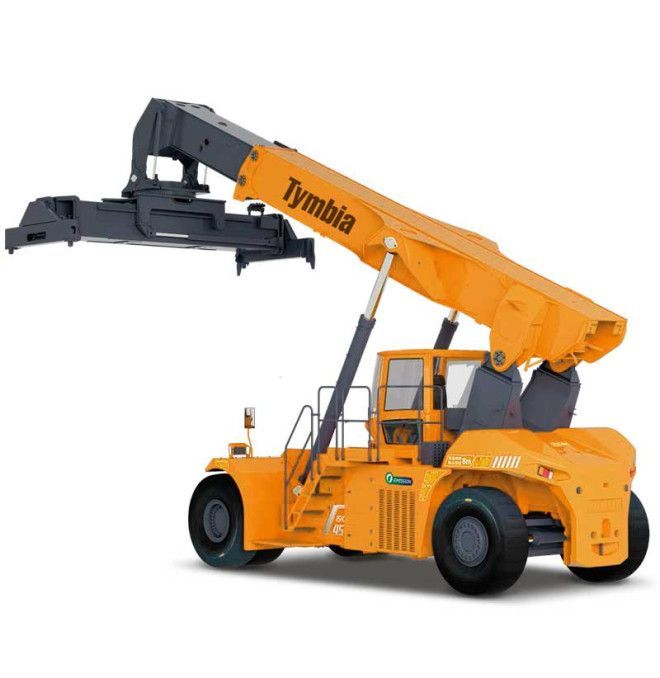

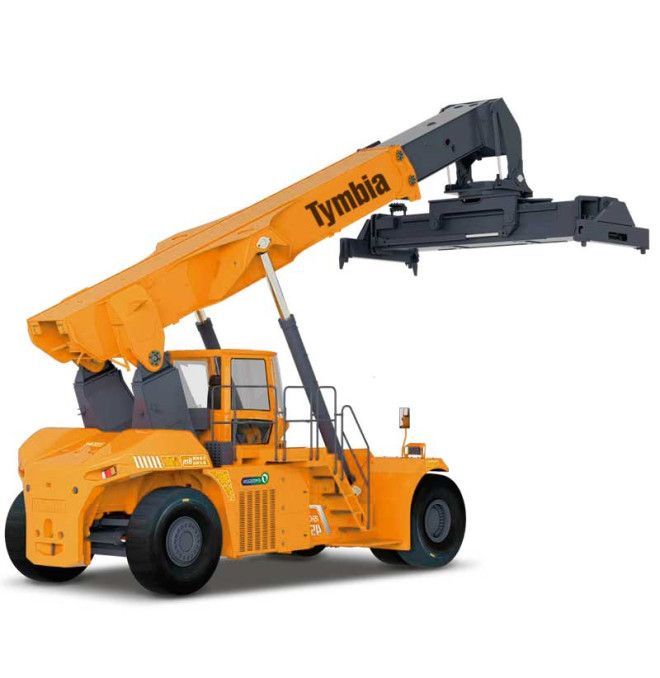

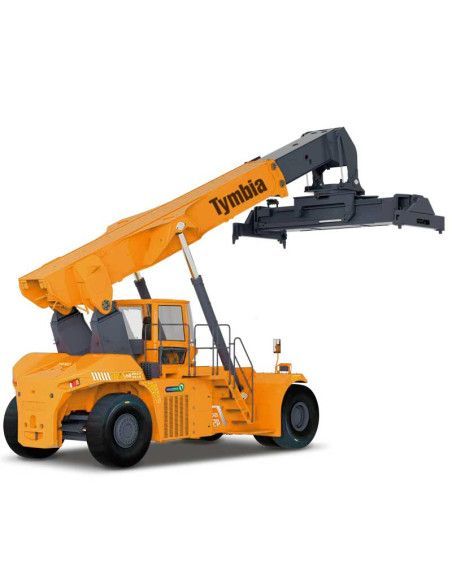

Reach Stacker Tymbia 45 tons redefines the standard container handling in port terminals, logistics parks and recycling centers. Designed as a sustainable alternative to traditional diesel models, this electric elevator combines high load capacity, tip technology and silent operation, all without compromising performance or reliability.

With a nominal capacity of 45,000 kg, this Reach Stacker can stack 20 ', 40' and 45 feet containers with precision and stability, thanks to its long-range telescopic mast, intelligent rolling control and high hydraulic system pressure It is ideal for facilities that seek to unbalance their operations while maintaining high levels of productivity.

• 100% Electric and Sustainable Energy: Direct Conversion of Diesel to Lithium without complex structural changes.
• Interchangeable lithium battery: standardized package with fast change and automatic fire extinguishing system integrated for maximum security.
• Direct transmission electric traction: High efficiency, walking softness and upper reliability.
• Advanced energy recovery: Double regeneration in braking and telescopic dejection, with additional recovery in pen to prolong autonomy.
• Elevated power and torque: High-ratious drive shaft and high torque motor for intensive operations and safe braking in long and frequent cycles.
• Ergonomic view of panoramic view: Seats with total suspension and integrated console for a comfortable and safe driving experience.
• Intelligent digital monitoring: Real-time control, BMS inspection in high-voltage electrical box and height detection system and angle for greater stability.

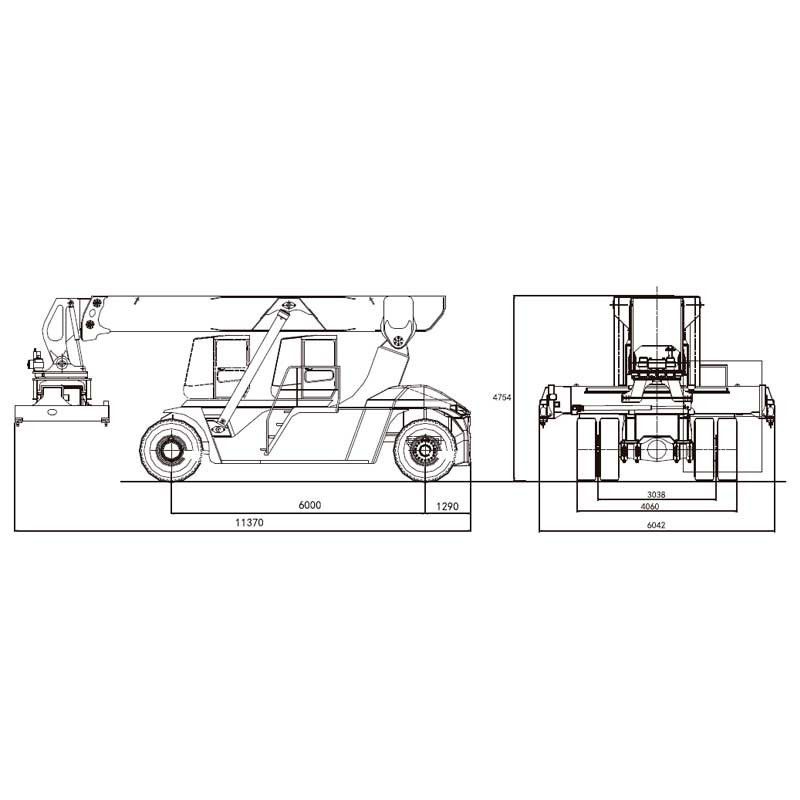

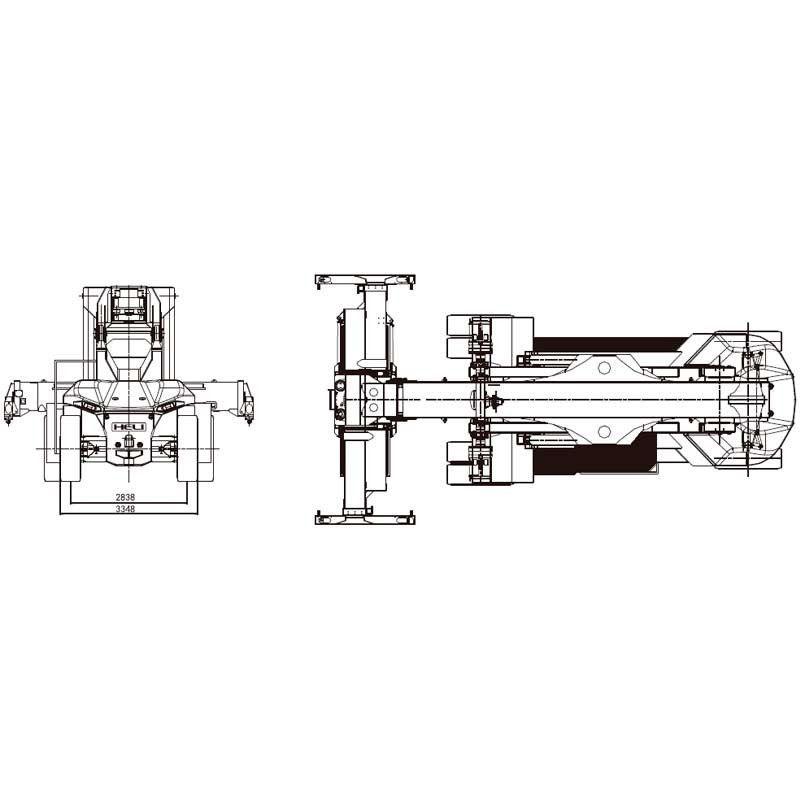

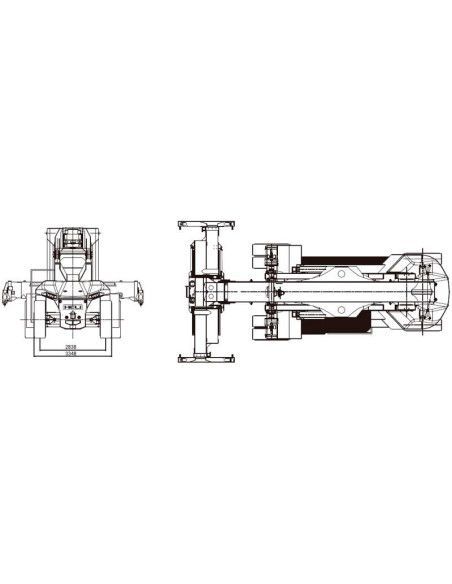

Dimensions and key performance (model CRS450-G2ZLI-06)

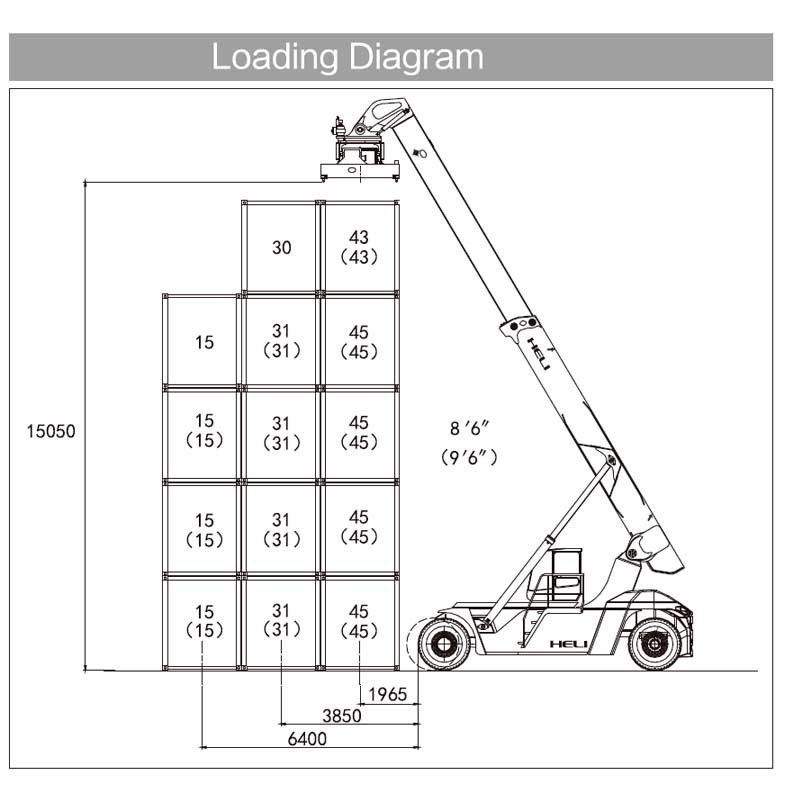

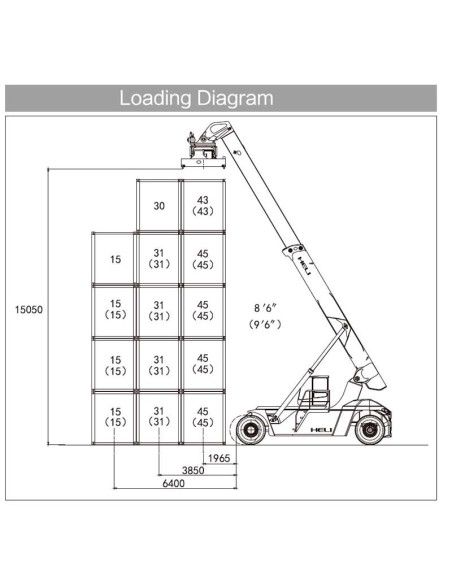

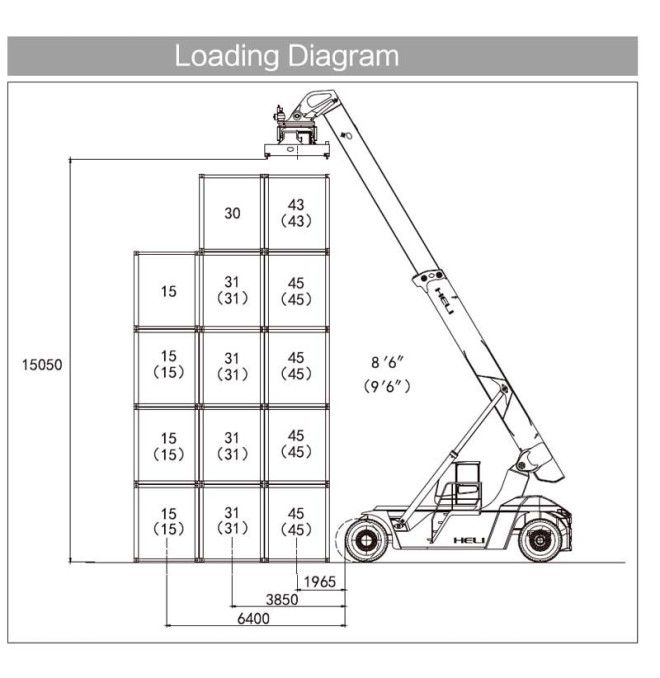

• Nominal capacity (first, second, third row): 45,000 / 31,000 / 15,000 kg
• Cargo center (first, second, third row): 1965/3850/6400 mm
• Contain Spreader: ELME 817 INN
• Max. Elevation (1st row): 15,015 mm

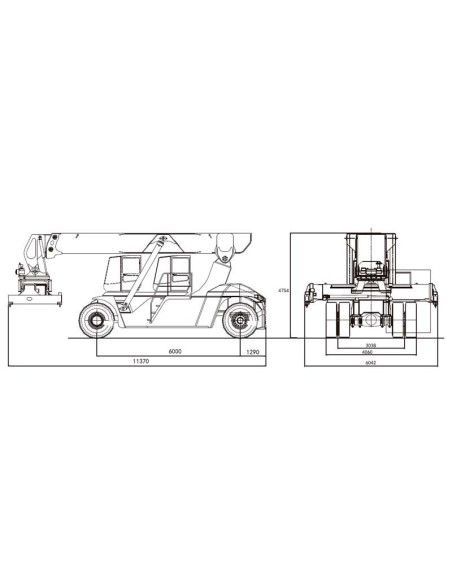

• Total length (with hairpins): 11,300 mm
• Total width: 4.148 mm
• Minimum lifting height: 1.145 mm
• Maximum angle of lifting tilt: 60º
• Side displacement: + 800-800 mm
• Rotation: -105 + 195
• Battery voltage / nominal capacity: 618,24V / 684Ah

Comfort and operator ergonomics

• 360 ° cabin with panoramic view:
  • Curved windshield of great angle
  • 4-piece side crystals + broad back glass
• Significant reduction of blind spots
• Fully suspension seat:
  • Adjustable in height, position and cushioning
  • Reduces fatigue in prolonged days
• Adjustable steering wheel in height and angle: It is ergonomically adapted to any operator
• Aeronautical control lever:
  • Ergonomic design with proportional response
  • Soft and precise movements
• High efficiency air conditioning:
  • Cabin completely sealed and heated
  • Ideal for operation in extreme climates

Why choose Reach Stacker Tymbia G2 Series 45T?

• Zero emissions - complies with environmental regulations ecological
• 608V lithium battery - long service life, fast charge, without maintenance
• High productivity - Designed for multiple shifts without dead time
• Maximum safety - with fire system, rear radar and blocking FICS
• Durability proven - wet axis, reinforced chassis and IP67 components
• Silent operation - Ideal for urban terminals and noise sensitive areas

Contact us today to obtain a budget, demonstration or technical advice.

Ideal for ports, container deposits, logistics centers and recycling parks.

Tymbia - industrial and sustainable industrial solutions
