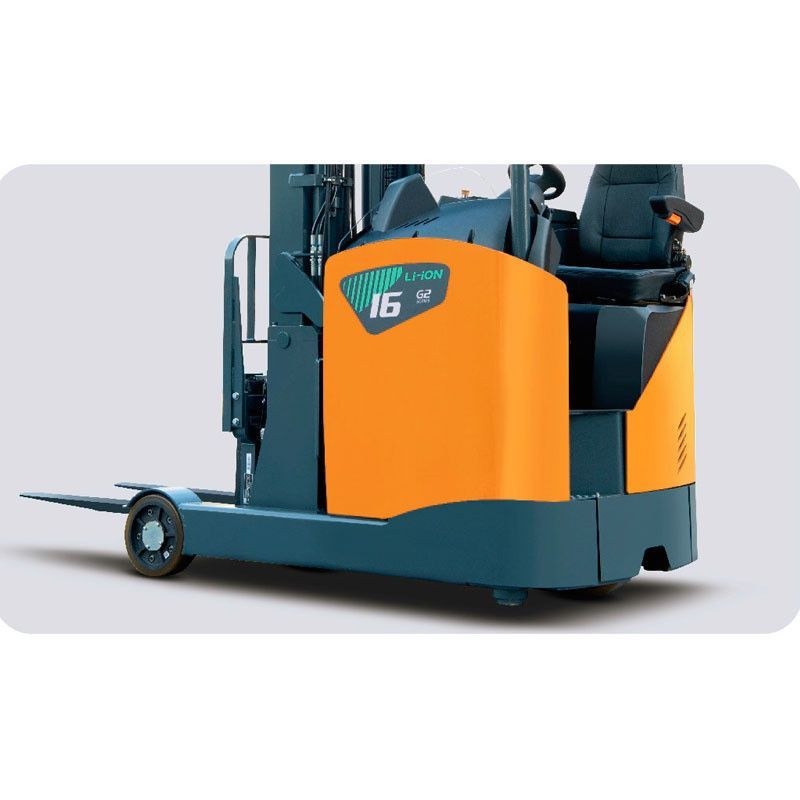

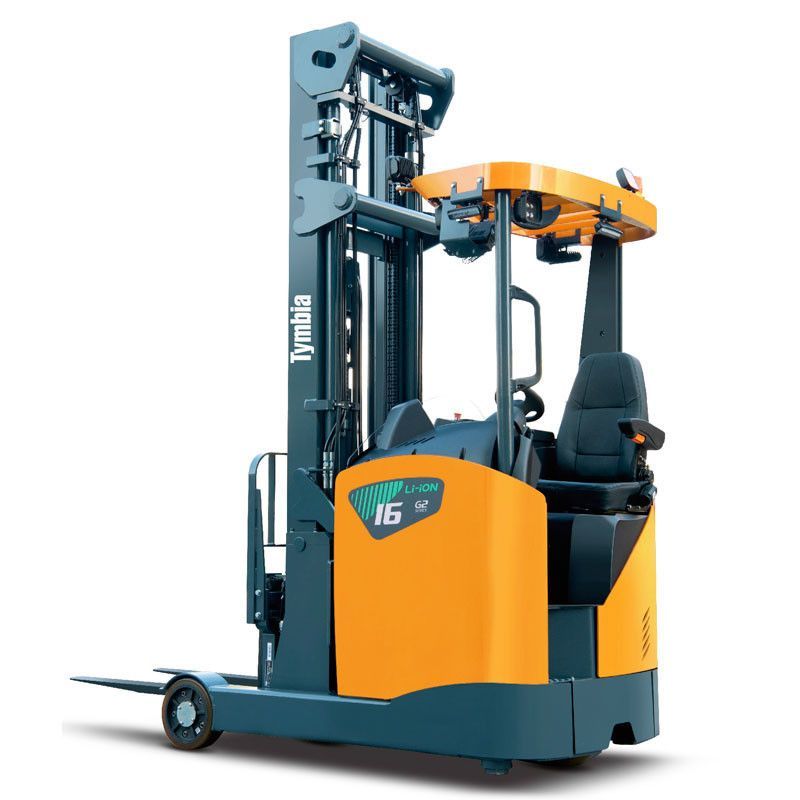

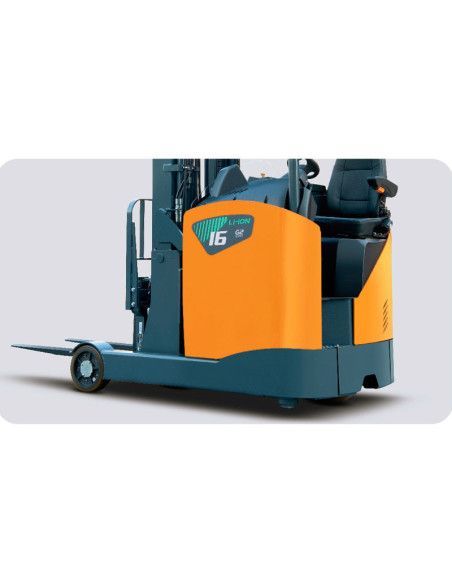

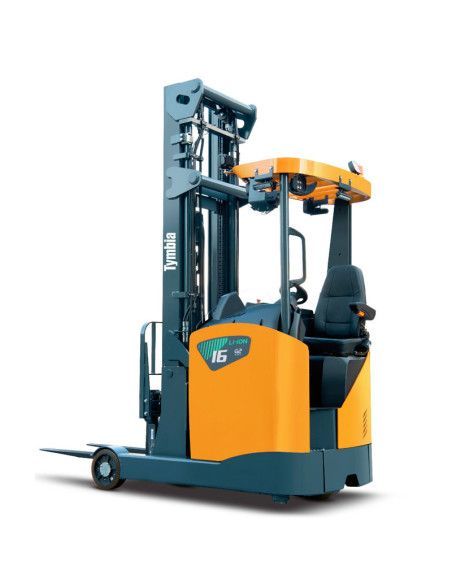

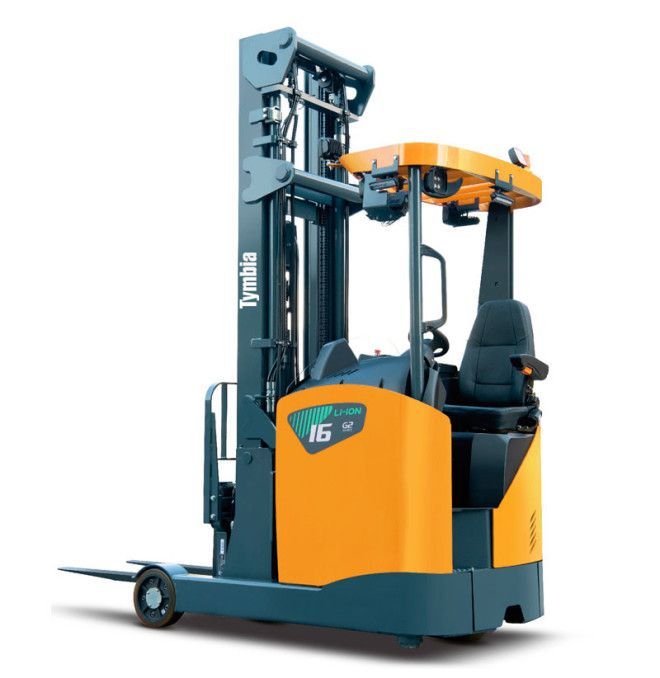

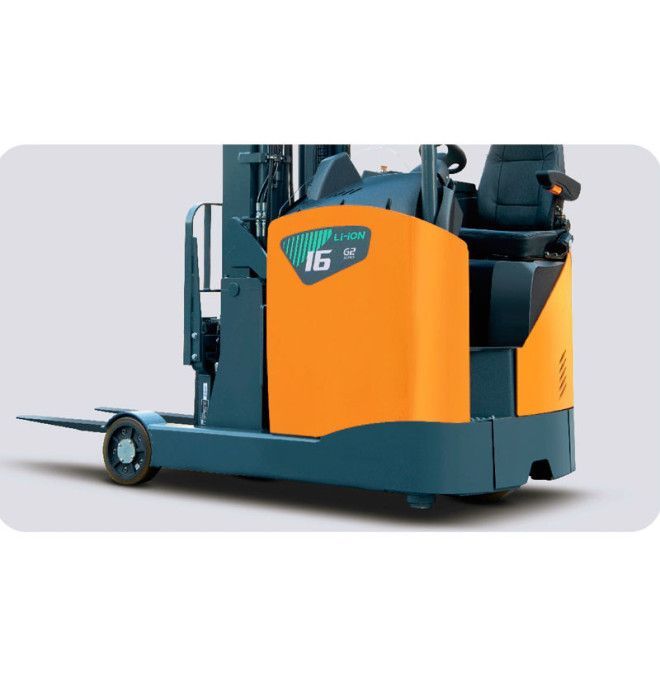

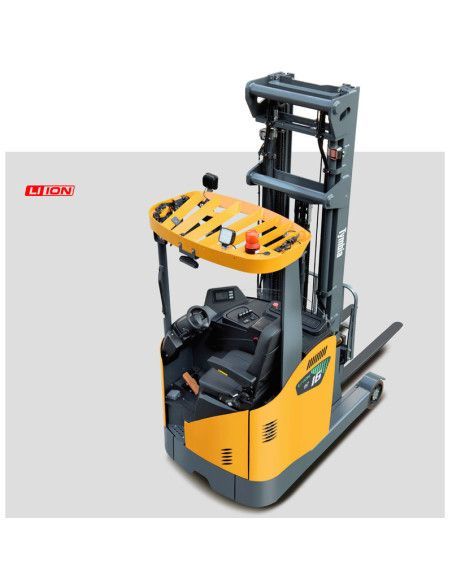

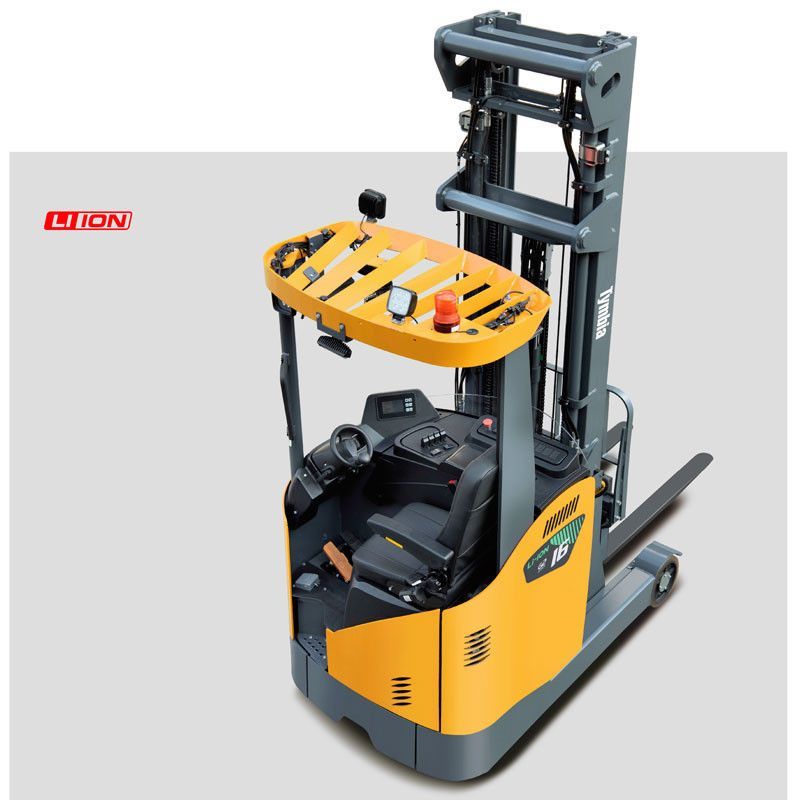

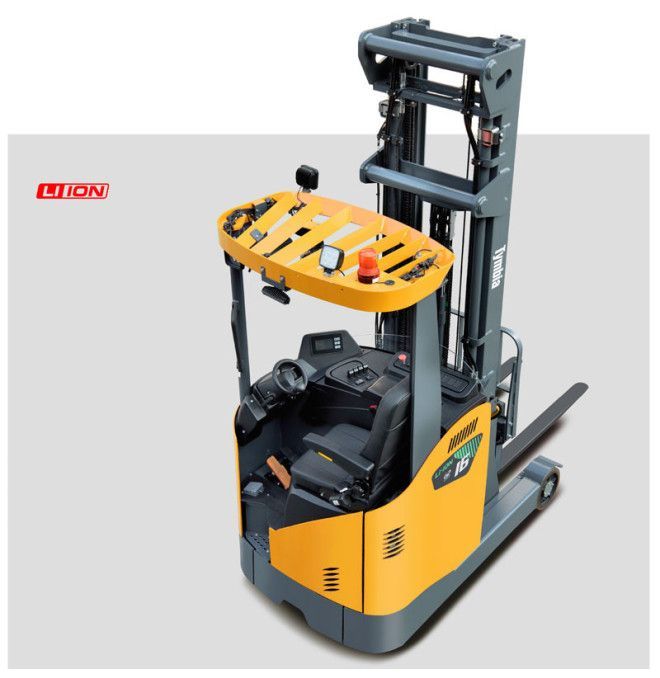

Litigation Retractile Trolley 1200-1600Kg G2 Series - Width 1120mm - 80V Lithium Battery - Fast Charge 2h

1.2, 1.4 and 1.6tn retractable caretilla is a narrow hall trolley (Narrow AISLE) Designed for high performance operations in modern warehouses, distribution centers and automated environments.

With capacities of 1,200 kg, 1,400kg and 1,600 kg and lifting heights up to 8.5 meters, This model combines cutting-edge technology, superior ergonomics and sustainability, thanks to its last generation lithium battery.

Ideal for vertical picking applications, Cross-Docking and dense storage, Reach Truck Tymbia maximizes the use of vertical space without sacrificing speed, safety or operator comfort. High efficiency for vertical storage

Main features:

• High efficiency lithium battery (48V):
  • Lifepo₄ technology with long life and no memory effect
  • Fast loading system: full charge in only 2 hours designed to operate up to 8 hours under normal conditions.
  • Load efficiency> 95%, complies with energy saving standards and emissions reduction

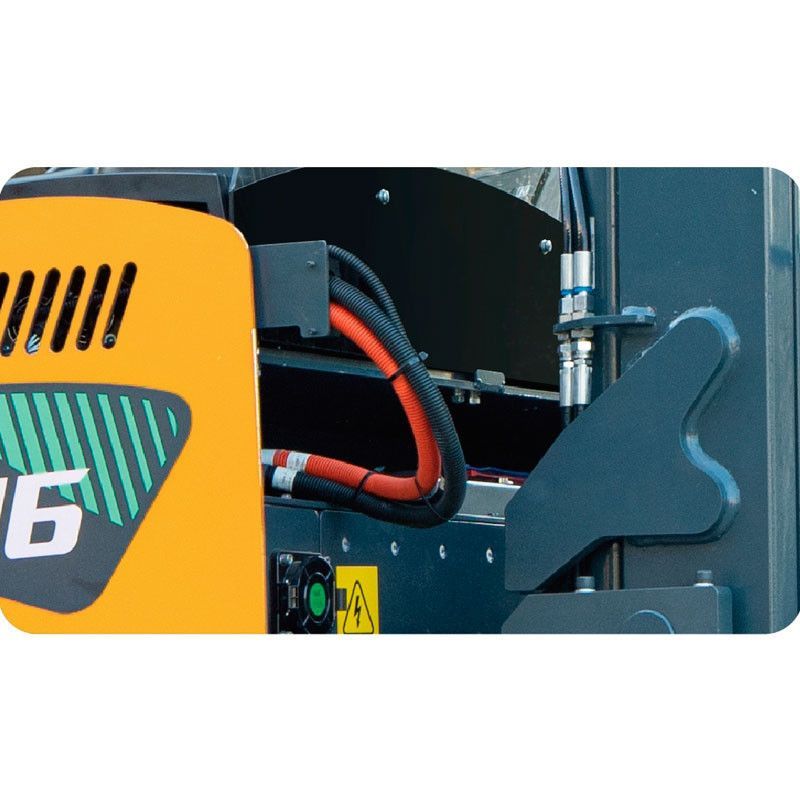

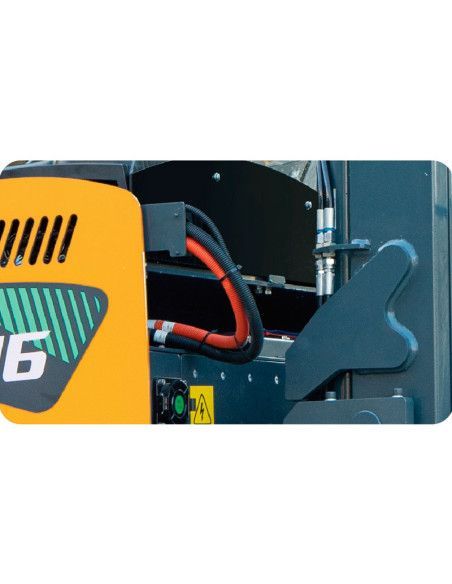

  • Removable side battery design (side-pull) for fast replacement without tools
• High lifting capacity:
  • Available models: 1.2t (COD12), 1.4T (CQD14), 1.6t (CQD16)
  • Loading center: 600 mm
  • Maximum lifting height: 8,500 mm (ideal for high racks)
• Intelligent motorization:
  • Traction motor and hydraulic pump Synchronous permanent magnet
  • Water refrigeration (IP67), suitable for intensive use
  • Regenerative braking that recovers energy during the descent and deceleration

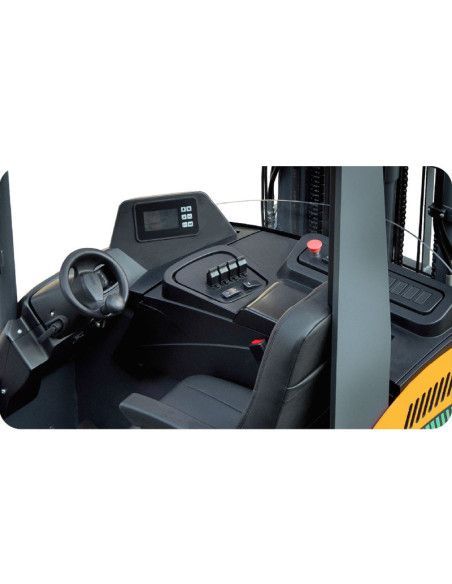

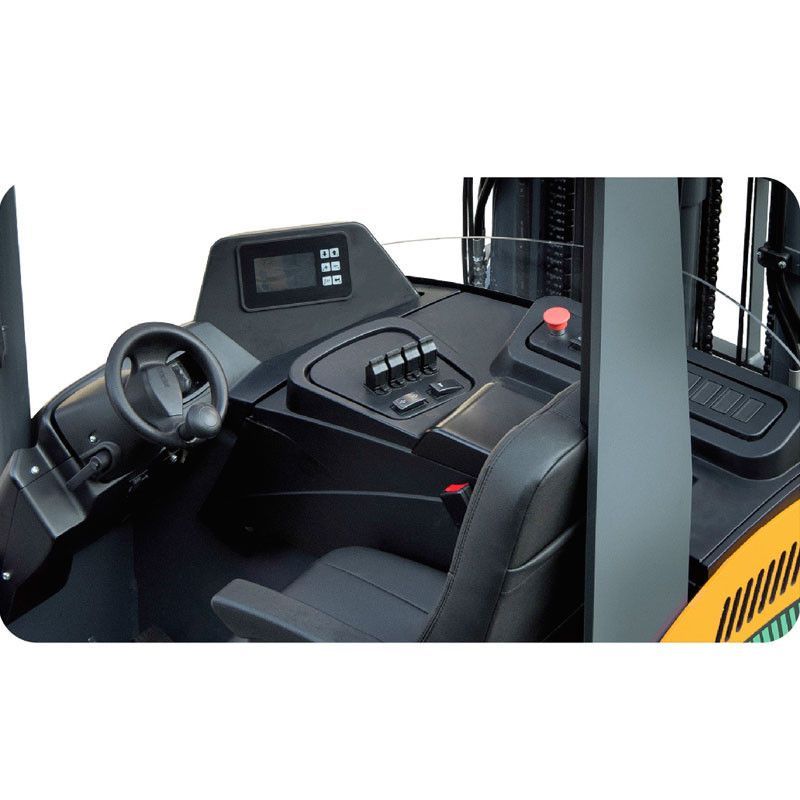

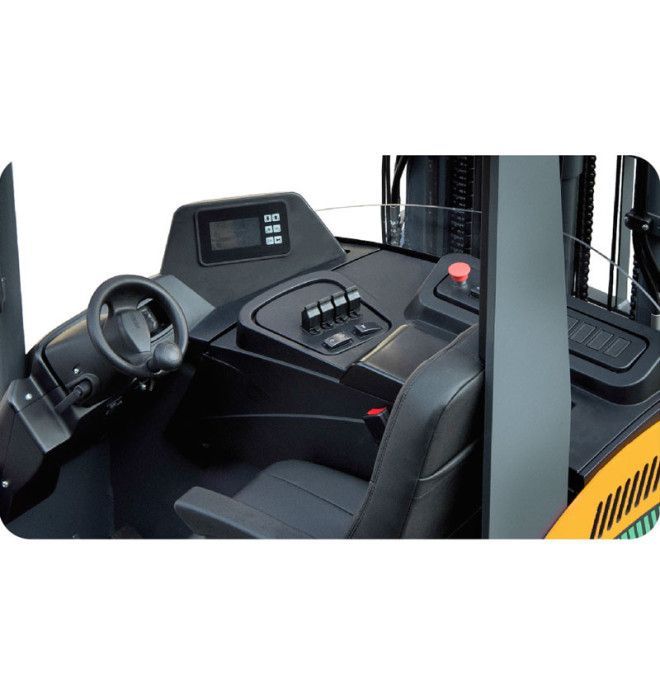

• Ergonomic multifunction handlebar:
  • High precision proportional control
  • Integrated buttons for mode selection, height preset and key functions
  • Reduces operator fatigue on prolonged days
• Advanced control panel:
  • Intuitive digital screen showing battery status, errors, horrometer and operation modes
  • Intelligent diagnostic system for predictive maintenance
  • Indicators Clear visuals to facilitate handling

Safety and Control Systems

• Height Pre-selection System (LIFTING HEIGHT PRESECOR):
  • Allows you to program the desired height before raising, increasing precision and speed
  • Ideal for repetitive operations in fixed racks
• Regenerative and proportional braking:
  • Recovers energy and improves efficiency
  • Soft and precise control in all kinds of movements
• Easy maintenance and direct access:
  • Front covering folding for quick access to key components
  • Modular system that simplifies repairs and reviews
• Reinforced and stable chassis:
  • Design Falls optimized to resist tensions in narrow corridors
  • Greater rigidity and durability against lateral impacts

Operator's comfort

• Fully suspension seat (Full Suspension SEAT):
• Adjustable in height and position
• Reduces vibration and fatigue in prolonged operations
• Adjustable steering wheel:
• Adjustable angled and height to adapt to any operator
• Spacious and organized workspace:
• Clean and functional design
• Document holder and space for work devices

Available options and settings

• Cod12: 1,200 - 11,200 mm Width - 80V / 150Ah Li-ion batteries
• Cqd14: 1,400 - 11,200 mm Width - 80V / 150Ah Li-ion batteries
• Cqd16: 1,600 - 11,200 mm Width - 80V / 150Ah Li-ion batteries

Optional accessories:

• System of weighing (Weighing System)
• Identification by card (FICS)
• Smart Fleet Management (Smart Fleet Management)
• LED work lights
• Anti-collision system (optional)

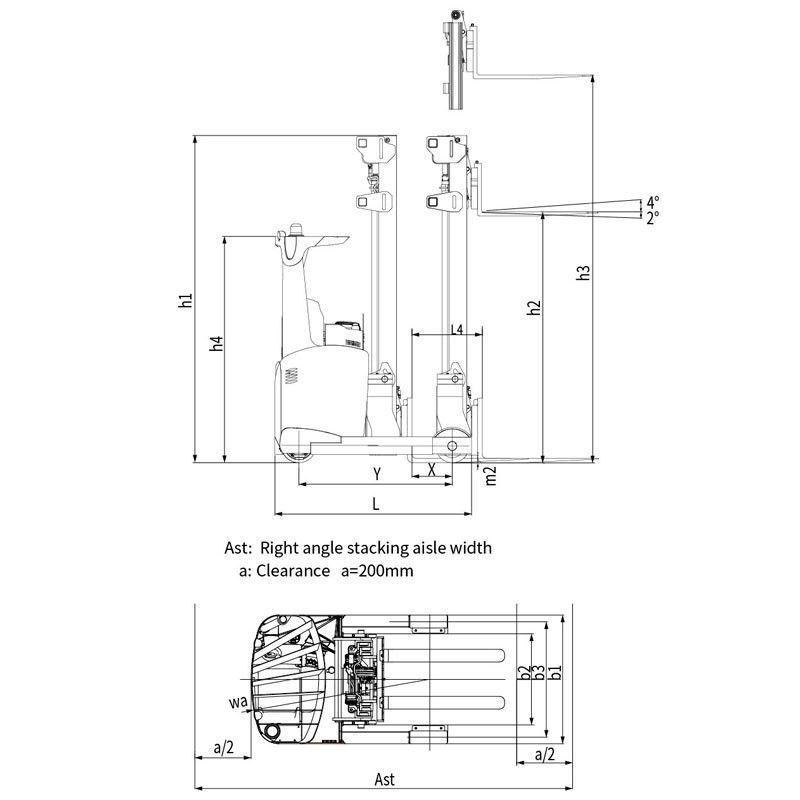

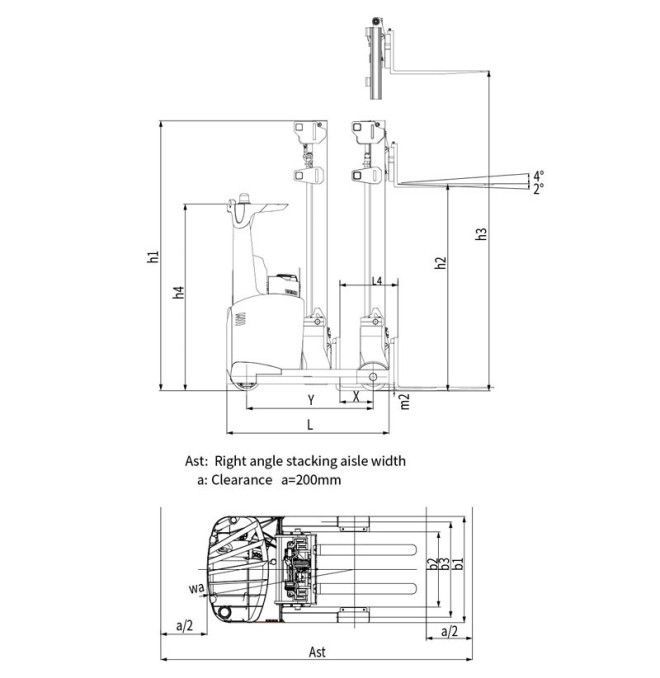

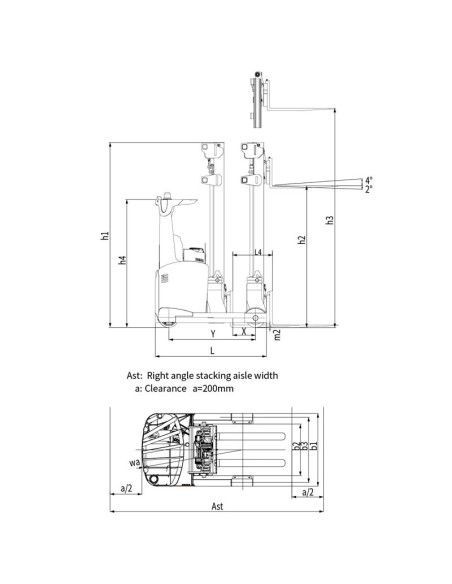

Dimensions and key performance (model cqd16)

• Nominal capacity: 1,600 kg
• Loading center: 600 mm
• Maximum lifting height: 8,500 mm
• Mast height retracted: 2.314mm
• Lifting speed (with / without load): 450/700 mm / s
• Scroll speed (with / without load): 14 km / h
• Minimum spin radius: 1.689 mm
• Total width: 1.120 mm (ideal for narrow corridors)
• Total weight (with battery): 3.298 kg

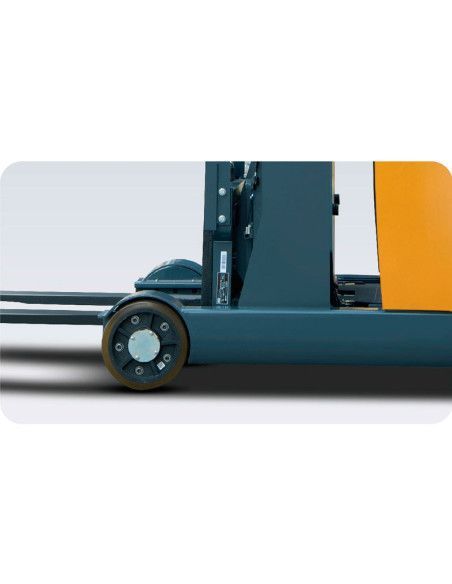

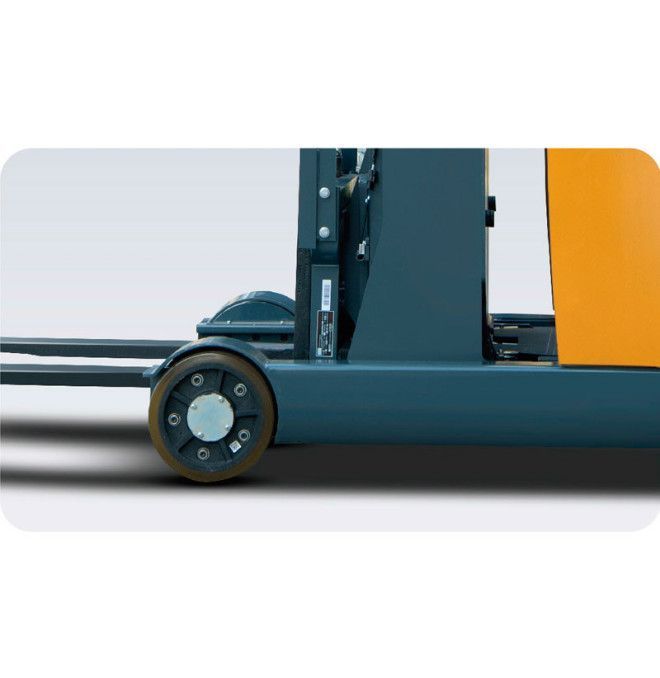

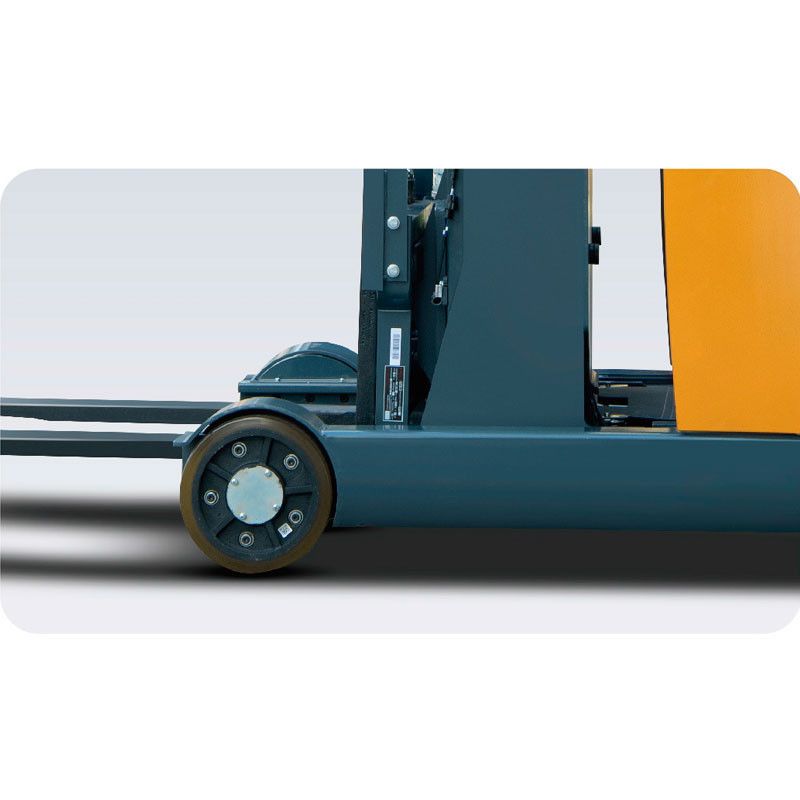

• Type of tires: Polyurethane (front and rear)
• Degree of protection (engine): IP67
• Battery: 80V / 150Ah

Intelligent Fleet Management System (optional) The Smart Fleet Management System allows:

• Real-time geolocation
• Remote diagnosis of failures
• Statistical reports of use
• Programmed maintenance alerts
• Operator identification control
• Weight management (optional)

Ideal for companies that manage large fleets and seek to optimize times, reduce costs and increase operational security.

Why choose the Tymbia Retractable Trolley G2 Series 1.2-1.6t?

• Zero emissions - perfect for interiors and sensitive areas
• Fast load in 2 hours - Ideal for multiple shifts without dead time
• Extended autonomy - up to 8 hours of continuous operation
• Maximum energy efficiency - regenerative braking and high efficiency engines
• Compact design - Width of only 1,120 mm, ideal for narrow corridors
• Silent operation - no noise or gases, ideal for urban environments

Contact us today to obtain a budget, demonstration or technical advice.

Available with multiple configurations of capacity, height and accessories.

Ideal for automatic warehouses, logistics centers, pharmacies, retail and e-commerce.

Tymbia - industrial and sustainable industrial solutions
