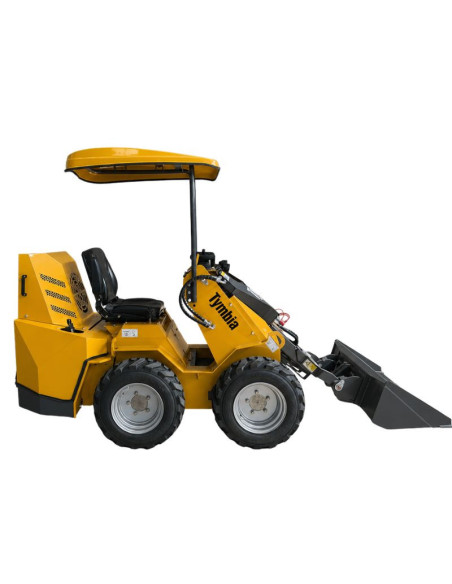

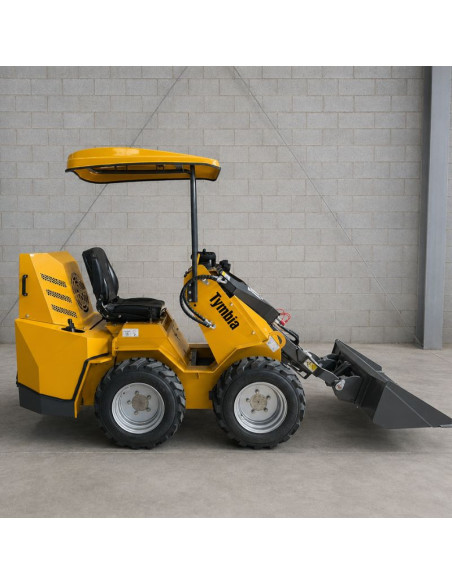

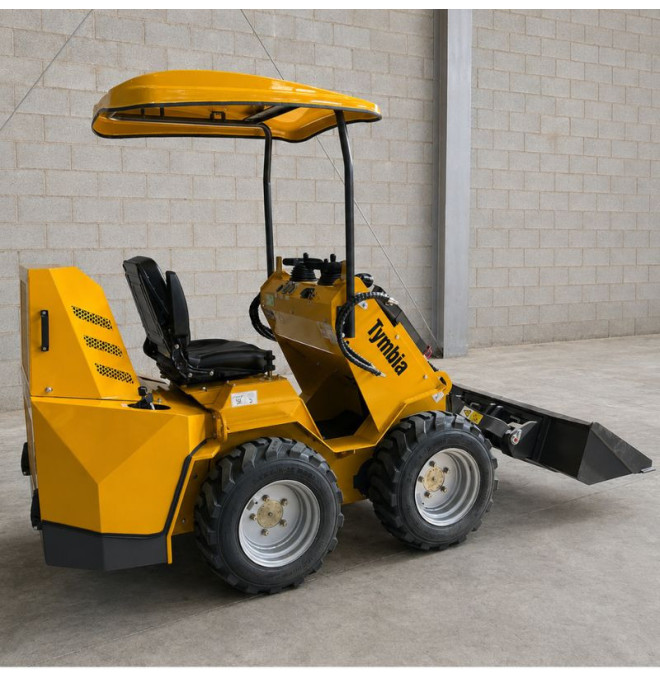

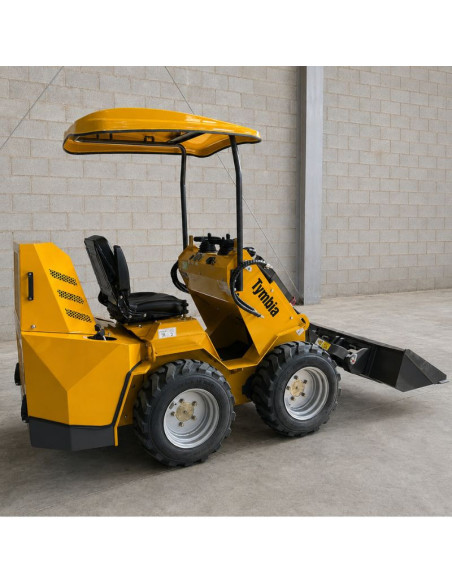

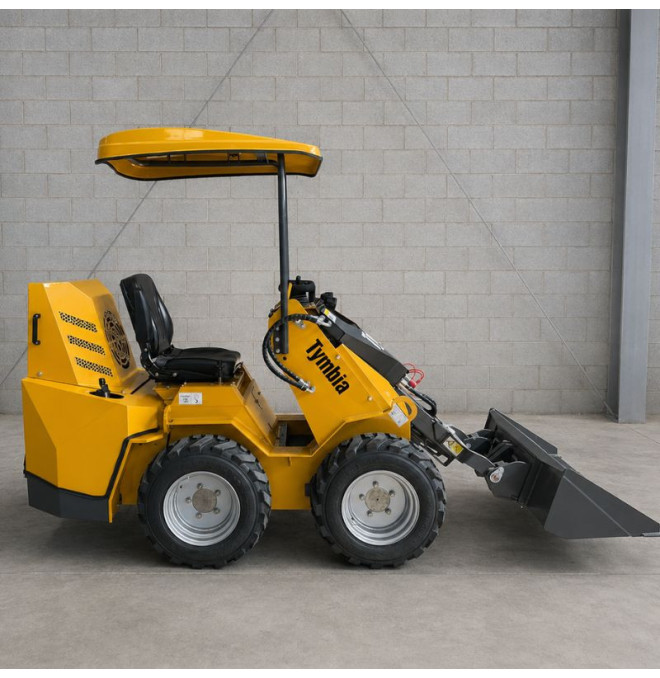

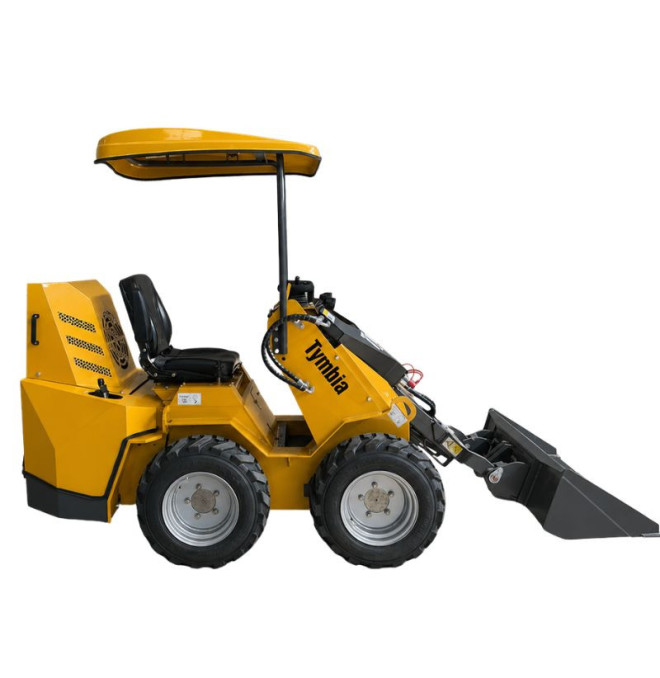

Sink Ty480Z Gasoline | 800kg Elevation | 350kg Nominal load

The Tymbia Ty480Z Minicadora combines power, maneuverability and versatility in a compact design, ideal for operations construction, Agriculture, Gardening, Land Cleaning and Industrial Maintenance.

Designed to work in small spaces, This machine offers a high work capacity with low fuel consumption, thanks to its last generation gasoline motor and efficient hydraulic system.

With a nominal load capacity of 350 kg and a maximum lifting force of 800 kg, TY480Z can handle heavy loads easily, while its sliding steering system (SKID Steer) allows fast and accurate spins In any direction, without needing to go back.

Main features:

• Gasoline motion
  • Model: R740D
  • Type: 2-cylinder engine V, air-cooled
  • Power: 23 HP to 3600 rpm
  • Starting: Electric (Very convenient for daily use)
  • Fuel consumption: ≤6.7 l / h (efficient for long days)
• Charging and lifting capacity:
  • Nominal load: 350 kg
  • Maximum lifting force: 800 kg
  • Own weight: 930 kg

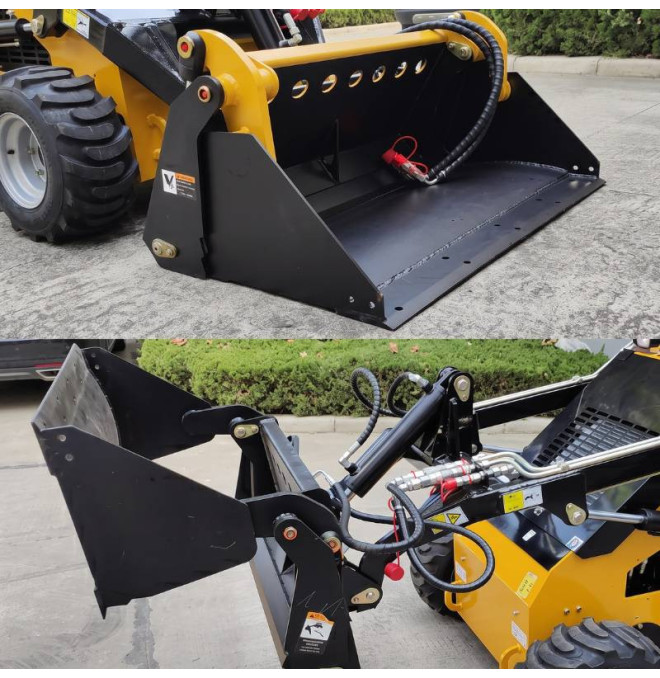

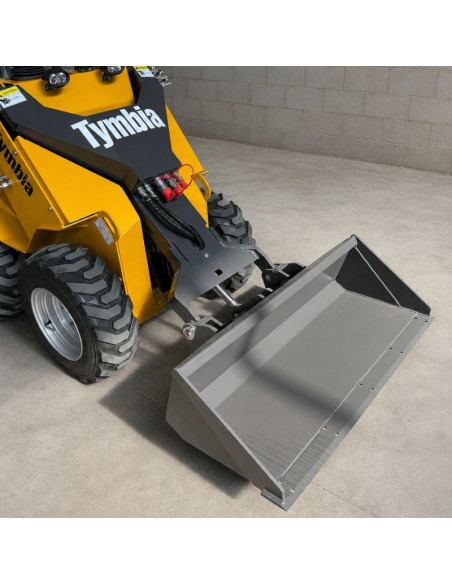

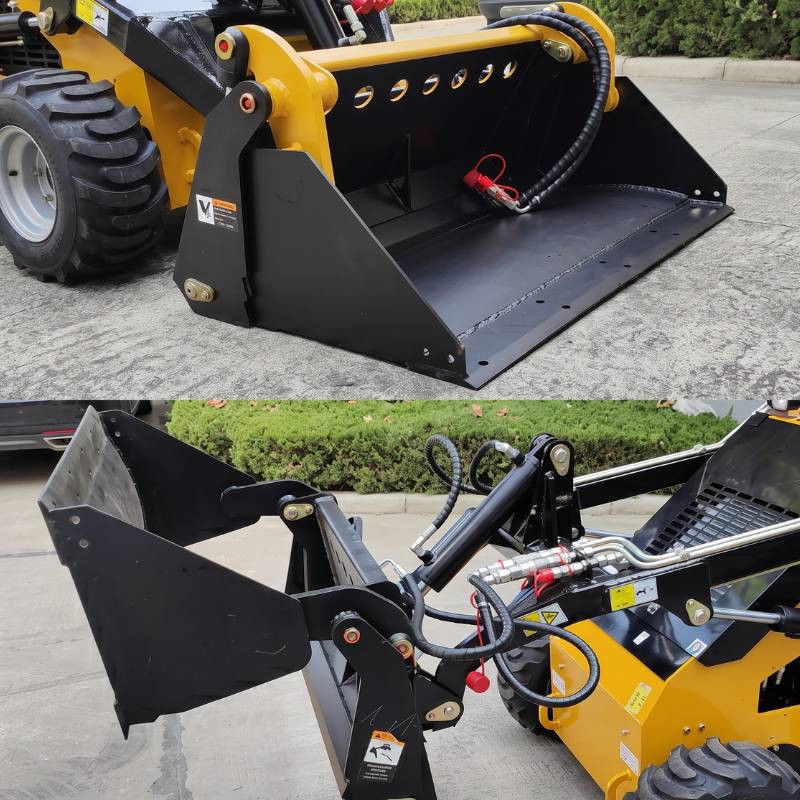

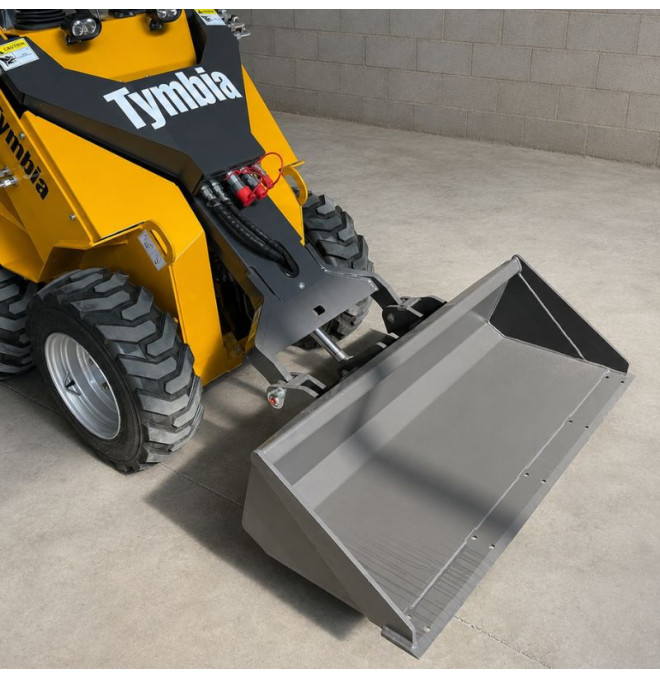

  • Volume of cuvette: 0.15 m³
  • Ideal for handling ground, gravel, waste, cement bags, etc.
• High pressure hydraulic system:
  • 3 pumps and 3 valves
  • Working pressure: 17 MPa
  • Hydraulic tank: 23 liters
  • Lifting time: 4.5 seconds
  • Bake time: 3.1 seconds
  • Vollet time: 1.8 seconds
  • Fast and precise, ideal for repetitive operations
  • Hydraulic circuit cooler.
• Performance and mobility:
  • Speed speed: 0-4.3 km / h (ideal for precision work)
  • Maximum tilt (Gradeability): 30 ° (handles pronounced earrings)
  • Workweight: 930 kg

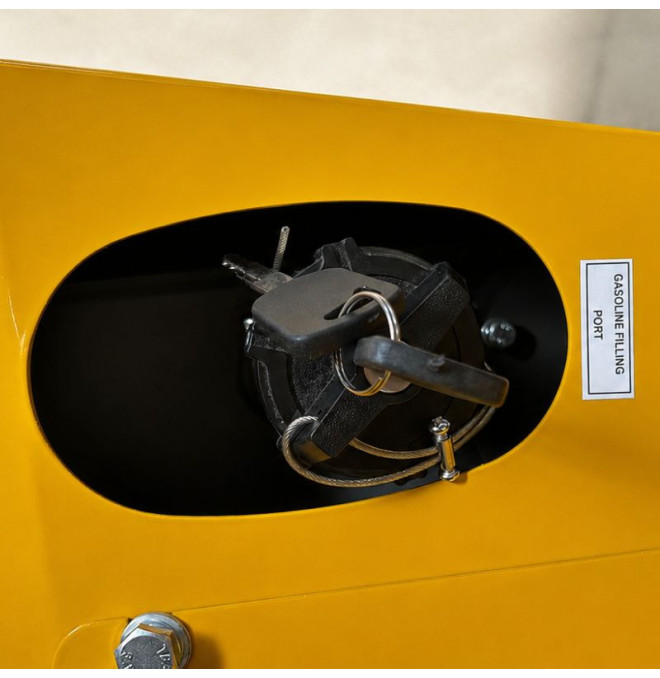

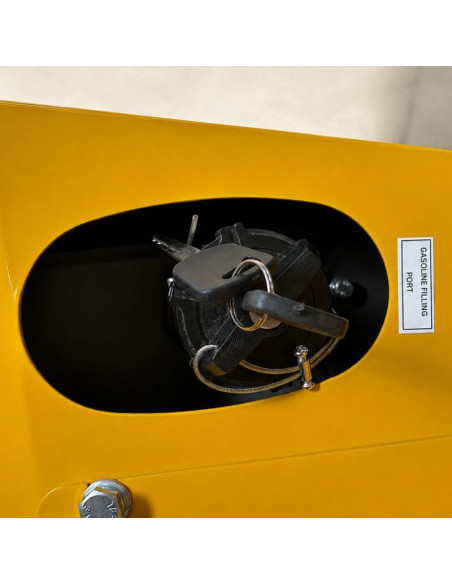

  • Fuel tank: 26 liters (extended autonomy)

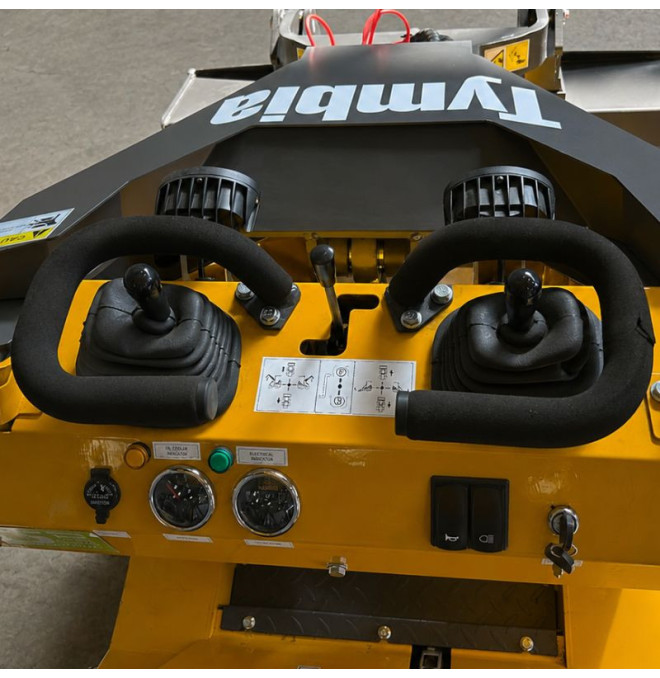

• Controls and operation:

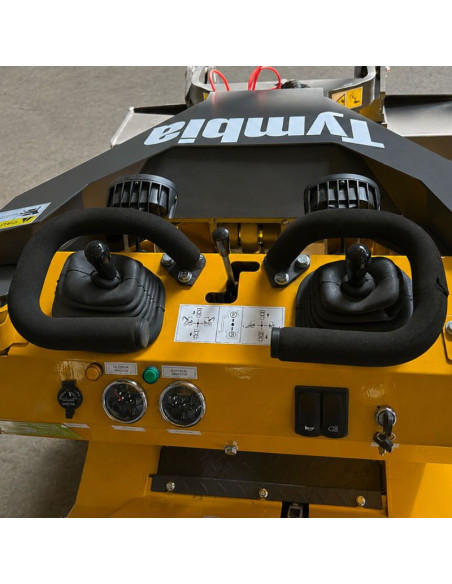

  • Mechanical joystick (easy to use, ergonomic)
  • Sliding direction control (SKID Steer), allowing turns instead
  • Quick access to main controls from the seat
• Durability and maintenance:
  • Robust and impact resistant chassis
  • Key components protected against dust and water
  • Easy access to filters, oil and tanks for fast maintenance

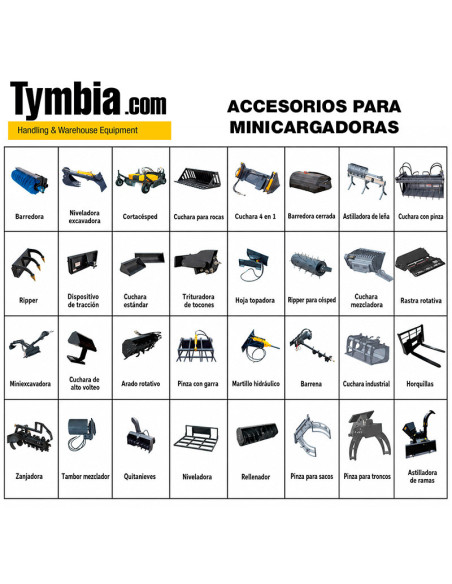

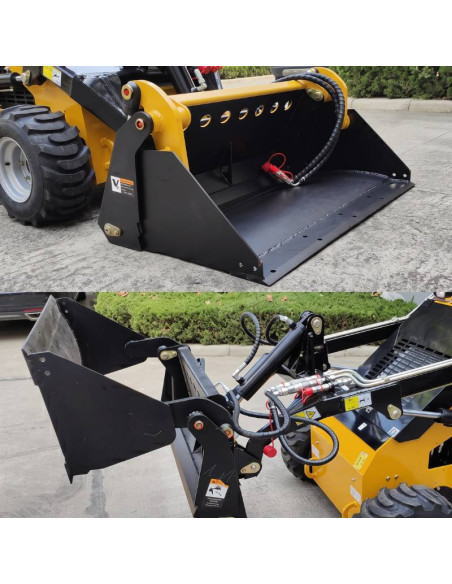

Accessories and Applications (Optional)

The TY480Z mini-engine is compatible with a wide range of interchangeable accessories, which makes it a tool multi-purpose:

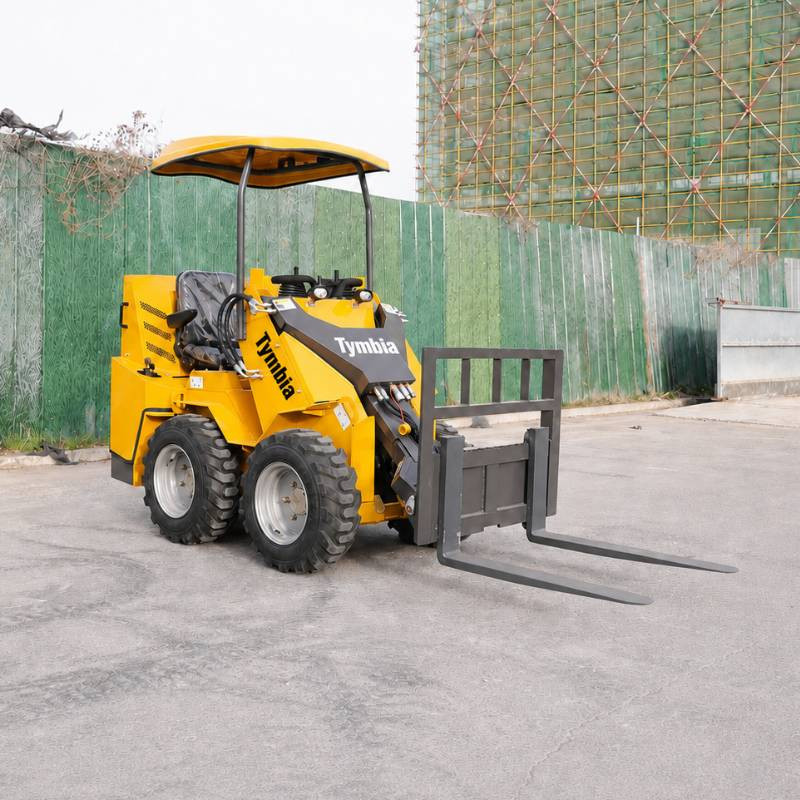

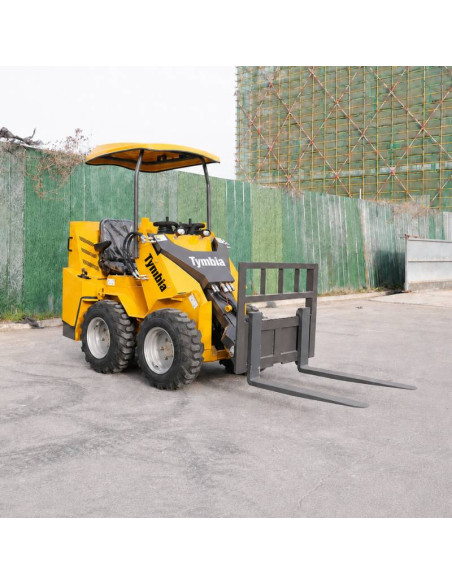

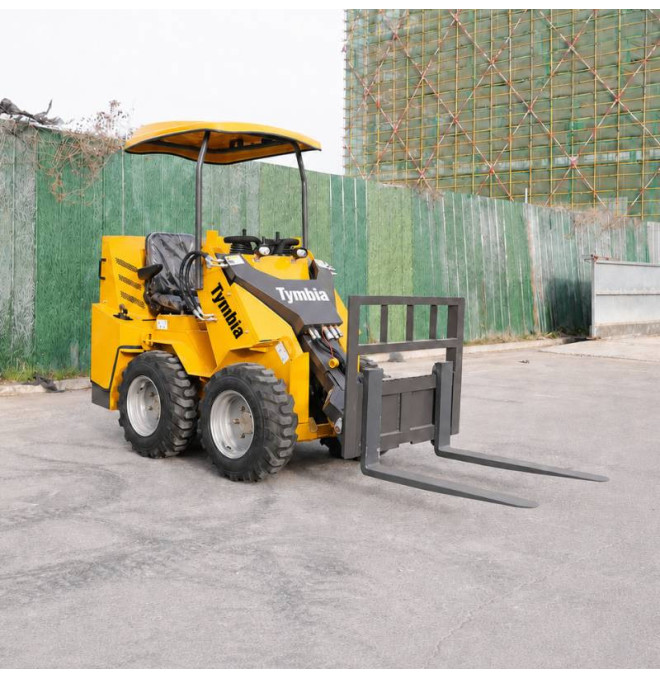

• Porta-Forks
• Digger

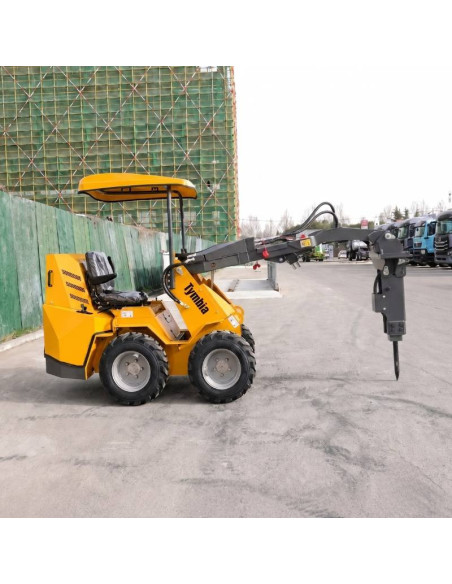

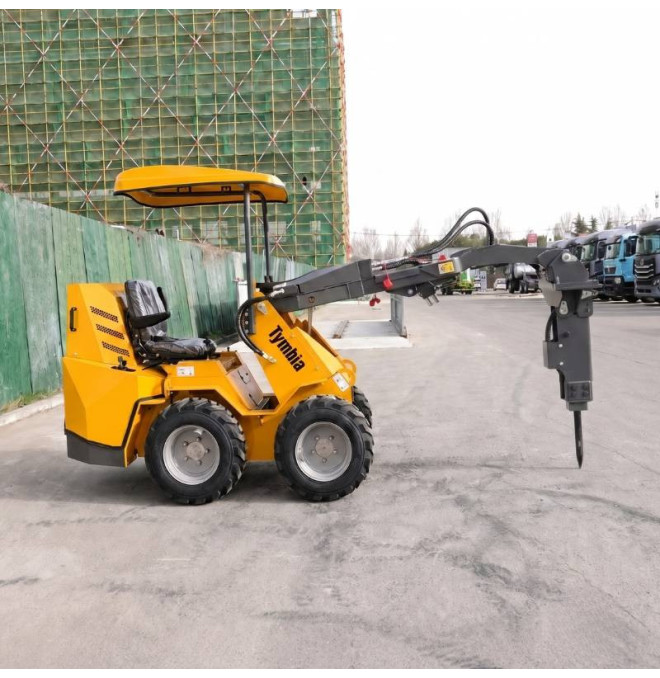

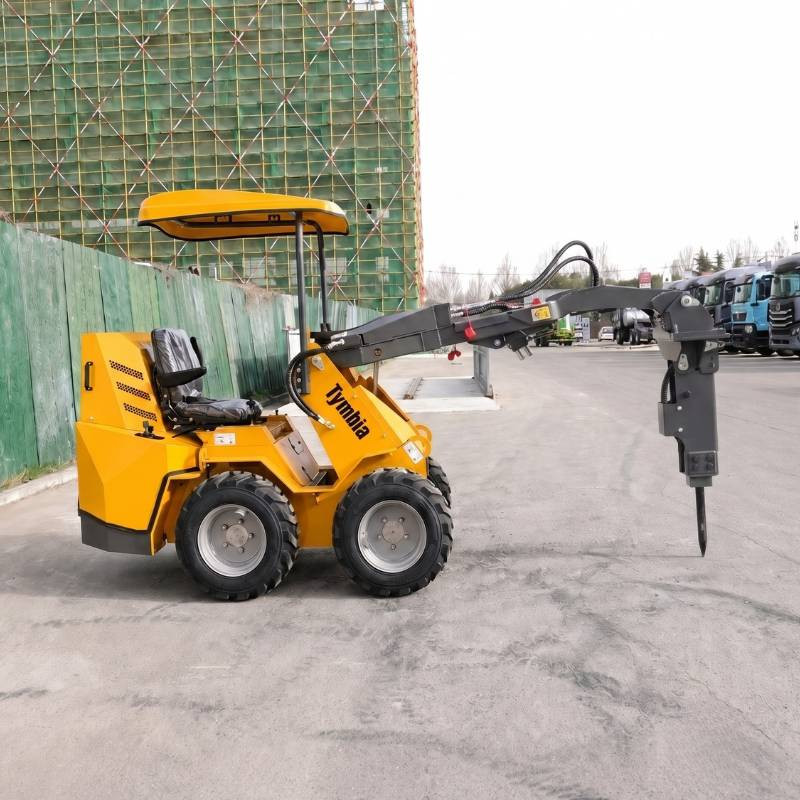

• Hydraulic hammer
• Ripper
• Sweeper

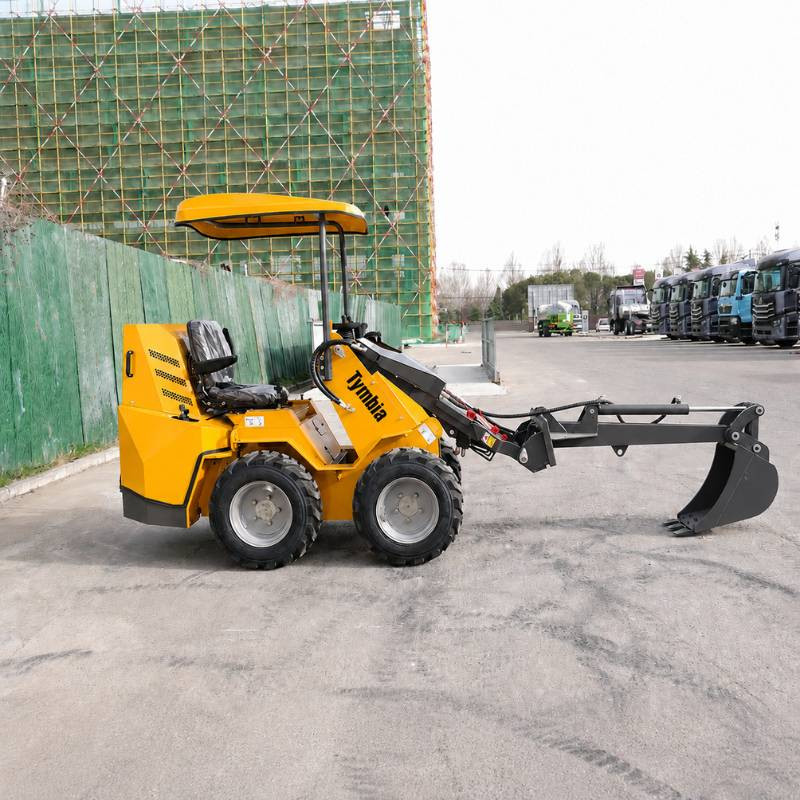

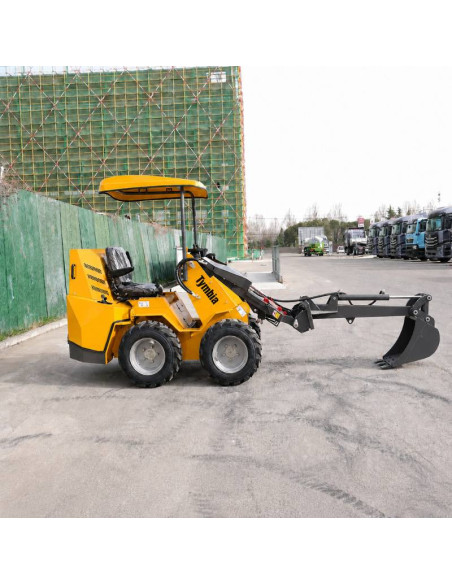

• Mini-Excavator Arm
• Light rotary
• Others .... (see photo)

Key advantages of the TY480Z model:

• Exceptional maneuverability: fast turns in 360 ° without retreating
• High productivity: fast lift and upper loading force
• Energy efficiency: low fuel consumption (≤6.7 l / h)
• Easy to operate: Intuitive Mechanical Joystick and Electric Start
• Versatility: Compatible with multiple accessories
• Durability: Construction Robust for intense use
• Security: Stable design, Efficient brakes and precise control

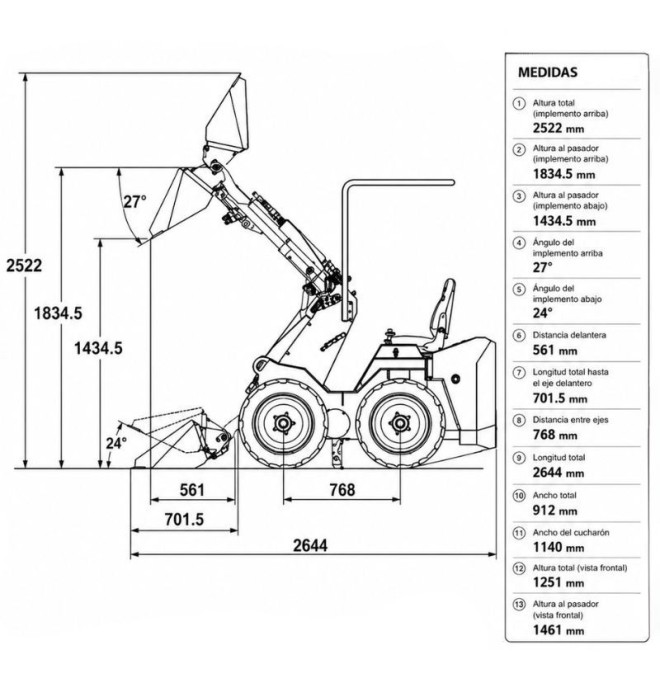

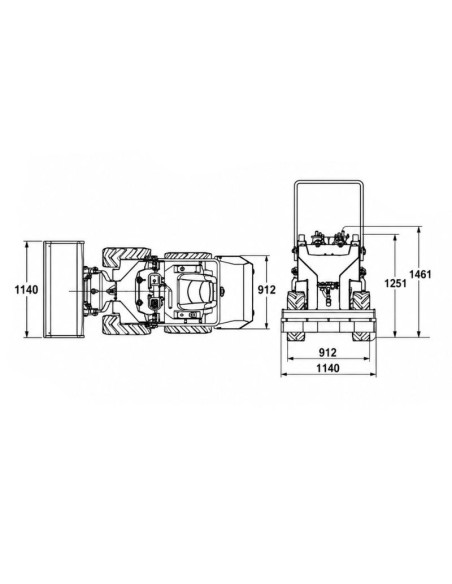

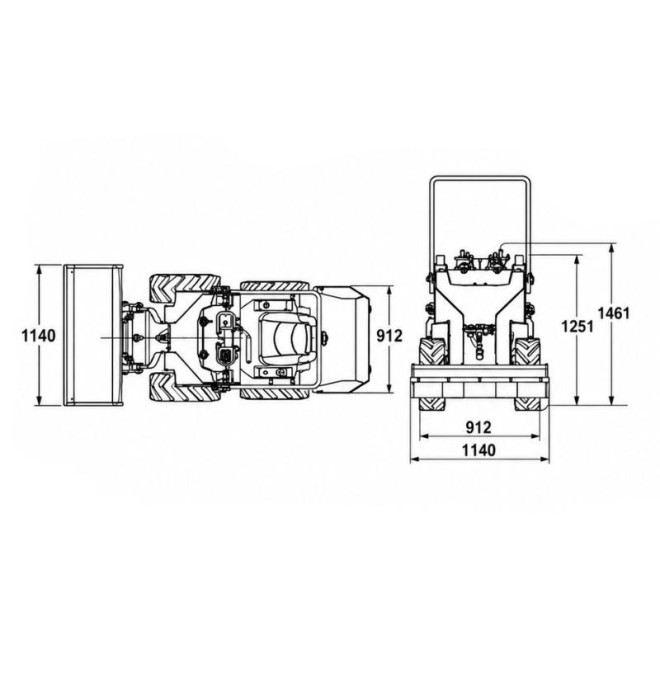

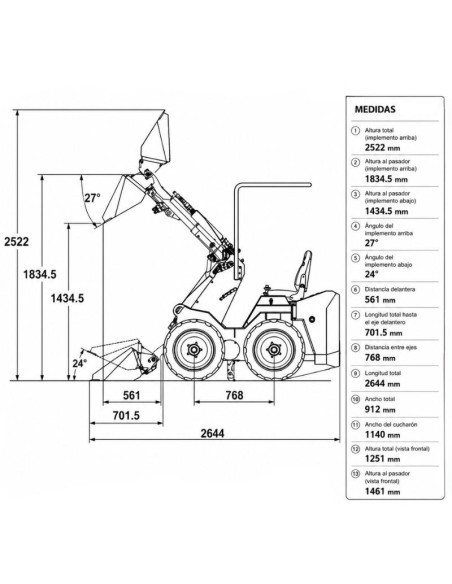

Dimensions and technical specifications

• Nominal load capacity: 350 kg
• Maximum lifting force: 800 kg
• Volume of cuvette: 0.15 m³
• Engine power: 23 HP (3600 rpm)
• Type of motor: Diesel V-Type, 2 cylinders, water cooled
• Starting: Electric
• Fuel consumption: ≤6.7 l / h
• Fuel tank capacity: 26 L
• Hydraulic tank capacity: 23 L
• Lifting time: 4.5 S
• Bake time: 3.1 S
• Vollet time: 1.8 S
• Maximum tilt (Gradeability): 30 °
• Speed speed: 0-4.3 km / h
• Workweight: 930 kg
• Hydraulic pressure: 17 MPa

Ideal applications

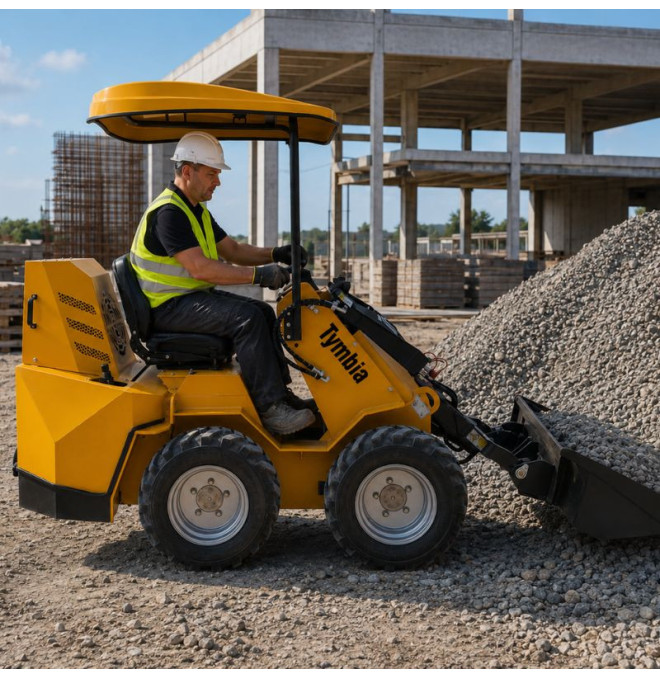

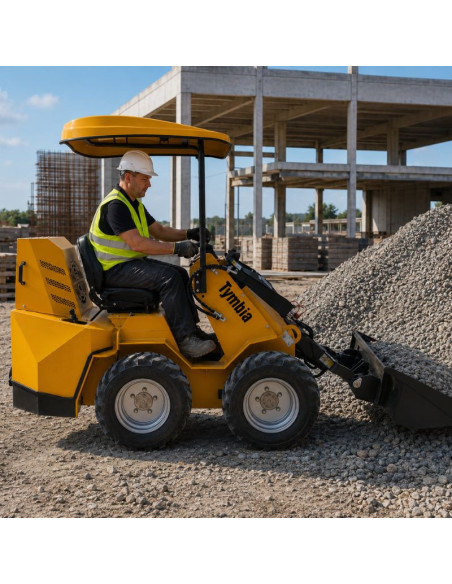

• Construction Light: Materials Transportation, Land Leveling
• Agriculture: Loading hay, manure, fertilizer
• Gardening and Landscaping: Plantation, Pruning, Earth Movement
• Urban Maintenance: Cleaning Streets, Canals, Sewer
• Industry: Waste handling, palletization in small stores

Why choose Tymbia's Ty480Z minicader?

• Greater efficiency in reduced spaces thanks to the SKID STEER system
• Reliable performance with high quality Briggs & Stratton engine
• Optimal cost-benefit for medium-sized projects
• Design designed in the operator: comfort, safety and ease of use
• Global technical support and parts available around the world

Contact us today to obtain a budget, demonstration or technical advice.

Available with multiple accessories and customization options.

Ideal for companies construction, agriculture, gardening and maintenance.

Tymbia - Construction Machinery Light and high efficiency

** They must have their own discharge means.
