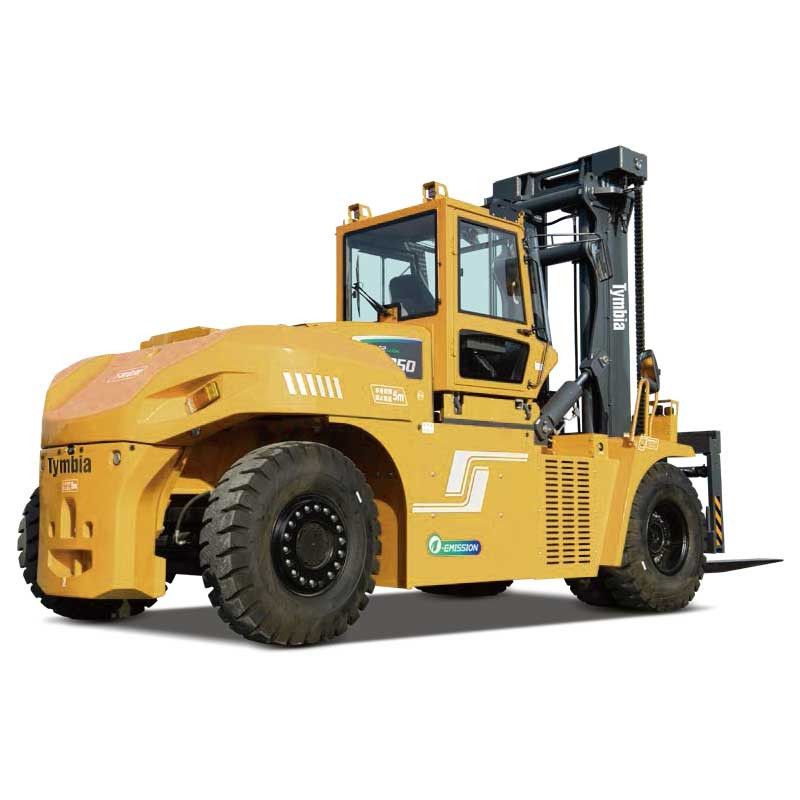

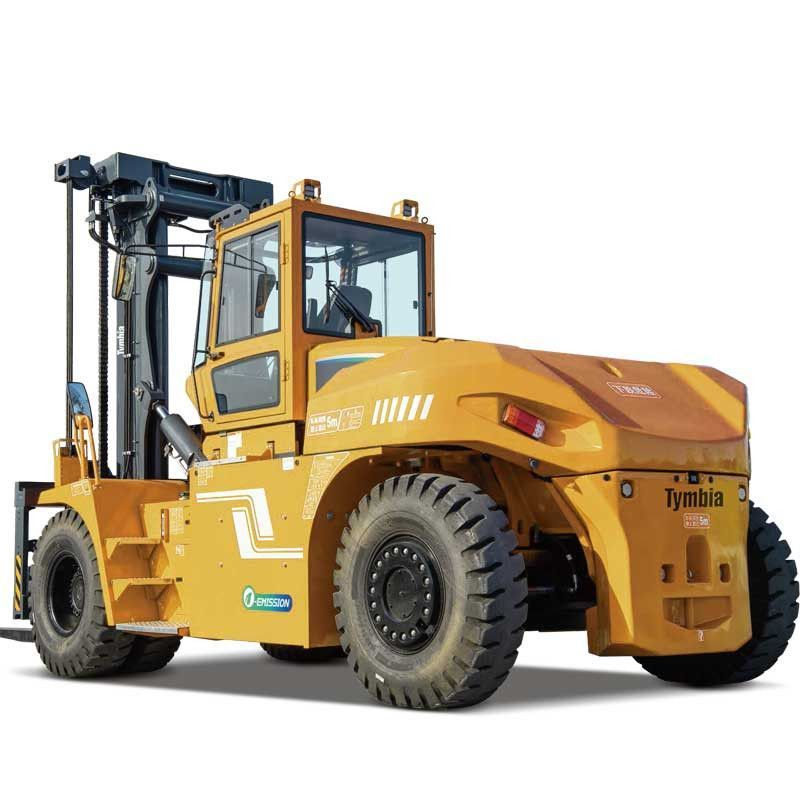

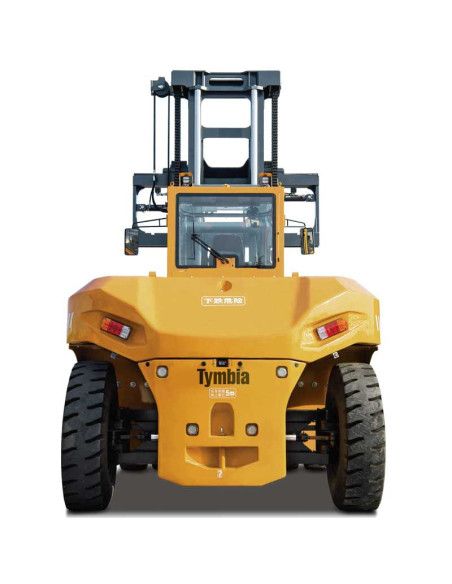

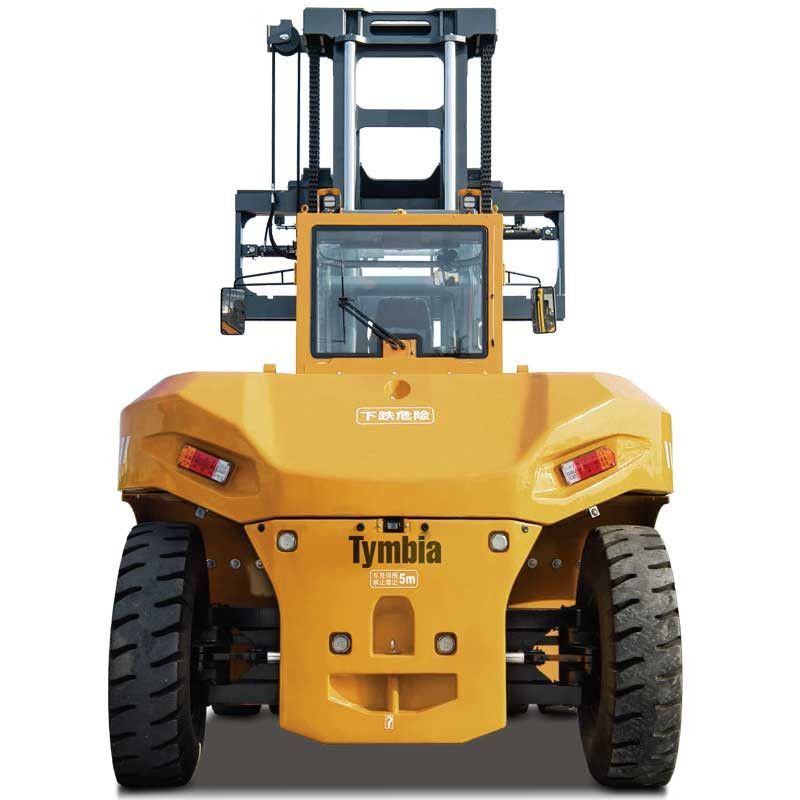

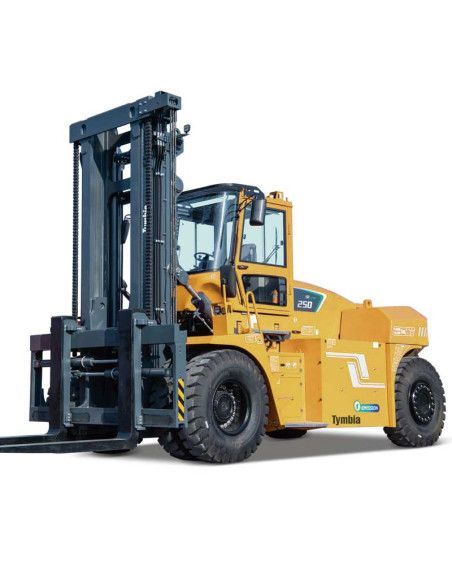

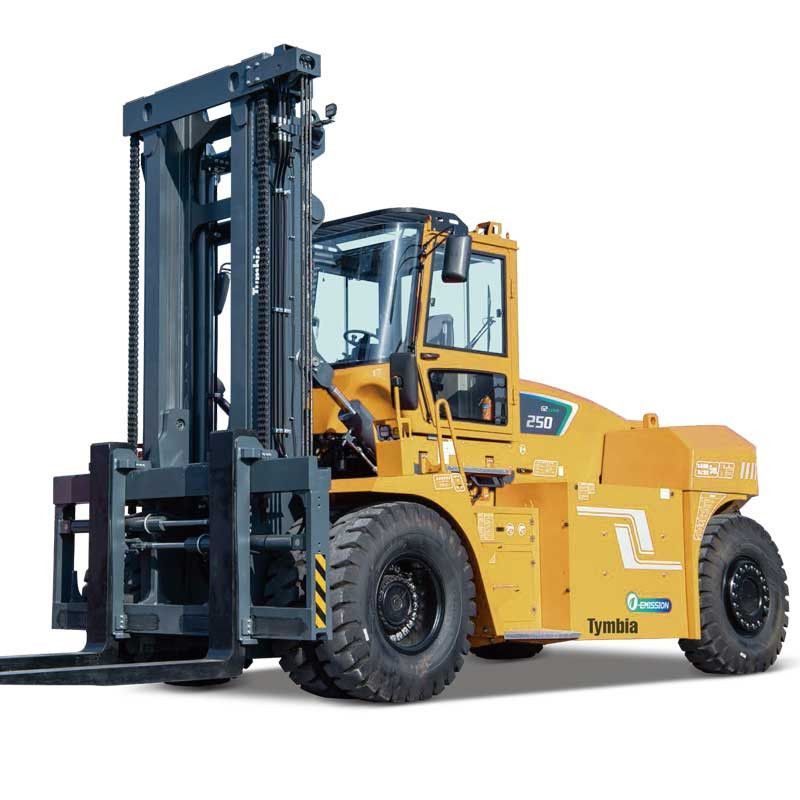

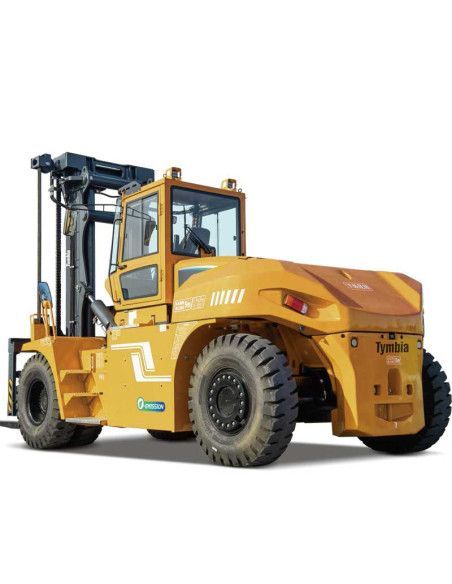

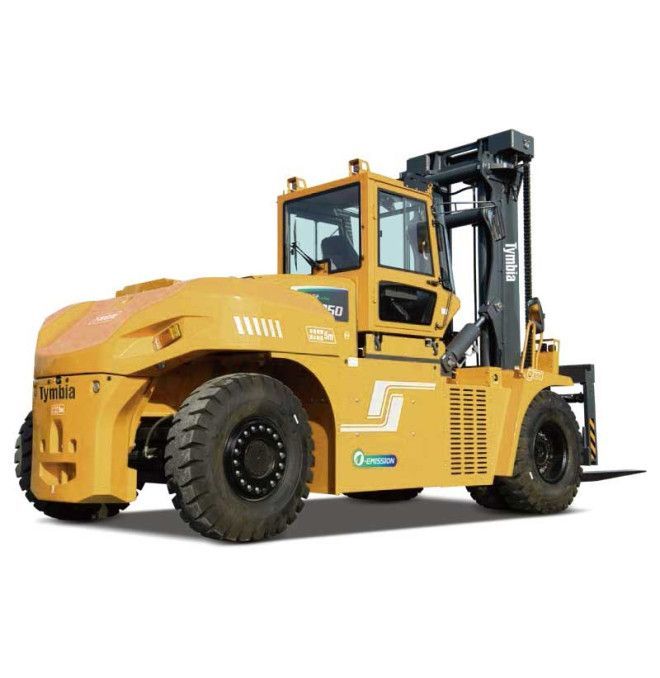

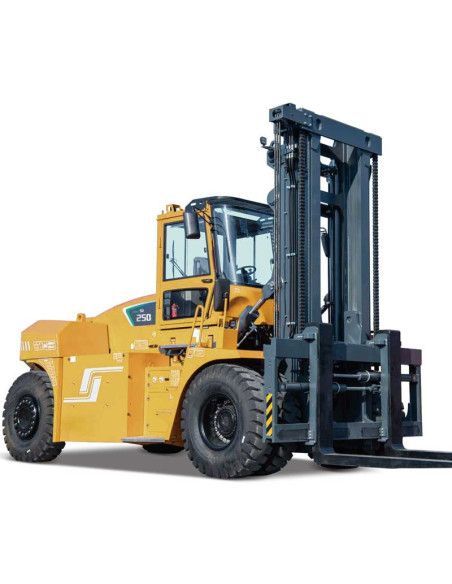

Forklift Lithium 20-35ton. G2 series

Forklift Lithium electric Tymbia G2 Series 20-35 tons - 100% electric industrial power

The Tymbia G2 Series 20-35T Lithium Trolley for Large Loads is the most advanced model of the G2 range, designed for high performance industrial applications where maximum power, durability and sustainability are required. Ideal for ports, foundries, steel plants, logging and massive distribution centers, this elevator combines cutting-edge technology, zero emissions and low operating cost, thanks to its advanced 608V Lithium Lithium Battery System.

With a load capacity of 20 to 35 tons, this forklift It offers comparable performance to the most powerful diesel models, but with less noise, reduced maintenance and total compliance with environmental regulations. It is the ideal choice for companies that seek to unbalance their operations without sacrificing productivity or robustness.

Main features:

• High voltage lithium lithium battery (608V):
  • Long life cycle technology, high thermal stability and higher safety
  • Capacity options: 210 kWh (standard) or 315 kWh (optional)
  • Compatible with fast load for multiple shifts without dead time
• High power traction motor (171 kW):
  • Permanent magnet synchronous motor with water cooling (IP67)
  • Pair of instant start and accurate response in all kinds of terrains
• High efficiency ZF transmission:
  • Intelligent changes without impact
  • Integrated Fault Diagnostic Technology
  • High efficiency and low operational noise
• Humid drive shaft (Wet Drive Axle):
  • Brakes submerged in oil, maintenance-free
  • Resistant to dust, water and high temperatures
  • Ideal for aggressive environments (smelters, exteriors, high humidity)
• Wet brakes (Wet Brake):
  • Fully sealed braking system, protected against contaminants
  • Greater durability and safety in extreme conditions

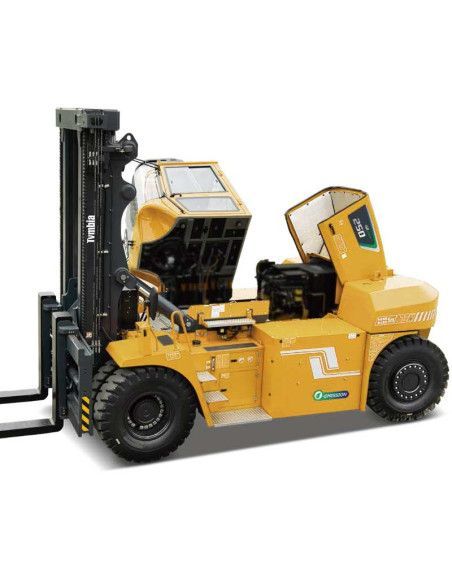

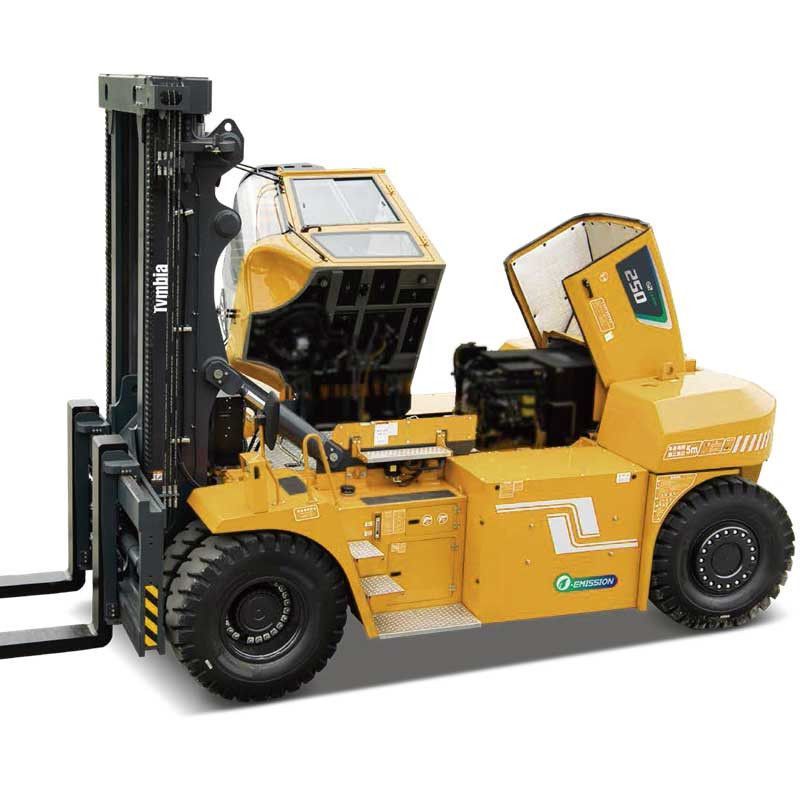

• Electric tilting cabin:
  • Tilt up to 60 ° to the right
  • Quick access to the traction system, battery and key components
  • Hydraulic system with electric assistance for easy maintenance
• High visibility mast:
  • Patented design with open structure
  • Greater Front and Lateral Vision Field
  • Damping the descent for greater security

Battery technology and intelligent management

• Intelligent Thermal Management System :: Check in real time the temperature of the battery, engine and electronics, optimizing performance in warm or cold climates.
• Intelligent fire extinction system (standard): detects overheating and automatically acts, guaranteeing maximum security in industrial environments.
• Fast cargo port: allows recharge in industrial stations, ideal for 24/7 operations.
• Vertical distribution of the battery: It facilitates the assembly, disassembly and balance of the vehicle.

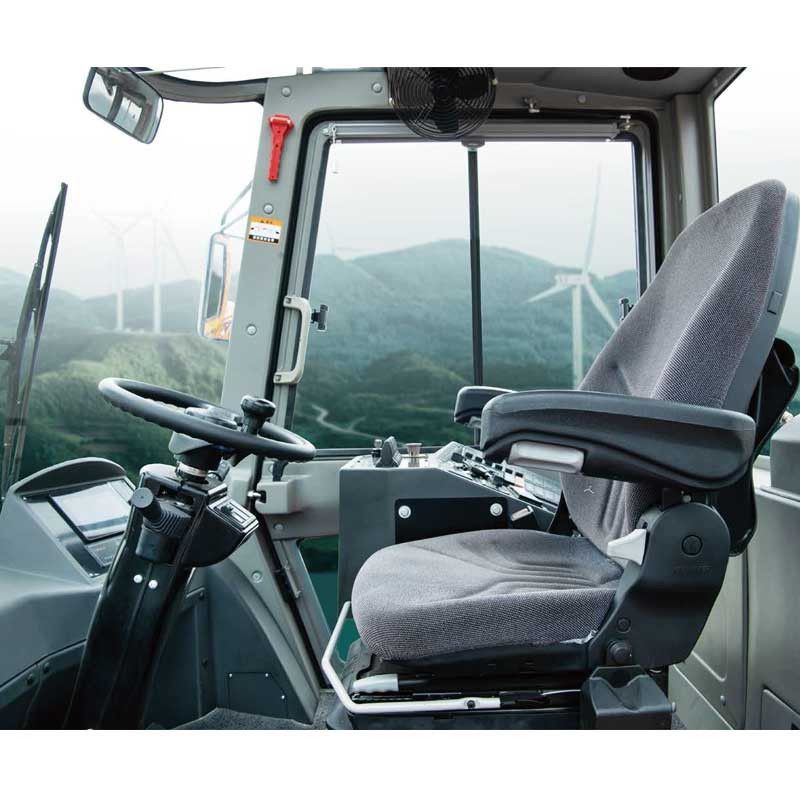

Comfort and operator ergonomics

• 360 ° cabin with panoramic view:
  • Curved windshield of great angle
  • 4 lateral crystals + large back glass
  • Rear view system with radar and camera (optional)

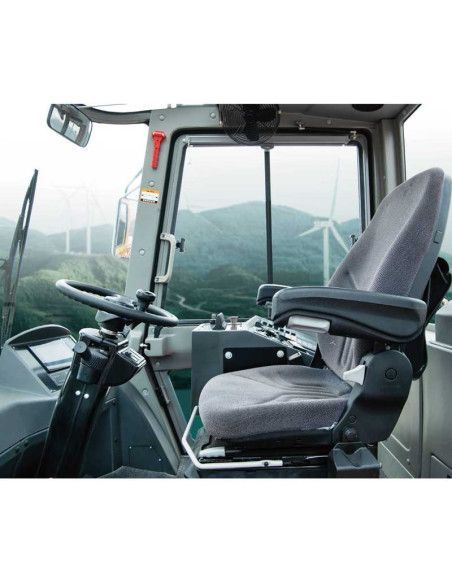

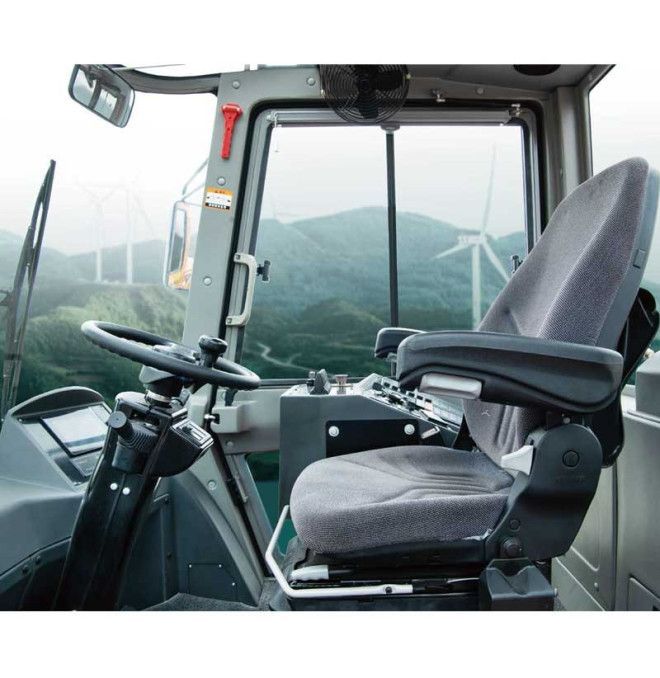

• Fully suspension seat: Adjustable in height, position and damping to reduce fatigue.
• Adjustable steering wheel in height and angle: adapted to different types of operators.

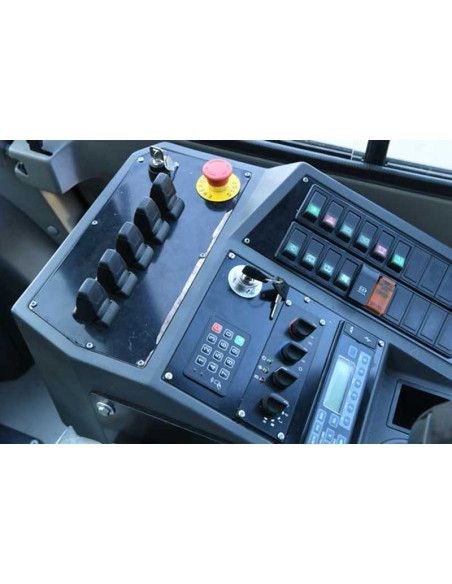

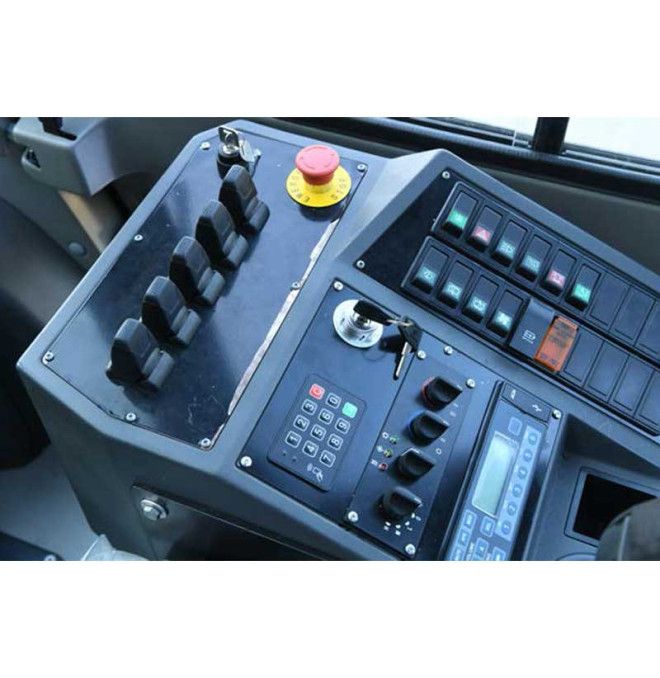

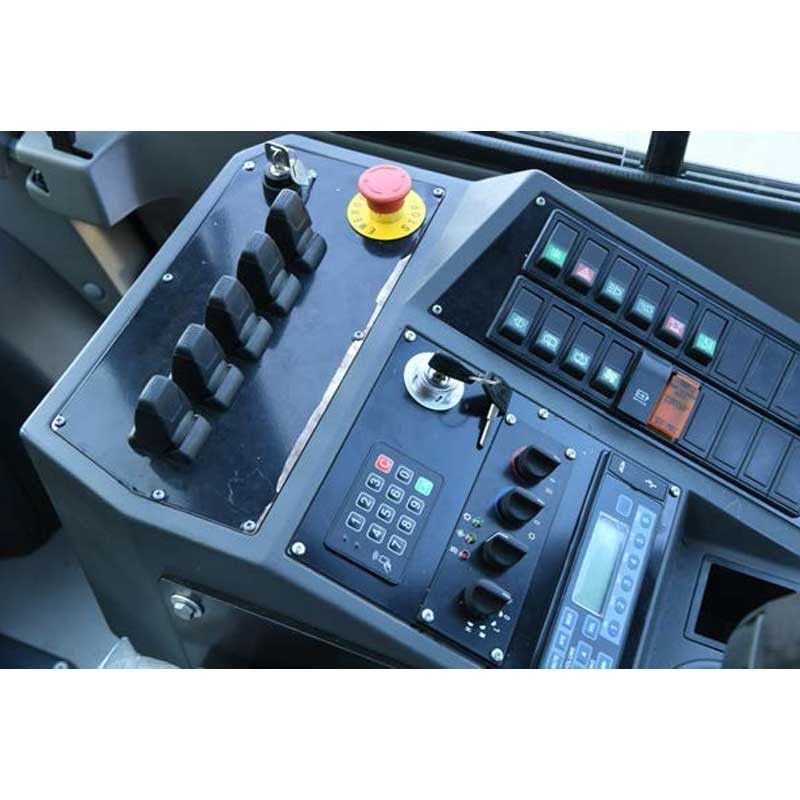

• Aeronautical control lever: Ergonomic design with proportional control for precise movements.
• High efficiency air conditioning: High performance electrical system for sealed cabin.
• Step of non-slip access: Fan-shaped platform with double safe side access.

Advanced security systems

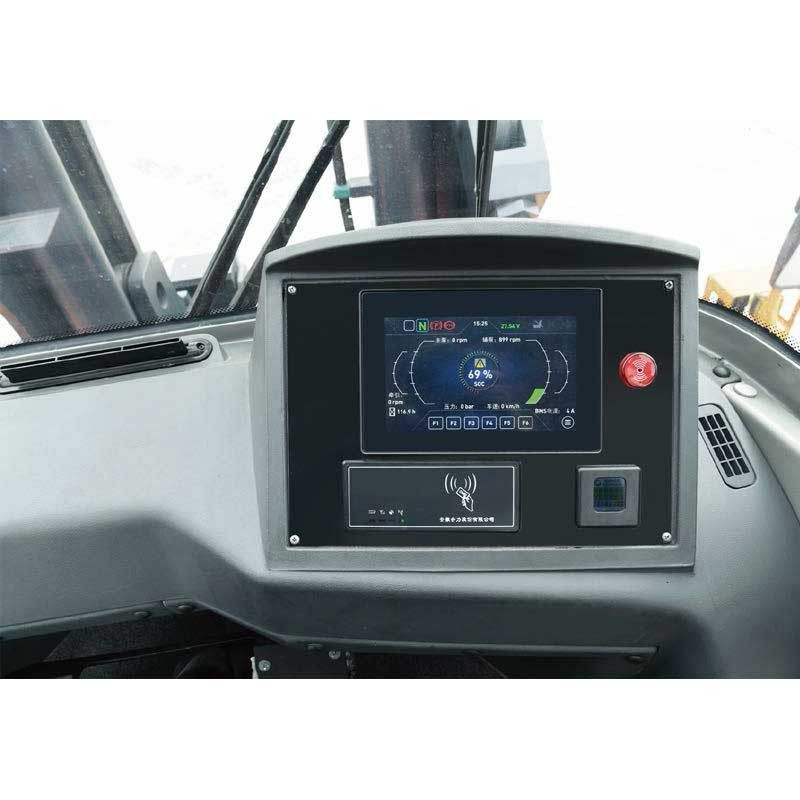

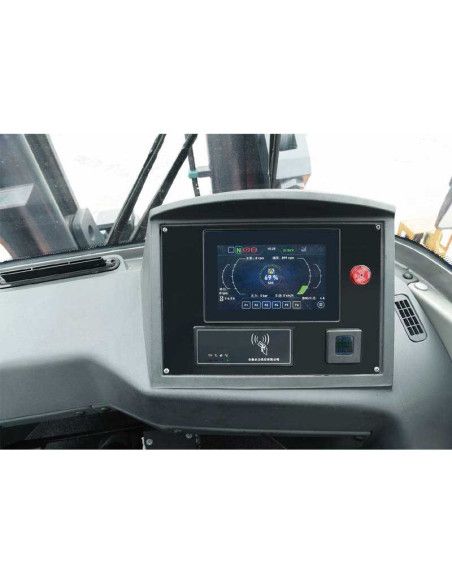

• Intelligent digital monitoring system: LCD screen showing battery status, temperature, errors, horrotometer and consumption.
• Proportional braking of quadruple pump: Variable hydraulic system that adapts the flow according to the load, saving energy and improving precision.
• Height detection and mast angle: automatically control speed and stability when raising heavy loads.
• Returning radar with visual and sound alert: increases security in crowded areas.
• Lock by identification (FICS): Start system by key or card, prevents unauthorized use.
• Automatic stop waiting: Save energy when the vehicle is inactive.
• Automatic locking valves (Tilt & Lift Oil Circuit): Avoid unwanted mast movements and forks when stopping the engine.

Available options and accessories

• System of Weighing (Weighing System): Measures the weight of the load in real time
• Hydraulic forks positioner: Automatic width adjustment
• Side displacer: Move the load without moving the vehicle
• Extension of forks: For long or voluminous loads
• Hook Crane (Crane Jib): Ideal for hanging loads
• SLINGS: Handling steel packages, tubes or rods
• Solid tires: for use on abrasive surfaces
• Tire pressure monitoring: punctural alert or wear
• Smart Fleet Management (Optional): Geolocation, Remote Diagnostics, Use Reports

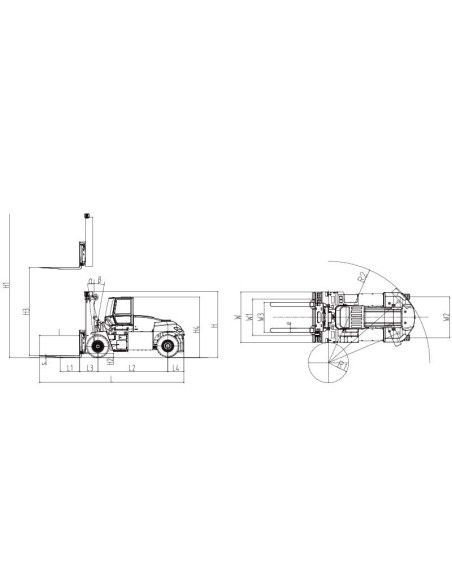

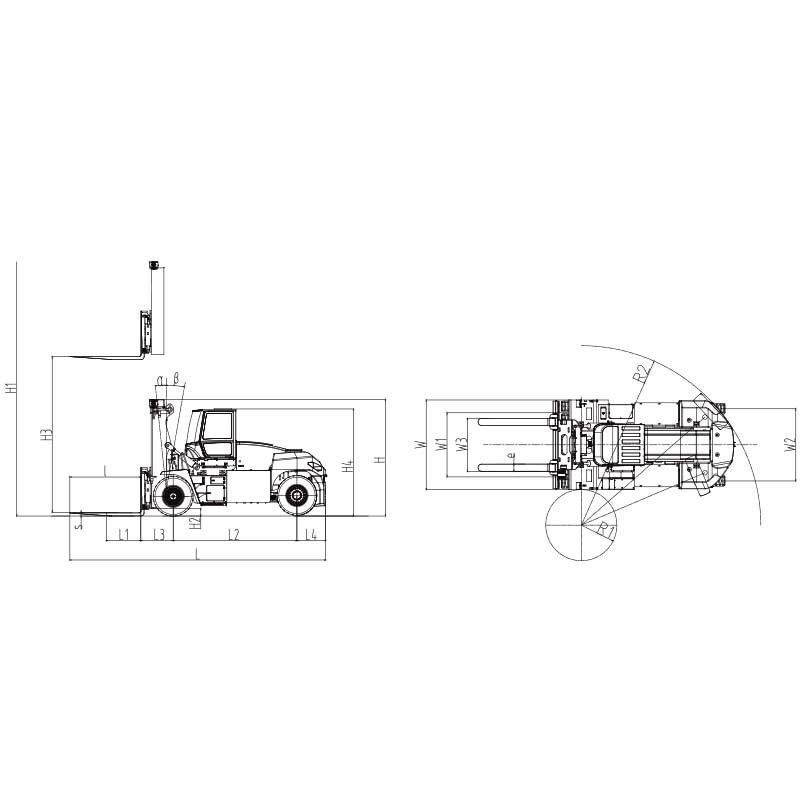

Dimensions and key performance (Example model: CPD350-G2ZLI-06)

• Nominal capacity: 35,000 kg
• Loading center: 1,200 mm
• Speed (loaded / free): 24/26 km / h
• Maximum pending (loaded / free): 15% / 25%
• Radio of rotation (exterior): 6,400 mm
• Total length (with forks): 9.242 mm
• Total width: 3,460 mm
• Total height (extended mast): 6,120 mm
• Lifting height: 4,000 mm
• Type of tires: 16.00-25-36pr (front and rear)
• Total weight: 45,700 kg
• Degree of protection (engine): IP67

Smart Fleet Management System: Smart fleet management system that allows:

• Real-time geolocation
• Remote diagnosis of failures
• Programmed maintenance alerts
• Statistical reports of use
• Operator identification control
• Weight management (optional)

Ideal for companies with big fleets looking for Optimize costs, increase productivity and improve safety.

Why choose the forklift Lithium Tymbia G2 Series 20-35T?

• Zero emissions and low environmental impact
• 608V lithium battery with extended lifespan and fast charge
• Simplified maintenance thanks to tilting cabin and direct access
• Maximum security with fire system, radar and digital control
• Robust industrial design for extreme environments
• Superior energy efficiency with 171 kW motors and ZF system

Contact us today to obtain a budget, demonstration or technical advice.

Available with multiple mast configurations, tires and accessories.

Ideal for ports, steps, timber, cement and logistics terminals. Tymbia - Industrial Equipment 100% electric and sustainable
