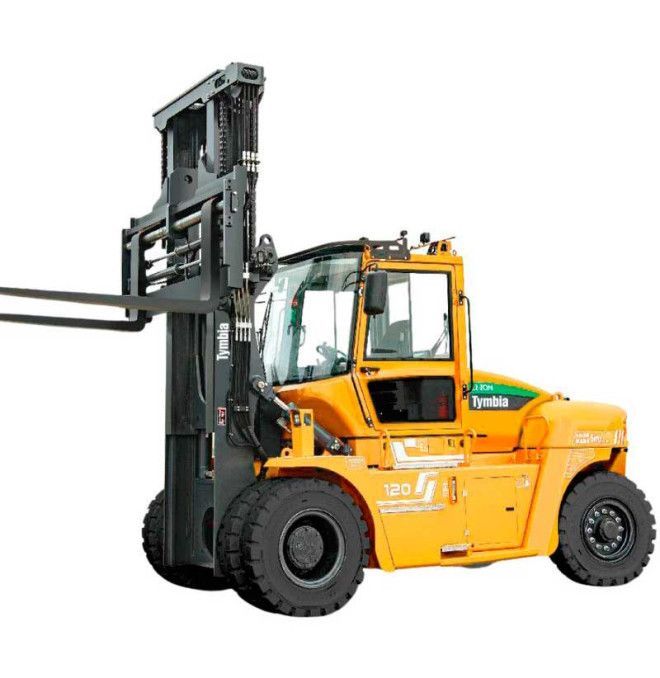

Forklift Lithium 12-18ton. G series

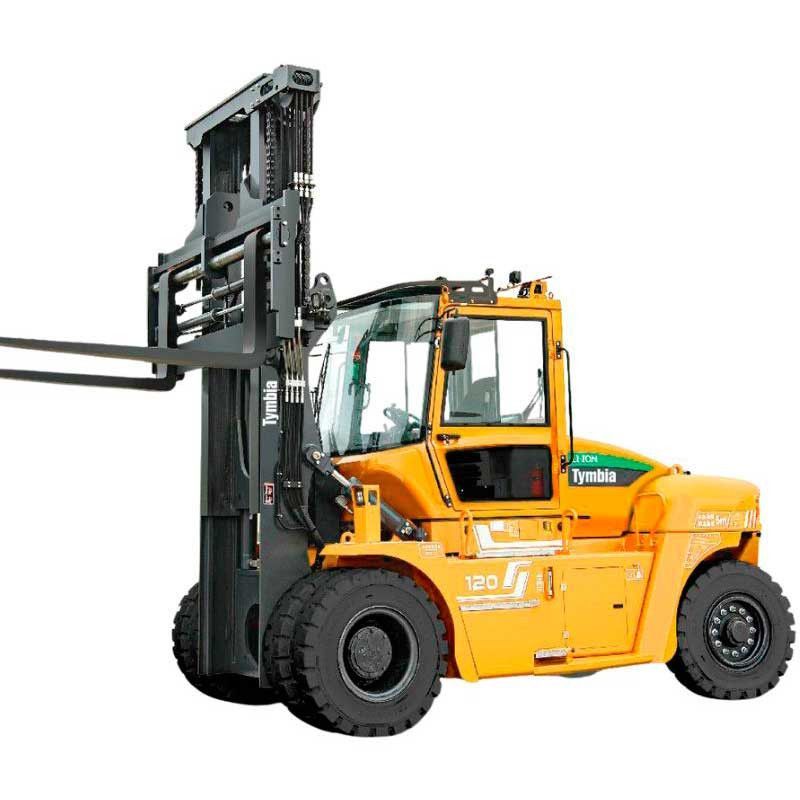

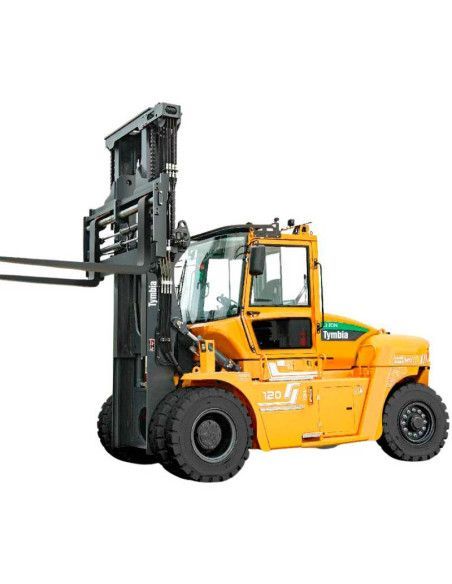

Forklift Lithium electric Tymbia G Series 12-18 tons - industrial power 100% lithium

The forklift Electric Tymbia G Series 12-18T Redefines the standard of heavy industrial lifts. Designed for high demand environments such as ports, foundries, metallurgical plants and distribution centers, this model combines avant-garde technology, zero emissions and maximum energy efficiency, thanks to its advanced high voltage lithium battery system (531.3v / 302Ah).

With a load capacity of 12 to 18 tonnes, this lithium truck offers a performance comparable to diesel models, but with lower operating cost, reduced maintenance and total compliance with environmental regulations. It is the ideal choice for companies that seek to unbalance their operations without sacrificing power or productivity.

Main features:

• High voltage lithium battery (531.3v / 302Ah):
  • ENEROC OR HUAWEI Technology (according to model)
  • Full load in 1-2 hours
  • Extended lifespan, high energy density and no memory effect
  • Integrated thermal management system for secure operation in extreme environments
• Fast cargo system (60KW / 750V):
  • Independent fast loading interface
  • Compatible with industrial load stations
  • Ideal for multiple shifts without dead times
• High power traction engine:
  • Permanent magnet synchronous engine with Hair-Pin technology
  • Power: 90 kW (180 kW peak)
  • Water refrigeration (IP67) for continuous operation
  • High starter torque and instant response
• Transmission ZF 3WG131 with TIPTRONIC:
  • Intelligent changes without impact
  • Integrated Fault Diagnostic Technology
  • High efficiency and low noise
• Humid drive shaft (Wet Drive Axle):
  • Brakes submerged in oil, maintenance-free
  • Resistant to dust, water and high temperatures
  • Ideal for aggressive environments (smelters, exteriors, high humidity)

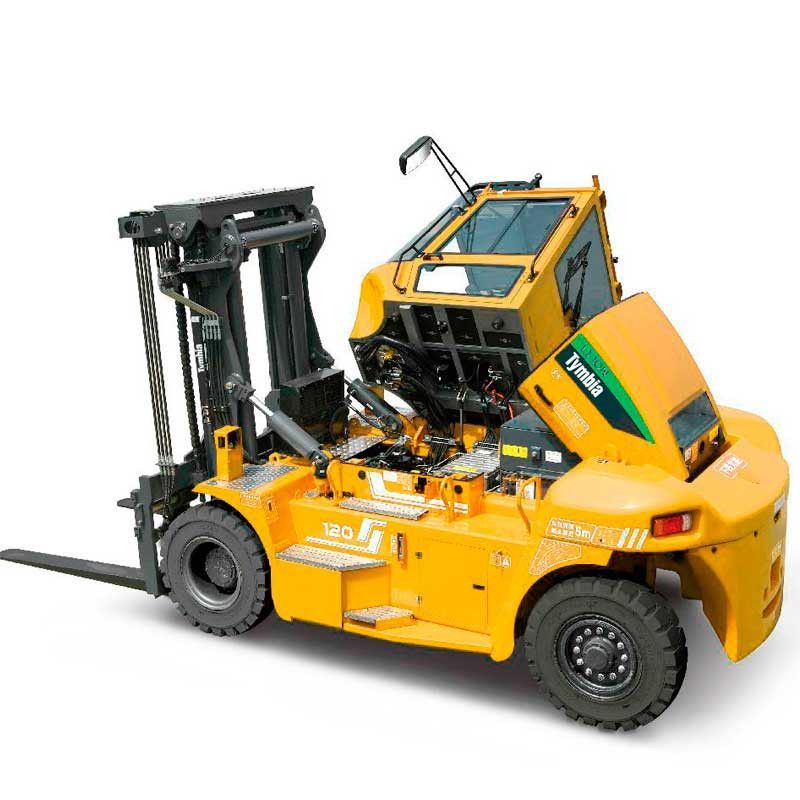

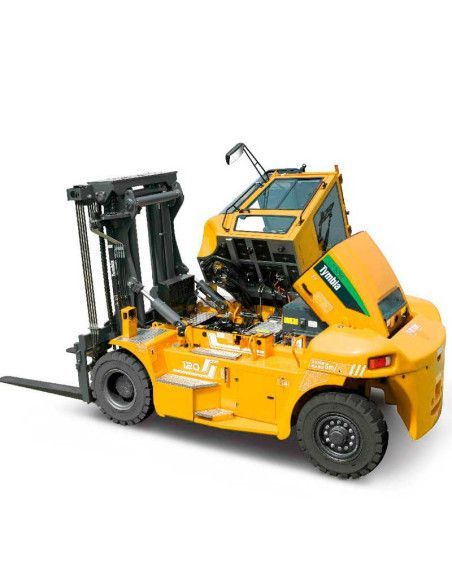

• Electric tilting cabin:
  • Tilt up to 60 ° to the right
  • Quick access to the traction system, battery and key components
  • Hydraulic system with electric assistance
• High visibility mast:
  • Patented design with open structure
  • Greater Front and Lateral Vision Field
  • Damping the descent for greater security

Battery technology and intelligent management

• Vertical distribution of the battery: It facilitates the assembly, disassembly and balance of the vehicle.
• Intelligent fire extinction system (standard): detects overheating and automatically acts, guaranteeing maximum security in industrial environments.

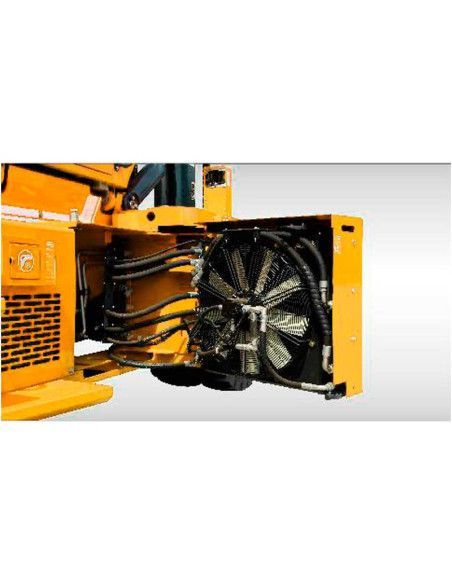

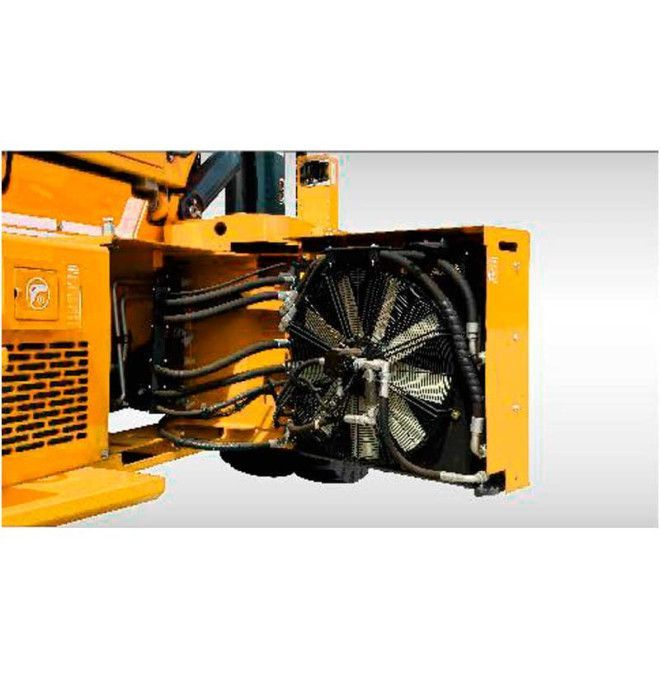

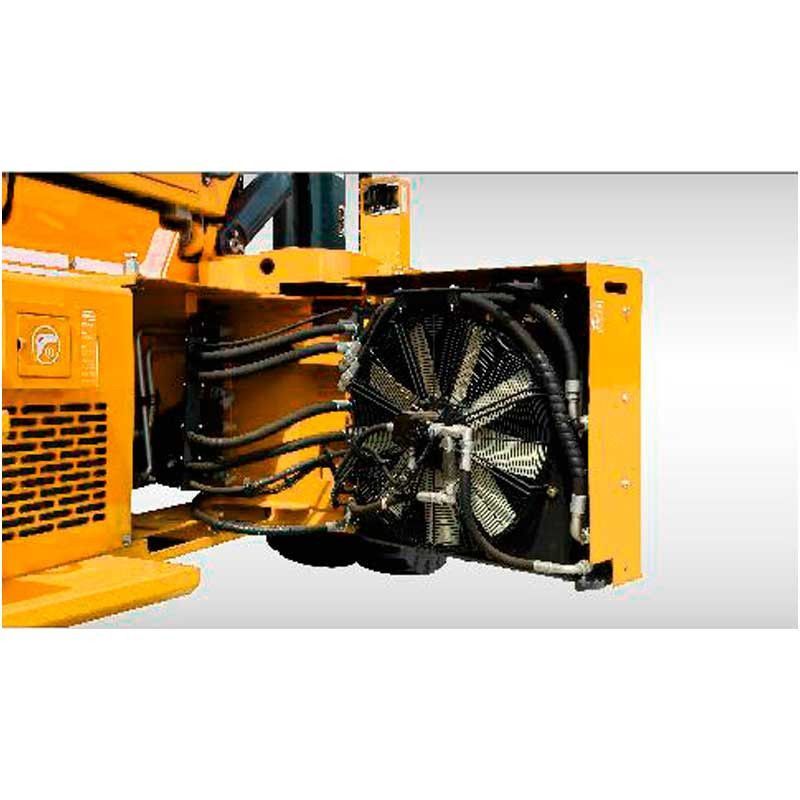

• Shared detection port: The wiring of the distribution box and the rotary radiator share an inspection space, speeding up maintenance.
• Intelligent thermal management system: Control in real time the temperature of the battery, engine and electronics, optimizing performance in warm or cold climates.

Comfort and operator ergonomics

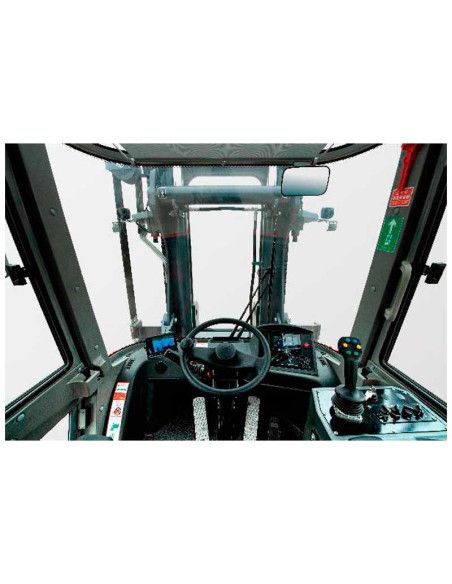

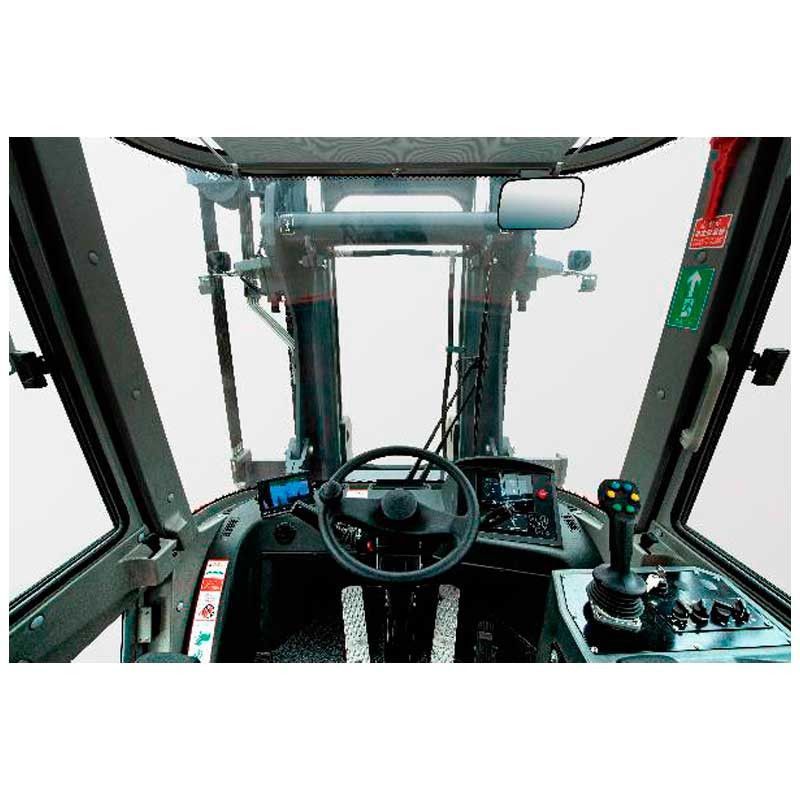

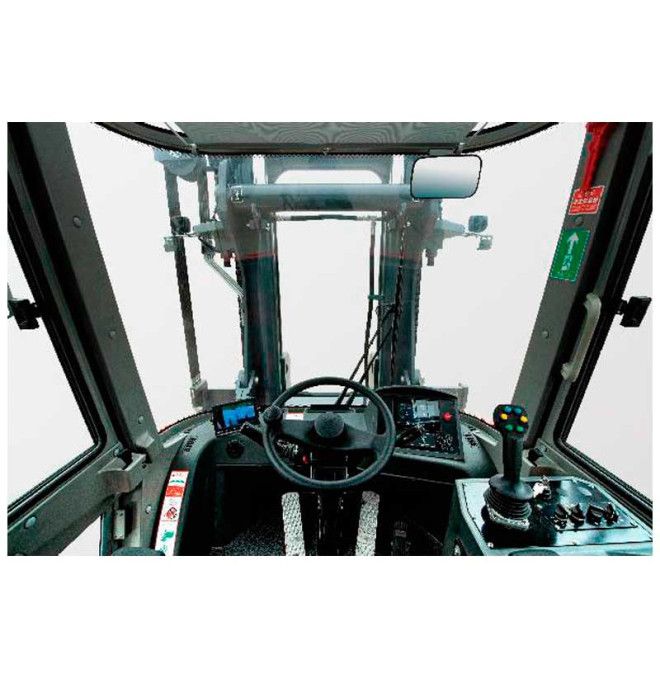

• 360 ° cabin with panoramic view:
  • Curved windshield of great angle
  • 4 lateral crystals + large back glass
  • Rear view system with radar and camera (optional)

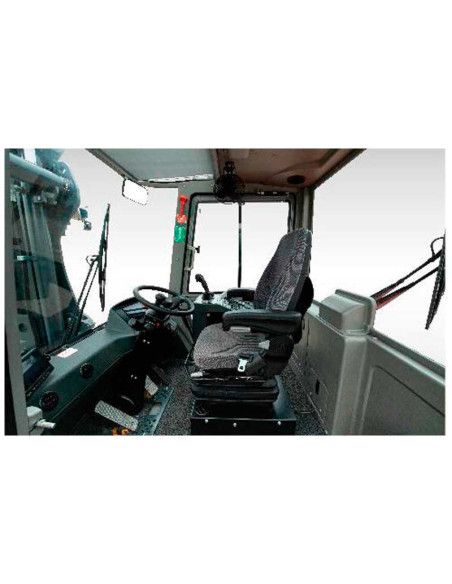

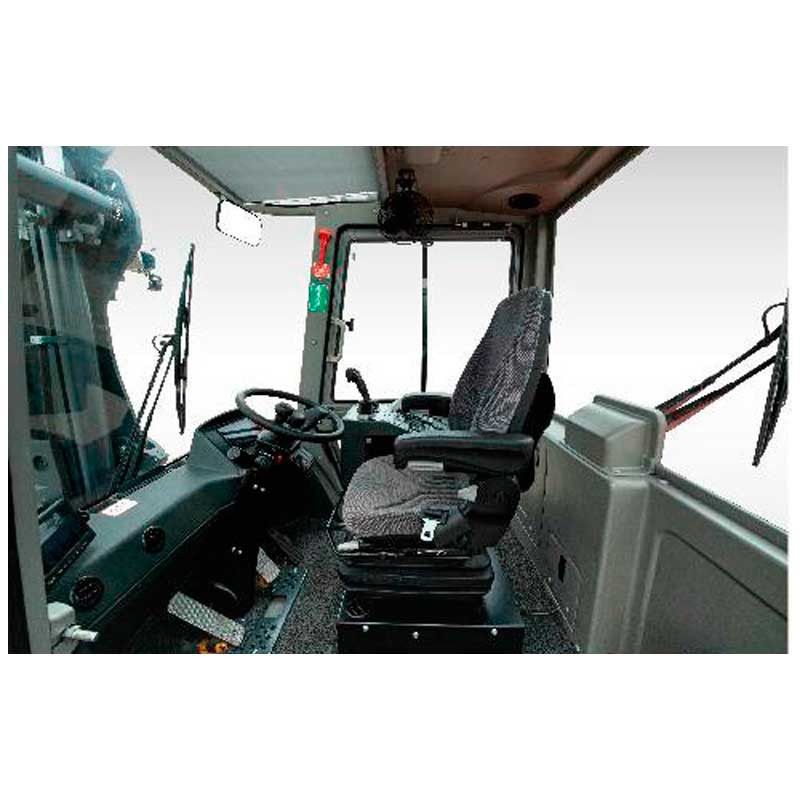

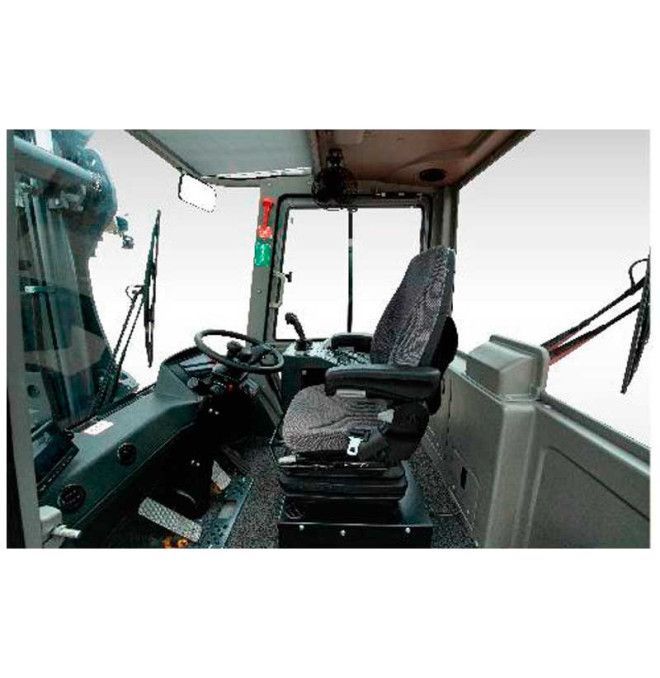

• Fully suspension seat: Adjustable in height, position and damping to reduce fatigue.
• Adjustable steering wheel in height and angle: adapted to different types of operators.
• Aeronautical control lever: Ergonomic design with proportional control for precise movements.
• High efficiency air conditioning: High performance electrical system for sealed cabin.
• Step of non-slip access: Fan-shaped platform with double safe side access.

Advanced security systems

• Intelligent digital monitoring system: LCD screen showing battery status, temperature, errors, horrotometer and consumption.
• Proportional braking of quadruple pump: Variable hydraulic system that adapts the flow according to the load, saving energy and improving precision.
• Height detection and mast angle: automatically control speed and stability when raising heavy loads.
• Returning radar with visual and sound alert: increases security in crowded areas.
• Lock by identification (FICS): Start system by key or card, prevents unauthorized use.
• Automatic stop waiting: Save energy when the vehicle is inactive.

Available options and accessories

• System of Weighing (Weighing System): Measures the weight of the load in real time
• Hydraulic forks positioner: Automatic width adjustment
• Side displacer: Move the load without moving the vehicle
• Extension of forks: For long or voluminous loads
• Hook Crane (Crane Jib): Ideal for hanging loads
• SLINGS: Handling steel packages, tubes or rods
• Solid tires: for use on abrasive surfaces
• Tire pressure monitoring: punctural alert or wear
• Smart Fleet Management (Optional): Geolocation, Remote Diagnostics, Use Reports

Dimensions and key performance (model Example: CPD180-GA7ZLI-06)

• Nominal capacity: 18,000 kg
• Loading center: 600 mm
• Speed (loaded / without load): 17/19 km / h
• Maximum pending (loaded / free): 20% / 25%
• Radio of rotation (exterior): 4,500 mm
• Total length: 6.705 mm
• Total width: 2,560 mm
• Total height: 3.365 mm
• Lifting height: 3,000 mm
• Type of tires: Tires (standard), Solid (optional)
• Vehicle weight (without battery): 18,000 kg approx.
• Degree of protection (engine): IP67

Smart Fleet Management System: Smart fleet management system that allows:

• Real-time geolocation
• Remote diagnosis of failures
• Programmed maintenance alerts
• Statistical reports of use
• Operator identification control
• Weight management (optional)

Ideal for companies with large fleets that seek to optimize costs, increase productivity and improve safety.

Why choose the forklift of Lithium Tymbia G Series 12-18T?

• Zero emissions and low environmental impact
• Fast load in 1-2 hours, ideal for continuous shifts
• High voltage lithium battery with extended life
• Simplified maintenance thanks to tilting cabin and direct access
• Maximum security with fire system, radar and digital control
• Robust industrial design for extreme environments

Contact us today to obtain a budget, demonstration or technical advice.

Available with multiple mast configurations, tires and accessories.

Ideal for ports, steps, timber, cement and logistics terminals. Tymbia - Industrial Equipment 100% electric and sustainable
