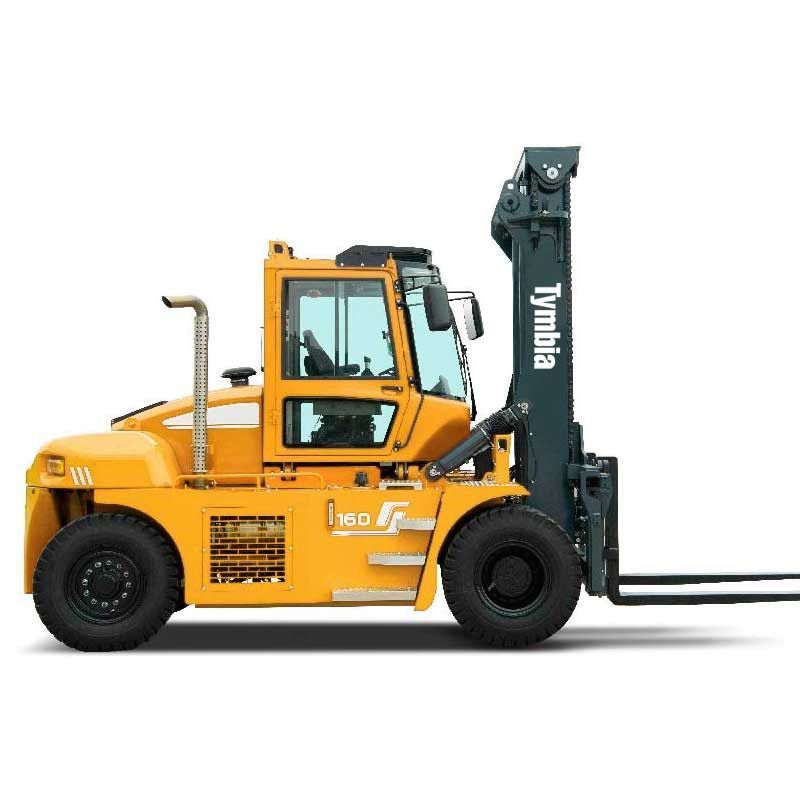

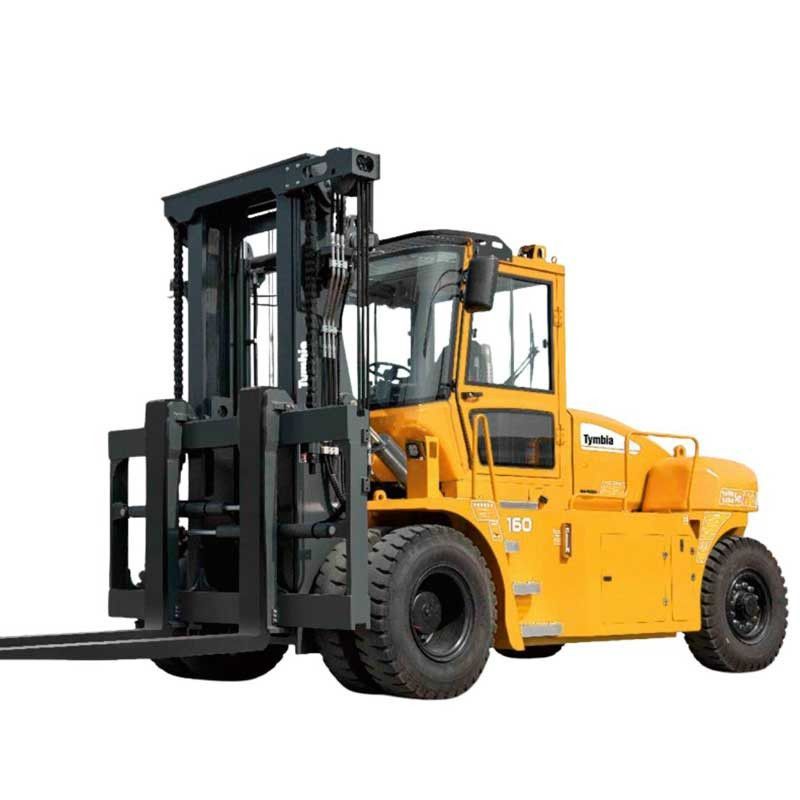

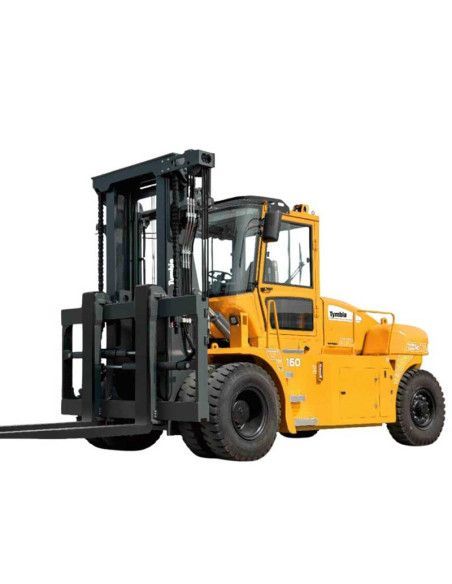

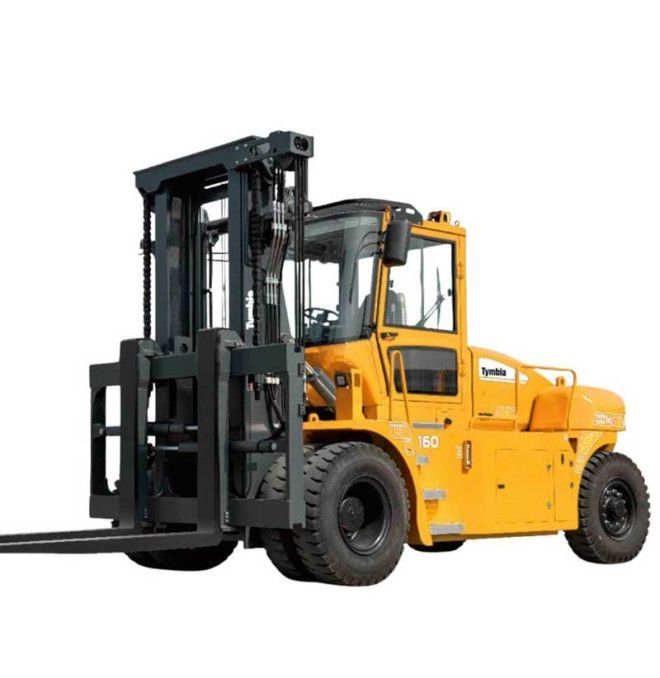

Forklift Diesel 12-16ton. G series

Forklift Diesel Tymbia G Series 12-16 tons - Industrial power with cutting-edge technology

The forklift Tymbia 12-16T is a robust and high-performance solution designed for demanding industrial environments.

Ideal for handling heavy loads in ports, foundries, steel plants, logistics warehouses and container terminals, this model stands out for its reinforced structure, energy efficiency, easy maintenance and operator comfort.

With Cummins Motors Euro Stage V / T4F / China Stage IV, this truck complies with the strictest standards of emissions, combining low environmental impact with high performance.

Main features:

• QSB6.7 CUMMINS MOTOR: 6-cylinder diesel engine, turbocharged, with powers of 129 kW (176 HP) and 149 kW (203 HP) according to model. Emission technology doc + dpf + SCR to meet Euro Stage V.
• High efficiency ZF transmission: soft and without impact changes, with intelligent change mode that optimizes fuel consumption and prolongs system life.
• Load capacity of 12 to 16 tons: Available in multiple configurations (12t, 13.5t, 14T, 15T, 16t) and loading centers of 600 mm, 900 mm or 1200 mm, adaptable to different types of load.

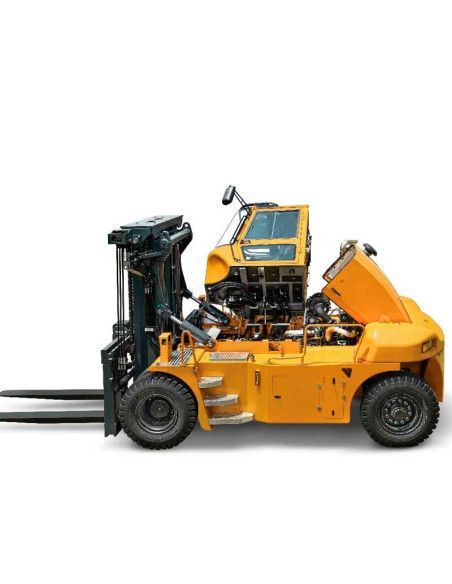

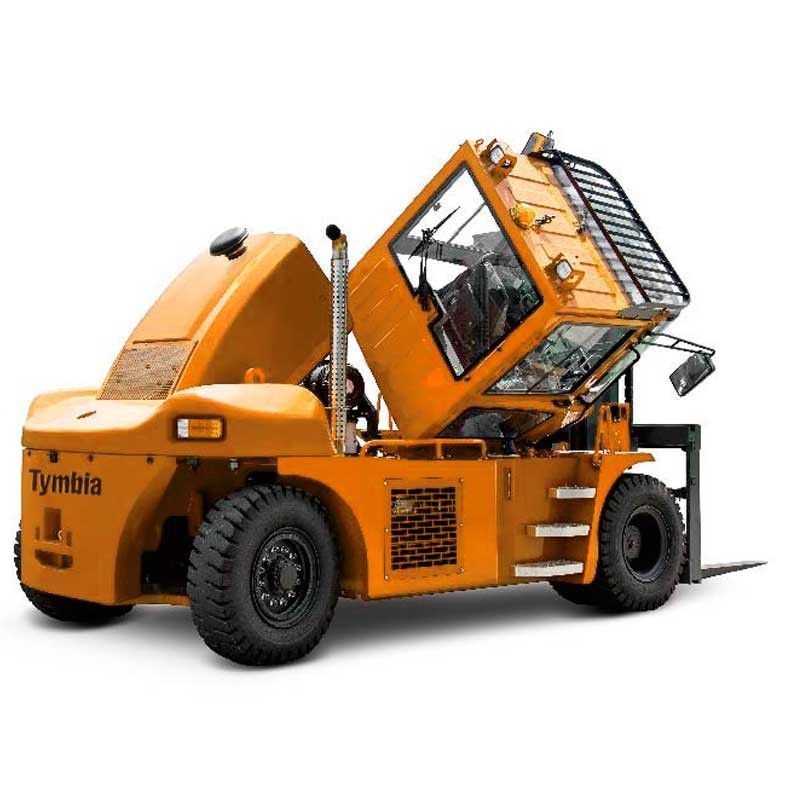

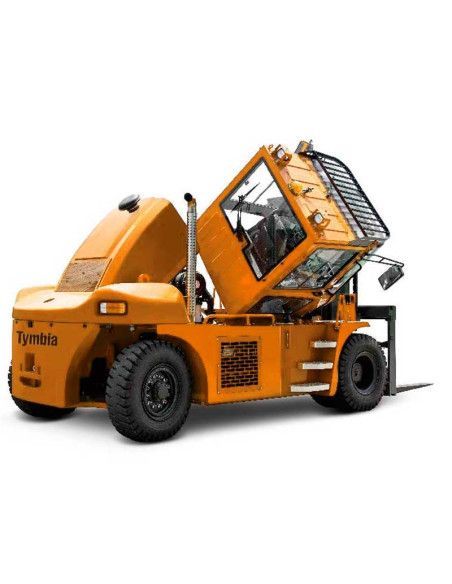

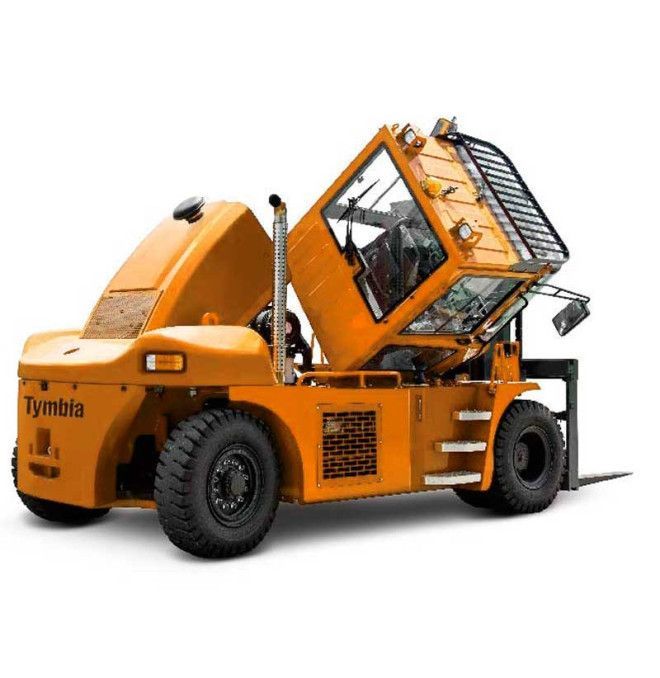

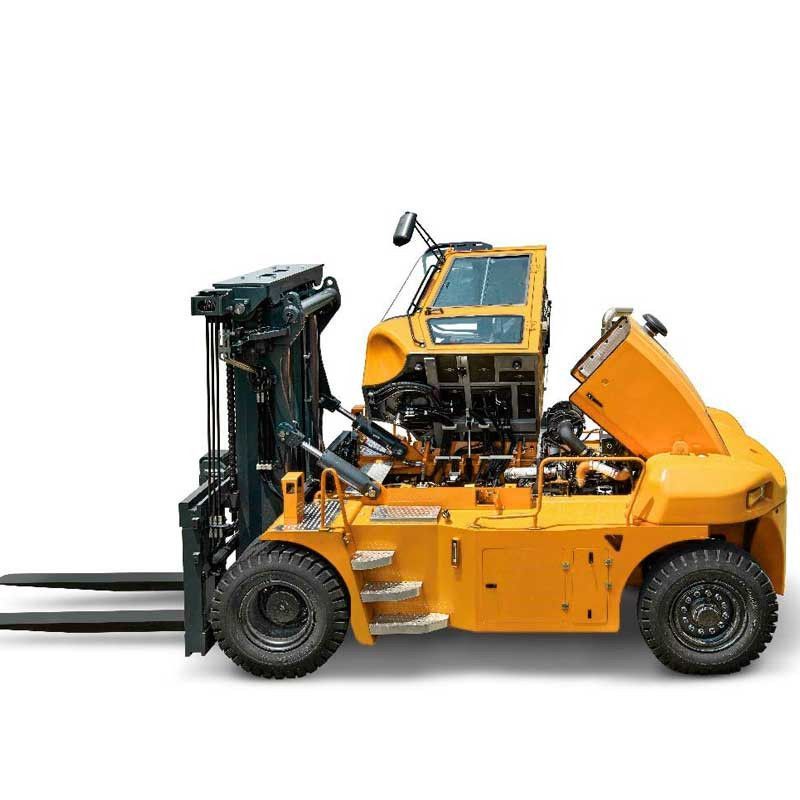

• Electric tilting cabin (Tiling Cab): automatic tilt system up to 60 °, which allows quick and easy access to motor and internal components, reducing maintenance times.
• Intelligent cooling system: composite radiator 4 in 1 with multi-blade axial fan and optimized air channel. Includes real-time sensitive thermal management that reduces energy consumption up to 10% and improves performance in extreme climates.
• Wet shaft brakes (Wet Type Drive Axle): Maintenance-free design, with protection against dust and water. Ideal for environments with high dirt, humidity or extreme temperatures.
• High strength structure: Chassis type Anti-Freeding Box reinforced with analysis, manufactured with high strength steel. Greater rigidity and durability against heavy loads and vibrations.

Easy and accessible maintenance

• Engine hood with great opening angle: allows direct access to the engine, filters and hydraulic system without tools.
• FAST ACCESS TO LIQUIDS: Filling and easy review system for:
  • Engine oil hydraulic oil
  • Coolant
  • Gasoline
  • Water and oil separator
• Improved wiring protection: Connectors and plugs with IP65 / IP67 degree of protection, dust resistant and water. Wiring with reinforced insulation (-40 ° C to 105 ° C).
• Molded steel suction hoses: greater safety and durability in the hydraulic system.

Comfort and safety of the operator

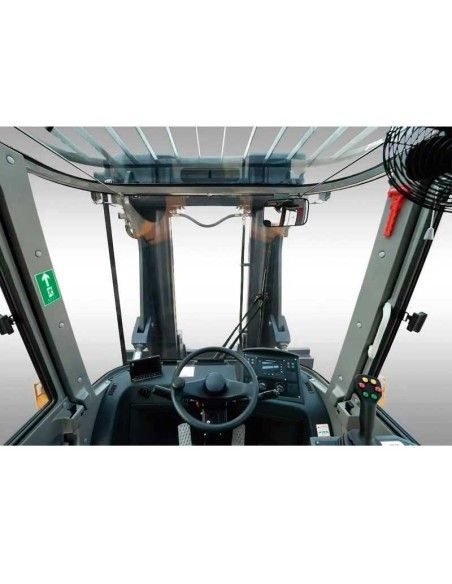

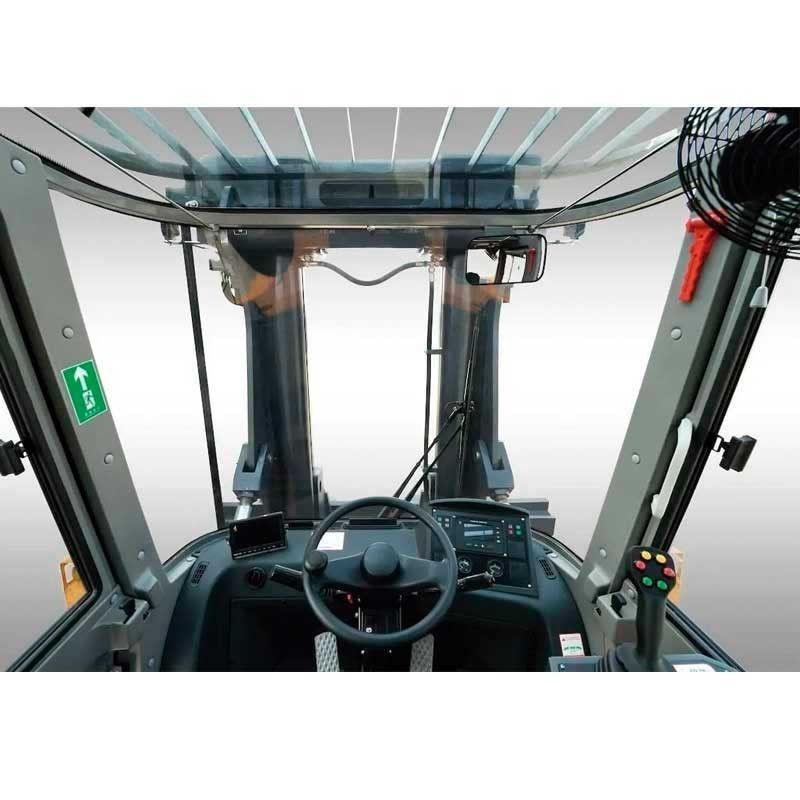

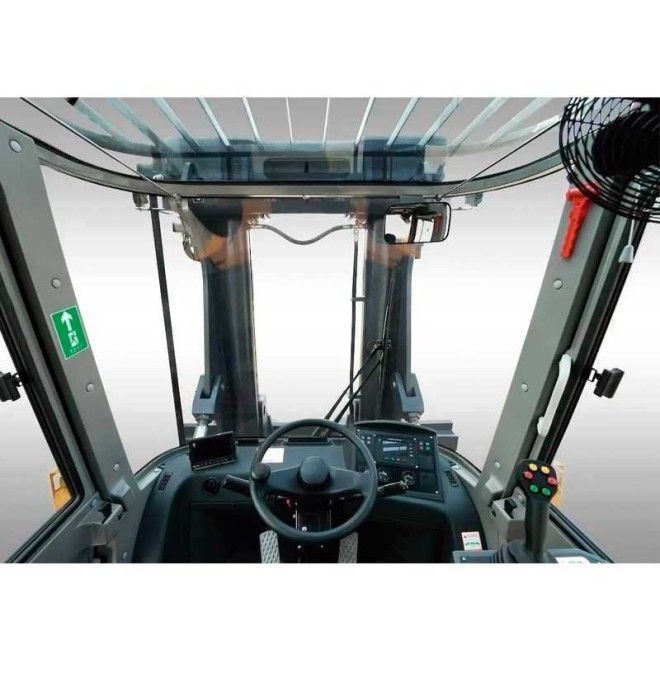

• 360 ° cabin with panoramic view:
  • Large angle curved windshield (10 ° more of frontal visibility)
  • Side windows of 4 panels
  • Rear glass of 1200x900 mm
  • Rear view system with camera and monitor (optional)
• Total suspension seat: adjustable ergonomic seat, with adjustable cushioning to reduce fatigue on long days.
• Adjustable steering wheel: adjustable in height and angle to adapt to any operator.
• Optimized pedals: ergonomic design that reduces effort and improves control.

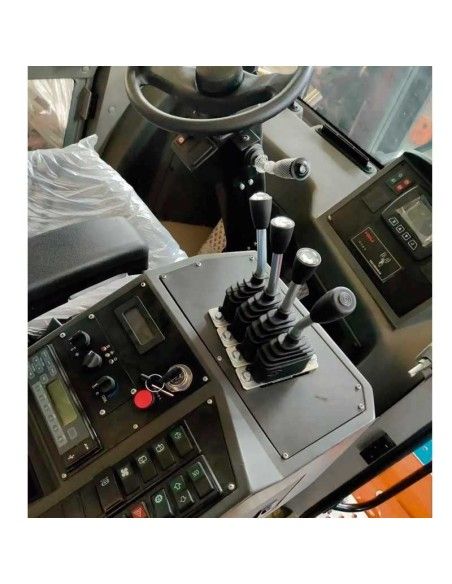

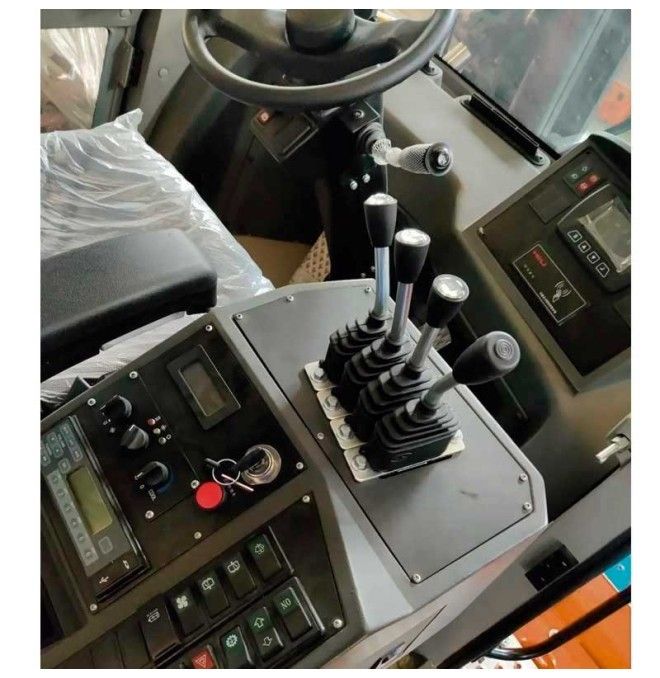

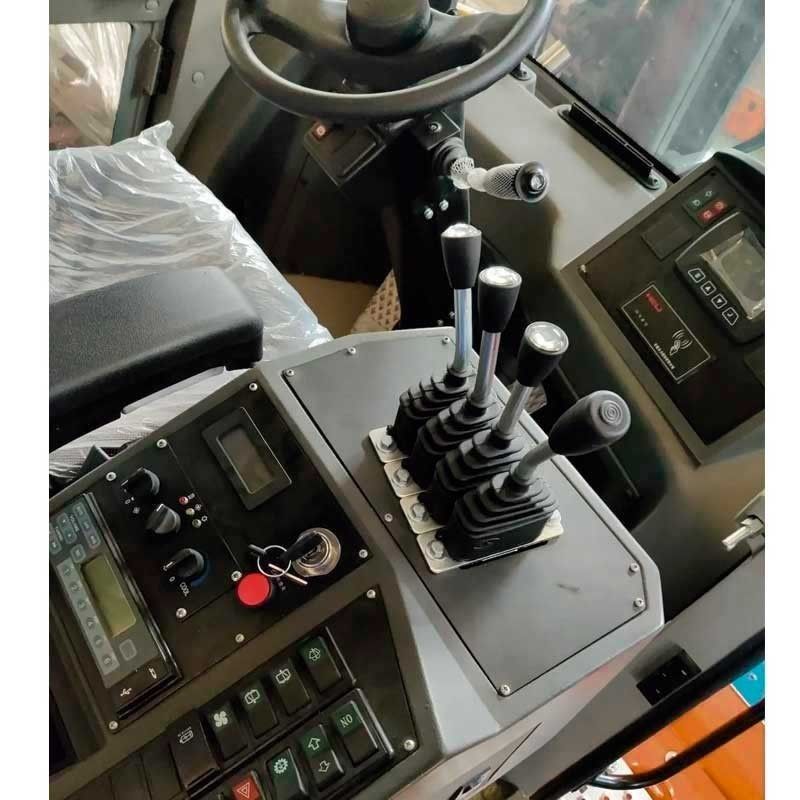

• Mobile instrument panel: moves along with the seat to maintain the best viewing position.
• Multichannel climate control: fully sealed cab with efficient ventilation system and air conditioning (optional).

Advanced security systems

• OPS (Operator Presence System):
  • Full vehicle OPS: Cut the power if the operator leaves the seat.
  • OPS of the mast: blocks the movement of the mast if there is no operator.
• Lifting, tilt and traction block: Integral security system that avoids unauthorized movements.
• Compact twist radius: from 2.20 m (interior), ideal for maneuvering in reduced spaces.
• Mast with lower damping: reduces the impact by lowering the load, protecting equipment and merchandise.
• Radar and recoil chamber (optional): Visual and sound alert by receiving, increasing security in crowded areas.

Configuration options and accessories

• Standard mast for normal conditions, high resistance to fatigue
• 2-stage mast (Full Free): Ideal for low doors, better visibility
• 3-stage mast (Full Free): higher lifting height and lower total retracted height
• System of weighing (Weighing System): Measures the weight of the load in real time
• Fork positioner: Fast hydraulic width adjustment
• Side displacer: Move the load without moving the vehicle
• Fork extension: for long load handling
• Arm for carpets (Carpet Boom): Ideal for steel rolls, paper or cable
• Hook Crane (CRANE JIB): Safe lift of hanging loads
• SLINGS: For loading in packages (rods, tubes, etc.)

Smart Fleet Management System: Intelligent Fleet Management System that includes:

• Real-time geolocation
• Remote monitoring
• Remote diagnosis
• Maintenance alerts
• Statistical reports
• Identification recognition (optional)
• Weight management (optional)

Ideal for companies that seek to optimize costs, prevent failures and increase productivity.

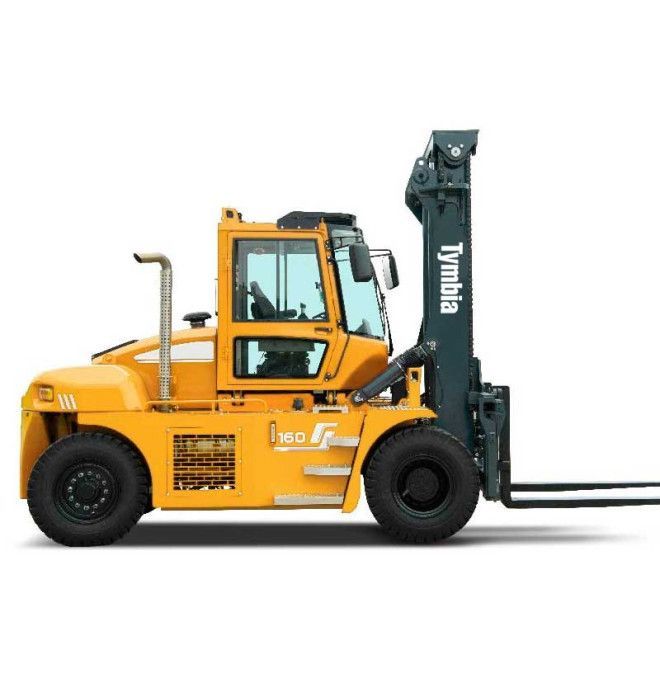

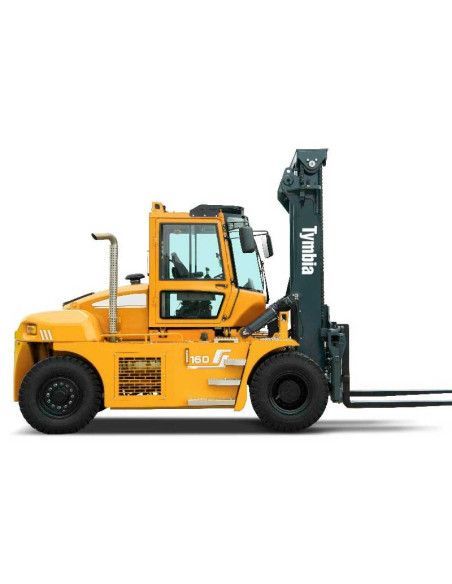

Dimensions and key performance (model Example: cpcd160-c2z-06)

• Nominal capacity: 16,000 kg
• Loading center: 600 mm
• Maximum lifting height: 3,000 mm
• Speed (loaded / free): 25/27 km / h
• Maximum pending (3 km / h): 25%
• Radio of rotation (exterior): 4,500 mm
• Total length: 6,265 mm
• Total width: 2,560 mm
• Total height: 3.425 mm
• Type of tires: Tires (standard), Solid (optional)
• Fuel tank capacity: 280 L
• Hydraulic tank capacity: 285 L

Why choose the forklift Tymbia 12-16T?

• Checked power with cummins motor and ZF transmission
• Simplified maintenance thanks to tilting cabin and fast access
• Maximum security with ops dual, wet brakes and 360 ° vision
• Energy efficiency with intelligent and low consumption thermal system
• Industrial durability for extreme environments and continuous use

Contact us today to obtain a budget, demonstration or technical advice.

Available with multiple mast configurations, tires and accessories.

Ideal for ports, steps, logging, cement and heavy logistics centers.

Tymbia - Industrial Equipment high-tech
