Order Pickers Horizontal 2000-2500kg - Lithium battery

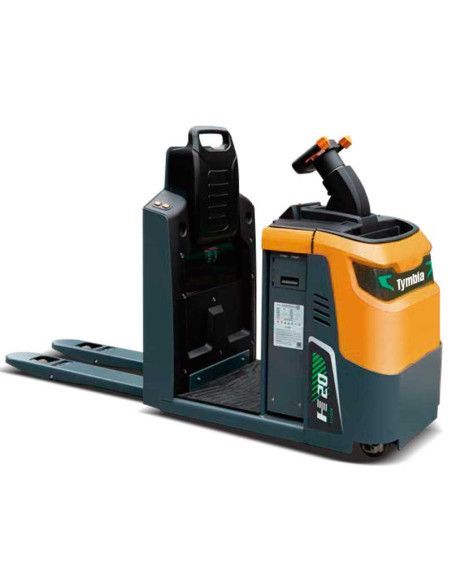

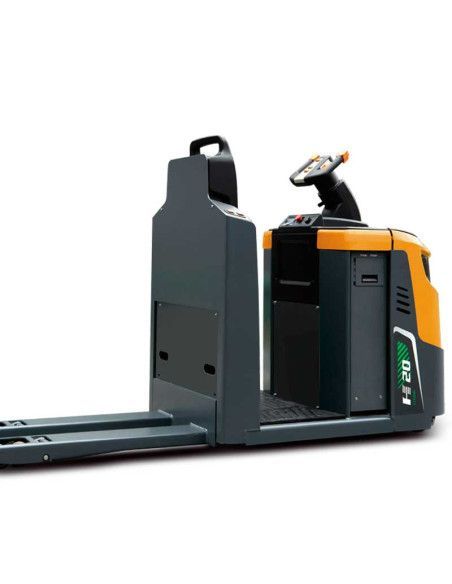

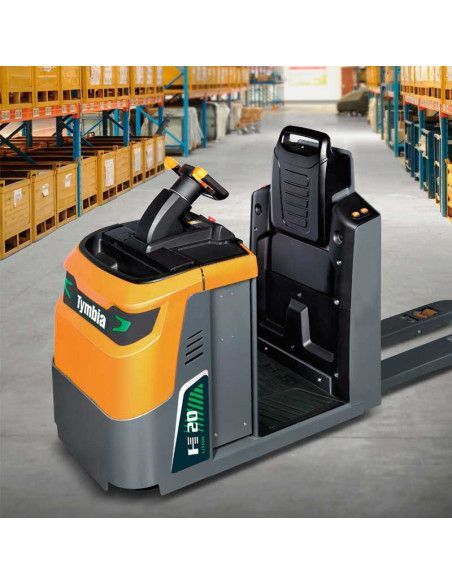

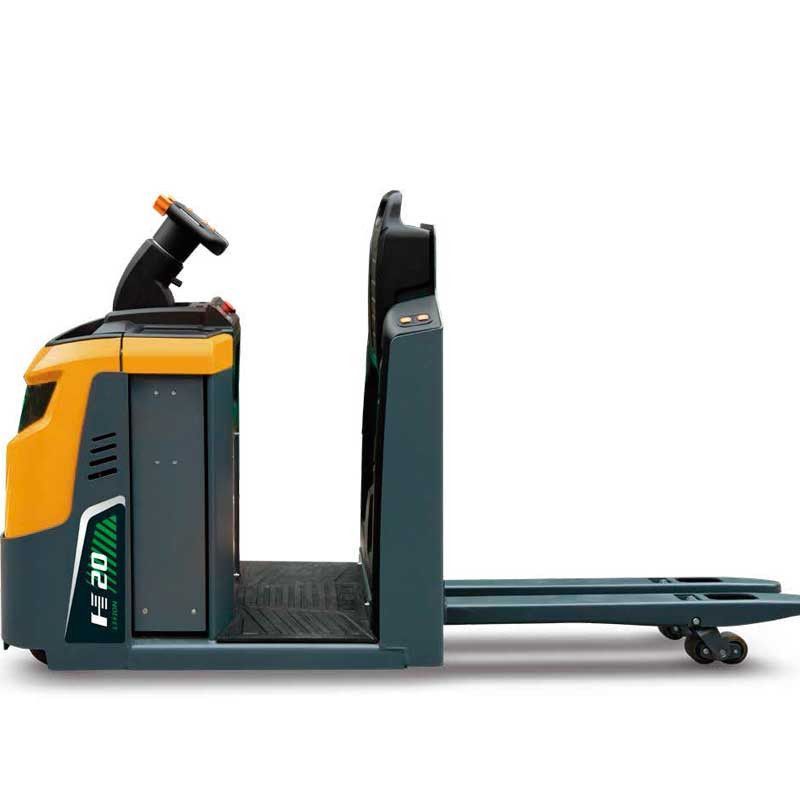

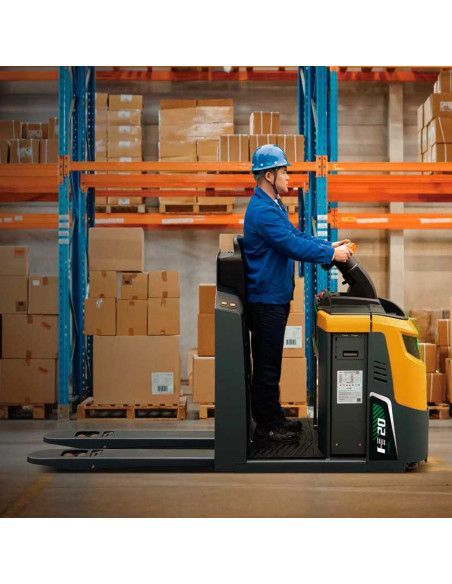

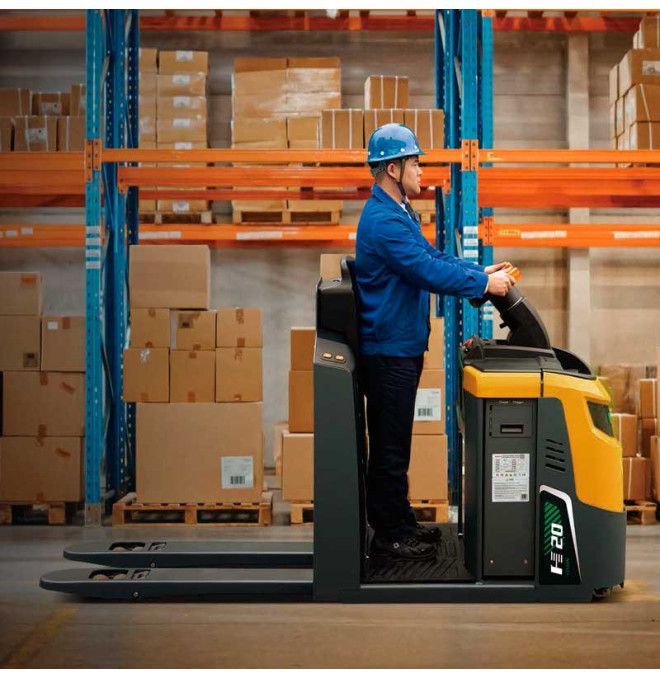

Order Pickers Horizontal Tymbia OPD20 / 25L-A2LIH - Power, efficiency and ergonomics in a single equipment

The order Pickers Tymbia's electric is a order Pickers High-end, designed for intensive picking operations in distribution centers, automated warehouses and high-performance logistics environments.

With a load capacity of 2,000 kg (OPD20L) or 2,500 kg (OPD25L), this model stands out for its advanced technology, durability and design designed in the operator.

Main features:

• 24V Motorization: last generation platform with three-phase alternating current for traction and lifting, which guarantees superior performance, low maintenance and greater energy efficiency.
• High capacity lithium battery.
  • Standard configuration: 24V / 404Ah
  • Premium option: 24V / 456Ah with CATL cells (global leader in Li-ion batteries)
• Autonomy of up to 8 continuous hours with one charge
• Fast load in just 2 hours
• Integrated electric heating system, ideal for operating in refrigeration cameras from -20 ° C to -30 ° C

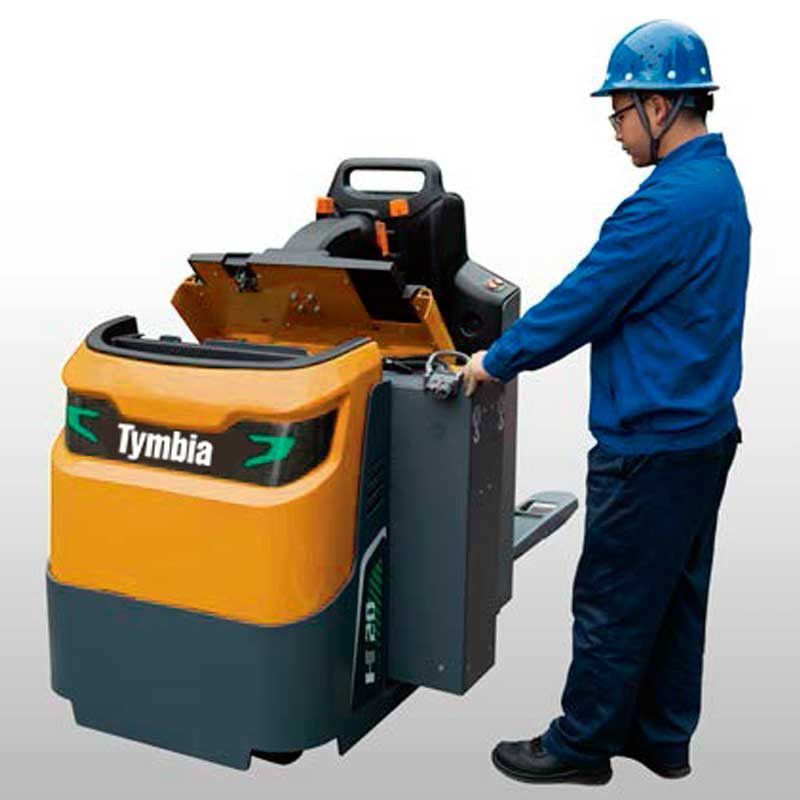

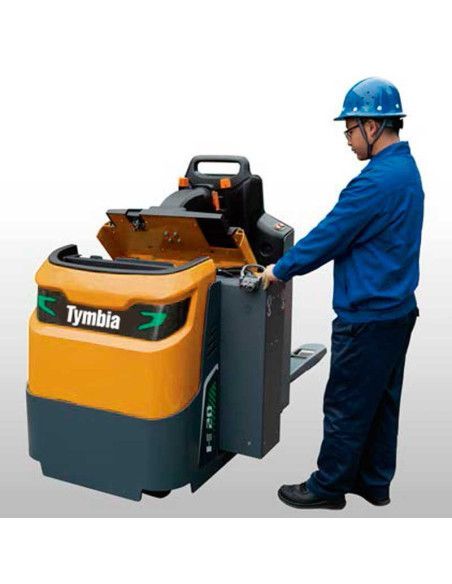

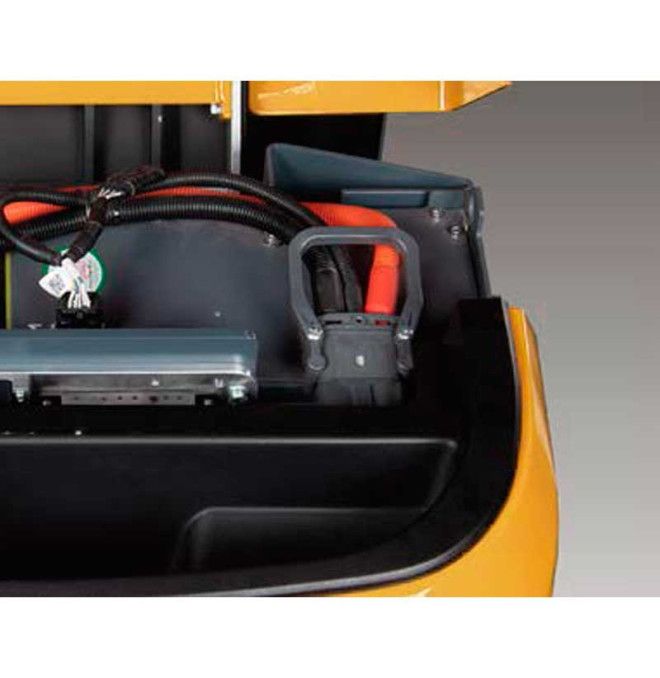

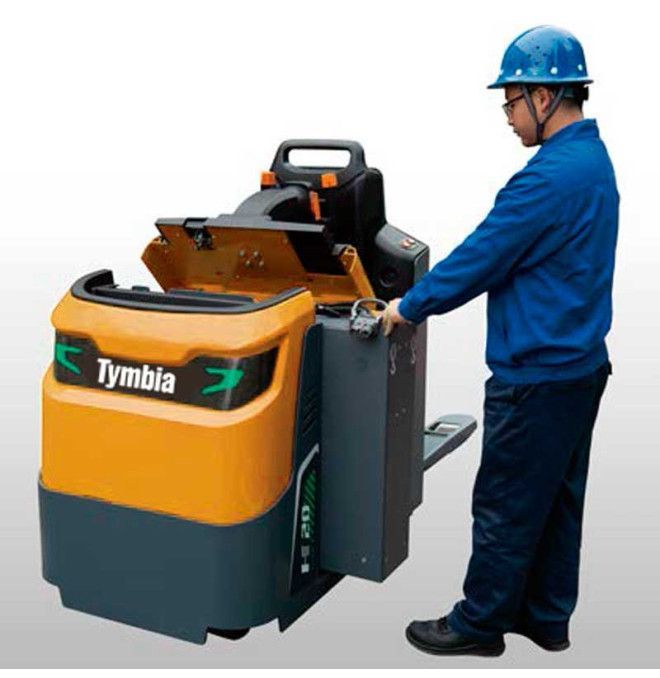

• Side battery design (SIDE-PULL): allows quick and easy replacement without the need for tools, optimizing the downtime.

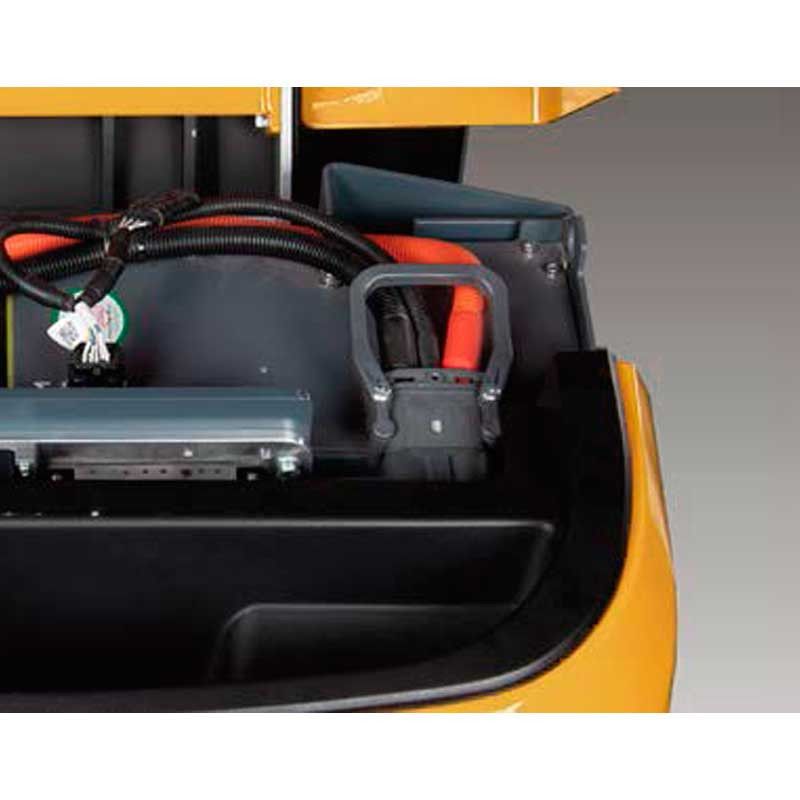

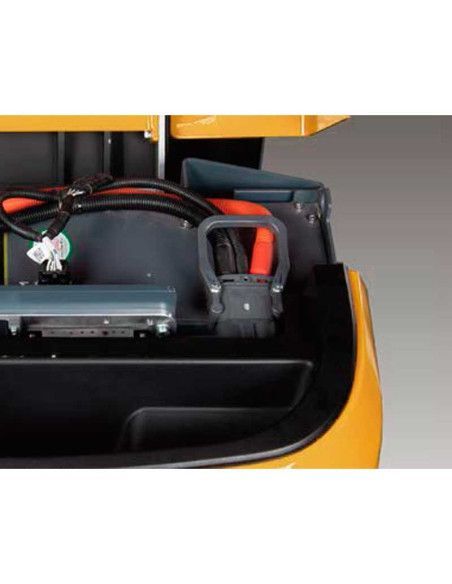

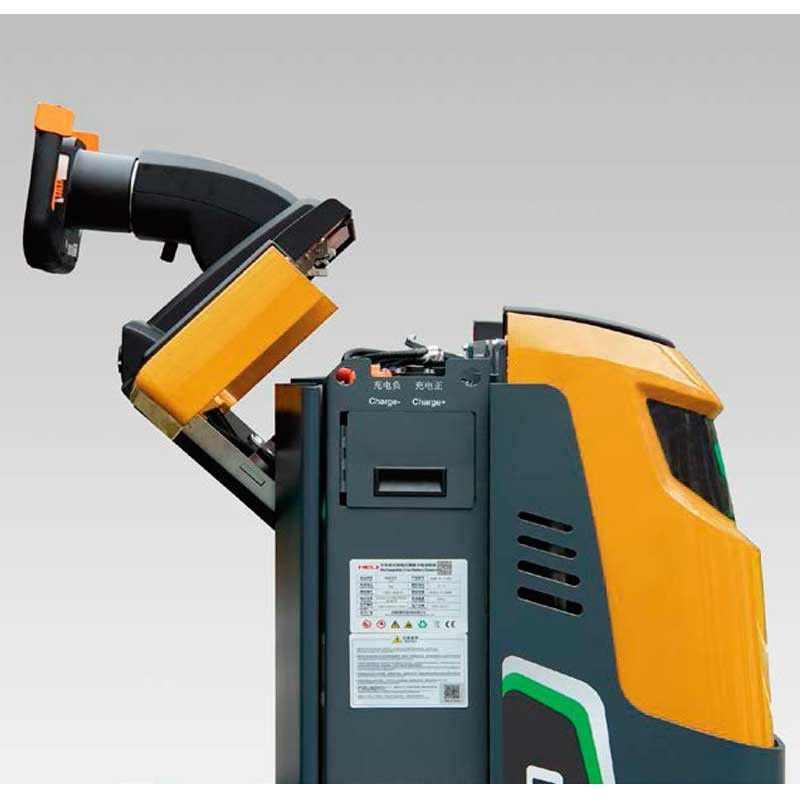

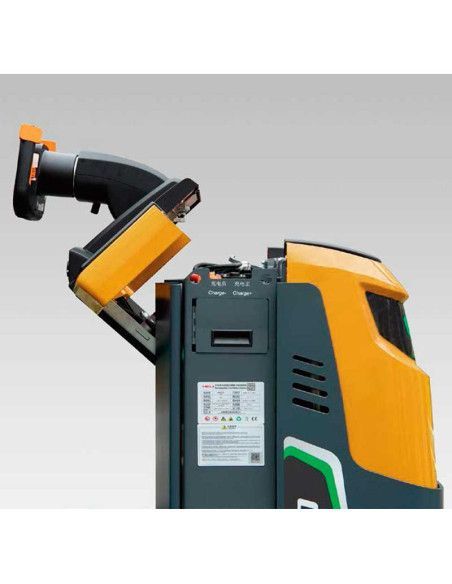

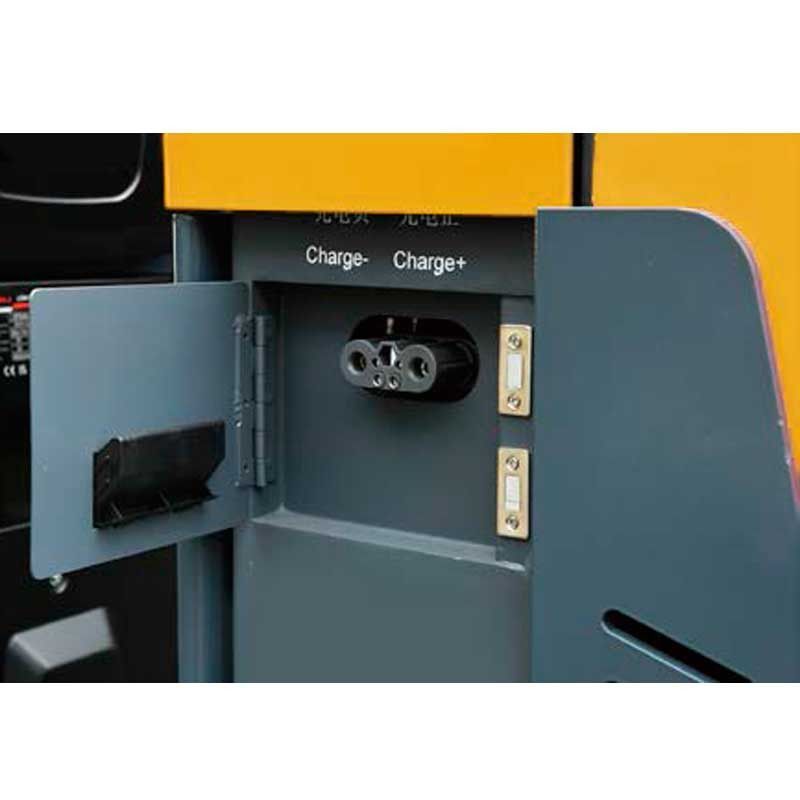

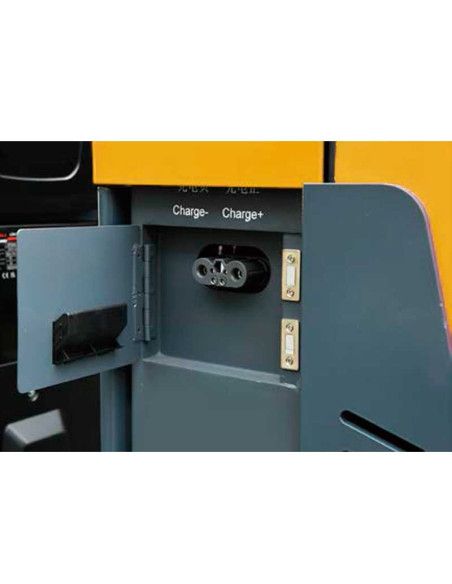

• Lateral load port: facilitates access to the charger even in reduced spaces.
• Dual-CPU ZAPI controller: complies with the most demanding standards of the EU, offering a higher control accuracy, intelligent braking in curves and protection against rollover.

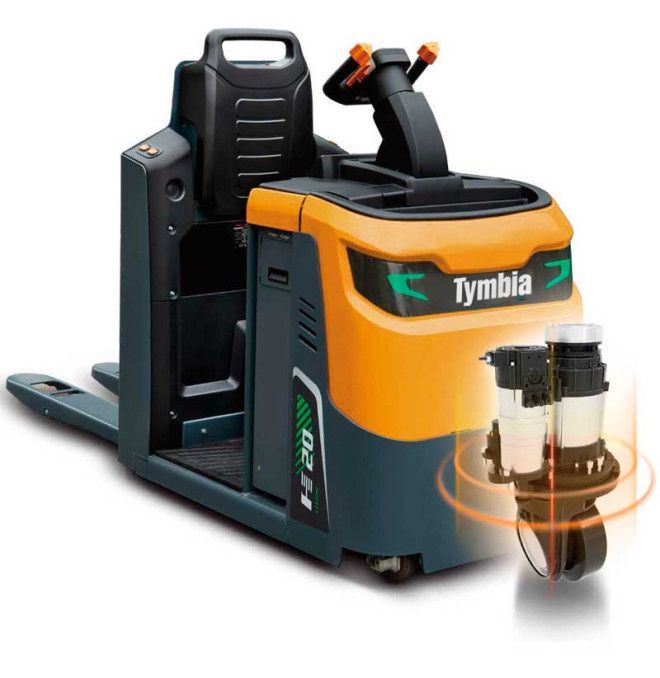

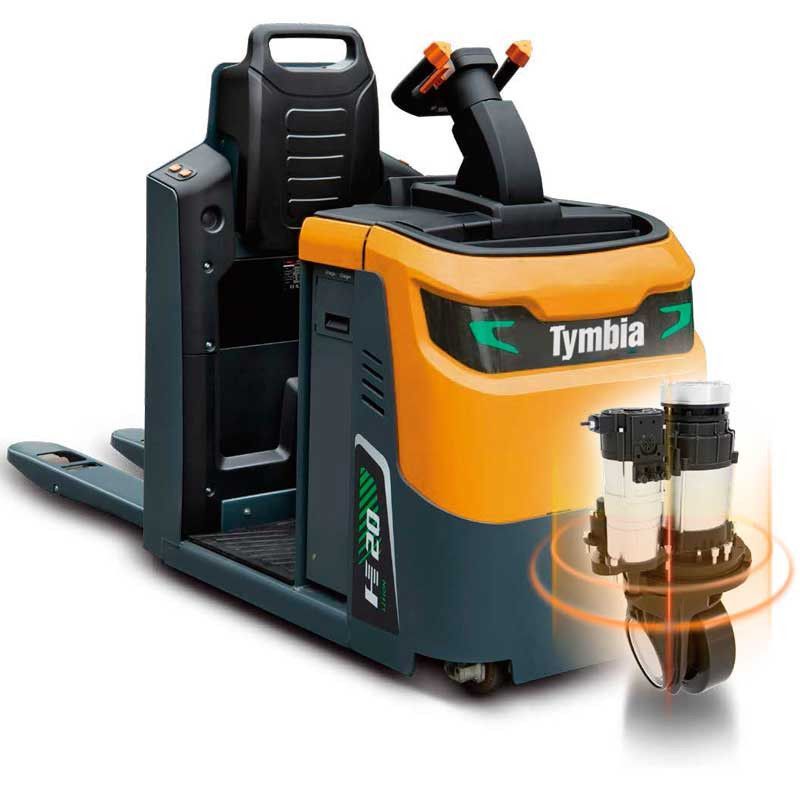

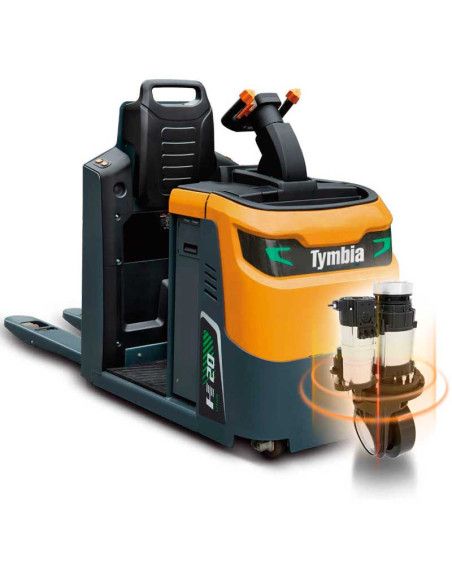

• ZF transmission: perfectly coupled to the engine, improves the load capacity and stability of the equipment.
• Three driving modes:
  • Dynamic: Maximum speed and answer
  • Standard: Balance between performance and consumption
  • Economic: energy savings for prolonged tasks

Intelligent Security and Advanced Systems

• Electric braking system: Automatic braking when releasing the accelerator.
• Emergency button: Total energy disconnection in case of risk.
• Automatic parking brake: activates when detecting zero speed or pressing the button on the handlebar.
• Intelligent Single Parking System: Avoid slides in ramps.
• Automatic curved deceleration: reduces speed when rotating, minimizing rollover risks.
• Operator detection system (PAHO): Sensing throughout the platform to guarantee operator presence.

Ergonomics and convenience of the operator

• Wide and trapezoidal standing area: facilitates the operator's access and exit.

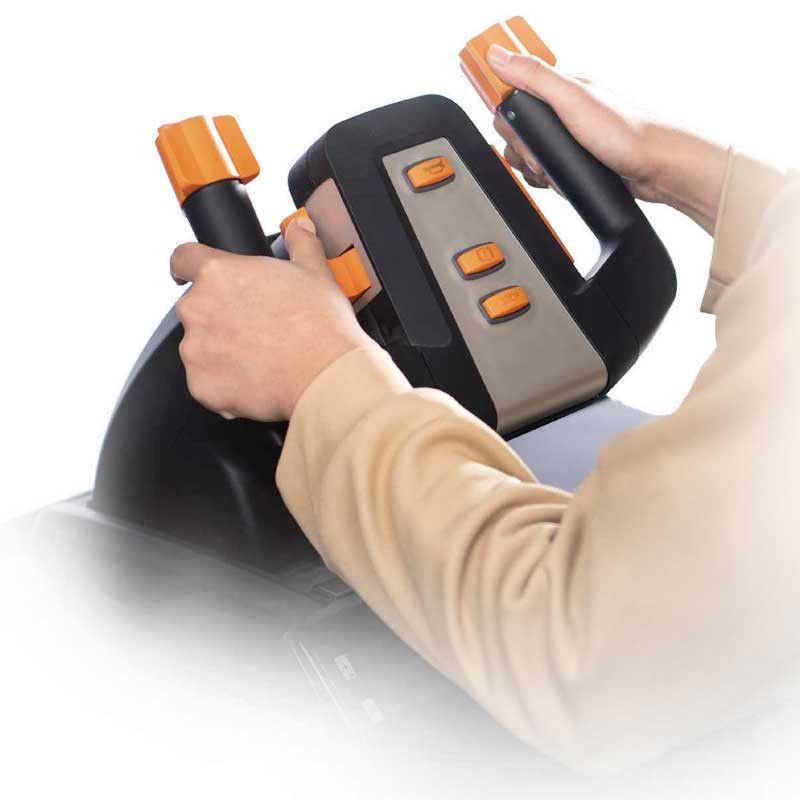

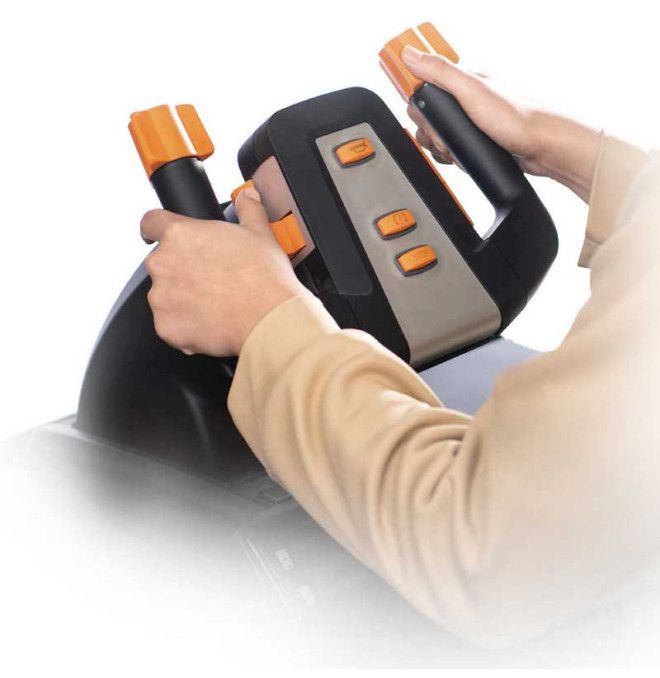

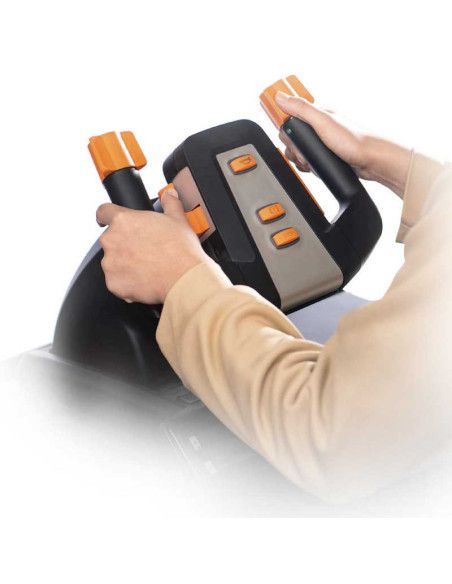

• Adjustable steering wheel in height and angle: adapts to different types of users.
• Ergonomic backup: Reduce fatigue during long days.
• Rotating instrument panel: Allows clear visualization from any angle.

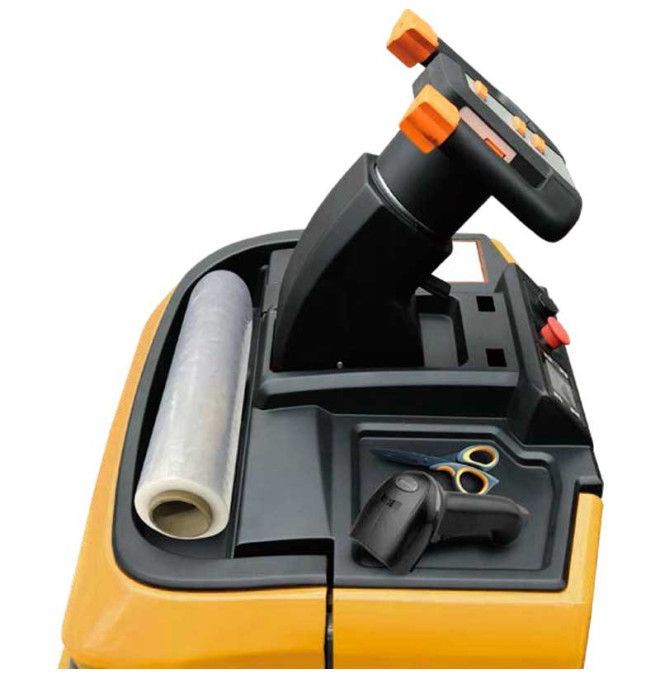

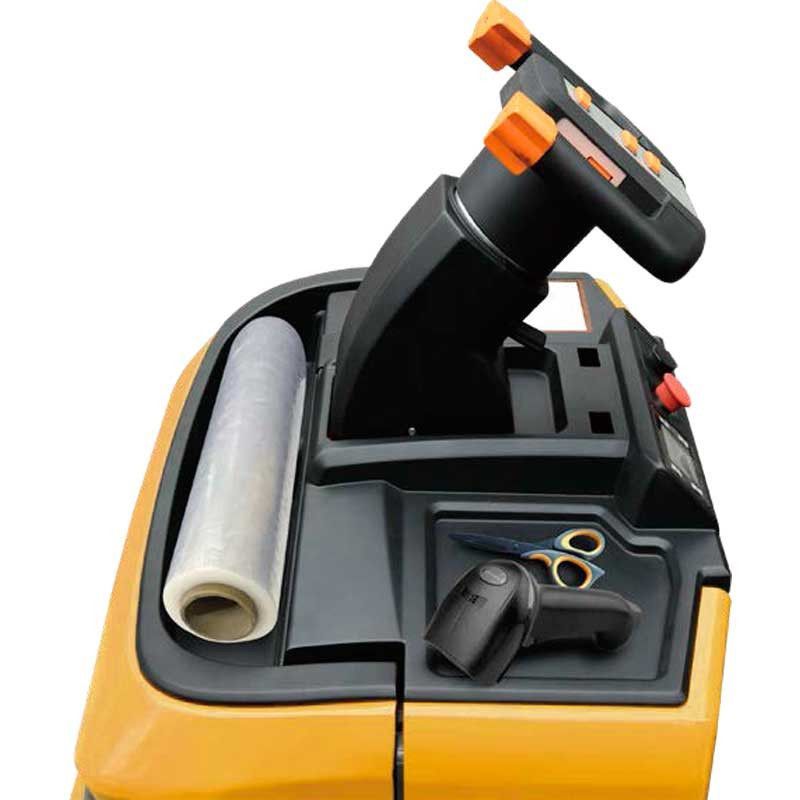

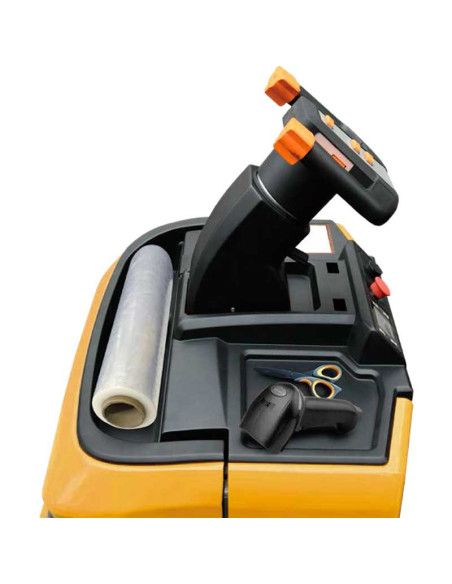

• Integrated storage space: Guard tools, devices or documents needed in the operation.

Easy and accessible maintenance

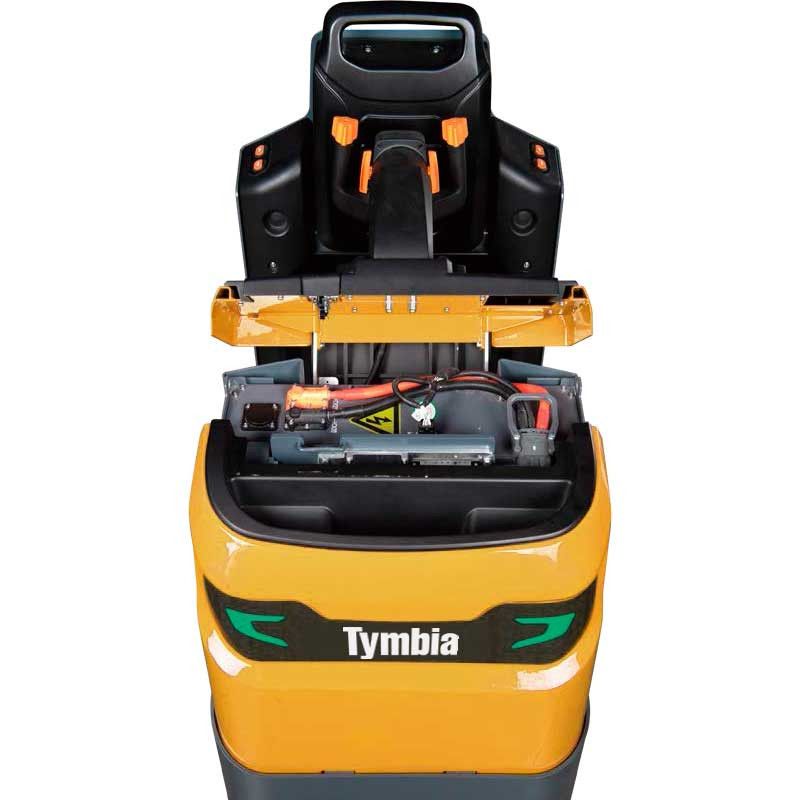

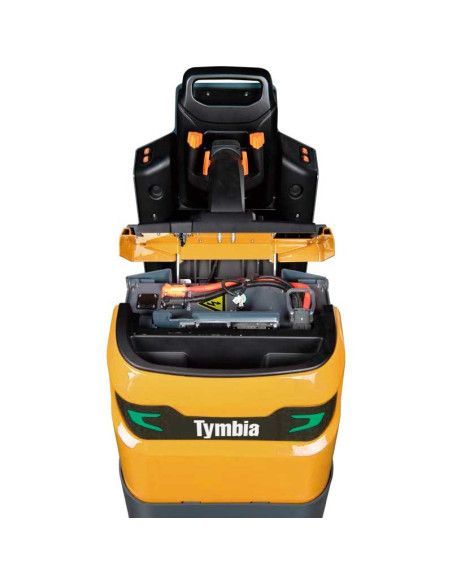

• Rapidly detachable front cover: gives direct access to key components.
• Lubricated bushing with grease nozzle: reduces wear and prolongs useful life.
• Full resistance tests: validated with fatigue tests, structural resistance, rain and extreme temperatures.
• CE Certification: Complies with European safety and quality standards.

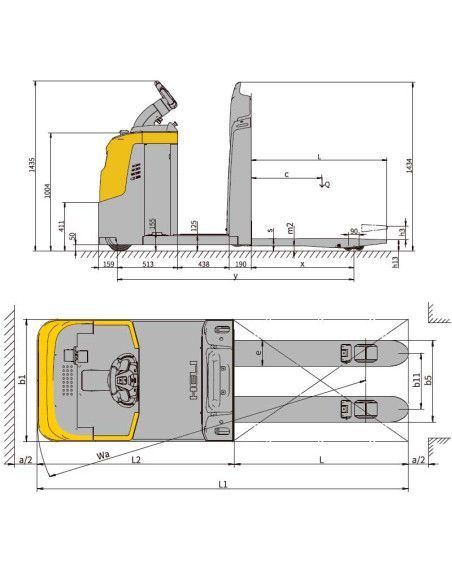

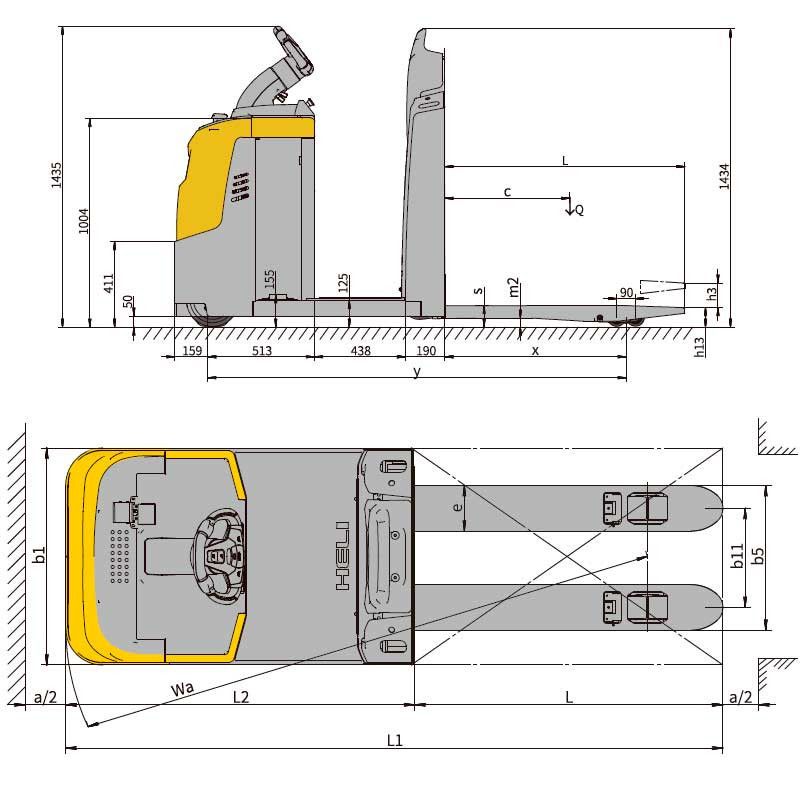

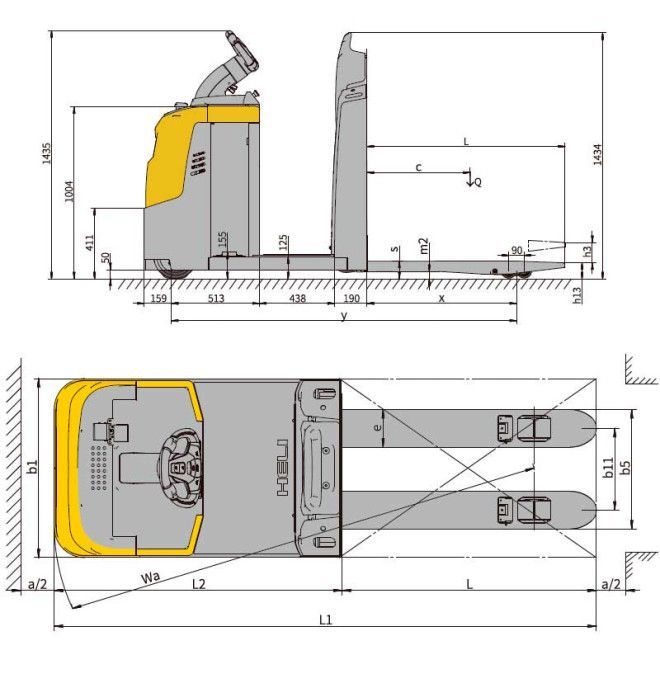

Dimensions and key performance

• Speed (loaded / free): 9.5 / 12.5 km / h
• Maximum pending (loaded / free): 5% / 15%
• Radio of rotation: 2230 mm (OPD20L) / 2970 mm (OPD25L)
• Lifting height: 125 mm
• Type of tires: Polyurethane (front 250x80, rear 85x85)
• Total weight (with battery): 1090 kg (OPD20L) / 1190 kg (OPD25L)

Why choose the ORDER Picker OPD20 / 25L-A2LIH of Tymbia?

• High productivity thanks to its extended autonomy and fast charge
• Industrial cold operation without loss of performance
• Maximum security with intelligent systems and CE certification
• Human-centered design reducing fatigue and improves efficiency
• Easy maintenance that reduces operating costs

Ideal for logistics, retail, pharmaceutical, food and any sector that requires precise, fast and safe picking.

Contact us today for more information, demonstrations or personalized budget.

Available with high performance lithium battery - The future of material handling is here.

** They must have their own discharge means.
