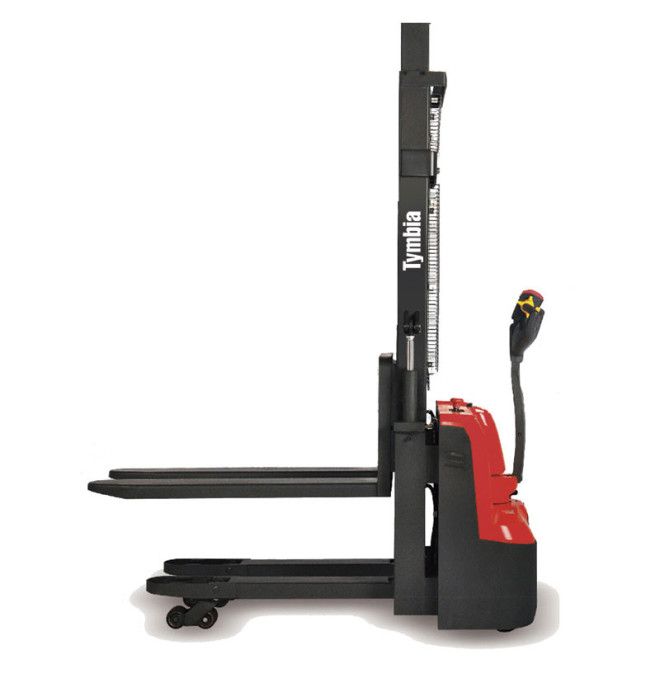

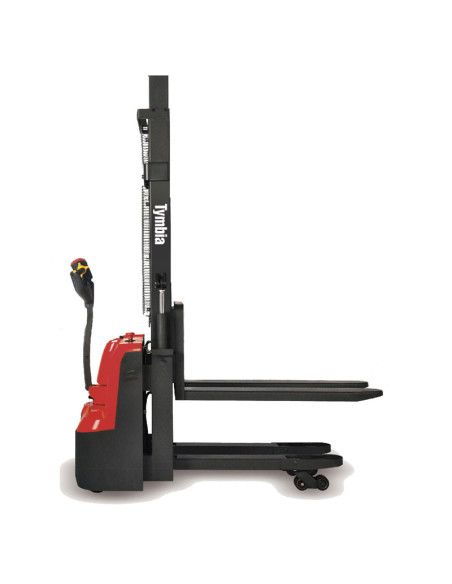

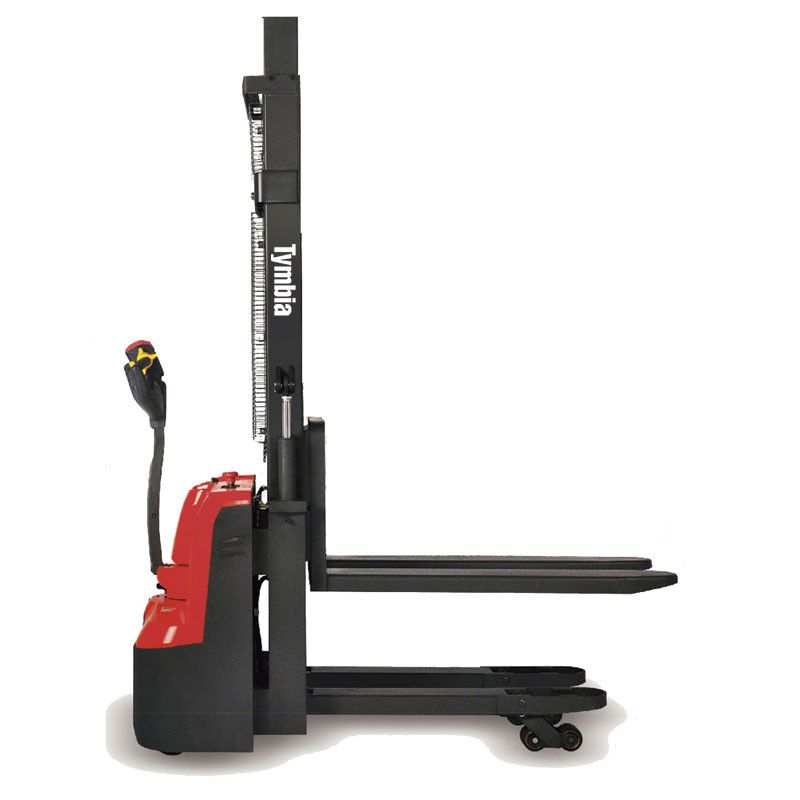

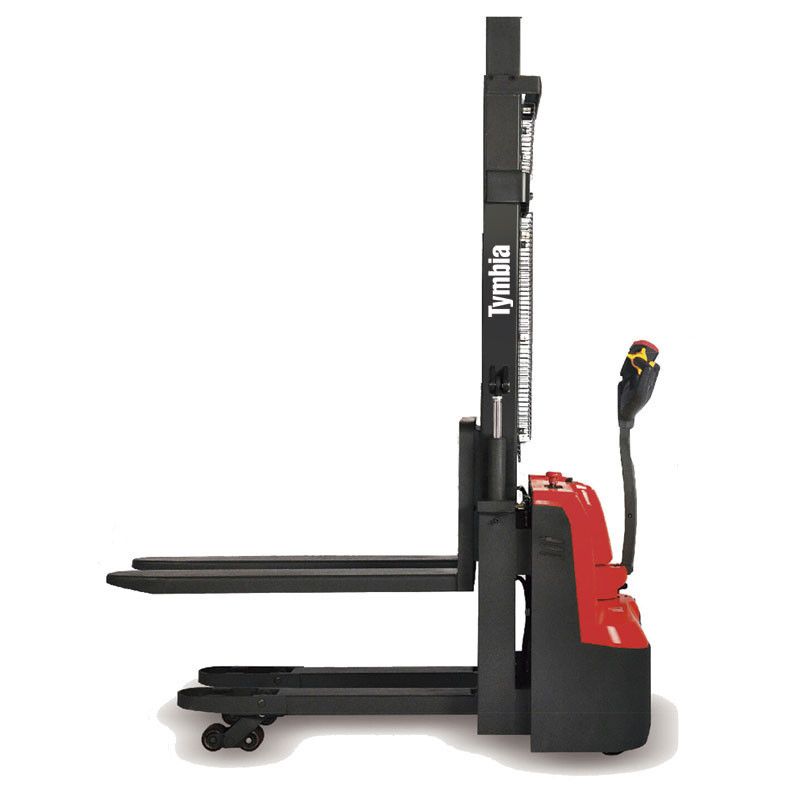

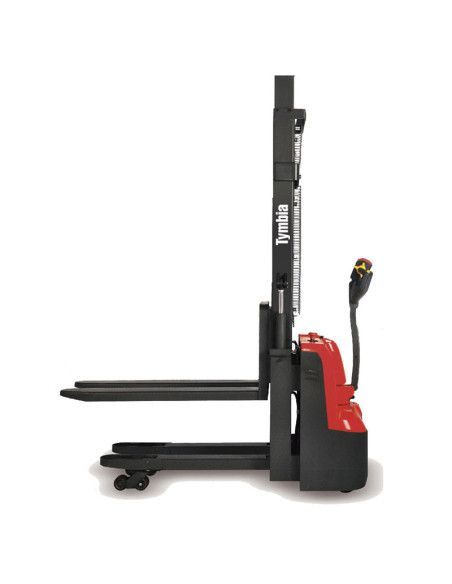

Electric stacker 1200kg to 3000mm with initial elevation 24V / 105Ah

The 1200kg Tymbia electric stacker with initial lift is a robust and efficient solution for the management of heavy loads in industrial and logistical environments. With a load capacity of 1200 kg and a maximum elevation of 3000 mm, this model is designed to operate with maximum safety and precision, even in reduced spaces.

Main features:

• Capacity: 1200 kg with standard gravity center.

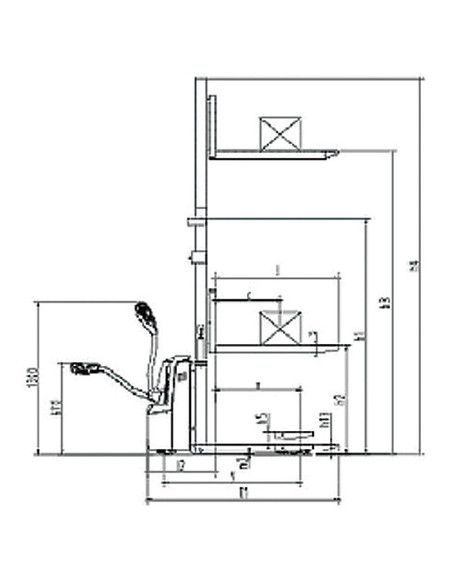

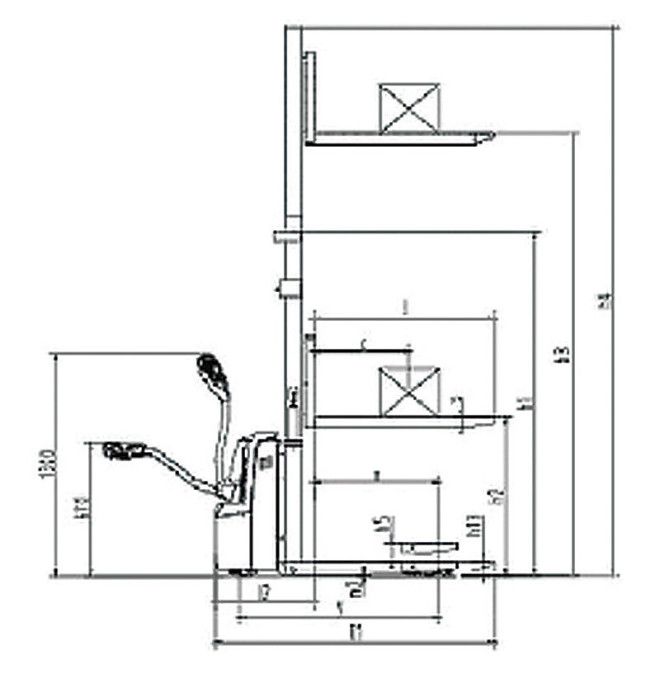

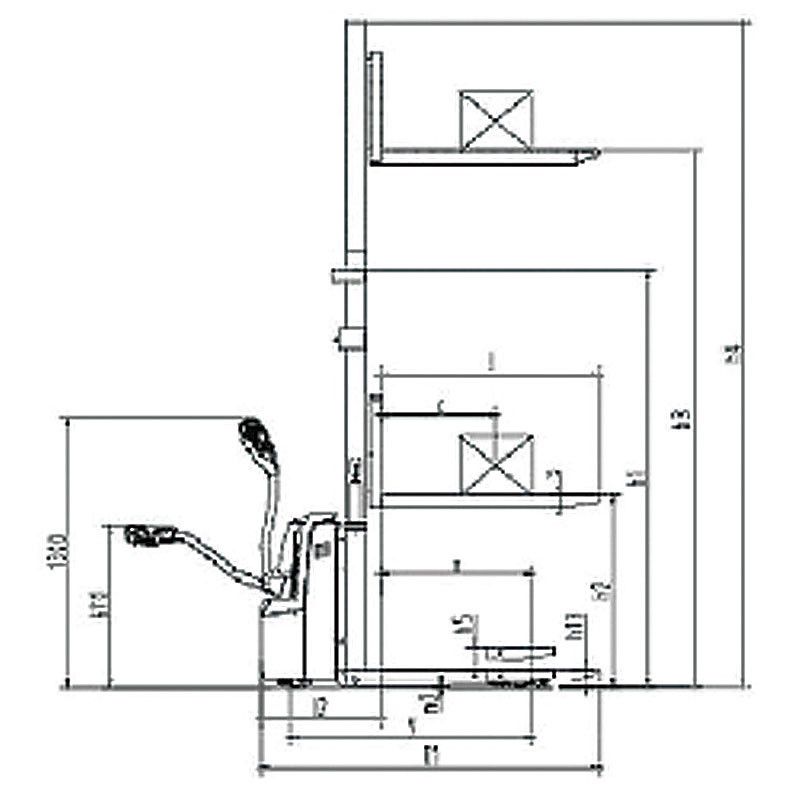

• Maximum elevation (H3): 3000 mm.
• Height of the mast retreated (H1): 2122 mm.
• Total height extended (H4): 3592 mm.
• Initial base elevation: 120 mm. It allows to raise the load from the ground without the need for additional free height.
• Electric motor with rear traction and controller Curtis DC.
• Translation speed: 4.5 km / h (loaded) / 5 km / h (empty).
• Battery Lead / 24V / 105Ah No Maintenance, with built-in charger.

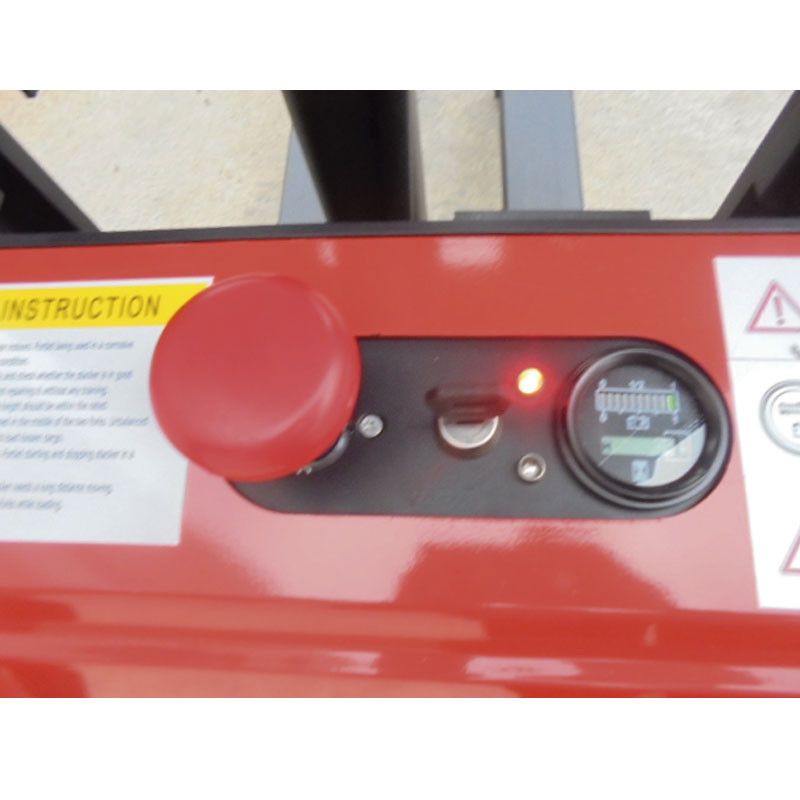

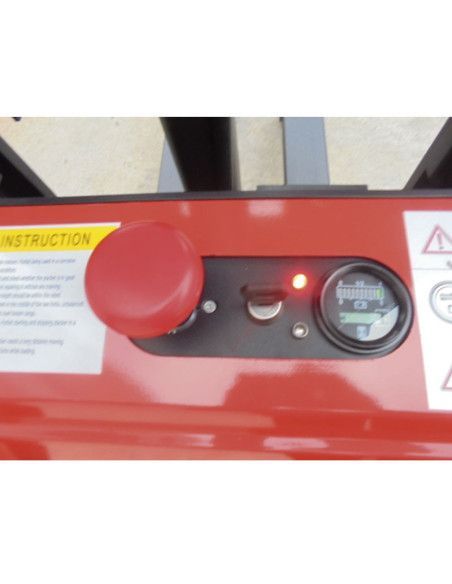

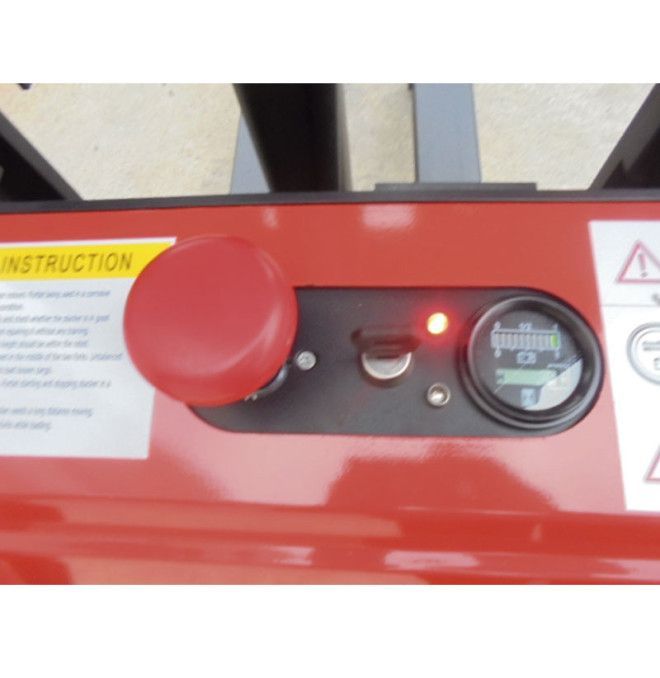

• Battery charging indicator for real-time monitoring.
• Weight in battery service: between 760kg.
• Polyurethane motor wheel (195x70 mm) and adjustable stabilizer wheel.

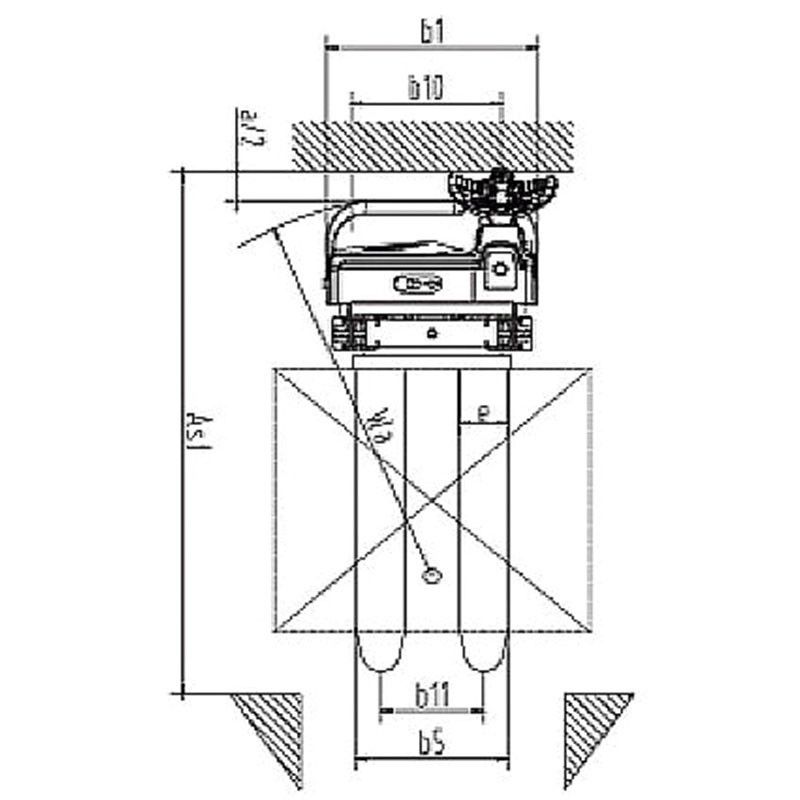

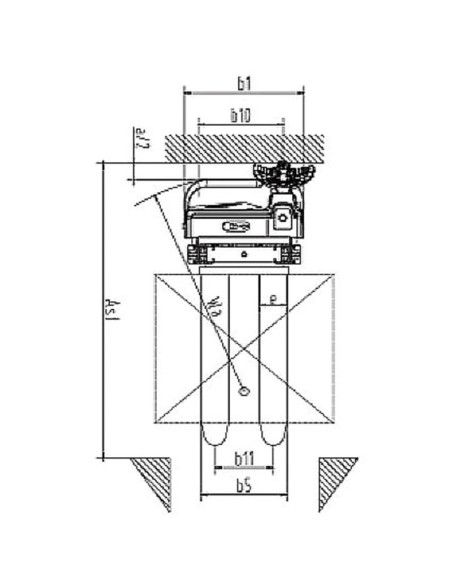

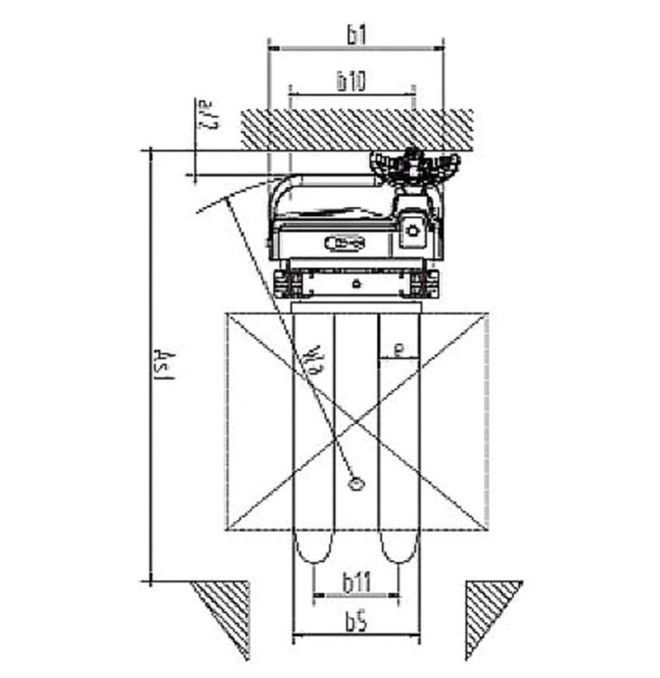

• Reduced rotation radius for maximum maneuverability in narrow corridors.

Featured advantages:

• Compact and robust design with chassis of 4 support points and under center of gravity for greater stability.
• Base initial elevation that allows working with double pallet or overcoming ramps and uneven unevenness for conventional stackers.

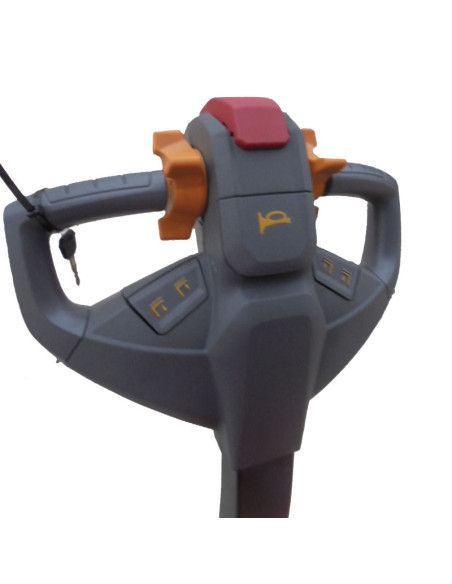

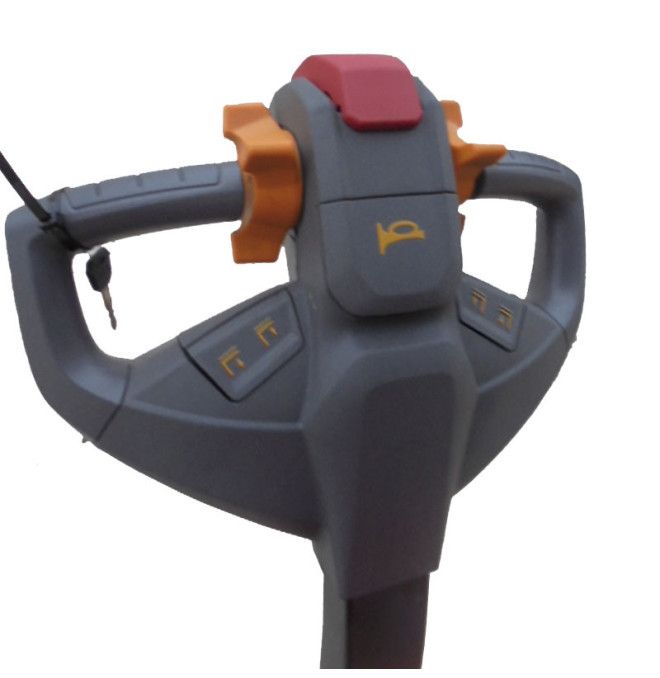

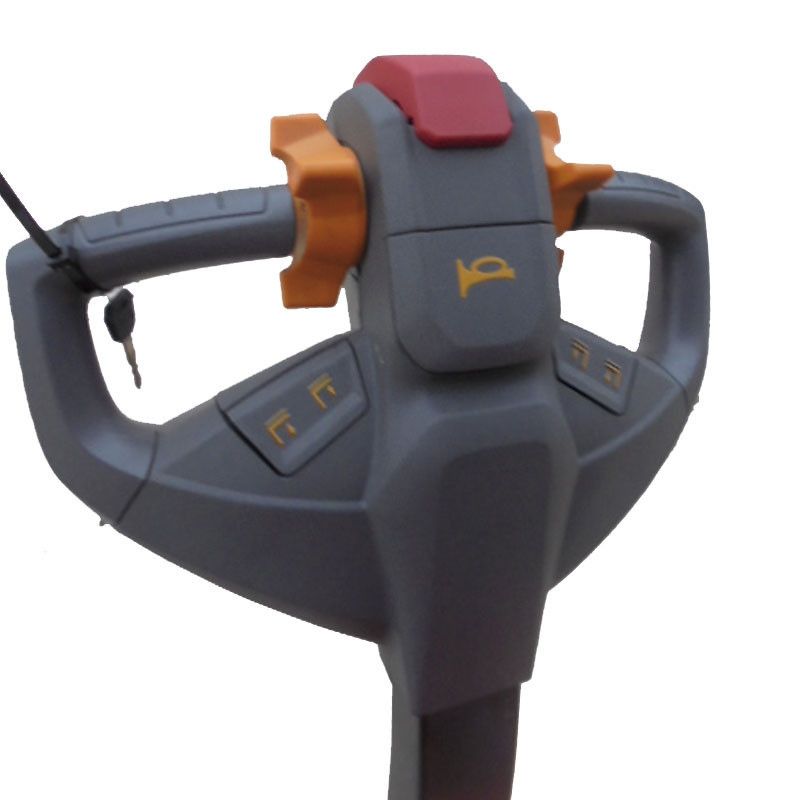

• Ergonomic rudder with all integrated controls and "turtle" button for vertical operation, ideal in very small spaces.
• Adjustable stabilizer wheel, which improves safety and prolongs the useful life of the drive wheel.
• Battery without maintenance and integrated charger, ready to use without the need for additional equipment.
• Load indicator for efficient management of the operating time and recharge.

Perfect for:

• Warehouses with narrow corridors.
• Distribution centers with medium stacking needs (up to 3 meters).
• Transport and load on platforms with small slopes.
• Double pallet handling in loading / unloading areas.
• Environments where high maneuverability and safety are required.

The Tymbia electric stacker with initial elevation combines power, energy efficiency and intelligent design, making it an ideal option for companies seeking productivity without sacrificing space or security.
