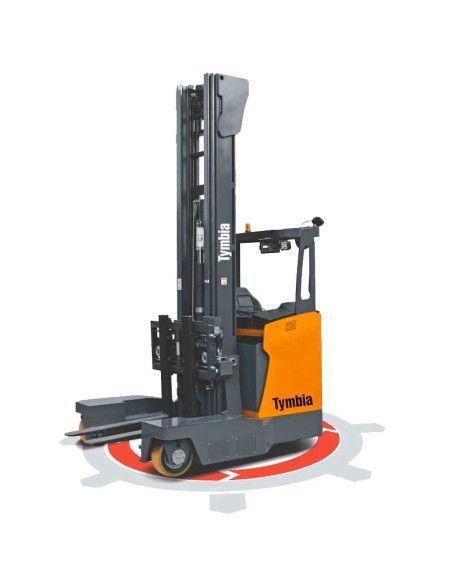

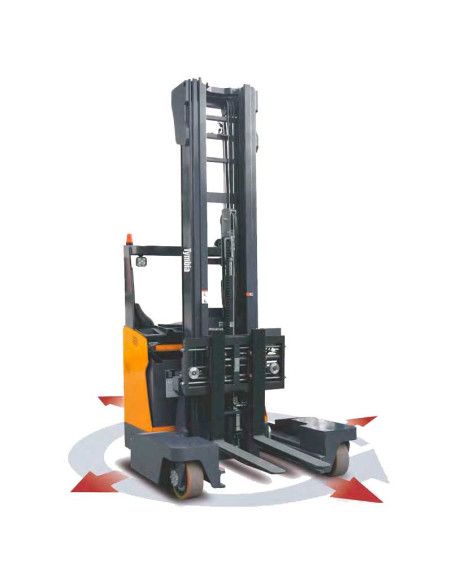

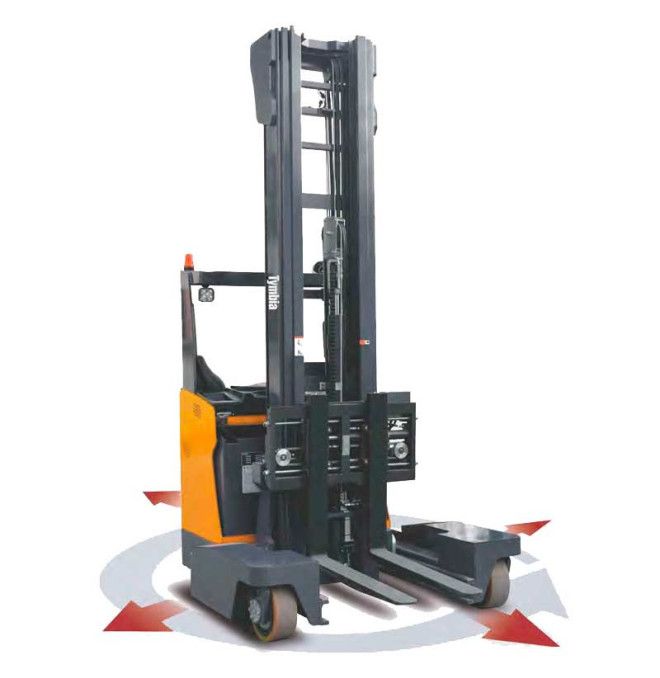

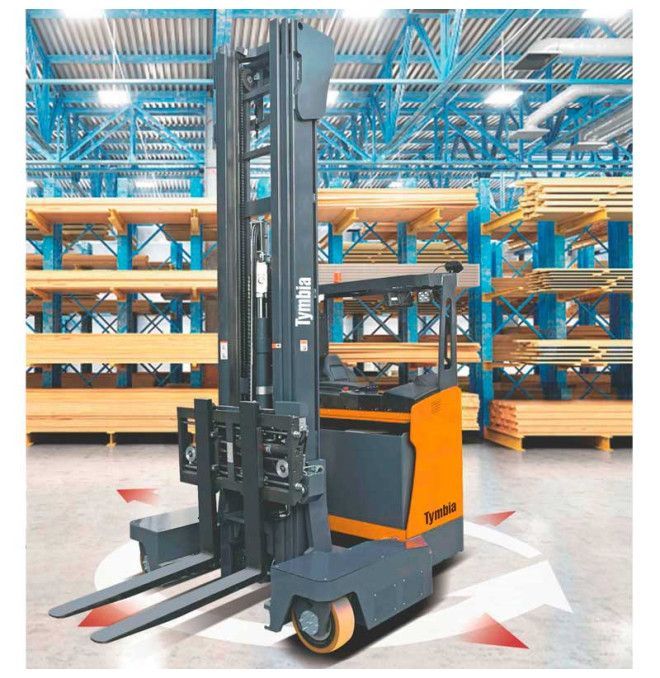

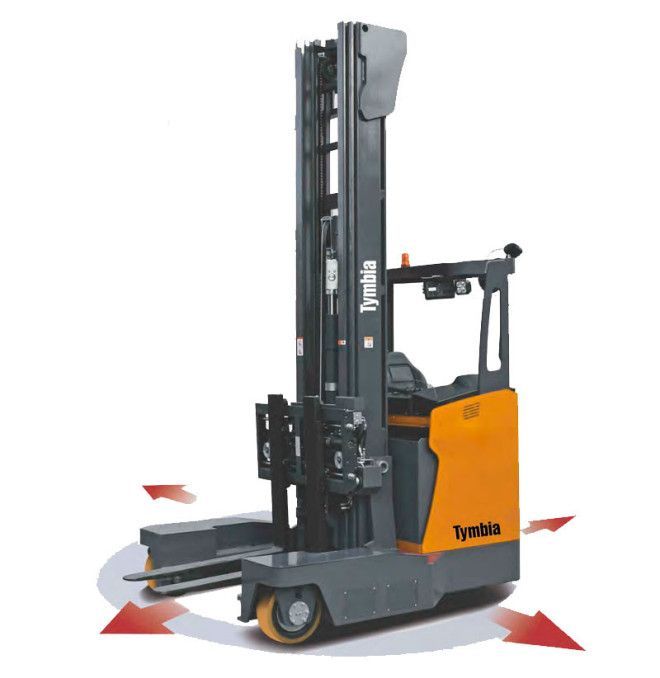

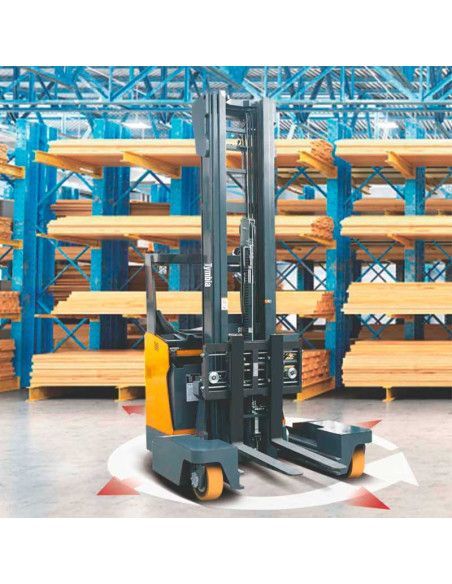

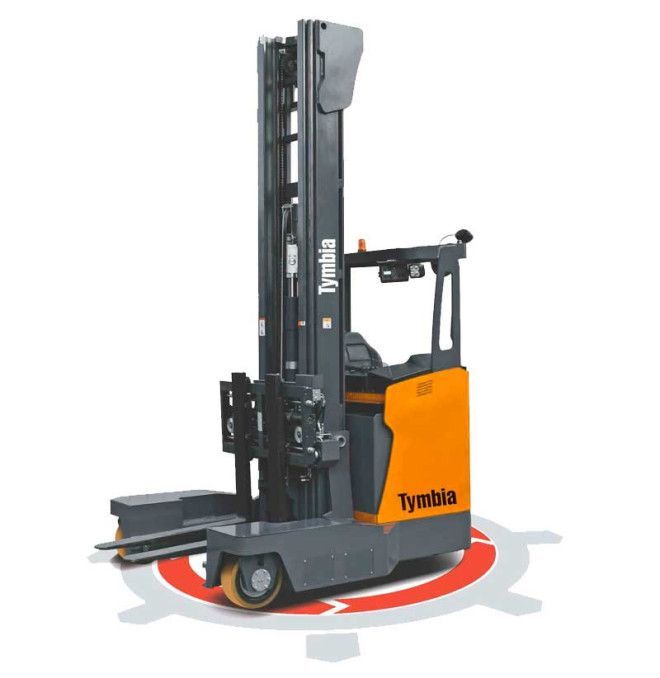

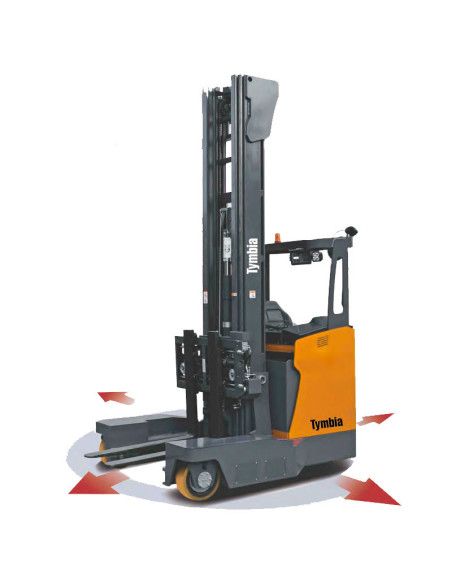

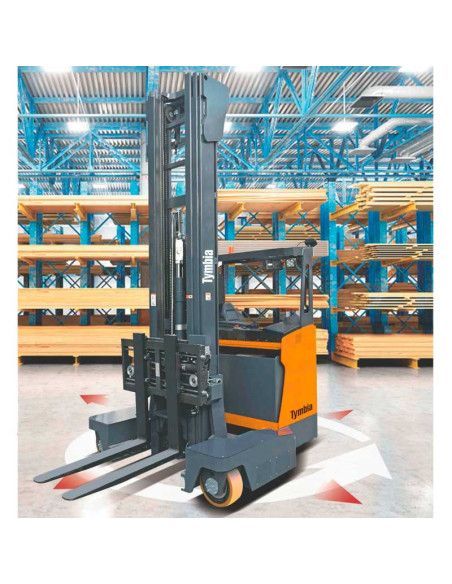

MQZ25/30 Multi-directional Retractable

The Tymbia MQZ is a multidirectional electric retractable wheelbarrow that redefines efficiency in load handling within modern warehouses and industrial environments with limited space. Its advanced technology allows you to move in any direction -rect, lateral, diagonal or by turning on your own axle - which reduces operating times, improves maneuverability and optimizes the use of space.

Specially designed for companies that seek to increase productivity and reduce operating costs, the MQZ combines power, precision and ergonomics on a single machine.

Main features:

• Loading capacity: up to 3000 kg
• Standard load center: 600 mm

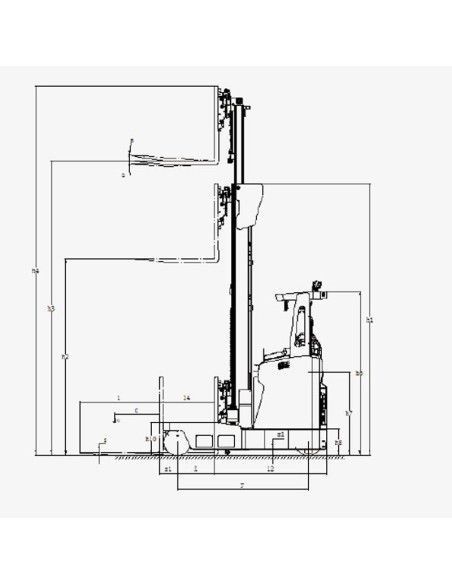

• Maximum lifting height: from 3000 mm to 8000 mm (according to configuration)
• Motorization: AC tensile motor + high power AC lifting motor
• Lead-acid battery: 48V / 700Ah (standard), with low maintenance and fast recharging
• Maximum speed: up to 12 km / h
• Address system: Electromechanical address with EPS assistance (Electric address)
• Wheels: Pneumatic and rear solid wheels (18x9-12.125 "/ 457 × 229 mm)
• Wheel configuration: 4-wheel drive motor and guides (4x / 4) for omnidirectional movement

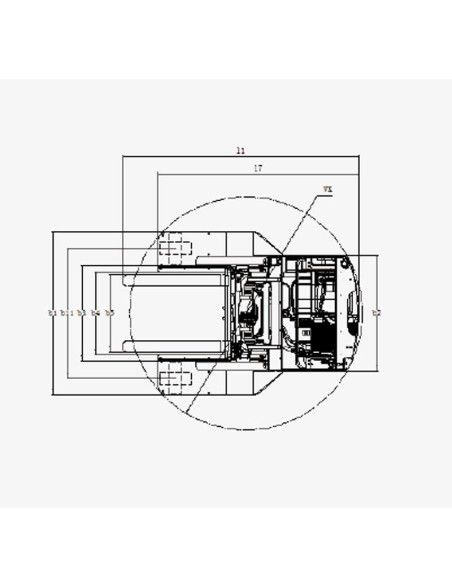

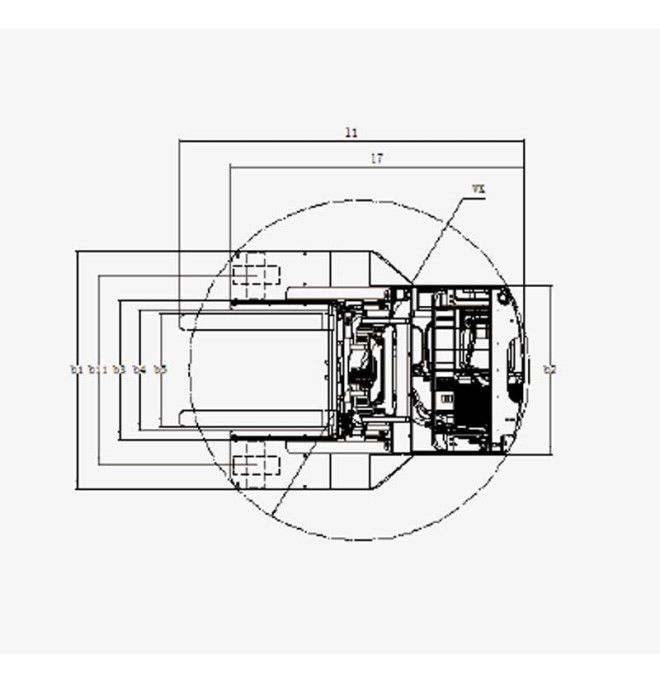

• Total width: only 1220 mm
• Total length: 2360 mm
• Vehicle weight: 5700 kg (including battery)

Optional features available:

• Forks selector + Displaceable forks laterally: allows fast adjustment of width ± 100 mm.
• Ultra-narrow mast: improves the visibility of the operator during maneuvers.

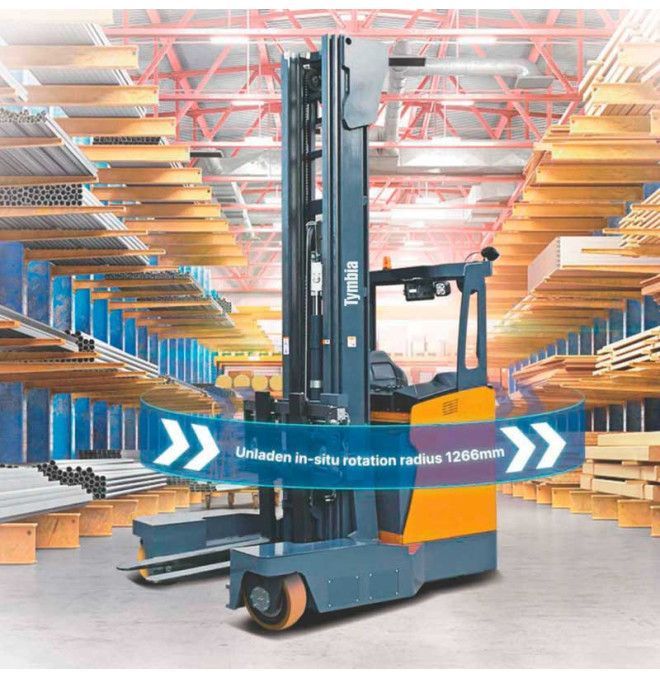

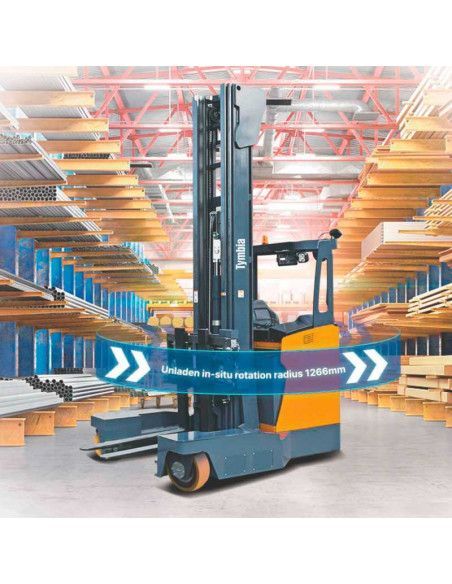

• 360 ° Central Rotation System: Ideal for complete turns without moving the base of the truck.
• Fork Positiper: It facilitates precise placement of irregular or long loads.
• Regenerative braking system: energy saving and longer useful life of the components.
• Outdoor package: For outdoor use, it includes protection against dust and IP54 water.
• Lighting Additional LED: To operate in areas with little visibility.
• Axle locking system: for greater stability in irregular land.
• Option: Lithium battery: 48V / 4600Ah (standard), with low maintenance and fast recharging

Competitive advantages:

• Continuous multidirectional movement: change of direction without stopping, saves time and reduces the wear of the brake system.
• Compact design: Ideal to work in narrow corridors and reduced spaces.
• Comfortable operation: Ergonomic seat, adjustable steering wheel and intuitive control.
• Greater visibility: Ultra-thin mast offering a clear view of the manipulated material.
• Energy Efficiency: Lithium battery with high performance and prolonged life cycle.
• Versatility: able to transport both conventional merchandise and long materials.
• Adaptability: It works perfectly indoors and exteriors thanks to its resistant wheels.

Main applications:

The multidirectional trolley Tymbia MQZ is perfectly adapted to multiple industrial sectors, including:

• Stores of palletized products
• Logistic Centers and Urban Distribution
• Metallic profile industry, aluminum and wood
• Handling of pipes, panels and other long materials
• Factories with adjusted production lines
• Transhipment operations and continuous load
• Interior and exterior logistics in reduced spaces

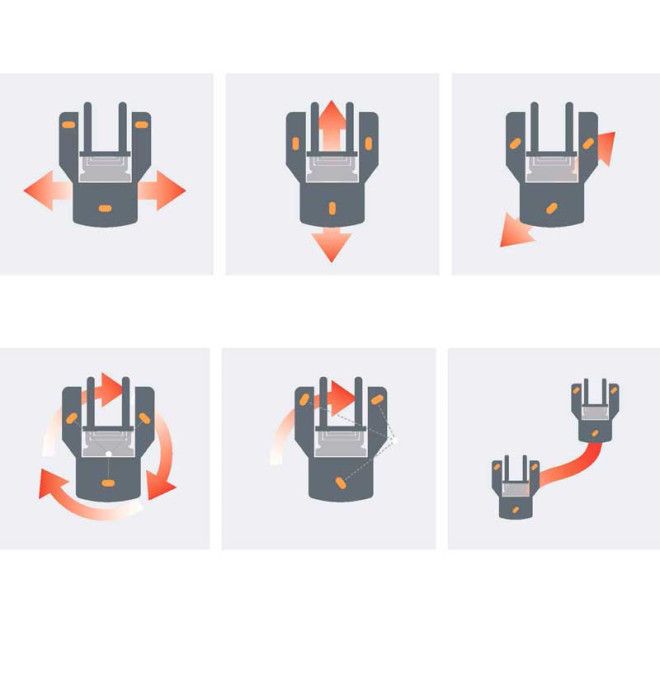

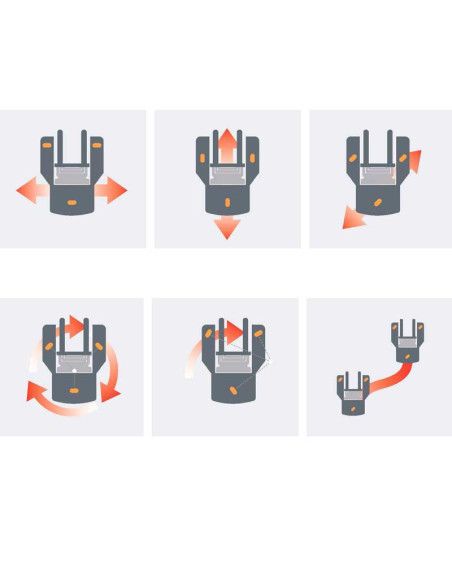

Multidirectional displacement modes:

• Righteous
• Lateral displacement
• Diagonal displacement
• 360 ° central rotation

These modes allow great flexibility in complex environments, facilitating accurate maneuvers in restricted areas.

Why choose Tymbia MQZ25 / 30?

The MQZ is not only a traditional retractable wheelbarrow or just a Reach Truck. It is an innovative solution that combines:

• Large lifting capacity
• Advanced multidirectional mobility
• Compact design for narrow corridors
• Low energy consumption and zero emissions
• Comfort and security for the operator

The Tymbia MQZ is the tool Ideal for companies that seek to improve their productivity, save space and reduce operating costs. Its intelligent design and advanced functionalities make it a key investment for modern warehouses and demanding logistics operations.

Contact us today to request technical information or budget.
