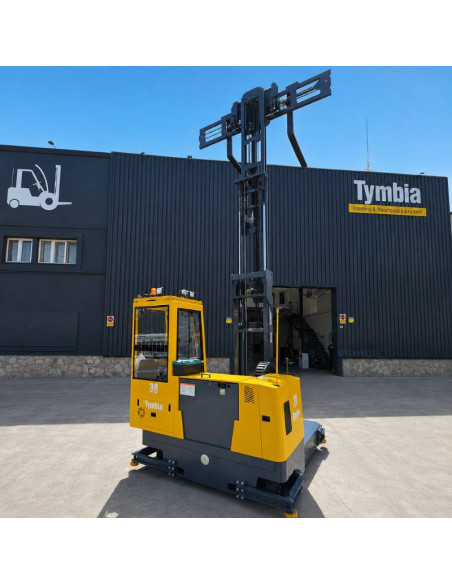

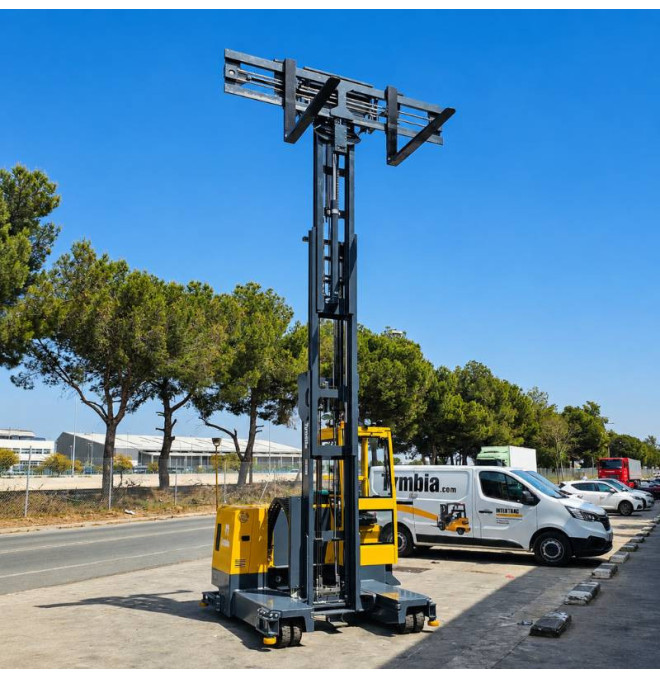

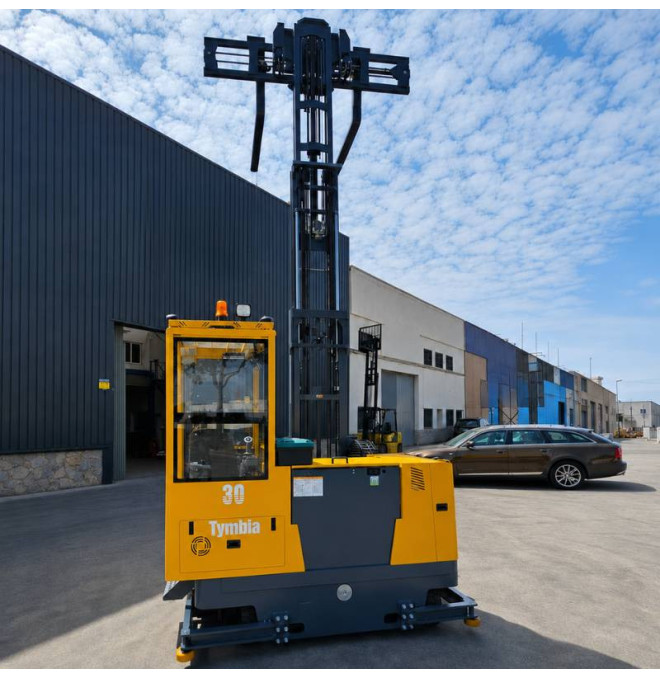

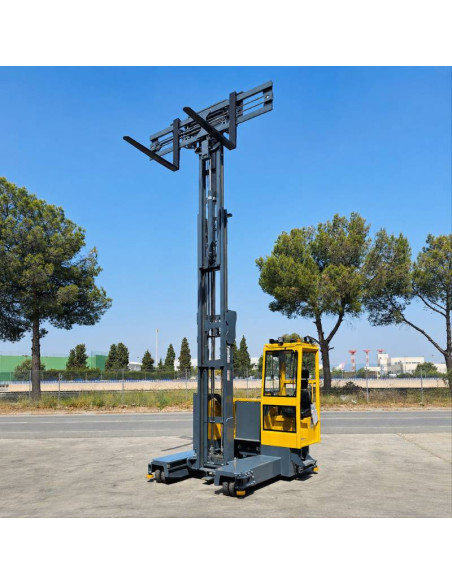

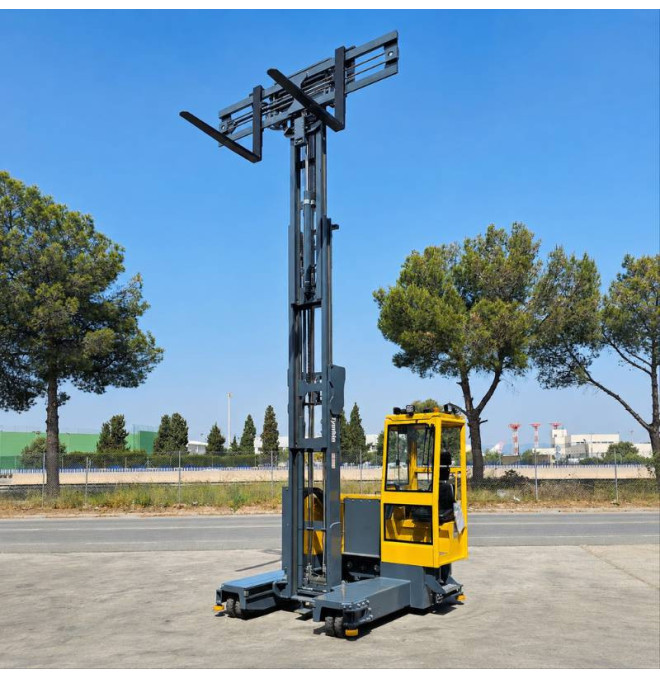

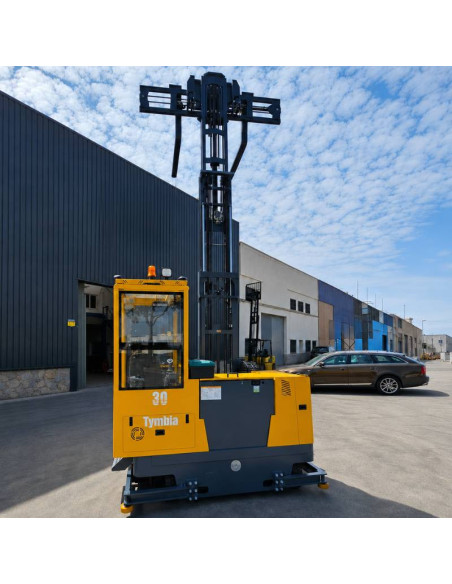

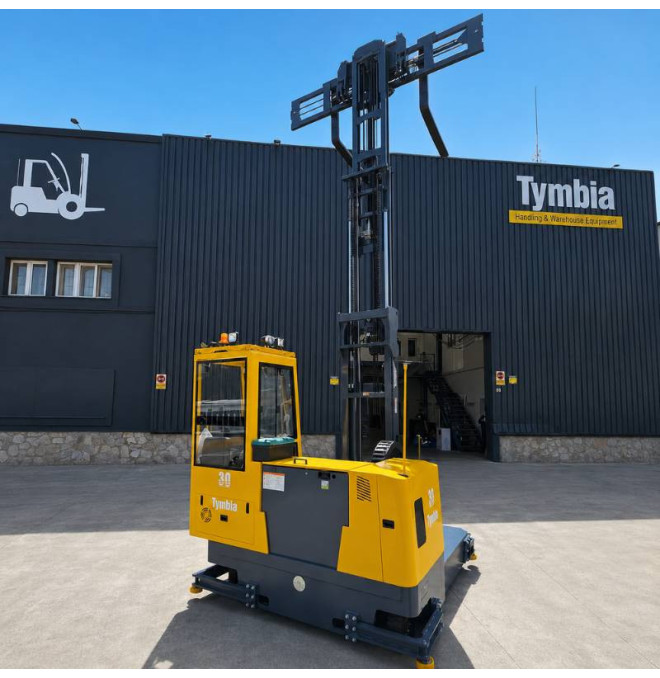

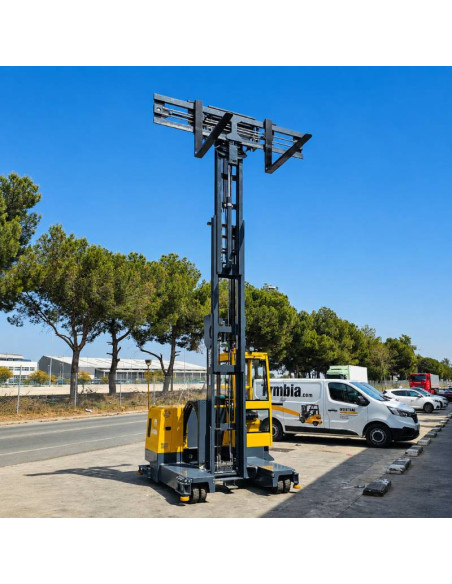

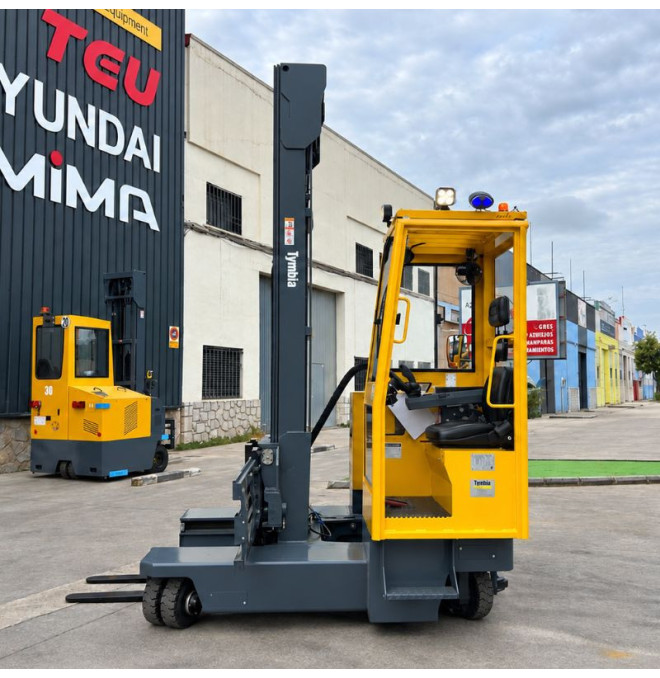

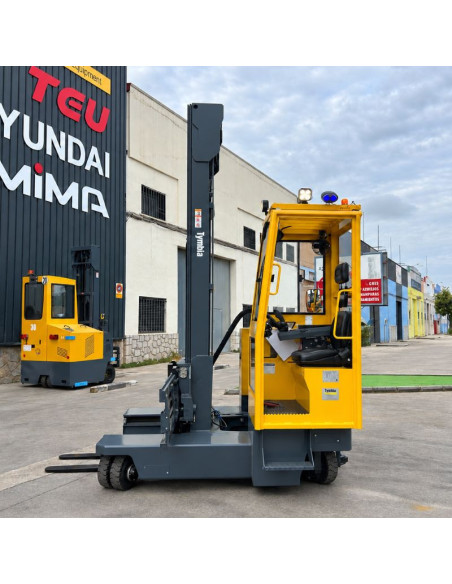

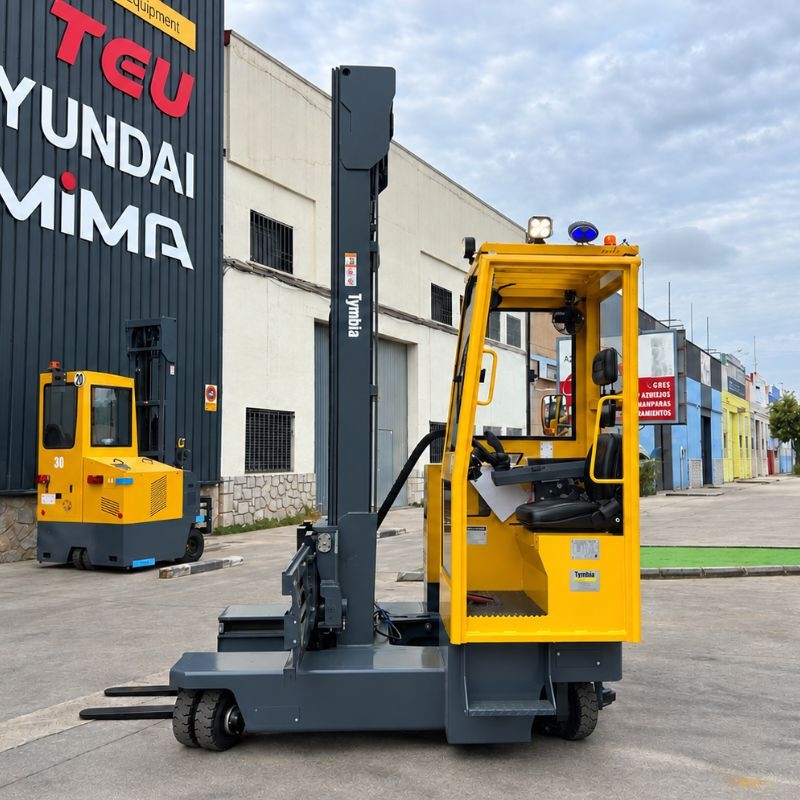

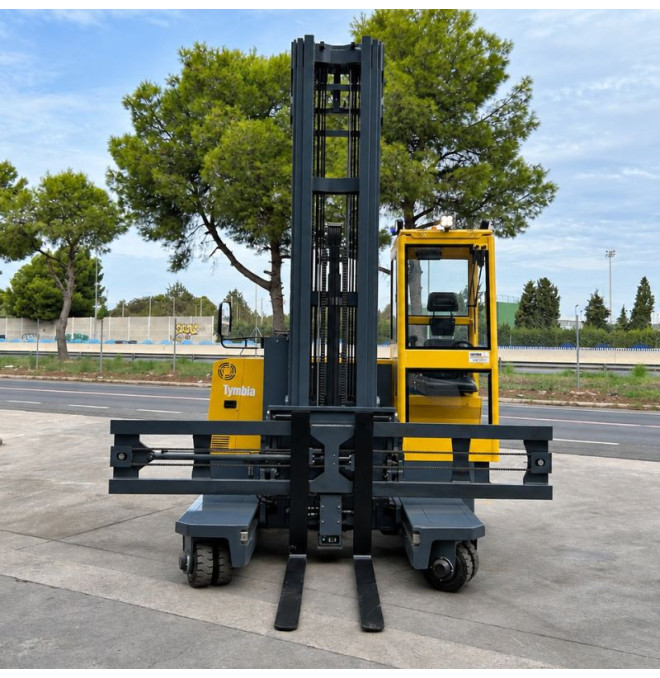

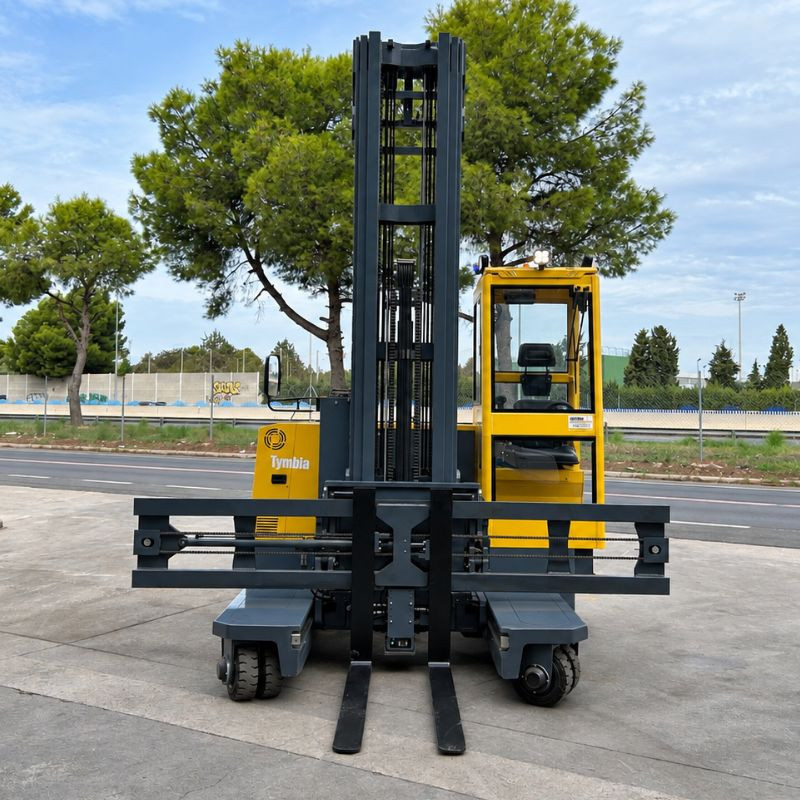

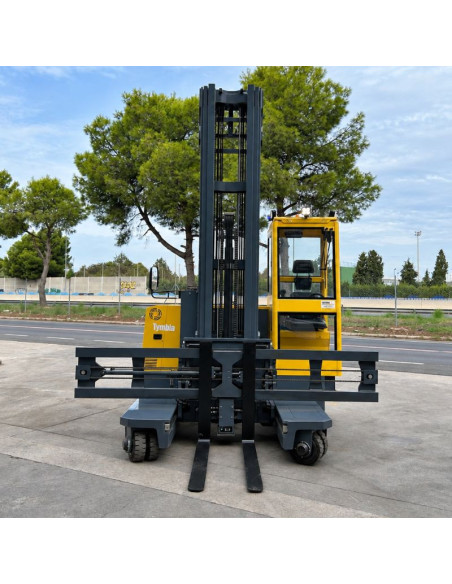

MCQC25 / 35 / 45/50 multidirectional trolley

Tymbia MQC25 / 35/45/50 is a counterwear electric multidirectional wheelbarrow designed specifically to optimize merchandise management in industrial environments with limited space. It combines the power of a counterbalanced wheelbarrow with the agility of a multidirectional steering system, allowing movements in any direction without the need to rotate the chassis.

This machine not only improves productivity in narrow stores, but also raises comfort, safety and energy efficiency standards, becoming a tool Indispensable for modern companies of the logistics and industrial sector.

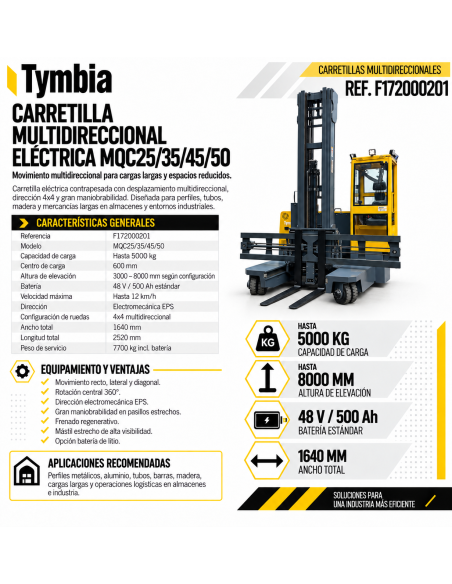

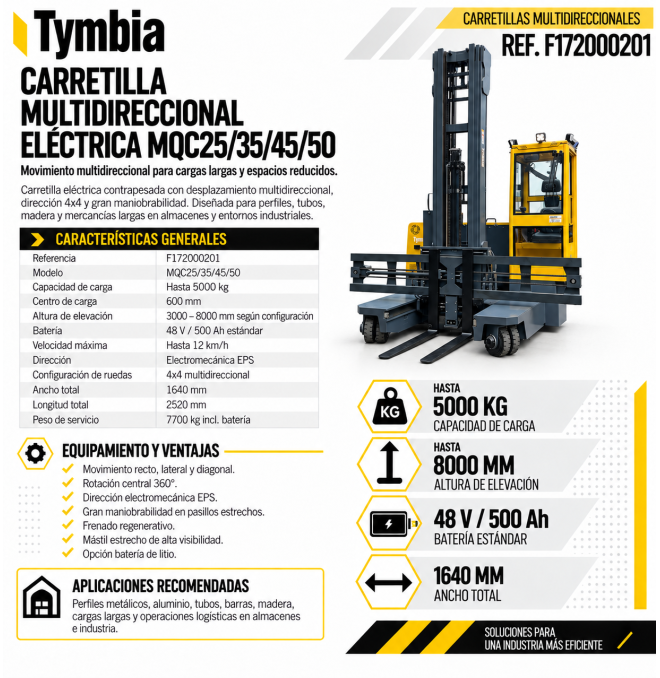

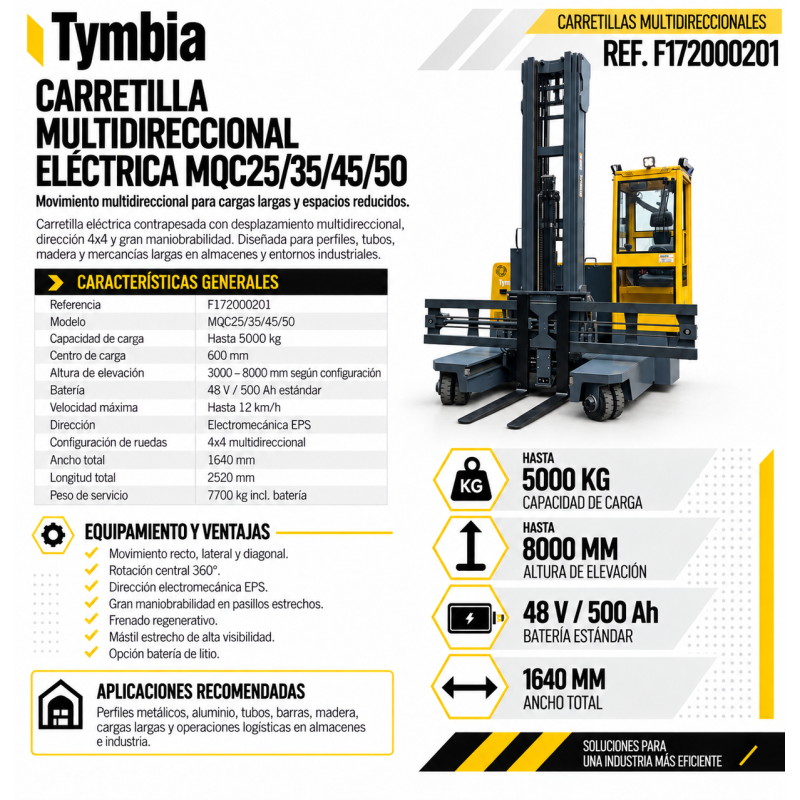

Main features:

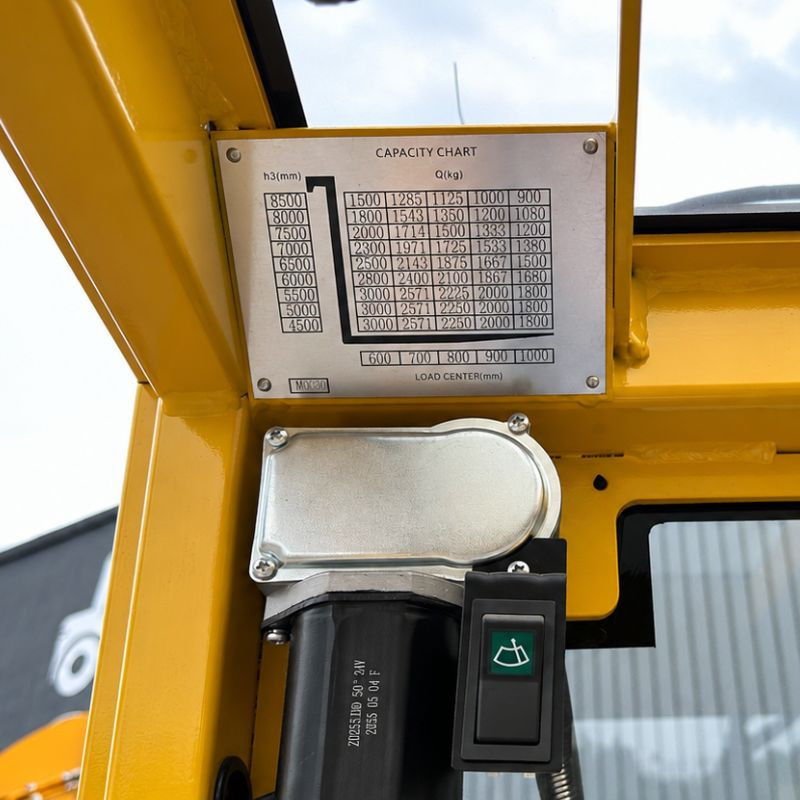

• Charging capacity: up to 5000 kg
• Standard load center: 600 mm
• Maximum lifting height: from 3000 mm to 8000 mm (according to configuration)

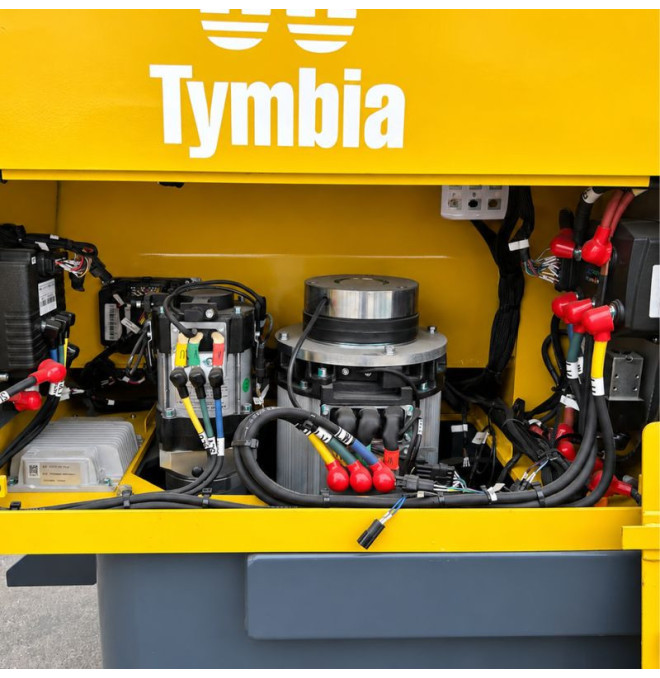

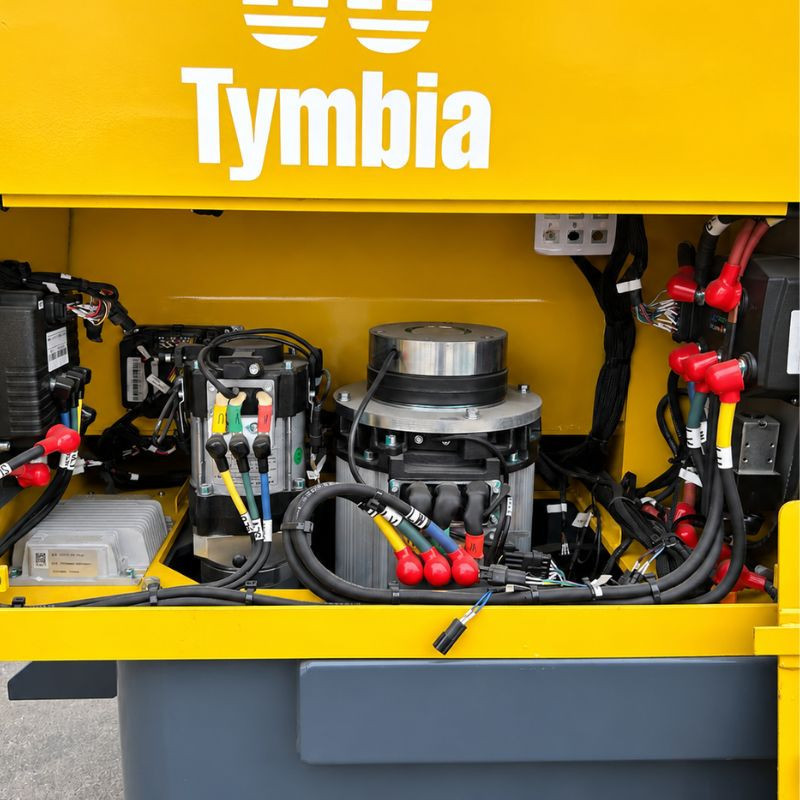

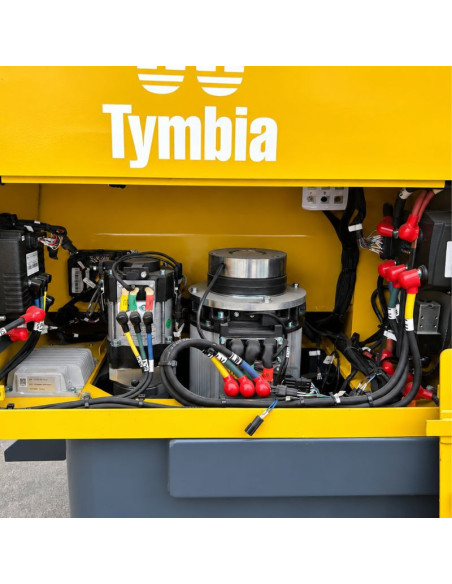

• Motorization: AC tensile motor + high power AC lifting motor

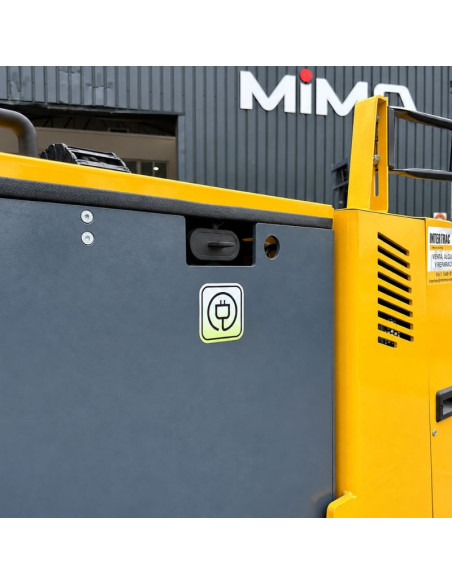

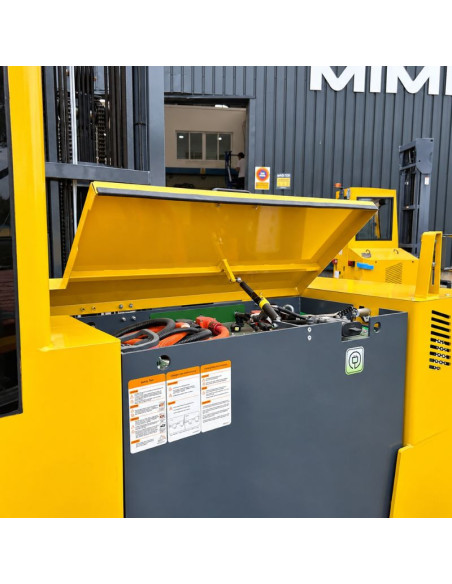

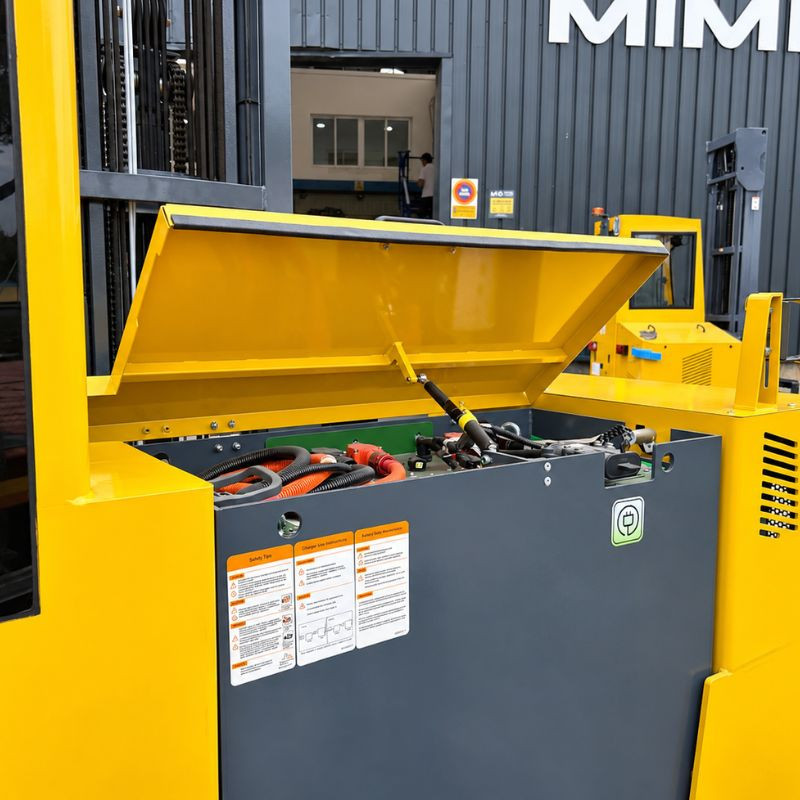

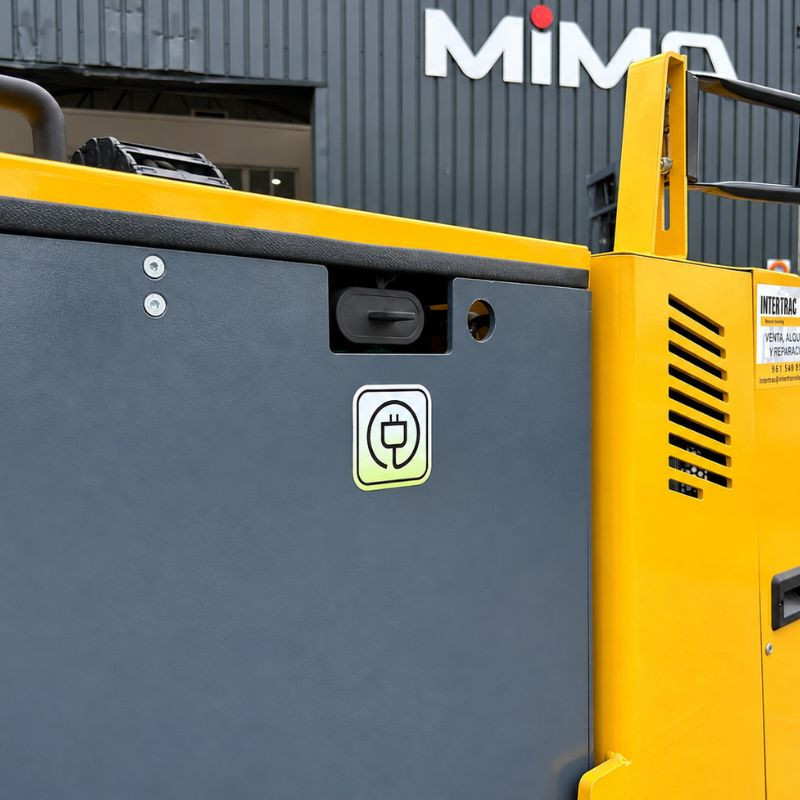

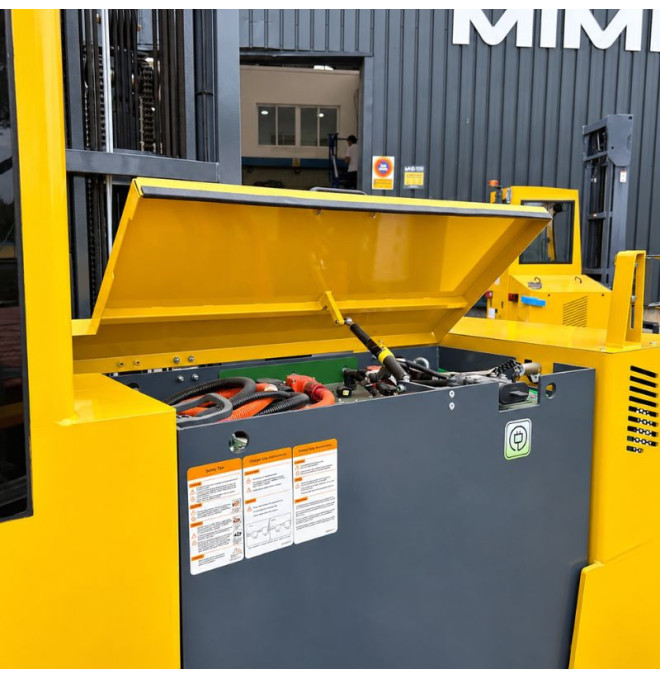

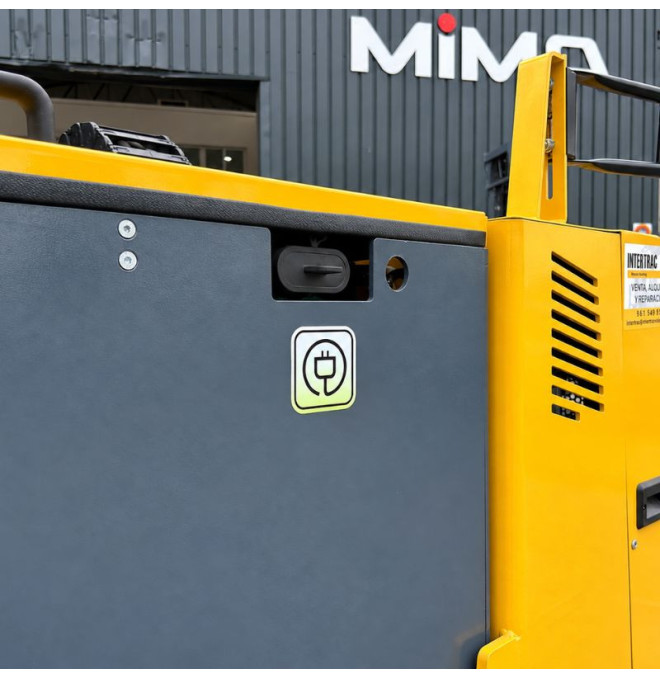

• Battery: 48V / 500Ah (standard), with low maintenance and fast recharging
• Maximum speed: up to 12 km / h
• Address system: Electromechanical address with EPS assistance (Electric address)

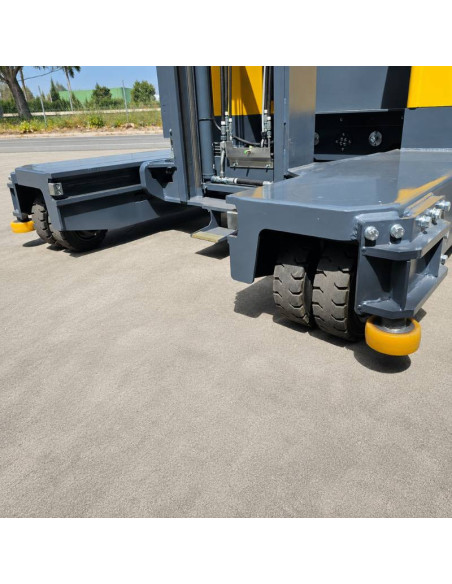

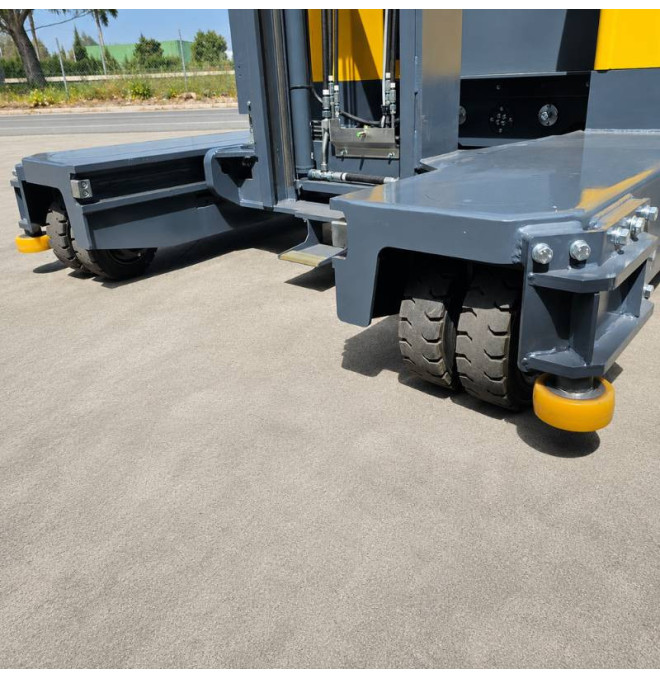

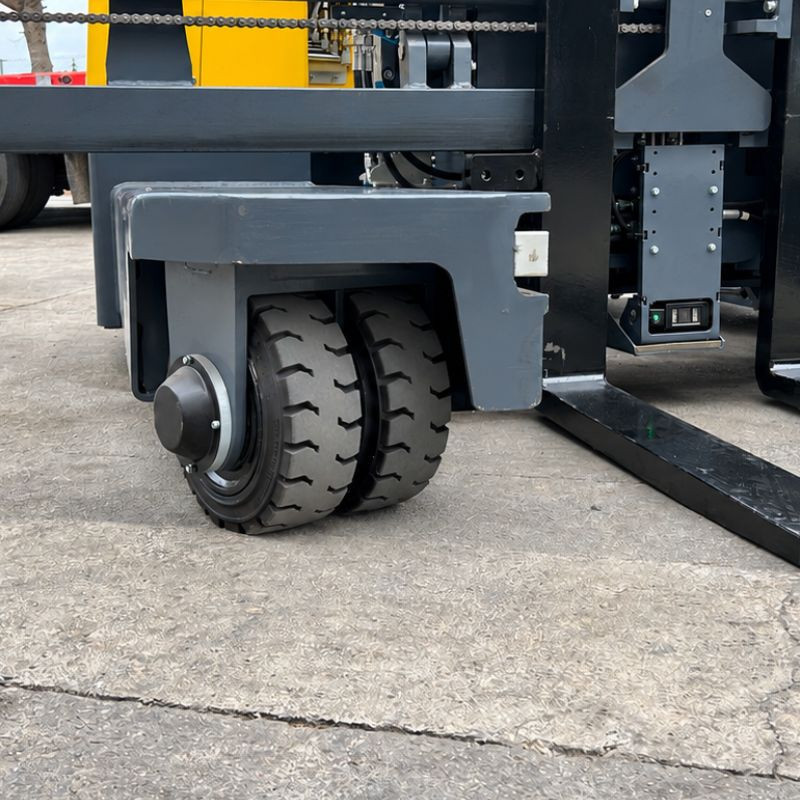

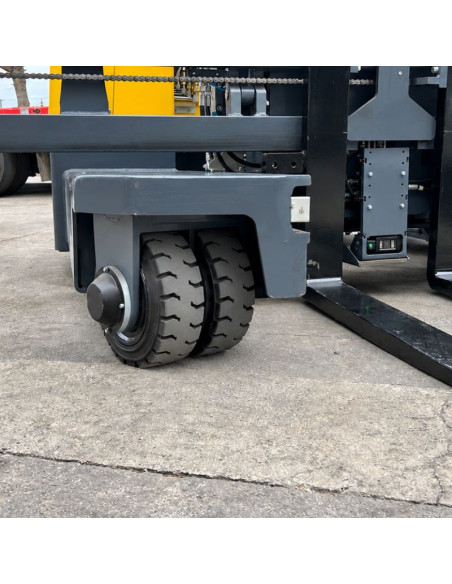

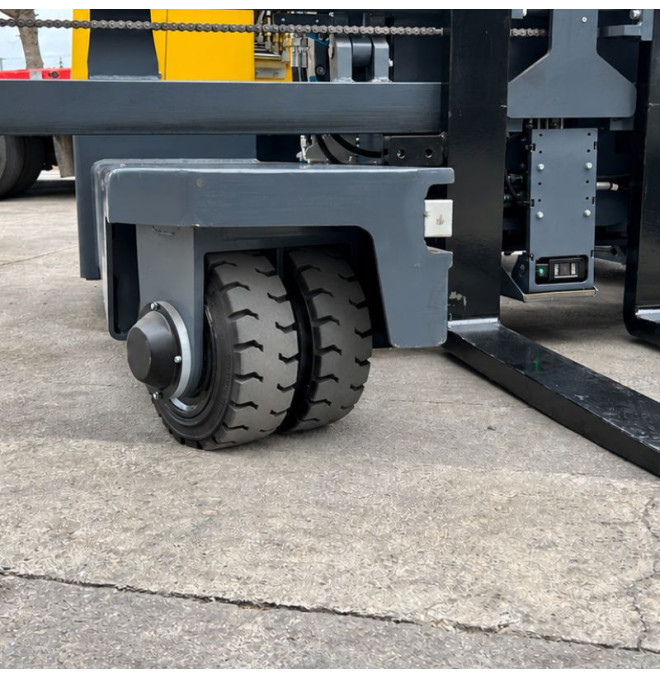

• Wheels: Pneumatic and rear solid wheels (18x9-12.125 "/ 457 × 229 mm)
• Wheel configuration: 4-wheel drive motor and guides (4x / 4) for omnidirectional movement

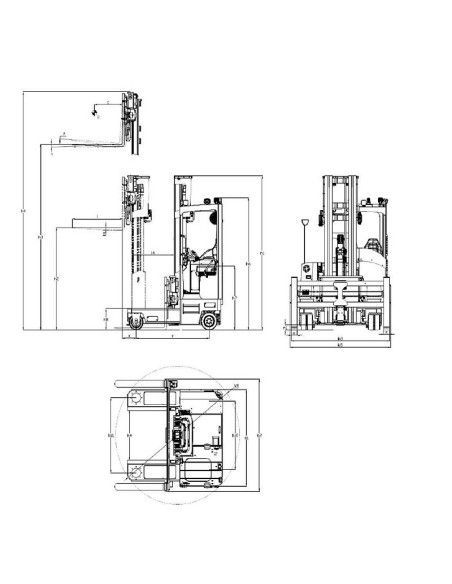

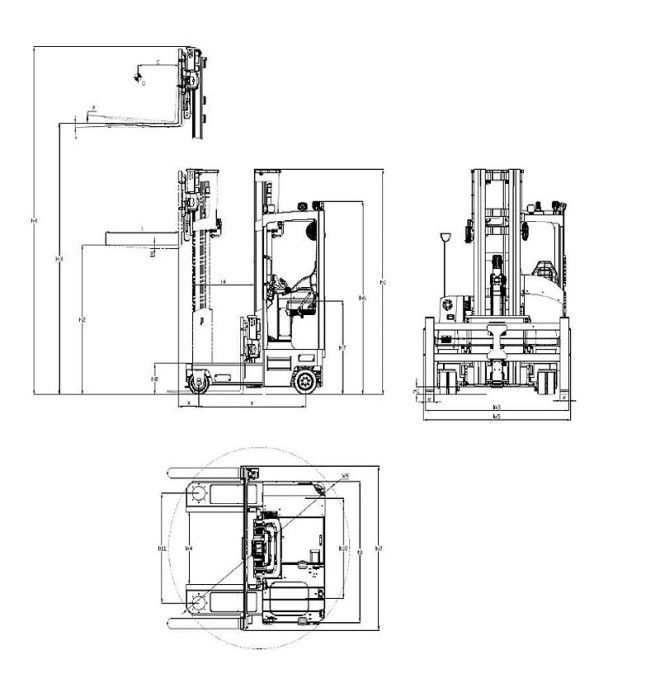

• Total width: only 1640 mm
• Total length: 2520 mm
• Vehicle weight: 7700 kg (including battery)

Optional features available:

• Forks selector + Displaceable forks laterally: allows fast adjustment of width ± 100 mm.
• Ultra-narrow mast: improves the visibility of the operator during maneuvers.
• 360 ° Central Rotation System: Ideal for complete turns without moving the base of the truck.
• Fork Positiper: It facilitates precise placement of irregular or long loads.
• Regenerative braking system: energy saving and longer useful life of the components.
• Outdoor package: For outdoor use, it includes protection against dust and IP54 water.
• Lighting Additional LED: To operate in areas with little visibility.
• Option: Lithium battery.

Competitive advantages:

• Continuous multidirectional movement: change of direction without stopping, which saves time and reduces the wear of the brake system.
• Compact design: Ideal to work in narrow corridors and reduced spaces.

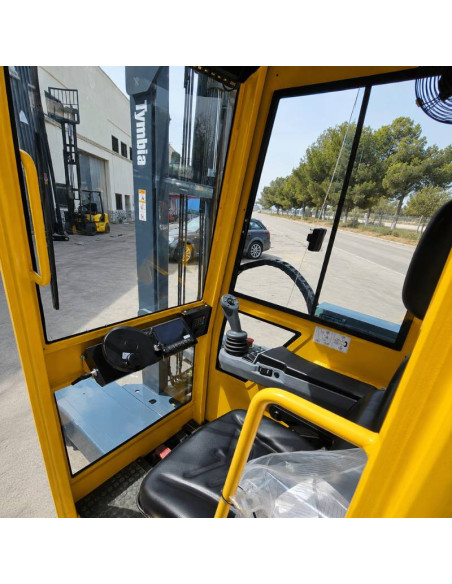

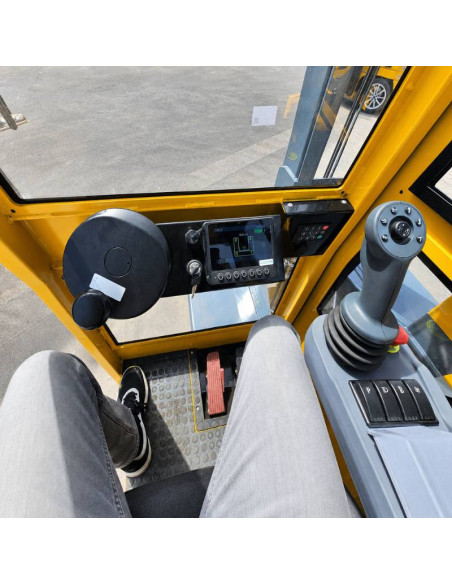

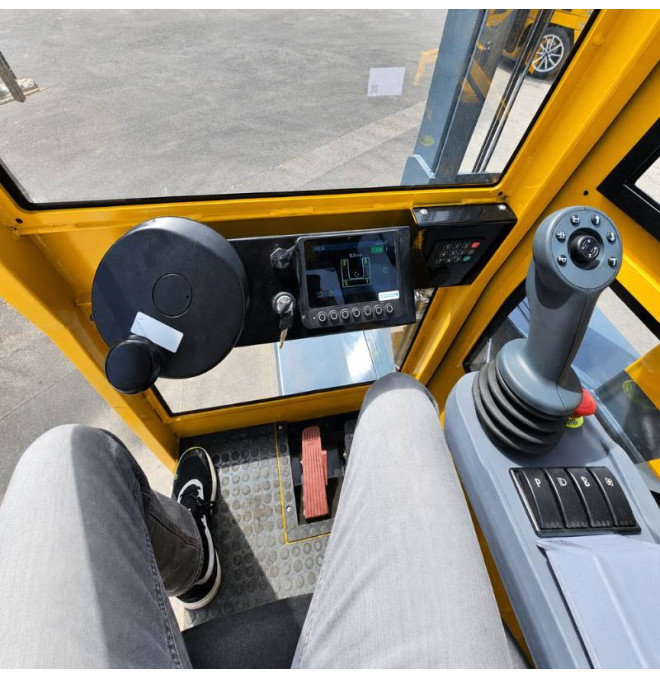

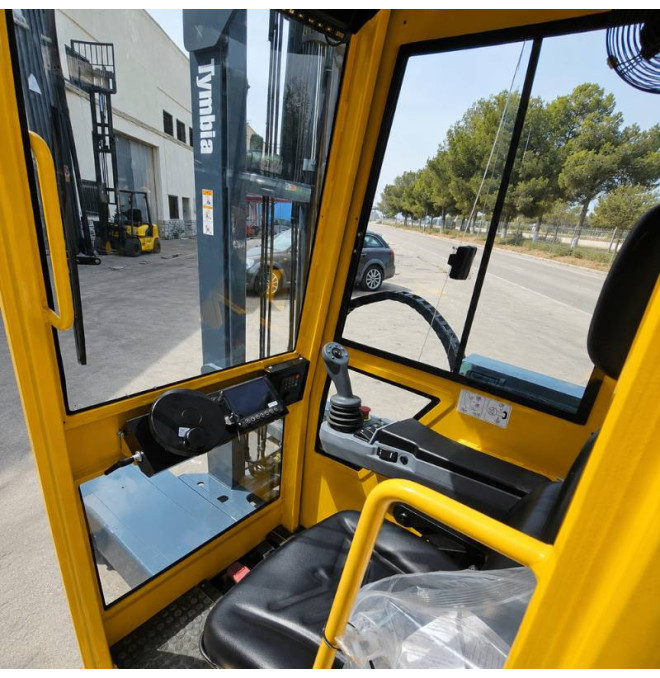

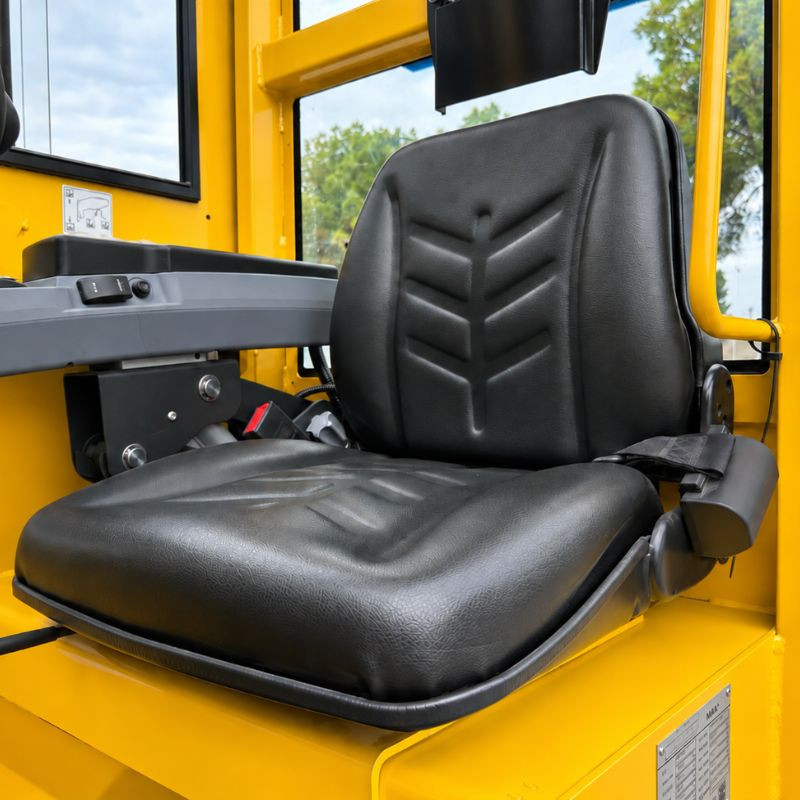

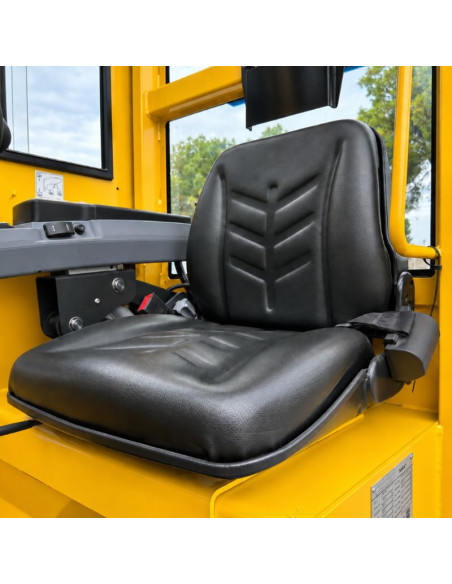

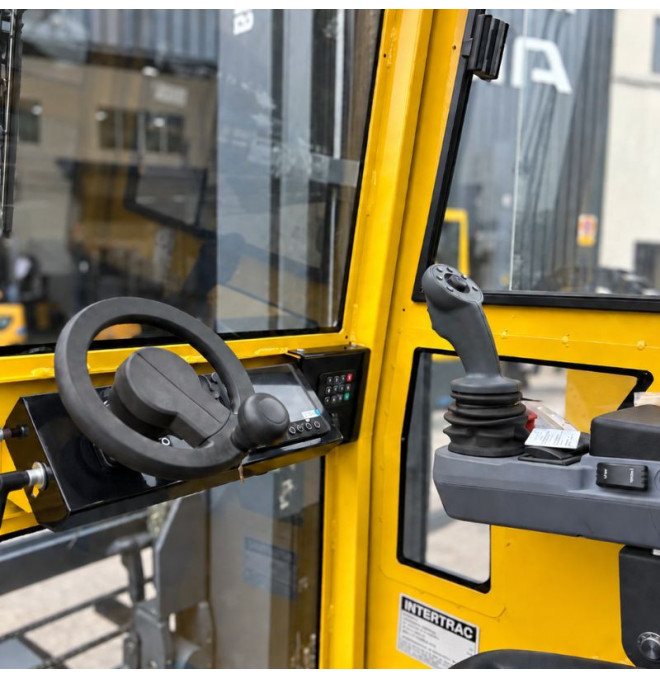

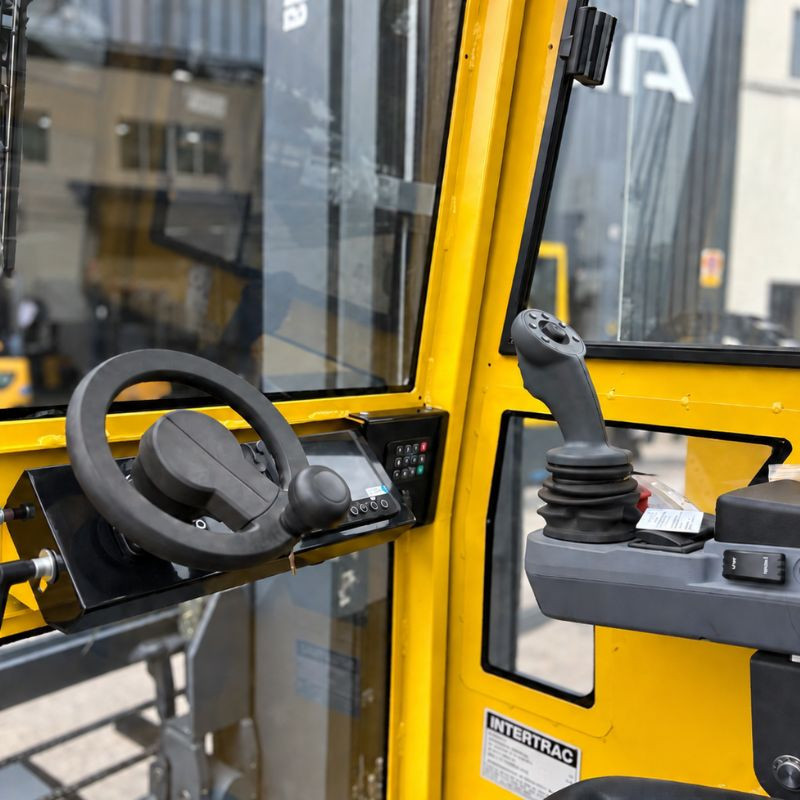

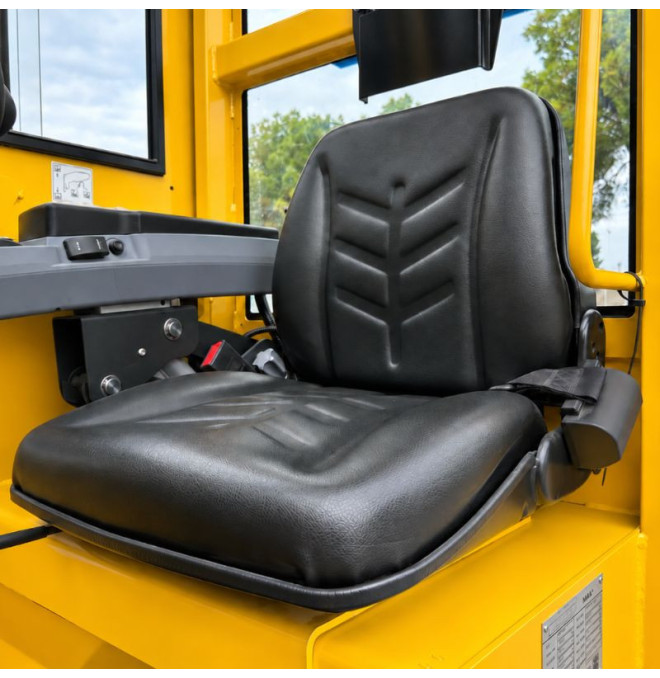

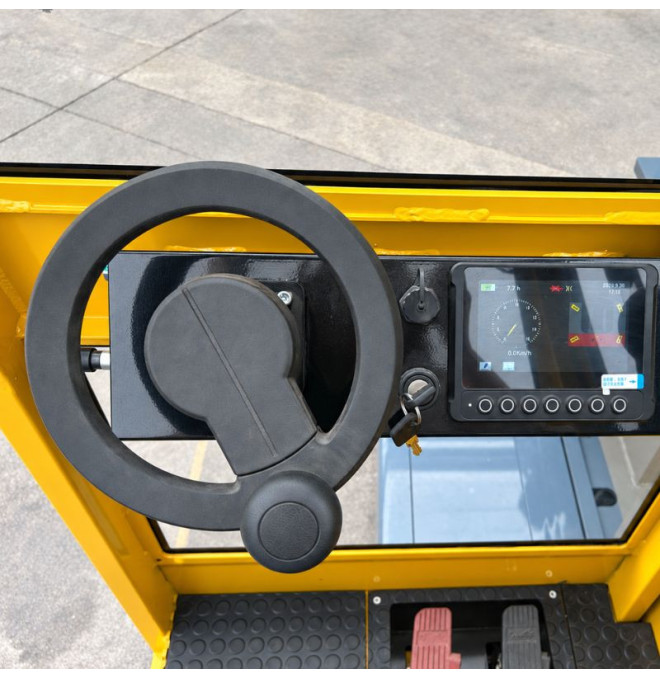

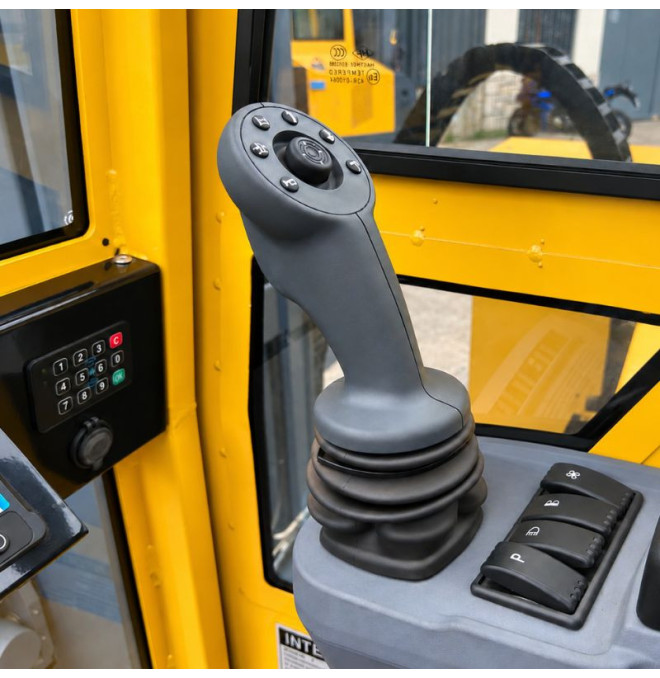

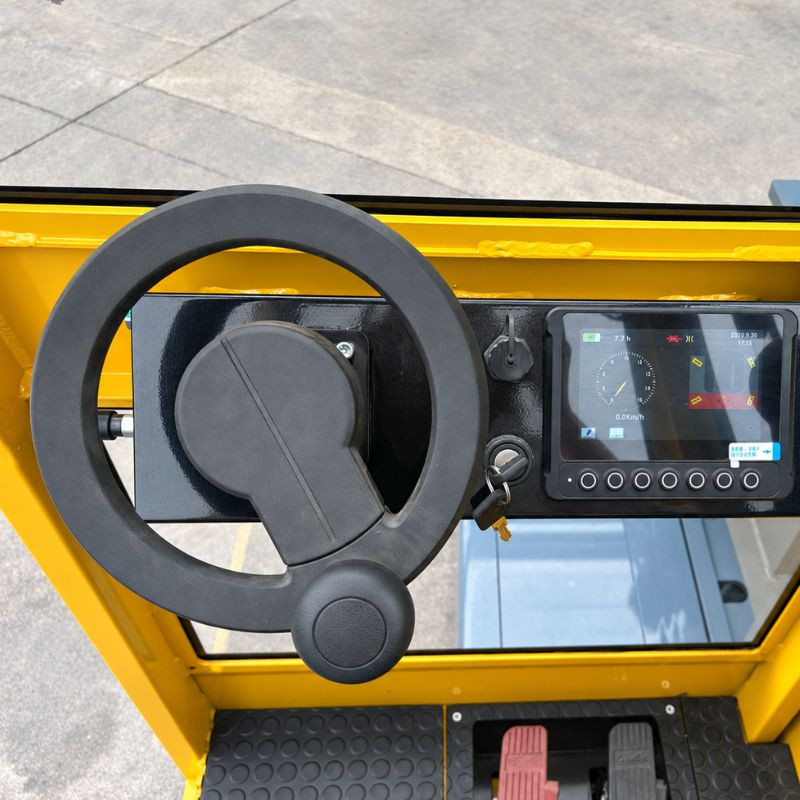

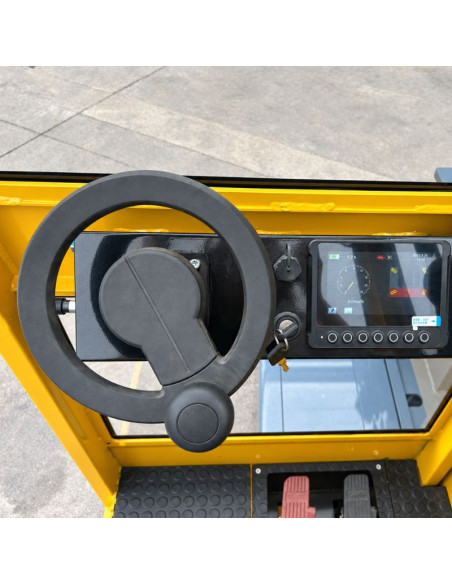

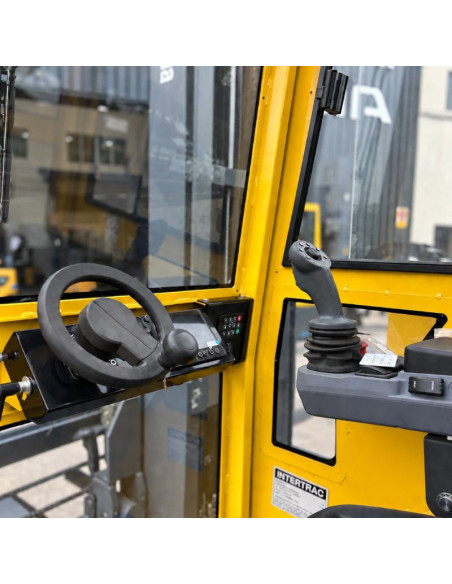

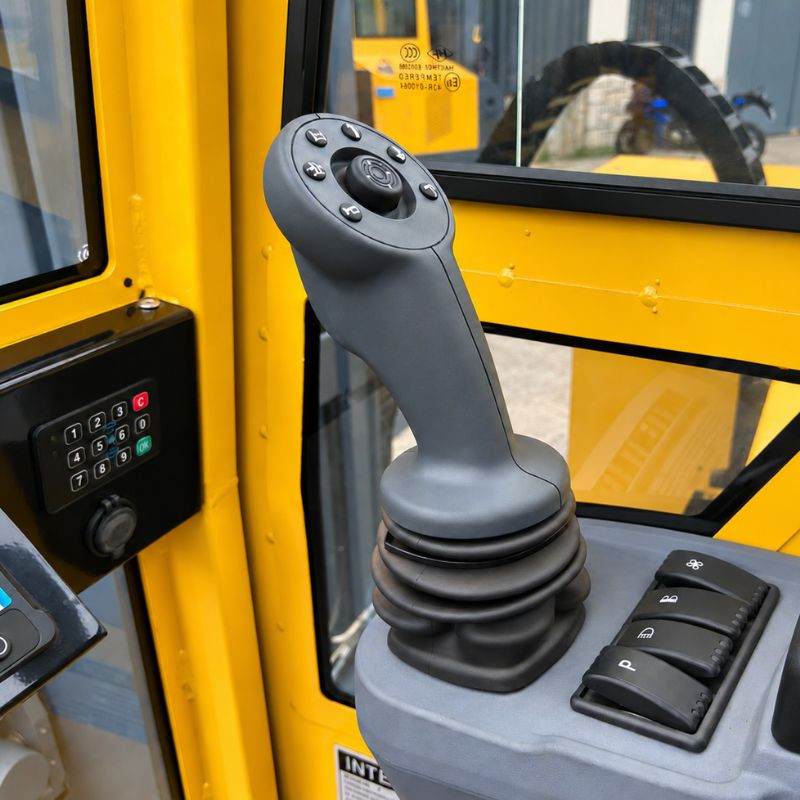

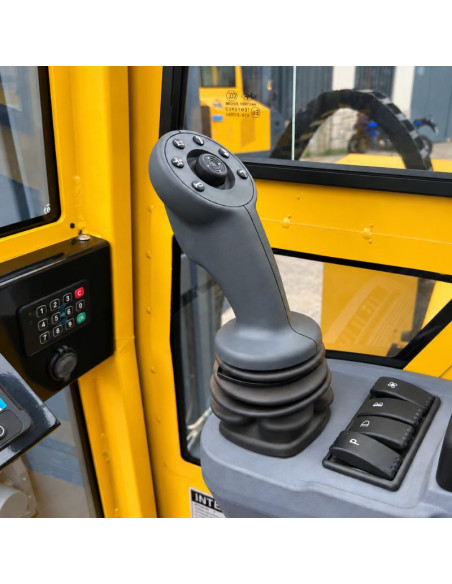

• Comfortable operation: Ergonomic seat, adjustable steering wheel and intuitive control.
• Greater visibility: Ultra-thin mast offering a clear view of the manipulated material.
• Energy Efficiency: Lithium battery with high performance and prolonged life cycle.
• Versatility: able to transport both conventional merchandise and long materials.
• Adaptability: It works perfectly indoors and exteriors thanks to its resistant wheels.

Main applications:

The Tymbia MQC25 / 35/45/45/40 multi-directional trolley is perfectly adapted to multiple industrial sectors, including:

• Stores and logistics centers of palletized products
• Metallic and aluminum profile industry

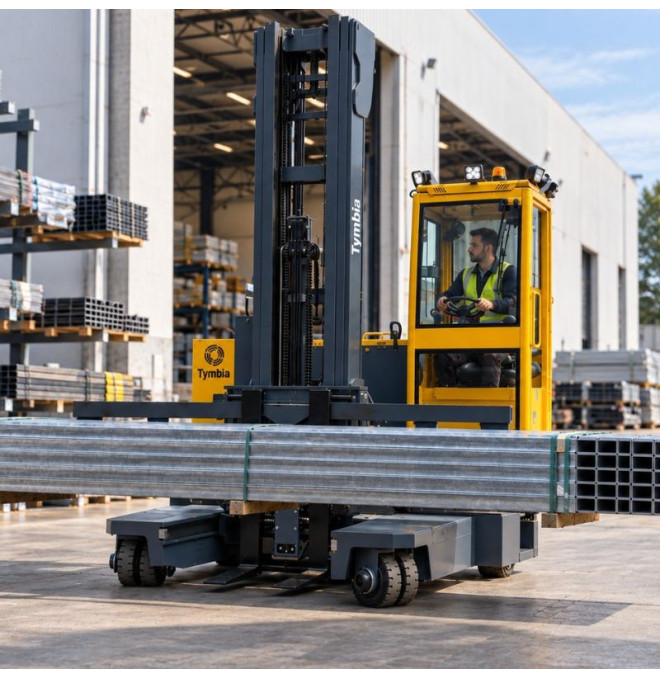

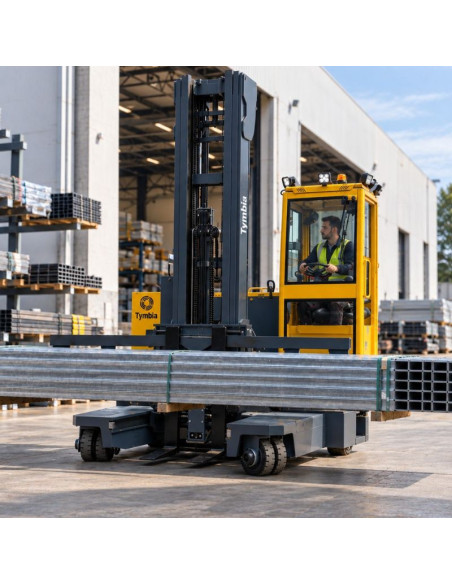

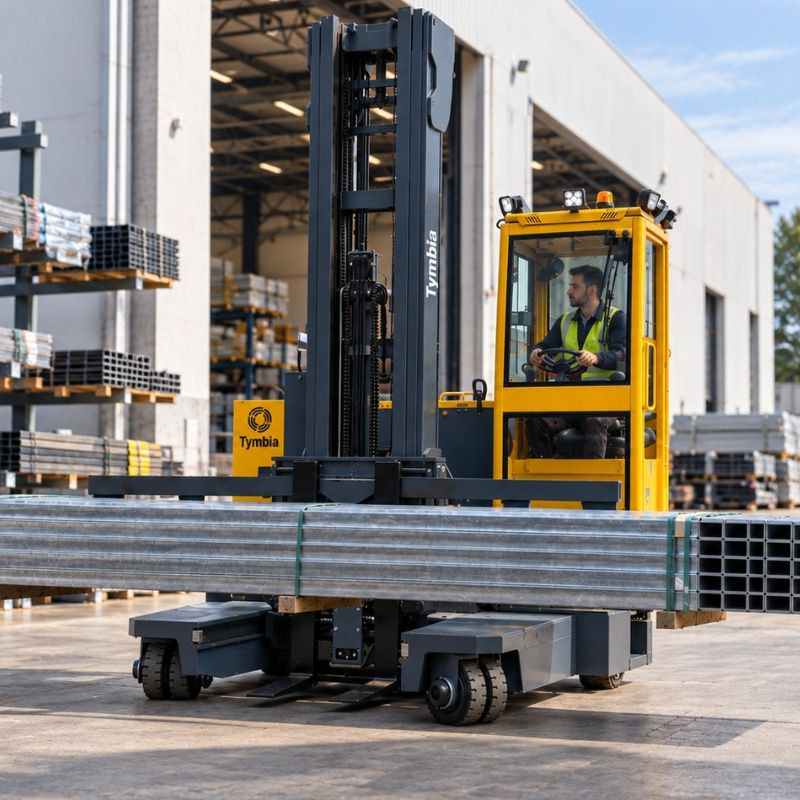

• Handling of pipes, wood and other long materials
• Transhipment operations and continuous load
• Factories with adjusted production lines
• Urban logistics and interior / outdoor transport

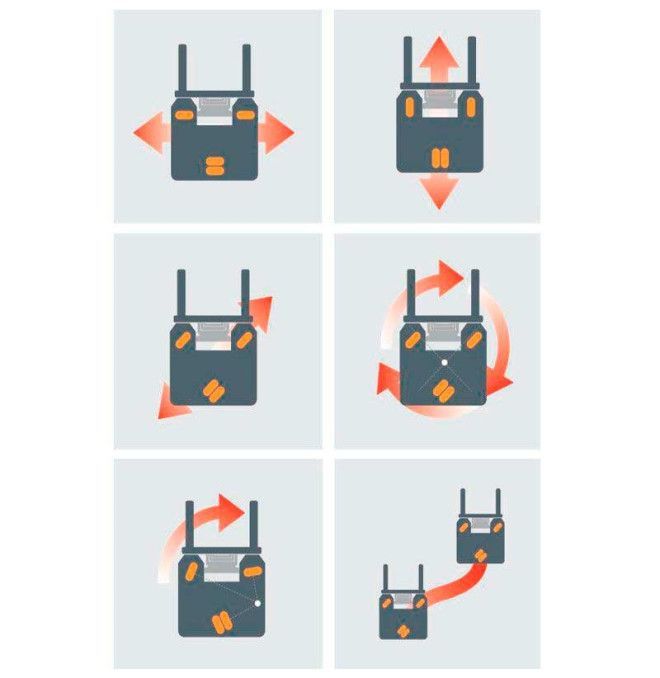

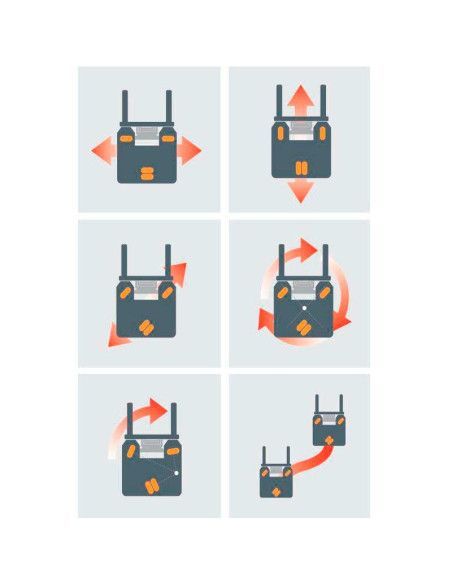

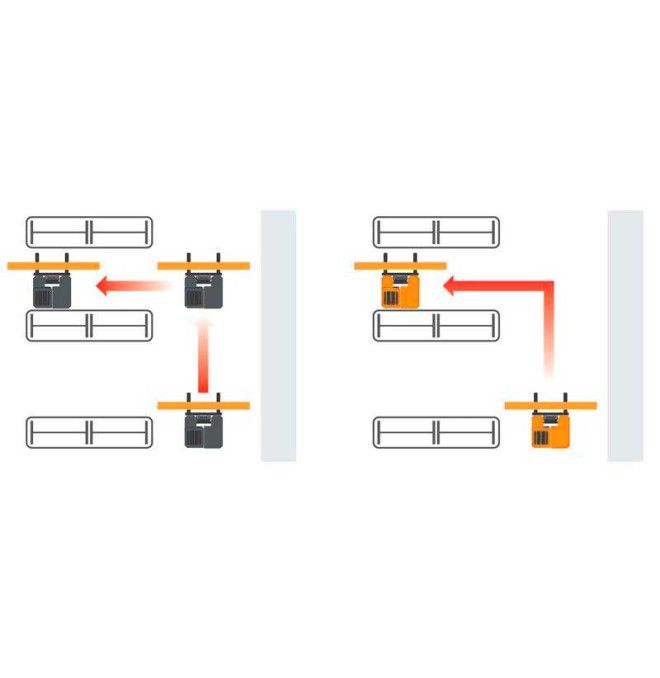

Multidirectional displacement modes:

• Righteous
• Lateral displacement
• Diagonal displacement
• 360 ° central rotation

These modes allow great flexibility in complex environments, facilitating accurate maneuvers in restricted areas.

Why choose the Tymbia Mqc25 / 35/45/50?

The MQC25 / 35/45/50 is not only a traditional multidireccinal trolley, it offers:

• Less storage space required
• Greater efficiency in lateral movements
• Dead time reduction
• Greater comfort and safety for the operator
• Low cost of maintenance and operation

The Tymbia MQC25 / 35/45/40 multidirectional trolley is the ideal choice for companies that seek to improve logistics efficiency in warehouses and factories. Its innovative design and advanced functionalities make it a tool Indispensable for modern material handling.

Contact us today to request technical information or budget.
