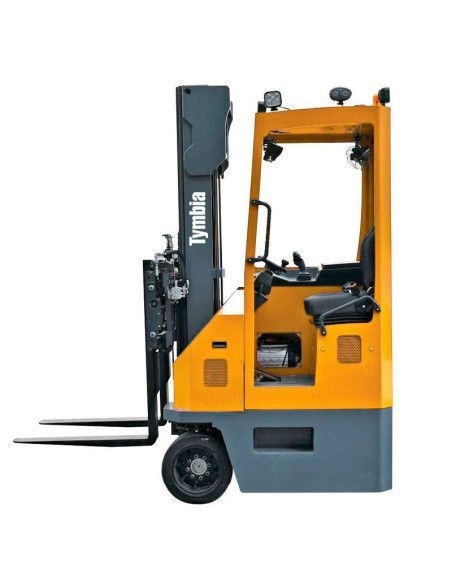

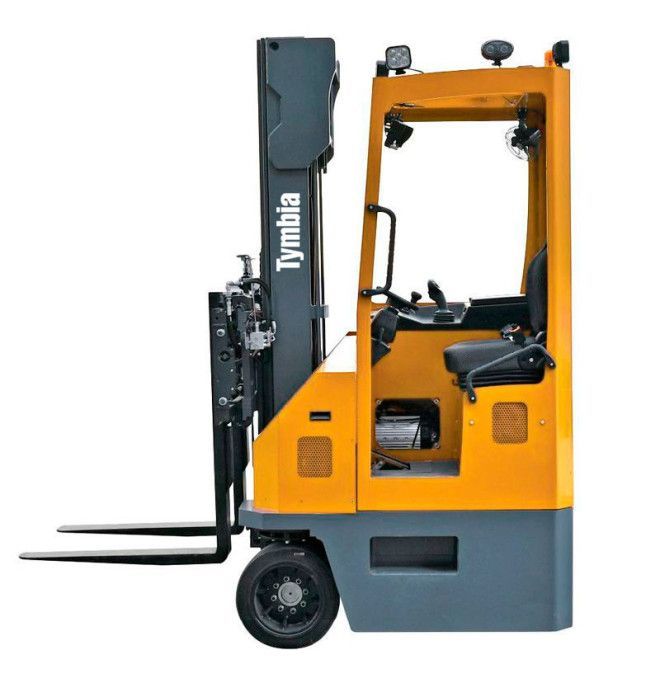

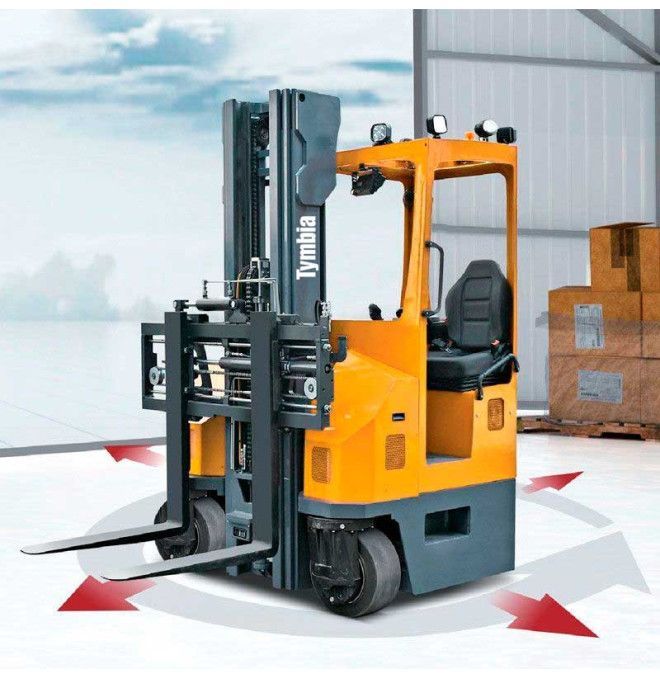

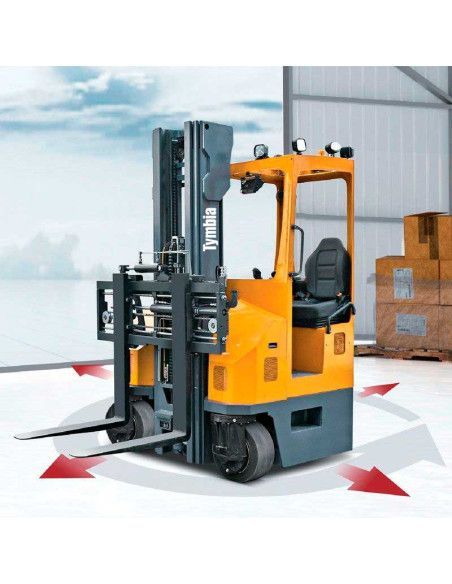

MCK30 multidirectional wheelbarrow

Tymbia MQK30 is a counterwear electric multidirectional wheelbarrow specially designed to optimize loading and unloading operations in reduced spaces and for efficient management of long materials such as aluminum, wood, tubes and other similar products. This machine not only improves productivity, but also raises comfort, safety and energy efficiency standards in industrial environments.

With its capacity of 3000 kg, adjustable lifting height (up to 8 meters) and multidirectional driving technology, the MQK30 allows movements in all directions without the need to stop, saving time and increasing operational efficiency.

Main features:

• Loading capacity: up to 3000 kg
• Standard load center: 500 mm
• Maximum lifting height: from 3000 mm to 8000 mm (according to configuration)
• Motorization: AC tensile motor and high power AC lifting motor
• Lithium battery: 48V / 600Ah (standard), with low maintenance and fast recharging
• Maximum speed: up to 10 km / h
• Address system: Electromechanical address with EPS assistance (Electric address)
• Wheels: Front and rear solid rubber wheels (18x9-12.125 "/ 457 × 229 mm)
• Wheel configuration: 2-wheel drive and 2 wheel design Guide (2x / 2)
• Total width: only 1640 mm
• Total length: 2520 mm
• Vehicle weight: 7900 kg (including battery)

Optional features available:

• Fork selector + Displaceable forks laterally: Allows fast loading of load width ± 100 mm.
• Ultra-narrow mast: improves the visibility of the operator during maneuvers.
• 360 ° Central Rotation System: Ideal for complete turns without moving the base of the truck.
• Fork Positiper: It facilitates precise placement of irregular or long loads.
• Regenerative braking system: energy saving and longer useful life of the components.
• Lithium battery

Competitive advantages:

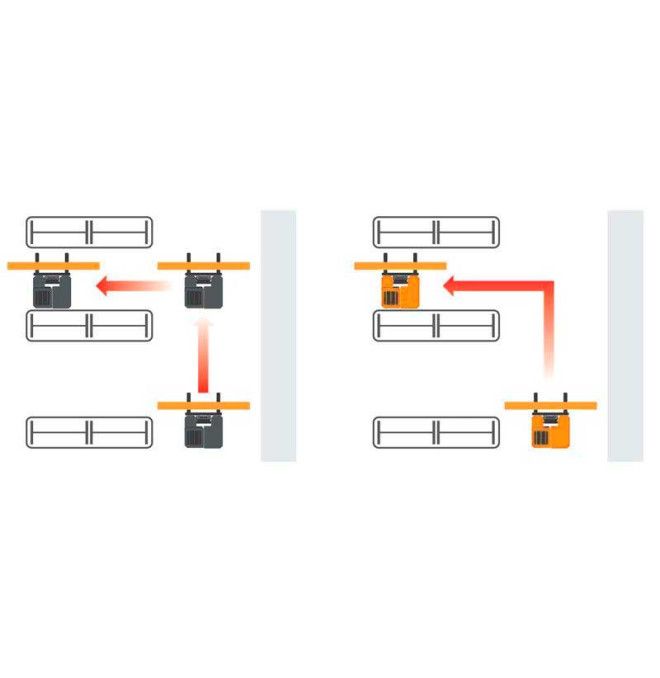

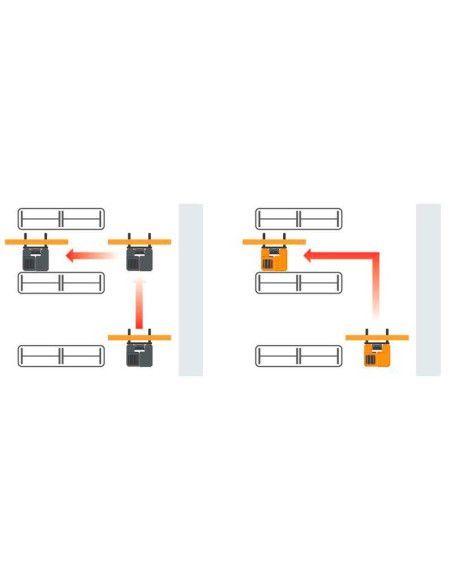

• Continuous multidirectional movement: change of direction without stopping, which saves time and reduces the wear of the brake system.
• Compact design: Ideal to work in narrow corridors and reduced spaces.
• Comfortable operation: Ergonomic seat, adjustable steering wheel and intuitive control.
• Greater visibility: Ultra-thin mast offering a clear view of the manipulated material.
• Energy Efficiency: Lithium battery with high performance and prolonged life cycle.
• Versatility: able to transport both conventional merchandise and long materials.
• Adaptability: It works perfectly indoors and exteriors thanks to its resistant rubber wheels.

Main applications:

The Tymbia MQK30 multidirectional wheelbarrow is perfectly adapted to multiple industrial sectors, including:

• Aluminum industry and metallic profiles
• Forestry and wood sector
• Handling of pipes and pipes
• Stores of long and palletized products
• Logistics and interior / outdoor transport
• Distribution centers with limited space
• Transhipment operations and continuous load

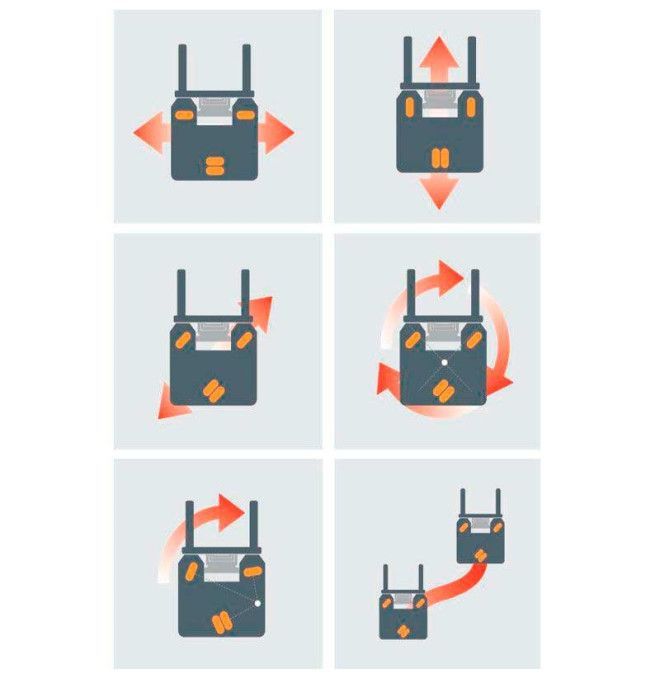

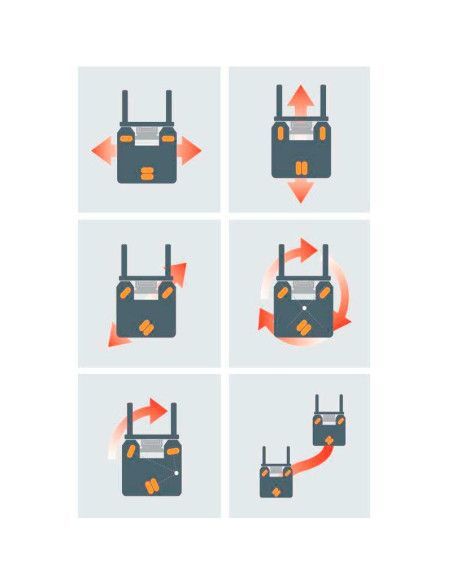

Multidirectional displacement modes:

• Righteous
• Lateral displacement
• Diagonal displacement
• 360 ° central rotation

These modes allow great flexibility in complex environments, facilitating accurate maneuvers in restricted areas.

Why choose Tymbia MQK30?

The MQK30 is not just a traditional counterweight wheelbar or just a Reach Truck. It is an intelligent fusion of both technologies, offering:

• Less storage space required
• Greater efficiency in lateral movements
• Dead time reduction
• Greater comfort and safety for the operator
• Low cost of maintenance and operation

The Tymbia MQK30 is the ideal choice for companies that seek to improve logistics efficiency in warehouses and factories. Its innovative design and advanced functionalities make it an indispensable tool for modern material handling.

Contact us today to request technical information, free quotation or demo.

** They must have their own discharge means.
