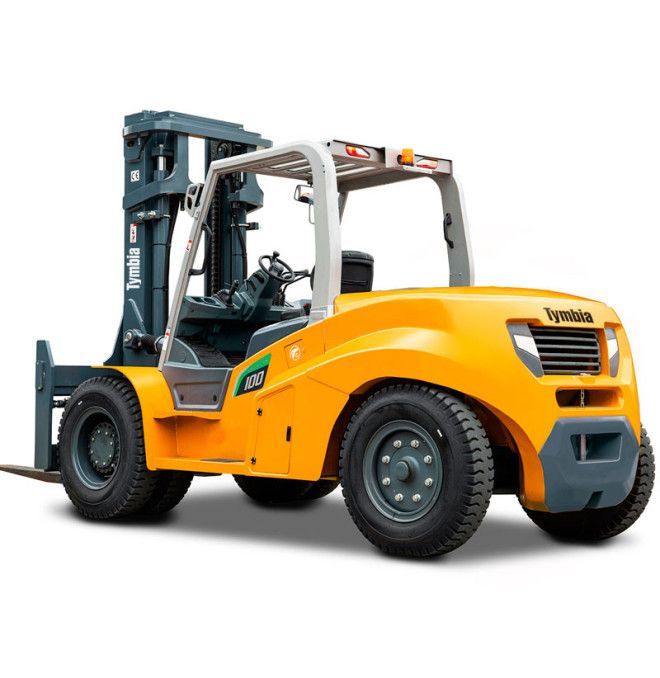

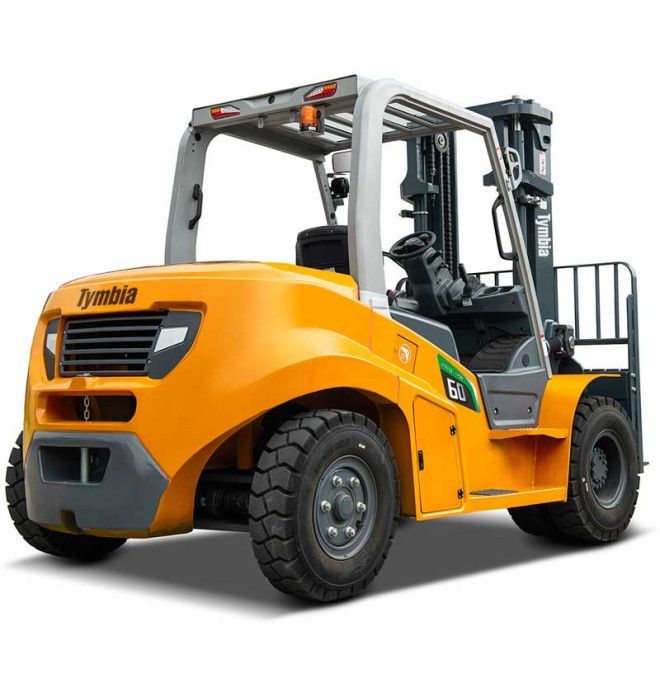

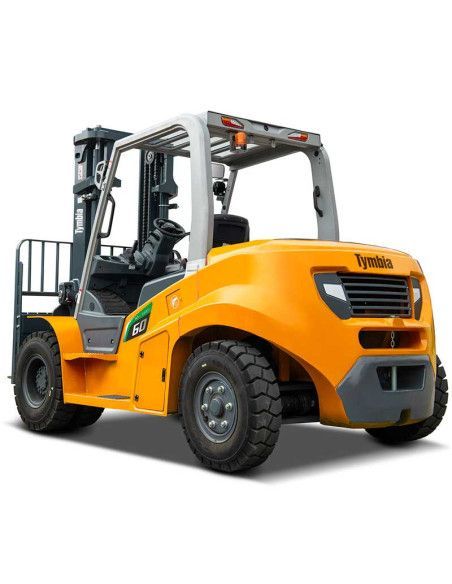

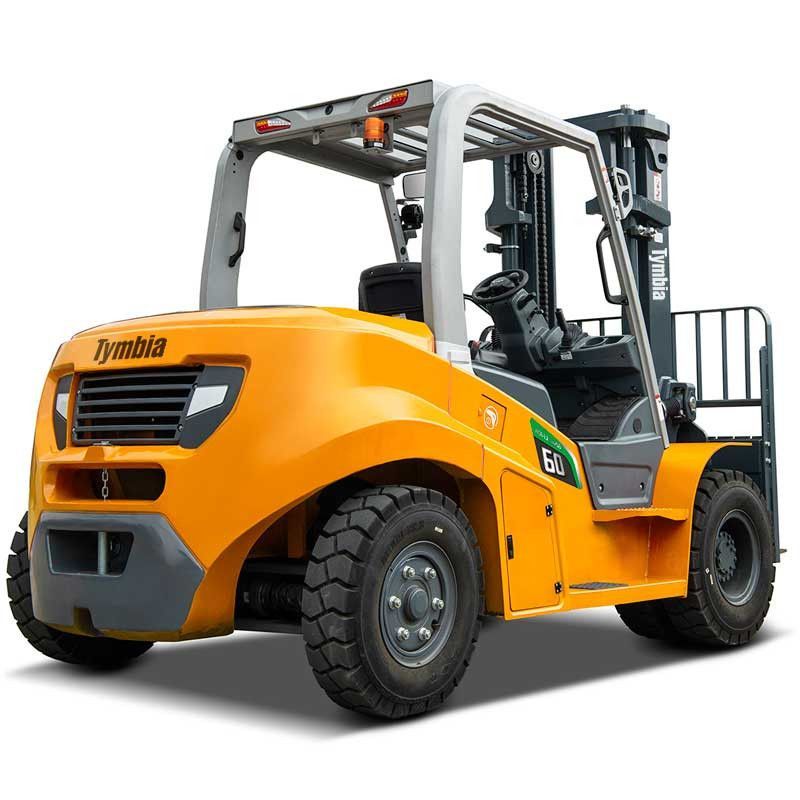

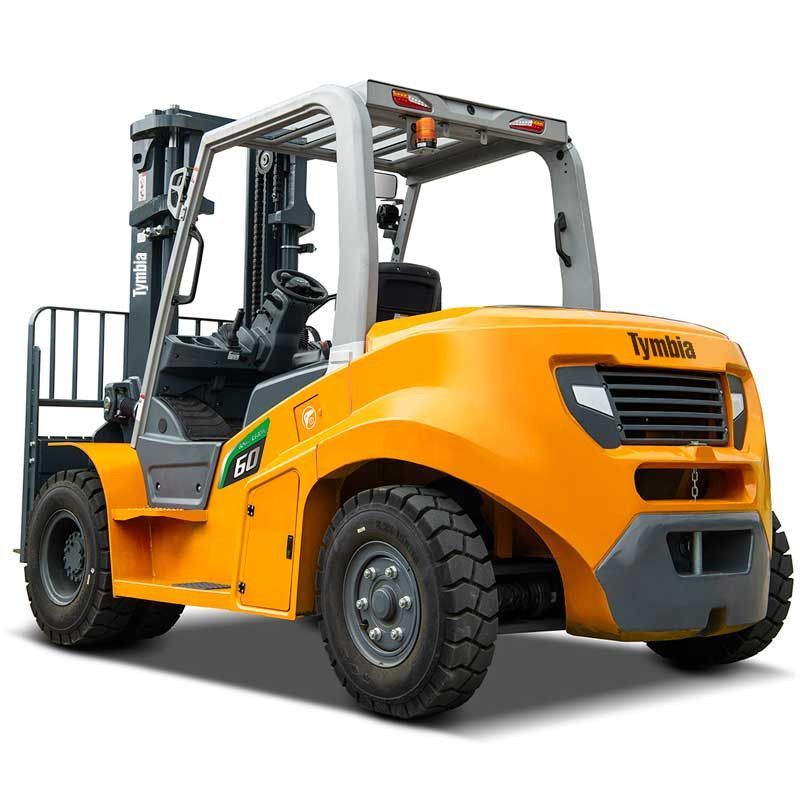

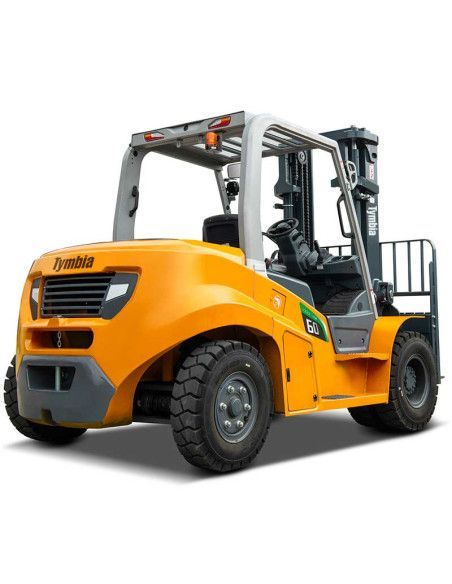

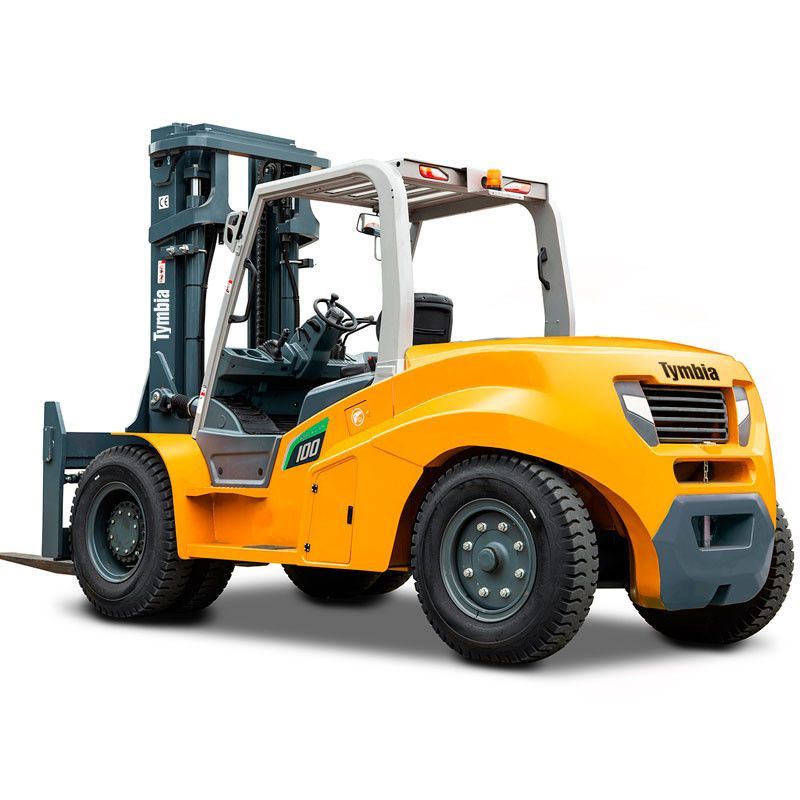

Lithium forklift 6-10ton G2 Series

The G2 series of Tymbia gathers innovation and performance in a robust and versatile design. With models available from 6 to 10 tons (CPD60, CPD70, CPD85 and CPD100), these forklift Trucks Electric are designed to adapt to the needs of the most demanding industrial sectors, combining power, autonomy and energy sustainability thanks to its lithium battery technology.

Main features:

1. Permanent magnet synchronous engine with liquid cooling:

The heart of the G2 series is its advanced synchronous motor of permanent liquid refrigerated magnet, which allows continuous operation without overheating, even under extreme conditions. This system offers greater durability, energy efficiency and lower maintenance.

2. High capacity lithium battery system:

Equipped with state-of-the-art lithium batteries (326.4v / 150Ah up to 326.4v / 202Ah in higher models), it offers ultra-fast loading times and a long life. It does not require maintenance or special ventilation during loading.

3. Outstanding load capacity:

With nominal capacity options from 6,000 kg (CPD60) up to 10,000 kg (CPD100), this series is designed to handle heavy loads with stability and precision. The distance from the standard load center is 600 mm, guaranteeing optimal balance.

4. Speed and efficiency in operation:

• Scroll speed: up to 25 km / h (charged / empty).

• Lifting speed: up to 460 mm / s, allowing an agile and productive loading and unloading.

• Pending capacity: Up to 25% with full load, ideal for inclined land or industrial ramps.

5. Ergonomic design and comfortable driving:

The ergonomic design of the seat, along with a silent hydraulic system and an improved mast vision thanks to the hidden hose design, provides operators with a comfortable and safe experience, reducing fatigue during long days.

6. Integral protection and intelligent safety:

• Independent distribution of high and low voltage energy.

• External emergency button.

• Intelligent braking system and automatic deceleration control in turns.

• Multi-level protection against electrical and mechanical errors.

• IP67 certification in key components, resistant to dust and water.

7. Customizable configurations:

G2 models offer a wide range of options to adapt to any industrial needs:

• Solid tires or standard tires.

• Autonomous system and lighting additional.

• Camera and rear view.

• Double feeding system.

• Autonomous System - Weide (Autonomous System - Weide System)

• Integrated lever 'thumb switch' for greater ease of use.

8. Ease of maintenance:

• Side door for access to easily accessible electrical and hydraulic system.

• Folding bonnet with wide angle for inspection and fast maintenance.

• Detachable front and rear plates for simple repairs.

9. Mast options:

Available in standard and three-stage configurations with maximum lifting height of up to 7000 mm (ZSM700 model). Full Free Masts offer greater visibility and freedom of movement in high spaces.

Key advantages:

✅ High energy efficiency: Lithium battery technology that maximizes autonomy and reduces operating costs.

✅ Simplified maintenance: Easy access components and modular design.

✅ Silent and safe operation: noise reduction and vibrations for healthier work environments.

✅ Total customization: adaptable to multiple industries and types of operation.

✅ Resistant and durable: Rigorous tests under extreme conditions ensure a long life.

✅ Sustainable: No polluting emissions, perfect for eco-patient operations.

Recommended applications:

Ideal for logistics centers, port terminals, heavy production factories, large volume stores and any sector where heavy loads are required efficiently and safely.

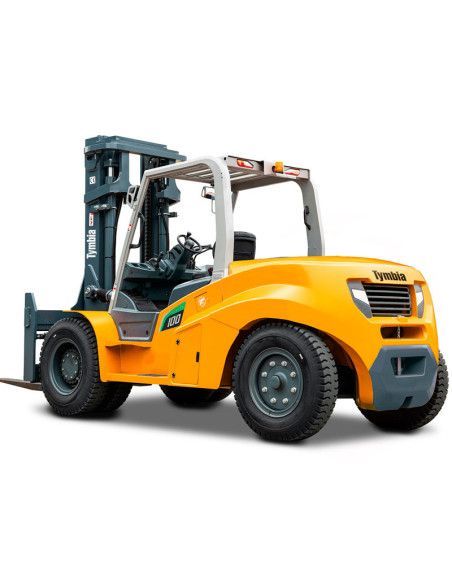

Featured Specifications (Model CPD100):

• Nominal capacity: 10,000 kg

• Maximum lifting height: up to 7,000 mm

• Standard battery: 326.4v / 202Ah

• Maximum speed: 20 km / h

• Total weight (with battery): 12,720 kg

• Address angle: Minimum rotation radius of 3,940 mm

• Protection: IP67 in critical components

• Braking System: Hydraulic Service Brake + Electric Parking Brake

Why choose the G2 series of Tymbia?

The G2 series not only stands out for its power and durability, but also for its focus on the sustainability and comfort of the operator. By combining leading technology, customizable configurations and a design designed for the future, these forklift Trucks They represent a safe investment for any company that seeks to improve their productivity without compromising security or the environment.

Available data sheet:

If you want more details on technical specifications, dimensions, mast configurations or additional options, contact us and we will provide you with the official Tymbia G2 Series tab.
