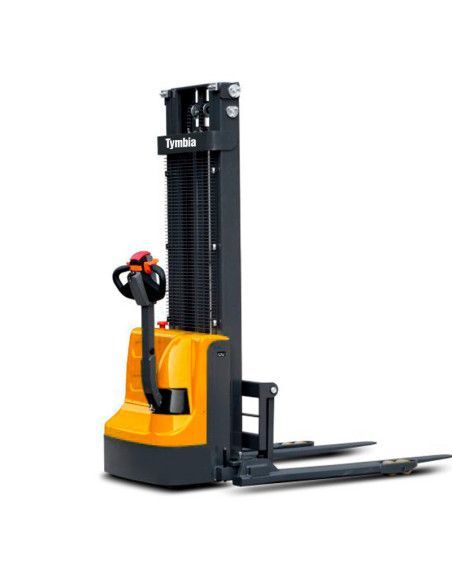

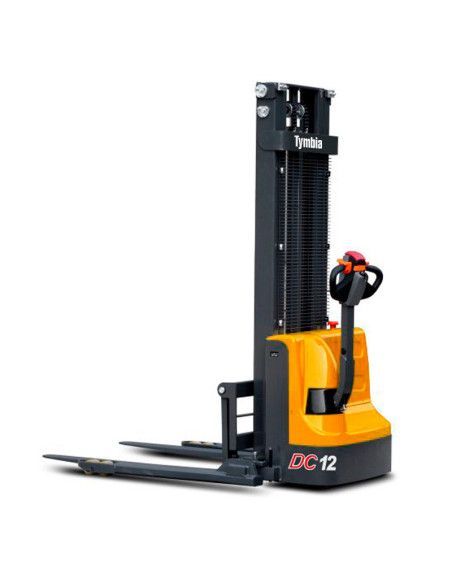

Electric stacker 1200kg to 3000mm wide legs

Electric stacker wide legs: 1200kg with reach up to 3 meters. Equipped with 24V/100Ah lead-acid battery. Perfect for improving efficiency in warehouses and distribution centers.

The electric stacker straddle type or wide legs, includes double roller wheels, 2 100Ah batteries that do not require maintenance, maximum lift speed with load of 92 mm per second, without load of 136 mm per second.

• 0.75 KW DC Traction Motor and 2.2 KW DC Lift.
• Arrow brake and emergency braking.
• CURTIS Controller.
• Indicator battery charge.
• Electric stacker Compact with Integrated Charger and 24V/100Ah Battery

East electric stacker stands out for its compact design and high performance, ideal for operations in small spaces. Equipped with an integrated charger and a indicator battery charge, ensures continuous and efficient operation. Its maintenance-free 24V/100Ah battery offers a long service life and reliability.

Main features:

• Compact design: Allows agile maneuvers in limited spaces.
• Side tile: It offers a reduced spin radius and improves visibility during operation.
• Battery 2x12V/100Ah without maintenance: Ensures optimal and durable performance.
• Integrated loader: Facilitates load without additional equipment.
• Indicator battery charge: Allows to monitor the condition of the battery at all times.
• Arrow and emergency braking: Ensures greater safety during use.
• Robust forks: Ensure safe handling of the loads.
• Variety of masts available: It adapts to different needs of elevation.

East electric stacker is an efficient and safe solution for stacking and transporting loads in demanding working environments

CE marking.

Technical characteristics:

• Type: Electric
• Elevator System: Electrical
• Charge capacity (kg): 1200
• Elevation height (mm): 1600-3000
• Battery: PLOMO 2x12V/100Ah
• Total length (mm):1769
• Weight (kg):485
• Total height (mm):2080
• Width (mm):1148-1548
• Forks (mm): 1150x570
• Fork Dimension (mm):35x100x1150
• Distance between counterparts (mm): 210-850
• Height with folded mast (mm): 2080
• Height with mast deployed (mm): 3549
• Speed: 4-4.2 km/h
• Minimo turn radio (mm): 1346
• Minimum distance to the ground (mm): 26
