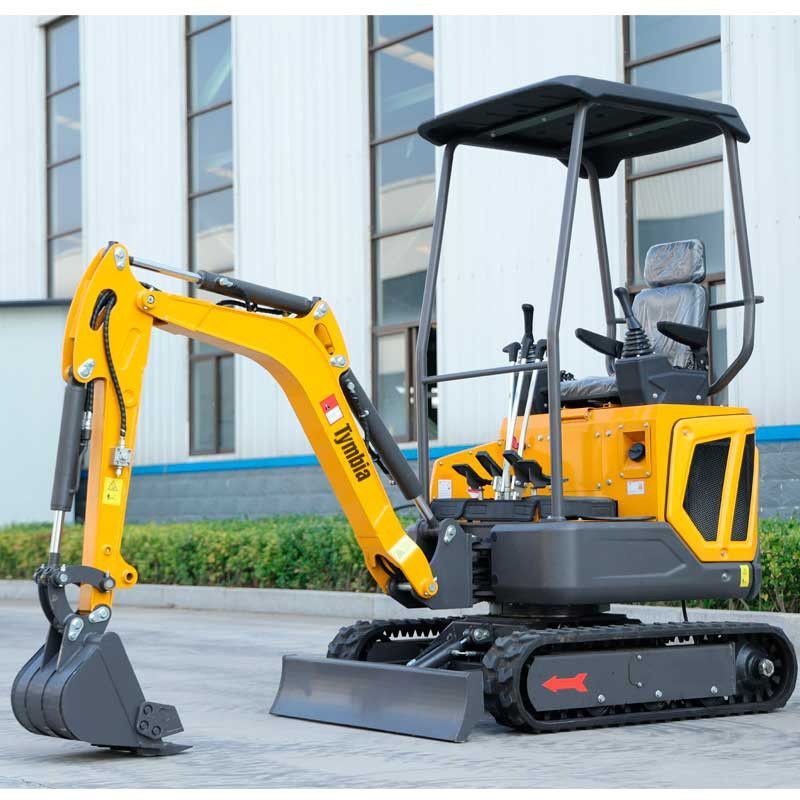

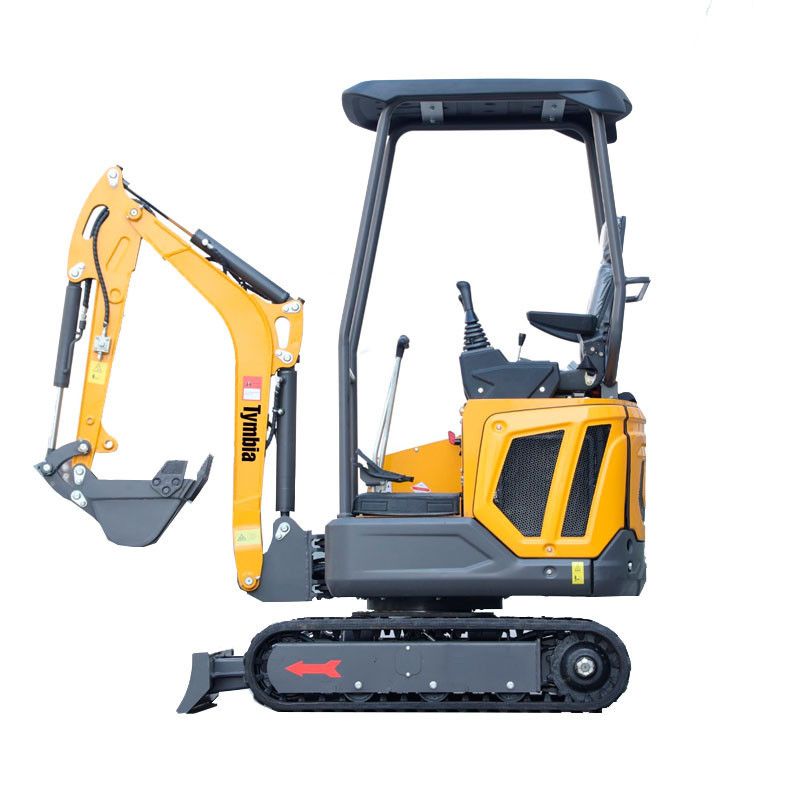

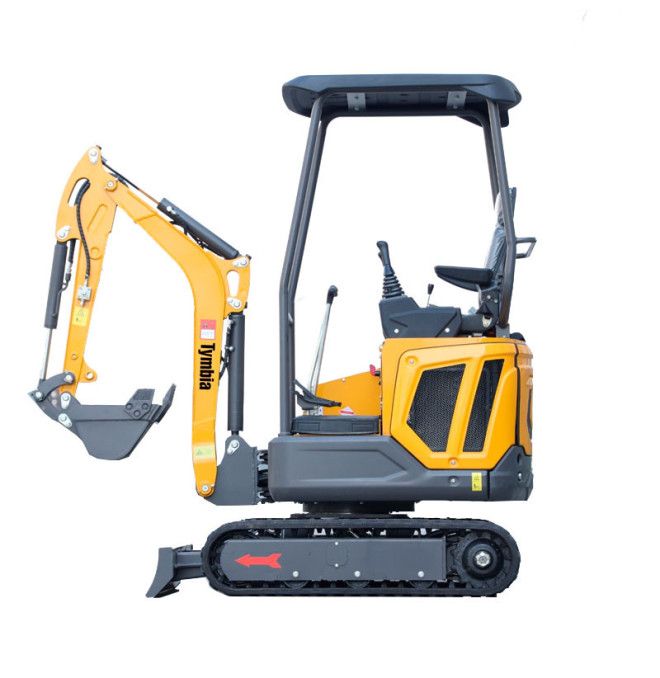

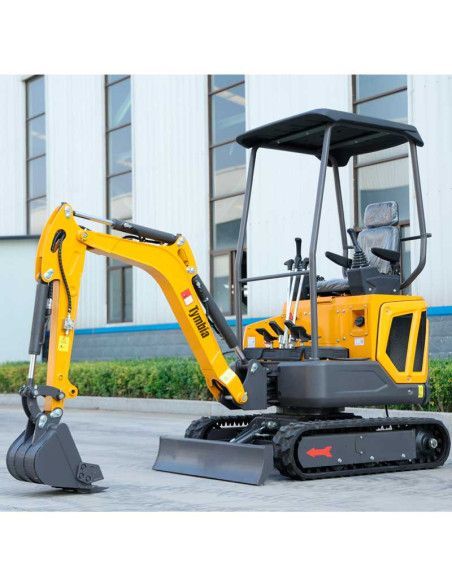

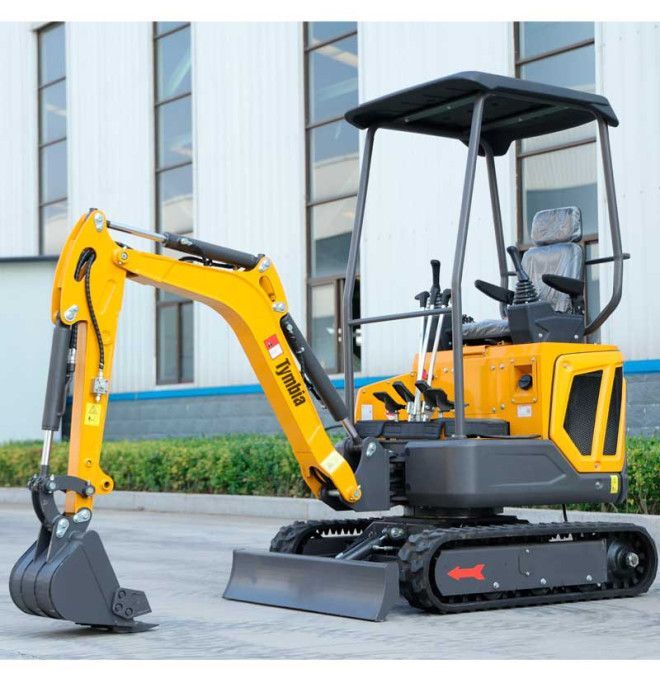

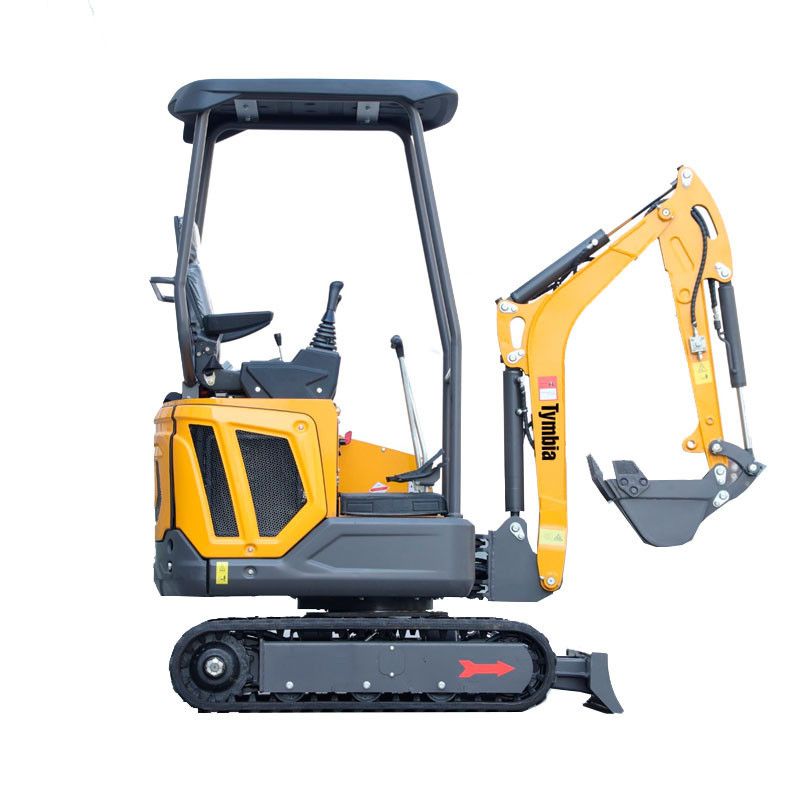

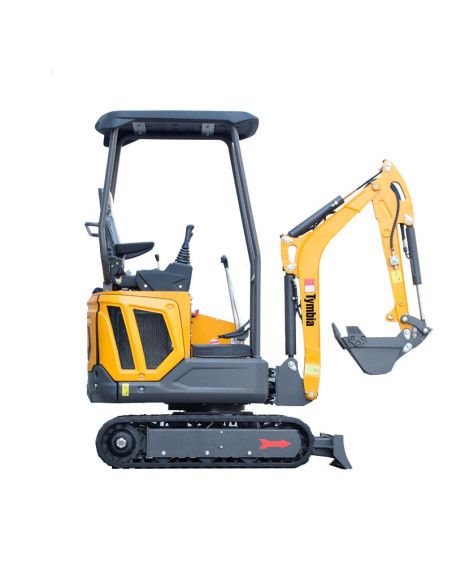

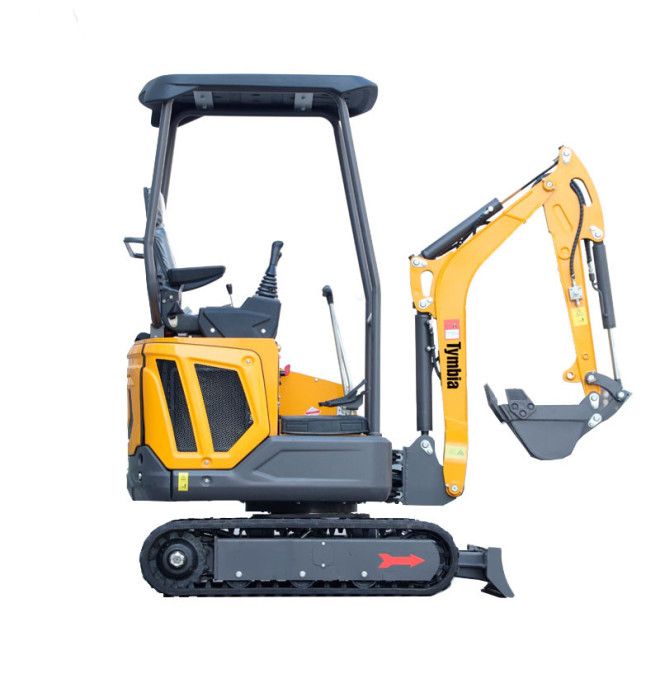

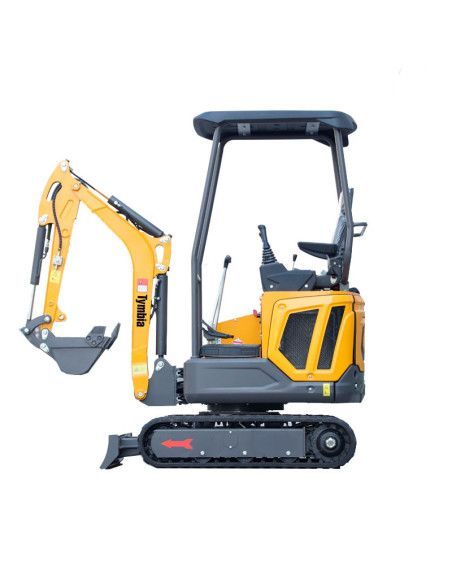

MiniExcavator 1600kg Kubota D722 Diesel TY16

A solution for multiple work environments

This minixcavator becomes a tool Indispensable for different sectors such as agriculture in greenhouses, landscaping work and indoor projects. Thanks to its great adaptability, it allows to perform tasks such as the application of fertilizers, excavation in orchards, opening of ditches for cables or pipes, and planting of trees with ease. Its compact size makes it perfect for operating in reduced spaces, as within buildings or closed structures. In addition, its intuitive handling allows anyone to learn to operate it with just a few minutes of practice.

Featured features:

• High durability: Designed to support demanding jobs, this minixcavator offers reliable performance and a long life.
• Compact and maneuverable design: Thanks to its reduced structure and great agility, it is ideal to operate efficiently in limited spaces and difficult land.
• Construction With resistant materials: its structural components are made of high quality stainless steel and plastics, which guarantees greater resistance and longevity.
• Full rotation of 360 °: Your total rotation system allows precise maneuvers and operating versatility in any direction.
• Secure operation: incorporates a front gear system that provides greater stability and protection during work.

Technical characteristics:

• Model: TY16
• Engine: Kubota D722
• Power: 10.2 kW
• Operating weight: 1600kg
• Bucket capacity: 0.03 m³
• Quick mechanical coupling.
• Maximum driving speed: 2km / h
• Working pressure: 16 MPa
• Hydraulic tank capacity: 19 L / 17 L
• Engine oil capacity: 3.2 L / 3.5 l
• Fuel tank capacity: 22L
• Overlably pending: 30 °
• Maximum excavation force: 8KN
• Total long : 3060 mm
• Total width: 1100 mm
• Total height: 2220 mm
• Maximum excavation height: 2970 mm
• Maximum discharge height: 2030 mm
• Maximum excavation depth: 1780 mm
• Maximum depth of excavation of the vertical arm: 1550 mm
• Maximum excavation distance: 3420 mm
• Minimum turning radius of the front end: 1350 mm
• Maximum distance of excavation on the floor: 3380 mm

Standard configuration:

• 3-cylinder diesel engine Kubota
• High precision multiple valve
• High quality motor
• Adjustable blade
• Rubber caterpillar wear resistant

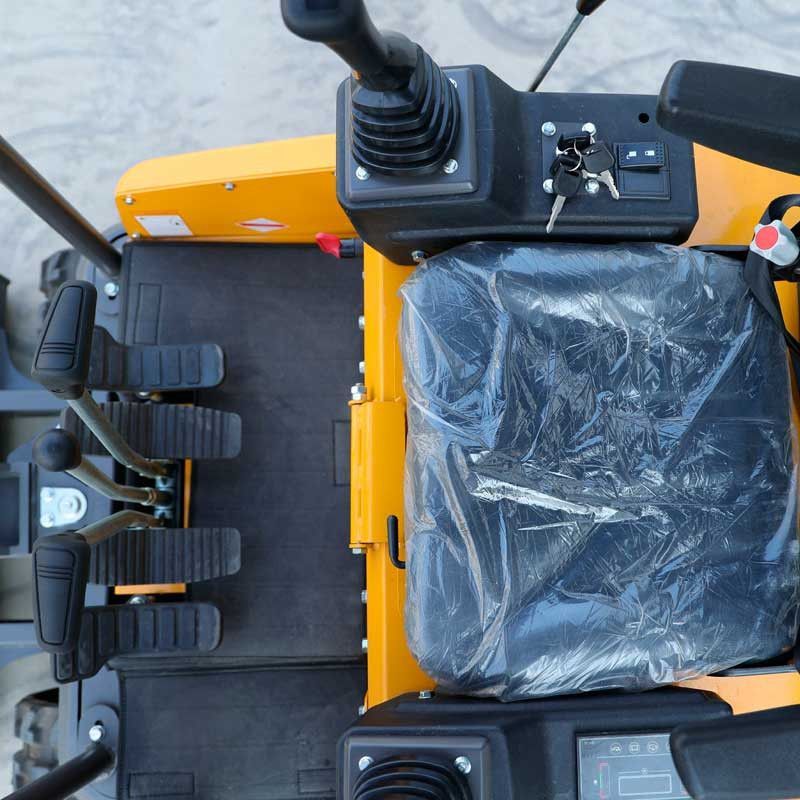

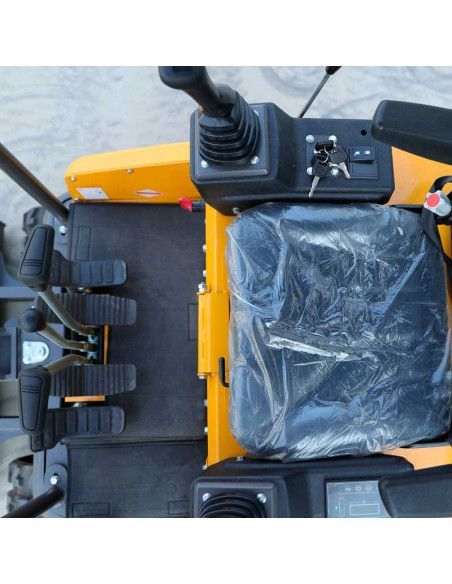

• Adjustable driver's seat
• Buckets Included: 40cm standard.

Optional configuration:

• Hammer (ref.c202100031)
• Addressing (ref.c202100041)
• Clip for trunks (ref.c202100040)
• Rake (ref.c202100038)
• Drill endlessDigger) (Ref.c202100039)
• Spoon 20 cm (ref.c202100029)
• Spoon 80 cm (cleaning spoon) (ref.c202100030)
• Hydraulic filter (ref.c202100102)
• Ignition switch (ref.c202100103)
• Hydraulic Tube Cylinder Arm (Ref.C202100104)
• Injectors (ref.c202100105)
• Other options consult

Its design of reduced dimensions It allows operating in narrow spaces without sacrificing performance.

Branding engine and superior performance: The whole series of our excavators is equipped with Kubota engines that ensures great power and facilitates work.

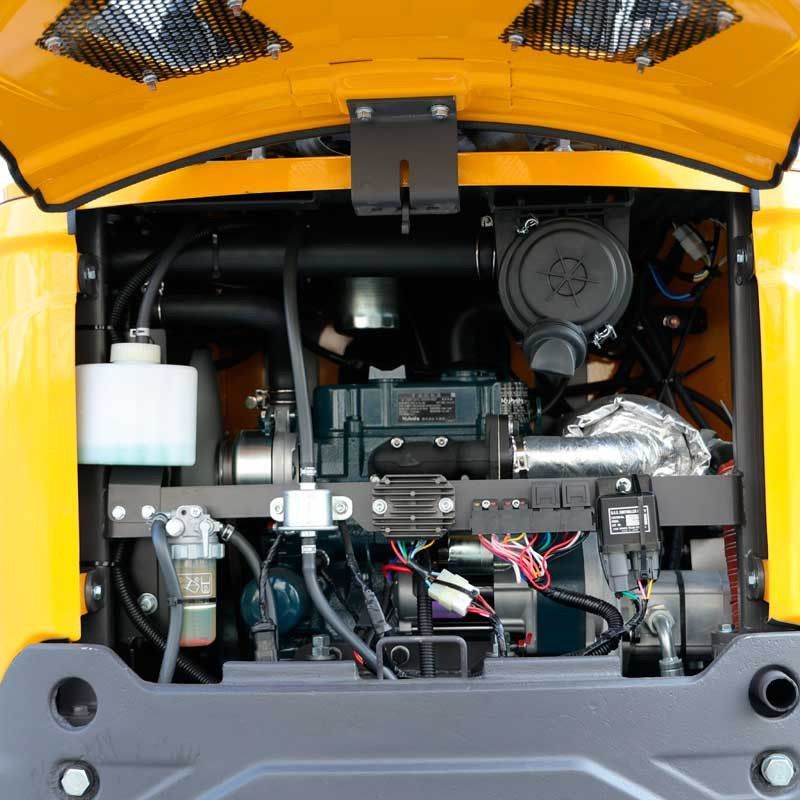

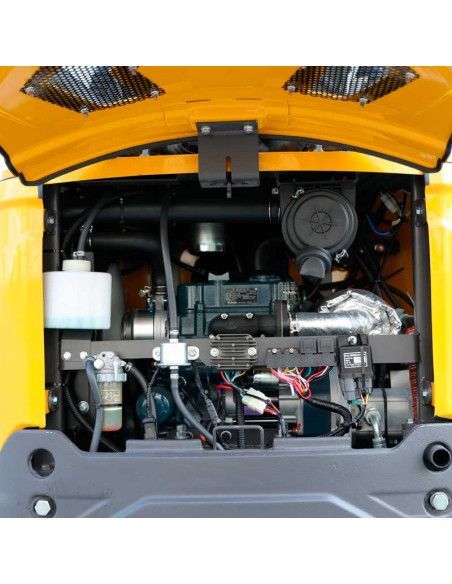

Easy maintenance: The design of the chassis facilitates mechanical accessibility, which makes the maintenance of the machine simple and fast task. It incorporates a resistant security frame and a motor compartment with rear opening, which facilitates inspection and daily maintenance quickly, safely and efficiently

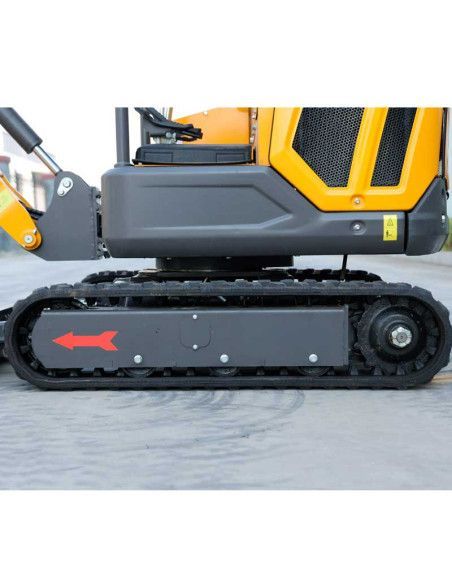

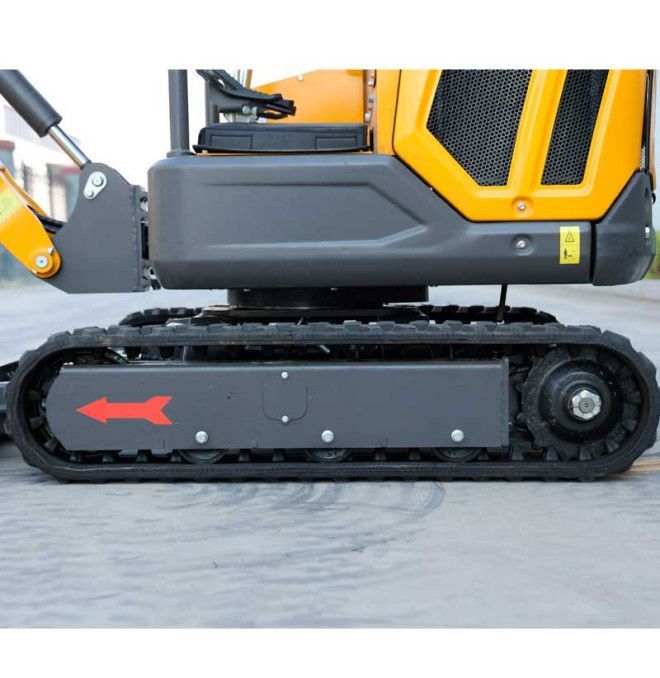

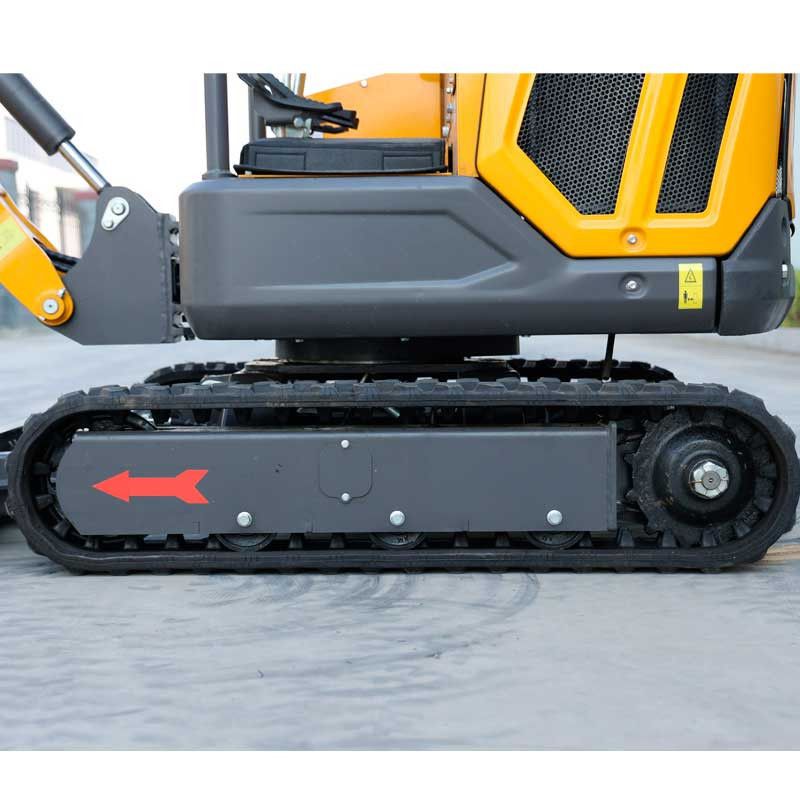

Rubber caterpillar: With a V-shaped pattern, it guarantees that the excavator maintains an optimal contact with the soil while traveling, providing a stable and secure gear. With these features, our excavators are designed to offer exceptional performance and a work experience without complications. Discover the difference today!

Compact power for great challenges!

The MiniExcavator is the perfect ally for those seeking efficiency, versatility and professional results in each project. Thanks to its compact design and great functionality, it adapts to a wide variety of applications:

• Agroforestry plantations: accelerates the preparation of the terrain and planting of trees.
• Leveling agricultural land: optimizes the culture space with flat and well-worked surfaces.
• Gardening and Landscaping: Ideal for digging, preparing green areas and planting flowers or shrubs accurately.
• Repair of pavements: an effective solution for urban or residential maintenance work.
• Indoor and basement excavations: its reduced size allows you to easily maneuver in places of difficult access.
• Agricultural tasks: From sowing to collection, it facilitates all kinds of work in the field.
• Work in greenhouses: Perfect to prepare the terrain and install irrigation systems quickly and easily.

Compact, powerful and adaptable, this minixcavator is an intelligent investment for demanding professionals and entrepreneurs of the agricultural sector or construction. Maximize your productivity with a machine designed to surrender!

** They must have their own discharge means.
