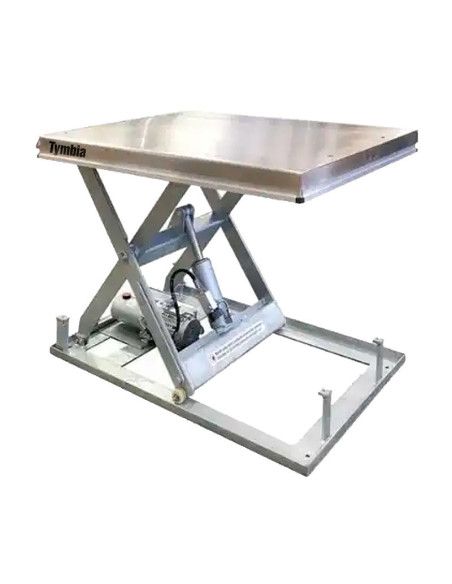

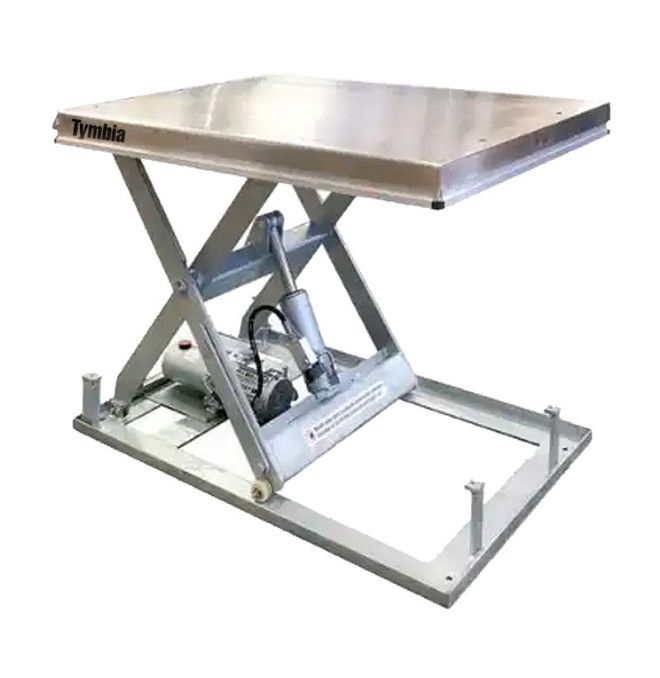

Electric lifting table iNOX base 1000kg to 1040mm of 1300x800mm

Lifting platform electric with top stainless steel base and galvanized scissors, maximum load of 1000kg and elevation up to 1040mm

The height is regulated by control control, ensuring greater comfort and safety. Soft elevation and descent. Very resistant, easy to handle and use.

CHARACTERISTICS

• Charge distrib. unif: 1000kg
• Tour: 860mm
• Height min: 180mm
• Max height: 1040mm
• Length: 1300mm
• Width: 800mm
• Tension: 3x400-50Hz-13A

TECHNICAL DETAILS

• The table has CE male plug.
• Three-phase electric voltage, 400V, 50 Hz, 13A.
• IP54 classification.
• Lock valve in case of hose breakage: Ensures that the table drops in a controlled manner if a leak or breakage occurs in the hydraulic system.
• Control unit and electrical components: They are designed thinking about the safety of the user and a long service life of the equipment.
• Safety bar under the platform: It disrupts the descent if it detects any obstacles below.
• Pressure relief valve: Protects both the hydraulic system and the engine against potential overloads.
• Safe maintenance functions: They facilitate interventions without putting technical staff at risk.
• Manual Remote Control: Allows to control the up, down and stop the system in case of emergency.
• It is supplied with Declaration of EC conformity.
