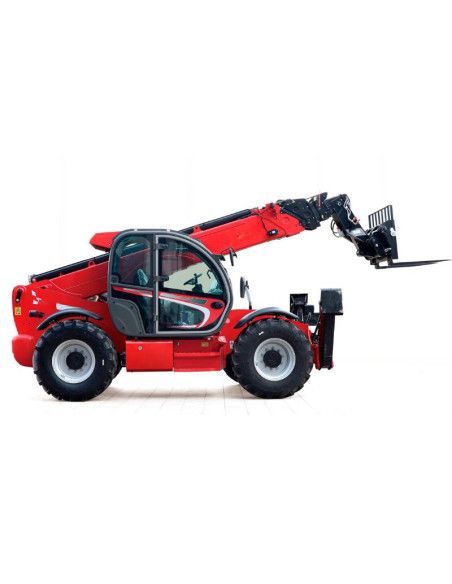

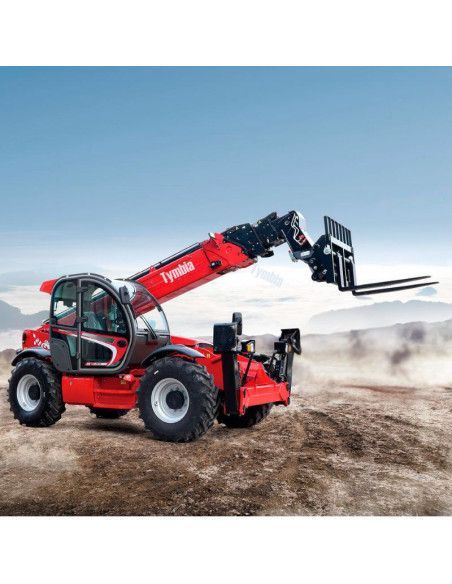

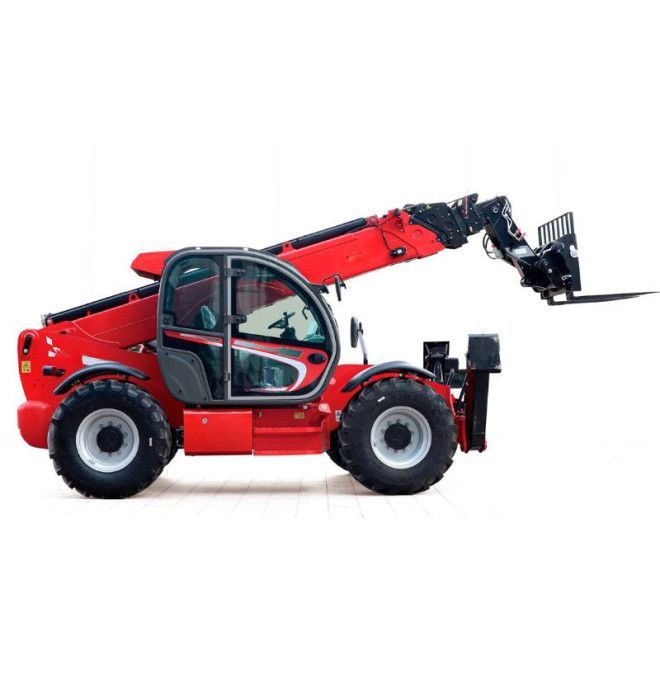

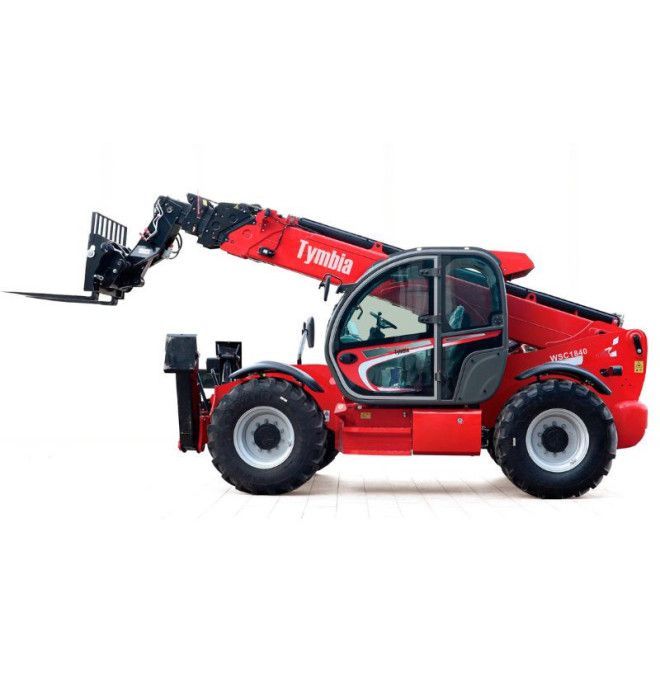

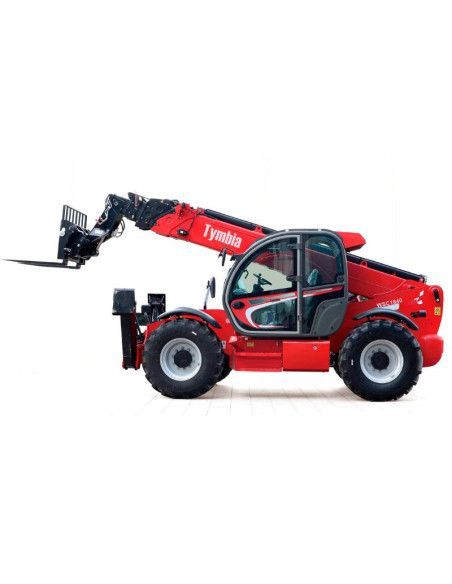

Telescopic handler 740 4WD (4000Kg/7m)

The Tymbia 740 4WD telescopic handler, with a maximum elevation height of 7m and a load capacity of up to 4000Kg, offers exceptional performance even in small spaces.

CHARACTERISTICS

• High load capacity and adaptability: guarantee maximum nominal capacity even at the highest elevation height. Its advanced design allows you to extend its scope on fences, walls and other obstacles, facilitating work construction, agriculture, municipal maintenance, logistics and more.
• Operator safety and comfort: equipped with advanced security technology, incorporate intuitive controls, robust and reliable structure, and interchangeable accessories that allow you to perform various tasks accurately and quickly. The ergonomic cabin with ROPS and FOPS certifications protects against spinning and falling objects, as well as offering a HVAC air conditioning system for greater operator comfort.
• Sturdy telescopic armrests: ensure safe operation even at high speeds and in rough terrain.
• Three modes of direction: flexibility in reduced spaces and rapid shifts in open terrain.
• Hydraulic support legs: improved stability for heavy load operations.
• Italian carraro motriz: precision guarantee and reliability, with auto cooling technology.
• Load compensation system: dynamically adjusts hydraulic flow to improve speed by 15%.
• Side working mode: allows lifting, rotating and extending the arm simultaneously without compromising efficiency.

Advanced security functions

• Reinforced cabin: ROPS and FOPS certification with 360° integral protection.
• Pair detection system: monitoring in milliseconds to avoid overloads and improve safety.
• Double-circuit brakes: ensure reliable detention even in extreme conditions.
• Regress camera and interactive display: better vision and control in critical manoeuvres.
• High-power LED lights: safe operation in low-light environments.

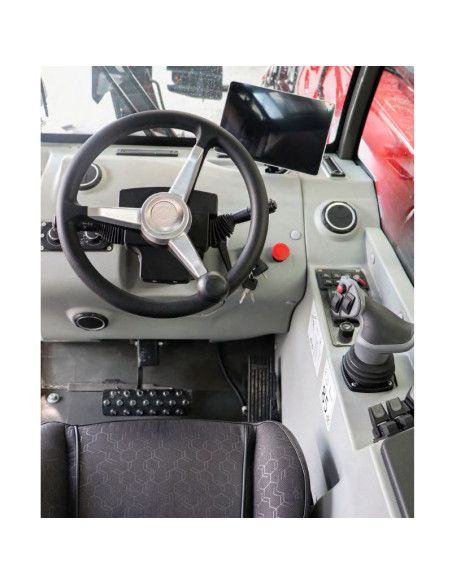

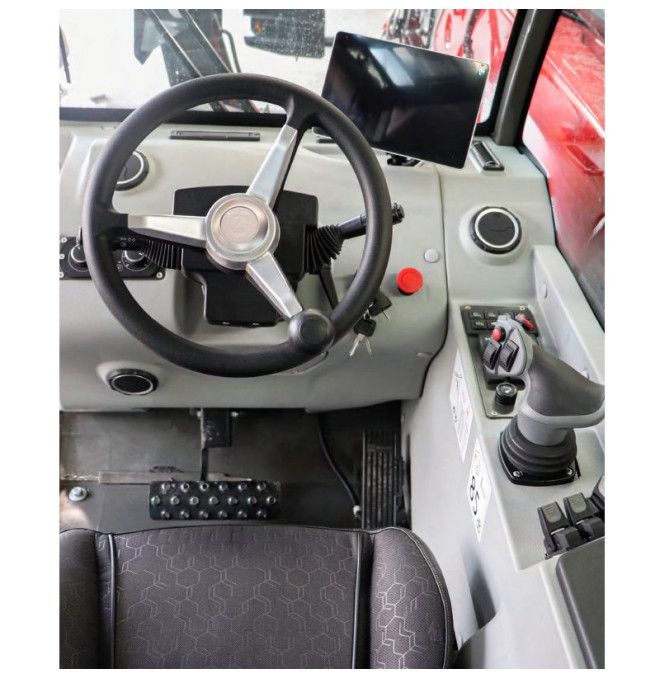

Comfort and ergonomics

• Cabin designed for operator comfort and safety.
• High performance air conditioning: HVAC system to maintain a comfortable temperature.
• Seat with pneumatic suspension: reduces vibrations and improves comfort in extended days.
• Joystick multicontrol: intuitive operation with total management and elevation from one point.
• Visibility of 360°: panoramic glass cabin for a field of vision without obstructions.

Maintenance and durability

• High strength materials: reinforced steel for stability and longevity.
• Two-stage air filtration system: ensures continuous and reliable operation.
• Easy access to components: modular design that simplifies maintenance and reduces operating costs.
• Service analysis system: remote monitoring for rapid diagnosis and failure prevention.

TECHNICAL CHARACTERISTICS

Capacity

• Maximum capacity 4000kg
• Maximum height of elevation 7 meters
• Maximum range 3.6 meters
• Breaking force with bucket 6800 daN
• Maximum height elevation capacity 3300 kilograms
• Maximum lifting capacity 1300 kilos

Dimensions

• Total length to the cart 5.1 meters
• Total width 2,33 meters
• Total height 2.5 meters
• Distance between axles 2,9 meters
• Front track 1,93 meters
• Distance to the ground 0.38 meters
• External turning radius 4 meters
• Type of tyres 440/70R24
• Total width of the cabin 0.98 meters
• Standard forks and buckets included.
• Machine weight (with forks) 7800kg

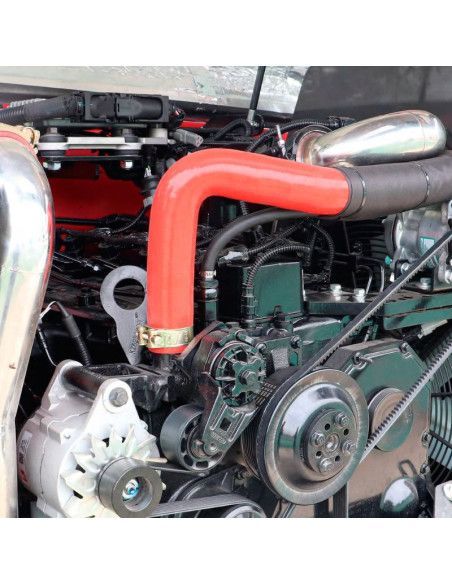

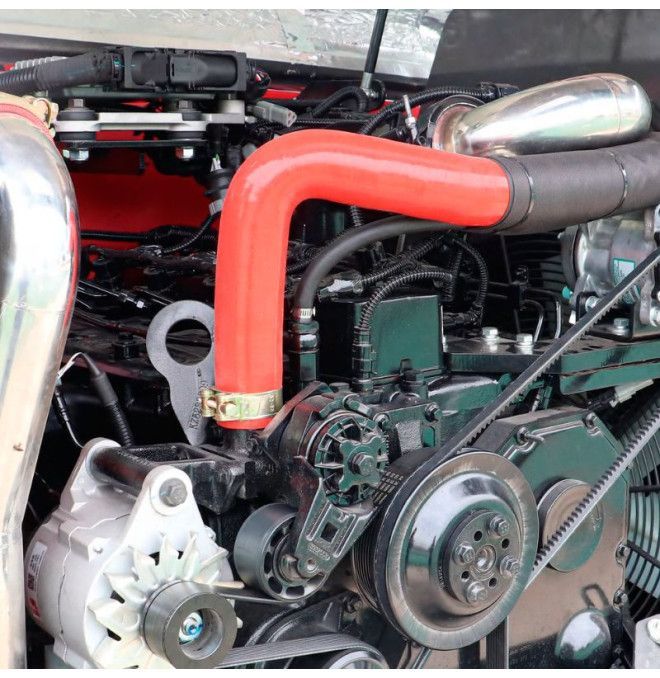

Engine

• Motor Cummins B3.9-CS4
• Cylinder capacity 3.9 litres
• Max. power 81kW/2200r
• Maximum 480 Nm
• Traction force 71 kN

Transmission

• Displacement speed 0-30
• Promotion capacity 32°
• 4WD/4WS steering model
• Number of marches (back/back) 2/2

Tank capacity

• Fuel tank 95 litres
• Hydraulic oil 210 litres

Fork

• Length/Width/Fork section 1200x150x50 mm
• Inclination angle 13°
• Inclination angle down 101°

ACCESSORIES AND PERSONALIZATION

• clamp
• forks
• baldes
• snow Plows
• hooks
• platforms

Thanks to their rapid change system, these accessories can be easily replaced, adapting to different operational needs in sectors such as logistics, construction and manufacturing.
