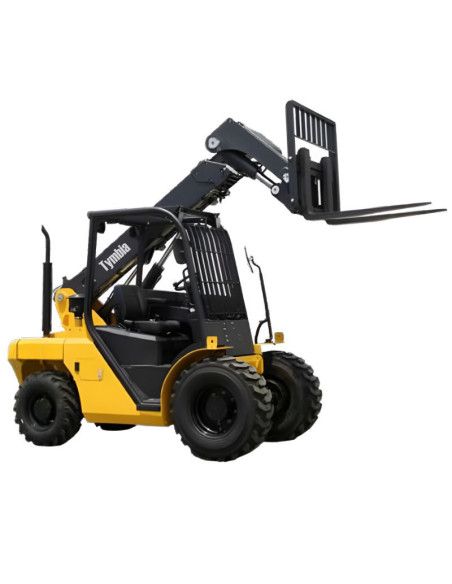

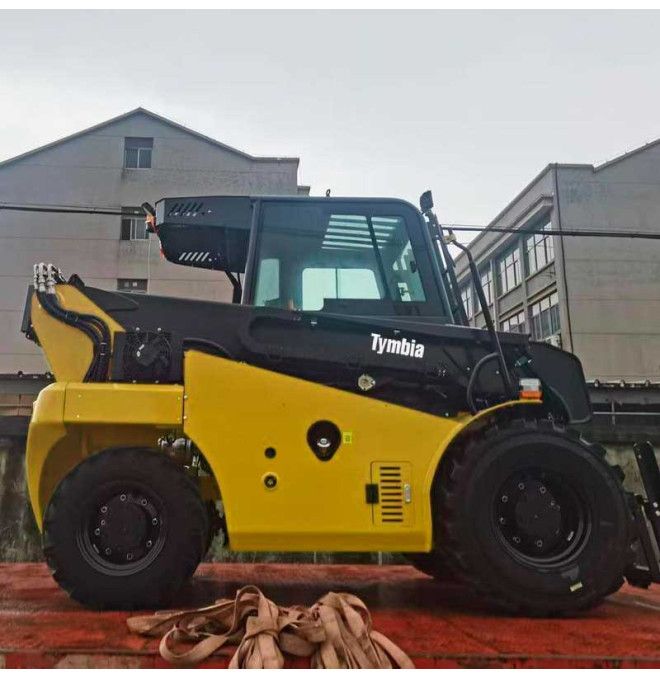

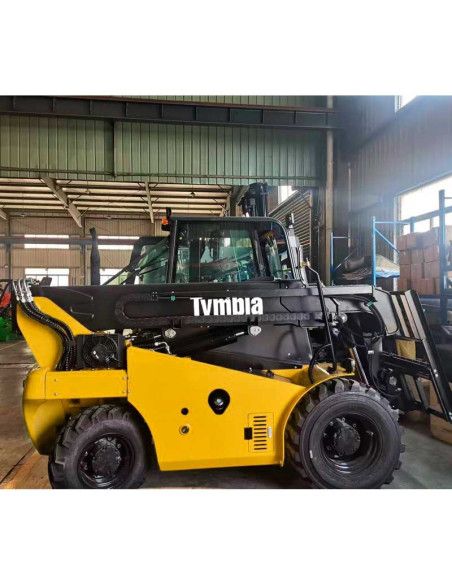

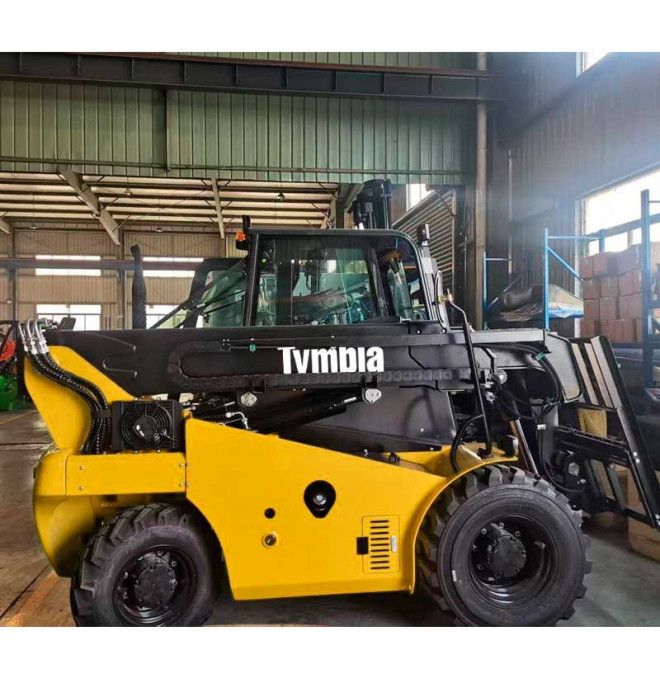

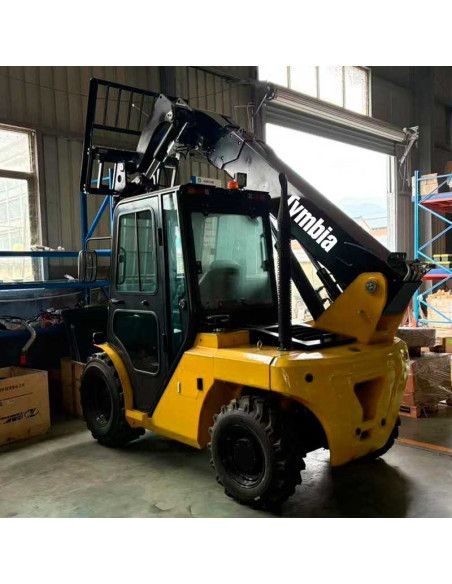

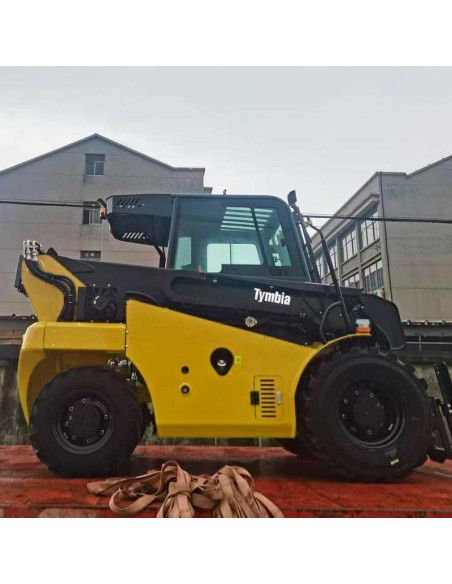

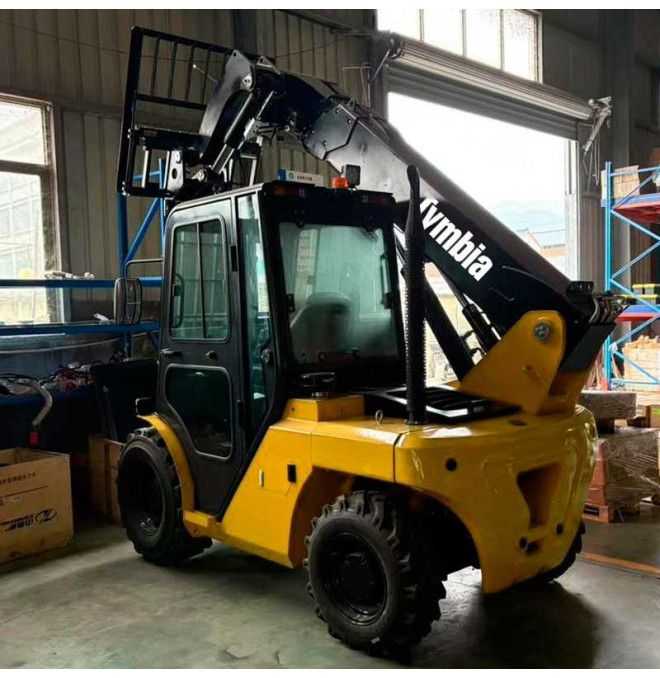

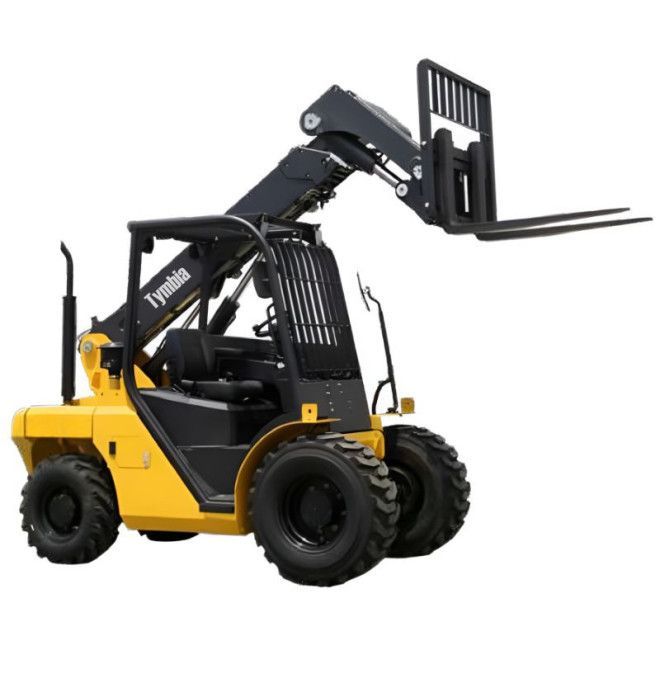

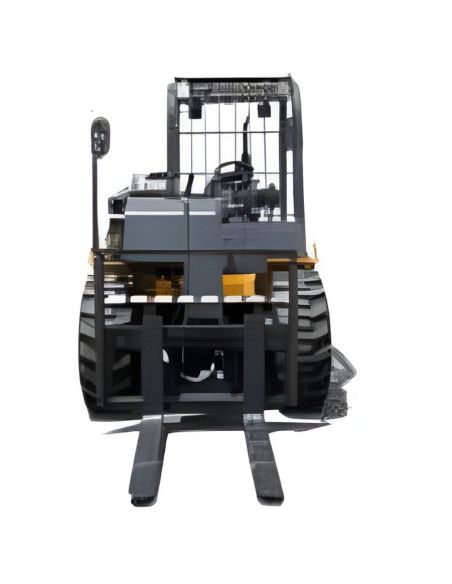

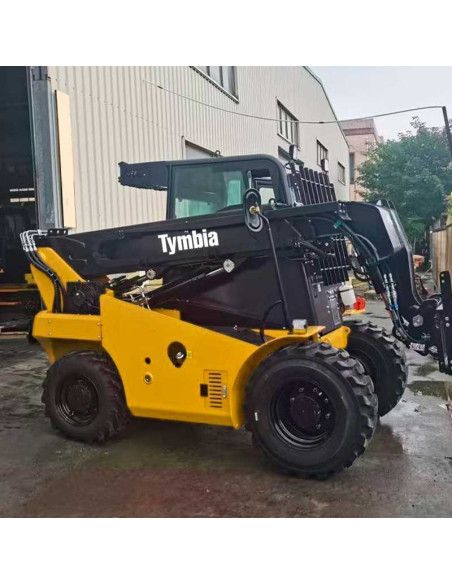

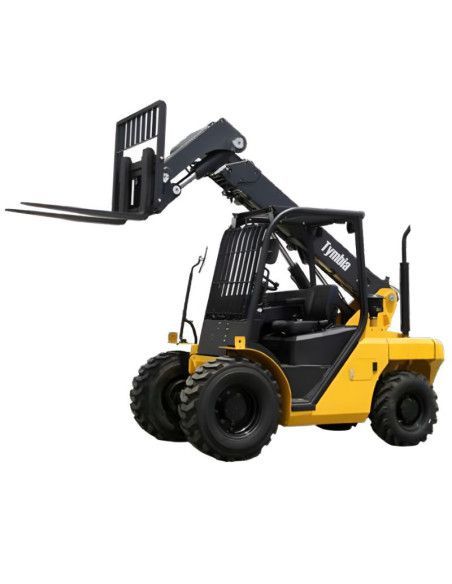

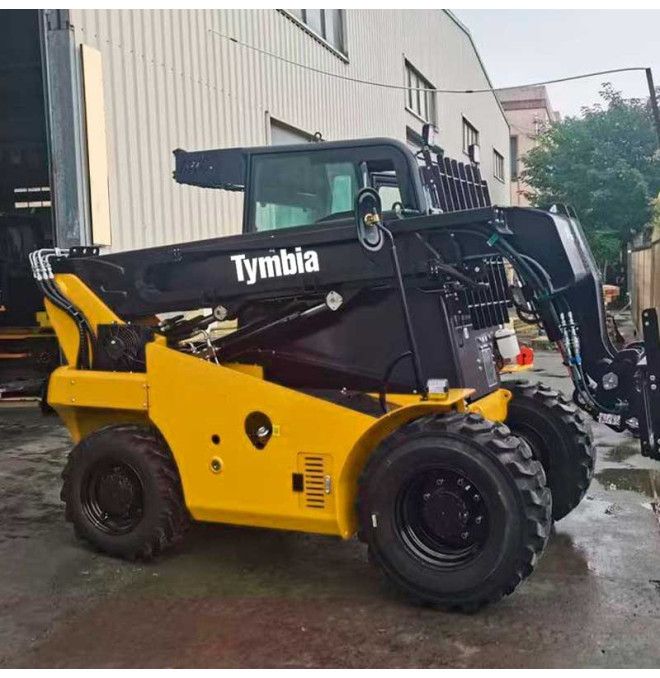

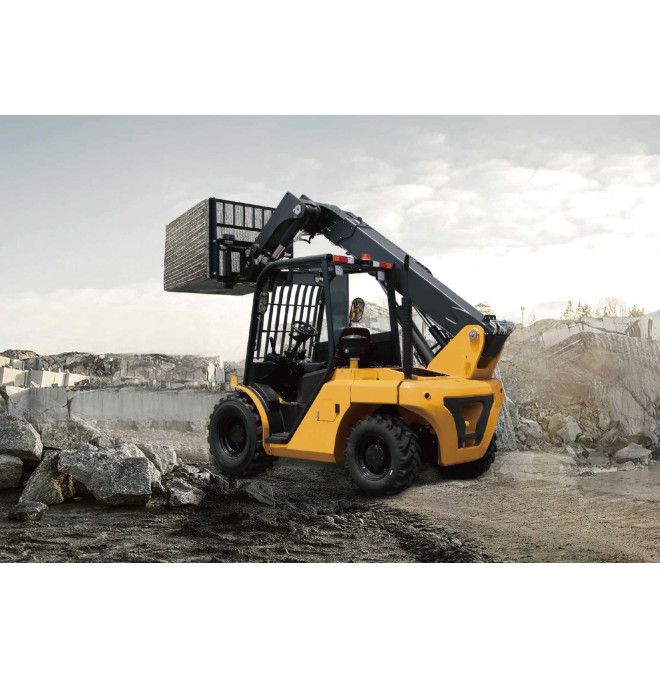

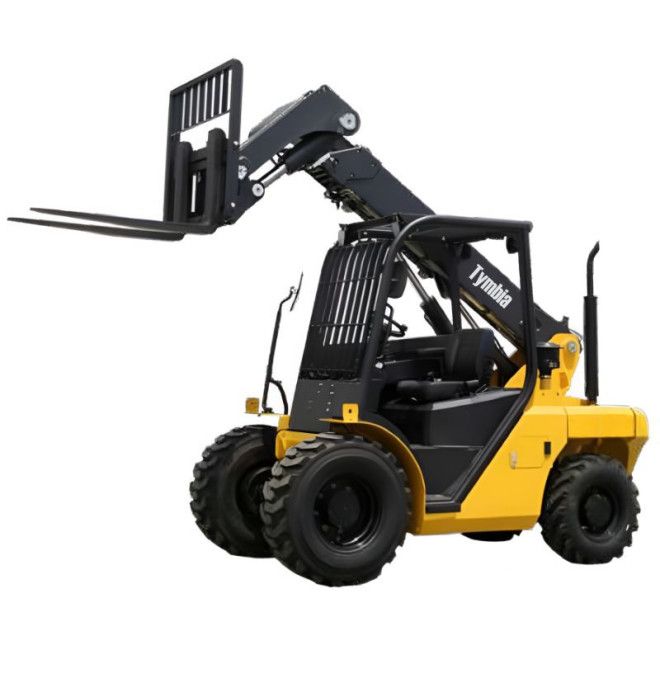

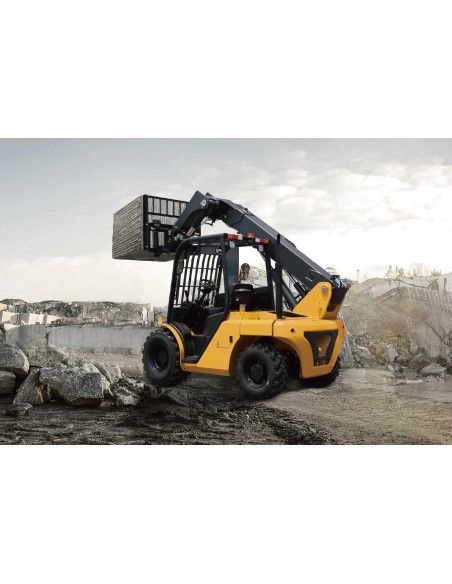

Telescopic manipulator 25-60 4WD

The Tymbia 25-60 4WD telescopic manipulator, with a load capacity of up to 2500 kg and a maximum lifting height of 6 meters, offers exceptional performance in each task. It is the ideal solution for material handling in agricultural, industrial and construction environments.

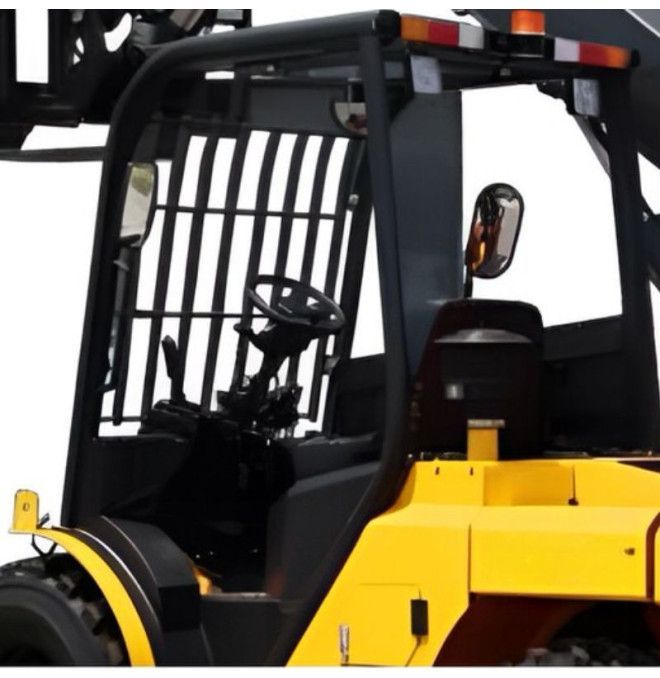

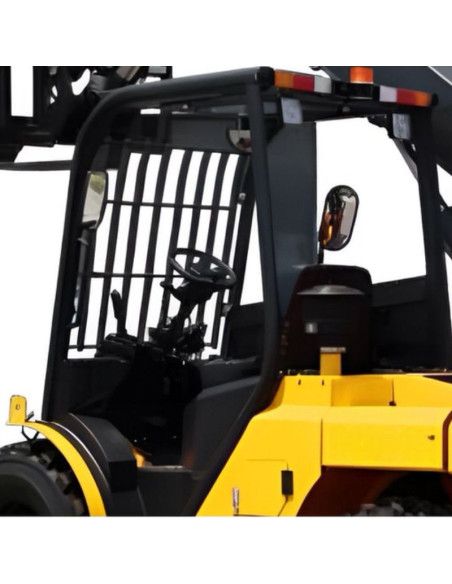

Its ergonomic and compact design allows to operate in reduced spaces without compromising security or stability. The 360 ° large-range cabin, along with the lateral telescopic arm, guarantee a comfortable and efficient driving experience.

Advantages of telescopic handler Tymbia 25-60 4WD:

• Korean motor LS EUV & EPA Stage IV Diesel with hydraulic transmission 4WD
• Motor L4CRTV4 Stage V
• Power 42 kW
• Revolutions 2300 rpm
• Traction 36 KN
• Displacement of the 28 V pump.

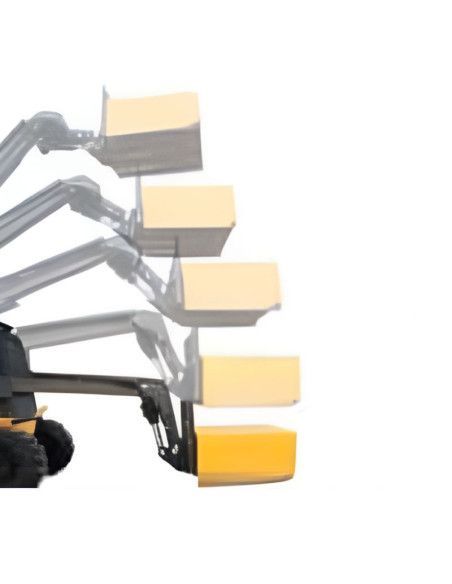

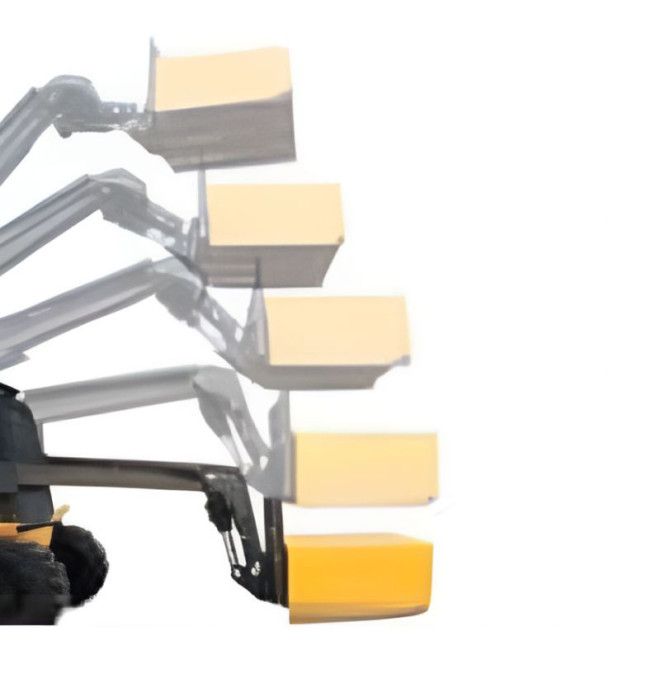

• Self-leveling system with tilt of forks ± 0.5 °, ensuring stability in lifting.
• Anti-resolve protection and serial OPS function, guaranteeing maximum safety in the operation.
• Proportional solenoid valves, which provide precise and safe control in each maneuver.
• Cylinder with equilibrium valve, avoiding unexpected falls in case of hydraulic failure.
• Easy maintenance, thanks to its tilting cabin and hooded of great opening.
• Standard forks and ladle included.

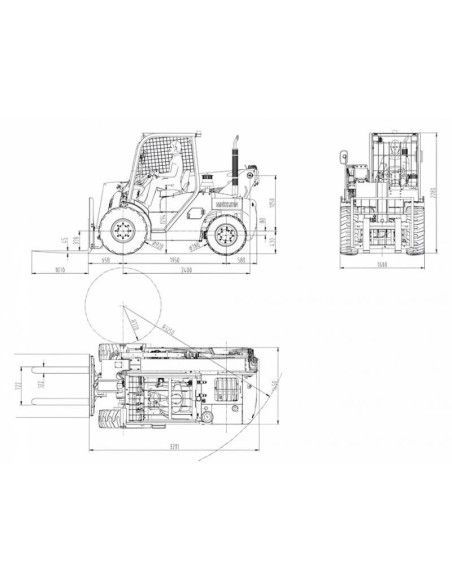

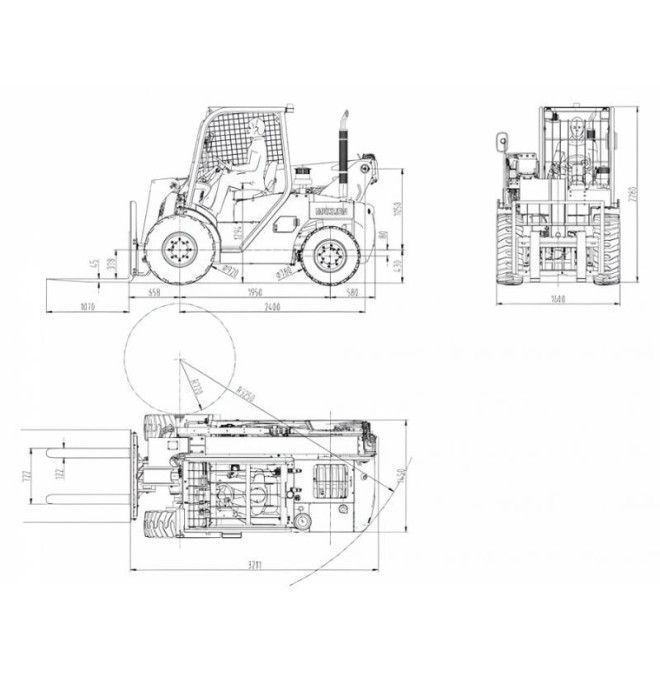

Dimensions

• • 3300 x 1600 x 2280 mm

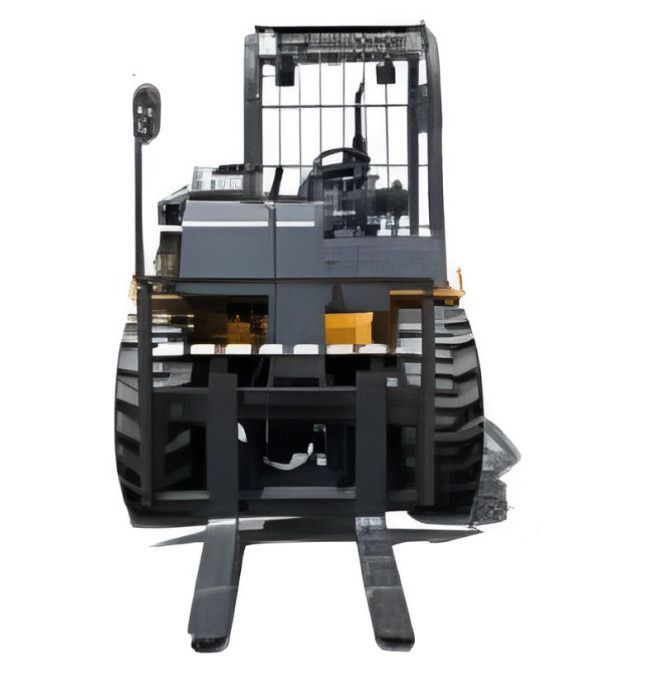

  • Fork 1220 x 122 x 35 mm
  • Total height 2280 mm
• Width
  • Cabin 960 mm
  • 1036 mm fork
  • Total 1600 mm
• Stabilizer width (retracted): 5800 mm
• Pen tilting angle: 65 / -5
• Angle of the fork: 30/100
• Total weight 5400 kg

Featured technical specifications

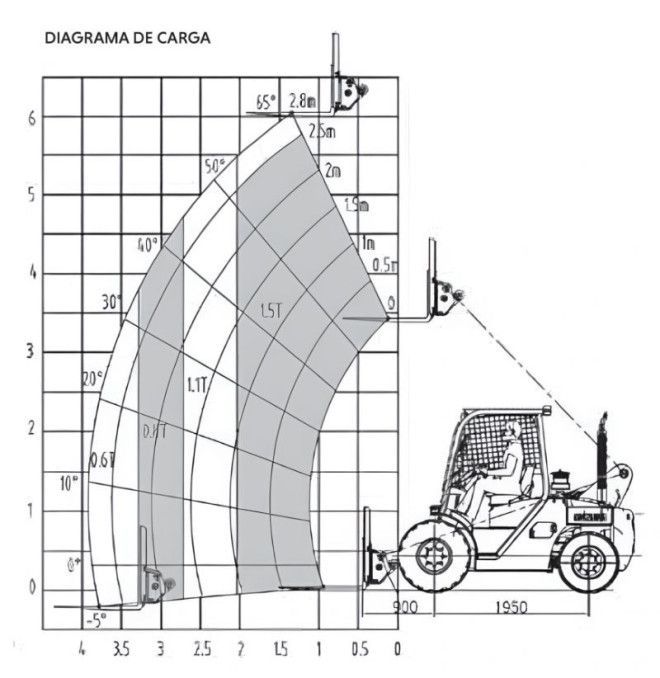

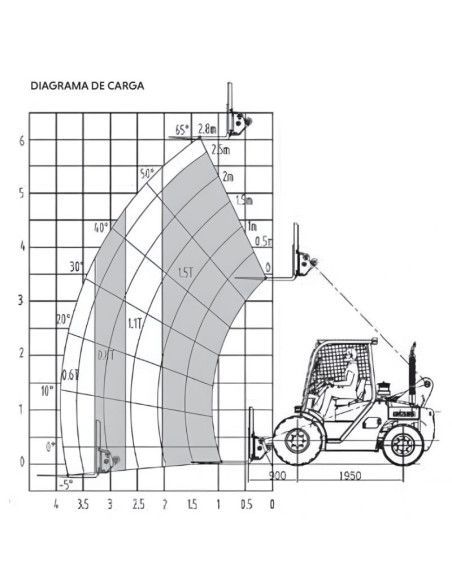

• Maximum load capacity: 2500 kg (600kg in height)
• Lifting height: 6 meters
• Maximum front scope: 3.9 meters
• 4WD traction with 45% gradability
• Maximum scroll speed: 19 km / h
• Feather lifting speed: 9 S
• Feather drop speed: 6 S
• Feather extension speed: 7 S
• Feather retraction speed: 6 S
• Lifting speed (with / without load): 450 mm / s
• Drop speed (with / without load): 540 mm / s
• Rear axle with great angle of rotation, ideal for maneuvering in reduced spaces
• Radio outer turn 3250 mm
• Distance to the floor of 219 mm, perfect for irregular land
• Front Traction: 1125 mm
• Axle distance: 1950 mm

Optional:

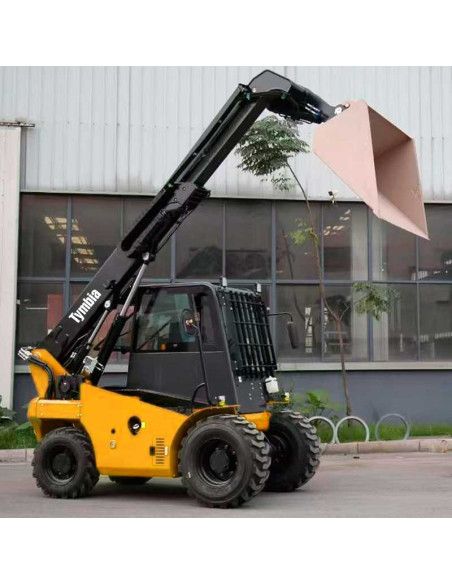

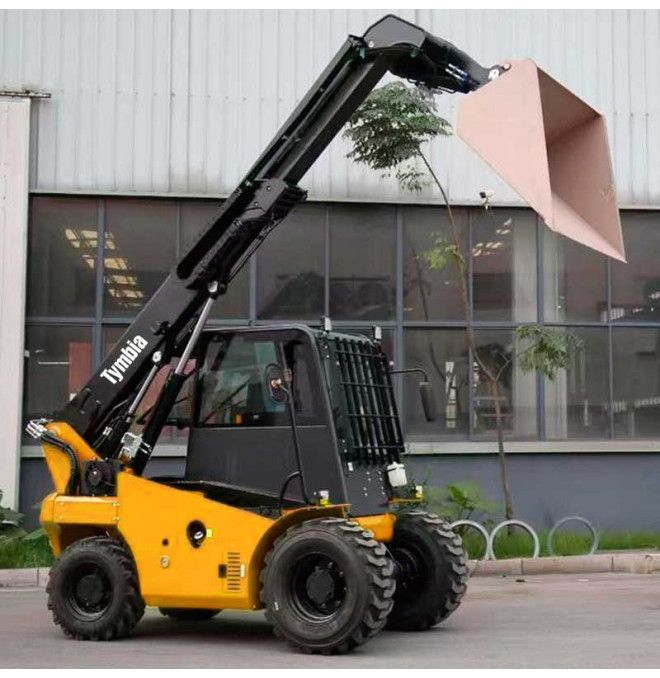

• Slocing for sand and gravel (1350 x 1550 x 700 mm / 0.6 m³ / 1,200 kg)
• Manual quick coupling system
• Cabin fully glazed
• Air conditioning and heating (Requires closed cabin)

Optimize your operation with Tymbia 25-60 4WD, and enjoy power, precision and security in a single team.
