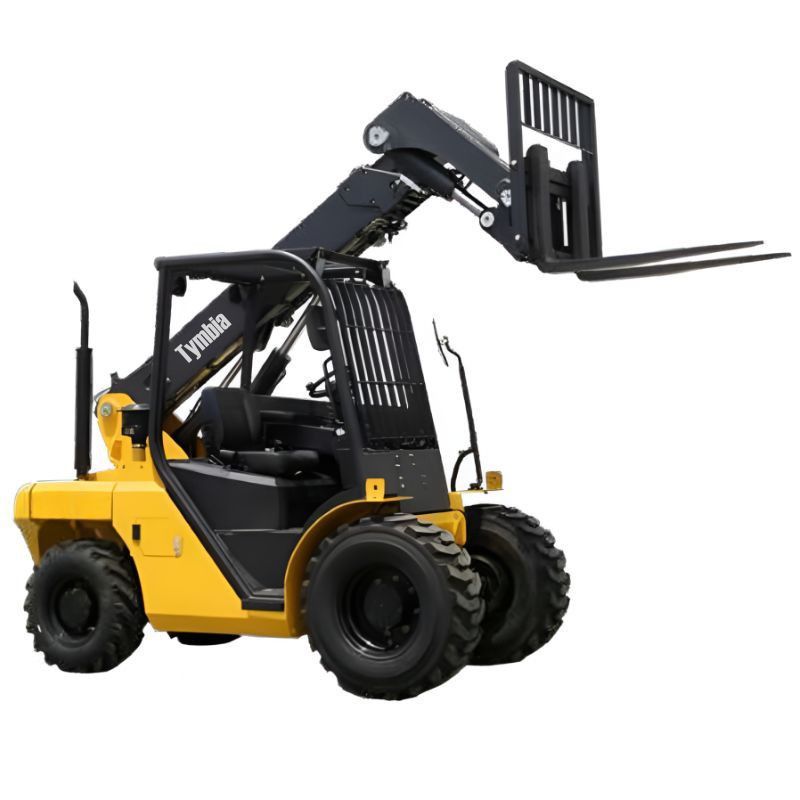

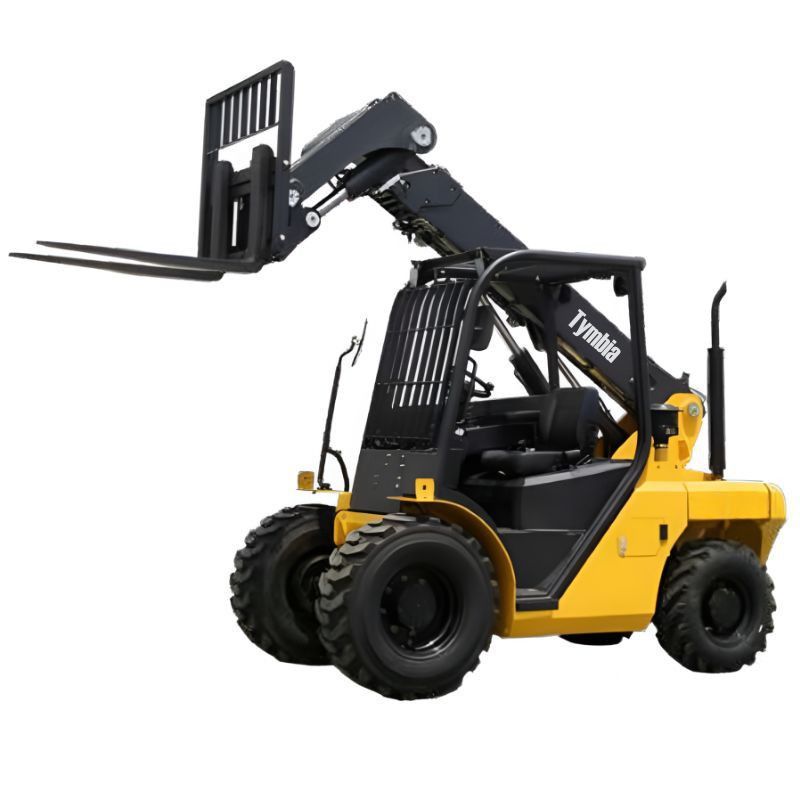

Telescopic handler 25-50 2WD

The Tymbia 25-50 2WD telescopic manipulator, with a load capacity of up to 2500 kg and a maximum lifting height of 5 meters, offers exceptional performance in each task. It is the ideal solution for material handling in agricultural, industrial and construction environments.

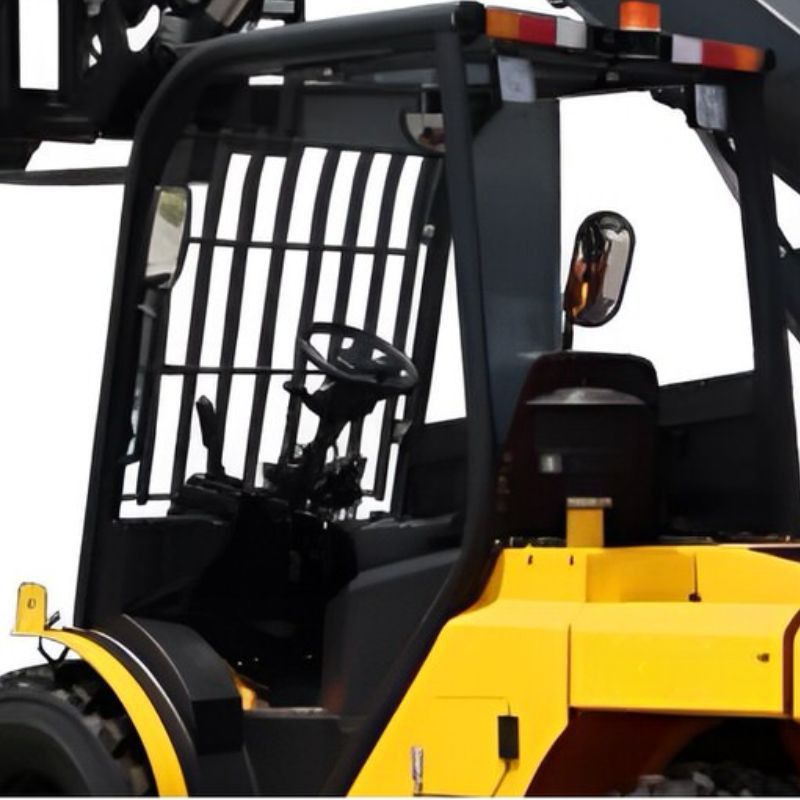

Its ergonomic and compact design allows to operate in reduced spaces without compromising security or stability. The 360 ° large-range cabin, along with the lateral telescopic arm, guarantee a comfortable and efficient driving experience.

Featured features

• Korean diesel engine LS EUV & EPA Stage IV for powerful and efficient performance.
• L4CRTV4 Stage V engine, with 2WD / 15 KN traction
• 42kw power
• Revolutions 2300 rpm
• Outer turning radius of 3250 mm
• Self-leveling system with body tilt and forks ± 0.5 °, ensuring stability in lifting.
• Anti-resolve protection and serial OPS function, providing maximum safety in the operation.
• Proportional solenoid valves, which guarantee accurate and safe movements.
• Cylinder with equilibrium valve, which avoids unexpected falls in case of hydraulic failure.
• Easy maintenance design, with tilting cabin and bonnet of great opening.
• Double and wide-angle rear view mirrors improve visibility.
• 60 l / min oil flow.
• Standard forks and ladle included.

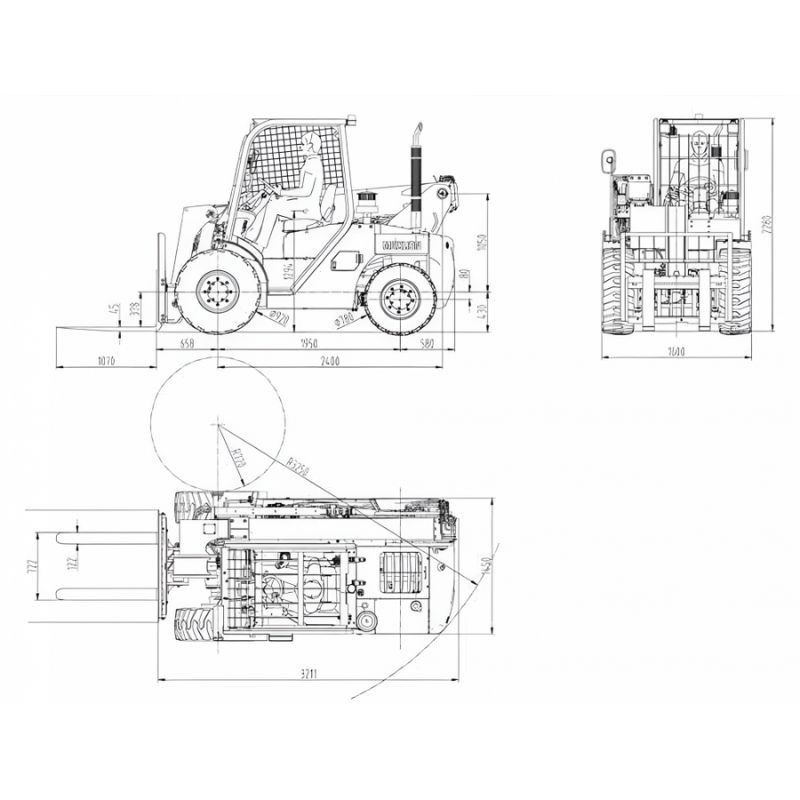

Dimensions

• • 3500 x 1600 x 2280 mm
  • Fork | 1220 x 122 x 35 mm
  • Total height 2280 mm
• Width
  • Cabin 960 mm
  • 1036 mm fork
  • Total 1600 mm
• Weight 5000kg
• Bucket discharge height: 3500 mm
• Scope of the front wheel: 400 mm
• Axle distance: 1950 mm
• Front Traction: 1125 mm
• Stabilizer width (retracted): 5700 mm

Technical specifications Key

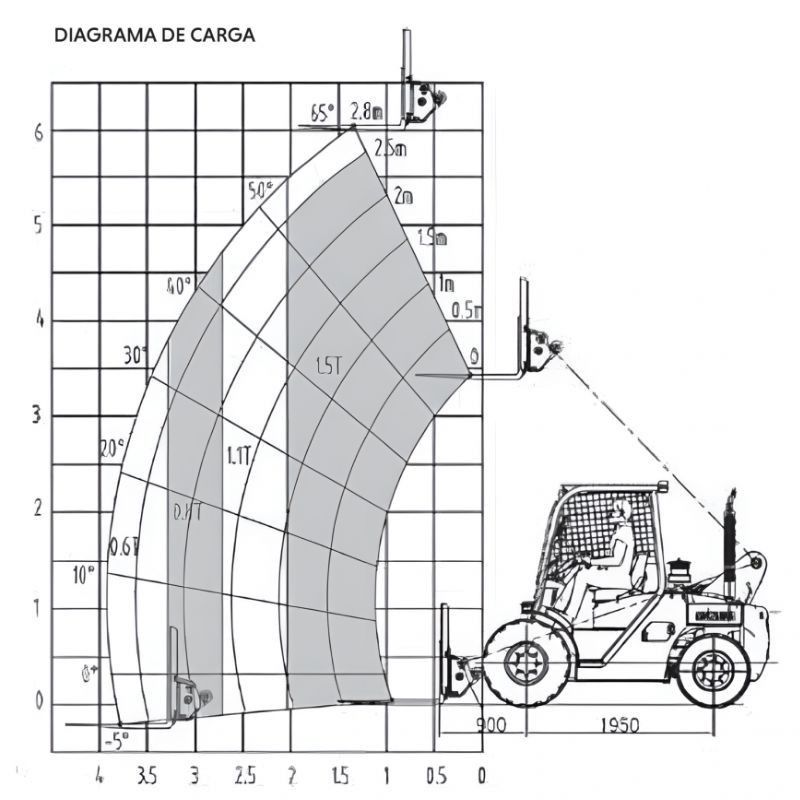

• Maximum load capacity: 2500 kg (in height 900kg)
• Lifting height: 5 meters
• Maximum front scope: 2.9 meters
• Maximum permissible pending with / without load of 16%
• Maximum scroll speed: 22 km / h
• Speed lifting with / without load 450 mm / s
• Speed Descent with / without load 540 mm / s
• Feather lifting speed: 8 S
• Feather drop speed: 6 S
• Feather extension speed: 8 S
• Feather retraction speed: 6 S
• Exterior sound level 102 dB / interior 95 dB
• Rear axle with optimized angle of rotation for better maneuverability
• Distance to floor of 270 mm, ideal for difficult grounds

Optional available:

• Slocing for sand and gravel (1350 x 1550 x 700 mm / 0.6 m³ / 1,200 kg)
• Quick coupling system
• glazed
• Air conditioning and heating

Optimize your operation with Tymbia 25-50 2WD, and enjoy power, precision and security in a single team.
