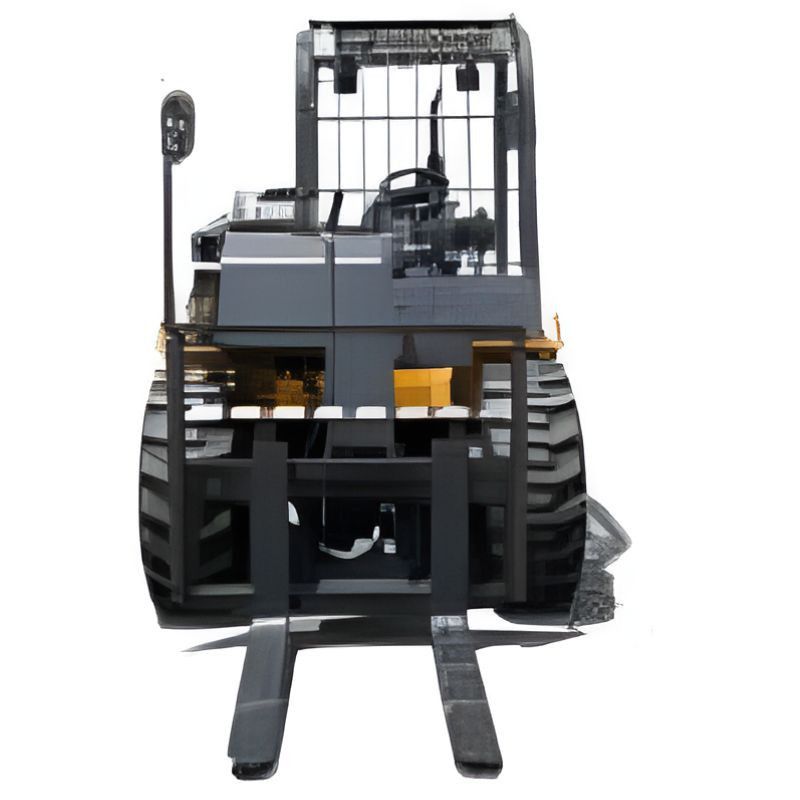

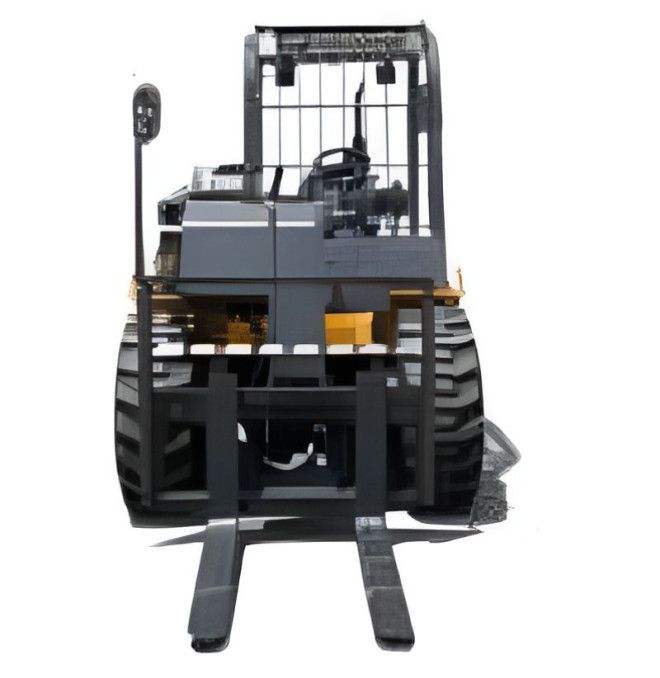

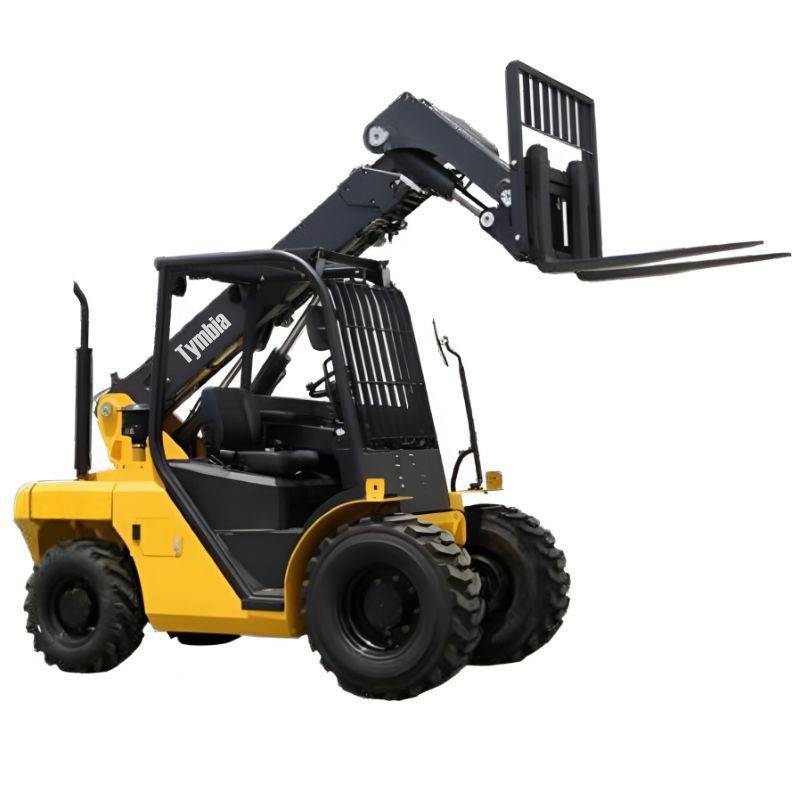

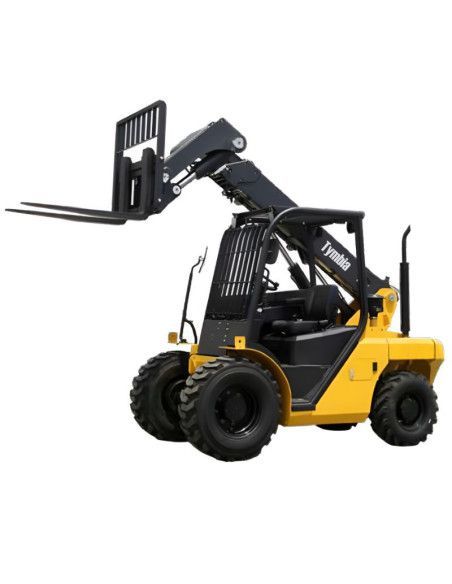

Tymbia 15-60 4WD

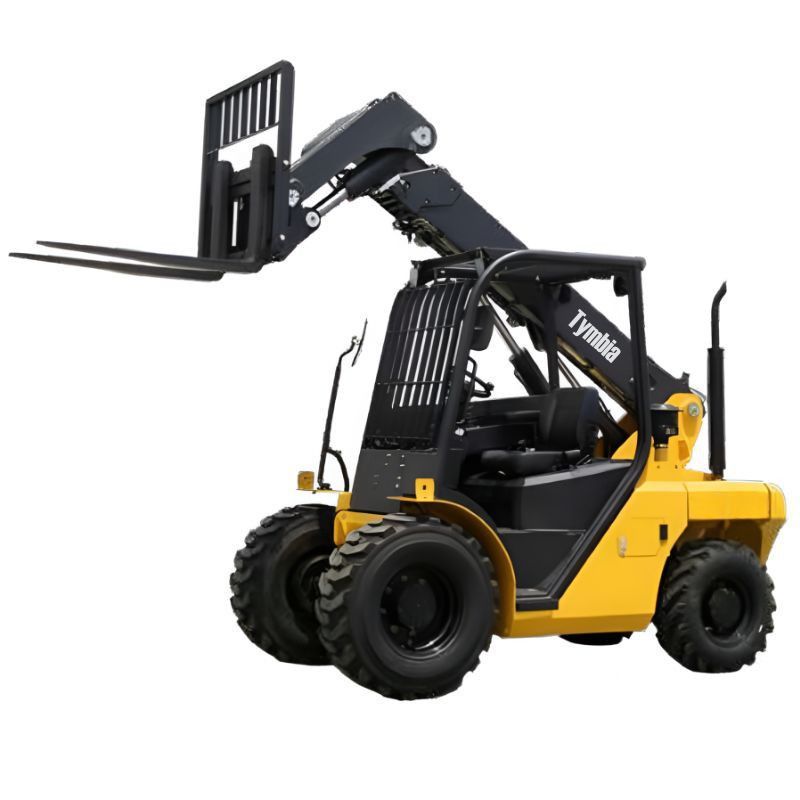

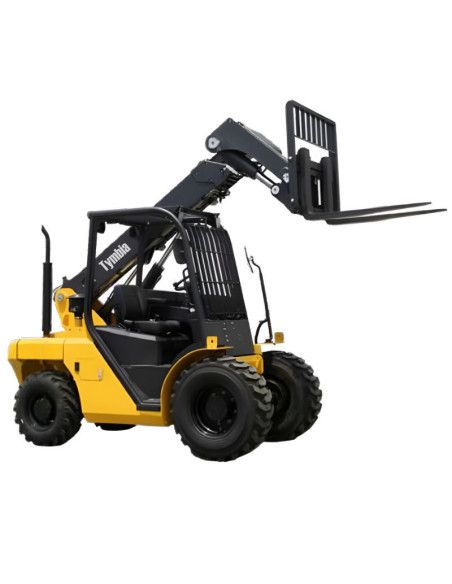

The Tymbia 15-60 4WD telescopic manipulator, with a maximum lifting height of 6m and a load capacity of up to 1500kg, is the ideal solution for manipulating materials in industrial, agricultural and construction environments.

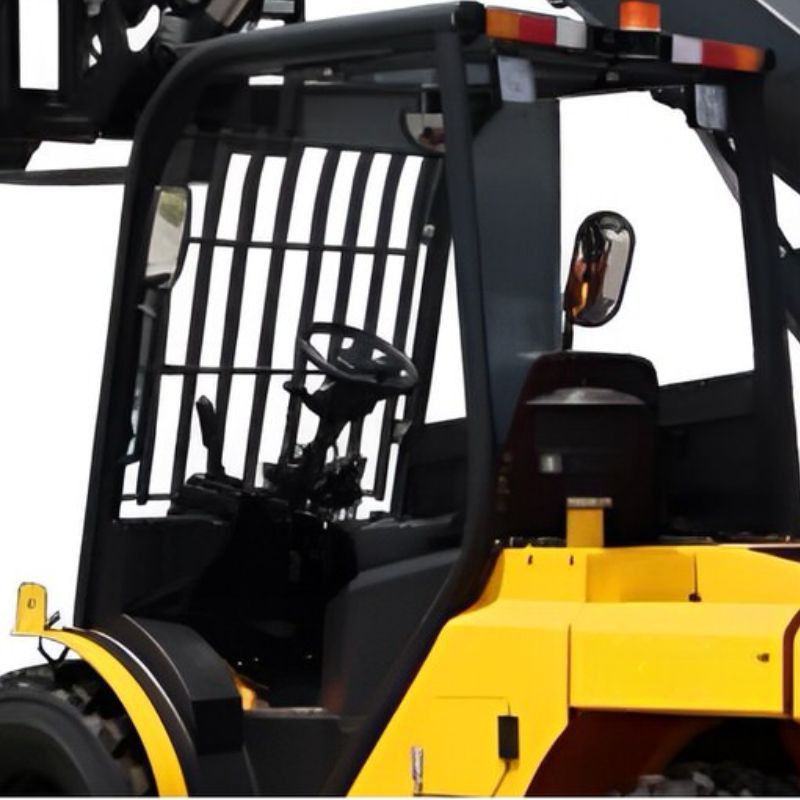

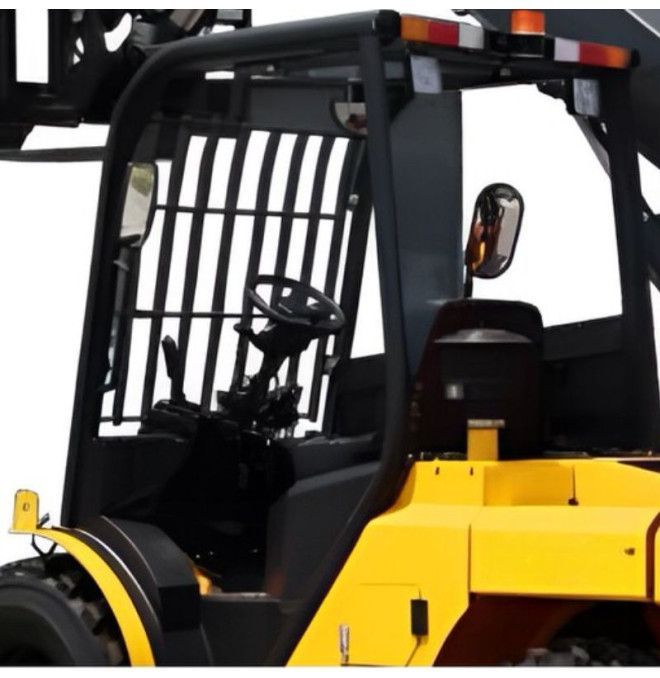

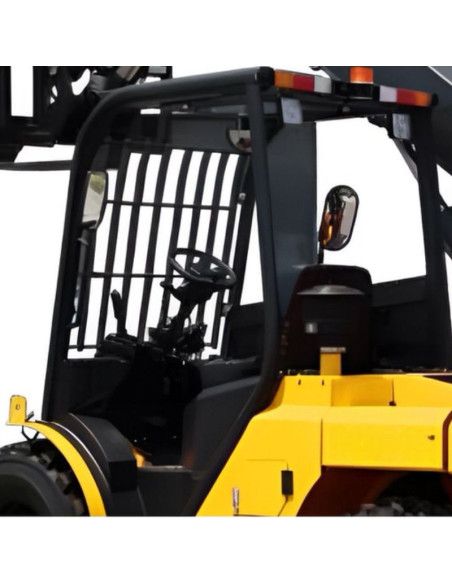

Its compact and ergonomic design optimizes the safety and comfort of the operator, providing a 360 ° visibility for total control of the operation. Thanks to its 4WD traction and reduced rotation radius, it is perfect for working in narrow spaces without compromising stability or efficiency.

Performance and advanced technology

• Korean diesel engine LS EUV & EPA Stage IV with 4WD hydraulic transmission for greater power and durability.
• Motor L4CRTV4 Stage V
• Power 42 kW
• Revolutions 2300 rpm

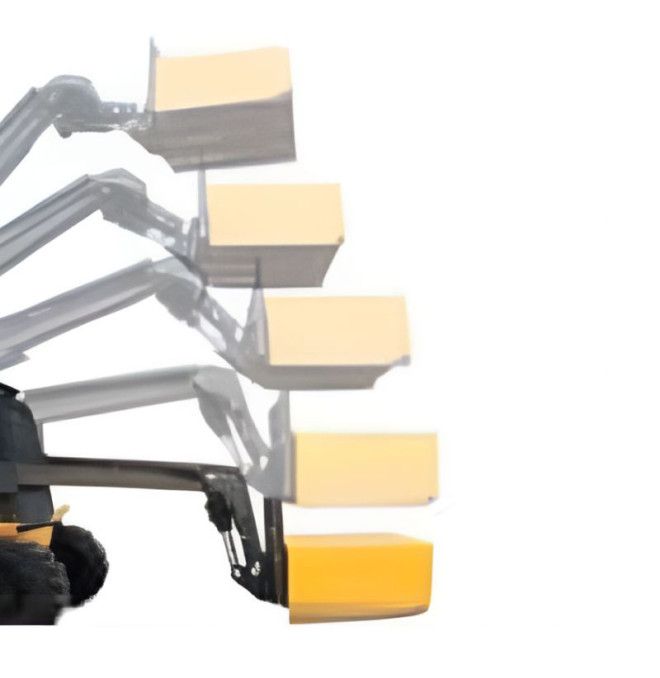

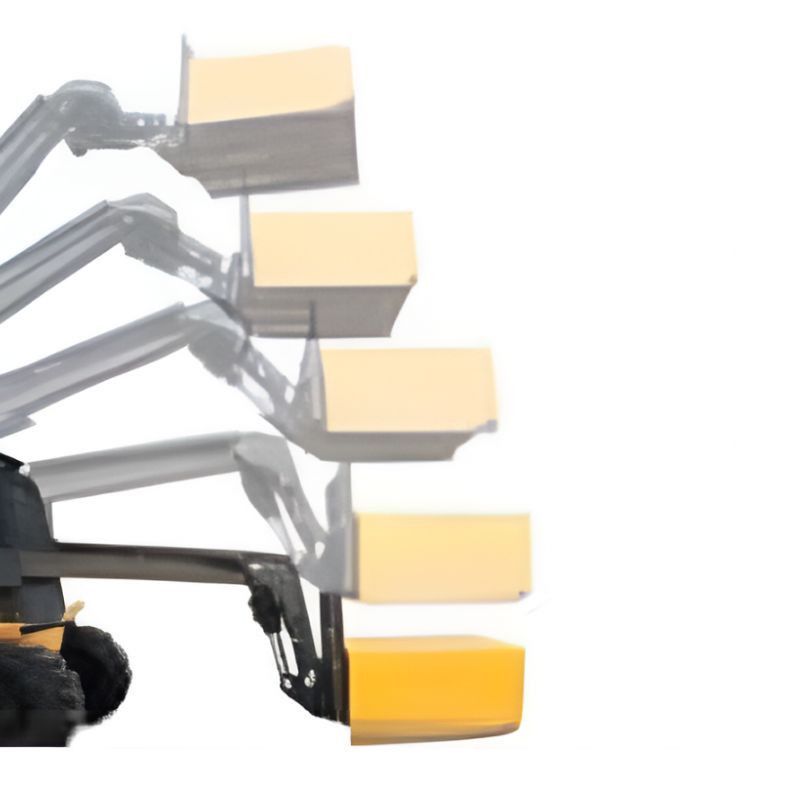

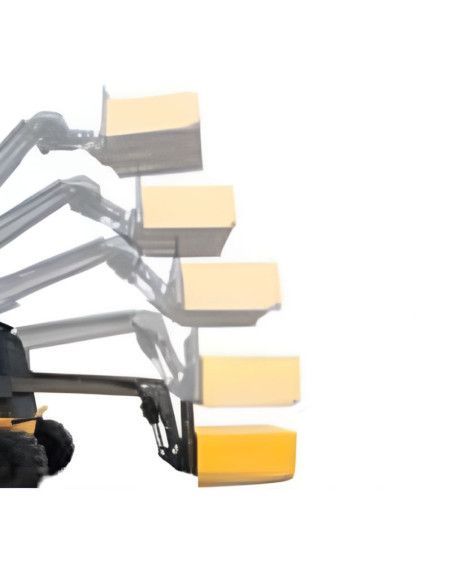

• Self-leveling system with body inclination and forks ± 0.5 °, guaranteeing maximum stability in loading loads.
• Anti-resolve protection and serial OPS function, ensuring a safer operation in any condition.
• Proportional solenoid valves for precision control in each movement.
• Cylinder with equilibrium valve, which prevents unexpected falls in case of hydraulic failure.
• Easy maintenance design with tilting cabin and wide opening hood.

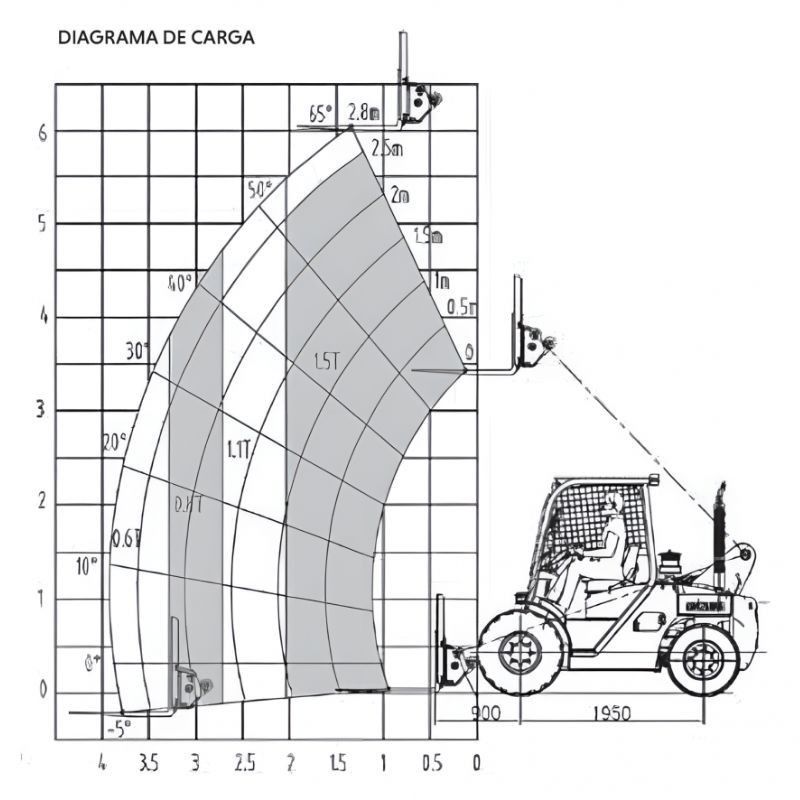

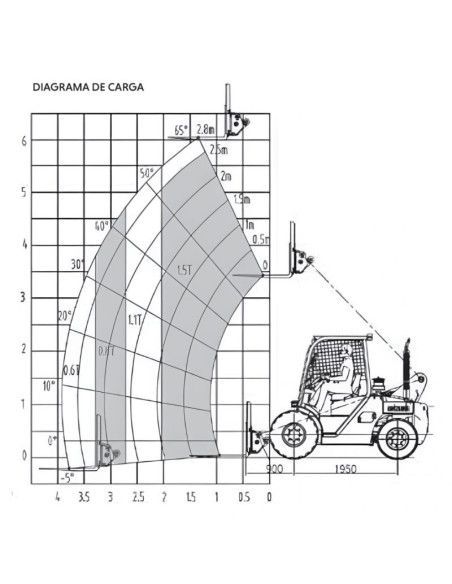

Technical specifications Key

• Maximum load capacity: 1500 kg (in height 500 kg)
• Lifting height: 6 meters
• Maximum front scope: 3.9 meters
• 4WD traction with 50% gradability
• Maximum traction 36kn
• Exterior turn | 3250 mm
• Maximum scroll speed: 20 km / h
• Speed lifting with / without load 450 mm / s
• Speed Descent with / without load 540 mm / s
• Nº sections of the pen: 3
• Feather lifting speed: 9 S
• Feather drop speed: 6 S
• Feather extension speed: 7 S
• Feather retraction speed: 5 s
• Lifting speed (with / without load): 450 mm / s
• Drop speed (with / without load): 540 mm / s
• Maximum permissible pending with / without load 50%
• Slot level: exterior 102 dB / interior 95 dB
• Weight 4200 kg
• Standard forks and ladle included.

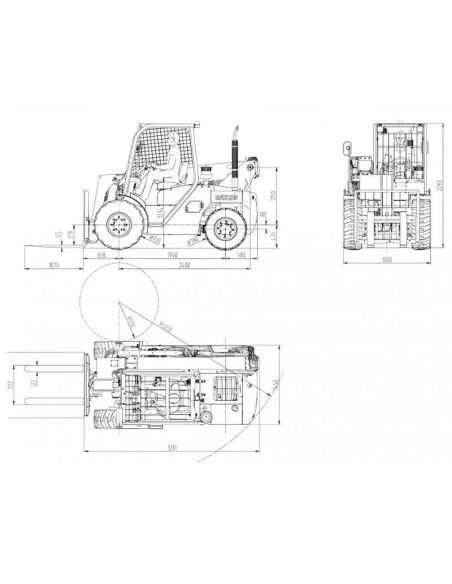

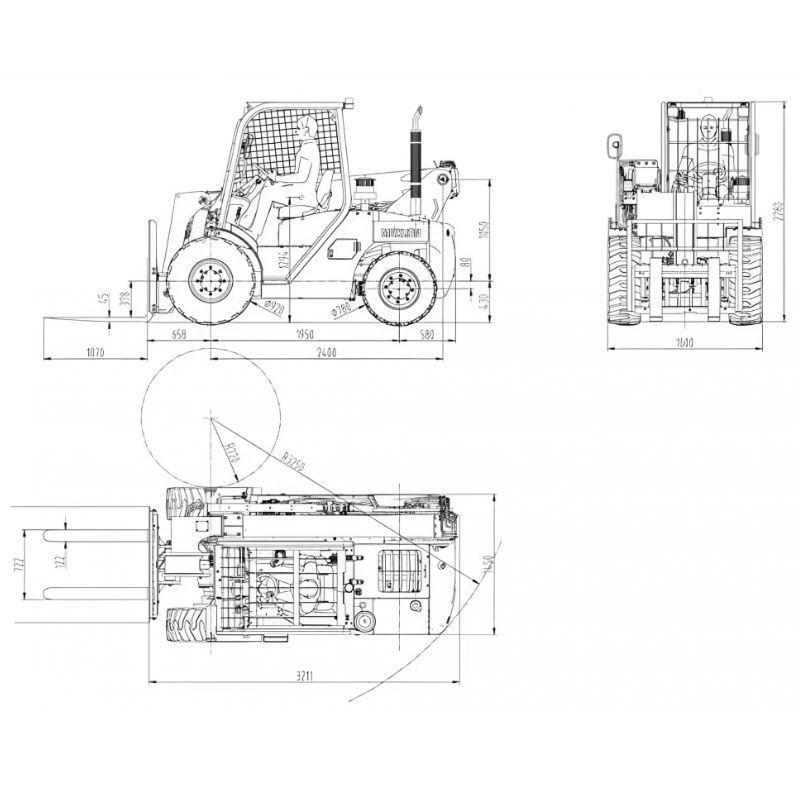

Dimensions

• • 3550 x 1450 x 2280 mm
  • Fork | 1220 x 100 x 35 mm
  • Total height | 2280 mm
• Width
  • Cabin | 960 mm
  • Fork | 1036 mm
  • Total | 1450 mm
• Size of the fork: 1220 x 100 x 35 mm
• Maximum width of the fork: 1036 mm
• Rear cantilever: 600 mm
• Pen tilt angle: 61 / -5
• Angle of the fork: 30/100
• Stabilizer width (retracted): 5800 mm
• Compact design: total width of only 1.45 meters

Optional available:

• Slocing for sand and gravel (1350 x 1550 x 700 mm / 0.6 m³ / 1,200 kg)
• Quick coupling system
• 100% glazed cabin
• Air conditioning and heating

Do more with less effort. Tymbia Tymbia 15-60 4WD manipulator, gives you the power, stability and maneuverability you need to maximize your productivity.
