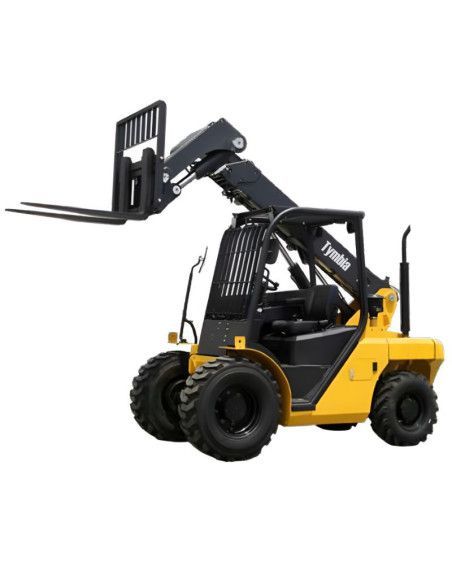

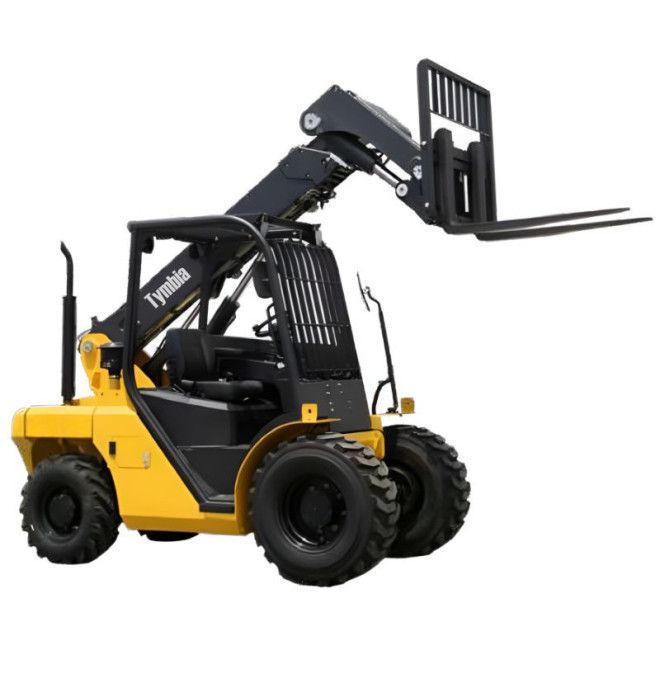

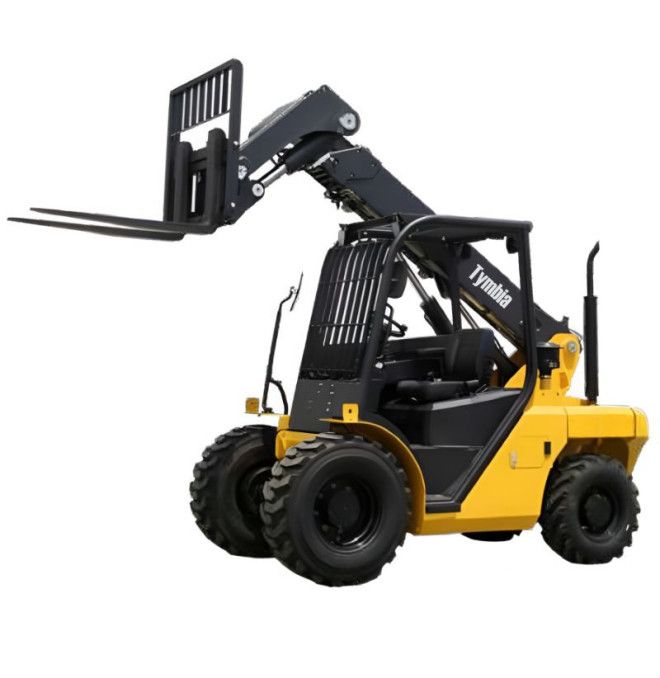

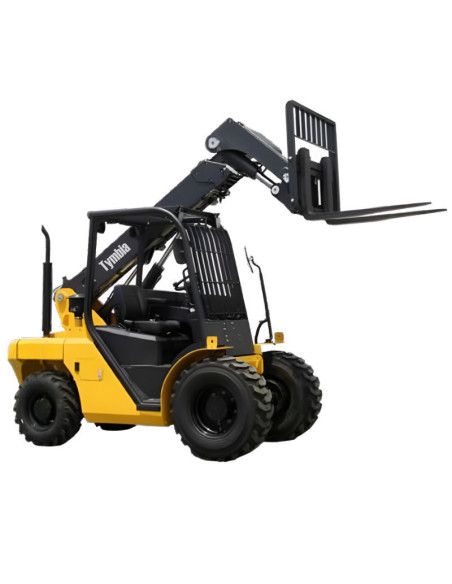

Telescopic handler 30-45 4WD

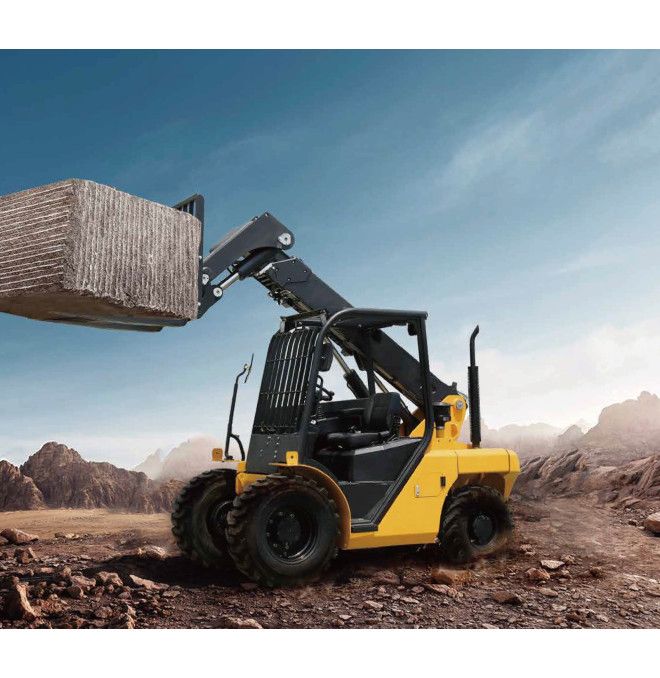

The Tymbia 30-45 4WD telescopic handler, with an elevation height of 4.5 meters and a load capacity of up to 3000 kg, is characterized by ergonomic design and versatility. With its lateral telescopic arm, optimize the space in the cabin without compromising maneuverability in reduced areas. The ergonomic driving position with 360° vision improves the safety and comfort of the operator. And thanks to its 4WD traction, it guarantees precise control and excellent stability in demanding terrain.

Key technical specifications

• Motor: Korean LS EUV & EPA Stage IV Diesel / L4CRTV4 STAGE V
• Power 42 kW
• 4WD Δ 36 KN
• Resolutions 2300 rpm

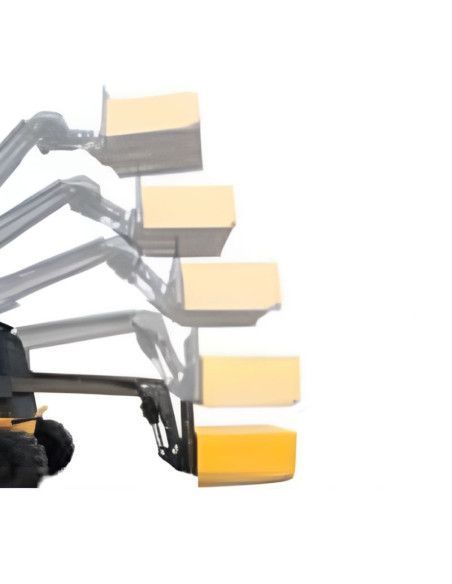

• Self-leveling System: Inclination of ±0.5°
• Hydraulic pump: 28 V displacement and 60 l/min oil flow

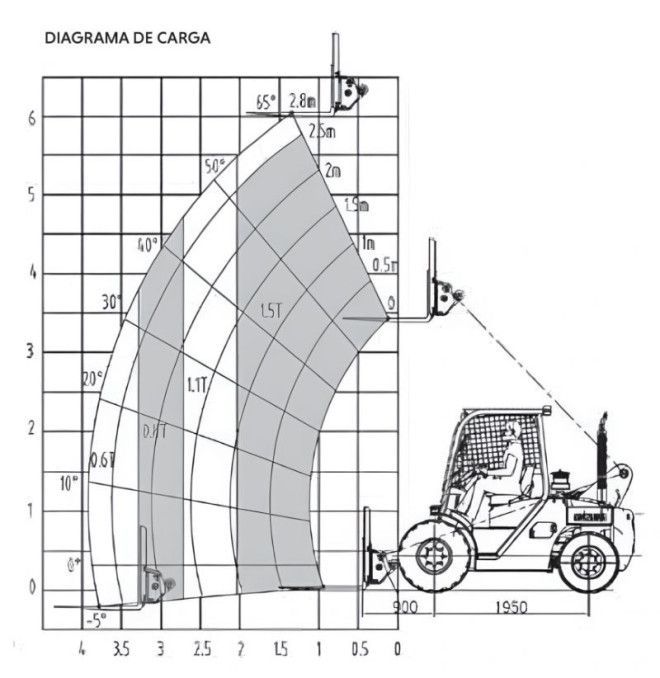

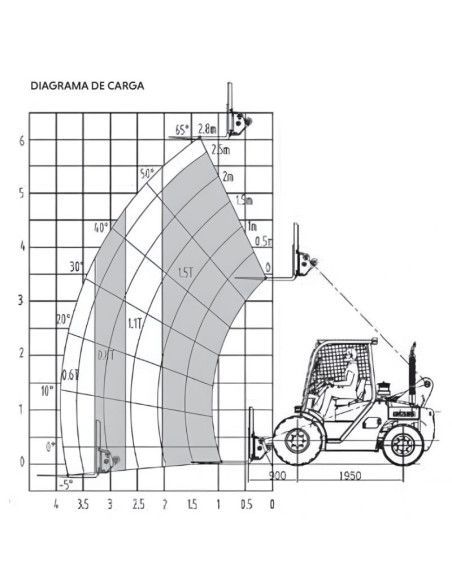

• Charging capacity: 3000 kg (1200 kg in height)
• Lift height 4.5 meters
• Maximum speed: 19 km/h
• Speed displacement with/without loading 19 Km/h
• Lifting speed with / without charge 450 mm/s
• Decreasing speed with/without loading 540 mm/s
• External sound level Δ 102 dB /Interior Δ 95 dB
• Maximum admissible pendant with/without charge 45 %
• Distance to the floor: 219 mm
• External turning radius: 3250 mm
• Gradability (loaded): 45%
• Included standard forks and buckets.

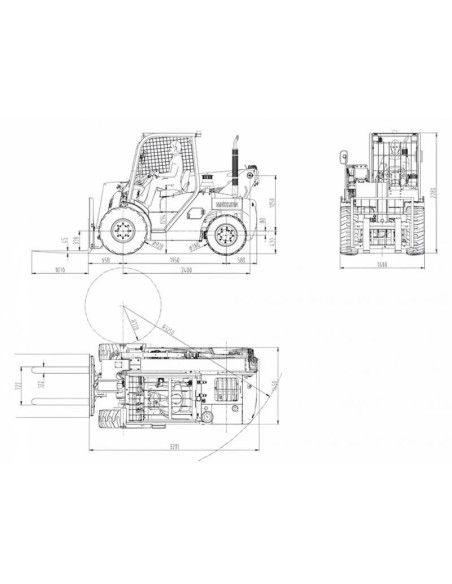

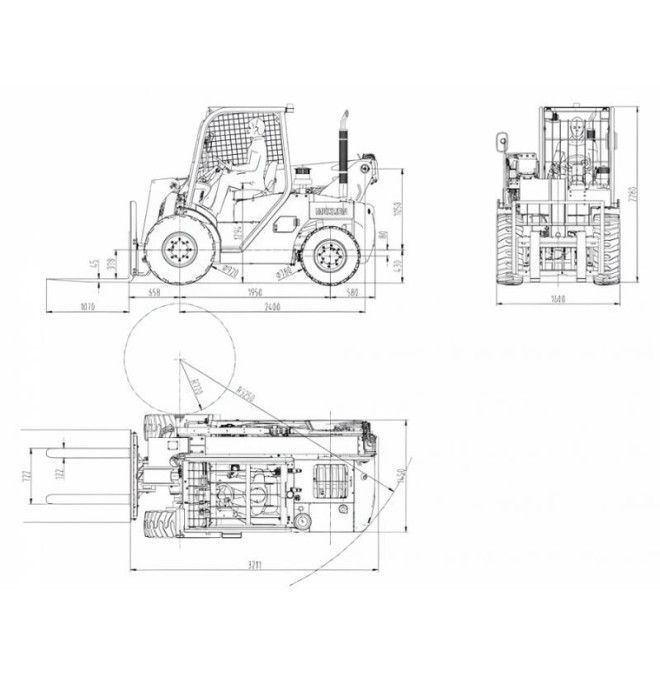

Dimensions

• Dimensions
  • 3300 x 1600 x 2280 mm
  • Fork 日本語 1220 x 122 x 35 mm
  • Total height .2280 mm
• Total length (without forks) 3300 mm
• Distance between axles 1950 mm
• Shroud loading height 3000 mm
• Scope of the front wheel 200 m
• Anchura
  • Cabin UD 960 mm
  • Fork 1036 mm
  • Total 1600 mm
• Weight 5000 Kg

Optimized safety and maintenance

• Anti-return protection system for greater stability
• PAHO function for safe operation control
• Proportional valves, ensuring accuracy and efficiency
• Cylinder with balance valve, avoiding accidental falls
• Pen with pipe trailer external for easy maintenance

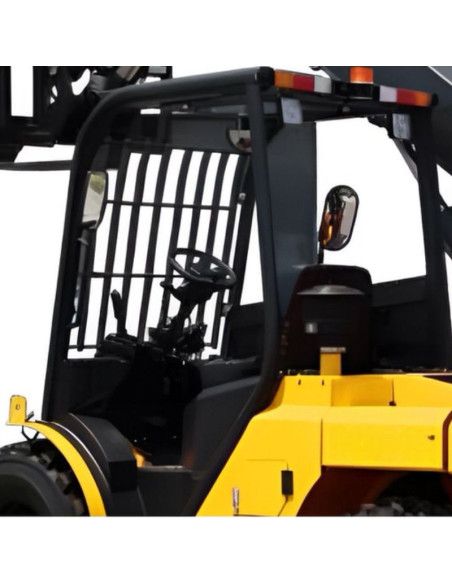

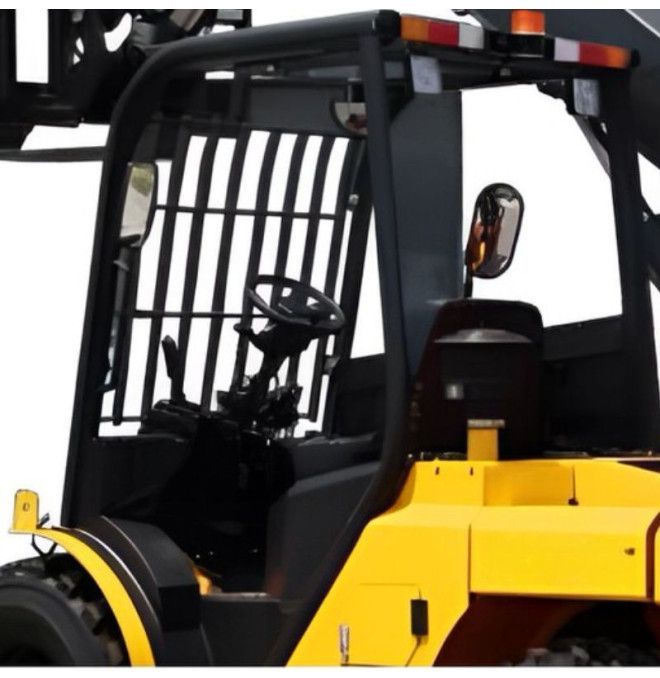

• Cabin with front inclination for quick access
• Large-angle mirror mirror mirrors for increased visibility
• Seat with suspension and hand brake with autoblock

Accessories included: forks and buckets

Optional:

• Shrimp for sand and gravel1350 x 1550 x 700 mm / 0.6 m3 / 1.200 Kg).
• Manual fast hook system
• 100% glazed cabin
• Air conditioning and heating (requires cabin)

Power, precision and performance in each elevation. The Tymbia 30-45 4WD telescopic handler combines advanced technology and robust design to maximize your productivity in any environment.
