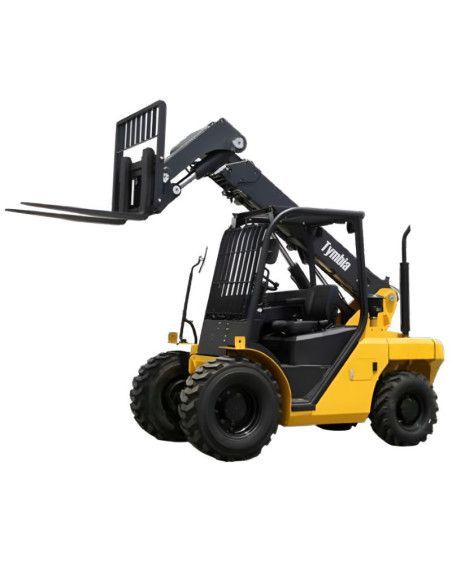

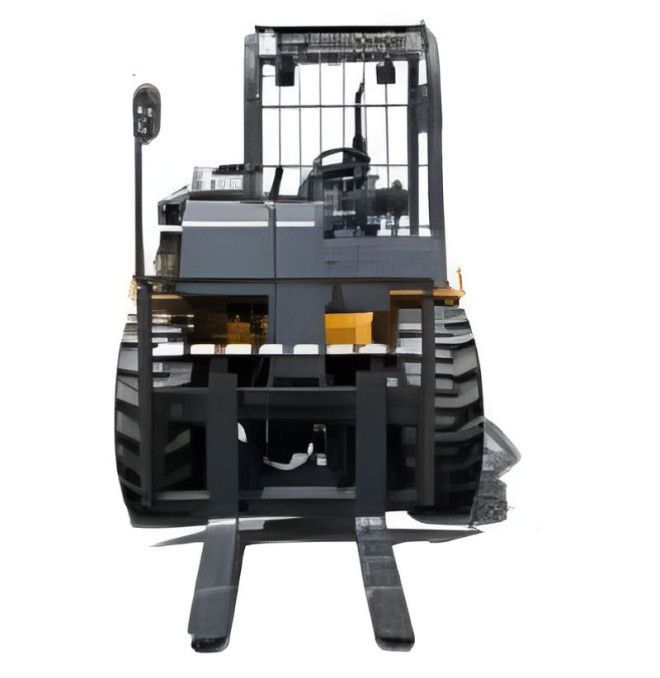

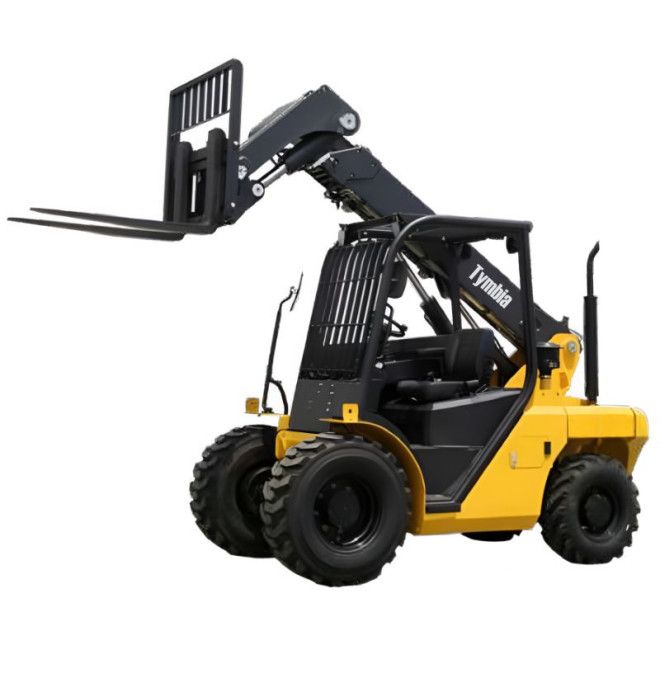

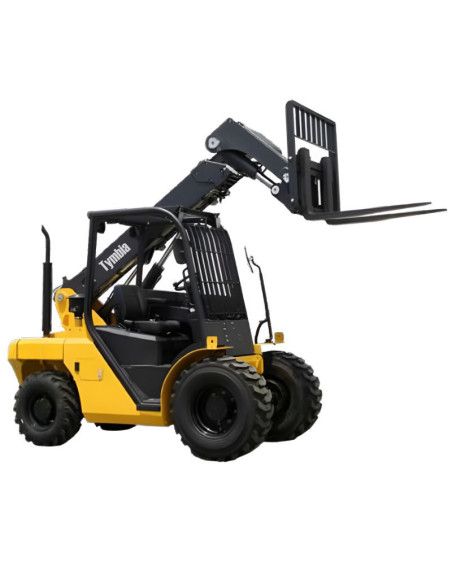

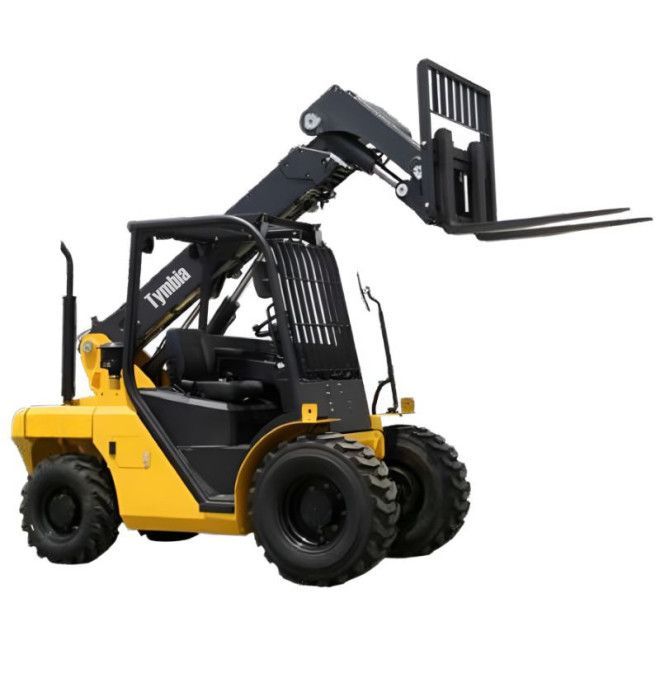

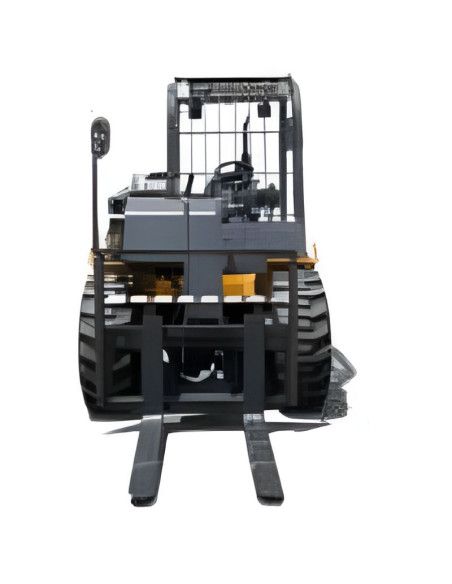

Telescopic handler 30-45 2WD

The Tymbia 30-45 2WD telescopic handler with maximum height of elevation 4.5m and load capacity up to 3000Kg (1200 Kg in height), offers exceptional performance even in reduced spaces. Its design is designed to enhance the safety and comfort of the operator. In addition, the telescopic arm is in lateral position, allowing a large width of the cabin to keep a total width reduced.

CHARACTERISTICS

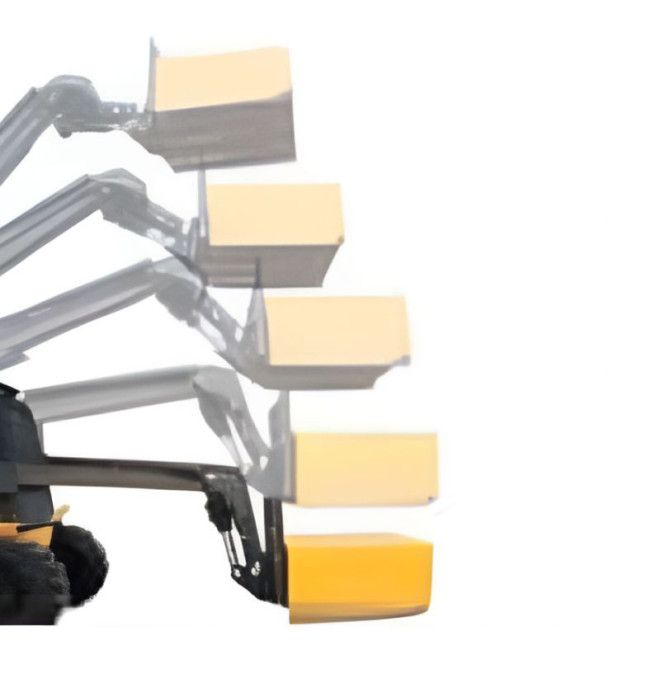

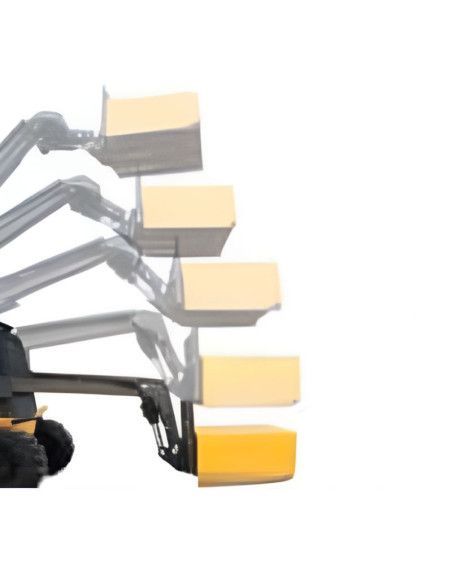

• Excellent self-leveling system with an angle of inclination of the body and forks within ±0.5° that guarantees the safety of the goods during the lifting process.
• 28 V pump displacement.
• Oil flow of 60 l/min
• The anti-return protection system improves the safety of the operation.
• PAHO function as standard set.
• Proportional valves allow high accuracy and safety.
• Cylinder equipped with balance valve, providing support to the forks in case the hydraulic hose is broken.
• The pen adopts a pipe trailer easy maintenance external.
• The engine hood with large opening angle and the tilting cabin facilitates maintenance.
• Technical specifications meet the European standard to ensure efficient work.
• Specialized rear motor with large steering angle and small turning radius (3250 mm) that allows to work in small spaces.

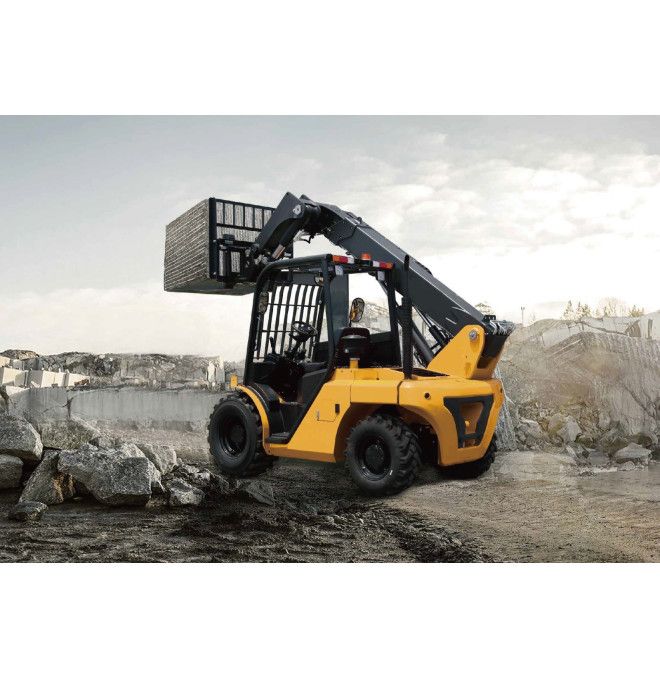

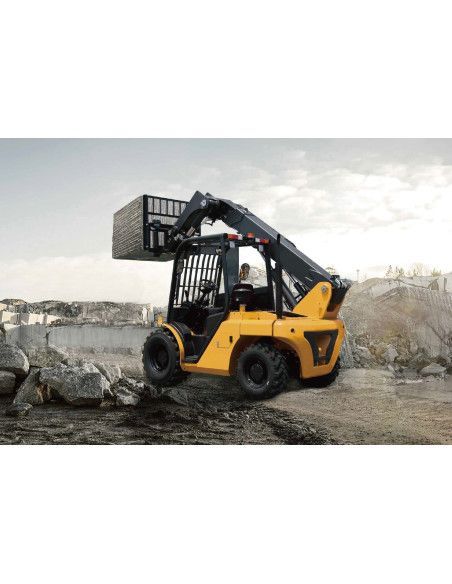

• Large distance to the ground for working conditions on difficult terrain.

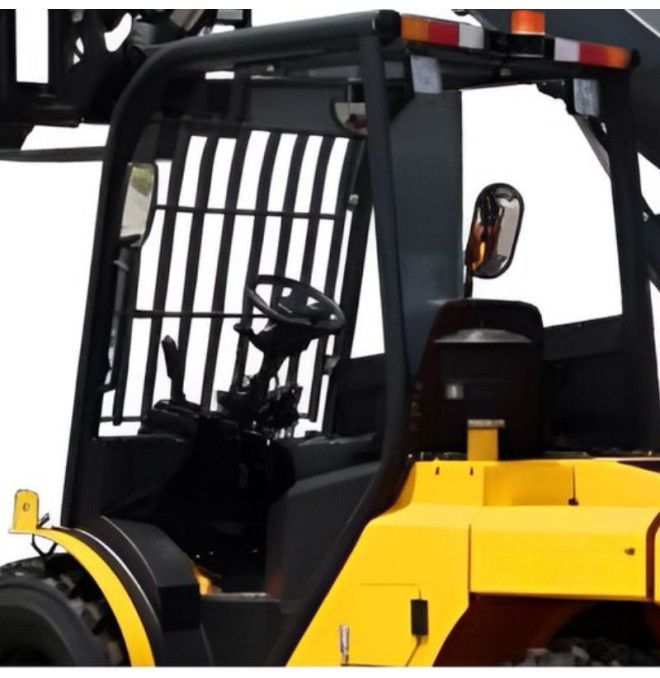

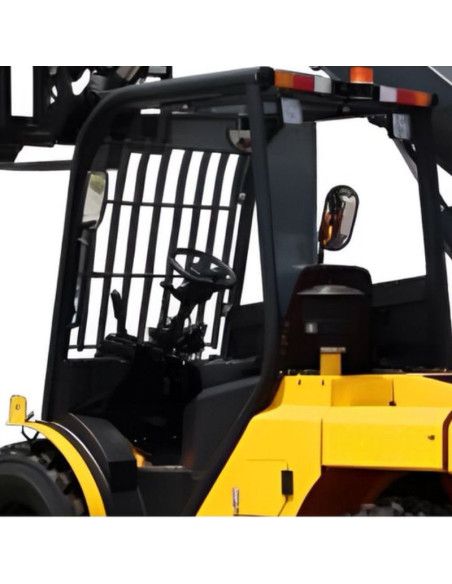

• Longer steering column, easy-to-use interface with optimized operating space.
• Double and wide-angle mirrors enhance visibility.
• The superior insulated protector helps reduce vibration.
• Fully closed front bow cabin available.
• Seat with suspension, hand brake with autoblock.
• The driving position is very spacious and totally ergonomic.
• Designed for great comfort in the operation, with a 360° vision for the operator.
• Includes standard forks and buckets.

TECHNICAL CHARACTERISTICS

• Motor: Korean LS EUV & EPA Stage IV Diesel / L4CRTV4 STAGE V
• Power 42 kW
• 2WD Δ 15 KN
• Resolutions 2300 rpm
• Self leveling system: ±0.5° inclination angle
• Hydraulic pump: 28 V displacement and 60 l/min oil flow
• Specialized rear thruster: Great steering angle and 3250 mm turn radius
• Discharge height of the bucket: 3000 mm

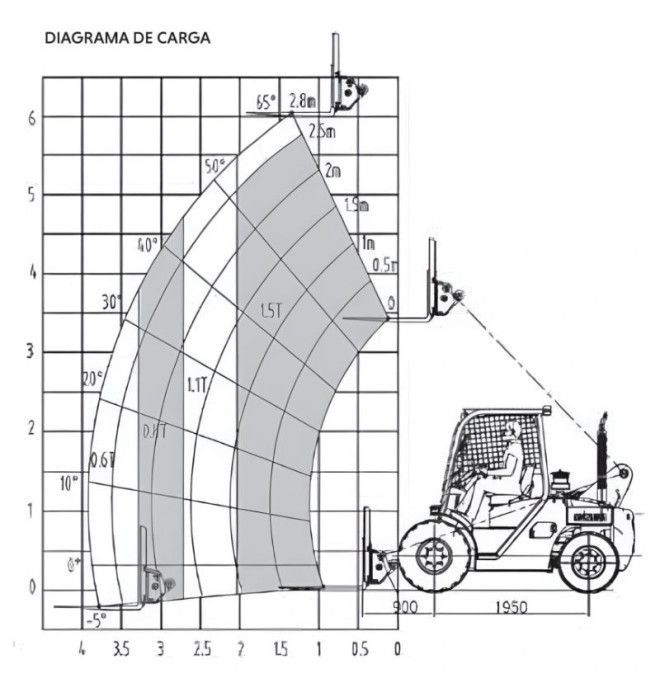

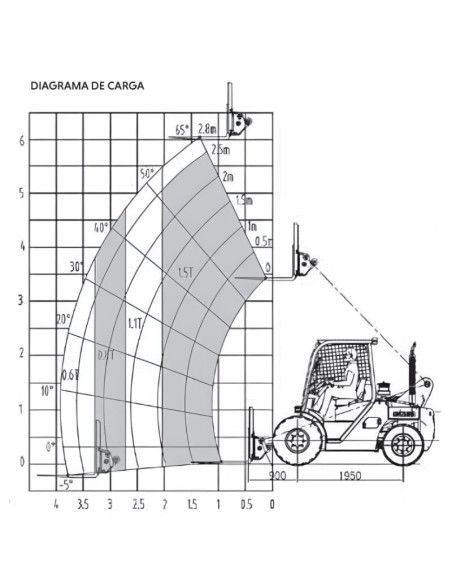

• Charging capacity: 3000 kg (1200 kg in height)
• Maximum speed: 22 km/h

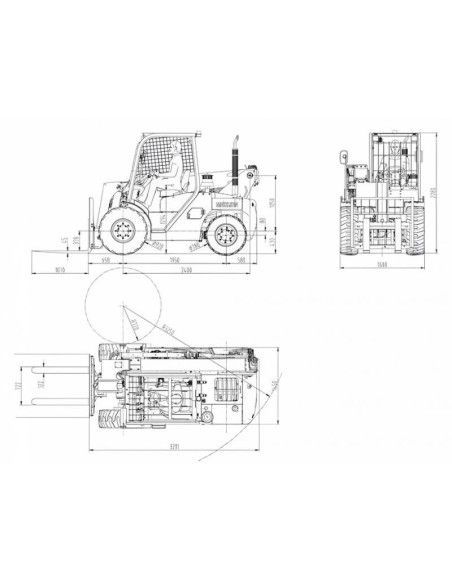

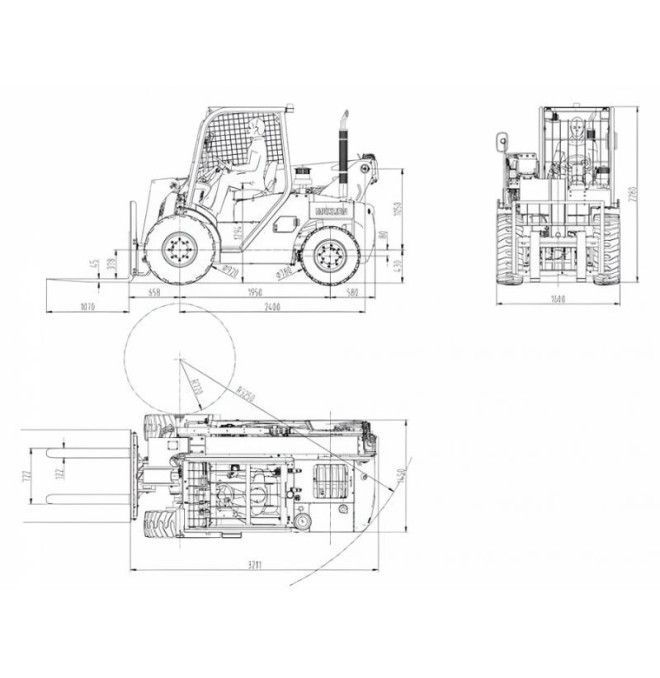

• Dimensions: 3300 mm length, 1600 mm wide and 2280 mm height
• Ground distance: 270 mm

Security and maintenance technology

• Anti-return protection system for greater stability
• Integrated PAHO function for precise control
• Proportional electrovals, ensuring high safety and efficiency
• Cylinder with balancing valve, avoiding fall in case of hydraulic hose failure
• Engine cap with large opening angle and tilting cabin for simple maintenance
• Longer steering column and optimized operating space
• Double and wide-angle mirror mirror mirrors for better visibility
• Seat with suspension and hand brake with autoblock

Optional:

• Forks and buckets for sand and gravel1350 x 1550 x 700 mm / 0.6 m3 / 1.200 Kg)
• Manual fast hook system
• 100% glazed cabin
• Air conditioning and heating (requires cabin)

The Tymbia 30-45 2WD telescopic manipulator is the perfect choice for operations that demand power, precision and safety. Its robust design and advanced technology ensure superior performance in demanding industrial sectors. ideal for agricultural or industrial maintenance, as well as in works construction.
