Telescopic handler 15-60 2WD

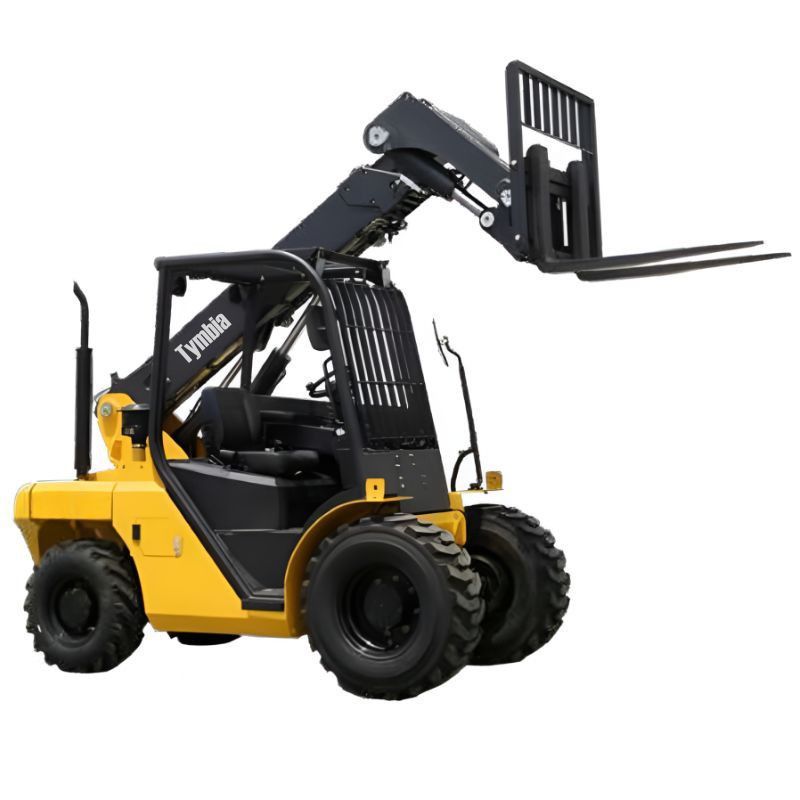

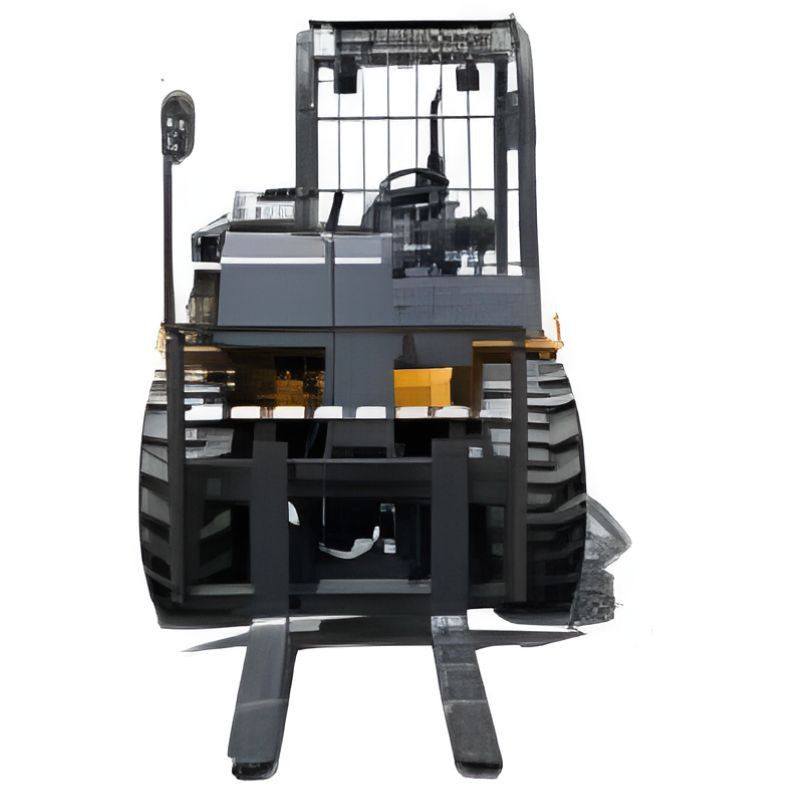

The Tymbia 15-60 2WD telescopic handler, with a maximum elevation height of 6m and a load capacity of up to 1500Kg, this equipment offers exceptional performance even in small spaces.

General features

• Optimized design for maximum performance
• Ergonomic and spacious cabin with 360° panoramic view, for total control.
• Side telescopic arm, which optimizes space without compromising stability.
• Compact chassis and reduced spin radius, ideal for operating in environments with limited space.
• Anti-return protection and standard PAHO system, ensuring maximum safety.
• Double and wide-angle mirror mirror mirrors, improving operator visibility.

Power and Advanced Technology

• Korean LS EUV & EPA Stage IV Diesel, with 2WD hydraulic transmission, offering greater efficiency and less consumption.

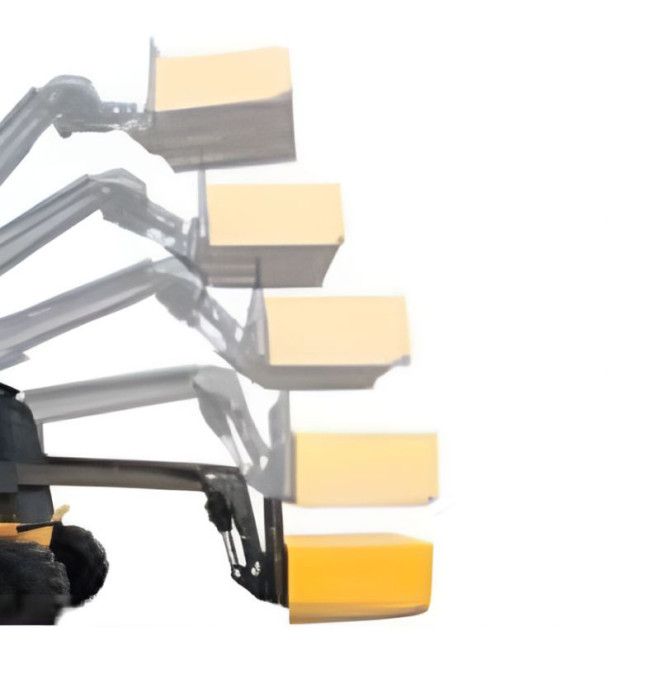

• Self-leveling system with inclination of ±0.5°, which ensure stability in irregular terrain.
• Proportional electrovals, which allow a precise and safe operation in loading.
• Cylinder with balance valve, providing support to forks in case of hydraulic failure.
• Automatic braking system and seat with pneumatic suspension, optimizing the safety and comfort of the operator.
• Pen with pipe trailer external, facilitating maintenance and reducing downtime.

Featured technical specifications

• Maximum load capacity: 1500Kg (500 Kg in height).
• Maximum lift height: 6000mm.
• Maximum forward range: 3.9 m.
• Number of sections of the pen: 3.
• Maximum travel speed: 20 km/h.
• Outdoor turning radius: 2950 mm, ideal for manoeuvres in small spaces.
• Ground distance: 270 mm, ensuring performance in difficult terrain.
• Pen inclination angle: 65°/-5°.
• High performance hydraulic system with oil flow of 60l/min.
• Low noise level: 95 dB inside, 102 dB outside.
• Diesel engine
• Power 42 kW
• Weight 4200 Kg
• 2WD Traction Motor Δ 15 KN
• Total height 1450 mm

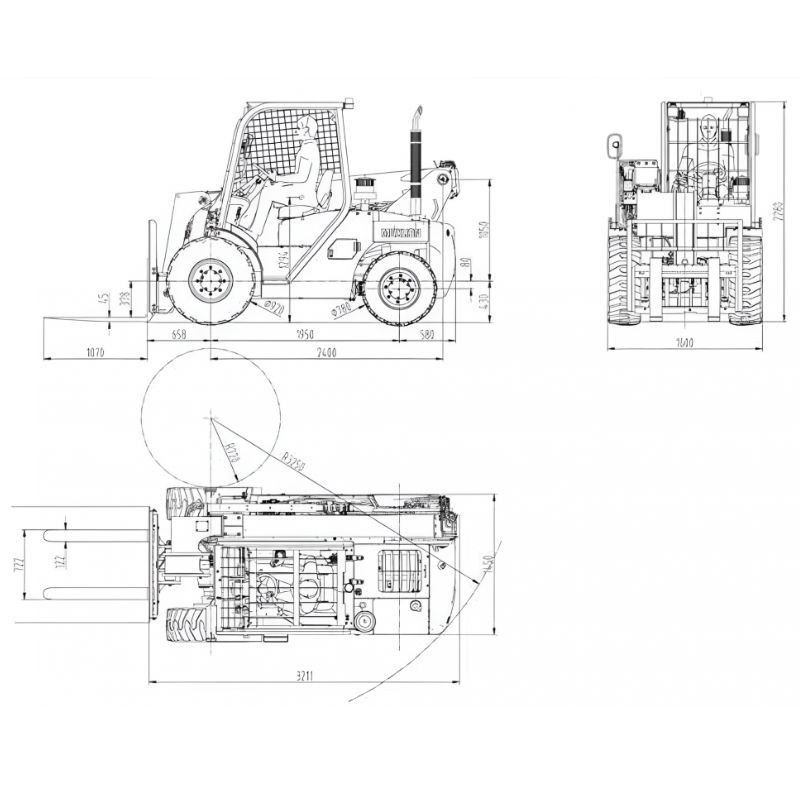

• Dimensions
  • 3550 x 1450 x 2280 mm
  • Fork 1220 x 100 x 35 mm
• Anchura
  • Cabin 960 mm
  • Fork 1036 mm
  • Total 1450mm
• Type Motor L4CRTV4 STAGE V
• Includes: Forks and buckets
• Resolutions 2300 rpm
• Gyro Exterior speed 2950 mm
• displacement with / without charge 20 km/h
• Lift speed with / without charge 450 mm/s
• Decreasing speed with / without charge 540 mm/s
• Max. admissible with/without charge 20%

Manufacture from materials of any heading

• Standard forks and buckets for sand and gravel1350 x 1550 x 700 mm / 0.6 m3 / 1.200 Kg).
• Manual fast hook system for easy-to-use accessories changes.
• Fully glazed cabin for greater visibility and protection.
• Air conditioning and heating (requires cabin).

The high-performance Tymbia 15-60 2WD industrial telescopic handler is designed to deliver maximum efficiency in load lifting and handling. Its advanced technology, compact design and high-quality components make it the best choice for demanding environments.
