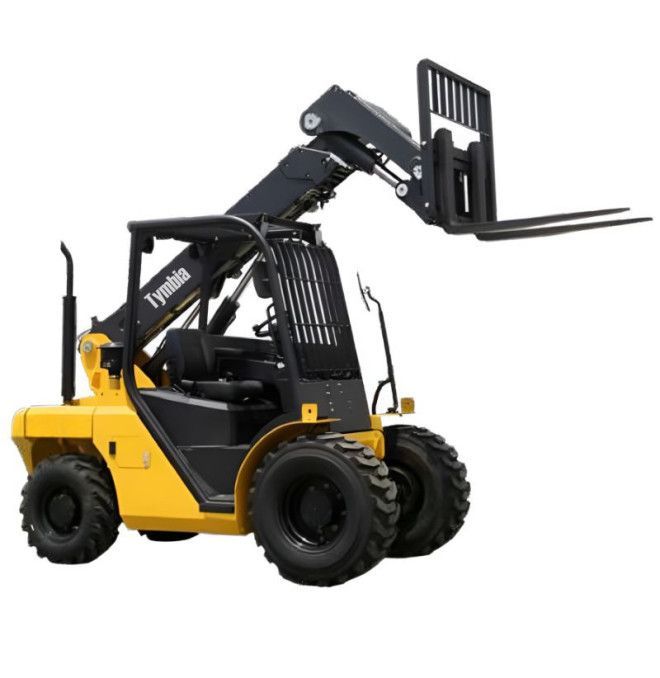

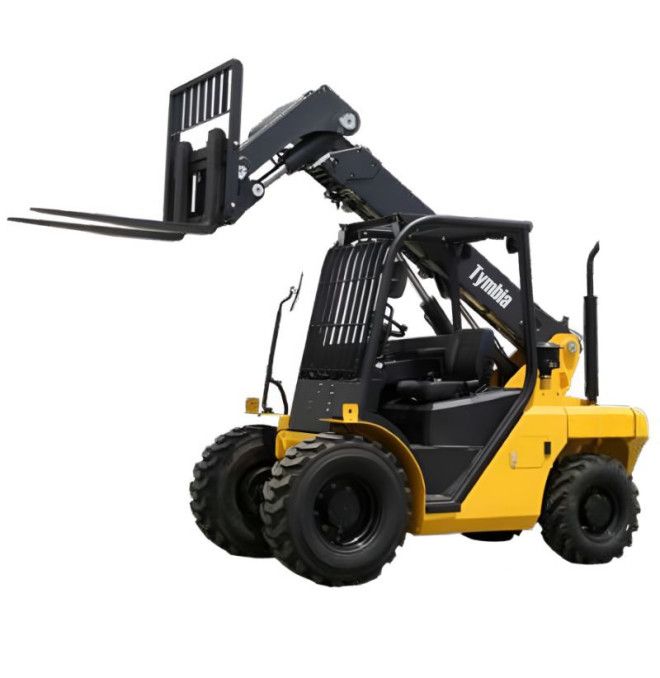

Telescopic handler 15-45 2WD

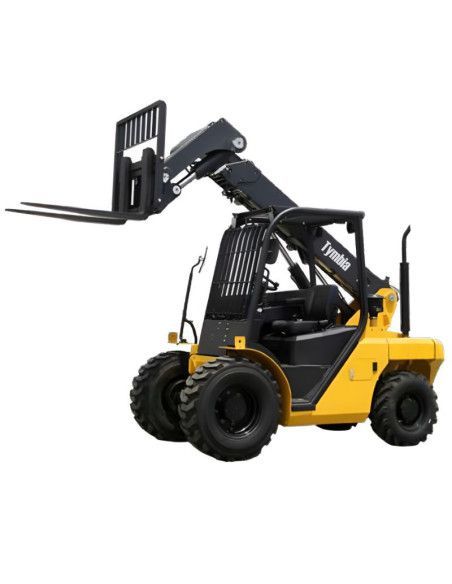

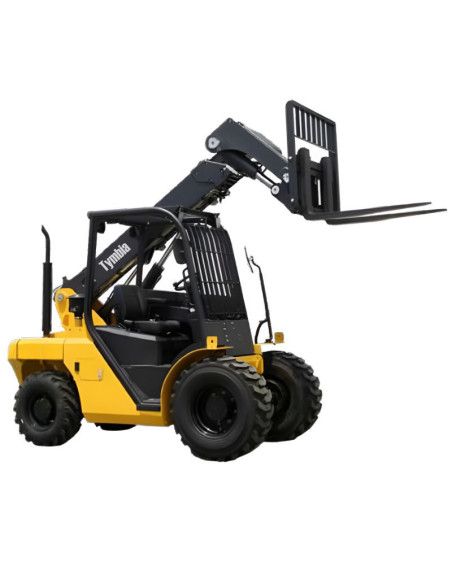

The Tymbia Telescopic Handor 15-45 2WD, with a maximum elevation height of 4.5m And a load capacity of up to 1500kg, this equipment offers exceptional performance even in reduced spaces.

Featured features

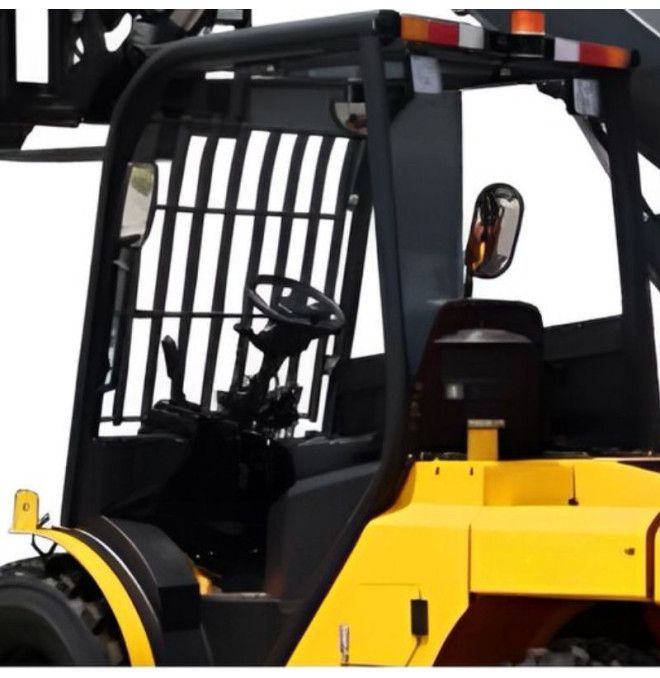

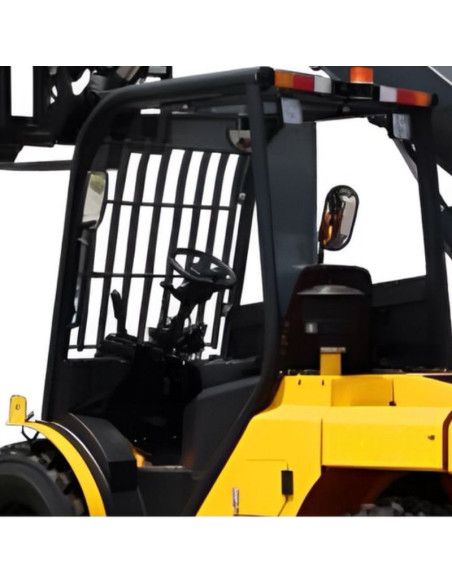

• Ergonomic and high visibility design: Designed with the comfort and safety of the operator. Its spacious and ergonomic cabin offers a panoramic view of 360 °, which facilitates maneuverability and control of the load. Thanks to its lateral telescopic arm, the cabin maintains a reduced total width, optimizing stability and space.
• Performance and advanced safety: Korean motor LS EUV & EPA Stage IV Diesel with 2WD hydraulic transmission.
• Auto leveling system with an angle of tilt of ± 0.5 ° for greater stability.
• Proportional solenoid valves for precise and safe control.
• Anti-resolve protection and standard OPS system for reliable operation.
• Cylinder with equilibrium valve, guaranteeing support in case of hydraulic failure.
• Feather with external pipe, facilitating maintenance.
• Horquillas (1220 x 100 x 35 mm) and bucket included.

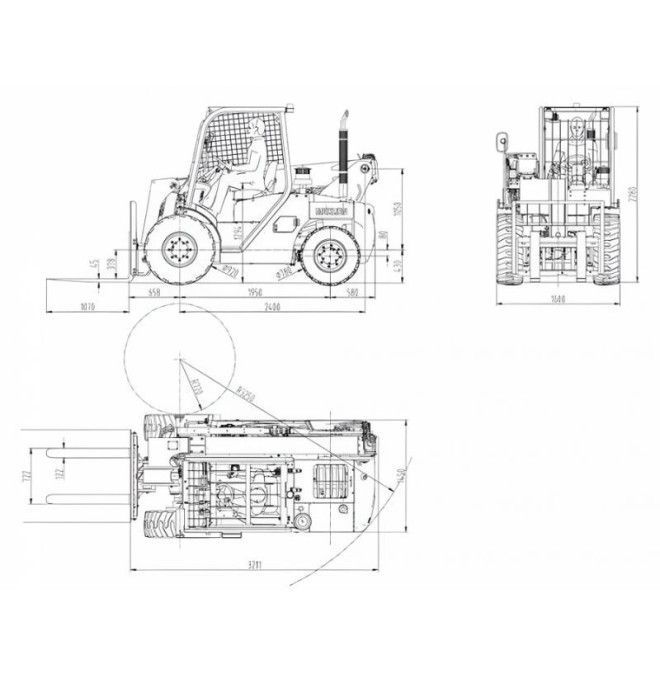

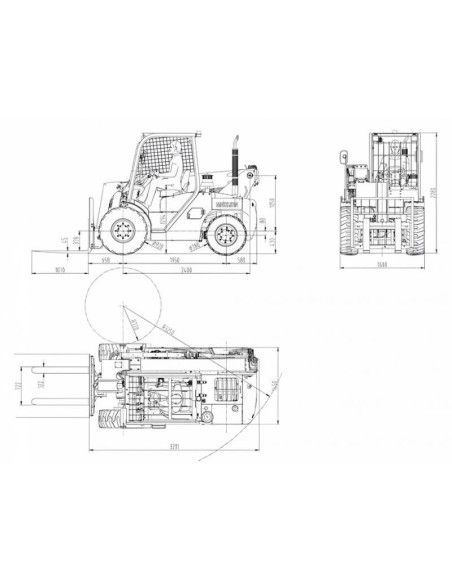

Dimensions

• 3300 x 1450 x 2280 mm
• Fork 1220 x 100 x 35 mm
• Total height 2280 mm
• Width

• • Cabin 960 mm
  • Fork 1036 mm
  • Total 1450 mm
• Stabilizer width (retracted): 5500 mm
• Pen tilt angle: 61 / -5
• Angle of the fork: 30/100
• Total weight 3800Kg

Technical characteristics

• Korean motor LS EUV & EPA Stage IV Diesel
• Motor L4CRTV4 Stage V
• 42kw power
• Revolutions 2300 rpm

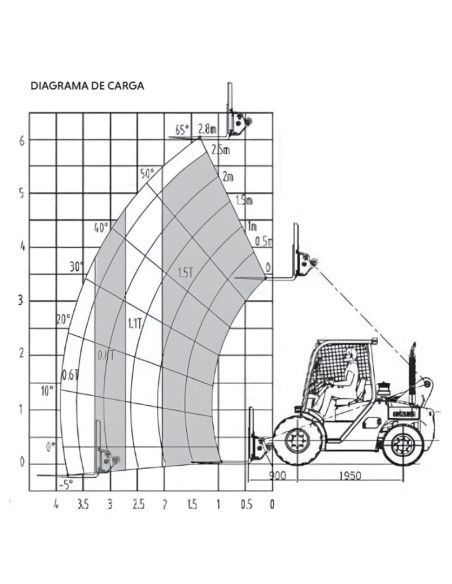

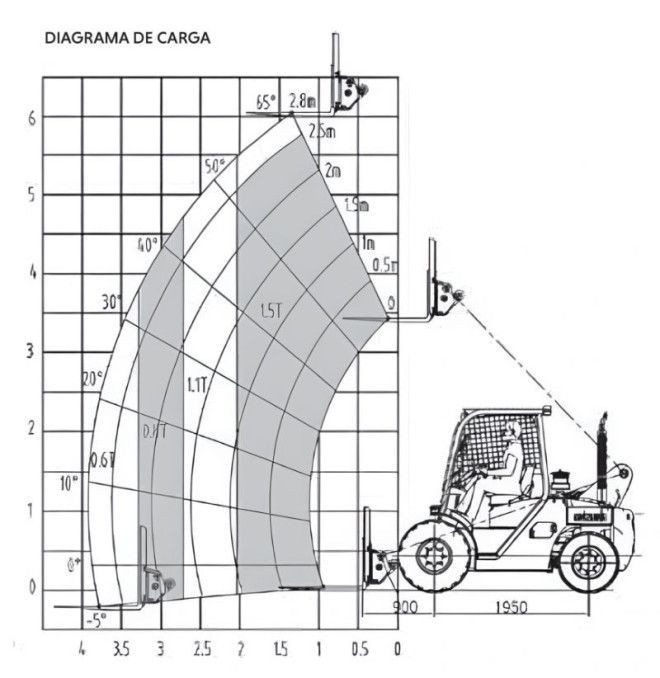

• Load capacity: 1500 kg (900 kg at maximum height).
• Maximum lifting height: 4500 mm.
• Maximum front scope: 2.3 m.
• Scroll speed: up to 20 km / h.
• Feather lifting speed: 8 S
• Feather drop speed: 6 S
• Feather extension speed: 7 S
• Feather retraction speed: 5 s
• Outdoor rotation radius: 2950 mm, ideal for small spaces.
• Distance to ground: 270 mm, perfect for difficult grounds.
• Braking system with self-locking and seat with suspension for greater comfort.

Accessories

• Laber for sand and gravel (1350 x 1550 x 700 mm / 0.6 m³ / 1,200 kg).
• Cabin completely glazed for greater safety and visibility.
• Air conditioning and heating (Requires cabin).
• High-security self-locking braking system and seat with pneumatic suspension to optimize operator comfort in demanding industrial environments.

Are you looking for a versatile and powerful telescopic manipulator? Tymbia 15-45 2W, is your best choice for loading and efficient elevation operations in reduced spaces, guaranteeing security, precision and ease of maintenance. Its robust and ergonomic design makes it a key ally in any industrial, agricultural or construction. Optimize your productivity today!
