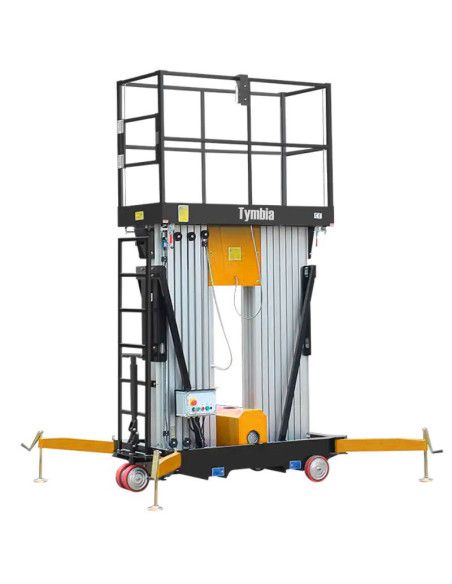

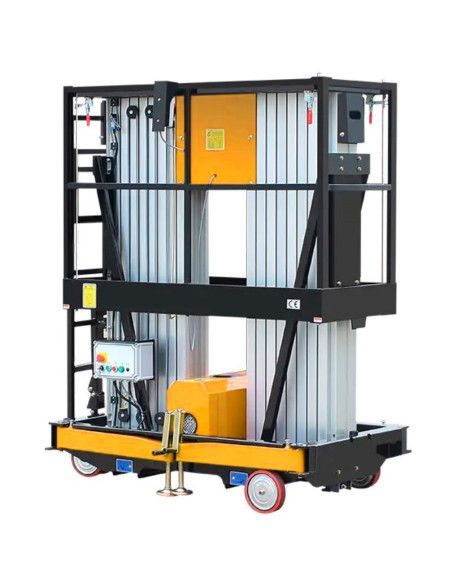

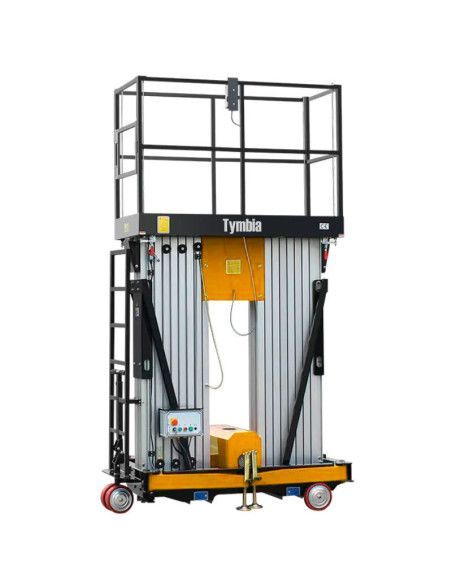

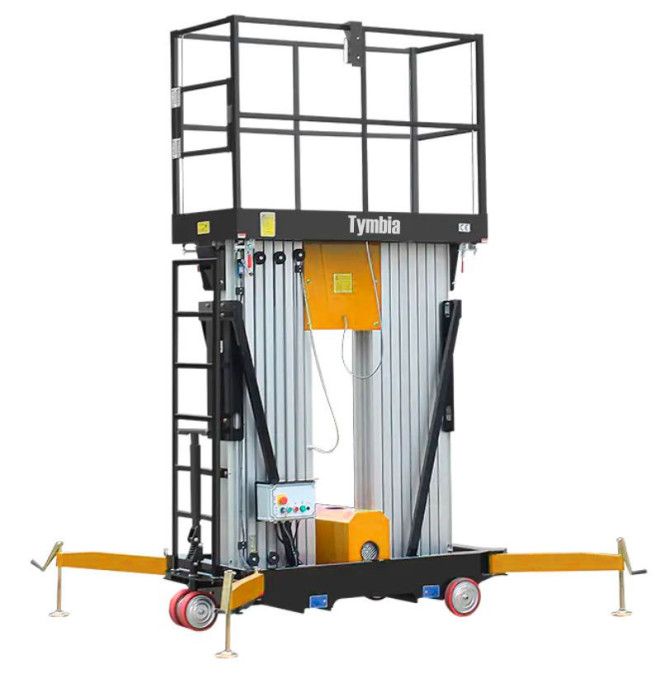

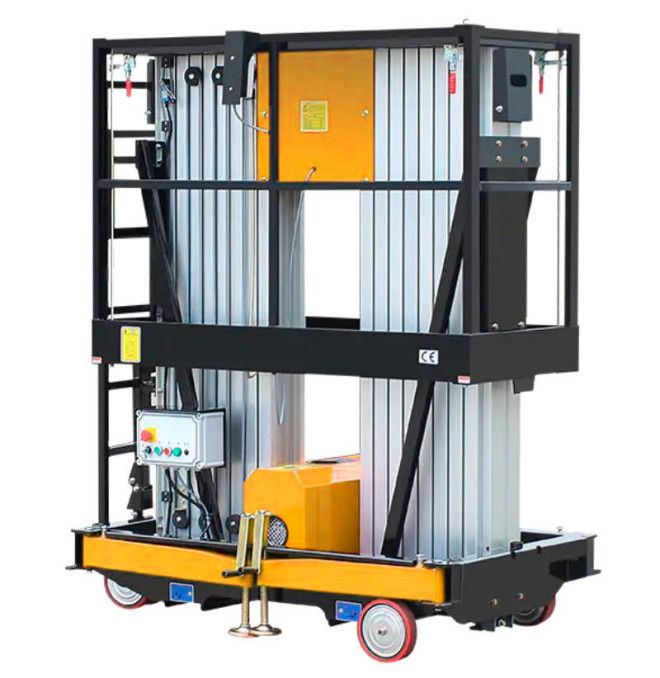

Lifting platform double vertical mast 12m-200kg (battery)
M103021023
The lifting platform AWP2-12 dual mast tymbia (DC) with maximum platform height of 12m, and 200kg load capacity, is designed to deliver performance and safety in height access jobs.
With a maximum working height of 14m, and a weight of 830kg, this mobile platform can be transported in trailers or vehicles, including vans and mini trucks, and a single operator can quickly install them.
Ideal for reduced spaces and precise manoeuvres.

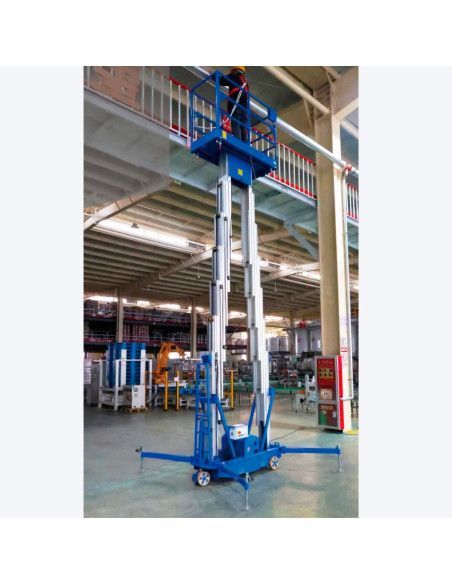

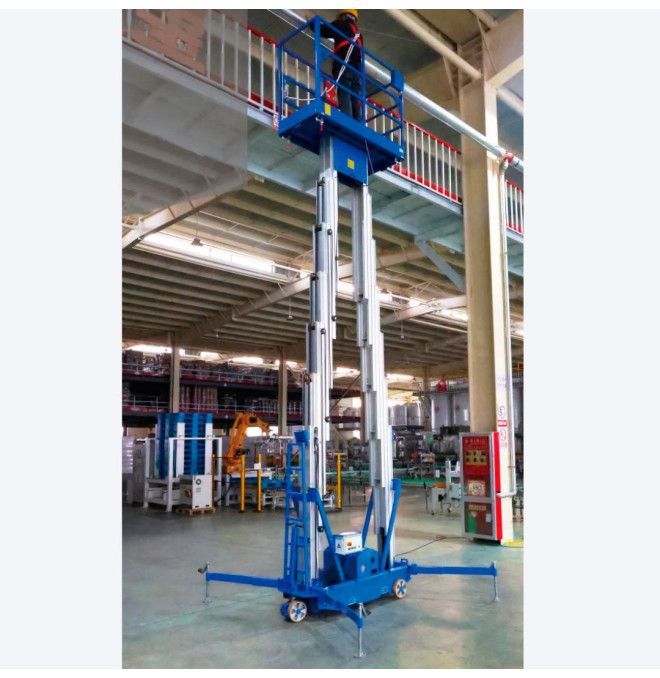

The 12m dual-mast Tymbia AWP2-12 (DC) mobile lifting platforms, with 200Kg load capacity, are designed to provide maximum stability and high performance. Ideal for indoor reduced spaces, such as works of construction, warehouses and maintenance facilities.
Optimizes performance and safety in industrial lifting systems by:
- Bubble leveler: maintains the platform perfectly balanced, compensating slides and avoiding dangerous inclinations.
- Emergency stop button: stop equipment immediately in critical situations, minimizing risks for operators and machinery.
- Removable stabilizer: improves the stability of the equipment by attaching to the chassis, with an interwoven design for optimal balance.
- Control voltage: facilitates maneuverability and precise direction in different fields, improving operational efficiency.
- Hydraulic lifting system: ensures a fluid and powerful movement through hydraulic oil, ideal for handling high tonnage loads.
- Cylinder retention valve: prevents involuntary descents, ensuring stability and safety in handling heavy loads.
- Mounting pocket.
- Door with automatic locking on platform.
Technical specifications:
- Charge capacity 200kg
- Occupations 1
- Maximum working height 14m
- Maximum height of the 12m platform
- Total length 1.76m
- Total width 1m
- Total height 1.99m
- Dimension of platform 1,52m 1,62m
- Coverage of stabilizers 2,3m x 2,3m
OPTION
- DC Motor (kw) 1.6
- DC 2x12V
- Charger 12Vx15A
- Weight (DC) 830kg
* Available in yellow.
- Load capacity (kg)
- 200
- Dimensions of the long X width platform (mm)
- 1520x620
- Total length (mm)
- 1760.0
- Weight (kg)
- 830
- Total height (mm)
- 199
- Width (mm)
- 1000.0
- Motor (KW)
- 1.5
- Occupants
- 1
- Maximum work height (M)
- 14
- Maximum height of the platform (M)
- 12
- Stabilizer coverage (M)
- 2.3x2.3
- AD
- 2x12V
- Charger (v / a)
- 12V/15A
