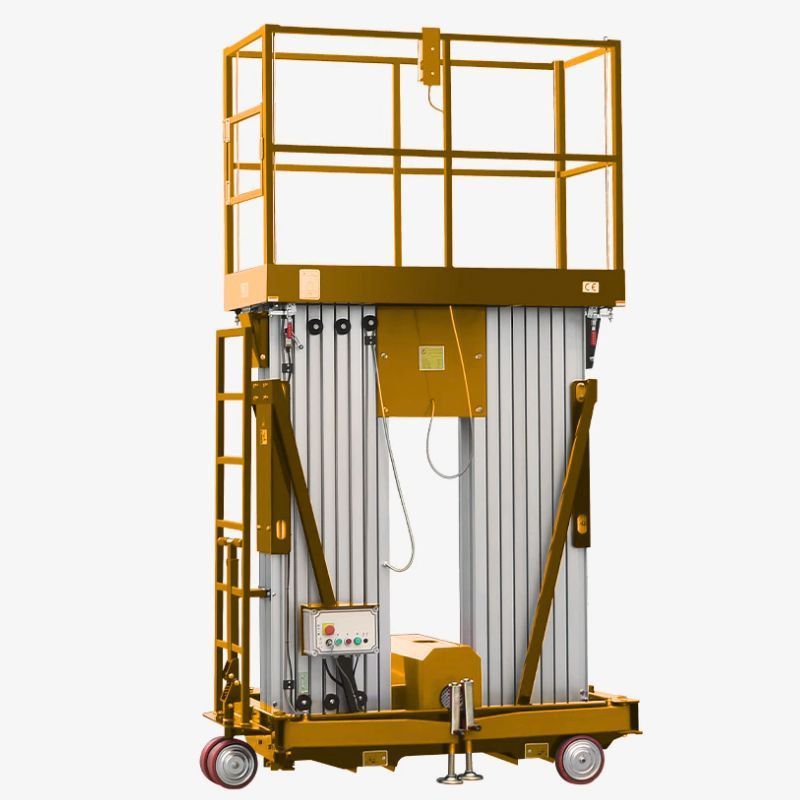

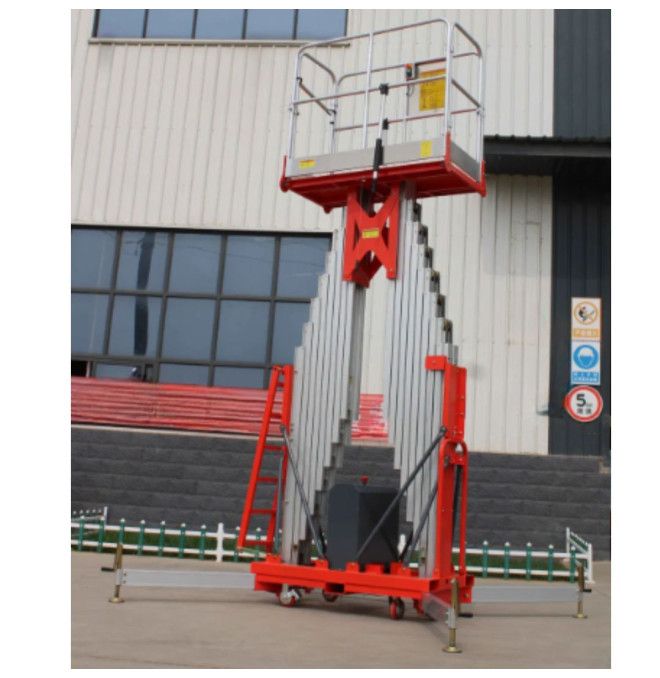

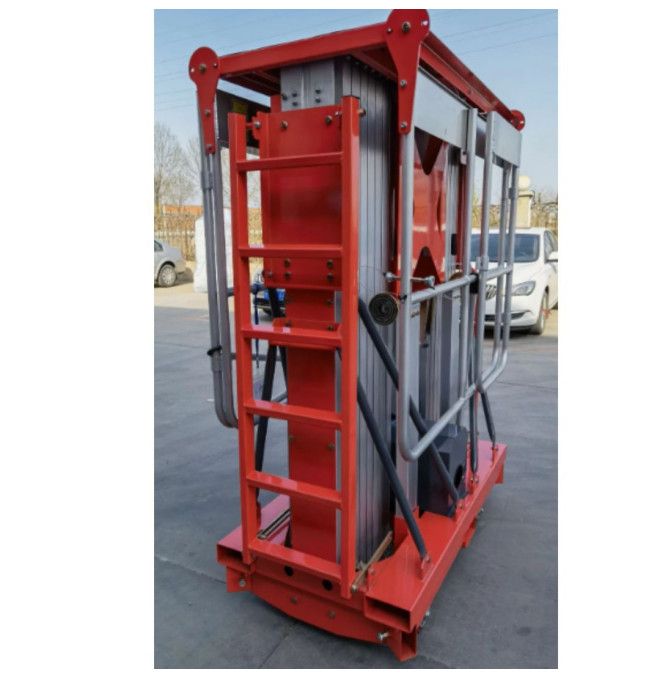

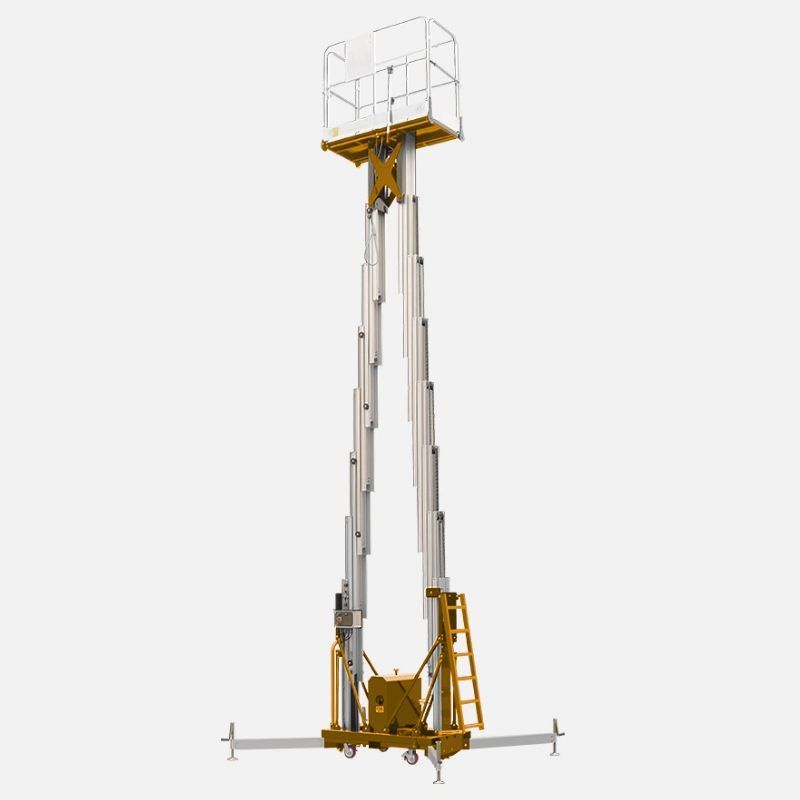

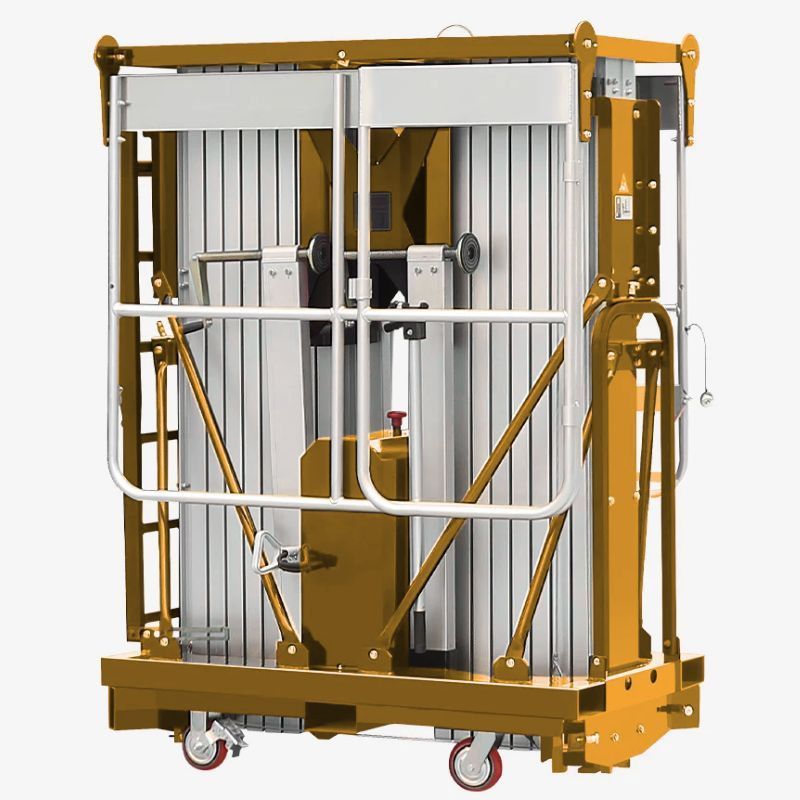

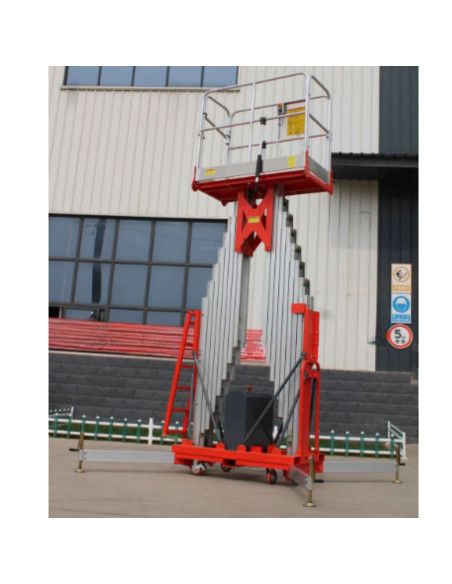

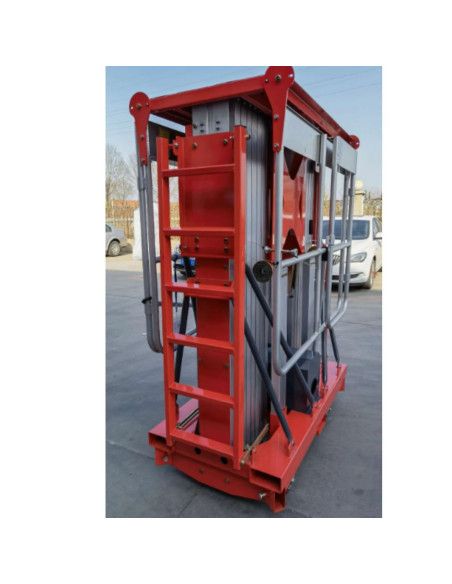

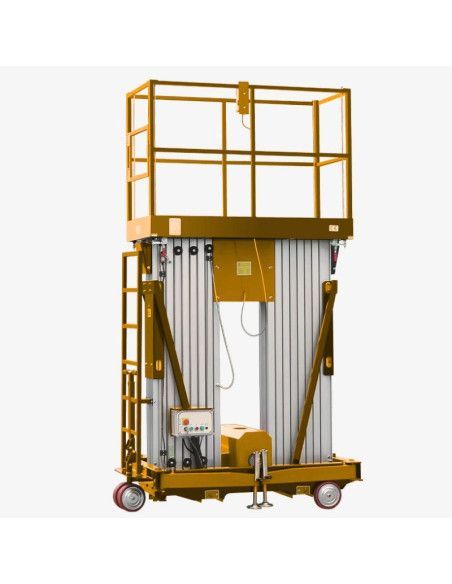

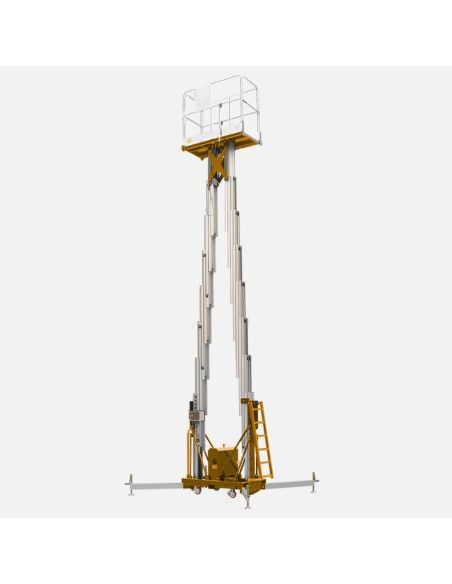

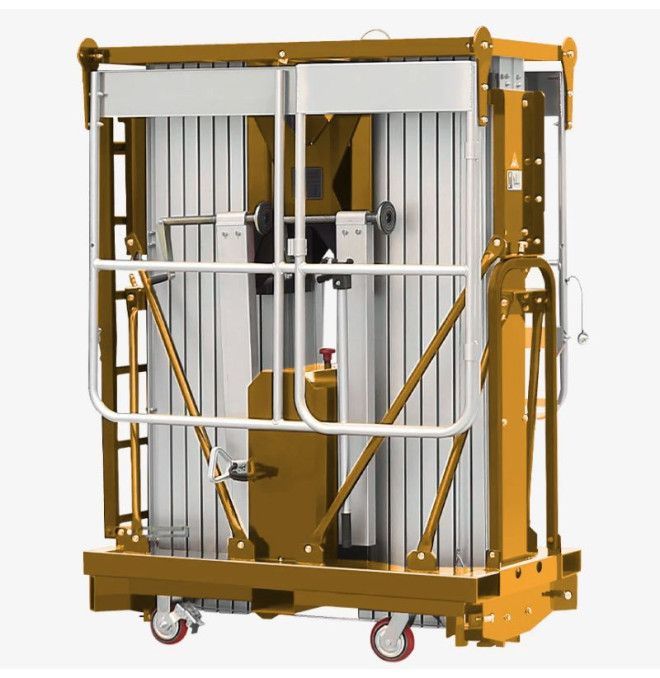

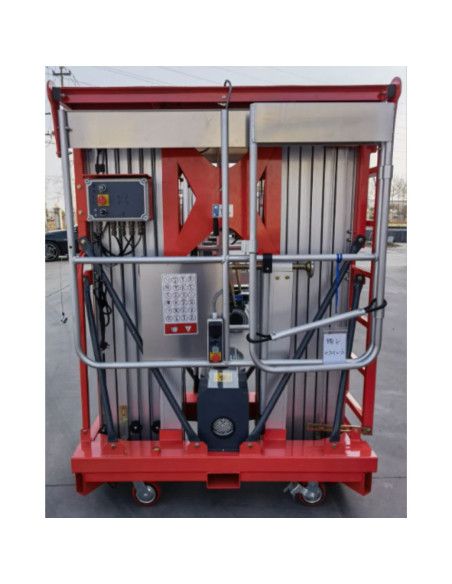

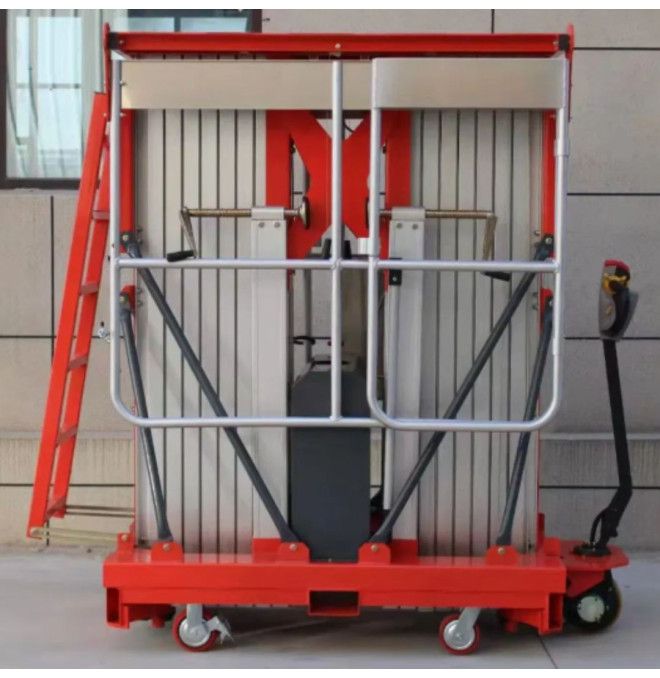

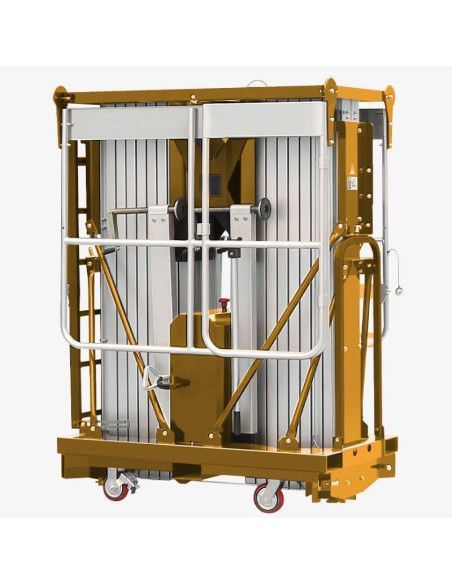

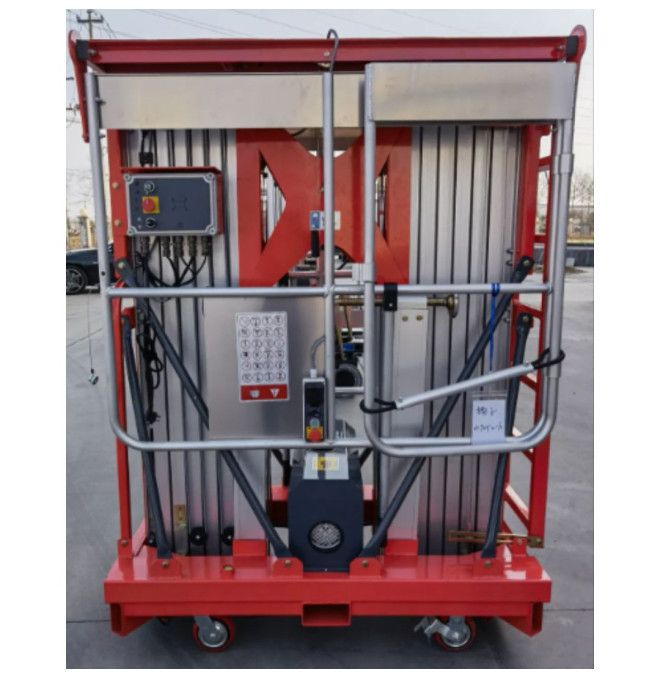

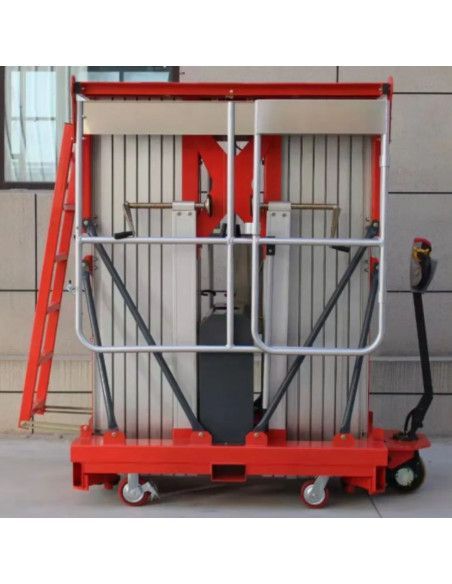

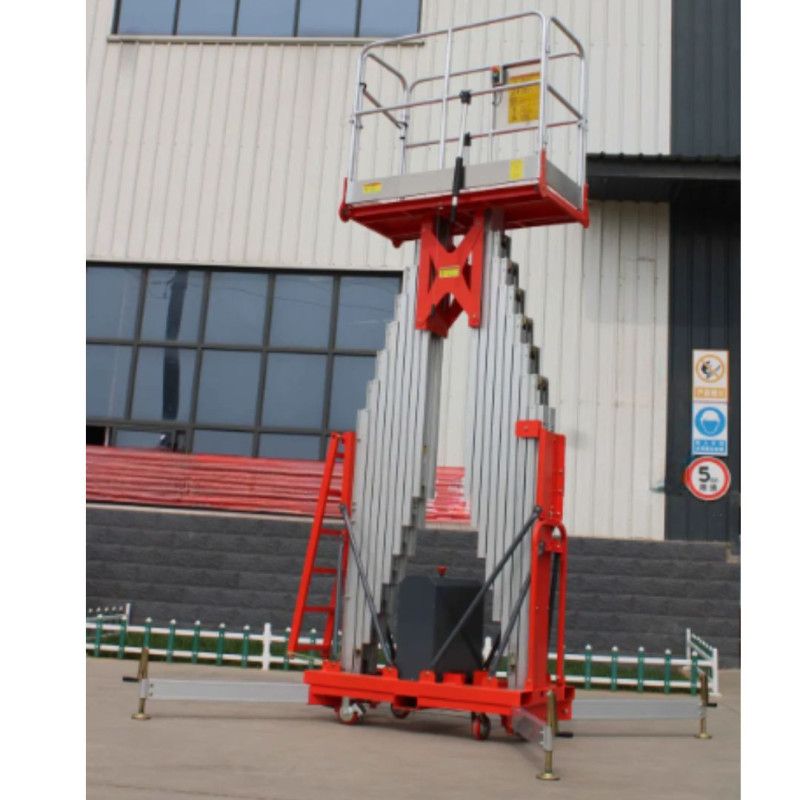

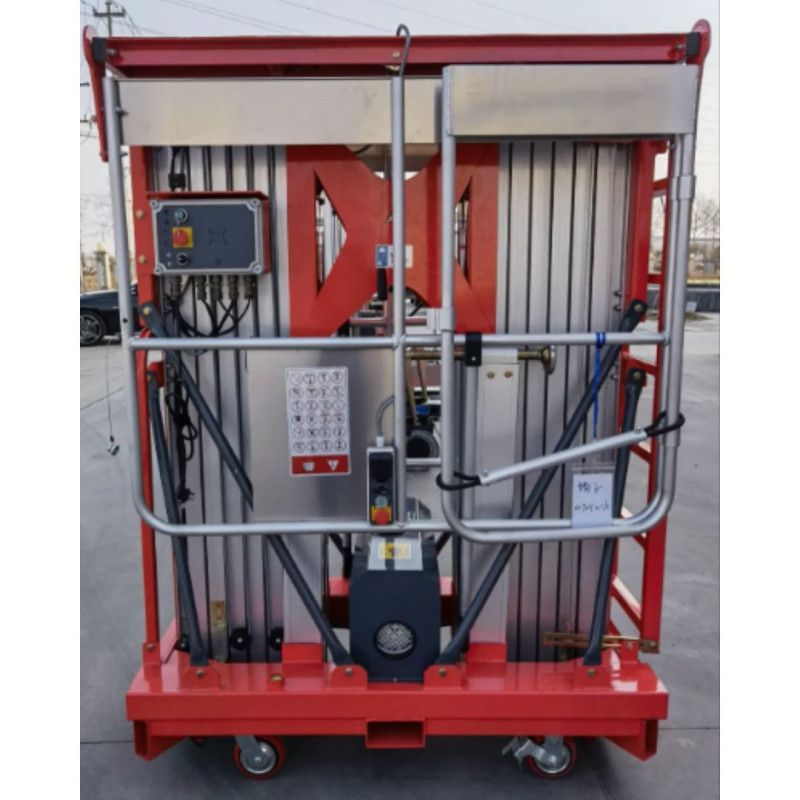

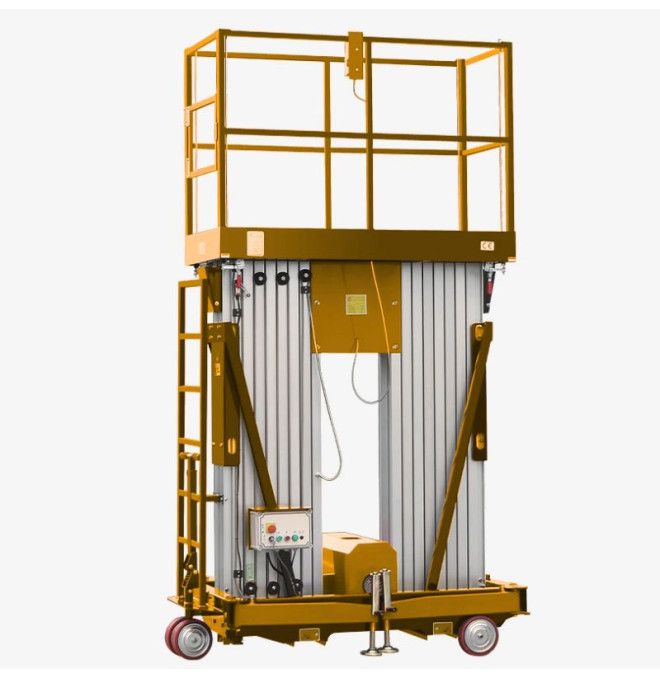

Lifting platform double vertical mast 14m-200kg (battery)

The 14m dual-mast Tymbia GTWY2-14 (DC) mobile lifting platforms, with 200kg load capacity, are designed to provide maximum stability and high performance. Ideal for indoor reduced spaces, such as works of construction, warehouses and maintenance facilities.

They optimize equipment performance and safety, with components designed to ensure stability, control and protection in hydraulic and lifting systems.

• Cylinder retention valve: avoids the involuntary descent of the hydraulic cylinder, ensuring greater stability and safety in load lifting.
• Bubble leveler: maintains the platform leveled during elevation or descent, compensating unevenness in the field or machinery. Ideal to avoid inclinations and ensure a safe working environment.
• Emergency stop button: Stop immediately the operation of the equipment in case of emergency, preventing accidents and reducing the risk of damage to machinery and personnel
• Removable stabilizer: designed for greater stability, is installed on the machine chassis during use and is safely stored on the side when not needed. Its interwoven design guarantees the optimal balance of the equipment.
• Control voltage: guarantees precise maneuverability, allowing the operator to direct the machine easily. Connected to the management system, it provides efficient control in any type of terrain.
• Hydraulic lifting system: It uses hydraulic oil for precise and powerful movement, ideal for handling heavy loads with softness and reliability.

Technical specifications:

• Charge capacity 200 kilos
• Occupants 2
• Maximum working height 16m
• Maximum height of platform 14m
• Total length 1.88m
• Total width 0.81m
• Total height 2.58m
• Dimension of platform 1,8m 0.7m
• Coverage of stabilizers 2,9m x 2,4m

OPTION

• DC Motor (kw) 1.6
• DC 2x12V
• Charger 12Vx15A
• Weight (DC) 942 kg
