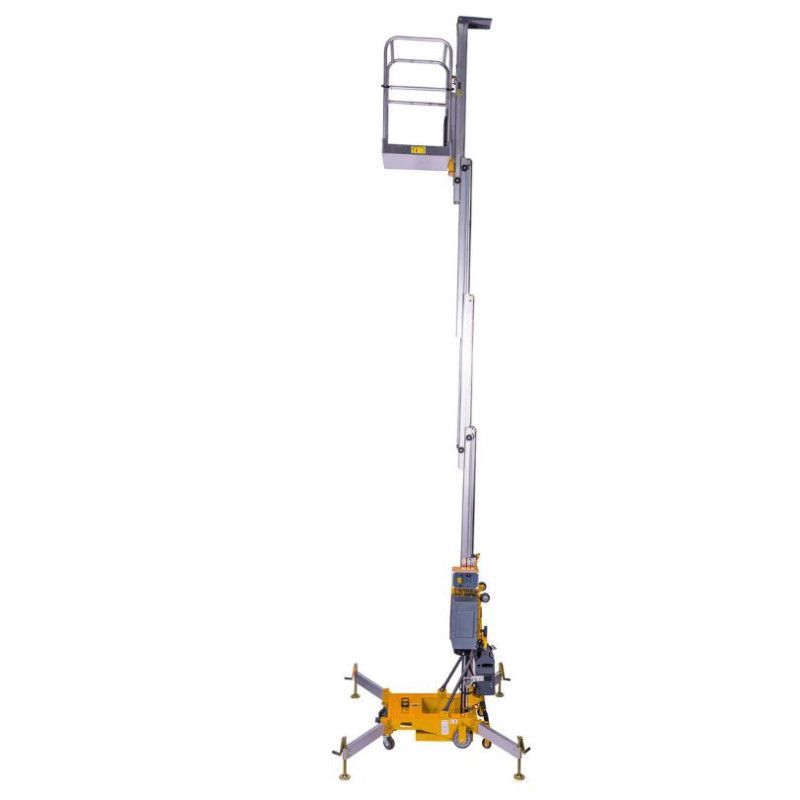

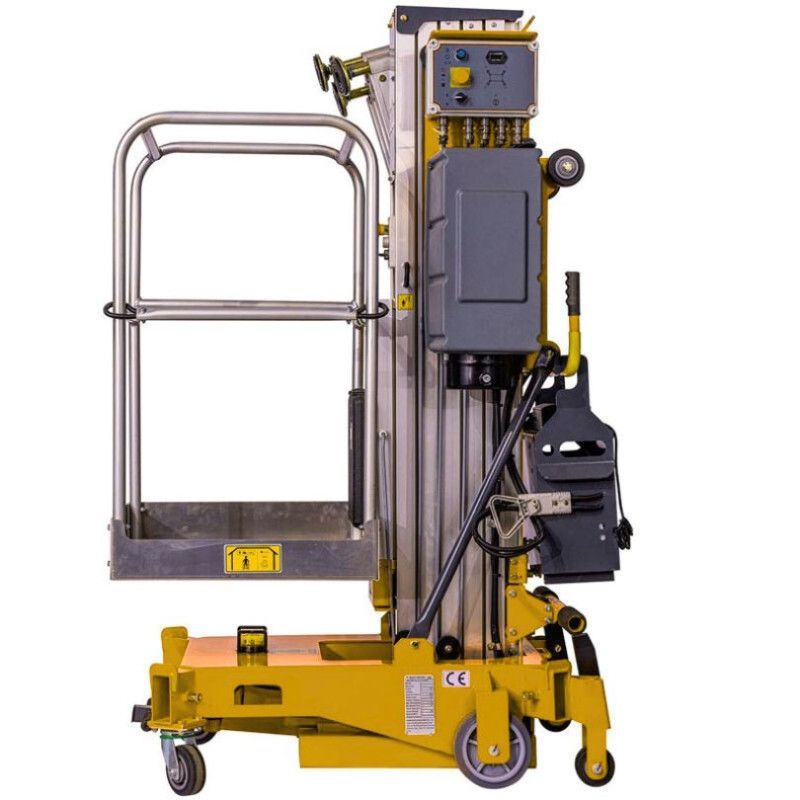

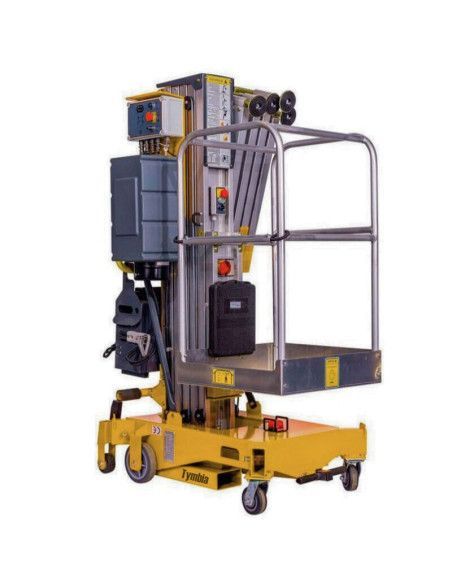

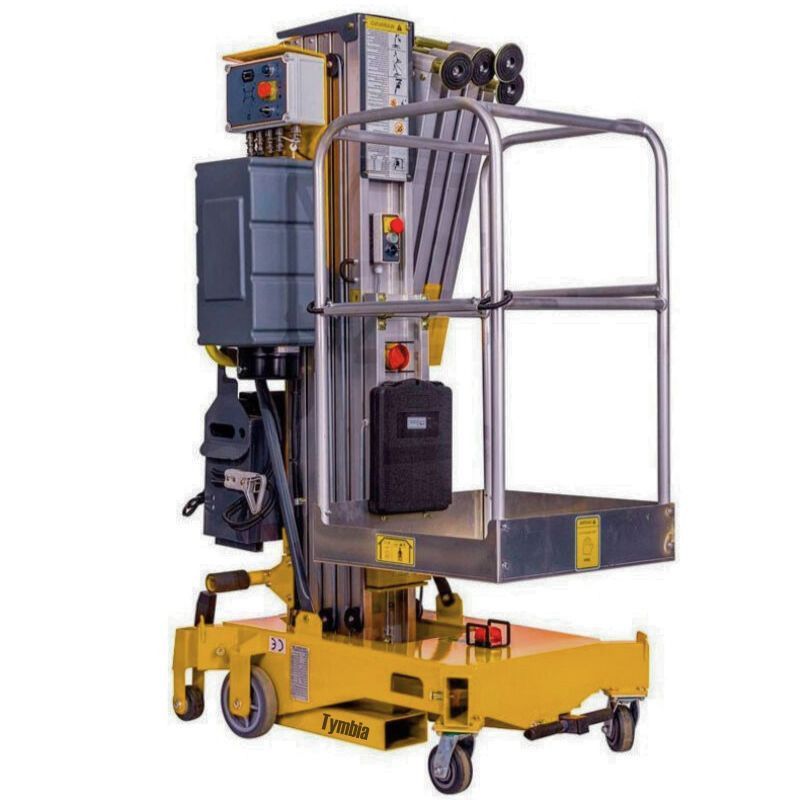

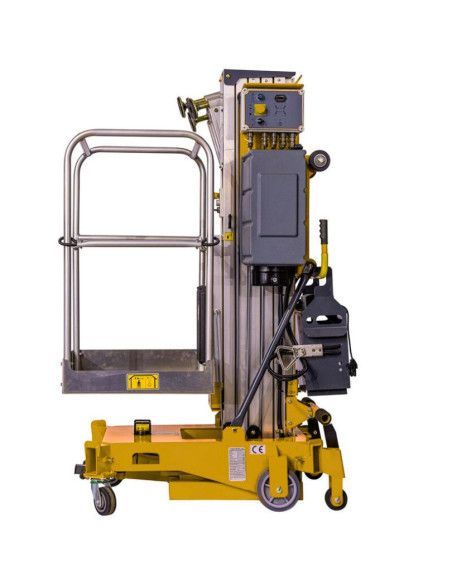

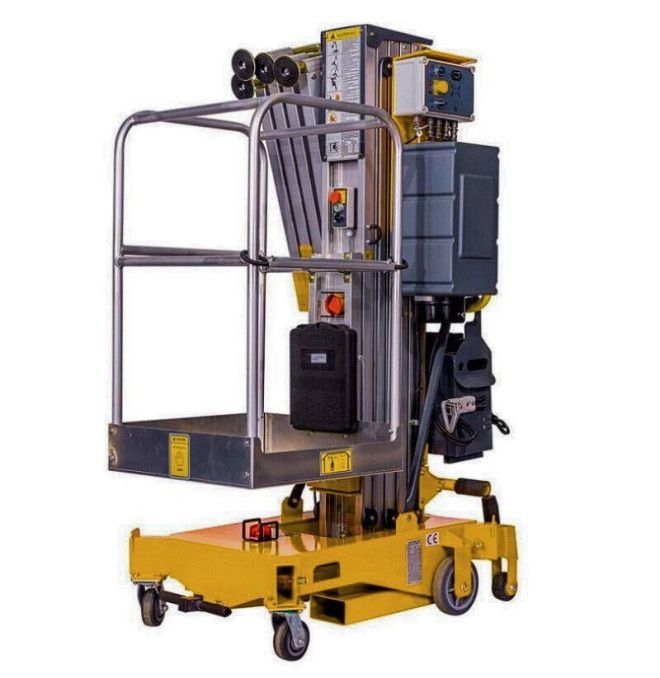

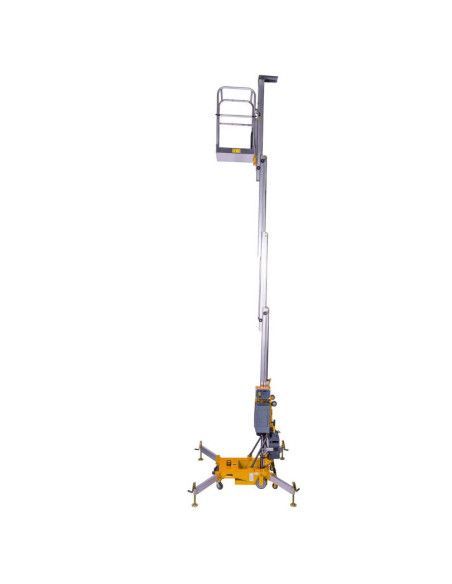

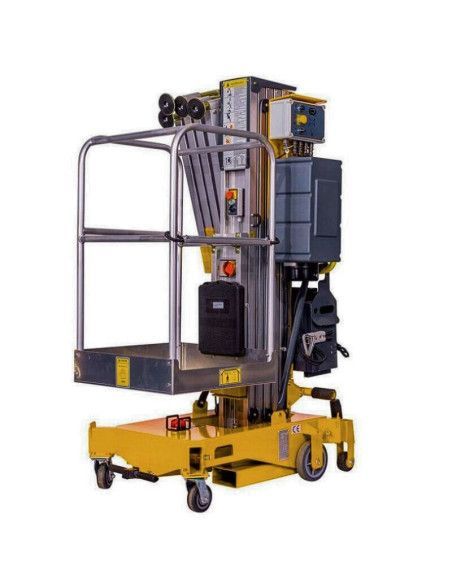

Lifting platform vertical mast 12m-120kg (battery)

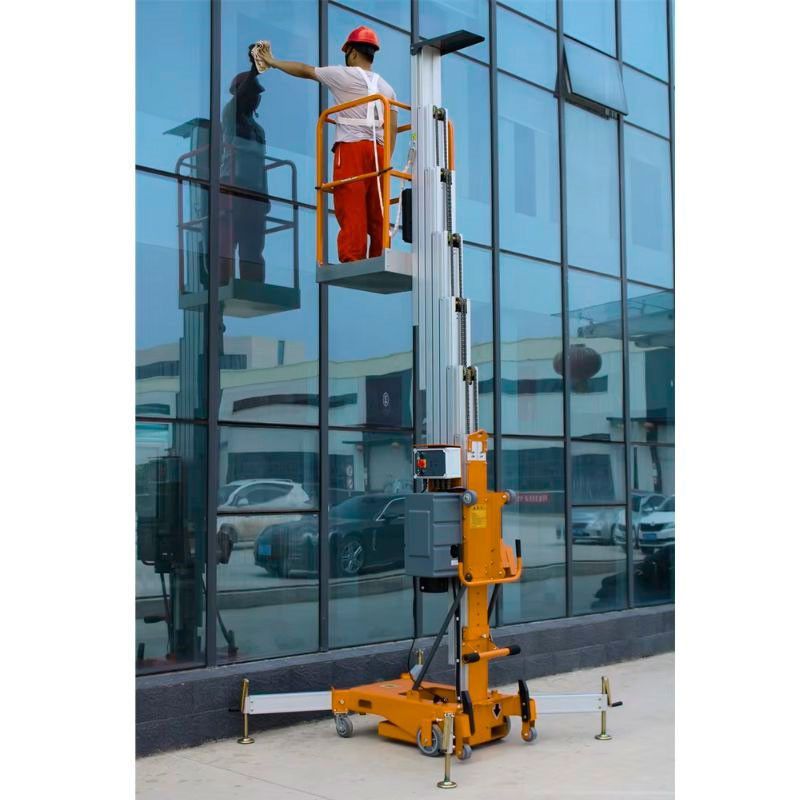

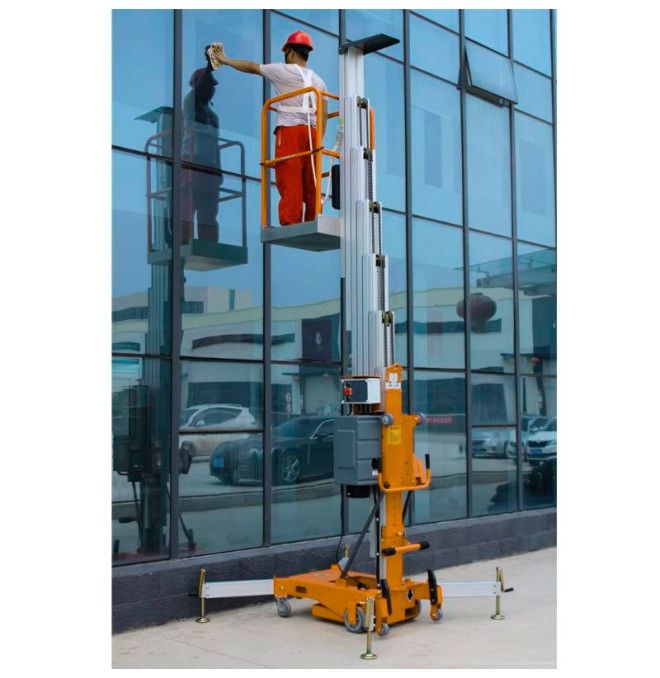

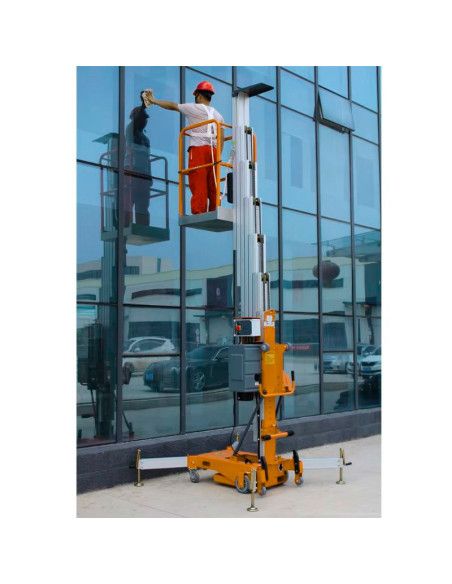

The lifting Platforms 12m mobile, with 120kg load capacity, are ideal for industrial spaces, combining convenience, performance and safety in a compact design, adapted to the requirements of intensive working environments. Its simple mobility and vertical lifting capabilities make this platform tool perfect for maintenance, repair and construction light in industrial areas with limited space.

Product advantages:

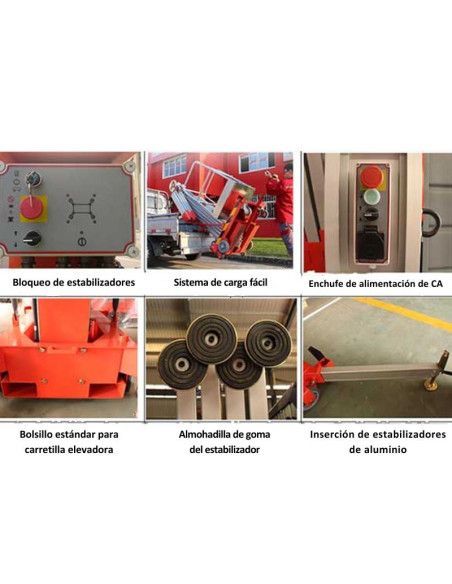

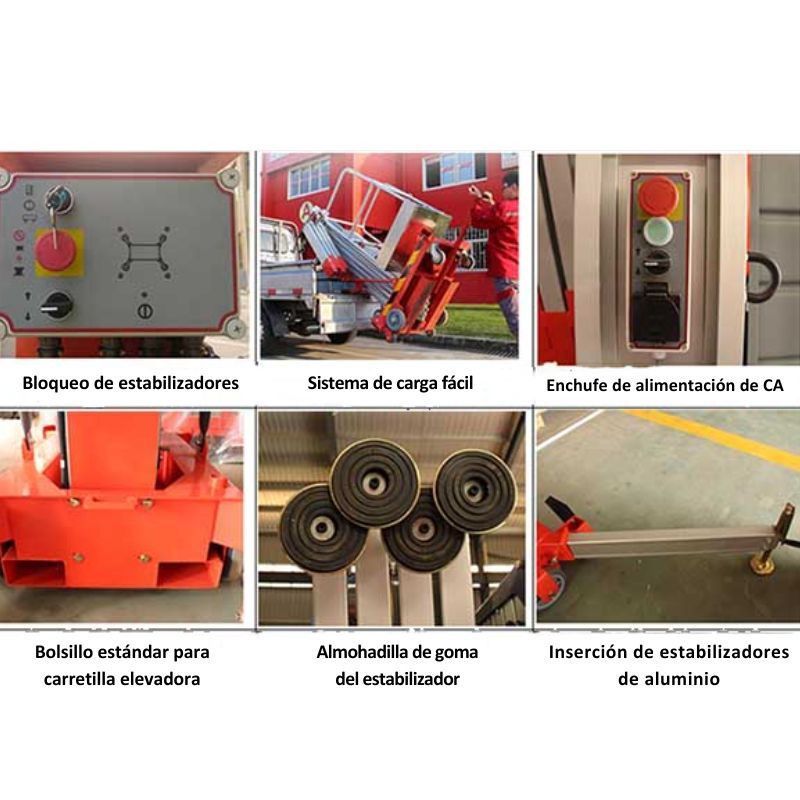

Improved security functions: the stabilizer locking system (outriggers) is an essential security function in mobile equipment such as cranes, air work platforms, arm elevators and other machinery that require stabilizers to operate safely. This system ensures that stabilizers are properly deployed and blocked before using the machine, avoiding dangerous situations caused by insufficient stability.

Improved stability: your locking system ensures that the machine cannot be used until it is in a safe and balanced position, significantly improving overall equipment stability during operation.

Reduction of operator errors: the system itself prevents the use of the equipment unless the stabilizers are correctly configured, minimizing human errors. This is especially critical in high-risk environments, such as works of construction, where operators could overlook or ignore this step.

Electric power on the platform: integrated electrical connection, which allows operators to use tools electric, lighting or other electronic equipment while working in height, without the need for additional cables or external power sources, improving efficiency and comfort in operations.

Technical specifications

• Maximum Working Height 14m
• Maximum Height of the Platform 12 m
• Carrying capacity 120kg
• Occupants                 1
• Dimensions of the platform 670x660 mm
• Weight 490kg
• Total height 2.78m
• Total width 0.76 m
• Total length 1.42 m
• Height of stabilizers 2.4 m x 2.2 m
• Battery Option (DC) 572kg

Power

• Battery voltage (DC) 12V
• Engine power (battery) 1.5KW
• Battery charge 12V/15A

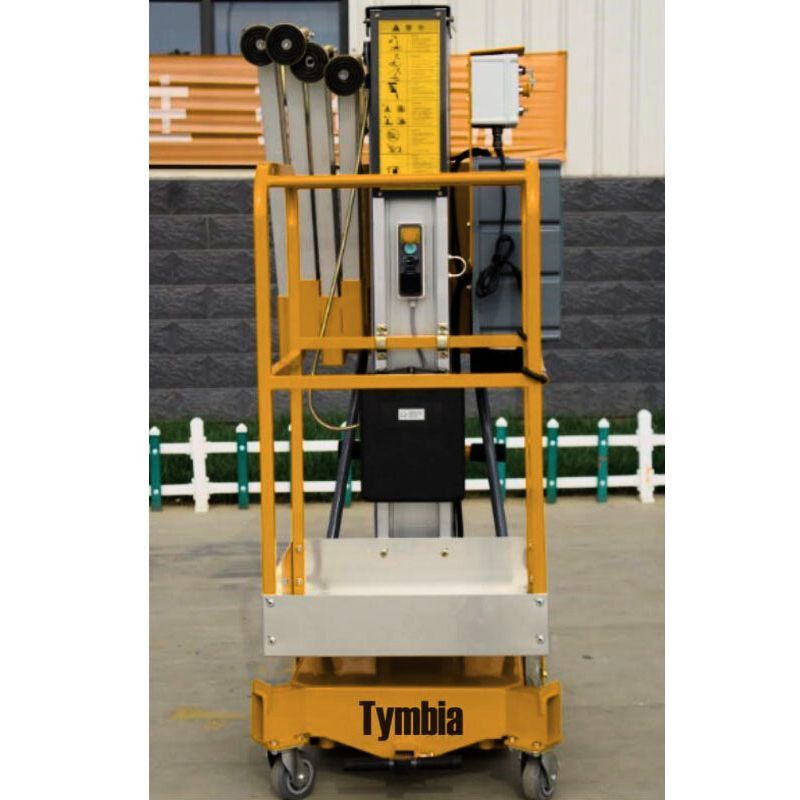

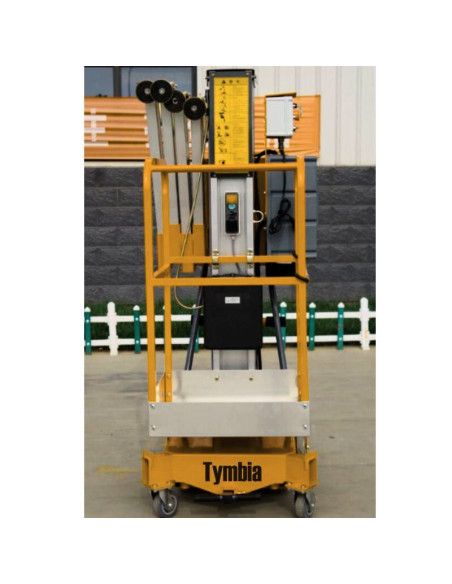

Why choose the Tymbia GTWY1-12 platform?

Because they are equipped with technological innovations that maximize functionality and security:

Cylinder retention valve: designed to ensure the safety and proper functioning of the lifting platform. This valve maintains the platform in its position even in case of hydraulic failure, providing precise control during lifting and down operations, and preventing security risks.

Riding bag: allows efficient and safe transport of machinery by using a forklift. This bag ensures that the truck forks can move the machine gently, avoiding damage and improving maneuverability in the workplace.

Bubble levelerThe following: guarantees the stability of the equipment and helps to correctly position the vertical lift of a single mast before lifting the platform to the desired height. This is vital in applications such as maintenance, construction and other high work, ensuring stable and safe operation at all times.

Choose our own lifting Platforms for industrial environments and ensures efficiency, security and precision in each project, maximizing results with equipment designed to exceed your expectations
