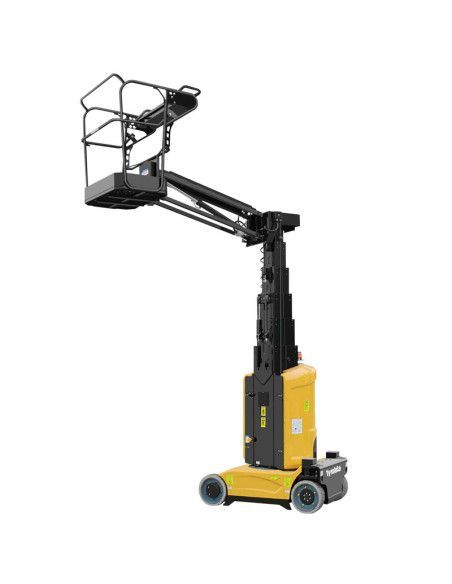

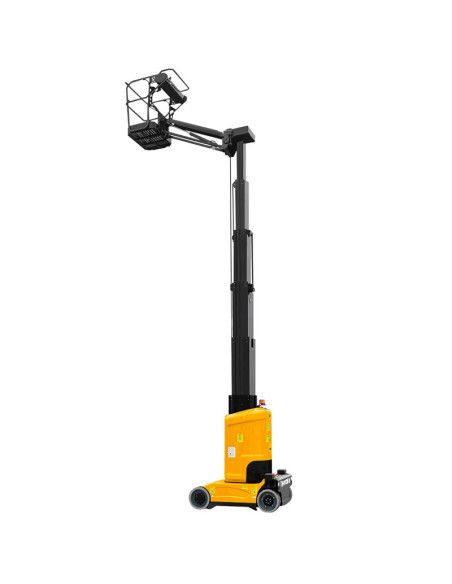

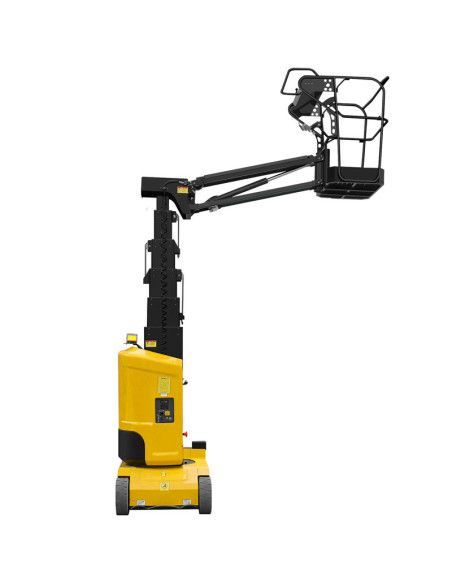

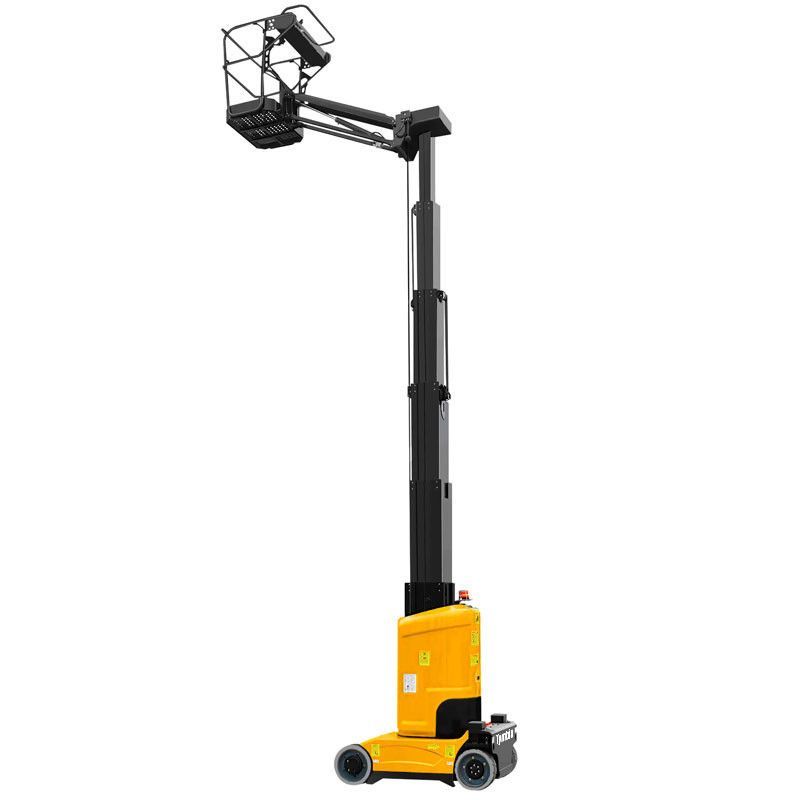

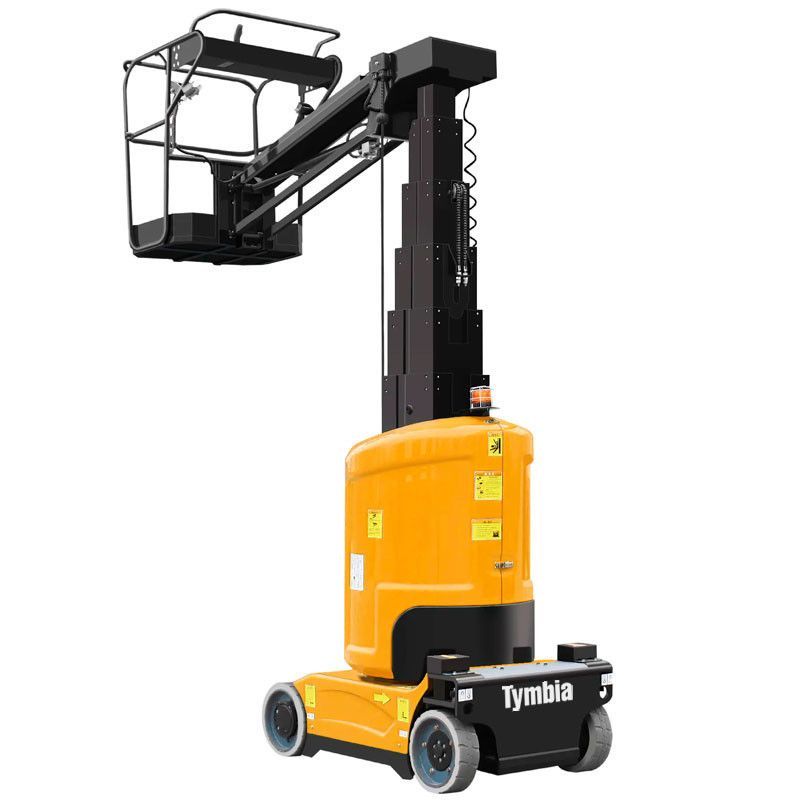

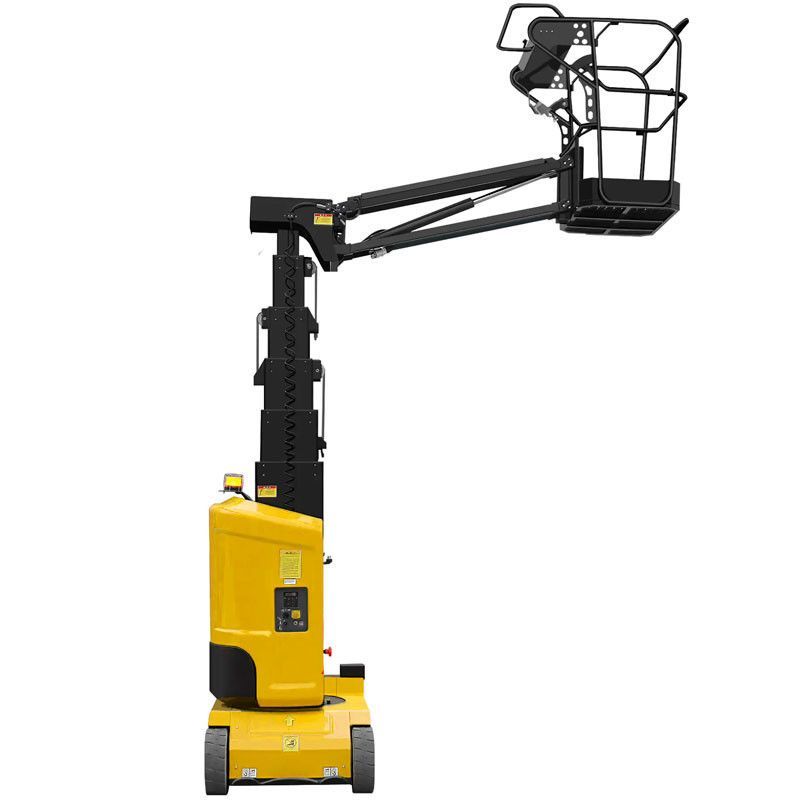

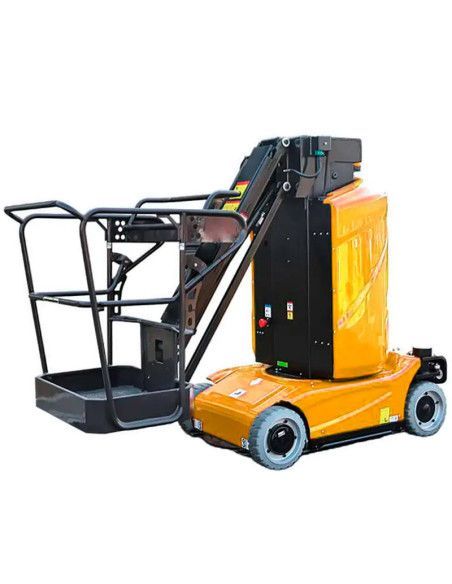

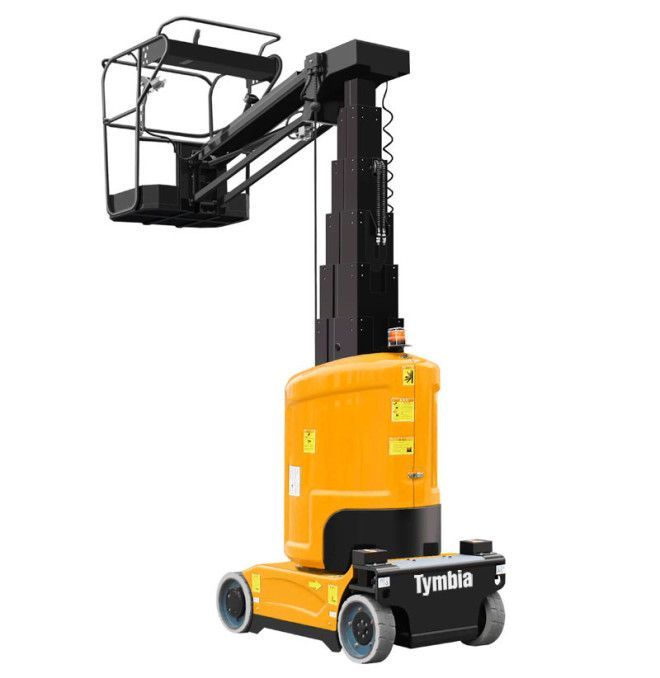

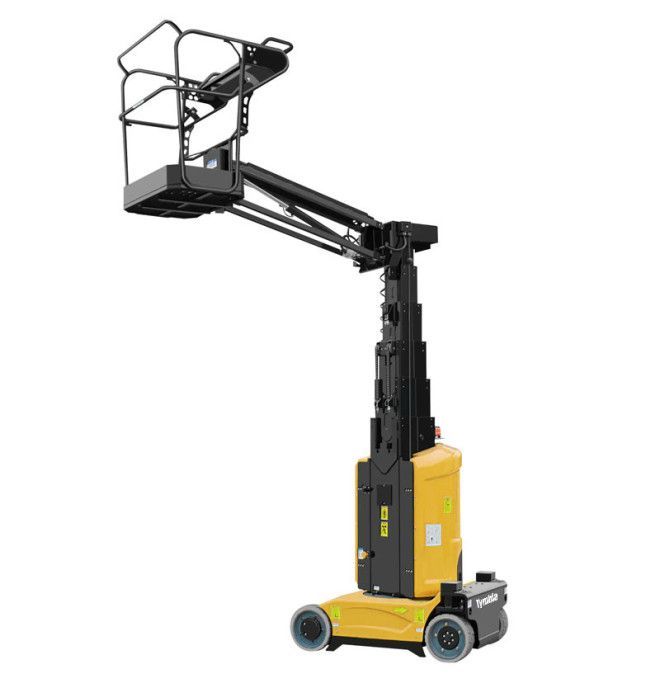

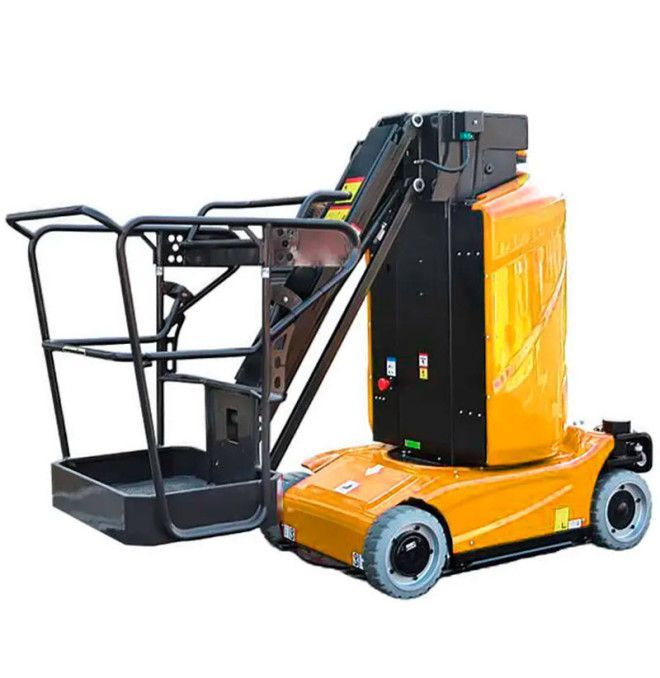

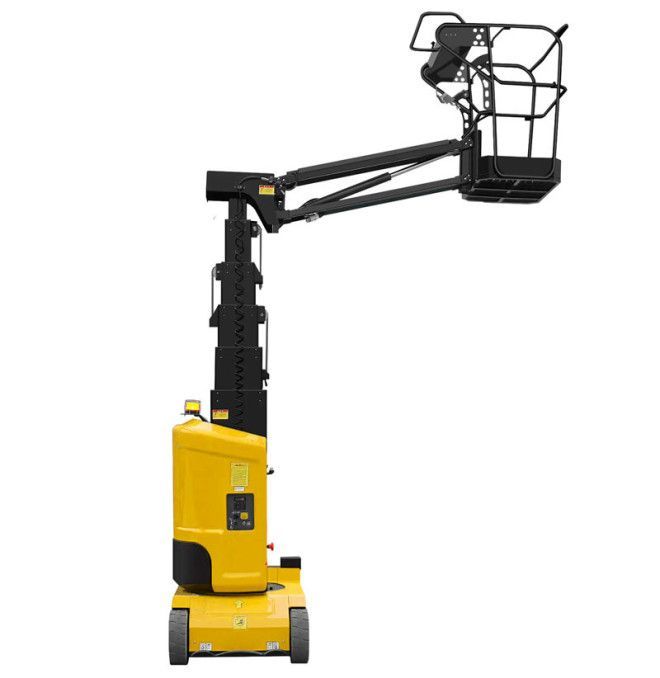

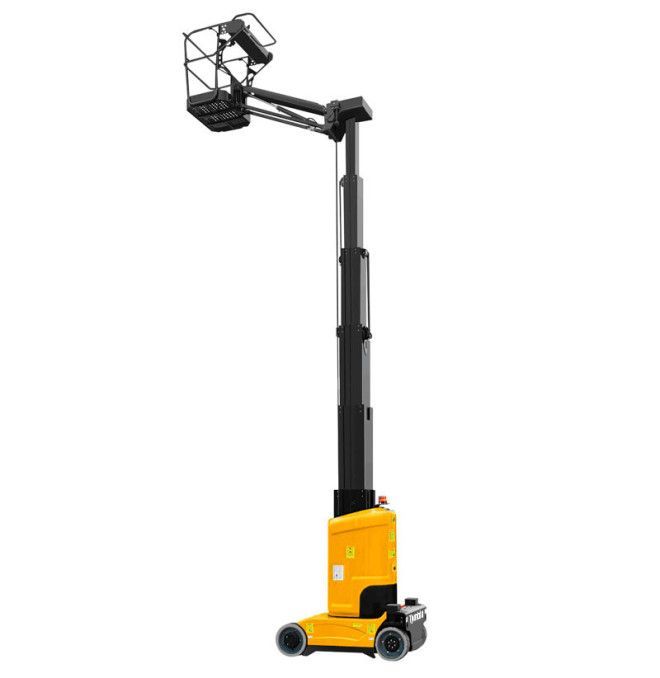

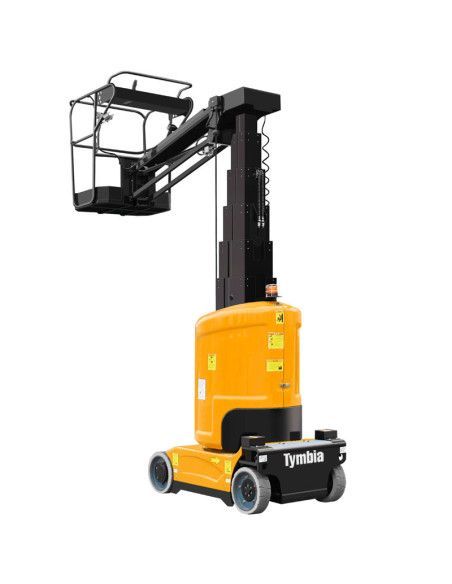

Lifting platform vertical mast with pen 9,2m-200kg

The lifting platform vertical mast mobile with 9.2m pen, is designed to maximize efficiency and protect the working environment and stands out for:

General features:

• Operations that require high precision and flexibility.
• Controls with proportional joystick for total accuracy.
• Doors with auto-block for greater security.
• Maximum driving capacity to optimize times.
• Tyres that leave no marks, ideal for delicate surfaces.
• Traction and direction in two wheels for reliable handling.
• Automatic brake system and emergency descent system for maximum safety.
• Pipe blast system.
• Failure diagnostic system for efficient preventive maintenance.
• Inclination and movement alarms for warnings in real time.
• Indicator load, automatic pothole protection, and intermittent headlights for additional security.
• Clamping points for harnesses and capacity for fixing and elevation.
• On-site load detection system to ensure safe use.
• Emergency stop button always accessible.
• Ideal for small industrial spaces, indoor and outdoor maintenance.

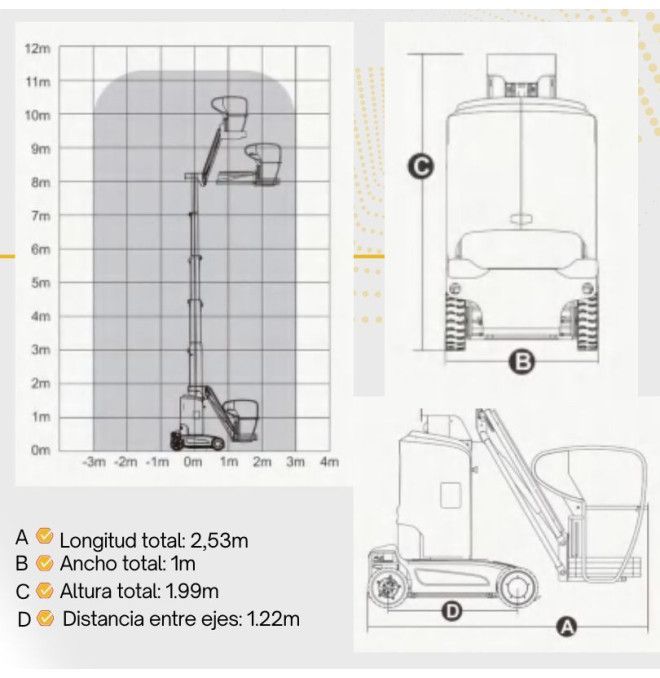

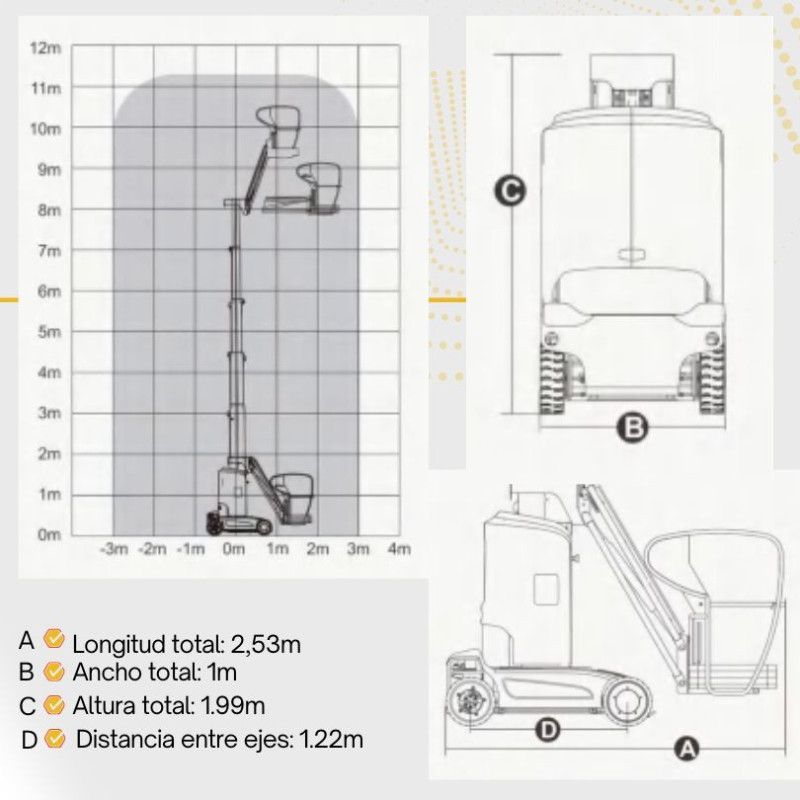

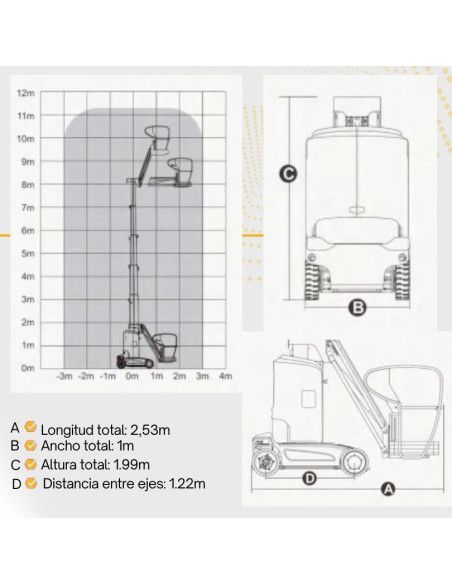

Technical specifications:

• Maximum Working Height 11,2m
• Maximum Height of platform 9,2 m
• Maximum Horizontal Range 3m
• Up and above the height 7,89m
• Height of the rail 1.1 m
• Total length 2,53m
• Total width 1.0 mm
• Total height (folded) 1.99m
• Dimension of platform 0,62x0,87 m
• Distance to the ground (folded) 70mm
• Distance to the ground (elevada) 19mm
• Distance between axles 1,22m
• Charge capacity 200 kilos
• Occupants 2
• Rotation of turret 345
• Displacement rate (folded) 4.5 km/h
• Travel speed (increased) 0.5 km/h
• Speed up/down 42/385
• Maximum Work Earring X-25, Y-2.5"
• Plains 381 127 mm
• Driving motor 24 V/9 kW
• Lift motor 24 V/3 kW
• Battery 24 V/240 Ah
• Charger 24 V/30 A
• Weight 2950kg
