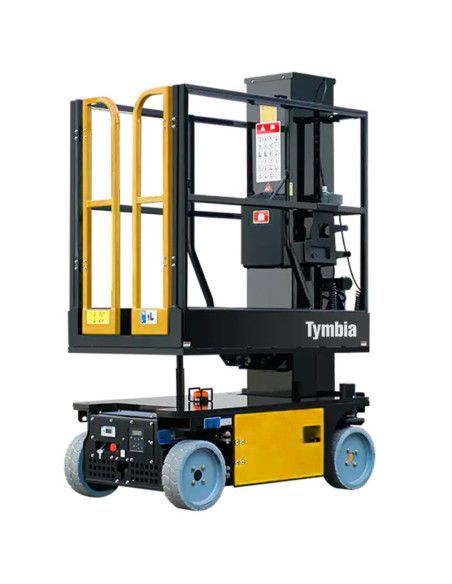

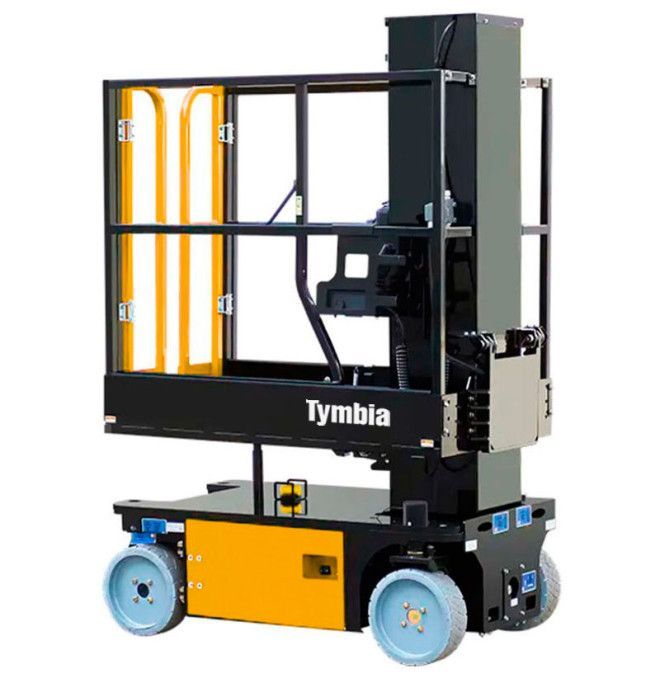

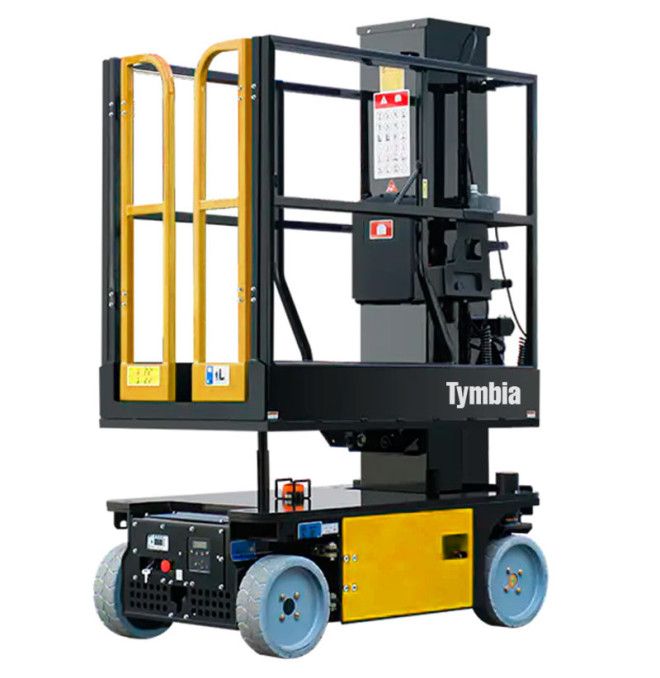

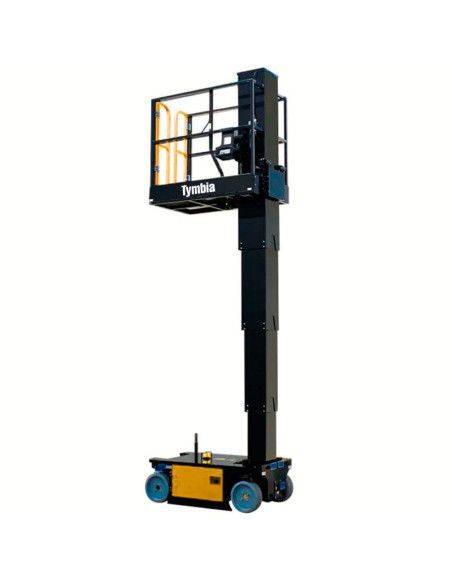

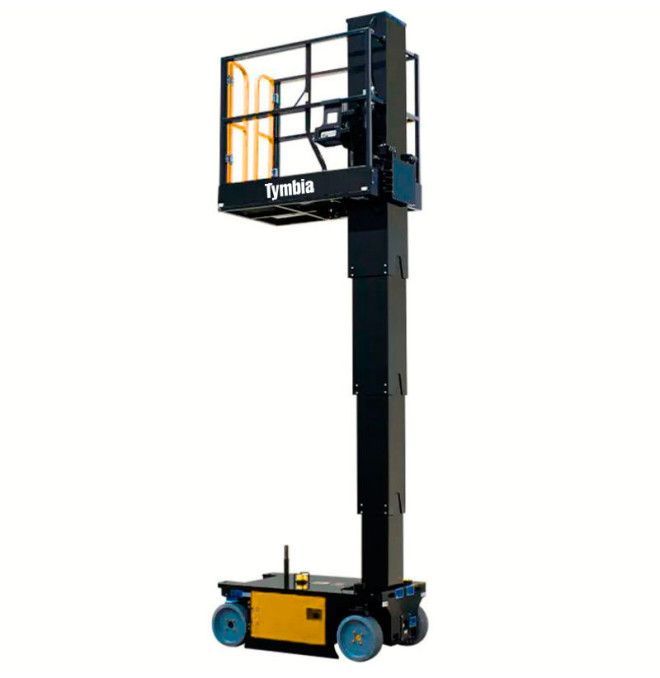

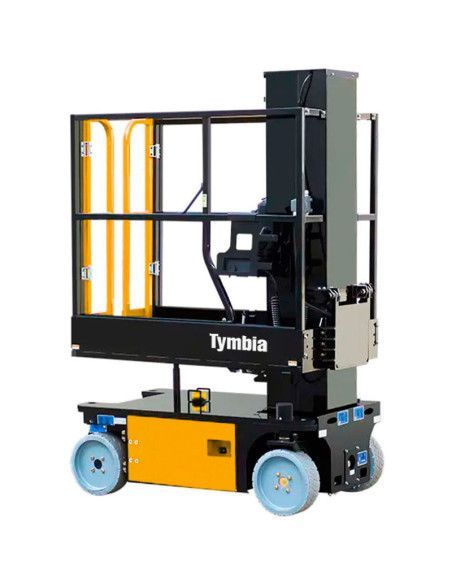

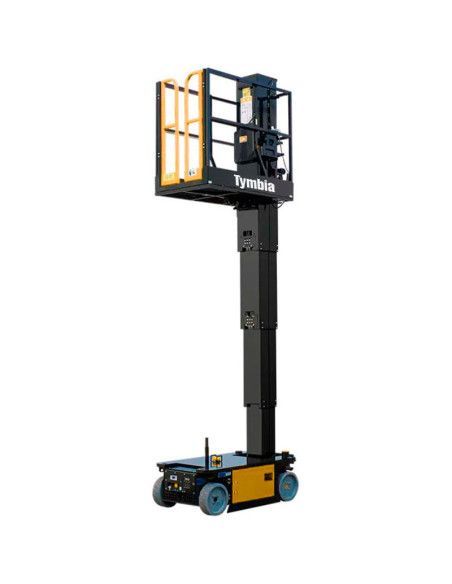

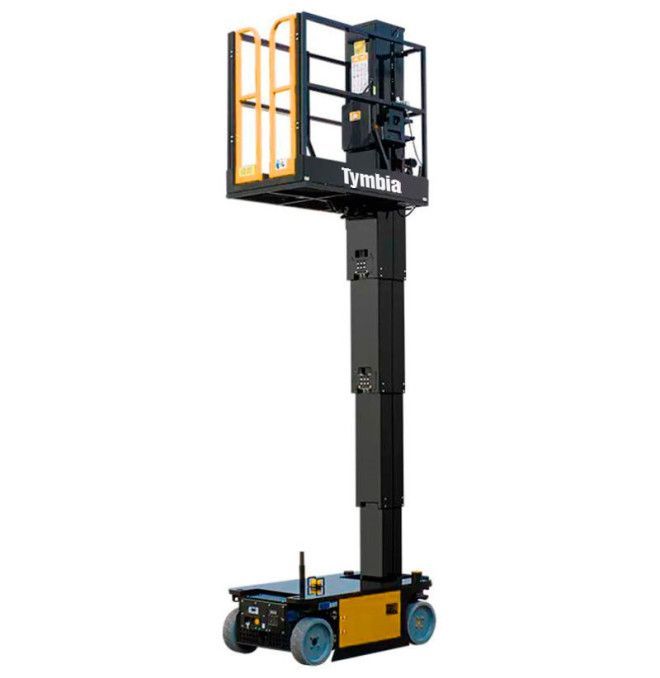

Lifting platform vertical mast with arm 4,8m-227kg

The lifting platform vertical mast mobile with 4.8m arm, is characterized by its compact and agile design, offering a very precise elevation and exceptional handling even in the areas of difficult access, becoming an ideal solution for indoor access teams, such as the AWP (Air Workform) and MEWP (AWP) platformsLifting platform Personnel Field). Your Extendable Platform provides additional space for tools or materials, optimizing productivity in each task.

Key features:

• Proportional controls for precise handling.
• Automatic protection against potholes for greater safety.
• Maximum displacement capacity to save time.
• Tyres that leave no marks, ideal for indoor soils.
• Automatic brake system for greater stability.
• Emergency downturn system, ensuring safety at all times.
• Accessible and reliable emergency stop button.
• Cylinder retention valve to prevent unexpected falls.
• Integrated diagnostic system that facilitates preventive maintenance.
• They combine ease of operation with advanced maneuverability, allowing fast, safe and efficient maintenance work.

These elevators are the perfect solution to optimize industrial processes, increase security and improve efficiency in demanding working environments.

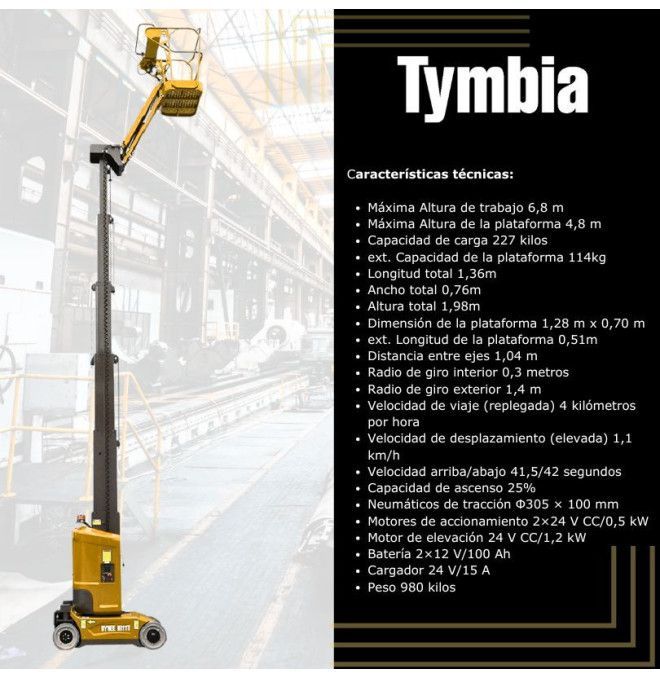

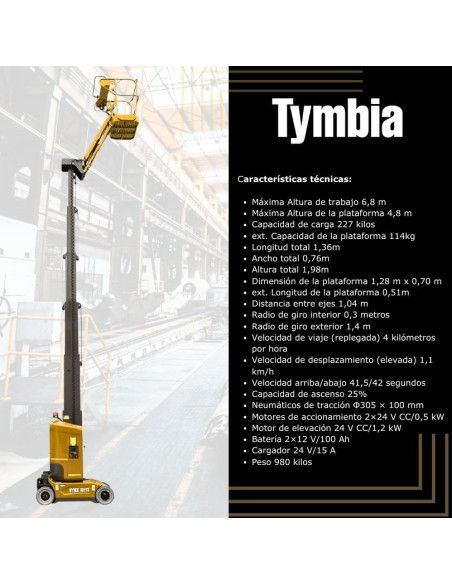

Technical specifications:

• Maximum Height of the platform 4,8 m
• Maximum Working height 6.8 m
• Load capacity 227 kilos
• Platform capacity 114kg
• Total length 1.36m
• Total width 0,76m
• Total height 1.98m
• Dimension of the platform 1,28 m x 0,70 m
• Platform length 0,51m
• Distance between axles 1.04 m
• Internal turning radius 0.3 meters
• External turning radius 1.4 m
• Travel speed (folded) 4 kilometres per hour
• Displacement speed (elevada) 1.1 km/h
• Speed up/down 41,5/42 seconds
• Promotion capacity 25%
• Traction tyres Ф305 × 100 mm
• 2×24 V drive motors CC/0.5 kW
• Lift motor 24 V CC/1.2 kW
• Battery 2×12 V/100 Ah
• Charger 24 V/15 A
• Weight 980 kilos

Take your productivity to new levels with the best technology on access platforms!
